Product Type Quick Change Tool Post Set for Lathe
Brand Vevor
Model 250-2008 (equivalent 250-200(8))
Category Lathe accessory (non-motorized power tool)
Intended Use Turning, facing, boring, knurling, parting on lathe
Number of Pieces 8 pieces (1 piston tool post + 5 holders + 2 additional tool holders)
Lathe Capacity Swing from 10 to 15 inches (254 to 381 mm)
Max Tool Height Approximately 1 inch (25.4 mm) depending on holder
Clamping Range From 3/16 to 5/8 inch (4.8 to 15.9 mm)
Main Tool Holder Dimensions (LxWxH) Approximately 2.63 x 1.75 x 1 inch (67 x 44 x 25 mm)
Approximate Weight 2.5 kg (complete set)
Power Supply None (manual tool)
Material Hardened and ground steel
Main Functions Quick tool change in seconds, maximum rigidity to avoid vibrations, increased productivity, maintenance-free operation
Maintenance Fully sealed, no maintenance required; clean with a dry cloth after use
Rust Protection Rust preventive oil applied at factory; oil leaks may occur
Safety Check clamping before each use; do not exceed lathe speed limits
Spare Parts Available from manufacturer; contact Vevor for repairs
Warranty Manufacturer warranty included (see certificate provided)
Box Contents 1 piston tool post, 5 holders (references 250-200 to 250-210), 2 additional tool holders (250-201T)

Frequently Asked Questions - 250-2008 Vevor

How to install the quick change tool post on my lathe?
Remove the existing tool holder, clean the ways, insert the post into the T-slot, and tighten with the locking screw. Ensure the tool height is adjusted using the adjustment knob.
What types of holders are included in the 250-2008 set?
The set includes a turning and facing tool holder, a boring tool holder, a heavy-duty boring bar holder, a universal tool holder for parting blades, and additional holders. See the manual for the complete list.
What is the clamping capacity of the tool holders?
The clamping range is from 3/16 to 5/8 inch (approximately 4.8 to 15.9 mm) depending on the holder used. Each holder is designed for a specific tool size.
How to adjust the tool height?
Use the adjustment knob located on top of the post. Turn it to raise or lower the piston until the tool is at the desired height, then tighten the lock.
My lathe has a 12-inch swing, is this set compatible?
Yes, the model 250-2008 is designed for lathes with a swing from 10 to 15 inches (254 to 381 mm). Check the maximum tool height to ensure compatibility.
Is there any maintenance required?
No regular maintenance is needed as the mechanism is fully sealed. Simply clean the set with a dry cloth after use to remove chips and oil.
Why is oil leaking from the post?
Rust preventive oil is applied at the factory to protect parts during transport. Small leaks are normal; wipe off excess oil with a cloth. This does not affect performance.
Can I use this set for knurling?
Yes, if you use a suitable square tool, the tool holder can be used for knurling as well as for facing, external cutting, and boring.
How to replace a defective tool holder?
Replacement parts are available from Vevor. Contact customer service with the model number and part reference (see manual for references).
Where can I find the complete user manual?
The manual is available for free download on the notice-facile.com website. You can also request a translation in your language via the form on the page.

User questions about 250-2008 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Power tool in PDF format for free! Find your manual 250-2008 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 250-2008 by Vevor.

USER MANUAL 250-2008 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Quick Change Tool Post Set User Manual

MODLE: 250-100(6), 250-200(6), 250-100(8), 250-200(8)

250-000(6), 250-111(6), 250-222(6),

250-111(8), 250-222(8)

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: 250-100(6), 250-200(6), 250-100(8), 250-200(8), 250-000(6), 250-111(6), 250-222(6), 250-111(8), 250-222(8)

Vevor 250-2008 - Quick Change Tool Post Set User Manual - 1

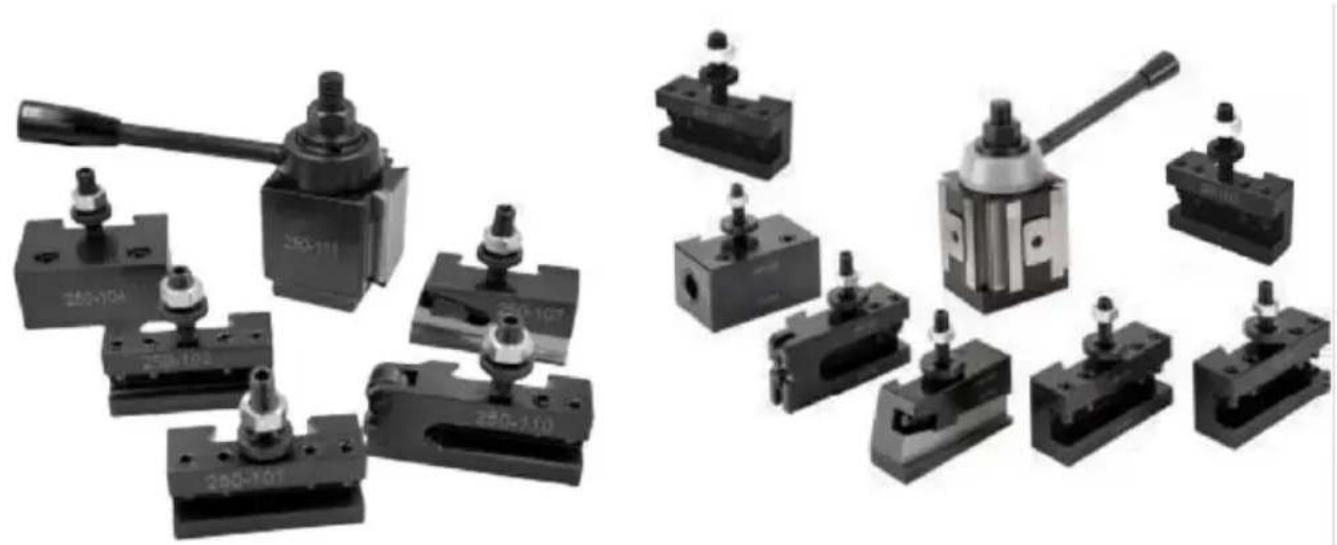

natural_image Collection of industrial cutting tool holders and clamps, no visible text or symbols

(The picture is for reference only, please refer to the actual obje

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

QUICK CHANGE TOOL POST

Features:

● All working parts hardened & ground.
● Maximum rigidity for chatter-free performance. No time wasted with shims.
● Increases productivity of all lathe operations.
- Completely sealed for maintenance free operation.
- Change tools in seconds.

Vevor 250-2008 - Features: - 1

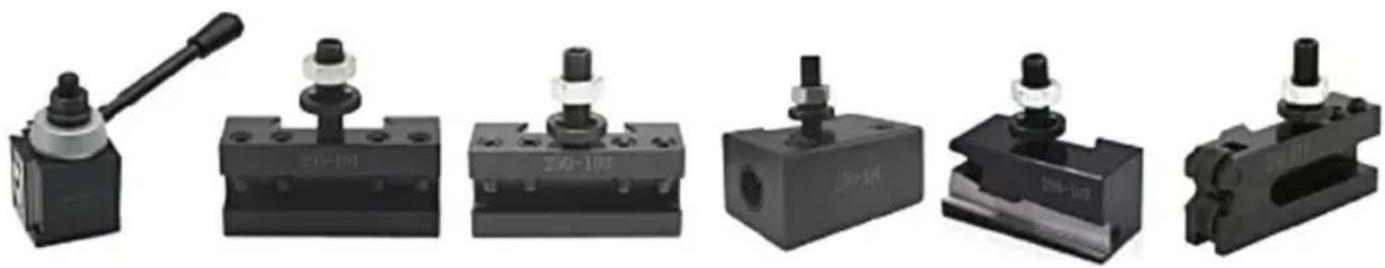

natural_image Six black industrial cutting tool holders with different mounting brackets and mounting tips, shown from different angles (no visible text or symbols)

◆ PISTON TYPE TOOL POST SETS

natural_image Five black industrial control switches with no visible text or symbols on their body, arranged in a row (no readable labels or symbols)

WEDGE TYPE TOOL POST SETS

Each set consists of one pision type tool post and one of each of

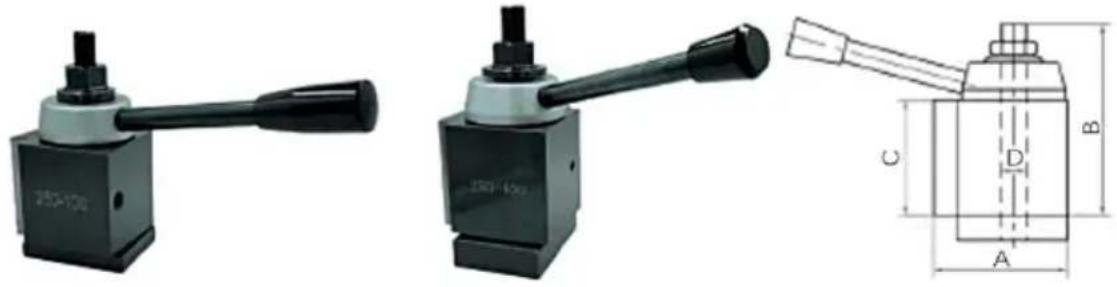

Quick Change Tool Post Piston Style-accessories
Vevor 250-2008 - WEDGE TYPE TOOL POST SETS - 1

natural_image Technical drawings of three mechanical components with dimension labels (A, B, C) and part numbers (150-100), no readable text or symbols beyond labels.
ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-100122- 1/23-7/82 -1/49/16
250-20010-1534 - 5/82 - 3/45/8
250-30013-183 - 3/85 -1/833/4
250-40014-2046 -1/43 5/87/8

Quick Change Tool Post Wedge Style
250-000 250-111 250-222 D C A B

ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-000121.752.951.570.40
250-11110-152-1/23-7/82-1/49/16
250-22213-1834-5/82-3/45/8
250-33314-203-3/85-1/833/4
250-44417-4846-1/43-5/87/8

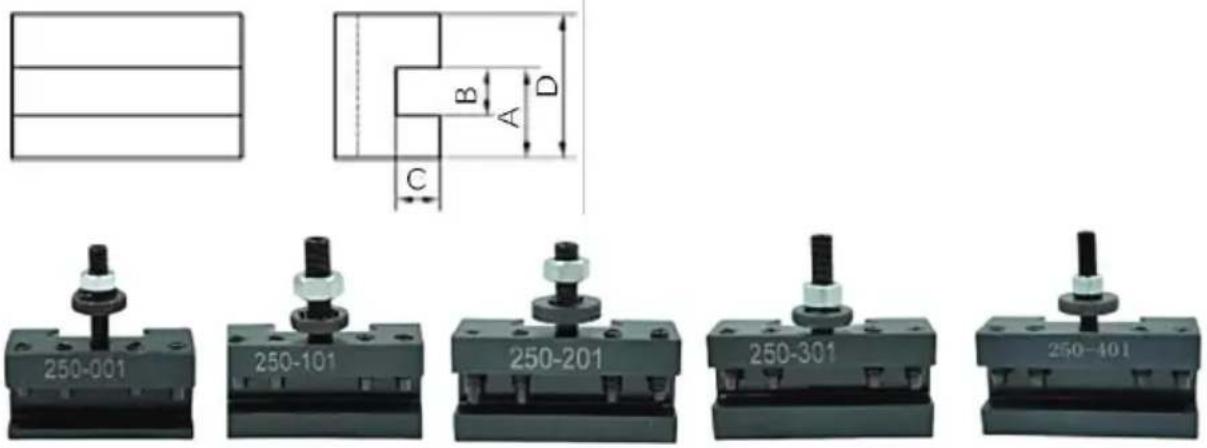

Turning and facing holder
250-001 250-101 250-201 250-301 250-401

ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-0010.680.50.3271.13/16—1/2
250-10111/229/641—1/23/16—1/2
250-2011—1/85/81/21—3/41/4—5/8
250-3011—7/163/45/82—1/81/2—3/4
250-4011—12/3213/42—1/21/2—1

Suitable for any size smaller than max. Height h.

Turning and facing holder

d B A D C

Vevor 250-2008 - Turning and facing holder - 2

natural_image Close-up of a mechanical clamp or fixture with a black base and white cylindrical component, labeled '250-102T' (no other text or symbols visible)
ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-102T1"5/8"1/2"1-1/2"3/16-5/8"
250-202T1-1/8"3/4"5/8"1-3/4"1/4-3/4"

Turning and facing holder

B A D C

Vevor 250-2008 - Turning and facing holder - 2

natural_image Close-up of a black mechanical component with a cylindrical protrusion and mounting holes (no visible text or symbols)
ORDER NO.ABCD
INCHINCHINCHINCH
250-101T1"5/8"1/2"1-1/2"
250-201T1-1/8"3/4"5/8"1-3/4"

Boring, turning and facing holder

Scanned document with three horizontal lines of Chinese text, likely a form or template

C B A D

Vevor 250-2008 - Boring, turning and facing holder - 3

natural_image Close-up of a black industrial component with a cylindrical knob and mounting holes, labeled '250-002' (no other text or symbols visible)

Vevor 250-2008 - Boring, turning and facing holder - 4

natural_image Close-up of a mechanical clamp or bracket with a bolt and nut, labeled '250-102' (no other text or symbols visible)

Vevor 250-2008 - Boring, turning and facing holder - 5

natural_image Mechanical component with bolt and mounting bracket (no visible text or symbols)

Vevor 250-2008 - Boring, turning and facing holder - 6

natural_image Close-up of a mechanical component with a cylindrical protrusion and mounting base (no visible text or symbols)

Vevor 250-2008 - Boring, turning and facing holder - 7

natural_image Mechanical component with a black base and cylindrical shaft, labeled '250-402' (no other text or symbols visible)
ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-0020.660.50.3271.13/16—1/2
250-10211/229/841—1/23/16—1/2
250-2021—1/85/81/21—3/41/4—5/8
250-3021—7/163/45/82—1/81/2—3/4
250-4021—12/3213/42—1/21/2—1

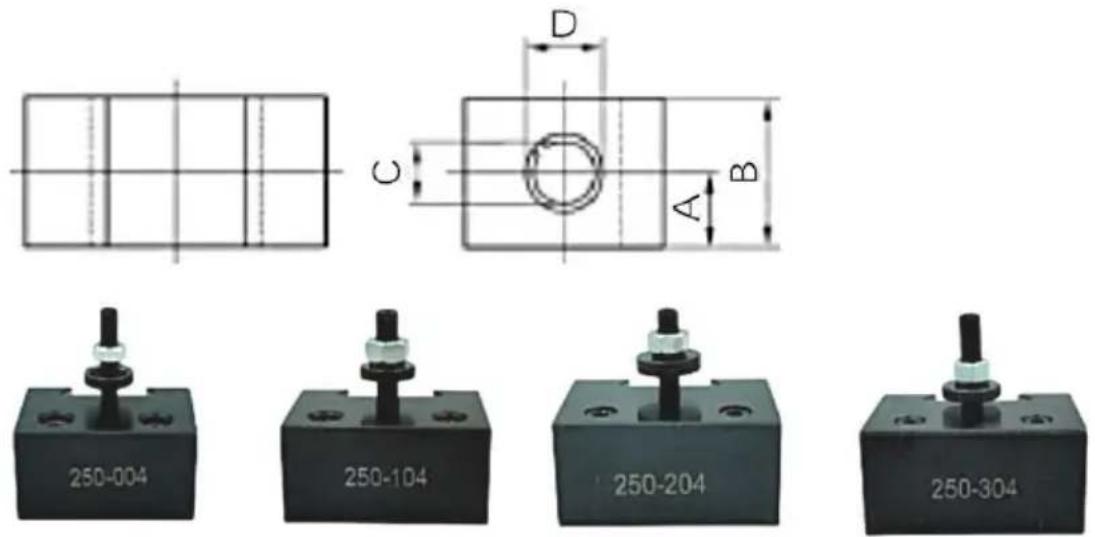

V groove hold round shank boring bars and tools as well as sauare tool bits to machine end face,external,cutting, boring etc.

Heavy Duty Boring Bar Holder
Vevor 250-2008 - Boring, turning and facing holder - 8

Split bushing suitable for small boring bars & drill

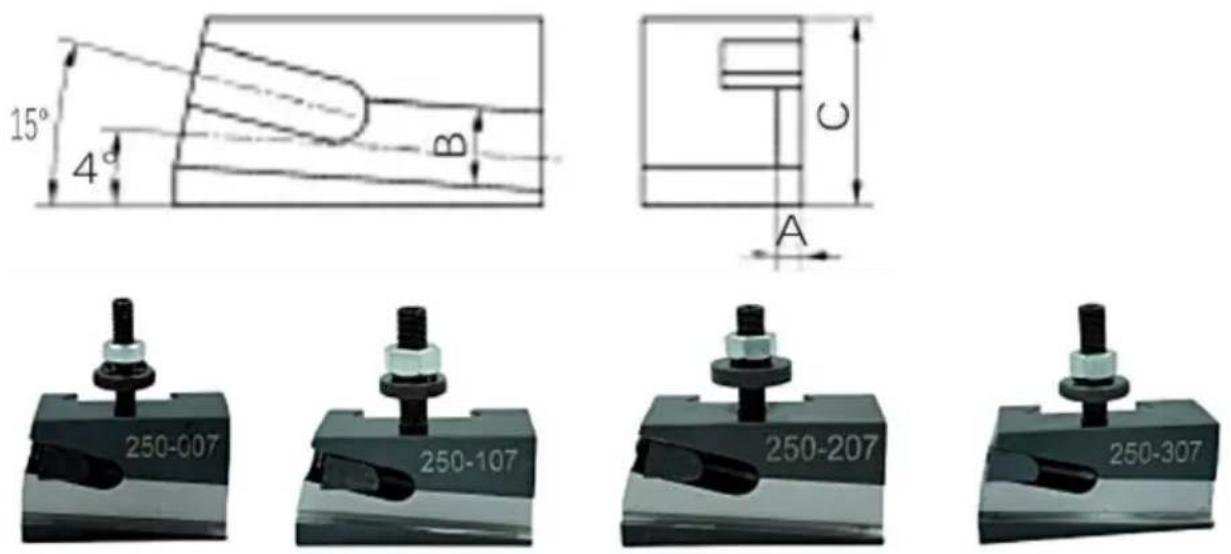

Universal parting blade tool holder
Vevor 250-2008 - Boring, turning and facing holder - 9

ORDER NO.ABCCLAMPING RANGETOOL BIT RANGE
INCHINCHINCHINCHINCH
250-0100.531.771.183/16—1/21/2*3/16*3/16
250-1107/81—1/21—9/163/16—1/23/4*3/8*1/4
250-21012—5/81—3/41/4—5/8
250-3101—3/163—1/821/2—3/4
250-4101—7/163—3/42—1/21/2—1

It may be used for knuring, if square tool is used, it may process end face, ex cutting, boring etc.

Lips: In order to provide better protection for your product, will apply anti rust oil, which may cause oil leakage.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Vevor 250-2008 - Boring, turning and facing holder - 10

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

Vevor 250-2008 - Boring, turning and facing holder - 11

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

natural_image Collection of industrial cutting tool holders and clamps with no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

QUICK CHANGE TOOL POST

Caractéristiques:

natural_image Six black industrial cutting tool holders with different mounting brackets and mounting tips, displayed against a white background (no text or symbols visible)

◆ ENSEMBLES DE POST-OUTILS DE TYPE PISTON

COMMANDENON.TOURÀBALANCEMENT6 PIÈCES CHAQUE ENSEMBLE COMPREND (6 PCS/ENSEMBLE)
250-100 (6)12"250-100, 250-101, 250-102, 250-104, 250-107, 250-110 CIIACUN 1F
250-200 (6)10"-15"250-200, 250-201, 250-202, 250-204, 250-207, 250-210 CHAQUE 1F
250-300 (6)13"-18"250-300, 250-301, 250-302, 250-304, 250-307, 250-310 CHAQUE 1F
250-400 (6)14"-20"250-400, 250-401, 250-402, 250-404, 250-407, 250-410 CIIAQUE 1F
COMMANDENON.TOURÀBALANCEMENT8 PIÈCES CHAQUE ENSEMBLE COMPREND (8 PCS/ENSEMBLE)
250-100 (8)12"250-100, 250-101, 250-102, 250-104, 250-107, 250-110 CHACUN 1F250-101T*2 PCS
250-200 (8)10"-15"250-200, 250-201, 250-202, 250-204, 250-207, 250-210 CHAQUE 11250-201T*2 PCS

Vevor 250-2008 - Caractéristiques: - 1

natural_image Five black industrial control switches with no visible text or symbols on their surfaces

ENSEMBLES DE POTEAU D'OUTILS DE TYPE CALE

natural_image Mechanical tool component with black and gray parts, no visible text or symbols

Vevor 250-2008 - ENSEMBLES DE POTEAU D'OUTILS DE TYPE CALE - 1

natural_image Mechanical tool with black lever and square base (no visible text or symbols)

C D A B

ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-100122- 1/23-7/82 -1/49/16
250-20010-1534 - 5/82 - 3/45/8
250-30013-183 - 3/85 -1/833/4
250-40014-2046 -1/43 5/87/8
natural_image Four black industrial sensors labeled 250-000, 250-111, 250-222, and a mechanical component with dimension lines A, B, C, D (no text or symbols on components)
ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-000121.752.951.570.40
250-11110-152-1/23-7/82-1/49/16
250-22213-1834-5/82-3/45/8
250-33314-203-3/85-1/833/4
250-44417-4846-1/43-5/87/8
natural_image Simple rectangular outline with three horizontal lines inside, no text or symbols present.

B A D C

Vevor 250-2008 - ENSEMBLES DE POTEAU D'OUTILS DE TYPE CALE - 4

natural_image Close-up of a black industrial component with a cylindrical knob and mounting holes (no visible text or symbols)

Vevor 250-2008 - ENSEMBLES DE POTEAU D'OUTILS DE TYPE CALE - 5

natural_image Close-up of a mechanical component with a bolt and mounting base (no visible text or symbols)

Vevor 250-2008 - ENSEMBLES DE POTEAU D'OUTILS DE TYPE CALE - 6

natural_image Mechanical component with a bolt and housing, labeled '250-201' (no other text or symbols visible)

Vevor 250-2008 - ENSEMBLES DE POTEAU D'OUTILS DE TYPE CALE - 7

natural_image Close-up of a black mechanical component with a cylindrical protrusion and mounting holes, labeled '250-301' (no other text or symbols visible)

Vevor 250-2008 - ENSEMBLES DE POTEAU D'OUTILS DE TYPE CALE - 8

natural_image Mechanical component with a black base and cylindrical protrusion, labeled '250-401' (no other text or symbols visible)
ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-0010.680.50.3271.13/16—1/2
250-10111/229/641—1/23/16—1/2
250-2011—1/85/81/21—3/41/4—5/8
250-3011—7/163/45/82—1/81/2—3/4
250-4011—12/3213/42—1/21/2—1
natural_image Close-up of a mechanical clamp or fixture with a black base and white cylindrical component, labeled '250-102T' (no other text or symbols visible)
ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-102T1"5/8"1/2"1-1/2"3/16-5/8"
250-202T1-1/8"3/4"5/8"1-3/4"1/4-3/4"
natural_image Close-up of a black mechanical component with a cylindrical protrusion and mounting holes (no visible text or symbols)
ORDER NO.ABCD
INCHINCHINCHINCH
250-101T1"5/8"1/2"1-1/2"
250-201T1-1/8"3/4"5/8"1-3/4"

C B A D

Vevor 250-2008 - ENSEMBLES DE POTEAU D'OUTILS DE TYPE CALE - 10

natural_image Close-up of a black industrial component with a cylindrical knob and mounting holes, labeled '250-002' (no other text or symbols visible)

Vevor 250-2008 - ENSEMBLES DE POTEAU D'OUTILS DE TYPE CALE - 11

natural_image Close-up of a mechanical clamp or bracket with a bolt and nut, labeled '250-102' (no other text or symbols visible)

Vevor 250-2008 - ENSEMBLES DE POTEAU D'OUTILS DE TYPE CALE - 12

natural_image Mechanical component with bolt and mounting bracket (no visible text or symbols)

Vevor 250-2008 - ENSEMBLES DE POTEAU D'OUTILS DE TYPE CALE - 13

natural_image Close-up of a mechanical component with a cylindrical protrusion and mounting base (no visible text or symbols)

Vevor 250-2008 - ENSEMBLES DE POTEAU D'OUTILS DE TYPE CALE - 14

natural_image Mechanical component with a black base and central shaft, labeled '250-402' (no other text or symbols visible)
ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-0020.660.50.3271.13/16—1/2
250-10211/229/641—1/23/16—1/2
250-2021—1/85/81/21—3/41/4—5/8
250-3021—7/163/45/82—1/81/2—3/4
250-4021—12/3213/42—1/21/2—1

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

ECREP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UKREP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

natural_image Collection of industrial cutting tool holders and clamps, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

QUICK CHANGE TOOL POST

Merkmale:

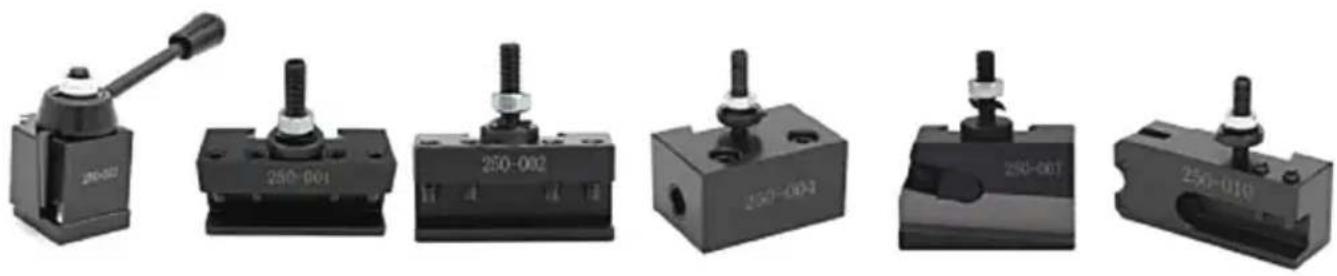

natural_image Six black industrial cutting tool holders with different mounting brackets, shown from different angles (no visible text or symbols)

◆ KOLBENTYP-WERKZEUGHALTERSÄTZE

BEFEHL NEIN.DREHBANK-SCHWENKENJEDES SET ENTHÄLT 6 STÜCKE (6 STÜCKE/SET)
250-100 (6)12"250-100, 250-101, 250-102, 250-104, 250-107, 250-110, je 1 Stück
250-200 (6)10"-15"250-200, 250-201, 250-202, 250-204, 250-207, 250-210, je 1 Stück
250-300 (6)13"-18"250-300, 250-301, 250-302, 250-304, 250-307, 250-310, je 1 Stück
250-400 (6)14"-20"250-400, 250-401, 250-402, 250-404, 250-407, 250-410, je 1 Stück
BEFEHL NEIN.DREHBANK-SCHWENKEN8 STÜCKE, JEDES SET ENTHÄLT (8 STÜCKE/SET)
250-100 (8)12"250-100, 250-101, 250-102, 250-104, 250-107, 250-110, je 1 Stück250-101T*2 Stück
250-200 (8)10"-15"250-200, 250-201, 250-202, 250-204, 250-207, 250-210, je 1 Stück250-201T*2 Stück

Vevor 250-2008 - Merkmale: - 1

natural_image Five black industrial control switches with no visible text or symbols on their surfaces

WERKZEUGHALTER-SÄTZE IN KEILFORM

natural_image Four black industrial sensors labeled 250-000, 250-111, 250-222, and a mechanical component with dimension lines A, B, C, D (no text or symbols on components)
ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-000121.752.951.570.40
250-11110-152-1/23-7/82-1/49/16
250-22213-1834-5/82-3/45/8
250-33314-203-3/85-1/833/4
250-44417-4846-1/43-5/87/8
natural_image Close-up of a mechanical clamp or fixture with a black base and white cylindrical component, labeled '250-102T' (no other text or symbols visible)
ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-102T1"5/8"1/2"1-1/2"3/16-5/8"
250-202T1-1/8"3/4"5/8"1-3/4"1/4-3/4"
natural_image Close-up of a black mechanical component with a cylindrical protrusion and mounting holes (no visible text or symbols)
ORDER NO.ABCD
INCHINCHINCHINCH
250-101T1"5/8"1/2"1-1/2"
250-201T1-1/8"3/4"5/8"1-3/4"

C B A D

Vevor 250-2008 - WERKZEUGHALTER-SÄTZE IN KEILFORM - 2

natural_image Close-up of a black industrial component with a cylindrical knob and mounting holes, labeled '250-002' (no other text or symbols visible)

Vevor 250-2008 - WERKZEUGHALTER-SÄTZE IN KEILFORM - 3

natural_image Close-up of a mechanical clamp or bracket with a bolt and nut, labeled '250-102' (no other text or symbols visible)

Vevor 250-2008 - WERKZEUGHALTER-SÄTZE IN KEILFORM - 4

natural_image Mechanical component with bolt and mounting bracket (no visible text or symbols)

Vevor 250-2008 - WERKZEUGHALTER-SÄTZE IN KEILFORM - 5

natural_image Close-up of a mechanical component with a cylindrical protrusion and mounting base (no visible text or symbols)

Vevor 250-2008 - WERKZEUGHALTER-SÄTZE IN KEILFORM - 6

natural_image Mechanical component with a black base and cylindrical protrusion, labeled '250-402' (no other text or symbols visible)
ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-0020.660.50.3271.13/16—1/2
250-10211/229/841—1/23/16—1/2
250-2021—1/85/81/21—3/41/4—5/8
250-3021—7/163/45/82—1/81/2—3/4
250-4021—12/3213/42—1/21/2—1

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

ECREP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UKREP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

natural_image Collection of industrial cutting tool holders and clamps, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

QUICK CHANGE TOOL POST

Caratteristiche:

natural_image Six black industrial cutting tool holders with different mounting brackets and mounting tips, shown from different angles (no visible text or symbols)

◆ SET DI PORTAUTENSILI TIPO PISTONE

ORDINE NO.TORNIO ORIENTABILE6 PEZZI OGNI SET INCLUDE (6 PEZZI/SET)
250-100 (6)12"250-100、250-101、250-102、250-104、250-107、250-110 CIASCUNO 1PZ
250-200 (6)10"-15"250-200、250-201、250-202、250-204、250-207、250-210 CIASCUNO 1PZ
250-300 (6)13"-18"250-300、250-301、250-302、250-304、250-307、250-310 CTASCUNO 1PZ
250-400 (6)14"-20"250-400、250-401、250-402、250-404、250-407、250-410 CTASCUNO 1PZ
ORDINE NO.TORNIO ORIENTABILE8 PEZZI OGNI SET INCLUDE (8 PEZZI/SET)
250-100 (8)12"250-100、250-101、250-102、250-104、250-107、250-110 CIASCUNO 1PZ250-101T*2 PZ
250-200 (8)10"-15"250-200、250-201、250-202、250-204、250-207、250-210 CIASCUNO 1PZ250-201T*2 PZ

Vevor 250-2008 - Caratteristiche: - 1

natural_image Five black industrial cutting tool holders with labeled mounting points, shown from different angles (no text or symbols on components)

SET DI PORTAUTENSILI A CUNEO

natural_image Technical drawings of mechanical components with dimension labels (A, B, C) and part numbers (100, 100-250), no readable text or symbols beyond labels.
ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-100122- 1/23-7/82 -1/49/16
250-20010-1534 - 5/82 - 3/45/8
250-30013-183 - 3/85 -1/833/4
250-40014-2046 -1/43 5/87/8
natural_image Close-up of a mechanical clamp or fixture with a cylindrical component and mounting holes (no visible text or symbols)
ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-102T1"5/8"1/2"1-1/2"3/16-5/8"
250-202T1-1/8"3/4"5/8"1-3/4"1/4-3/4"
natural_image Close-up of a black mechanical component with a cylindrical protrusion and mounting holes (no visible text or symbols)
ORDER NO.ABCD
INCHINCHINCHINCH
250-101T1"5/8"1/2"1-1/2"
250-201T1-1/8"3/4"5/8"1-3/4"

C B A D

Vevor 250-2008 - SET DI PORTAUTENSILI A CUNEO - 2

natural_image Close-up of a mechanical component with a bolt and mounting bracket (no visible text or symbols)

Vevor 250-2008 - SET DI PORTAUTENSILI A CUNEO - 3

natural_image Close-up of a mechanical clamp or bracket with a bolt and nut, labeled '250-102' (no other text or symbols visible)

Vevor 250-2008 - SET DI PORTAUTENSILI A CUNEO - 4

natural_image Mechanical component with bolt and mounting bracket (no visible text or symbols)

Vevor 250-2008 - SET DI PORTAUTENSILI A CUNEO - 5

natural_image Close-up of a mechanical component with a cylindrical protrusion and mounting base (no visible text or symbols)

Vevor 250-2008 - SET DI PORTAUTENSILI A CUNEO - 6

natural_image Mechanical component with a black base and cylindrical protrusion, labeled '250-402' (no other text or symbols visible)
ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-0020.660.50.3271.13/16—1/2
250-10211/229/841—1/23/16—1/2
250-2021—1/85/81/21—3/41/4—5/8
250-3021—7/163/45/82—1/81/2—3/4
250-4021—12/3213/42—1/21/2—1

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

ECREP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UKREP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

natural_image Collection of industrial cutting tool holders and clamps, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

QUICK CHANGE TOOL POST

Características:

natural_image Six black industrial cutting tool holders with different mounting brackets and mounting tips, shown from different angles (no text or symbols visible)
natural_image Six black industrial cutting tool holders with no visible text or symbols on their parts, arranged in a row (no readable labels or symbols)
natural_image Technical drawings of mechanical components including a lever, block, and cylindrical part with dimension labels (A, B, C)
ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-100122- 1/23-7/82 -1/49/16
250-20010-1534 - 5/82 - 3/45/8
250-30013-183 - 3/85 -1/833/4
250-40014-2046 -1/43 5/87/8
natural_image Technical drawings of four black industrial control buttons labeled 250-000, 250-111, 250-222, and a mechanical component with dimension lines A, B, C, D (no text or symbols on components)
ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-000121.752.951.570.40
250-11110-152-1/23-7/82-1/49/16
250-22213-1834-5/82-3/45/8
250-33314-203-3/85-1/833/4
250-44417-4846-1/43-5/87/8
natural_image Close-up of a mechanical clamp or fixture with a black base and white cylindrical component, labeled '250-102T' (no other text or symbols visible)
ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-102T1"5/8"1/2"1-1/2"3/16-5/8"
250-202T1-1/8"3/4"5/8"1-3/4"1/4-3/4"
natural_image Close-up of a black mechanical component with a cylindrical protrusion and mounting holes (no visible text or symbols)
ORDER NO.ABCD
INCHINCHINCHINCH
250-101T1"5/8"1/2"1-1/2"
250-201T1-1/8"3/4"5/8"1-3/4"

C B A D

Vevor 250-2008 - Características: - 2

natural_image Close-up of a black industrial component with a cylindrical knob and mounting holes, labeled '250-002' (no other text or symbols visible)

Vevor 250-2008 - Características: - 3

natural_image Close-up of a mechanical clamp or bracket with a bolt and nut, labeled '250-102' (no other text or symbols visible)

Vevor 250-2008 - Características: - 4

natural_image Mechanical component with bolt and mounting bracket (no visible text or symbols)

Vevor 250-2008 - Características: - 5

natural_image Close-up of a mechanical component with a cylindrical protrusion and mounting base (no visible text or symbols)

Vevor 250-2008 - Características: - 6

natural_image Mechanical component with a black base and cylindrical shaft, labeled '250-402' (no other text or symbols visible)
ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-0020.660.50.3271.13/16—1/2
250-10211/229/641—1/23/16—1/2
250-2021—1/85/81/21—3/41/4—5/8
250-3021—7/163/45/82—1/81/2—3/4
250-4021—12/3213/42—1/21/2—1

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

ECREP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UKREP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

natural_image Collection of industrial cutting tool holders and clamps, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

QUICK CHANGE TOOL POST

Cechy:

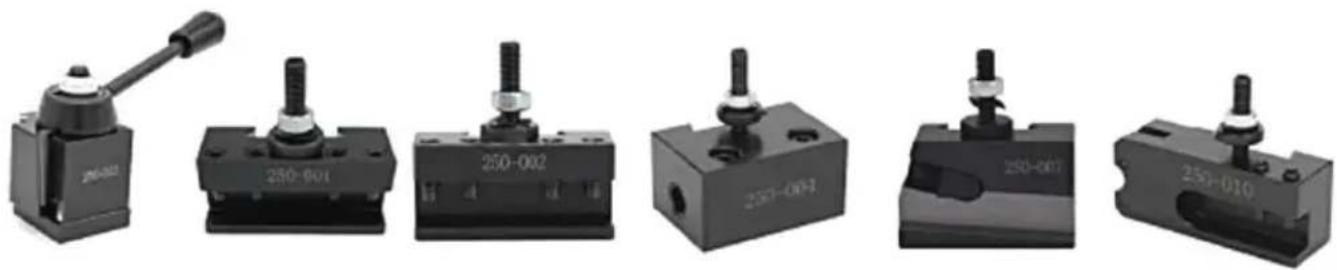

natural_image Six black industrial cutting tool holders with different mounting brackets and mounting tips, shown from different angles (no visible text or symbols)

◆ ZESTAWY NARZĘDZI TYPU TŁOKOWEGO

ZAMÓWIENIE NIE.HUŠTAWKA TOKARKI6 SZTUK W KAŻDYM ZESTAWIE ZAWIERA (6 SZT./ZESTAW)
250-100 (6)12"250-100, 250-101, 250-102, 250-104, 250-107, 250-110 KAŻDY 1 SZT.
250-200 (6)10"-15"250-200, 250-201, 250-202, 250-204, 250-207, 250-210 KAŻDY 1 SZT.
250-300 (6)13"-18"250-300, 250-301, 250-302, 250-304, 250-307, 250-310 KAŻDY 1 SZT.
250-400 (6)14"-20"250-400, 250-401, 250-402, 250-404, 250-407, 250-410 KAŻDY 1 SZT.
ZAMÓWIENIETOKARKAHUŠTAWKOWAKAŻDY ZESTAW ZAWIERA 8 ELEMENTÓW (8 SZT./ZESTAW)
NIE.
250-100 (8)12"250-100, 250-101, 250-102, 250-104, 250-107, 250-110 KAZDY 1 SZT.250-101T*2 SZT.
250-200 (8)10"-15"250-200, 250-201, 250-202, 250-204, 250-207, 250-210 KAZDY 1 SZT.250-201T*2 SZT.

Vevor 250-2008 - Cechy: - 1

natural_image Five black industrial control switches with no visible text or symbols on their body, arranged in a row (no readable labels or symbols)

ZESTAWY NARZĘDZI TYPU KLIN

natural_image Technical drawings of mechanical components with dimension labels (A, B, C) and part numbers (250-100), no readable text or symbols beyond labels.
ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-100122- 1/23-7/82 -1/49/16
250-20010-1534 - 5/82 - 3/45/8
250-30013-183 - 3/85 -1/833/4
250-40014-2046 -1/43 5/87/8
natural_image Four black industrial sensors labeled 250-000, 250-111, 250-222, and a mechanical component with dimension lines A, B, C, D (no text or symbols on components)
ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-000121.752.951.570.40
250-11110-152-1/23-7/82-1/49/16
250-22213-1834-5/82-3/45/8
250-33314-203-3/85-1/833/4
250-44417-4846-1/43-5/87/8
natural_image Close-up of a mechanical clamp or fixture with a black base and white cylindrical component, labeled '250-102T' (no other text or symbols visible)
ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-102T1"5/8"1/2"1-1/2"3/16-5/8"
250-202T1-1/8"3/4"5/8"1-3/4"1/4-3/4"
natural_image Close-up of a black mechanical component with a cylindrical protrusion and mounting holes (no visible text or symbols)
ORDER NO.ABCD
INCHINCHINCHINCH
250-101T1"5/8"1/2"1-1/2"
250-201T1-1/8"3/4"5/8"1-3/4"

C B A D

Vevor 250-2008 - ZESTAWY NARZĘDZI TYPU KLIN - 2

natural_image Close-up of a mechanical component with a bolt and mounting bracket (no visible text or symbols)

Vevor 250-2008 - ZESTAWY NARZĘDZI TYPU KLIN - 3

natural_image Close-up of a mechanical clamp or bracket with a bolt and nut, labeled '250-102' (no other text or symbols visible)

Vevor 250-2008 - ZESTAWY NARZĘDZI TYPU KLIN - 4

natural_image Close-up of a mechanical clamp or bracket component with no visible text or symbols on the main body.

Vevor 250-2008 - ZESTAWY NARZĘDZI TYPU KLIN - 5

natural_image Close-up of a mechanical component with a cylindrical protrusion and mounting base (no visible text or symbols)

Vevor 250-2008 - ZESTAWY NARZĘDZI TYPU KLIN - 6

natural_image Mechanical component with a black base and cylindrical protrusion, labeled '250-402' (no other text or symbols visible)
ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-0020.660.50.3271.13/16—1/2
250-10211/229/841—1/23/16—1/2
250-2021—1/85/81/21—3/41/4—5/8
250-3021—7/163/45/82—1/81/2—3/4
250-4021—12/3213/42—1/21/2—1

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

ECREP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UKREP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en E-garantiecertificaat www.vevor.com/support

natural_image Collection of industrial cutting tool holders and blocks, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

QUICK CHANGE TOOL POST

Functions:

natural_image Six black industrial cutting tool holders with different mounting brackets and mounting tips, shown from different angles (no visible text or symbols)

◆ ZUIGERTYPE GEREEDSCHAPSPAALSETS

natural_image Six black industrial control switches with no visible text or symbols on their body, arranged in a row (no readable labels or symbols)

WIGTYPE GEREEDSCHAPSPAALSETS

natural_image Mechanical tool component with black and gray parts, no visible text or symbols

Vevor 250-2008 - WIGTYPE GEREEDSCHAPSPAALSETS - 1

natural_image Mechanical tool with black lever and square base (no visible text or symbols)

C D A B

ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-100122- 1/23-7/82 -1/49/16
250-20010-1534 - 5/82 - 3/45/8
250-30013-183 - 3/85 -1/833/4
250-40014-2046 -1/43 5/87/8
natural_image Four black industrial sensors labeled 250-000, 250-111, 250-222, and a mechanical component with dimension lines A, B, C, D (no text or symbols on components)
ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-000121.752.951.570.40
250-11110-152-1/23-7/82-1/49/16
250-22213-1834-5/82-3/45/8
250-33314-203-3/85-1/833/4
250-44417-4846-1/43-5/87/8
natural_image Close-up of a black mechanical component with a cylindrical bolt and mounting holes, labeled '250-102T' (no other text or symbols visible)
ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-102T1"5/8"1/2"1-1/2"3/16-5/8"
250-202T1-1/8"3/4"5/8"1-3/4"1/4-3/4"
natural_image Close-up of a black mechanical component with a cylindrical protrusion and mounting holes (no visible text or symbols)
ORDER NO.ABCD
INCHINCHINCHINCH
250-101T1"5/8"1/2"1-1/2"
250-201T1-1/8"3/4"5/8"1-3/4"

C B A D

Vevor 250-2008 - WIGTYPE GEREEDSCHAPSPAALSETS - 4

natural_image Close-up of a mechanical component with a bolt and mounting bracket (no visible text or symbols)

Vevor 250-2008 - WIGTYPE GEREEDSCHAPSPAALSETS - 5

natural_image Close-up of a mechanical clamp or bracket with a bolt and nut, labeled '250-102' (no other text or symbols visible)

Vevor 250-2008 - WIGTYPE GEREEDSCHAPSPAALSETS - 6

natural_image Mechanical component with bolt and mounting bracket (no visible text or symbols)

Vevor 250-2008 - WIGTYPE GEREEDSCHAPSPAALSETS - 7

natural_image Close-up of a mechanical component with a cylindrical protrusion and mounting base (no visible text or symbols)

Vevor 250-2008 - WIGTYPE GEREEDSCHAPSPAALSETS - 8

natural_image Mechanical component with a black base and cylindrical shaft, labeled '250-402' (no other text or symbols visible)
ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-0020.660.50.3271.13/16—1/2
250-10211/229/841—1/23/16—1/2
250-2021—1/85/81/21—3/41/4—5/8
250-3021—7/163/45/82—1/81/2—3/4
250-4021—12/3213/42—1/21/2—1

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

ECREP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UKREP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

natural_image Collection of industrial cutting tool holders and clamps, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

QUICK CHANGE TOOL POST

Drag:

natural_image Six black industrial cutting tool holders with different mounting brackets and mounting tips, shown from different angles (no text or symbols visible)

◆ KOLVTYP VERKTYGSPOSTSÄTT

BESTÄLLAINGA.VARVGUNG6 DELAR VARJE SET INGÅR (6 STK/SET)
250-100 (6)12"250-100, 250-101, 250-102, 250-104, 250-107, 250-110 VARJE 1 ST
250-200 (6)10"-15"250-200, 250-201, 250-202, 250-204, 250-207, 250-210 VARJE 1 ST
250-300 (6)13"-18"250-300, 250-301, 250-302, 250-304, 250-307, 250-310 VARJE 1 ST
250-400 (6)14"-20"250-400, 250-401, 250-402, 250-404, 250-407, 250-410 VARJE 1 ST
BESTÄLLAINGA.VARVGUNG8 DELAR VARJE SET INGÅR (8 st/SET)
250-100 (8)12"250-100、250-101、250-102、250-104、250-107、250-110 VARJE 1 S'250-101T*2 STK
250-200 (8)10"-15"250-200, 250-201, 250-202, 250-204, 250-207, 250-210 VARJE 1 ST250-201T*2 STK

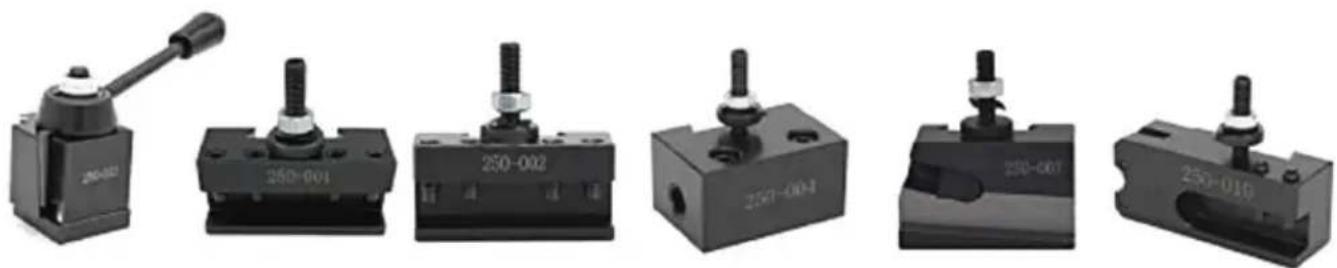

Vevor 250-2008 - Drag: - 1

natural_image Six black industrial cutting tool holders with different mounting brackets, shown from different angles (no text or symbols visible)
natural_image Technical drawings of mechanical components with dimension labels (A, B, C) and part numbers (250-100), no readable text or symbols beyond labels.
ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-100122- 1/23-7/82 -1/49/16
250-20010-1534 - 5/82 - 3/45/8
250-30013-183 - 3/85 -1/833/4
250-40014-2046 -1/43 5/87/8
natural_image Four black industrial sensors labeled 250-000, 250-111, 250-222, and a mechanical component with dimension lines A, B, C, D (no text or symbols on components)
ORDER NO.SWING FOR LATHEABCD
INCHINCHINCHINCHINCH
250-000121.752.951.570.40
250-11110-152-1/23-7/82-1/49/16
250-22213-1834-5/82-3/45/8
250-33314-203-3/85-1/833/4
250-44417-4846-1/43-5/87/8
natural_image Close-up of a black mechanical component with a cylindrical bolt and mounting holes, labeled '250-102T' (no other text or symbols visible)
ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-102T1"5/8"1/2"1-1/2"3/16-5/8"
250-202T1-1/8"3/4"5/8"1-3/4"1/4-3/4"
natural_image Close-up of a black mechanical component with a cylindrical protrusion and mounting holes (no visible text or symbols)
ORDER NO.ABCD
INCHINCHINCHINCH
250-101T1"5/8"1/2"1-1/2"
250-201T1-1/8"3/4"5/8"1-3/4"

C B A D

Vevor 250-2008 - Drag: - 3

natural_image Close-up of a black industrial component with a cylindrical knob and mounting holes, labeled '250-002' (no other text or symbols visible)

Vevor 250-2008 - Drag: - 4

natural_image Close-up of a mechanical clamp or bracket with a bolt and nut, labeled '250-102' (no other text or symbols visible)

Vevor 250-2008 - Drag: - 5

natural_image Mechanical component with bolt and mounting bracket (no visible text or symbols)

Vevor 250-2008 - Drag: - 6

natural_image Close-up of a mechanical component with a cylindrical protrusion and mounting base (no visible text or symbols)

Vevor 250-2008 - Drag: - 7

natural_image Mechanical component with a black base and cylindrical shaft, labeled '250-402' (no other text or symbols visible)
ORDER NO.ABCDTOOL BIT RANGE
INCHINCHINCHINCHINCH
250-0020.660.50.3271.13/16—1/2
250-10211/229/841—1/23/16—1/2
250-2021—1/85/81/21—3/41/4—5/8
250-3021—7/163/45/82—1/81/2—3/4
250-4021—12/3213/42—1/21/2—1

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

ECREP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UKREP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Vevor

Model : 250-2008

Category : Power tool
