USER MANUAL 520S Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
TILLER CULTIVATOR
USER MANUAL
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represe estimate of savings you might benefit from buying certain tools with us compared to t top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE

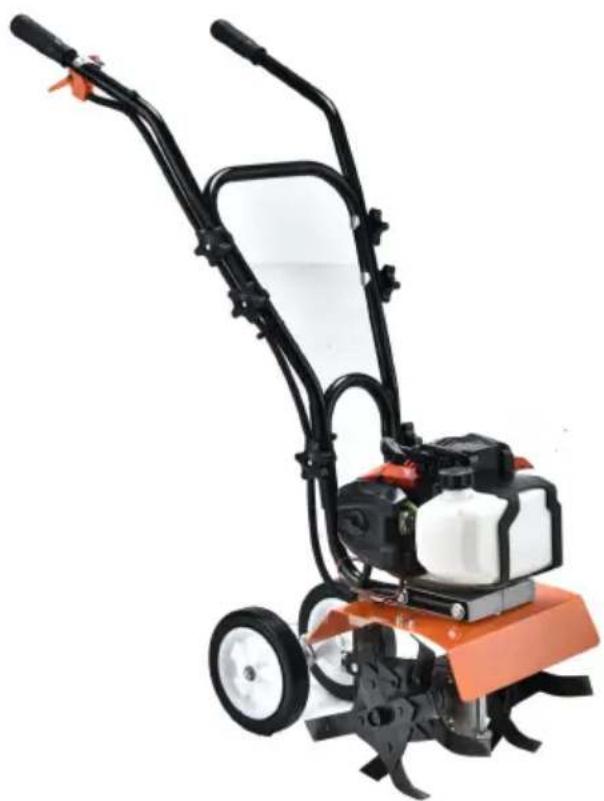

TILLER CULTIVATOR
520S
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
1. SAFETY WARNINGS
- The machine shall always be used in accordance with these manufacturer's instructions the instruction handbook.
- The engine shall be stopped when carrying out maintenance and cleaning operations, when changing tools and when being transported by means other than under its own power.
- Some hazards can be met when working on slopes; work slowly holding firmly the tool. Do not transport the tool on slopes. The hazards can rise when working on difficult soil (stony, hard, etc.). There is a risk to hit some objects, sliding, lose control for the machine which will give damages. Always inspect the working area before working, and always watch what you are doing.
- The adjustable part of the protective device shall be adjusted to working depth of the tool so that only that part of the working tool cuts into the soil remains uncovered. This does not apply to motor hoes.
- The machine should only be operated by suitably trained persons
- During the operation of the machine safety shoes should be worn
- Always start up the machine under normal conditions.
1) Training
a) Read the instructions carefully. Be familiar with the controls and the proper use of the equipment;
b) Never allow children or people unfamiliar with these instructions use the machine. Local regulations can restrict the age of the operator;
c) Never work while people, especially children, or pets are nearby; d) Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.
2) Preparation
a) While working, always wear substantial footwear and long trousers. Do not operate the equipment when barefoot or wearing open sandals;
b) Thoroughly inspect the area where the equipment is to be used and remove all objects which can be thrown up by the machine;
c) WARNING - Petrol is highly flammable:
- Store fuel in containers specifically designed for this purpose;
- Refuel outdoors only and do not smoke while refuelling;
- Add fuel before starting the engine. Never remove the cap of the fuel tank or add petrol while the engine is running or when the end is hot;
- If petrol is spilled, do not attempt to start the engine but move the machine away from the area of spillage and avoid creating any source of ignition until petrol vapours have dissipated;
- Replace all fuel tank and container caps securely;
d) Replace faulty silencers;
e) Before using, always visually inspect to see that the tools are n worn out or damaged. Replace worn out or damaged elements and bolts in sets to preserve balance.
3) Operation
a) Do not operate the engine in a confined space where dangerous carbon monoxide fumes can collect;
b) Work only in daylight or in good artificial light;
c) Always be sure of your footing on slopes;
d) Walk, never run with the machine;
e) For wheeled rotary machines, work across the slopes, never up and down;
f) Exercise extreme caution when changing direction on slopes;
g) Do not work on excessively steep slopes;
h) Use extreme caution when reversing or pulling the machine towards you;
i) Do not change the engine governor settings or over speed the engine;
j) Start the engine carefully according to manufacturer instructions and with feet well away from the tool(s);
k) Do not put your hands or feet near or under rotating parts;
1) Never pick up or carry a machine while the engine is running;
m) Stop the engine:
- Whenever you leave the machine;
Before refueling;
n) Reduce the throttle setting during engine shut down and, if the engine is provided with a shut-off valve, turn the fuel off at the conclusion of working;
4) Maintenance and storage
a) Keep all nuts, bolts and screws tight to ensure the equipment is safe working condition;
b) Never store the equipment with petrol in the tank inside a building where fumes can reach an open flame or spark;
c) Allow the engine to cool before storing in any enclosure;
d) To reduce the fire hazard, keep the engine, silencer and petrol storage area free of vegetative material and excessive grease;
e) Replace worn or damaged parts for safety;
f) If the fuel tank has to be drained, this shall be done outdoors.
Thrown Object Hazard
Objects hit by the rotating tines can be thrown from the tiller with great force and may cause severe injury.
- Before tilling, clear the tilling area of sticks, large stones, wire, glass etc.
- Pieces thrown from worn or damaged-tines can cause serious injury. Always inspect the tines before using the tiller.
Fire and Burn Hazard
Gasoline is extremely flammable and gasoline vapor can explode. Use extreme care when handing gasoline. Keep gasoline out of reach of children.
- Refuel in a well-ventilated area with the engine stopped.
-
Allow the engine to cool before refueling. Fuel vapor or spilled fuel may be ignited.
-
The engine and exhaust system becomes very hot during operation and remains hot after stopping. Touching them can cause burn injuries or some materials burn.
- Avoid touching a hot engine or exhaust system.
- Allow the engine to cool before performing maintenance or storing the tiller indoors.
Carbon Monoxide Poisoning Hazard
Exhaust contains poisonous carbon monoxide a colorless and odorless gas. Breathing exhaust can cause loss of consciousness and may lead to death.
Operation on Slope
- When tilling on slopes, keep the fuel tank with less than half oil minimize fuel spillage.
- When the tiller walks across the slope, put your effort evenly with walking up and down the slope.
- Be very careful when changing the direction of the tiller on a slip
- Do not use the tiller on a slope of more than 10^ .
- The maximum safe grade angle shown is for reference only and the details should depend on the type of the tool. Before starting the engine, check that the tiller is not damaged and in good condition.
For your safety or safety of others, pay special attention when using the tiller up or down hill.
Symbols
Read the instruction manual before use
Caution: rotating working tool
The part is extremely hot! Do not touch!
Wear protective equipment: helmet, hearing and ocular
protection
Keep bystanders away
Risk of projections
Wear protective gloves
Wear safety shoes
Guarantee noise level
Hot surface
No naked flames
Be sure the machine is in stability when leaving
Do not use cutting blades
Intended use
This device is to be used only as an electric hoe for aerating lawns and grassy areas in private home gardens and pleasure gardens. It is not intended for use in public spaces, parks, sports fields, agriculture or forestry. Use of this device for any other purpose is considered incorrect and unapproved. The manufacturer will not be responsible for any damage or injury resulting from such use. The user is fully responsible for all related risks.

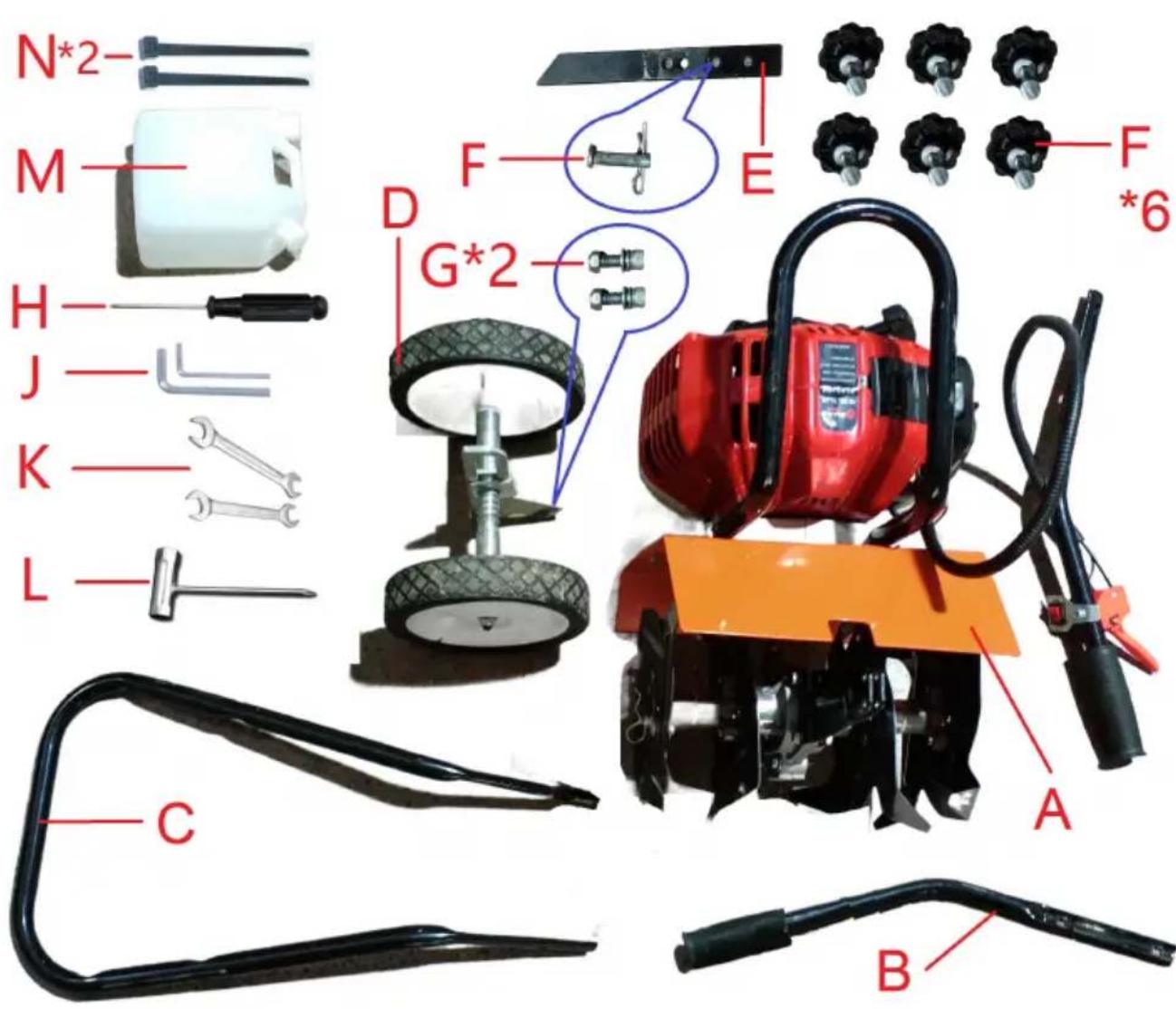

2. PART LIST
3. PART VIEW
4. ASSEMBLY

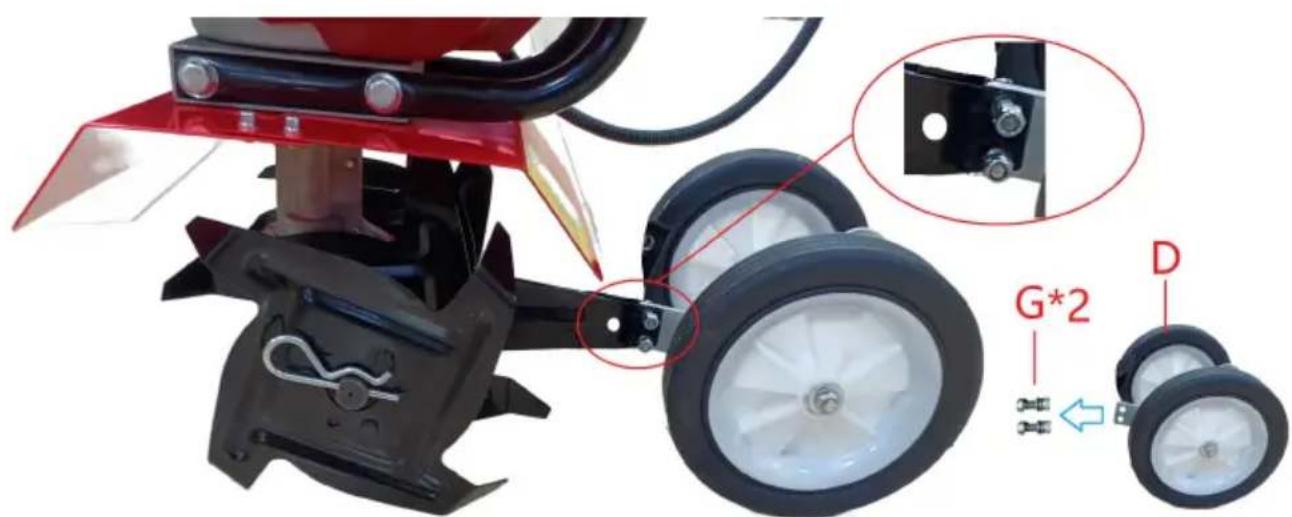

a.Wheel assembly(D) mounting
Remove the screws and nuts (G^2) from the wheel assembly(D) first Align the wheels with the body card slots, and then use crews and nuts (G^2) to secure the wheel assembly.

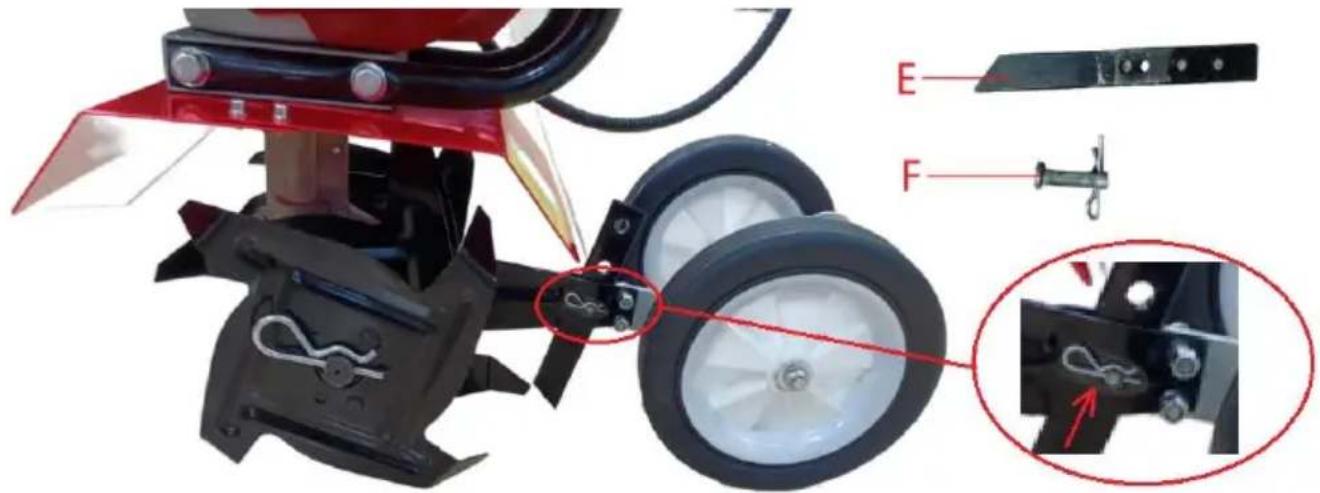

b. Adjust depth skid assembly
Remove the pin; change the position of the depth skid. Then add the pin to fix the depth skid.
The cutter head has four holes and can be adjusted to diff depths.

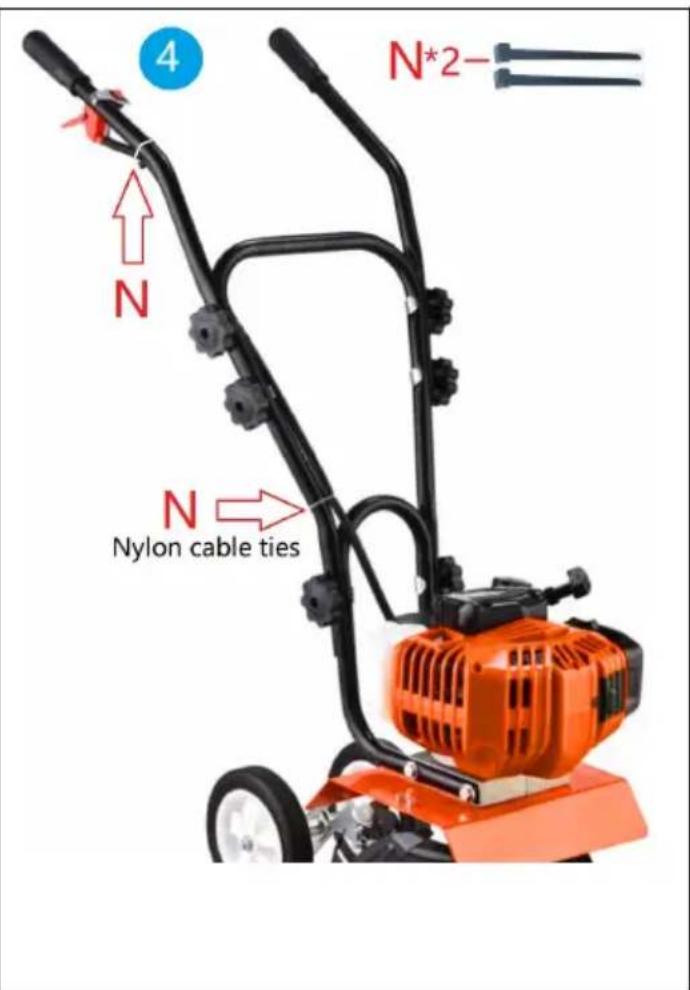

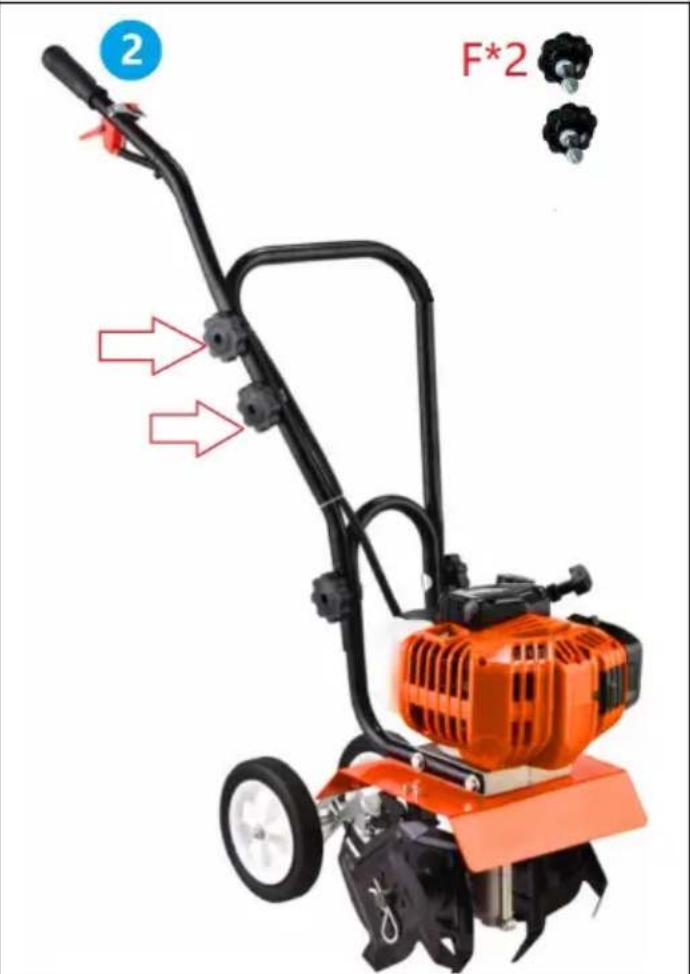

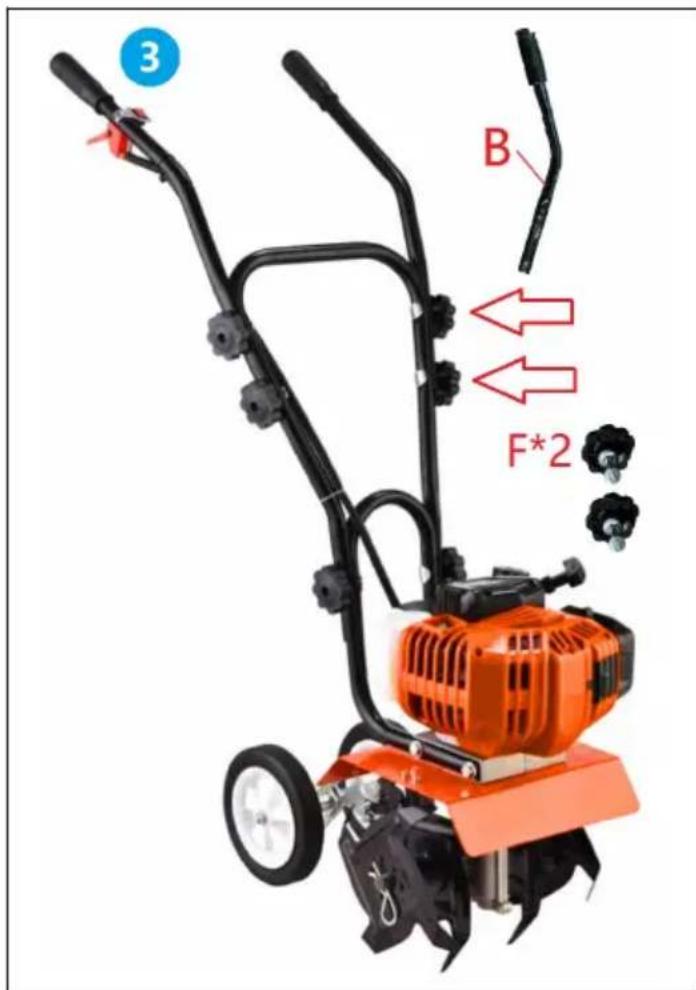

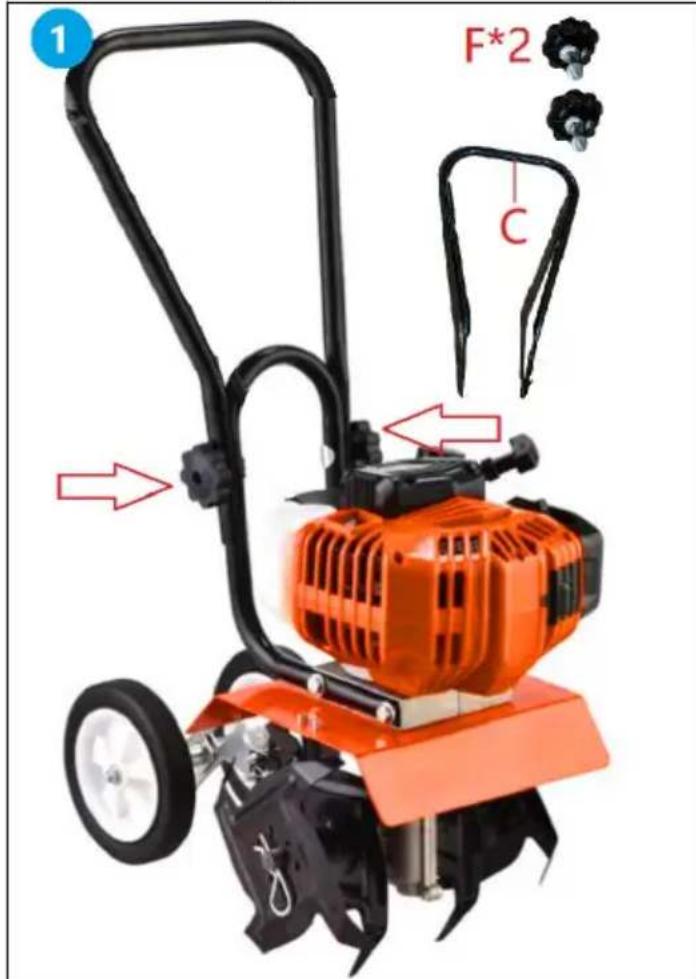

c. Mounting Bracket
5. Refuelling
Use 2-stroke oil, regular unleaded petrol.
Do not use pure petrol or the fuel/oil mixture rate above 40:1.
A.Shut off the engine during refuelling, keep well away from open flame and do not smoke.
B.Avoid skin contact with petroleum products. Do not inhale fuel vapor. Always wear protective gloves during refuelling. Change and clean protective clothing at regular intervals.
C.Take care not to spill either fuel or oil in order to prevent soil contamination (environmental protection).
D.Avoid any fuel contact with your clothing. Change your clothing immediately if fuel has been spilled on it (fire hazard).
E.Inspect the fuel cap at regular intervals making sure that it stays securely fastened.
F.Never refuel in closed rooms. Fuel vapors accumulate at ground
level (risk of explosions).
G. Only transport and store fuel in approved containers. Make sure stored fuel is not accessible to children.
H.Do not attempt to refuel a hot or a running engine.
WARNING! Adding fuel must be carried our carefully away from heat sources and naked flames. Do not smoke when adding fuel.
NOTE: Dispose of the old fuel/oil mix in accordance to local regulations.
-
Mix thoroughly oil and fuel in a bottle.
-
Open the fuel tank. Fill the tank. Avoid spillage.
-
Close the fuel tank. Wipe any spillage.
6. OPERATION

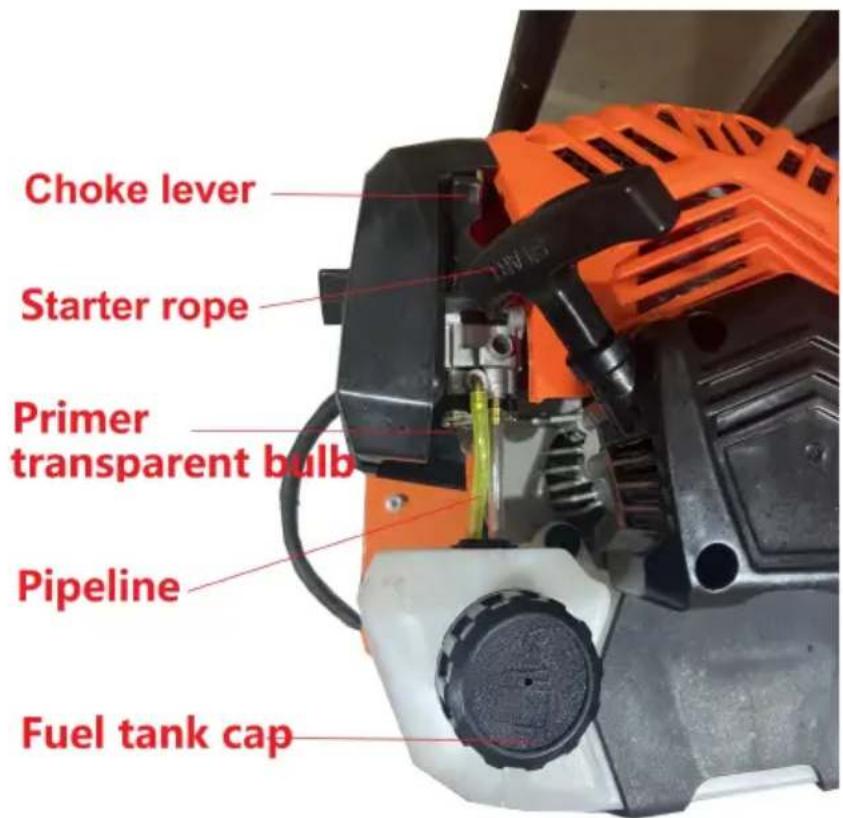

a) Cold starting
WARNING I To prevent serious injury, never pick-up o carry the tiller while the engine is running. Always sw off before each use and before moving to another area
| 1 | Set the STOP/START (OFF/ON) switch on the right handlebar to the START position. | |
| 2 | Choke lever | Set the choke lever to cold start position (OFF position). |
| 3 | Press the primer transparent bulb 6 times until you see the fuel flowing from the tank to the carburetor through the transparent hose. | |
| 4 | (ON position) | Pull the starter rope briskly! Repeat if necessary until started. |
| 5 | (ON position) | Move the choke leve to the RUN position (ON position). |
| 6 | (ON position) | Pull the starter again until the engine running. |
b) Hot starting
- Exactly the same process as from cold except keep the choke in the run position. With the engine running and the tines off the groupl pull up the throttle control lever to increase the engine speed.
c) Use
Hold both handlebar grips firmly, slowly lower the cultivator until the tines make contact with the ground. As the tines rotate on the soil begin to pull back on the tiller so that the tines can penetrate the ground. Once the ground has been broken, continue at a moderate pace until you are familiar with the controls and the handling of the cultivator.
- Pull the machine backwards to improve the depth of cultivation and reduce your effort.
7. MAINTENANCE AND STORAGE
TRANSPORTING THE MACHINE
- Never transport the tiller inside an enclosed space or vehicle. Fuel or fuel vapour may ignite causing serious injury.
- If fuel is present in the fuel tank, transport on en open vehicle upright position.
- If en enclosed vehicle must be used, then remove the fuel into approved fuel container. DO NOT siphon by mouth.
- Run engine to use up the fuel in the carburetor and fuel tank. Always run engine in swell ventilated areas.
- Wipe away any spilled fuel. Allow to dry.
- Ensure the fuel cap is fitted tightly before transportation.
GENERAL CLEANING
- Turn off the engine and disconnect the spark plug prior to maintenance operations.
-
Allow the engine and exhaust system to cool to avoid burns from contacting with hot parts.
-
It is important to keep safety gloves in the event that you need manipulate the blades.
- Wipe the dirt things on the machine.
- Remove the fuel from tiller if this is to be stored for longer than month.
- It is appropriate to check that all bolts and nuts have not been loosened after each session.
- The guard should be fixed after assembling and it should not be removed or adjusted during use and maintenance.
MAINTENANCE AND REPAIR INSTRUCTIONS
MAINTENANCE SCHEDULE
Perform these required maintenance procedures at the frequency stated in the table. These procedures should also be a part of any seasonal tune-up.
| FREQUENCY | MAINTENANCE REQUIRED |
| Every 10 hours | Clear and re-oil air filter |
| Every 25 hours | Check spark plug condition and ga |

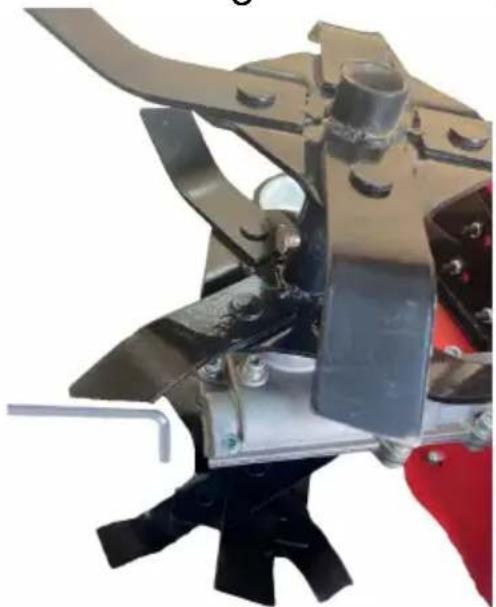

BODY MAINTENANCE:
- Every one or two hours, or after oil has been added, check and ensure all screws are tight.
- Every 2 hours add lubricating oil to the gear box.
- If the tines gets damaged, then replace or repair immediately.
WARNING: To prevent serious injury, never perform maintenance or repairs to a hot engine.

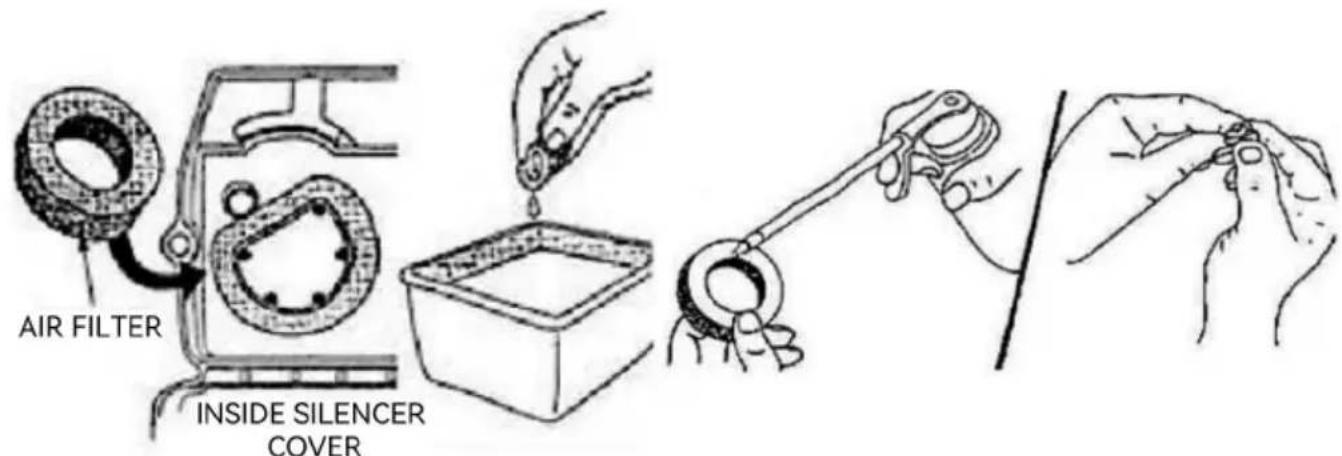

CLEANING THE AIR FILTER
Clean and re-oil the air filter every ten hours of operation. It is vitally important item to maintain.
Remove the sponge filter from inside.
Wash the filter in detergent and water (Fig. 10). Rinse the filter thoroughly. Squeeze out excess water and allow it to dry completely
Apply enough SAE 3D oil to lightly coat the filter (rig. 11).
Squeeze the filter to spread and remove extra oil (Fig. 11).
Replace the air filter and cover and securing screw.
NOTE: Operating the machine without the air filter and cover assembly will Void the warranty.
Figure 10
Figure 11
ADJUSTING IDLE SPEED
After checking and cleaning the air filter if necessary, start the engine and let it run for 2-3 minutes to warm up.
Release the throttle lever and allow the engine to idle. If the engine cuts out (will not idle), turn the adjuster clockwise 1/8th of a turn at time until the engine idles smoothly.
NOTE: Tines must not be rotating on idle. If they do, turn the adjustment screw anti-clockwise a tiny amount.

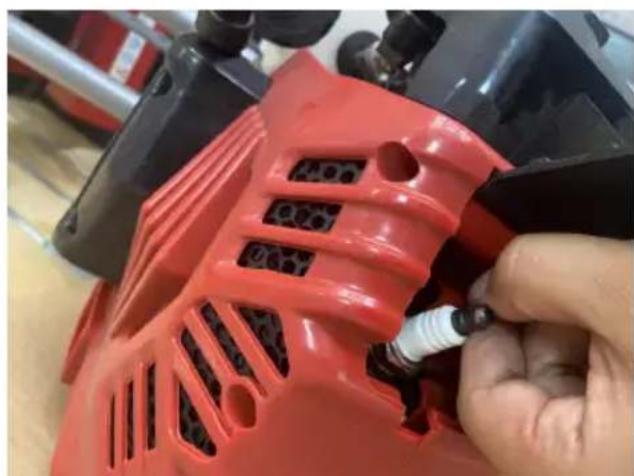

Replacing the Spark Plug
Remove the plug after every 25 hours of operation to check its condition.
| a | Stop the engine and allow it to co Use a tool to ope the black plastic cover. | |
| b | Expose the silicon tao that protects the spark plug | |
| c | Remove the silicone sleeve that protects the spark plug. | |
| d | Loosen the nut counterclockwise with a spark plug sleeve(L). | |
| e | On no account allow dirt to enter the cylinder when the spark plug is removed. We suggest filling the plughole using a small piece of clean rag. |
f
Tighten using the wrench taking care not to over-tighten.
STORAGE
Allow the engine to cool before storing. To be stored in a well-ventilated and dry area that out of the reach of children.
Long Term Storage
a) Drain any fuel left in the tank into a container and dispose of considering local bylaws.
b) Start and run the engine until it stalls. This ensures all fuel has been used from the carburetor.
c) Allow the engine to cool and remove the spark plug.
d) Put 30ml of high quality motor oil into the cylinder. Slowly pull 1 starter to distribute the oil.
e) Re-install the spark plug.
NOTE:
When re-starting after prolonged storage, be sure to drain all the oout from the cylinder first!
8. SPECIFICATIONS
| Model: | 520S |
| Engine: | 2-stroke combustion engine |
| Displacement: | 43 cm³ |
| Rated output power: | 1.25 kW |
| Speed: | 7500/min |
| Max speed: | 8500/min |
| Fuel tank: | 1.26 L |
| Working width: | 25 cm |
| Working depth: | 120 mm |
| Cutter thickness: | 2.1 mm |
| Weight: | 17.75kg |
| External dimensions: | 495x375x475MM |
| Sound pressure level (LpA): | 101dB K =3.26 dB |
| Sound power level (LWA): | 105.4 dB K = 3.26 dB |
| Guarantee sound power level: | 111 dB |
| Vibration: left handle / right handle: | 7.102 m/s 2, K = 1.5 m/s 2 |
DECLARATION OF CONFORMITY
Declaresthat in the machine Gasoline Tiller
in accordance with the following applicable directives.
The Machinery directive 2006/42/EC
The device, as described herewith, was tested pursuant to applicable test procedure and complies with the requirements of.
EN709:1997/A4:2009
EN 14910:2007/A1:2009
EK9-BE-98(v2):2020
AIPS GS 2019:01 PAK
Applicant: Zhejiang TOPWE Tools manufacturing Co., Ltd
No.3 Building No.133 North Yingui Road, Xicheng street, Yongkang Jinhua City, Zhejiang Province, China
Manufacturer:Zhejiang TOPWE Tools manufacturing Co., Ltd.
No.3 Building No.133 North Yingui Road, Xicheng street, Yongkang Jinhua City, Zhejiang Province, China
Product: Gasoline Tiller
Model Number:S52-1,S52-B,S52-C,520S
The tests were performed in normal operation mode. The test results apply only to the particular sample test'edand to the specf csts carried out This certifica's applies specifically to the sample investigated in our test reference number only
The CE markings as shown below can be affxed on the product after preparation of necessary technicadocumentabon. Other relevant directives have to be observed
Manufacturer:Shanghaiuxinmuyeyouxianggsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 212 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt am Main.
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion House,
London Road, Staines-upon-Thames, Surrey, TW18 4AX
VEVOR
TOUGH TOOLS, HALF PRICE
Technical Support and E-Warranty Certificate
www.vevor.com/support
VEVOR
TOUGH TOOLS, HALF PRICE
DECLARATION OF CONFORMITY
Declaresthat in the machine GasolineTiller
In accordance with the following applicable directives.
The Machinery directive 2006/42/EC
The device, as described herewith, was tested pursuant to applicable test procedure and complies with the requirements of:
EN709:1997/A4:2009
EN 14910:2007/A1:2009
EK9-BE-98(v2):2020
AIPS GS 2019:01 PAK
Applicant: Zhejiang TOPWE Tools manufacturing Co., Ltd
No.3 Building No.133 North Yingui Road, Xicheng street, Yongkang Jinhua City, Zhejiang Province, China
Manufacturer:Zhejiang TOPWE Tools manufacturing Co. Ltd
No.3 Building No.133 North Yingui Road, Xicheng street, Yongkang Jinhua City, Zhejiang Province, China
Product: Gasoline Tiller
Model Number:S52-1,S52-B,S52-C, 520S
The tests were performed in normal operation mode. The test results apply only to the particular sample tes'dand to the specc ests carried out. This certificale applies specifically to the sample investigated in our test reference number only
The CE markings as shown below can be affixed on the product after preparaton of necessary technicadocumentlabon.
Other relevant directives have to be observed
Produture: Shanghaiuxinmuyeyouxianggsi
Indirizzo: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 NC.
Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Francoforte sul Meno.
CONSULENZA YH LIMITATA.
C/O YH Consulting Limited Ufficio 147, Centurion House,
Viale Europa, 101, 00186 Roma, Italia
VEVOR
TOUGH TOOLS, HALF PRICE
DECLARATION OF CONFORMITY
Declaresthat in the machine Gasoline Tiller
In accordance with the following applicable directives.
The Machinery directive 2006/42/EC
The device, as described herewith, was tested pursuant to applicable test procedure and complies with the requirements of:
EN709:1997/A4:2009
EN 14910:2007/A1:2009
EK9-BE-98(v2):2020
AIPS GS 2019:01 PAK
Applicant: Zhejiang TOPWE Tools manufacturing Co., Ltd
No.3 Building No.133 North Yingui Road, Xicheng street, Yongkang Jinhua City, Zhejiang Province, China
Manufacturer:Zhejiang TOPWE Tools manufacturing Co. Ltd
No.3 Building No.133 North Yingui Road, Xicheng street, Yongkang Jinhua City, Zhejiang Province, China
Product: Gasoline Tiller
Model Number:S52-1,S52-B,S52-C,520S
The tests were performed in normal operation mode. The test results apply only to the particular sample tes'dand to the specc ests carried out. This certificale applies specifically to the sample investigated in our test reference number only
The CE markings as shown below can be affixed on the product after preparaton of necessary technicadocumentlabon.
Other relevant directives have to be observed
Producent:Shanghaiuxinmuyeyouxiangongsi
Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Szanghaj 200000 CN.
Importowane do AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Importowane do USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt nad Menem.
YH CONSULTING LIMITED.
C/O YH Consulting Limited Biuro 147, Centurion House,
London Road, Staines-upon-Thames, Surrey, TW18 4AX
VEVOR
TOUGH TOOLS, HALF PRICE
DECLARATION OF CONFORMITY
Declaresthatinthemachine: GasolineTiller
In accordance with the following applicable directives.
The Machinery directive 2006/42/EC
The device, as described herewith, was tested pursuant to applicable test procedure and complies with the requirements of:
EN 709.1997/A4:2009
EN 14910:2007/A1:2009
EK9-BE-98(v2):2020
AIPS GS 2019:01 PAK
Applicant: Zhejiang TOPWE Tools manufacturing Co., Ltd
No.3 Building No.133 North Yingui Road, Xicheng street, Yongkang Jinhua City, Zhejiang Province, China
Manufacturer:Zhejiang TOPWE Tools manufacturing Co.,Ltd
No.3 Building No.133 North Yingui Road, Xicheng street, Yongkang Jinhua City, Zhejiang Province, China
Product: Gasoline Tiller
Model Number:S52-1,S52-B,S52-C. 520S
The tests were performed in normal operation mode. The test results apply only to the particular sample tes'dand to the specific ests carried out. This certificale applies specifically to the sample investigated in our test reference number only
The CE markings as shown below can be affxed on the product after preparaton of necessary technicadocumentlabon.
Other relevant directives have to be observed
Hersteller: Shanghaiuxinmuyeyouxianggsi
Adresse: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.
Nach AUS importiert: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien
Importiert in die USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt am Main.
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
VEVOR
TOUGH TOOLS, HALF PRICE
DECLARATION OF CONFORMITY
Declaresthatinthemachine: GasolineTiller
In accordance with the following applicable directives.
The Machinery directive 2006/42/EC
The device, as described herewith, was tested pursuant to applicable test procedure and complies with the requirements of:
EN709:1997/A4:2009
EN 14910:2007/A1:2009
EK9-BE-98(v2):2020
AIPS GS 2019:01 PAK
Applicant: Zhejiang TOPWE Tools manufacturing Co., Ltd
No.3 Building No.133 North Yingui Road, Xicheng street, Yongkang Jinhua City, Zhejiang Province, China
Manufacturer:Zhejiang TOPWE Tools manufacturing Co. Ltd
No.3 Building No.133 North Yingui Road, Xicheng street, Yongkang Jinhua City, Zhejiang Province, China
Product: Gasoline Tiller
Model Number:S52-1,S52-B,S52-C, 520S
The tests were performed in normal operation mode. The test results apply only to the particular sample tes'dand to the specc ests carried out. This certificale applies specifically to the sample investigated in our test reference number only
The CE markings as shown below can be affixed on the product after preparaton of necessary technicadocumentabon.
Other relevant directives have to be observed
Fabricant:Shanghaiuxinmuyeyouxianggsi
Adresse: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200 000 CN.
Importé en Australie: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia
C/O YH Consulting Limited Bureau 147, Centurion House,
Route de Londres, Staines-upon-Thames, Surrey, TW18 4AX
VEVOR
TOUGH TOOLS, HALF PRICE
Assistance technique et certificate de garantielectronique www.vevor.com/support
VEVOR
TOUGH TOOLS, HALF PRICE
Technische ondersteuning en e-garantiecertificaat www.vevor.com/support
HOOFDBEWERKER
GEBRUIKERSHANDLEIDING
HULP NODIG? NEEM CONTACT MET ONS OP!
1. VEILIGHEIDSWAARSCHUWINGEN
DECLARATION OF CONFORMITY
Declaresthat in the machine Gasoline Tiller
In accordance with the following applicable directives.
The Machinery directive 2006/42/EC
The device, as described herewith, was tested pursuant to applicable test procedure and complies with the requirements of:
EN 709:1997/A4:2009
EN 14910:2007/A1:2009
EK9-BE-98(v2):2020
AIPS GS 2019:01 PAK
Applicant: Zhejiang TOPWE Tools manufacturing Co., Ltd
No.3 Building No.133 North Yingui Road, Xicheng street, Yongkang Jinhua City, Zhejiang Province, China
Manufacturer:Zhejiang TOPWE Tools manufacturing Co. Ltd
No.3 Building No.133 North Yingui Road, Xicheng street, Yongkang Jinhua City, Zhejiang Province, China
Product: Gasoline Tiller
Model Number:S52-1,S52-B,S52-C,520S
The tests were performed in normal operation mode. The test results apply only to the particular sample tes'dand to the specific ests carried out. This certificale applies specifically to the sample investigated in our test reference number only
The CE markings as shown below can be affixed on the product after preparaton of necessary technicadocumentabon.
Other relevant directives have to be observed
Fabrikant: Shanghaiimuxinmuyeyouxiangongsi
Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Geimporteerd aan AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australie
Geiporteerd maar de VS: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt am Main.
YH CONSULTING LIMITED.
C/O YH Consulting Limited Kantoor 147, Centurion House,
Londen Road, Staines-upon-Thames, Surrey, TW18 4AX
VEVOR
TOUGH TOOLS, HALF PRICE
garantiecertificaat www.vevor.com/support
VEVOR
TOUGH TOOLS, HALF PRICE
DECLARATION OF CONFORMITY
Declaresthat in the machine Gasoline Tiller
In accordance with the following applicable directives.
The Machinery directive 2006/42/EC
The device, as described herewith, was tested pursuant to applicable test procedure and complies with the requirements of:
EN709:1997/A4:2009
EN 14910:2007/A1:2009
EK9-BE-98(v2):2020
AIPS GS 2019:01 PAK
Applicant: Zhejiang TOPWE Tools manufacturing Co., Ltd
No.3 Building No.133 North Yingui Road, Xicheng street, Yongkang Jinhua City, Zhejiang Province, China
Manufacturer:Zhejiang TOPWE Tools manufacturing Co. Ltd
No.3 Building No.133 North Yingui Road, Xicheng street, Yongkang Jinhua City, Zhejiang Province, China
Product: Gasoline Tiller
Model Number:S52-1,S52-B,S52-C,520S
The tests were performed in normal operation mode. The test results apply only to the particular sample tes'dand to the specific ests carried out. This certificale applies specifically to the sample investigated in our test reference number only
The CE markings as shown below can be affixed on the product after preparaton of necessary technicadocumentabon.
Other relevant directives have to be observed
C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
VEVOR
TOUGH TOOLS, HALF PRICE
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
DECLARATION OF CONFORMITY
Declaresthat in the machine GasolineTiller
In accordance with the following applicable directives.
The Machinery directive 2006/42/EC
The device, as described herewith, was tested pursuant to applicable test procedure and complies with the requirements of:
EN 709.1997/A4:2009
EN 14910:2007/A1:2009
EK9-BE-98(v2):2020
AIPS GS 2019:01 PAK
Applicant: Zhejiang TOPWE Tools manufacturing Co., Ltd
No.3 Building No.133 North Yingui Road, Xicheng street, Yongkang Jinhua City, Zhejiang Province, China
Manufacturer:Zhejiang TOPWE Tools manufacturing Co. Ltd
No.3 Building No.133 North Yingui Road, Xicheng street, Yongkang Jinhua City, Zhejiang Province, China
Product: Gasoline Tiller
Model Number:S52-1,S52-B,S52-C. 520S
The tests were performed in normal operation mode. The test results apply only to the particular sample tes'dand to the specific ests carried out. This certificale applies specifically to the sample investigated in our test reference number only
The CE markings as shown below can be affixed on the product after preparaton of necessary technicadocumentabon.
Other relevant directives have to be observed
Fabricante: Shanghaiuxinmuyeyouxianggsi
Dirección: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 MN.
Importado a Australia: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Importado a EE. UU.: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Francfort del Meno.
YH CONSULTING LIMITADA.
C/O YH Consulting Limited Oficina 147, Centurion House,
Carretera de Londres, Staines-upon-Thames, Surrey, TW18 4AX
VEVOR
TOUGH TOOLS, HALF PRICE
Soporte专业技术o y certificate de garantia electrònica www.vevor.com/support
