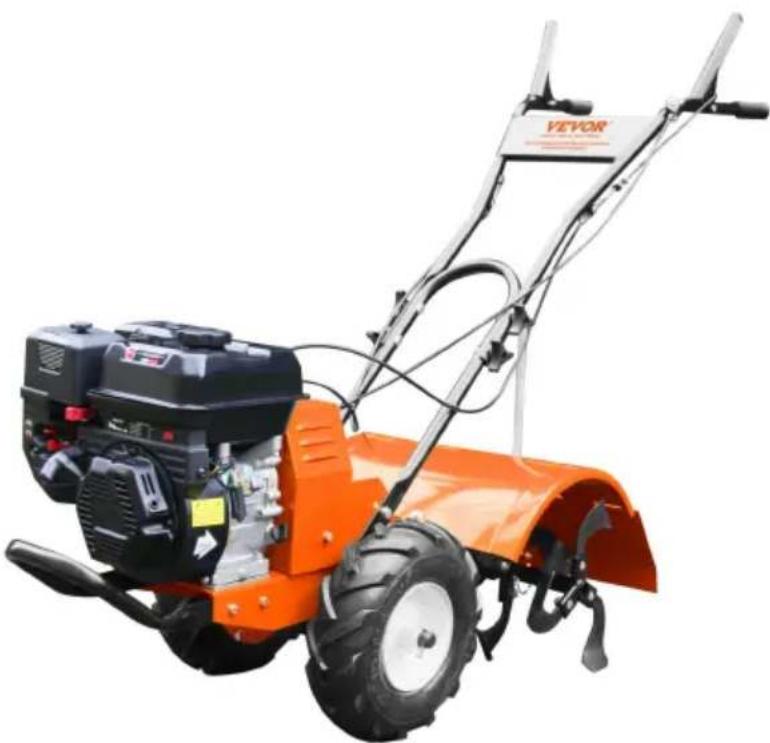

SRHX-50 - Tiller Vevor - Free user manual and instructions
Find the device manual for free SRHX-50 Vevor in PDF.
| Brand | Vevor |
| Model | SRHX-50 |
| Product Type | Tiller |
| Working Width | 500 mm |
| Plowing Depth | 175 to 350 mm (adjustable) |
| Engine | 4-stroke, OHV, 212 cc |
| Maximum Power | 7.0 HP at 3600 rpm |
| Starting System | Recoil Starter |
| Fuel Tank Capacity | 3.6 L |
| Engine Oil Capacity | 0.6 L |
| Fuel Type | Unleaded Gasoline |
| Transmission | Forward and Reverse (safety levers) |
| Handlebar Height Adjustment | Yes (multiple positions) |
| Depth Regulator | Lever with pin (5 holes) |
| Recommended Tire Pressure | 20 PSI |
| Maintenance | Oil change, air filter, spark plug, belt, transmission lubrication |
| Safety Devices | Safety levers (forward/reverse), guards, labels |
| Spare Parts | Belts, tines, spark plugs, filters, etc. (genuine parts recommended) |
| General Information | User manual provided, electronic warranty |
Frequently Asked Questions - SRHX-50 Vevor
User questions about SRHX-50 Vevor
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Tiller in PDF format for free! Find your manual SRHX-50 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SRHX-50 by Vevor.
USER MANUAL SRHX-50 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
TILLER CULTIVATOR
USER MANUAL
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE
TILLER CULTIVATOR
SRHX-50
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
SAFETY
OWNER'S RESPONSIBILITY
Accurate assembly and safe and effective use of the rototiller is the owner's responsibility.
- Read and follow all safety instructions.
- Carefully follow all assembly instructions.
- Maintain the tiller according to the directions and schedule included in the operator's manual.
- Ensure that anyone who uses the tiller is familiar with all controls and safety precautions.
SPECIAL MESSAGES
Your manual contains special messages to bring attention to potential safety concerns, machine damage, as well as helpful operating and servicing information. Please read all the information carefully to avoid injury and machine damage.
NOTE: General information is given throughout the manual that may help the operator in the operation or service of the machine.
IMPORTANT SAFETY PRECAUTIONS
Please read this section carefully.
Operate the tiller according to the safety instructions and recommendations outlined here and inserted throughout the text. Anyone who uses this tiller must read the instructions and be familiar with the controls. Your tiller is equipped with a
DANGER
DANGER INDICATES A SERIOUS INJURY OR FATALITY WILL RESULT IF THE SAFETY INSTRUCTIONS THAT FOLLOW THIS SIGNAL WORD ARE NOT OBEYED.
DANGER
WARNING INDICATES A SERIOUS INJURY OR FATALITY COULD RESULT IF THE SAFETY INSTRUCTIONS THAT FOLLOW THIS SIGNAL WORD ARE NOT OBEYED.
CAUTION
CAUTION indicates that you or your equipment can be hurt if the safety instructions that follow this signal word are not obeyed.
IMPORTANT
IMPORTANT indicates helpful information for proper assembly, operation, or maintenance of your equipment.
IMPORTANT
You must read, understand, and comply with all safety and operating instructions in this manual before attempting to set up and operate your rototiller. Failure to comply with all safety and operating instructions can result in loss of machine control, serious personal injury to you and/or bystanders, and risk of equipment and property damage. The triangle in the text signifies important cautions or warnings which must be followed.
Safety device that enables you to stow wheels and tines quickly in an emergency. Learn how the drive safety control lever operates and how to control the tiller times.
You must read, understand, and comply with all safety and operating instructions in this manual before attempting to set up and operate your rototiller.
This symbol points out important safety instructions which, if not followed, could endanger your personal safety. Read and follow all instructions in this manual before attempting to operate this equipment.
- Do not allow children to operate this rototiller. Keep small children away from the area being tilled. Do not allow adults to operate the tiller without proper instructions.
PREPARATION
- Dress appropriately when operating the tiller. Always wear sturdy footwear. Never wear sandals, sneakers, or open shoes, and never operate the tiller with bare feet. Do not wear loose clothing that might get caught in moving parts.
- Carefully inspect the area to be tilled and remove all foreign objects. Do not till above underground water lines, gas lines, electric cables, or pipes. Do not operate the tiller in soil with large rocks and foreign objects which can damage the equipment.
- Disengage all clutches and leave all control levers in the neutral position before starting the engine.
- Handle fuel with care; it is highly flammable.
a. Use an approved fuel container. b. Never add fuel to a running engine or hot engine. c. Fill fuel tank outdoors with extreme care. Never fill fuel tank indoors. d. Replace gasoline cap securely and clean up spilled fuel before restarting. e. Never attempt to make any adjustments while the engine is running.
OPERATION
- Never operate the tiller without guards, covers, and hoods in place.
- Never start the engine or operate the tiller with the wheels in the free-wheel position. Make sure the wheel lock pins are engaged through the wheel hubs and wheel axle. The wheels act as a brake to keep the tiller at a controlled speed. Disengage wheel lock pins to permit free-wheeling only when the engine is stopped.
- Keep hands, feet, and clothing away from rotating parts. Keep clear of the tiller at all times.
- Tines and wheels rotate when the tiller is engaged in forward. Grip the left clutch side, tines and wheels rotate and the tiller moves forward. Grip the right clutch side, wheels rotate but tines do not rotate and the tiller moves in reverse. Releasing both clutch handles to the neutral position stops the wheels and tines.
Warning: Do not operate both left and right clutch handles at the same time.
- Be extremely cautious when operating in reverse. Take extra care to avoid slipping or falling, and keep hands and feet clear of tines.
- Use extreme caution when operating on or crossing gravel drives, walks, or roads. Stay alert for hidden hazards or traffic.
IMPORTANT
THE RIGHT AND LEFT SIDES OF YOUR ROTO TILLER ARE DETERMINED FROM THE OPERATING POSITION AS YOU FACE THE DIRECTION OF FORWARD TRAVEL.
ENGINE IS SHIPPED FROM FACTORY WITHOUT OIL. YOU MUST ADD ENGINE OIL BEFORE STARTING ENGINE.
- After striking a foreign object, stop the engine, remove the wire from the plug, thoroughly inspect the tiller for any damage, and repair the damage before restarting and operating the tiller.
- If vegetation clogs the tines, raise the handlebars to elevate the tines, and tiller in reverse. If this does not clean clogged vegetation from the tines, STOP
THE ENGINE AND DISCONNECT THE SPARK PLUG WIRE before removing vegetation by hand.
- Engine muffler will be hot from operation. Do not touch it with bare skin or severe burn may result.
- If the unit should start to vibrate abnormally, stop the engine and check immediately for the cause. Vibration is generally a warning of trouble.
- Do not run the engine indoors; exhaust fumes are deadly.
- Do not overload the machine capacity by attempting to till too deep a rate.
- Never operate the machine at high transport speeds on slippery surfaces. L behind and use care when backing.
- Never allow bystanders near the unit.
- Use only attachments and accessories approved by the manufacturer of the
- Never operate the tiller without good visibility or light.
- Be careful when tilling in hard ground. The tines may catch in the ground, propel the tiller backward. If this occurs, let go of the handlebars and do no restrain the machine.
- Take all possible precautions when leaving the machine unattended. Disengage all control levers, stop the engine, wait for all moving parts to stop, and make certain guards and shields are in place.
- When leaving the operating position for any reason:
- shut off the engine.
- Wait for all moving parts to stop.
MAINTENANCE AND STORAGE
- Keep machine, attachments, and accessories in safe working condition.
- Check shear bolts, engine mounting bolts, and other bolts at frequent intervals for proper tightness to be sure the equipment is in safe working condition.

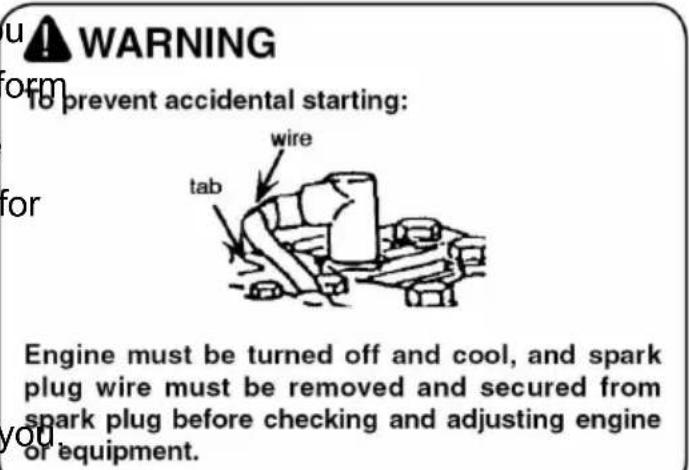

- To prevent accidental starting, always disconnect and secure the spark plug from the spark plug before performing tiller maintenance.
- Never run the engine indoors. Exhaust fumes are deadly.
- Always allow muffler to cool before filling fuel tank.
- Never store equipment with gasoline in the tank inside a closed building where fumes may reach an open flame or spark. Allow the engine to cool before storing it in any building.
- Always refer to the operator's guide instructions for important details if the tiller is to be stored for an extended period.
SAFETY DECALS
This rototiller unit has been designed and manufactured to provide you with the safety and reliability you would expect from an industry leader in outdoor power equipment manufacturing.
Although reading this manual and the safety instructions it contains will provide you with the necessary basic knowledge to operate this equipment safely and effectively, we have placed several safety labels on the tiller to remind you of important information while you are operating the unit.
These important safety labels are illustrated below, and are shown here to help familiarize you with the location and content of the safety messages you will see as you perform normal tilling operations. Please review these labels now. If you have any questions regarding their meaning or how to comply with these instructions, reread the complete safety instruction text on the preceding pages or contact your local dealer.
If any of the safety labels become unreadable because of being worn, faded, or otherwise damaged during the use of your tiller, please use the part number information provided to order a replacement label from your local authorized dealer.
The safety labels are easily applied, and will act as a constant visual reminder to you and others who may use the equipment. Follow the safety instructions necessary for safe, effective operation of your rototiller.
WARNING
AVOID SERIOUS INJURY
- Read operator's manual(s) before operating.
- Know the location and function of all controls.
- Keep all shields and guards in place and working while running.
- Never allow children to operate tiller.
- Dress appropriately—wear sturdy footwear.
- Carefully inspect area to be tilled—remove large rocks and other foreign objects. DO NOT till above underground electric, water, gas, or other utility lines and pipes.
- STOP THE ENGINE AND DISCONNECT THE SPARK PLUG WIRE before removing debris or servicing unit.
- When leaving the operating position for any reason: — shut off the engine. wait for all moving parts to stop.
WARNING
WHEELS ACT AS BRAKES

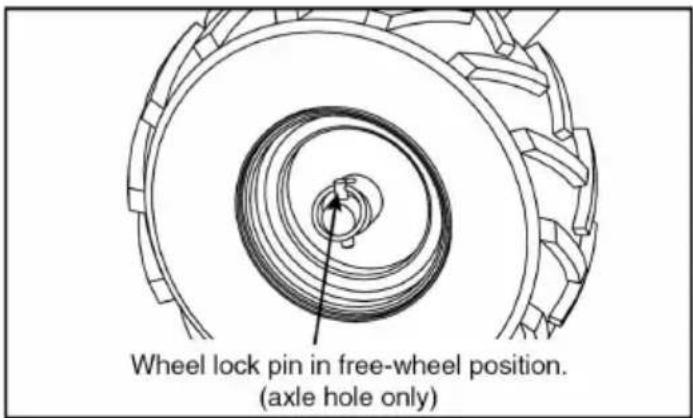

- Never start or operate tiller with wheels in the Free Wheel position. Make sure wheel lockouts are engaged through wheel hubs and axle.
- Wheels act as brakes to keep the tiller at a controlled speed. Disengage wheel lockouts ONLY when engine is stopped.
OPERATION
REFER TO OPERATOR'S MANUAL
FOR DETAILED OPERATING INSTRUCTIONS
TO START:
- Release drive control levers to neutral position.
- Lower the drag stake so that tines do not touch the ground.
- Check position of wheels and wheel lockouts.
- Slide choke control to choke position.
- Move throttle control lever to fast position. 6. Pull starter rope.
ASSEMBLY INSTRUCTIONS
The rototiller comes fully assembled except for a few parts. The following instructions will help you assemble: adjust the tiller's depth regulator, extension, and handlebar height. You need two 9/16" wrenches to complete the assembly.
IMPORTANT
THE RIGHT AND LEFT SIDES OF OUR ROTOTILLER ARE DETERMINED FROM THE OPERATING POSITION AS YOU FACE THE DIRECTION OF FORWARD TRAVEL.
ENGINE IS SHIPPED FROM FACTORY WITHOUT OIL. YOU MUST ADD ENGINE OIL BEFORE STARTING ENGINE.

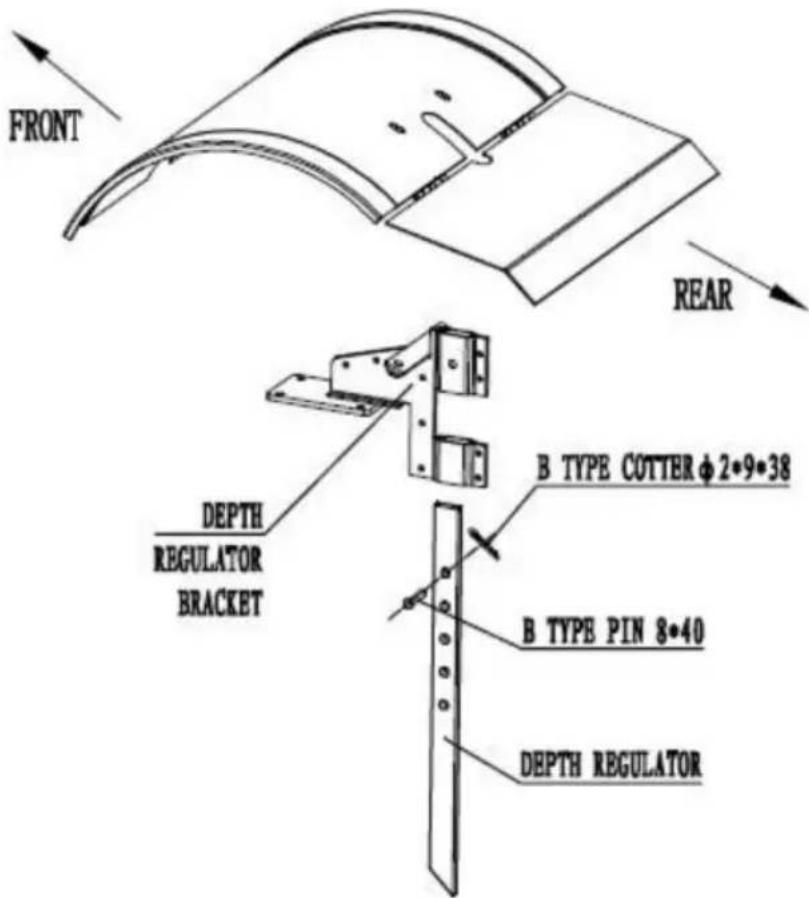

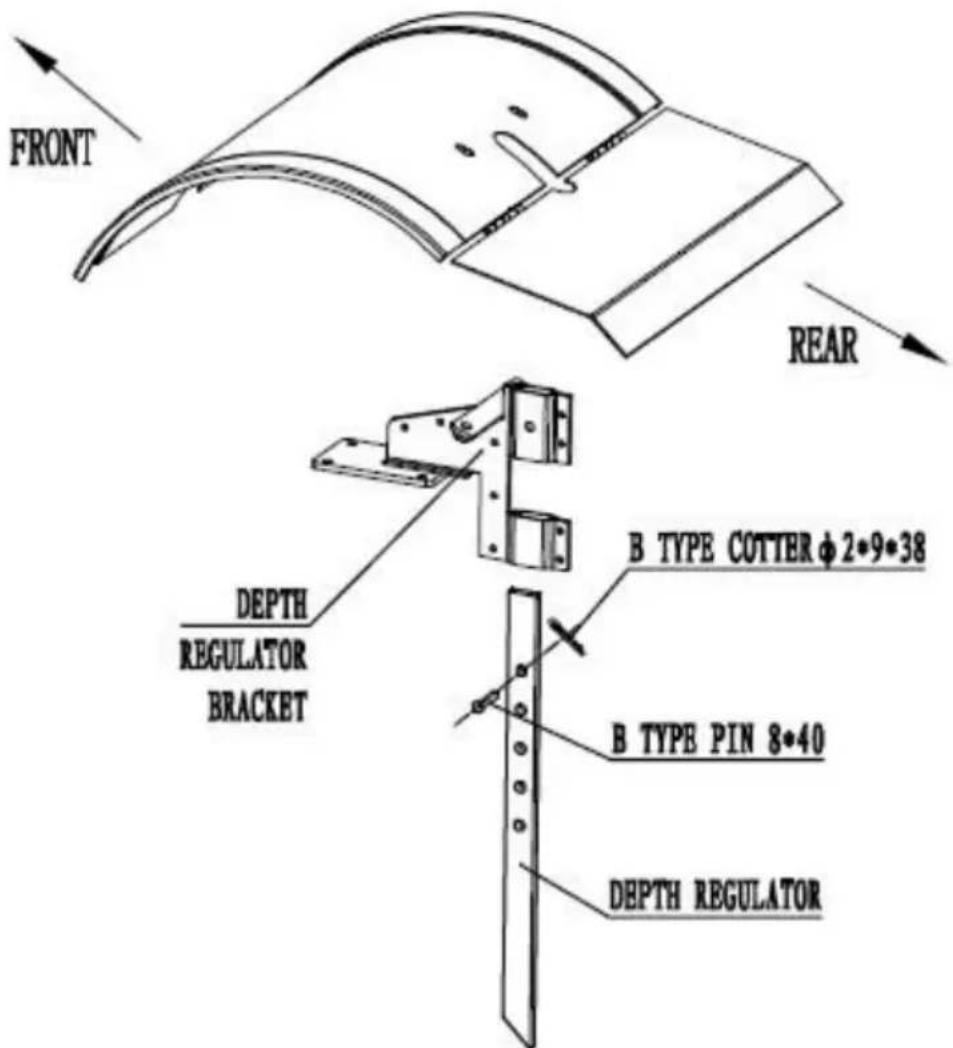

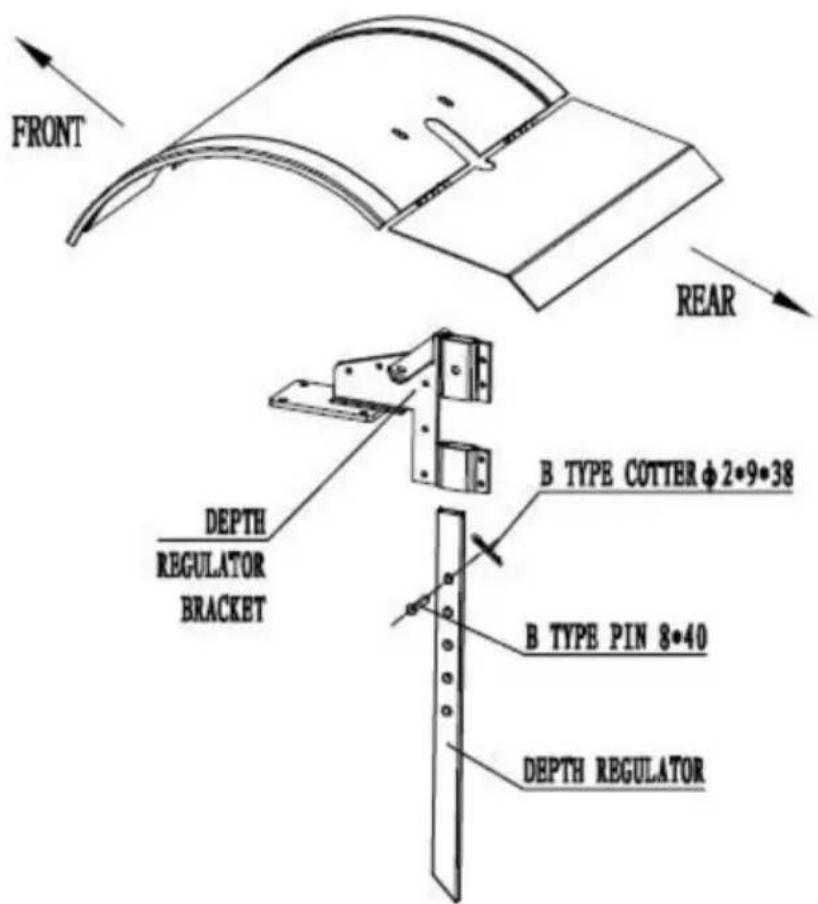

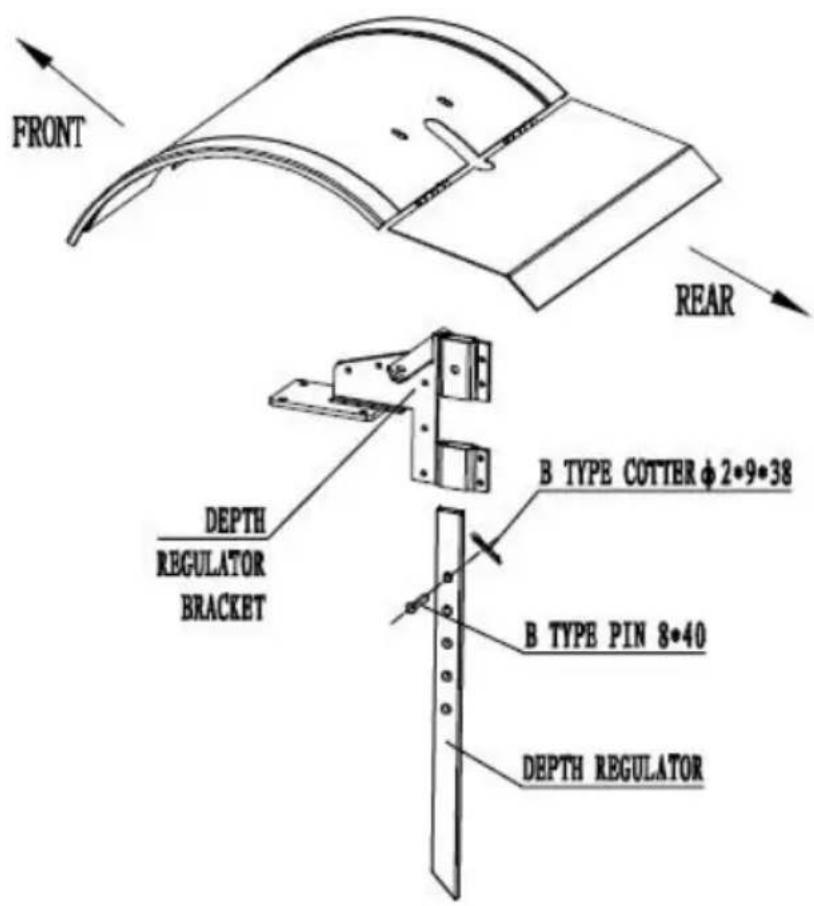

STEP 1 Install the Depth Regulator
- Install the depth regulator into the top of the depth regulator bracket with facing rearward.
- Insert depth regulator pin through depth regulator bracket and top hole of regulator tines should clear the ground.

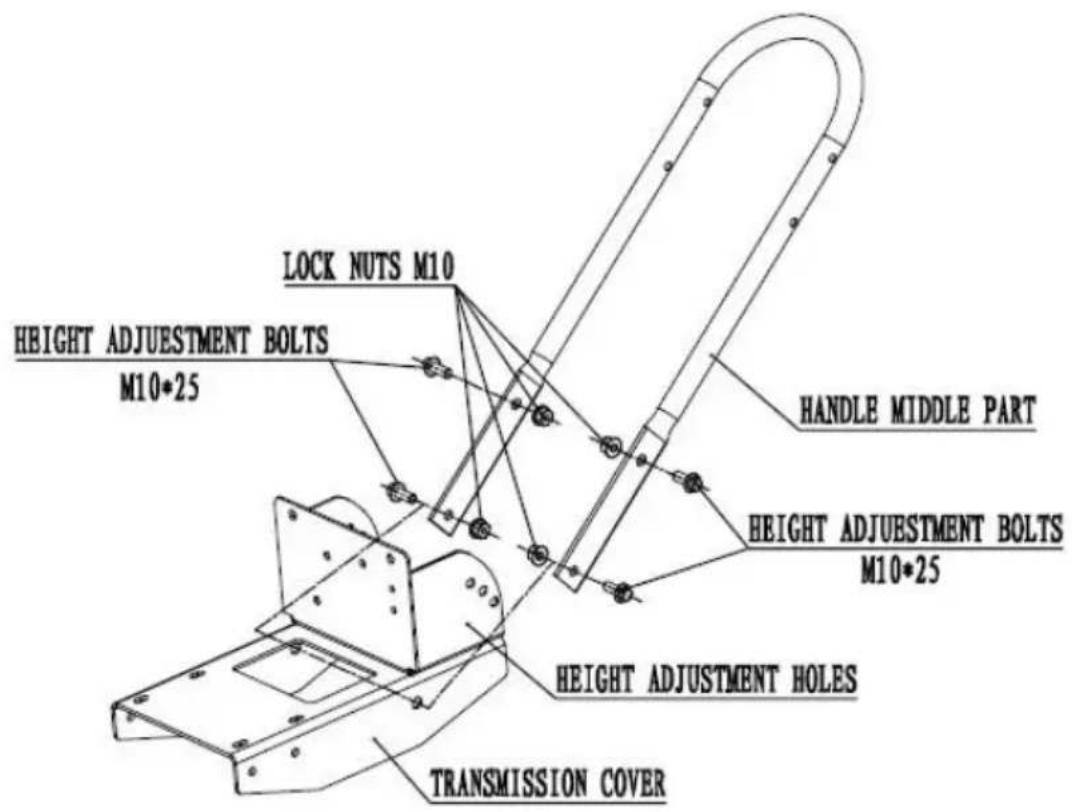

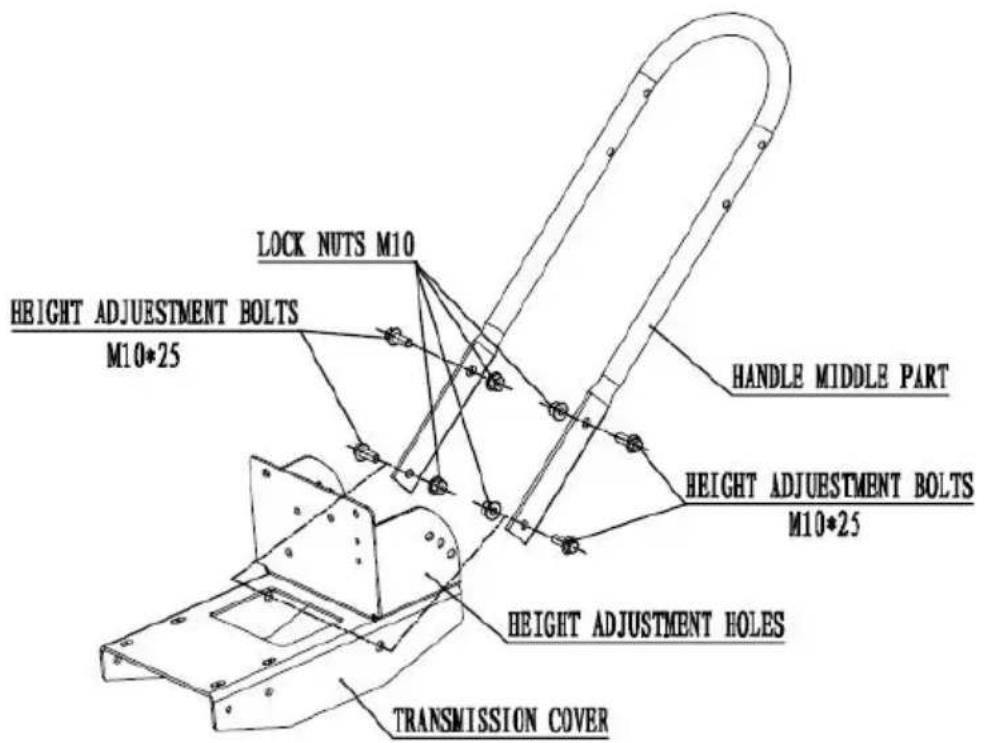

STEP 2 Attach ex-arm-rest stems to the Tiller
- The ex-arm-rest stems on outside of the Transmission cover and align the boles.
- Insert one 3/8 -16x 1" bolt for each side in lower holes.
- Start 3/8 -16 nuts on each bolt.
- Insert one 3/8 -16x 1" bolt for each side in Upper holes at desired hand height.
- Tighten all the nuts.

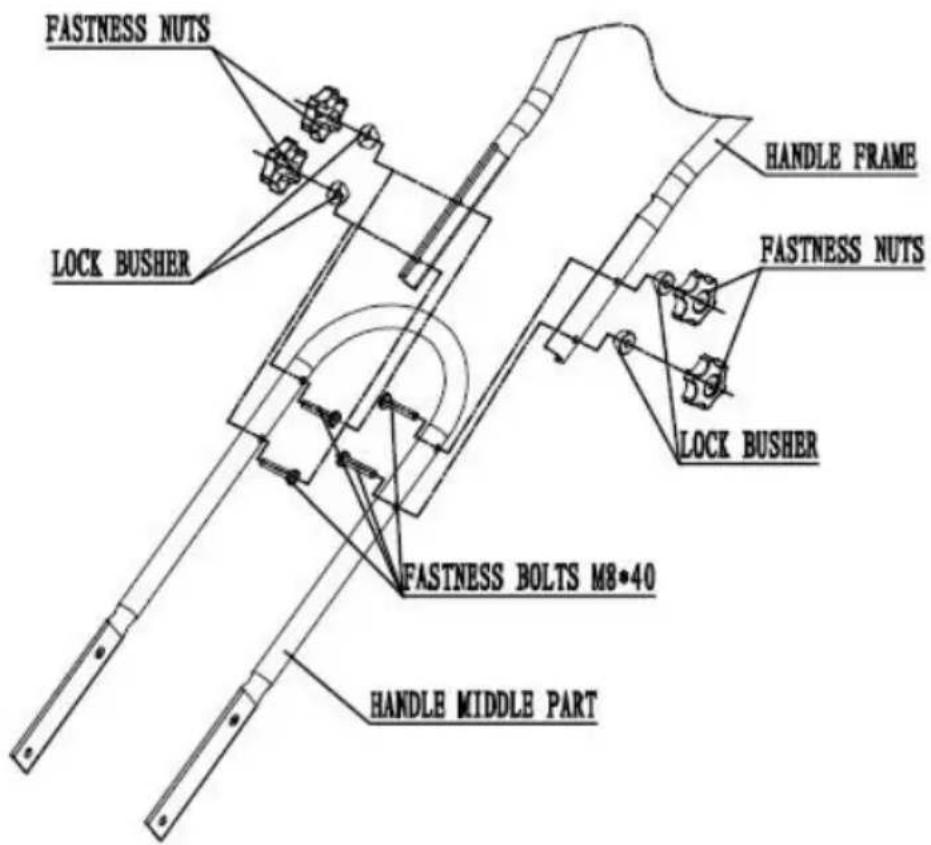

STEP 3: Attach handle bar to the Tiller
- Insert four fastness bolts for each side in every holes.
- Start fastness nuts on each bolt.
- Tighten all the nuts.

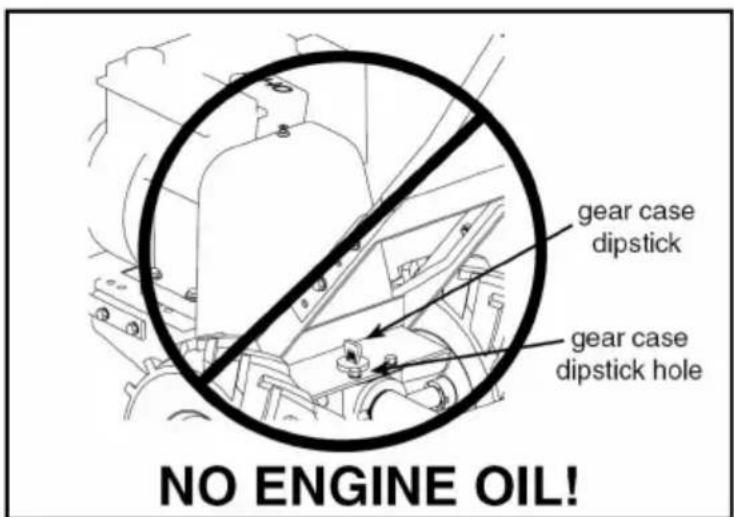

STEP 4: Fill Engine Crankcase. IMPORTANT
Engine is shipped from factory without oil. Engine oil must be added before starting engine.
- Add oil according to engine manual. Do not overfill. Use clean, high quality detergent oils. Do not mix oil with gasoline. Oil level must be full. Check the level by removing oil fill plug.
- Always check oil level before starting engine. Refer to engine manual for capacity and type of oil to use.
OPERATION
PRE-START INSPECTION
- Make sure all safety guards are in place and all nuts and bolts are secure.
- Check oil level in engine crankcase. See your engine manual for procedure and specifications.
- Inspect air cleaner for cleanliness. See your engine manual for procedure.
- Check the fuel supply. Fill the fuel tank no closer than 1 inch from top of tank to allow space for expansion. See your engine manual for fuel recommendations.
- Be sure spark plug wire is attached. Ensure spark plug is tightened securely.
- Check the position of wheels and wheel lockouts.
- Check depth regulator lever position.
- Examine underneath and around engine for signs of oil or fuel leaks.
- Inspect fuel hoses for tightness and fuel seepage.
- Look for signs of engine damage.
- Remove excessive debris from muffler area and recoil starter.
START-UP

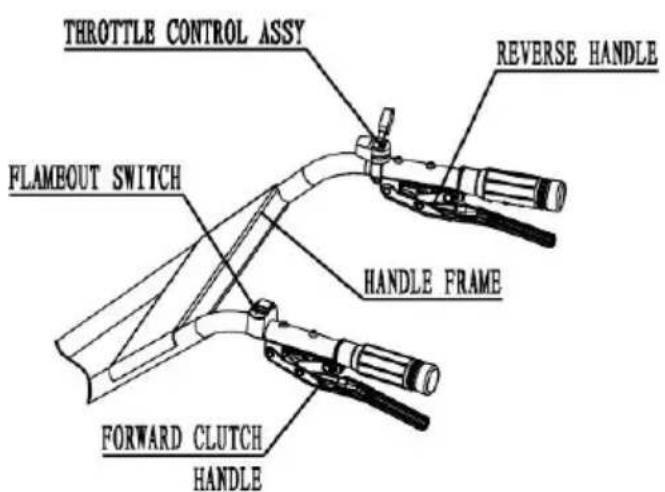

The controls required to start and run the rototiller are located on the engine and are marked "choke" and "Throttle".
A more detailed description of engine operation and all related precautions and procedures can be found in the engine manual that accompanies each tiller.
CAUTION
PLEASE DO NOT START YOUR TILLER UNTIL YOU HAVE READ THE MANUAL THAT CAME WITH YOUR ENGINE, AND THE SECTIONS IN THIS MANUAL TITLED CONTROLS, ADJUSTMENTS AND SAFETY. IF YOU HAVE READ THESE, FOLLOW THE STEPS BELOW TO START YOUR TILLER. ALWAYS PERFORM THIS PRE-START CHECKLIST BEFORE STARTING THE ENGINE.
WARNING
GASOLINE IS HIGHLY FLAMMABLE AND MUST BE HANDLED WITH CARE. NEVER FILL THE TANK WHEN THE ENGINE IS HOT OR RUNNING. ALWAYS MOVE OUTDOORS TO FILL THE TANK.
WHEELS MUST ALWAYS BE LOCKED IN THE TILLING POSITION WHEN ENGINE IS RUNNING. DO NOT OPERATE THE TILLER WITH THE WHEEL LOCKOUTS UNLOCKED. ALWAYS SET THE WHEELS IN TILLING POSITION BEFORE STARTING ENGINE.
ALWAYS PUT THE DEPTH REGULATOR LEVER IN THE TRANSPORT POSITION BEFORE STARTING ENGINE. TINES SHOULD CLEAR THE GROUND.
IMPORTANT
ENGINE IS SHIPPED FROM FACTORY WITHOUT OIL. YOU MUST ADD ENGINE OIL BEFORE STARTING ENGINE.
DANGER
ALWAYS KEEP HANDS AND FEET CLEAR OF ROTATING MACHINE PARTS.
COLD STARTS
| 1 | 0.6L WORM GEAR LURRICATING DIL 0.7L WORM GEAR LURRICATING DIL | Fill engine oil (≤0.6L) |
| 2 | 0.7L WORM GEAR LURRICATING DIL 0.7L WORM GEAR LURRICATING DIL | Fill drive shaft oil (≤0.7L) |
| 3 | 0.7L WORM GEAR LURRICATING DIL 0.7L WORM GEAR LURRICATING DIL | Gasoline filling (≤3.6L) |
| 4 | ON | Turn the stop switch “ON” on the left hand |
| 5 | OFF→ON | Turn up the throttle control valve. |
| 6 | Open the throttle. | |
| 7 | Set damper to closed position. | |
| 8 | Pull the rope to start the engine. | |
| 9 | Close the damper. | |
| 10 | Press the yellow protection switch first, and then press the rto start the forward gear (the wheel goes forward; The tool heastarts to rotate). |
11
Start reverse gear (wheel reverse; tool head stop rotating).
RESTARTING A WARM ENGINE
Restarting an engine that is already warm from previous running does not require use of the choke.
- Move throttle lever to "start" position.
- Pull starting rope out rapidly until engine starts. Allow rope to return normally. Repeat until engine starts.
- Adjust throttle speed to "high" for best tiller action.
IDLE SPEED
Use the "low" position on the throttle lever to reduce stress on the engine when tilling is not being performed. Lowering the engine speed to "idle" will help extend the life of the motor, as well as conserve fuel and reduce the noise level of the equipment.
OPERATING SPEED
For normal tilling, set the throttle lever to "fast".
SHUTTING DOWN
To stop the engine at any time, turn ON/OFF switch to the off position. To stop wheels and tines at any time, release safety control levers to neutral position. TILLING
- Adjust the depth regulator lever to the desired tilling depth.
WARNING
TEMPERATURE OF MUFFLER AND NEARBY AREAS MAY EXCEED 150°F. AVOID THESE AREAS.
DO NOT MOVE CHOKE CONTROL TO CHOKE TO STOP ENGINE. BACKFIRE OR ENGINE DAMAGE MAY OCCUR. TO STOP WHEELS AND TINES AT ANY TIME, RELEASE DRIVE SAFETY CONTROL LEVERS TO NEUTRAL POSITION. ALWAYS RELEASE DRIVE SAFETY CONTROL LEVERS TO NEUTRAL POSITION BEFORE ADJUSTING THE DEPTH REGULATOR LEVER.
DANGER
ENGINE AND SURROUNDING PARTS BECOME EXTREMELY HOT DURING NORMAL USE AND WILL CAUSE SERIOUS BURN INJURIES IF TOUCHED BEFORE THE ENGINE HAS COOLED. ALLOW ENGINE TO COOL COMPLETELY BEFORE TOUCHING THESE HOT SURFACES.
IMPORTANT
PRACTICE OPERATING THE CONTROLS AND TILLER WITH TINES OUT OF GROUND BEFORE BEGINNING TO TILL. IT IS IMPORTANT THAT YOU KNOW HOW TO USE THE TILLER PROPERLY, KEEP CONTROL AT ALL TIMES, STOP THE TINES AND WHEELS FROM TURNING, AND STOP THE ENGINE IF NECESSARY. IF YOU DO NOT KNOW HOW TO DO THESE THINGS, READ THE CONTROLS, ADJUSTMENTS AND SAFETY SECTIONS BEFORE PROCEEDING.
NOTE: Raise depth regulator lever up one hole at a time, testing tiller operation after each raise. Raising depth regulator lever too high can result in loss of control of tiller!
- Move the throttle control to fast.
- Place the tiller in forward by pushing down on the drive safety control lever (FORWARD) -- this will engage the wheels and tines.
NOTE: You can slow the tiller's forward advance at any time by putting slight downward pressure on the handlebars. You can stop the tiller by releasing the drive safety control levers to the neutral position.

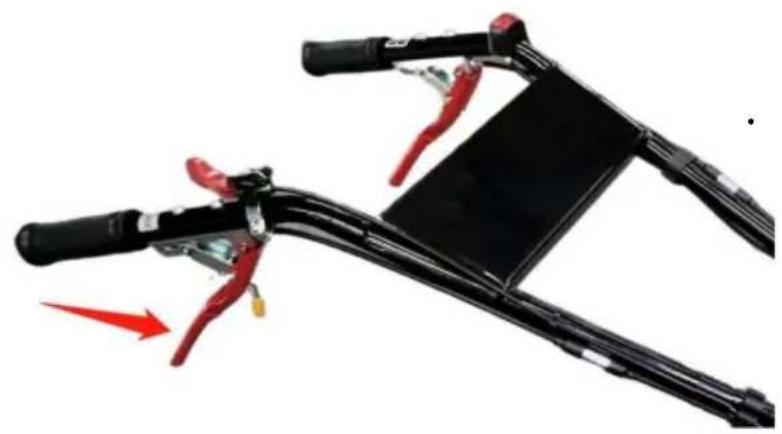

Pushing down the drive safety control lever (FORWARD) toward the handlebar engages the wheels and tines. Releasing the lever stops the wheels and tines and brings the tiller to a complete stop.
CAUTION
DO NOT OPERATE BOTH "FORWARD" AND "REVERSE" DRIVE SAFETY CONTROL LEVERS AT THE SAME TIME.
THIS INFORMATION IS PROVIDED HERE ONLY TO INTRODUCE THE CONTROLS. DO NOT START THE ENGINE AT THIS TIME. STARTING AND OPERATING INSTRUCTIONS ARE GIVEN ON PAGE ??. PLEASE READ THIS SECTION AND ALL OPERATING AND SAFETY INSTRUCTIONS BEFORE STARTING YOUR TILLER.
- AS A SAFETY PRECAUTION, THE DRIVE SAFETY CONTROL LEVERS WILL NOT LOCK IN THE FORWARD OR REVERSE POSITION.
- AS A SAFETY PRECAUTION, THE REVERSE DRIVE SAFETY CONTROL LEVER WILL NOT LOCK IN REVERSE. TO STOP THE WHEELS AND TINES AT ANY TIME RELEASE THE DRIVE SAFETY CONTROL LEVERS OR RELEASE THE REVERSE HANDLE. DO NOT OPERATE BOTH THE REVERSE AND FORWARD DRIVE SAFETY CONTROL LEVERS AT THE SAME TIME.
REVERSE LEVER
Engages wheels into reverse.
Pulling the drive safety control lever (REVERSE) toward the handlebar reverses the tiller, and the tines will not move.
Releasing the lever stops the wheels.
ADJUSTMENTS
WARNING
ENGINE SHOULD BE OFF BEFORE ADJUSTING ANY CONTROLS.
Place wheels in tilling position.
- Remove lock pin. Align hole in axle with hole in wheel hub.
- Insert lock pin through holes, fold lock pin ring to secure pin to axle.
- Firmly lock wheel and axle together before tilling.
- Repeat for other wheel.
- Set the depth regulator lever with the detent pin in one of the higher holes to allow for shallow cultivation necessary to turn over weeds, and break up and aerate the soil.
MAINTENANCE AND STORAGE
MAINTENANCE
Keeping the tiller in top running condition will prolong the tiller's life and help you obtain optimum performance whenever you wish to till your garden.
To help you properly care for the rototiller, the following pages include a maintenance schedule, routine inspection procedures, and simple maintenance procedures using basic hand tools. Other service tasks that are more difficult or require special tools are best handled by professionals and are normally performed by a qualified mechanic.
- Good maintenance is your responsibility; poor maintenance is an invitation to trouble.
Follow good shop practices.
Keep service area clean and dry.
Be sure electrical outlets and tools are properly grounded.
Use adequate light for the job at hand.
- Make sure the engine is off before you begin any maintenance or repairs. This will eliminate several potential hazards:
Carbon monoxide poisoning from engine exhaust.
Be sure there is adequate ventilation whenever you operate the engine. Never operate the engine in a closed building.
Burns from hot parts.
Let the engine and exhaust system cool before touching.
Injury from moving parts.
Do not run the engine unless instructed to do so.
- Read the instructions before you begin, and make sure you have the tools and skills required.
- To reduce the possibility of fire or explosion, be careful when working around gasoline.
Use only a nonflammable solvent, not gasoline, to clean parts. Keep cigarette sparks and flames away from all fuel-related parts.
- Always use personal protection devices such as eye, hand and hearing protectors when performing any service or maintenance.
- Frequently check tiller tines. They should be free of nicks and cracks and securely fastened in place.
- Periodically tighten all bolts, nuts, screws, and check that all pins are properly installed to make certain the unit is safe to operate.
- When completing maintenance or service, make sure all safety guards and devices are
NOTE: Always have both wheel lock pins in or out. Do not operate tiller with only one wheel locked.
To place wheels in free-wheel position.
- Remove lock pin. Slide wheel inward toward machine.
- Insert pin in axle only.
- Wheel should turn freely on a
HANDLEBAR HEIGHT ADJUSTMENT
Adjust handlebar height.
The ideal height of the handlebar varies with operator height and the depth of tilling. To adjust handlebar height:
- Unscrew nuts and remove top and bottom bolts on each side.
- Align handlebar to desired holes on the lower handlebar mount.
- Install bolts and nuts. Tighten again.
DEPTH REGULATOR LEVER
Tilling depth is controlled by the height of the
depth regulator lever. To adjust tilling d
WARNING
DO NOT ADJUST TILLING DEPTH UNLESS DRIVE OF SAFETY CONTROL LEVERS ARE RELEASED TO A NEUTRAL POSITION.
ALWAYS SET THE DEPTH REGULATOR LEVER IN THE TRANSPORT POSITION BEFORE STARTING THE ENGINE, THAT IS, PLACE THE DETENT PIN IN THE HIGHEST HOLE OF THE DEPTH REGULATOR LEVER.
- Remove detent pin.
- Raise the depth regulator lever to set tines at chosen tilling depth.
- Align hole in depth regulator lever with hole in depth regulator bracket and insert detent pin.
Depth Regulator Lever Down = Shallower tilling.
Place the detent pin in the top hole of the depth regulator lever for shallow tilling.
Depth Regulator Lever Up = Deeper tilling.
Place the detent pin in the bottom hole of the depth regulator lever for deep tilling.
BELT TENSION ADJUSTMENT
Proper belt tension is critical to good performance. After 1/2 hour of operation, cables may have to be adjusted due to initial stretch. Thereafter, check tension after every 2 hours of operation.

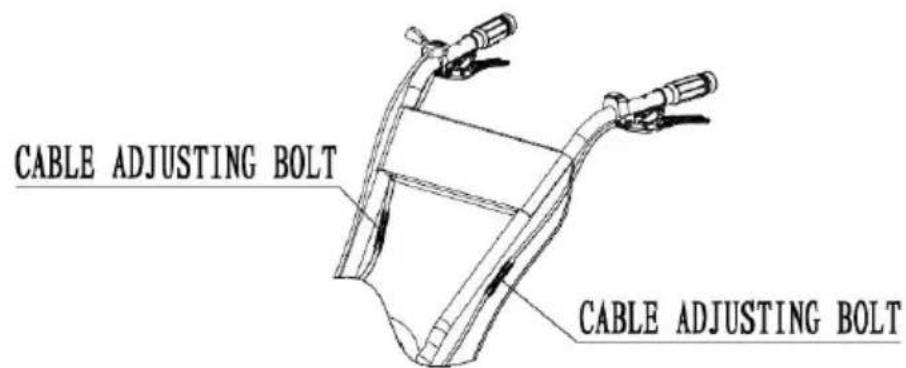

To increase belt tension:
- Loosen upper jam nut. Turn nut up cable in 1/8 increments.
- Tighten lower jam nut.
- Check adjustment.
This procedure can be repeated until conduit adjustment bolts are fully adjusted. If no more adjustment can be made, belt may have to be replaced.
TILLING TIPS
The key to successful tilling is to begin with a shallow cut on the first pass. Work an inch or two deeper on each successive pass.
- Tilling depth will vary with ground conditions.
- When beginning to till in unbroken ground or in extremely hard soil, set detent pin in the highest hole of the stake (follow instructions under Tilling).
WARNING
EXTREME CAUTION MUST BE TAKEN IN SELECTING TILLING DEPTH. IF YOU ATTEMPT TO TILL TOO DEEPLY FOR SOIL CONDITIONS, THAT IS, WITH THE DRAG STAKE IN TOO HIGH A POSITION, LOSS OF CONTROL COULD RESULT.
IF REMOVING MATERIAL FROM THE TINES BY HAND, STOP ENGINE AND REMOVE SPARK PLUG WIRE FIRST.
section). This will allow for shallow tilling.
With the drag stake in this position, make several light passes over the area tilled.
Reset for deeper depths with successive passes.
- If tiller jumps or skids uncontrollably, lower the drag stake by placing the pin in a higher hole. This will allow for shallower tilling. Hold firmly to the handlebars to control sudden lurches.
- If weeds, tall grasses, vines, or other materials clog or jam the tines, reverse tiller to unwind vegetation.
Immediately release the drive control levers if the tines jam or you strike an object.
With the drive control levers in neutral position, push the throttle control to the stop position to stop the engine. Disengage the spark plug wire. When the tines have stopped, remove foreign objects and check for damage.
CULTIVATING TIPS
If you plan to use your tiller for cultivating:
Plant rows on 20" - 22" centers for ease of turning. Install before using the rototiller. - Where replacement parts are necessary for periodic maintenance and service, use only new, original replacement parts or their equivalents for repair and replacement to restore your equipment to original specifications. - The manufacturer and/or distributor will not be responsible for injuries or damages caused by the use of unapproved parts and/or accessories. - A first aid kit should be kept readily accessible while performing maintenance on this equipment.
MAINTENANCE SCHEDULE
Your rototiller has been designed and produced by the industry's leading manufacturer of outdoor power equipment to provide you with years of reliable operation.
Keeping your tiller in top running condition will prolong its life and help you achieve optimum performance.
Please read this normal care schedule and note the recommended care intervals to extend the life of your unit.
| Maintenance Operation | Each Use | First Month or 20Hours | Every 3months or 50Hours | Every 6months or 100Hours | Every year or 300 Hours | |
| Drive Belt Tension | Check | ✓ | ||||
| Change | ✓ | |||||
| Engine oil | Check level | ✓ | ✓ | ✓ | ||
| Change | ||||||
| Air filter | Check | ✓ | ||||
| Clean | ✓ (1) | ✓ (1) | ||||
| Replace | ✓ | |||||
| Tiller Transmission Grease | Check | ✓ | ||||
| Replace | ✓ | |||||
| Tire Pressure | Check | ✓ | ||||
| Tine Shaft | Clean | ✓ | ||||
| Wheel Axle Shaft | Lubricate | ✓ | ||||
1) Service more frequently when used in dusty areas.
SERVICING THE ROTOTILLER
The following information will help you make the necessary checks and perform the procedures required to follow the normal care recommendations for your rototiller unit.
If you prefer, your local authorized dealer can make these checks and perform the required procedures for you.

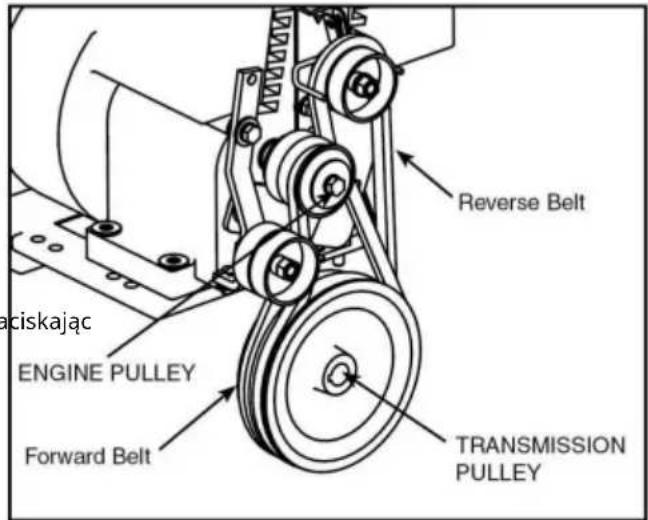

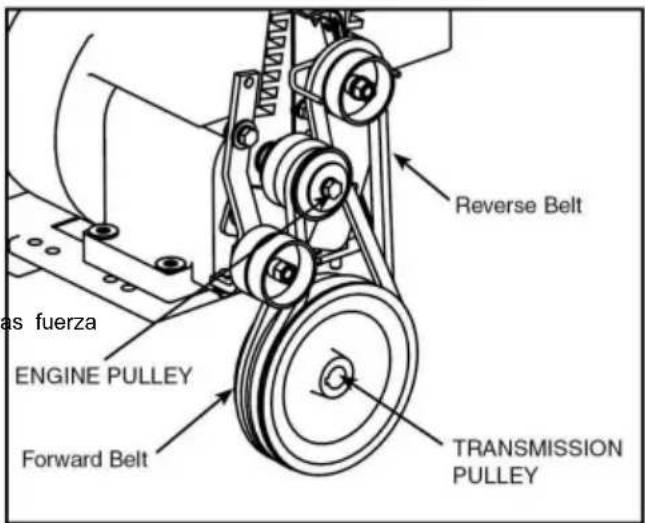

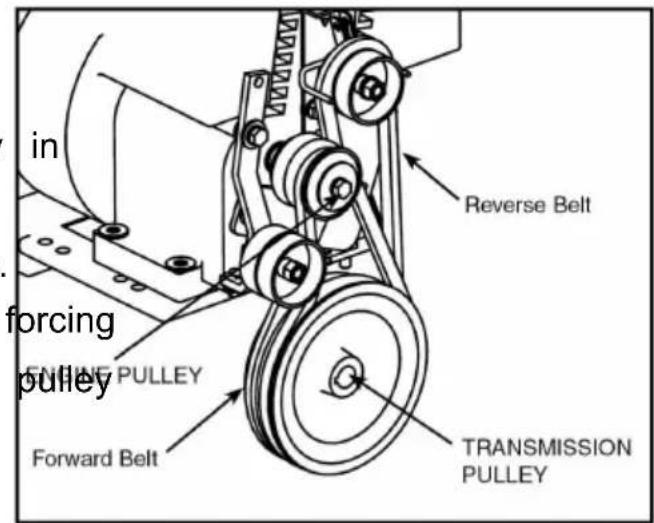

CHANGE FORWARD/REVERSE BELT
- Turn off engine. Engine must be cool.
- Remove spark plug wire and secure from spark plug.
- Remove belt guard.
- Remove the forward belt from the forward engine pulley:
- Gently pull the engine recoil rope to rotate the pulley.
- With the pulley turning, force the forward belt out of the V-groove.
- Slide the belt free of the engine pulley.
- Pull the forward belt down and out of the way. Remove the reverse belt from the reverse engine pulley:
- Gently pull the engine recoil rope to rotate the pulley.
- With the pulley turning, force the reverse belt out of the V-groove.
- Slide the belt free of engine pulleys and reverse belt guides.
- Pull belt down and away from transmission pulley.
- Install new reverse belt:
- Thread belt up from bottom.
- Place belt around transmission pulley groove.
- Place belt under reverse belt guides.
- Gently pull engine recoil rope while guiding the belt over the edge of the engine into the V-groove.
- Install new forward belt:
- Place forward belt in transmission pulley groove.
- Gently pull the engine recoil rope to rotate the pulley while forcing the belt into the V-groove.
- Replace belt guard.
- Attach spark plug wire.
ENGINE MAINTENANCE
Refer to the engine manual included in your parts packet for information on maintenance. Your engine manual provides detailed information and a maintenance schedule for performing the following tasks:
- Check oil level before each use or after every 8 hours of operation.
- Change oil after first 5-8 hours of operation. Change oil while engine is warm. Refill with new oil of recommended grade.
- Check spark plug yearly or every 100 hours of operation.
- Service air cleaner.
- Keep engine and parts clean.
- Check engine and equipment often for loose nuts and bolts, keep these tightened.
CHECK OR FILL ENGINE CRANKCASE
- Add oil according to engine manual. Do
not overfill. Use a clean, high quality detergent oil. Do not mix oil with gas.
Oil level must be full. Check the oil level by removing oil fill plug. Oil level should
be to the bottom of the fill plug opening.
- Always check oil level before starting engine. Refer to engine manual for capacity and
type of oil to use.

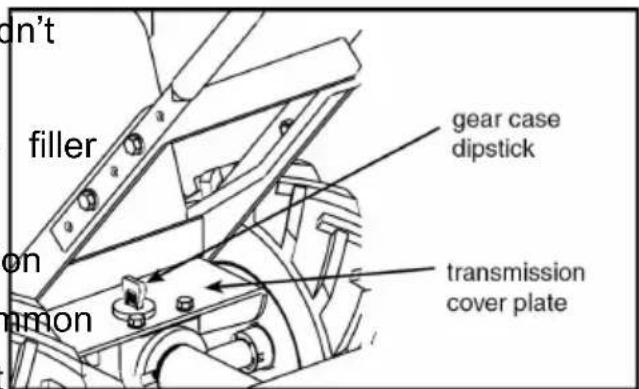

CHECK TILLER TRANSMISSION GREASE
Check the grease level annually. To check the grease level:
- Move tiller to level ground.
- Remove grease level dipstick located between the handlebar mounts on the engine mount. If the grease level could touch the dipstick, please fill the grease.
- Replace grease level dipstick in the hole.
- Note that the front wheel transmission and rear tire transmission are one common reservoir. When you add to the front
transmission, you must wait a short period of time for the grease to flow and equalize in both front and rear. The dipstick will read correctly on level for both gear units.
CHECK TIRE PRESSURE
Recommended tire pressure is 20 PSI. If tires do not have equal pressure, the tiller will pull to one side.
LUBRICATION
Proper lubrication of moving mechanical parts is critical for proper care and maintenance.
Oil the moving parts shown at 10 hour intervals using a 30 weight oil.
CLEAN TINE AXLE SHAFT
- Turn off engine. Engine must be cool.
- Remove spark plug wire and secure from spark plug.
- Tip the tiller forward. Block the tiller in position so that it rests on the engine mount and the tines are exposed.
- Remove all vegetation, string, wire, and other material that may have accumulated on the axle between the inside set of tines and the seal on the transmission housing.
- Tip the tiller back to a level position.
- Replace spark plug wire.
STORAGE
PREPARE FOR STORAGE
Follow the steps below to prepare your tiller for storage. Read your engine manual for detailed instructions on preparing the engine for storage.
- Protect wheels and axles from rust.
- Remove lockpin and slide wheel off.
- Coat the axles lightly with axle grease.
- Slide wheel back on hub and insert pin.
WARNING
DO NOT STORE TILLER IN AN UNVENTILATED AREA WHERE FUEL FUMES MAY REACH FLAME, SPARKS, PILOT LIGHTS OR AN IGNITED OBJECT. DRAIN FUEL OUTDOORS AWAY FROM ANY IGNITION SOURCES. USE ONLY APPROVED FUEL CONTAINERS.
- Drain fuel system completely following
engine manufacturer's instructions or add fuel stabilizer to prevent fuel from gumming up during extended storage period.
- While engine is still warm, drain the oil from the engine. Refill with fresh recommended grade.
- Clean external surfaces, engine and cooling fan.
- Remove spark plug, pour one ounce of SAE 30 oil into spark plug hole.
- Plug hole and pull starter cord slowly to distribute oil evenly in cylinder head area.
- Reinstall spark plug.
- Transport unit to a suitable storage location. If you have chosen to use a stabilizer and have not drained the fuel system, follow all safety instructions and storage precautions in this manual to prevent the possibility of fire from gasoline fumes. Remember, gasoline fumes can travel to distant sources of ignition and ignite, causing risk of explosion and fire.
- If there is any possibility of unauthorized use or tampering, remove the spark plug and store it in a safe place before storing the rototiller unit. Be sure to cover the spark plug hole to prevent foreign material from entering.
TROUBLESHOOTING AND REPAIR
TROUBLESHOOTING GUIDE
While normal care and routine maintenance will extend the life of your rototiller, prolonged or constant use may eventually require that service be performed to allow it to continue operating properly. The troubleshooting guide below lists the most common problems, causes, and remedies.
| PROBLEM | REMEDY/ACTION |
| Engine can not start | · Add gas to gas tank. · Connect spark plug wire to spark pl. · Throttle must be positioned at choke cold start |
| Engine runs rough, foods during operation | · Clean or replace air cleaner |
| Engine is hard to start | · Drain old fuel and replace with fresh gas stabilizer at end of season · Make sure spark plug wire is secure attached to spark plug · Drive safety control levers must be released to neutral position to start the engine |
| Engine misses or lacks power | · Raise the tines for shallow tilling by lowering the depth regulator lever · Remove and clean fuel tank · Clean or replace air cleaner |
| • Improper carburetor adjustment, take authorized engine service center • Replace spark plug and adjust gap • Drain and refill gas tank and carbure | |
| Engine can not stop when throttled control is positioned at stop | • See engine manual to check and ad throttle linkage |
| Tiller moves forward during start | • Drive safety control levers must be released to neutral position to start the engine |
| Tiller is difficult to control when (machine jumps or lurches forward | • Lock wheels in tilling position • Raise the tines for shallower tilling by lowering the depth regulator lever |
| Tines turn but wheels do not turn | • Lock wheels in tilling position • Internal transmission failure, see your dealer |
| Tines turn, wheels turn, tiller does not move | • Lower the tines for deeper tilling by the depth regulator lever |
| Belts squeal in neutral and/or reverse | • Adjust forward belt guide: - turn engine off and allow muffler to - disconnect spark plug wire and secure from spark plug - remove belt guard - pull down on drive safety control lever - manually bend forward belt guide so is 1/16 inch or less clearance between guide and belt - replace belt guard and spark plug w |
| Belts squeal in forward operation | • Adjust tabs on the reverse belt guide - turn engine off and allow muffler to - disconnect spark plug wire and secure from spark plug - release drive safety control levers to neutral position |
| - remove belt guard - adjust tabs of reverse belt guide: while drive safety control levers are released, bend metal tabs on reverse guide to 1/64 inch or less clearance for reverse belt - replace belt guard and spark plug with | |
| Excessive heat build up in transmission/tine area during tilling | - Remove vegetation by following instructions in clean Tine Axle Shaft of Normal care section. FOLLOW ALL SAFETY INSTRUCTIONS - Check transmission |
TECHNICAL DIAGRAM
| Tilling Scope | 500mm |
| Tilling Depth | 175~350mm |
| Gear Shifting | 0, 1, -1 |
| Engine Type | OHV 4-stroke |
| Starting System | Recoil |
| Displacement | 212cc |
| Max Output | 7.0HP/3600rpm |
| Engine Speed | 3600rpm |
| Fuel Volume | 3.6 L |
| Oil Volume | 0.6 L |
| Fuel Type | Unleaded Gasoline |
DECLARATION OF CONFORMITY
EC DECLARATION OF CONFORMITY
For the following machinery
Product name: Motor Hoe Commercial name: N/A Function: Motor Hoe - Type: Gasoline - Model No.: SRHX-50
is herewith confirmed to fulfill all the relevant provisions of
Machinery Directive (2006/42/EC) Electromagnetic Compatibility Directive (2014/30/EU)
and the following harmonized standards have been complied with
EN709:1997+A4;EN709:1997+A4/AC EN ISO 14982:2009
Responsible for marking this declaration is the
Manufacturer's Name
: Chongqing Shineray Agricultural Machinery Co., Ltd.
Manufacturer's Address
: 8 Shineray Road, Hangu Town, Jiulongpo District, Chongqing 401329, China
Person responsible for making this declaration
Name, Surname
: Yao, Su ling
Position/Title
: Certification Engineer
Place
: Chongqing
Date
2022.10.09
(Company)
Manufacturer: Shanghai Uxin Muye Youxian Gongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt am Main.
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
VEVOR
TOUGH TOOLS, HALF PRICE
Technical Support and E-Warranty Certificate www.vevor.com/support
VEVOR
TOUGH TOOLS, HALF PRICE
- Read operator's manual(s) before operating.
- Know the location and function of all controls.
- Keep all shields and guards in place and working while running.
- Never allow children to operate tiller.
- Dress appropriately—wear sturdy footwear.
- Carefully inspect area to be tilled—remove large rocks and other foreign objects. DO NOT till above underground electric, water, gas, or other utility lines and pipes.
- STOP THE ENGINE AND DISCONNECT THE SPARK PLUG WIRE before removing debris or servicing unit.
- When leaving the operating position for any reason: — shut off the engine. wait for all moving parts to stop.
WARNING
WHEELS ACT AS BRAKES
- Never start or operate tiller with wheels in the Free Wheel position, Make sure wheel lockouts are engaged through wheel hubs and axle.
- Wheels act as brakes to keep the tiller at a controlled speed, Disengage wheel lockouts ONLY when engine is stopped.
OPERATION
REFER TO OPERATOR'S MANUAL
FOR DETAILED OPERATING INSTRUCTIONS
TO START:
- Release drive control levers to neutral position.
- Lower the drag stake so that tines do not touch the ground.
- Check position of wheels and wheel lockouts.
- Slide choke control to choke position.
- Move throttle control lever to fast position. 6. Pull starter rope.
ASSEMBLY INSTRUCTIONS
PLEASE DO NOT START YOUR TILLER UNTIL YOU HAVE READ THE MANUAL THAT CAME WITH YOUR ENGINE, AND THE SECTIONS IN THIS MANUAL TITLED CONTROLS, ADJUSTMENTS AND SAFETY. IF YOU HAVE READ THESE, FOLLOW THE STEPS BELOW TO START YOUR TILLER. ALWAYS PERFORM THIS PRE-START CHECKLIST BEFORE STARTING THE ENGINE.
WARNING
GASOLINE IS HIGHLY FLAMMABLE AND MUST BE HANDLED WITH CARE. NEVER FILL THE TANK WHEN THE ENGINE IS HOT OR RUNNING. ALWAYS MOVE OUTDOORS TO FILL THE TANK.
WHEELS MUST ALWAYS BE LOCKED IN THE TILLING POSITION WHEN ENGINE IS RUNNING. DO NOT OPERATE THE TILLER WITH THE WHEEL LOCKOUTS UNLOCKED. ALWAYS SET THE WHEELS IN TILLING POSITION BEFORE STARTING ENGINE.
ALWAYS PUT THE DEPTH REGULATOR LEVER IN THE TRANSPORT POSITION BEFORE STARTING ENGINE. TINES SHOULD CLEAR THE GROUND.
IMPORTANT
ENGINE IS SHIPPED FROM FACTORY WITHOUT OIL. YOU MUST ADD ENGINE OIL BEFORE STARTING ENGINE.
DANGER
ALWAYS KEEP HANDS AND FEET CLEAR OF ROTATING MACHINE PARTS.
COLD STARTING
TEMPERATURE OF MUFFLER AND NEARBY AREAS MAY EXCEED 150°F. AVOID THESE AREAS.
DO NOT MOVE CHOKE CONTROL TO CHOKE TO STOP ENGINE. BACKFIRE OR ENGINE DAMAGE MAY OCCUR.
TO STOP WHEELS AND TINES AT ANY TIME, RELEASE DRIVE SAFETY CONTROL LEVERS TO NEUTRAL POSITION.
ALWAYS RELEASE DRIVE SAFETY CONTROL LEVERS TO NEUTRAL POSITION BEFORE ADJUSTING THE DEPTH OF THE REGULATOR LEVER.
DANGER
ENGINE AND SURROUNDING PARTS BECOME EXTREMELY HOT DURING NORMAL USE AND WILL CAUSE SERIOUS BURN INJURIES IF TOUCHED BEFORE THE ENGINE HAS COOLED.
ALLOW ENGINE TO COOL COMPLETELY BEFORE TOUCHING THESE HOT SURFACES.
IMPORTANT
PRACTICE OPERATING THE CONTROLS AND TILLER WITH TINES OUT OF GROUND BEFORE BEGINNING TO TILL. IT IS IMPORTANT THAT YOU KNOW HOW TO USE THE TILLER PROPERLY, KEEP CONTROL AT ALL TIMES, STOP THE TINES AND WHEELS FROM TURNING, AND STOP THE ENGINE IF NECESSARY. IF YOU DO NOT KNOW HOW TO DO THESE THINGS, READ THE CONTROLS, ADJUSTMENTS AND SAFETY SECTIONS BEFORE PROCEEDING.
ALWAYS SET THE DEPTH REGULATOR LEVER IN THE TRANSPORT POSITION BEFORE STARTING ENGINE, THAT IS, PLACE THE DETENT PIN IN THE HIGHEST HOLE OF THE DEPTH REGULATOR LEVER.
BELT TENSION ADJUSTMENT
IF REMOVING MATERIAL FROM THE TINES BY HAND, STOP ENGINE AND REMOVE SPARK PLUG WIRE FIRST.
Engine must be turned off and cool, and spark plug wire must be removed and secured from spark plug before checking and adjusting engine or equipment.
TEMPERATURE OF MUFFLER AND NEARBY AREAS MAY EXCEED 150°F. AVOID THESE AREAS.
IMPORTANT
ENGINE CAN OVERHEAT AND BECOME DAMAGED IF DEBRIS BLOCKS THE COOLING SYSTEM OR ROTATING SCREEN.
NEVER RUN ENGINE WITHOUT COMPLETE AIR CLEANER INSTALLED ON ENGINE.
EC DECLARATION OF CONFORMITY
For the following machinery
Product name: Motor Hoe Commercial name: N/A - Function: Motor Hoe Type: Gasoline - Model No.: SRHX-50
is herewith confirmed to fulfill all the relevant provisions of
Machinery Directive (2006/42/EC) Electromagnetic Compatibility Directive (2014/30/EU)
and the following harmonized standard have been complied with
EN709:1997+A4;EN709:1997+A4/AC EN ISO 14982:2009
Responsible for marking this declaration is the
Manufacturer's Name
: Chongqing Shineray Agricultural Machinery Co., Ltd.
Manufacturer's Address
8 Shineray Road, Hangu Town, Jiulongpo District, Chongqing 401329, China
Person responsible for making this declaration
Name, Surname
Yao, Su Ling
Position/Title
: Certification Engineer
Place
: Chongqing
Date
2022.10.09
(Company)
Producer: Shanghai Xinmu Youyi Co., Ltd.
Address: Shuangcheng Road 803, Lane 11, Room 1602A-1609, Baoshan District, Shanghai 200000, CN.
Imported into Australia: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia
Imported into the USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
E-CrossStu GmbH
Mainzer Landstr. 69, 60329 Frankfurt am Main.
YH CONSULTING LIMITED.
C/O YH Consulting Limited, Office 147, Centurion House,
London Road, Staines-upon-Thames, Surrey, TW18 4AX
VEVOR
TOUGH TOOLS, HALF PRICE
- Read operator's manual(s) before operating.
- Know the location and function of all controls.
- Keep all shields and guards in place and working while running.
- Never allow children to operate tiller.
- Dress appropriately—wear sturdy footwear.
- Carefully inspect area to be tilled—remove large rocks and other foreign objects. DO NOT till above underground electric, water gas, or other utility lines and pipes.
- STOP THE ENGINE AND DISCONNECT THE SPARK PLUG WIRE before removing debris or servicing unit.
- When leaving the operating position for any reason: — shut off the engine. wait for all moving parts to stop.
WARNING
WHEELS ACT AS BRAKES
- Never start or operate tiller with wheels in the Free Wheel position. Make sure wheel lockouts are engaged through wheel hubs and axle.
- Wheels act as brakes to keep the tiller at a controlled speed. Disengage wheel lockouts ONLY when engine is stopped.
OPERATION
REFER TO OPERATOR'S MANUAL
FOR DETAILED OPERATING INSTRUCTIONS
TO START:
- Release drive control levers to neutral position.
- Lower the drag stake so that tines do not touch the ground.
- Check position of wheels and wheel lockouts.
- Slide choke control to choke position.
- Move throttle control lever to fast position. 6. Pull starter rope.
PLEASE DO NOT START YOUR TILLER UNTIL YOU HAVE READ THE MANUAL THAT CAME WITH YOUR ENGINE, AND THE SECTIONS IN THIS MANUAL TITLED CONTROLS, ADJUSTMENTS AND SAFETY. IF YOU HAVE READ THESE, FOLLOW THE STEPS BELOW TO START YOUR TILLER. ALWAYS PERFORM THIS PRE-START CHECKLIST BEFORE STARTING THE ENGINE.
WARNING
GASOLINE IS HIGHLY FLAMMABLE AND MUST BE HANDLED WITH CARE. NEVER FILL THE TANK WHEN THE ENGINE IS HOT OR RUNNING. ALWAYS MOVE OUTDOORS TO FILL THE TANK.
WHEELS MUST ALWAYS BE LOCKED IN THE TILLING POSITION WHEN ENGINE IS RUNNING. DO NOT OPERATE THE TILLER WITH THE WHEEL LOCKOUTS UNLOCKED. ALWAYS SET THE WHEELS IN TILLING POSITION BEFORE STARTING ENGINE.
ALWAYS PUT THE DEPTH REGULATOR LEVER IN THE TRANSPORT POSITION BEFORE STARTING ENGINE. TINES SHOULD CLEAR THE GROUND.
IMPORTANT
ENGINE IS SHIPPED FROM FACTORY WITHOUT OIL. YOU MUST ADD ENGINE OIL BEFORE STARTING ENGINE.
DANGER
ALWAYS KEEP HANDS AND FEET CLEAR OF ROTATING MACHINE PARTS.
COLD STARTING
TEMPERATURE OF MUFFLER AND NEARBY AREAS MAY EXCEED 150°F. AVOID THESE AREAS.
DO NOT MOVE CHOKE CONTROL TO CHOKE TO STOP ENGINE. BACKFIRE OR ENGINE DAMAGE MAY OCCUR.
TO STOP WHEELS AND TINES AT ANY TIME, RELEASE DRIVE SAFETY CONTROL LEVERS TO NEUTRAL POSITION.
ALWAYS RELEASE DRIVE SAFETY CONTROL LEVERS TO NEUTRAL POSITION BEFORE ADJUSTING THE DEPTH OF THE REGULATOR LEVER.
DANGER
ENGINE AND SURROUNDING PARTS BECOME EXTREMELY HOT DURING NORMAL USE AND WILL CAUSE SERIOUS BURN INJURIES IF TOUCHED BEFORE THE ENGINE HAS COOLED.
ALLOW ENGINE TO COOL COMPLETELY BEFORE TOUCHING THESE HOT SURFACES.
IMPORTANT
PRACTICE OPERATING THE CONTROLS AND TILLER WITH TINES OUT OF GROUND BEFORE BEGINNING TO TILL. IT IS IMPORTANT THAT YOU KNOW HOW TO USE THE TILLER PROPERLY, KEEP CONTROL AT ALL TIMES, STOP THE TINES AND WHEELS FROM TURNING, AND STOP THE ENGINE IF NECESSARY. IF YOU DO NOT KNOW HOW TO DO THESE THINGS, READ THE CONTROLS, ADJUSTMENTS AND SAFETY SECTIONS BEFORE PROCEEDING.
ALWAYS SET THE DEPTH REGULATOR LEVER IN THE TRANSPORT POSITION BEFORE STARTING ENGINE, THAT IS, PLACE THE DETENT PIN IN THE HIGHEST HOLE OF THE DEPTH REGULATOR LEVER.
IF REMOVING MATERIAL FROM THE TINES BY HAND, STOP ENGINE AND REMOVE SPARK PLUG WIRE FIRST.
Engine must be turned off and cool, and spark plug wire must be removed and secured from spark plug before checking and adjusting engine or equipment.
TEMPERATURE OF MUFFLER AND NEARBY AREAS MAY EXCEED 150° F. AVOID THESE AREAS.
IMPORTANT
ENGINE CAN OVERHEAT AND BECOME DAMAGED IF DEBRIS BLOCKS THE COOLING SYSTEM OR ROTATING SCREEN.
NEVER RUN ENGINE WITHOUT COMPLETE AIR CLEANER INSTALLED ON ENGINE.
EC DECLARATION OF CONFORMITY
For the following machinery
Product name: Motor Hoe Commercial name: N/A - Function: Motor Hoe Type: Gasoline - Model No.: SRHX-50
is herewith confirmed to fulfill all the relevant provisions of
Machinery Directive (2006/42/EC) Electromagnetic Compatibility Directive (2014/30/EU)
and the following harmonized standard have been complied with
EN709:1997+A4;EN709:1997+A4/AC EN ISO 14982:2009
Responsible for marking this declaration is the
Manufacturer's Name
Chongqing Shineray Agricultural Machinery Co., Ltd.
Manufacturer's Address
8 Shineray Road, Hangu Town, Jiulongpo District, Chongqing 401329, China
Person responsible for making this declaration
Name, Surname
Yao, Su ling
Position/Title
Certification Engineer
Place
Chongqing
Date
2022.10.09
(Company)
Product: Shanghai Xinmu Ye You Xiang Gong Si
Address: Shuangcheng Road 803, Nong 11, Hao 1602A-1609, Baoshan District, Shanghai 200000, China.
Imported into Australia: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia
Imported into the USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
E-CrossStu GmbH
Mainzer Landstr. 69, 60329 Frankfurt am Main.
CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion House,
Viale Europa, 101, 00186 Rome, Italy
VEVOR
TOUGH TOOLS, HALF PRICE
SAFETY
OWNER'S RESPONSIBILITY
- Read operator's manual(s) before operating.
- Know the location and function of all controls.
- Keep all shields and guards in place and working while running.
- Never allow children to operate tiller.
- Dress appropriately—wear sturdy footwear.
- Carefully inspect area to be tilled—remove large rocks and other foreign objects. DO NOT till above underground electric, water, gas, or other utility lines and pipes.
- STOP THE ENGINE AND DISCONNECT THE SPARK PLUG WIRE before removing debris or servicing unit.
- When leaving the operating position for any reason: — shut off the engine. wait for all moving parts to stop.
WARNING
WHEELS ACT AS BRAKES
- Never start or operate tiller with wheels in the Free Wheel position,Make sure wheel lockouts are engaged through wheel hubs and axle.
- Wheels act as brakes to keep the tiller at a controlled speed, Disengage wheel lockouts ONLY when engine is stopped.
OPERATION
REFER TO OPERATOR'S MANUAL
FOR DETAILED OPERATING INSTRUCTIONS
TO START:
- Release drive control levers to neutral position.
- Lower the drag stake so that tines do not touch the ground.
- Check position of wheels and wheel lockouts.
- Slide choke control to choke position.
- Move throttle control lever to fast position. 6. Pull starter rope.
ASSEMBLY INSTRUCTIONS
The tiller is completely assembled.
PLEASE DO NOT START YOUR TILLER UNTIL YOU HAVE READ THE MANUAL THAT CAME WITH YOUR ENGINE, AND THE SECTIONS IN THIS MANUAL TITLED CONTROLS, ADJUSTMENTS AND SAFETY. IF YOU HAVE READ THESE, FOLLOW THE STEPS BELOW TO START YOUR TILLER. ALWAYS PERFORM THIS PRE-START CHECKLIST BEFORE STARTING THE ENGINE.
WARNING
GASOLINE IS HIGHLY FLAMMABLE AND MUST BE HANDLED WITH CARE. NEVER FILL THE TANK WHEN THE ENGINE IS HOT OR RUNNING. ALWAYS MOVE OUTDOORS TO FILL THE TANK.
WHEELS MUST ALWAYS BE LOCKED IN THE TILLING POSITION WHEN ENGINE IS RUNNING. DO NOT OPERATE THE TILLER WITH THE WHEELS LOCKOUTS UNLOCKED. ALWAYS SET THE WHEELS IN TILLING POSITION BEFORE STARTING ENGINE.
ALWAYS PUT THE DEPTH REGULATOR LEVER IN THE TRANSPORT POSITION BEFORE STARTING ENGINE. TINES SHOULD CLEAR THE GROUND.
IMPORTANT
ENGINE IS SHIPPED FROM FACTORY WITHOUT OIL. YOU MUST ADD ENGINE OIL BEFORE STARTING ENGINE.
DANGER
ALWAYS KEEP HANDS AND FEET CLEAR OF ROTATING MACHINE PARTS.
COLD START
TEMPERATURE OF MUFFLER AND NEARBY AREAS MAY EXCEED 150°F. AVOID THESE AREAS.
DO NOT MOVE CHOKE CONTROL TO CHOKE TO STOP ENGINE. BACKFIRE OR ENGINE DAMAGE MAY OCCUR.
TO STOP WHEELS AND TINES AT ANY TIME, RELEASE DRIVE SAFETY CONTROL LEVERS TO NEUTRAL POSITION.
ALWAYS RELEASE DRIVE SAFETY CONTROL LEVERS TO NEUTRAL POSITION BEFORE ADJUSTING THE DEPTH OF THE REGULATOR LEVER.
DANGER
ENGINE AND SURROUNDING PARTS BECOME EXTREMELY HOT DURING NORMAL USE AND WILL CAUSE SERIOUS BURN INJURIES IF TOUCHED BEFORE THE ENGINE HAS COOLED.
ALLOW ENGINE TO COOL COMPLETELY BEFORE TOUCHING THESE HOT SURFACES.
IMPORTANT
PRACTICE OPERATING THE CONTROLS AND TILLER WITH TINES OUT OF GROUND BEFORE BEGINNING TO TILL. IT IS IMPORTANT THAT YOU KNOW HOW TO USE THE TILLER PROPERLY, KEEP CONTROL AT ALL TIMES, STOP THE TINES AND WHEELS FROM TURNING, AND STOP THE ENGINE IF NECESSARY. IF YOU DO NOT KNOW HOW TO DO THESE THINGS, READ THE CONTROLS, ADJUSTMENTS AND SAFETY SECTIONS BEFORE PROCEEDING.
ALWAYS SET THE DEPTH REGULATOR LEVER IN THE TRANSPORT POSITION BEFORE STARTING ENGINE, THAT IS, PLACE THE DETENT PIN IN THE HIGHEST HOLE OF THE DEPTH REGULATOR LEVER.
IF REMOVING MATERIAL FROM THE TINES BY HAND, STOP ENGINE AND REMOVE SPARK PLUG WIRE FIRST.
Engine must be turned off and cool, and spark plug wire must be removed and secured from spark plug before checking and adjusting engine or equipment.
TEMPERATURE OF MUFFLER AND NEARBY AREAS MAY EXCEED 150° F. AVOID THESE AREAS.
IMPORTANT
ENGINE CAN OVERHEAT AND BECOME DAMAGED IF DEBRIS BLOCKS THE COOLING SYSTEM OR ROTATING SCREEN.
NEVER RUN ENGINE WITHOUT COMPLETE AIR CLEANER INSTALLED ON ENGINE.
EC DECLARATION OF CONFORMITY
For the following machinery
Product name: Motor Hoe Commercial name: N/A - Function: Motor Hoe Type: Gasoline - Model No.: SRHX-50
is herewith confirmed to fulfill all the relevant provisions of
Machinery Directive (2006/42/EC) Electromagnetic Compatibility Directive (2014/30/EU)
and the following harmonized standard have been complied with
EN709:1997+A4;EN709:1997+A4/AC EN ISO 14982:2009
Responsible for marking this declaration is the
Manufacturer's Name
: Chongqing Shineray Agricultural Machinery Co., Ltd.
Manufacturer's Address
8 Shineray Road, Hangu Town, Jiulongpo District, Chongqing 401329, China
Person responsible for making this declaration
Name, Surname
Yao, Su ling
Position/Title
: Certification Engineer
Place
: Chongqing
Date
2022.10.09
(Company)
Manufacturer: Shanghai Xinmu Ye You Xiang Gong Si
Address: Shuangcheng Road 803, Lane 11, Room 1602A-1609, Baoshan District, Shanghai 200000 MN.
Imported to Australia: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt am Main.
YH CONSULTING LIMITADA.
C/O YH Consulting Limited Office 147, Centurion House,
London Road, Staines-upon-Thames, Surrey, TW18 4AX
VEVOR
TOUGH TOOLS, HALF PRICE
Technical support and electronic warranty certificate www.vevor.com/support
VEVOR
TOUGH TOOLS, HALF PRICE
Vegetation for hand.
- Read operator's manual(s) before operating.
- Know the location and function of all controls.
- Keep all shields and guards in place and working while running.
- Never allow children to operate tiller.
- Dress appropriately—wear sturdy footwear.
- Carefully inspect area to be tilled—remove large rocks and other foreign objects. DO NOT till above underground electric, water gas, or other utility lines and pipes.
- STOP THE ENGINE AND DISCONNECT THE SPARK PLUG WIRE before removing debris or servicing unit.
- When leaving the operating position for any reason: — shut off the engine. wait for all moving parts to stop.
WARNING
WHEELS ACT AS BRAKES
- Never start or operate tiller with wheels in the Free Wheel position,Make sure wheel lockouts are engaged through wheel hubs and axle.
- Wheels act as brakes to keep the tiller at a controlled speed, Disengage wheel lockouts ONLY when engine is stopped.
OPERATION
REFER TO OPERATOR'S MANUAL
FOR DETAILED OPERATING INSTRUCTIONS
TO START:
- Release drive control levers to neutral position.
- Lower the drag stake so that tines do not touch the ground.
- Check position of wheels and wheel lockouts.
- Slide choke control to choke position.
- Move throttle control lever to fast position. 6. Pull starter rope.
ASSEMBLY INSTRUCTIONS
PLEASE DO NOT START YOUR TILLER UNTIL YOU HAVE READ THE MANUAL THAT CAME WITH YOUR ENGINE, AND THE SECTIONS IN THIS MANUAL TITLED CONTROLS, ADJUSTMENTS AND SAFETY. IF YOU HAVE READ THESE, FOLLOW THE STEPS BELOW TO START YOUR TILLER. ALWAYS PERFORM THIS PRE-START CHECKLIST BEFORE STARTING THE ENGINE.
WARNING
GASOLINE IS HIGHLY FLAMMABLE AND MUST BE HANDLED WITH CARE. NEVER FILL THE TANK WHEN THE ENGINE IS HOT OR RUNNING. ALWAYS MOVE OUTDOORS TO FILL THE TANK.
WHEELS MUST ALWAYS BE LOCKED IN THE TILLING POSITION WHEN ENGINE IS RUNNING. DO NOT OPERATE THE TILLER WITH THE WHEEL LOCKOUTS UNLOCKED. ALWAYS SET THE WHEELS IN TILLING POSITION BEFORE STARTING ENGINE.
ALWAYS PUT THE DEPTH REGULATOR LEVER IN THE TRANSPORT POSITION BEFORE STARTING ENGINE. TINES SHOULD CLEAR THE GROUND.
IMPORTANT
ENGINE IS SHIPPED FROM FACTORY WITHOUT OIL. YOU MUST ADD ENGINE OIL BEFORE STARTING ENGINE.
DANGER
ALWAYS KEEP HANDS AND FEET CLEAR OF ROTATING MACHINE PARTS.
STARTING
TEMPERATURE OF MUFFLER AND NEARBY AREAS MAY EXCEED 150° F. AVOID THESE AREAS.
DO NOT MOVE CHOKE CONTROL TO CHOKE TO STOP ENGINE. BACKFIRE OR ENGINE DAMAGE MAY OCCUR.
TO STOP WHEELS AND TINES AT ANY TIME, RELEASE DRIVE SAFETY CONTROL LEVERS TO NEUTRAL POSITION.
ALWAYS RELEASE DRIVE SAFETY CONTROL LEVERS TO NEUTRAL POSITION BEFORE ADJUSTING THE DEPTH OF THE REGULATOR LEVER.
DANGER
ENGINE AND SURROUNDING PARTS BECOME EXTREMELY HOT DURING NORMAL USE AND WILL CAUSE SERIOUS BURN INJURIES IF TOUCHED BEFORE THE ENGINE HAS COOLED.
ALLOW ENGINE TO COOL COMPLETELY BEFORE TOUCHING THESE HOT SURFACES.
IMPORTANT
PRACTICE OPERATING THE CONTROLS AND TILLER WITH TINES OUT OF GROUND BEFORE BEGINNING TO TILL. IT IS IMPORTANT THAT YOU KNOW HOW TO USE THE TILLER PROPERLY, KEEP CONTROL AT ALL TIMES, STOP THE TINES AND WHEELS FROM TURNING, AND STOP THE ENGINE IF NECESSARY. IF YOU DO NOT KNOW HOW TO DO THESE THINGS, READ THE CONTROLS, ADJUSTMENTS AND SAFETY SECTIONS BEFORE PROCEEDING.
DEPTH REGULATOR LEVER UP = DEEPER TILLING.
ALWAYS SET THE DEPTH REGULATOR LEVER IN THE TRANSPORT POSITION BEFORE STARTING ENGINE, THAT IS, PLACE THE DETENT PIN IN THE HIGHEST HOLE OF THE DEPTH REGULATOR LEVER.
ADJUSTING BELT TENSION
IF REMOVING MATERIAL FROM THE TINES BY HAND, STOP ENGINE AND REMOVE SPARK PLUG WIRE FIRST.
ENGINE MUST BE TURNED OFF AND COOL, AND SPARK PLUG WIRE MUST BE REMOVED AND SECURED FROM SPARK PLUG BEFORE CHECKING AND ADJUSTING ENGINE OR EQUIPMENT.
TEMPERATURE OF MUFFLER AND NEARBY AREAS MAY EXCEED 150°F. AVOID THESE AREAS.
IMPORTANT
ENGINE CAN OVERHEAT AND BECOME DAMAGED IF DEBRIS BLOCKS THE COOLING SYSTEM OR ROTATING SCREEN.
NEVER RUN ENGINE WITHOUT COMPLETE AIR CLEANER INSTALLED ON ENGINE.
CLEAN THE PTO SHAFT
EC DECLARATION OF CONFORMITY
For the following machinery
Product name: Motor Hoe Commercial name: N/A - Function: Motor Hoe Type: Gasoline - Model No.: SRHX-50
is herewith confirmed to fulfill all the relevant provisions of
Machinery Directive (2006/42/EC) Electromagnetic Compatibility Directive (2014/30/EU)
and the following harmonized standard have been complied with
EN709:1997+A4;EN709:1997+A4/AC EN ISO 14982:2009
Responsible for marking this declaration is the
Manufacturer's Name
: Chongqing Shineray Agricultural Machinery Co., Ltd.
Manufacturer's Address
8 Shineray Road, Hangu Town, Jiulongpo District, Chongqing 401329, China
Person responsible for making this declaration
Name, Surname
Yao, Su Ling
Position/Title
Certification Engineer
Place
Chongqing
Date
2022.10.09
(Company)
C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
VEVOR
TOUGH TOOLS, HALF PRICE
- Read operator's manual(s) before operating.
- Know the location and function of all controls.
- Keep all shields and guards in place and working while running.
- Never allow children to operate tiller.
- Dress appropriately—wear sturdy footwear.
- Carefully inspect area to be tilled—remove large rocks and other foreign objects. DO NOT till above underground electric, water, gas, or other utility lines and pipes.
- STOP THE ENGINE AND DISCONNECT THE SPARK PLUG WIRE before removing debris or servicing unit.
- When leaving the operating position for any reason:
- shut off the engine. wait for all moving parts to stop.
WARNING
WHEELS ACT AS BRAKES
- Never start or operate tiller with wheels in the Free Wheel position,Make sure wheel lockouts are engaged through wheel hubs and axle.
- Wheels act as brakes to keep the tiller at a controlled speed, Disengage wheel lockouts ONLY when engine is stopped.
OPERATION
REFER TO OPERATOR'S MANUAL
FOR DETAILED OPERATING INSTRUCTIONS
TO START:
- Release drive control levers to neutral position.
- Lower the drag stake so that tines do not touch the ground.
- Check position of wheels and wheel lockouts.
- Slide choke control to choke position.
- Move throttle control lever to fast position. 6. Pull starter rope.
ASSEMBLY INSTRUCTIONS
PLEASE DO NOT START YOUR TILLER UNTIL YOU HAVE READ THE MANUAL THAT CAME WITH YOUR ENGINE, AND THE SECTIONS IN THIS MANUAL TITLED CONTROLS, ADJUSTMENTS AND SAFETY. IF YOU HAVE READ THESE, FOLLOW THE STEPS BELOW TO START YOUR TILLER. ALWAYS PERFORM THIS PRE-START CHECKLIST BEFORE STARTING THE ENGINE.
WARNING
GASOLINE IS HIGHLY FLAMMABLE AND MUST BE HANDLED WITH CARE. NEVER FILL THE TANK WHEN THE ENGINE IS HOT OR RUNNING. ALWAYS MOVE OUTDOORS TO FILL THE TANK.
WHEELS MUST ALWAYS BE LOCKED IN THE TILLING POSITION WHEN ENGINE IS RUNNING. DO NOT OPERATE THE TILLER WITH THE WHEEL LOCKOUTS UNLOCKED. ALWAYS SET THE WHEELS IN TILLING POSITION BEFORE STARTING ENGINE.
ALWAYS PUT THE DEPTH REGULATOR LEVER IN THE TRANSPORT POSITION BEFORE STARTING ENGINE. TINES SHOULD CLEAR THE GROUND.
IMPORTANT
ENGINE IS SHIPPED FROM FACTORY WITHOUT OIL. YOU MUST ADD ENGINE OIL BEFORE STARTING ENGINE.
DANGER
ALWAYS KEEP HANDS AND FEET CLEAR OF ROTATING MACHINE PARTS.
START-UP
TEMPERATURE OF MUFFLER AND NEARBY AREAS MAY EXCEED 150° F. AVOID THESE AREAS.
DO NOT MOVE CHOKE CONTROL TO CHOKE TO STOP ENGINE. BACKFIRE OR ENGINE DAMAGE MAY OCCUR.
TO STOP WHEELS AND TINES AT ANY TIME, RELEASE DRIVE SAFETY CONTROL LEVERS TO NEUTRAL POSITION.
ALWAYS RELEASE DRIVE SAFETY CONTROL LEVERS TO NEUTRAL POSITION BEFORE ADJUSTING THE DEPTH OF THE REGULATOR LEVER.
DANGER
ENGINE AND SURROUNDING PARTS BECOME EXTREMELY HOT DURING NORMAL USE AND WILL CAUSE SERIOUS BURN INJURIES IF TOUCHED BEFORE THE ENGINE HAS COOLED.
ALLOW ENGINE TO COOL COMPLETELY BEFORE TOUCHING THESE HOT SURFACES.
IMPORTANT
PRACTICE OPERATING THE CONTROLS AND TILLER WITH TINES OUT OF GROUND BEFORE BEGINNING TO TILL. IT IS IMPORTANT THAT YOU KNOW HOW TO USE THE TILLER PROPERLY, KEEP CONTROL AT ALL TIMES, STOP THE TINES AND WHEELS FROM TURNING, AND STOP THE ENGINE IF NECESSARY. IF YOU DO NOT KNOW HOW TO DO THESE THINGS, READ THE CONTROLS, ADJUSTMENTS AND SAFETY SECTIONS BEFORE PROCEEDING.
ALWAYS SET THE DEPTH REGULATOR LEVER IN THE TRANSPORT POSITION BEFORE STARTING ENGINE, THAT IS, PLACE THE DETENT PIN IN THE HIGHEST HOLE OF THE DEPTH REGULATOR LEVER.
IF REMOVING MATERIAL FROM THE TINES BY HAND, STOP ENGINE AND REMOVE SPARK PLUG WIRE FIRST.
OPTIMAL PERFORMANCE.
ENGINE MUST BE TURNED OFF AND COOL, AND SPARK PLUG WIRE MUST BE REMOVED AND SECURED FROM SPARK PLUG BEFORE CHECKING AND ADJUSTING ENGINE OR EQUIPMENT.
TEMPERATURE OF MUFFLER AND NEARBY AREAS MAY EXCEED 150° F. AVOID THESE AREAS.
the pulley.
TROUBLESHOOTING AND REPAIR
TROUBLESHOOTING GUIDE
EC DECLARATION OF CONFORMITY
For the following machinery
Product name: Motor Hoe Commercial name: N/A - Function: Motor Hoe Type: Gasoline - Model No.: SRHX-50
is herewith confirmed to fulfill all the relevant provisions of
Machinery Directive (2006/42/EC) Electromagnetic Compatibility Directive (2014/30/EU)
and the following harmonized standard have been complied with
EN709:1997+A4;EN709:1997+A4/AC EN ISO 14982:2009
Responsible for marking this declaration is the
Manufacturer's Name
: Chongqing Shineray Agricultural Machinery Co., Ltd.
Manufacturer's Address
8 Shineray Road, Hangu Town, Jiulongpo District, Chongqing 401329, China
Person responsible for making this declaration
Name, Surname
Yao, Su ling
Position/Title
: Certification Engineer
Place
: Chongqing
Date
2022.10.09
(Company)
Manufacturer: Shanghai imuxinmuyeyouxiangonsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to the US: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt am Main.
YH CONSULTING LIMITED.
C/O YH Consulting Limited Kantoor 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
VEVOR
TOUGH TOOLS, HALF PRICE
warranty certificate www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
Technical assistance and electronic warranty certificate www.vevor.com/support
TILLER
USER MANUAL
ASSEMBLY, OPERATION OR
MAINTENANCE OF YOUR EQUIPMENT.
IMPORTANT
YOU MUST READ, UNDERSTAND AND FOLLOW
ALL SAFETY AND OPERATING INSTRUCTIONS CONTAINED IN THIS MANUAL
BEFORE ATTEMPTING TO INSTALL AND USE
YOUR ROTO-TILLER.
FAILURE TO FOLLOW ALL SAFETY AND OPERATING INSTRUCTIONS MAY RESULT IN LOSS OF
FAILURE TO FOLLOW ALL SAFETY AND OPERATING INSTRUCTIONS MAY RESULT IN LOSS OF
FAILURE TO FOLLOW ALL SAFETY AND OPERATING INSTRUCTIONS MAY RESULT IN LOSS OF
FAILURE TO FOLLOW ALL SAFETY AND OPERATING INSTRUCTIONS MAY RESULT IN LOSS OF
- Read operator's manual(s) before operating.
- Know the location and function of all controls.
- Keep all shields and guards in place and working while running.
- Never allow children to operate tiller.
- Dress appropriately—wear sturdy footwear.
- Carefully inspect area to be tilled—remove large rocks and other foreign objects. DO NOT till above underground electric, water, gas, or other utility lines and pipes.
- STOP THE ENGINE AND DISCONNECT THE SPARK PLUG WIRE before removing debris or servicing unit.
- When leaving the operating position for any reason: — shut off the engine. wait for all moving parts to stop.
WARNING
WHEELS ACT AS BRAKES
- Never start or operate tiller with wheels in the Free Wheel position. Make sure wheel lockouts are engaged through wheel hubs and axle.
- Wheels act as brakes to keep the tiller at a controlled speed. Disengage wheel lockouts ONLY when engine is stopped.
OPERATION
REFER TO OPERATOR'S MANUAL
FOR DETAILED OPERATING INSTRUCTIONS
TO START:
- Release drive control levers to neutral position.
- Lower the drag stake so that tines do not touch the ground.
- Check position of wheels and wheel lockouts.
- Slide choke control to choke position.
- Move throttle control lever to fast position. 6. Pull starter rope.
INSTRUCTIONS DE MONTAGE
PLEASE DO NOT START YOUR TILLER UNTIL YOU HAVE READ THE MANUAL THAT CAME WITH YOUR ENGINE, AND THE SECTIONS IN THIS MANUAL TITLED CONTROLS, ADJUSTMENTS AND SAFETY. IF YOU HAVE READ THESE, FOLLOW THE STEPS BELOW TO START YOUR TILLER. ALWAYS PERFORM THIS PRE-START CHECKLIST BEFORE STARTING THE ENGINE.
WARNING
GASOLINE IS HIGHLY FLAMMABLE AND MUST BE HANDLED WITH CARE. NEVER FILL THE TANK WHEN THE ENGINE IS HOT OR RUNNING. ALWAYS MOVE OUTDOORS TO FILL THE TANK.
WHEELS MUST ALWAYS BE LOCKED IN THE TILLING POSITION WHEN ENGINE IS RUNNING. DO NOT OPERATE THE TILLER WITH THE WHEEL LOCKOUTS UNLOCKED. ALWAYS SET THE WHEELS IN TILLING POSITION BEFORE STARTING ENGINE.
ALWAYS PUT THE DEPTH REGULATOR LEVER IN THE TRANSPORT POSITION BEFORE STARTING ENGINE. TINES SHOULD CLEAR THE GROUND.
IMPORTANT
ENGINE IS SHIPPED FROM FACTORY WITHOUT OIL. YOU MUST ADD ENGINE OIL BEFORE STARTING ENGINE.
DANGER
ALWAYS KEEP HANDS AND FEET CLEAR OF ROTATING MACHINE PARTS.
COLD STARTING
| 1 | 0.6L 0.6L 0.6L 0.6L 0.6L 0.6L 0.6L 0.6L 0.6L 0.6L 0.6L 0.6L 0.6L 0.6L 0.6L 0.6L 0.6L 0.6L 0.6L 0.6L 0.6L | Remplir d'huile mateur ( 0,6 L) |
| 2 | WORM GEAR LUBRICATIS OL 0.7L 0.7L 0.7L 0.7L 0.7L 0.7L 0.7L 0.7L 0.7L 0.7L 0.7L 0.7L 0.7L 0.7L 0.7L 0.7L 0.7L 0.7L 0.7L 0.7L 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.70 0.70 0.70 0.70 0.70 0.70 0.70 0.70 0.70 0.70 0.70 0.70 0.70 0.70 0.70 0.70 0.70 0.70 0.70 0.70 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.78 0.78 0.78 0.78 0.78 0.78 0.78 0.78 0.78 0.78 0.78 0.78 0.78 0.78 0.78 0.78 0.78 0.78 0.78 0.78 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.79 0.79 0.79 0.79 0.79 0.79 0.79 0.79 0.79 0.79 0.79 0.79 0.79 0.79 0.79 0.79 0.79 0.79 0.79 0.79 0.78 0.78 0.78 0.78 0.78 0.78 0.78 0.78 0.78 0.78 0.78 0.78 0.78 0.78 0.78 0.78 0.78 0.78 0.78 0.79 0.79 0.79 0.79 0.79 0.79 0.79 0.79 0.79 0.79 0.79 0.79 0.79 0.79 0.79 0.79 0.79 0.79 0.79 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.76 0.76 0.76 0.76 0.76 0.76 0.76 0.76 0.76 0.76 0.76 0.76 0.76 0.76 0.76 0.76 0.76 0.76 0.76 0.76 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.74 0.74 0.74 0.74 0.74 0.74 0.74 0.74 0.74 0.74 0.74 0.74 0.74 0.74 0.74 0.74 0.74 0.74 0.74 0.74 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.73 0.73 0.73 0.73 0.73 0.73 0.73 0.73 0.73 0.73 0.73 0.73 0.73 0.73 0.73 0.73 0.73 0.73 0.73 0.73 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.7. 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 | |
| 3 | DO NOT OVER FILL FUEL TANK DONOT STORE FOR EXTENDED TIME WITH FUEL IN TANK | Remplissage d'essence ( 3,6L) |
| 4 | ON OFF ON OFF ON | Tournez l'interrupteur d'arrêt « ON » sur la poignée gauche. |
| 5 | OFF ON OFF ON | Augmentez la manette des gaz vanne de régulation. |
| 6 | Ouvre la manette des gaz. | |
| 7 | Réglez le registre en position fermée. | |
| 8 | Tirez sur la corde pour démarrer le moteur. | |
| 9 | Fermez le registre. | |
| 10 | Appuyez d'abord sur l'interrupteur de protection jaune, puis appuyez sur le rouge pour commencer l'avant engrenage (la roue avance; la tête de l'outil commence à tourner). |
11
Start the reverse
(rear wheel; tool
TEMPERATURE OF MUFFLER AND NEARBY AREAS MAY EXCEED 150° F. AVOID THESE AREAS.
DO NOT MOVE CHOKE CONTROL TO CHOKE TO STOP ENGINE. BACKFIRE OR ENGINE DAMAGE MAY OCCUR.
TO STOP WHEELS AND TINES AT ANY TIME, RELEASE DRIVE SAFETY CONTROL LEVERS TO NEUTRAL POSITION.
ALWAYS RELEASE DRIVE SAFETY CONTROL LEVERS TO NEUTRAL POSITION BEFORE ADJUSTING THE DEPTH OF THE REGULATOR LEVER.
DANGER
ENGINE AND SURROUNDING PARTS BECOME EXTREMELY HOT DURING NORMAL USE AND WILL CAUSE SERIOUS BURN INJURIES IF TOUCHED BEFORE THE ENGINE HAS COOLED.
ALLOW ENGINE TO COOL COMPLETELY BEFORE TOUCHING THESE HOT SURFACES.
IMPORTANT
PRACTICE OPERATING THE CONTROLS AND TILLER WITH TINES OUT OF GROUND BEFORE BEGINNING TO TILL. IT IS IMPORTANT THAT YOU KNOW HOW TO USE THE TILLER PROPERLY, KEEP CONTROL AT ALL TIMES, STOP THE TINES AND WHEELS FROM TURNING, AND STOP THE ENGINE IF NECESSARY. IF YOU DO NOT KNOW HOW TO DO THESE THINGS, READ THE CONTROLS, ADJUSTMENTS AND SAFETY SECTIONS BEFORE PROCEEDING.
ALWAYS SET THE DEPTH REGULATOR LEVER IN THE TRANSPORT POSITION BEFORE STARTING ENGINE, THAT IS, PLACE THE DETENT PIN IN THE HIGHEST HOLE OF THE DEPTH REGULATOR LEVER.
BELT TENSION ADJUSTMENT
Engine must be turned off and cool, and spark plug wire must be removed and secured from spark plug before checking and adjusting engine or equipment.
TEMPERATURE OF MUFFLER AND NEAR BY AREAS, MAY EXCEED 150° F. AVOID THESE AREAS.
IMPORTANT
ENGINE CAN OVERHEAT AND BECOME DAMAGED IF DEBRIS BLOCKS THE COOLING SYSTEM OR ROTATING SCREEN.
NEVER RUN ENGINE WITHOUT COMPLETE AIR CLEANER INSTALLED ON ENGINE.
EC DECLARATION OF CONFORMITY
For the following machinery
Product name: Motor Hoe Commercial name: N/A - Function: Motor Hoe Type: Gasoline - Model No.: SRHX-50
is herewith confirmed to fulfill all the relevant provisions of
Machinery Directive (2006/42/EC) Electromagnetic Compatibility Directive (2014/30/EU)
and the following harmonized standard have been complied with
EN709:1997+A4;EN709:1997+A4/AC EN ISO 14982:2009
Responsible for marking this declaration is the
Manufacture's Name
: Chongqing Shineray Agricultural Machinery Co., Ltd.
Manufacturer's Address
8 Shineray Road, Hangu Town, Jiulongpo District, Chongqing 401329, China
Person responsible for making this declaration
Name, Surname
Yao,Su ling
Position/Title
: Certification Engineer
Place
: Chongqing
Date
2022.10.09
(Company
Manufacturer: Shanghai Xinmu Yuye Youxiang Gongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200 000 CN.
Imported into Australia: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia
C/O YH Consulting Limited Bureau 147, Centurion House,
London Road, Staines-upon-Thames, Surrey, TW18 4AX
VEVOR
TOUGH TOOLS, HALF PRICE
Technical support and electronic warranty certificate www.vevor.com/support
VEVOR
TOUGH TOOLS, HALF PRICE
- Read operator's manual(s) before operating.
- Know the location and function of all controls.
- Keep all shields and guards in place and working while running.
- Never allow children to operate tiller.
- Dress appropriately—wear sturdy footwear.
- Carefully inspect area to be tilled—remove large rocks and other foreign objects. DO NOT till above underground electric, water, gas, or other utility lines and pipes.
- STOP THE ENGINE AND DISCONNECT THE SPARK PLUG WIRE before removing debris or servicing unit.
- When leaving the operating position for any reason: — shut off the engine. wait for all moving parts to stop.
WARNING
WHEELS ACT AS BRAKES
- Never start or operate tiller with wheels in the Free Wheel position,Make sure wheel lockouts are engaged through wheel hubs and axle.
- Wheels act as brakes to keep the tiller at a controlled speed, Disengage wheel lockouts ONLY when engine is stopped.
OPERATION
REFER TO OPERATOR'S MANUAL
FOR DETAILED OPERATING INSTRUCTIONS
TO START:
- Release drive control levers to neutral position.
- Lower the drag stake so that tines do not touch the ground.
- Check position of wheels and wheel lockouts.
- Slide choke control to choke position.
- Move throttle control lever to fast position. 6. Pull starter rope.
PLEASE DO NOT START YOUR TILLER UNTIL YOU HAVE READ THE MANUAL THAT CAME WITH YOUR ENGINE, AND THE SECTIONS IN THIS MANUAL TITLED CONTROLS, ADJUSTMENTS AND SAFETY. IF YOU HAVE READ THESE, FOLLOW THE STEPS BELOW TO START YOUR TILLER. ALWAYS PERFORM THIS PRE-START CHECKLIST BEFORE STARTING THE ENGINE.
WARNING
GASOLINE IS HIGHLY FLAMMABLE AND MUST BE HANDLED WITH CARE. NEVER FILL THE TANK WHEN THE ENGINE IS HOT OR RUNNING. ALWAYS MOVE OUTDOORS TO FILL THE TANK. WHEELS MUST ALWAYS BE LOCKED IN THE TILLING POSITION WHEN ENGINE IS RUNNING. DO NOT OPERATE THE TILLER WITH THE WHEEL LOCKOUTS UNLOCKED. ALWAYS SET THE WHEELS IN TILLING POSITION BEFORE STARTING ENGINE. ALWAYS PUT THE DEPTH REGULATOR LEVER IN THE TRANSPORT POSITION BEFORE STARTING ENGINE. TINES SHOULD CLEAR THE GROUND.
IMPORTANT
ENGINE IS SHIPPED FROM FACTORY WITHOUT OIL. YOU MUST ADD ENGINE OIL BEFORE STARTING ENGINE.
DANGER
ALWAYS KEEP HANDS AND FEET CLEAR OF ROTATING MACHINE PARTS.
START-UP
TEMPERATURE OF MUFFLER AND NEARBY AREAS MAY EXCEED 150°F. AVOID THESE AREAS.
DO NOT MOVE CHOKE CONTROL TO CHOKE TO STOP ENGINE. BACKFIRE OR ENGINE DAMAGE MAY OCCUR.
TO STOP WHEELS AND TINES AT ANY TIME, RELEASE DRIVE SAFETY CONTROL LEVERS TO NEUTRAL POSITION.
ALWAYS RELEASE DRIVE SAFETY CONTROL LEVERS TO NEUTRAL POSITION BEFORE ADJUSTING THE DEPTH OF THE REGULATOR LEVER.
DANGER
ENGINE AND SURROUNDING PARTS BECOME EXTREMELY HOT DURING NORMAL USE AND WILL CAUSE SERIOUS BURN INJURIES IF TOUCHED BEFORE THE ENGINE HAS COOLED.
ALLOW ENGINE TO COOL COMPLETELY BEFORE TOUCHING THESE HOT SURFACES.
IMPORTANT
PRACTICE OPERATING THE CONTROLS AND TILLER WITH TINES OUT OF GROUND BEFORE BEGINNING TO TILL. IT IS IMPORTANT THAT YOU KNOW HOW TO USE THE TILLER PROPERLY, KEEP CONTROL AT ALL TIMES, STOP THE TINES AND WHEELS FROM TURNING, AND STOP THE ENGINE IF NECESSARY. IF YOU DO NOT KNOW HOW TO DO THESE THINGS, READ THE CONTROLS, ADJUSTMENTS AND SAFETY SECTIONS BEFORE PROCEEDING.
ALWAYS SET THE DEPTH REGULATOR LEVER IN THE TRANSPORT POSITION BEFORE STARTING ENGINE, THAT IS, PLACE THE DETENT PIN IN THE HIGHEST HOLE OF THE DEPTH REGULATOR LEVER.
IF REMOVING MATERIAL FROM THE TINES BY HAND, STOP ENGINE AND REMOVE SPARK PLUG WIRE FIRST.
Engine must be turned off and cool, and spark plug wire must be removed and secured from spark plug before checking and adjusting engine or equipment.
TEMPERATURE OF MUFFLER AND NEARBY AREAS MAY EXCEED 150°F. AVOID THESE AREAS.
IMPORTANT
ENGINE CAN OVERHEAT AND BECOME DAMAGED IF DEBRIS BLOCKS THE COOLING SYSTEM OR ROTATING SCREEN.
NEVER RUN ENGINE WITHOUT COMPLETE AIR CLEANER INSTALLED ON ENGINE.
EC DECLARATION OF CONFORMITY
For the following machinery
Product name: Motor Hoe Commercial name: N/A - Function: Motor Hoe Type: Gasoline - Model No.: SRHX-50
is herewith confirmed to fulfill all the relevant provisions of
Machinery Directive (2006/42/EC) Electromagnetic Compatibility Directive (2014/30/EU)
and the following harmonized standard have been complied with
EN709:1997+A4;EN709:1997+A4/AC EN ISO 14982:2009
Responsible for marking this declaration is the
Manufacturer's Name
: Chongqing Shineray Agricultural Machinery Co., Ltd.
Manufacturer's Address
8 Shineray Road, Hangu Town, Jiulongpo District, Chongqing 401329, China
Person responsible for making this declaration
Name, Surname
Yao, Su ling
Position/Title
Certification Engineer
Place
Chongqing
Date
2022.10.09
(Company)
Manufacturer: Shanghaiuxinmuyeyouxianggsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.
Imported into Australia by: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported into the USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
E-CrossStu GmbH
Mainzer Landstr. 69, 60329 Frankfurt am Main.
YH CONSULTING LIMITED.
C/O YH Consulting Limited, Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
VEVOR
TOUGH TOOLS, HALF PRICE
www.vevor.com/support
- TILLER CULTIVATOR
- USER MANUAL
- VEVOR®
- SRHX
- NEED HELP? CONTACT US
- SAFETY
- OWNER'S RESPONSIBILITY
- SPECIAL MESSAGES
- IMPORTANT SAFETY PRECAUTIONS
- DANGER
- CAUTION
- IMPORTANT
- PREPARATION
- OPERATION
- WARNING: DO NOT OPERATE BOTH LEFT AND RIGHT CLUTCH HANDLES AT THE SAME TIME
- THE ENGINE AND DISCONNECT THE SPARK PLUG WIRE BEFORE REMOVING VEGETATION BY HAND
- MAINTENANCE AND STORAGE
- SAFETY DECALS
- WARNING
- AVOID SERIOUS INJURY
- WHEELS ACT AS BRAKES
- FOR DETAILED OPERATING INSTRUCTIONS
- TO START
- ASSEMBLY INSTRUCTIONS
- STEP 1 INSTALL THE DEPTH REGULATOR
- STEP 2 ATTACH EX-ARM-REST STEMS TO THE TILLER
- STEP 3: ATTACH HANDLE BAR TO THE TILLER
- STEP 4: FILL ENGINE CRANKCASE. IMPORTANT
- PRE-START INSPECTION
- START-UP
- RESTARTING A WARM ENGINE
- IDLE SPEED
- OPERATING SPEED
- SHUTTING DOWN
- REVERSE LEVER
- ADJUSTMENTS
- MAINTENANCE
- CARBON MONOXIDE POISONING FROM ENGINE EXHAUST
- BURNS FROM HOT PARTS
- INJURY FROM MOVING PARTS
- NOTE: ALWAYS HAVE BOTH WHEEL LOCK PINS IN OR OUT. DO NOT OPERATE TILLER WITH ONLY ONE WHEEL LOCKED
- HANDLEBAR HEIGHT ADJUSTMENT
- DEPTH REGULATOR LEVER
- BELT TENSION ADJUSTMENT
- TO INCREASE BELT TENSION
- TILLING TIPS
- CULTIVATING TIPS
- MAINTENANCE SCHEDULE
- SERVICING THE ROTOTILLER
- CHANGE FORWARD/REVERSE BELT
- ENGINE MAINTENANCE
- CHECK OR FILL ENGINE CRANKCASE
- CHECK TILLER TRANSMISSION GREASE
- CHECK TIRE PRESSURE
- LUBRICATION
- CLEAN TINE AXLE SHAFT
- STORAGE
- PREPARE FOR STORAGE
- TROUBLESHOOTING AND REPAIR
- TROUBLESHOOTING GUIDE
- DECLARATION OF CONFORMITY
- EC DECLARATION OF CONFORMITY
- FOR THE FOLLOWING MACHINERY
- IS HEREWITH CONFIRMED TO FULFILL ALL THE RELEVANT PROVISIONS OF
- AND THE FOLLOWING HARMONIZED STANDARDS HAVE BEEN COMPLIED WITH
- RESPONSIBLE FOR MARKING THIS DECLARATION IS THE
- PERSON RESPONSIBLE FOR MAKING THIS DECLARATION
- VEVOR
- TOUGH TOOLS, HALF PRICE
- REFER TO OPERATOR'S MANUAL
- AND THE FOLLOWING HARMONIZED STANDARD HAVE BEEN COMPLIED WITH
- STARTING
- ADJUSTING BELT TENSION
- CLEAN THE PTO SHAFT
- TILLER
- INSTRUCTIONS DE MONTAGE
Brand : Vevor
Model : SRHX-50
Category : Tiller
