H88-F-B - Fitness Equipment Vevor - Free user manual and instructions

Brand	Vevor
Model	H88-F-B
Equipment Type	Pilates Reformer
Maximum Weight Capacity	400 lb (181 kg)
Frame Material	Wood and Stainless Steel
Shoulder Pad Material	Foam with Covering
Number of Pulleys	2
Included Tension Cords	2
Included Hook Straps	1
Included Jumpboard	Yes
Included Pedals	Yes
Mobile Wheels	Yes, for transport
Shoulder Pads	2
Bakelite Ramp	2
Included Wrenches	Wrench 13-16, M5 hex key
Included Screws and Nuts	M8 button screws, M8 lock nuts, etc.
Assembly Level	Medium, illustrated instructions
Safety	Read warnings, check screws, do not exceed 400 lb
Recommended Use	Medical consultation before exercise
Maintenance	Regularly check fastenings, clean with dry cloth
Warranty	Electronic certificate, technical support by email/website
Technical Support	www.vevor.com/support

Frequently Asked Questions - H88-F-B Vevor

What is the maximum weight supported by the Vevor H88-F-B Pilates Reformer?

The maximum user weight is 400 lb (181 kg). Do not exceed this limit for safety reasons.

How to assemble the Vevor H88-F-B?

Follow the illustrated installation steps in the manual. Use the included wrenches (13-16 wrench and M5 hex key). Tighten all screws and nuts before use.

Are spare parts available for this model?

Yes, spare parts can be ordered by contacting technical support at www.vevor.com/support. Specify model H88-F-B.

Can I use the Pilates Reformer if I am pregnant?

No, it is not recommended to use this device during pregnancy. Consult a doctor before any physical activity.

How to maintain my Vevor Pilates Reformer?

Regularly check that all screws and connections are tightened. Clean surfaces with a dry or slightly damp cloth. Do not use abrasive products.

What is the warranty period?

The warranty is covered by an electronic certificate. For more details, contact technical support at the address indicated in the manual.

Is it easy to move the device?

Yes, the Vevor H88-F-B is equipped with mobile wheels (mobile wheel frame) for easy transport. Make sure to tighten the wheels before use.

Can I use the jumpboard and pedal at the same time?

No, the jumpboard and pedal share the same slot. They must be used alternately: insert either into the slot and tighten with the M8x40 button screw.

What to do if a cord or strap breaks?

Contact after-sales service at www.vevor.com/support to order spare parts. Do not use the device with damaged cords.

Are there additional accessories included?

Yes, the manual lists the accessories: rope pulleys, hook straps, tension cords, wrenches, screws, etc. See the parts list in the manual.

USER MANUAL H88-F-B Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

Pilates Reformer

MODEL:H88-F-B

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Pilates Reformer

MODEL: H88-F-B

3D rendering of a Pilates reformer machine with mounting base and control lever (no text or symbols visible)

Note: The product picture is for reference, the actual details shall prevail

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Operation safety

WARNING:

Please read all instructions before using this product

It is the Owner's responsibility to ensure that all users of this product are fully aware of all warnings and precautions.

• Do not use it if you are pregnant
• Please install strictly according to the instructions
• To ensure user safety, please check whether all screws and other connecting parts on the device are intact before each use
• Incorrect or excessive intensity exercise is not good for health. It is recommended to consult a doctor before exercising
• It is best to wear sportswear and sports shoes when exercising
• If you feel dizziness, vomiting or other adverse symptoms during exercise, you should stop training immediately.
  ● Note that all screws and nuts must be tightened before exercising
• Please do not exercise half an hour before /after meals or 1 hour before sleep
• Please make exercise plans.
  ● The user's weight cannot exceed 400lbs
• Excessive use by unskilled persons is prohibited.
• Please be careful not to pinch your fingers when unfolding or folding the product
• Please do a simple stretch before using the product.

TIPS: Some parts cannot be represented on the decomposition diagram, please take the details accordingly.

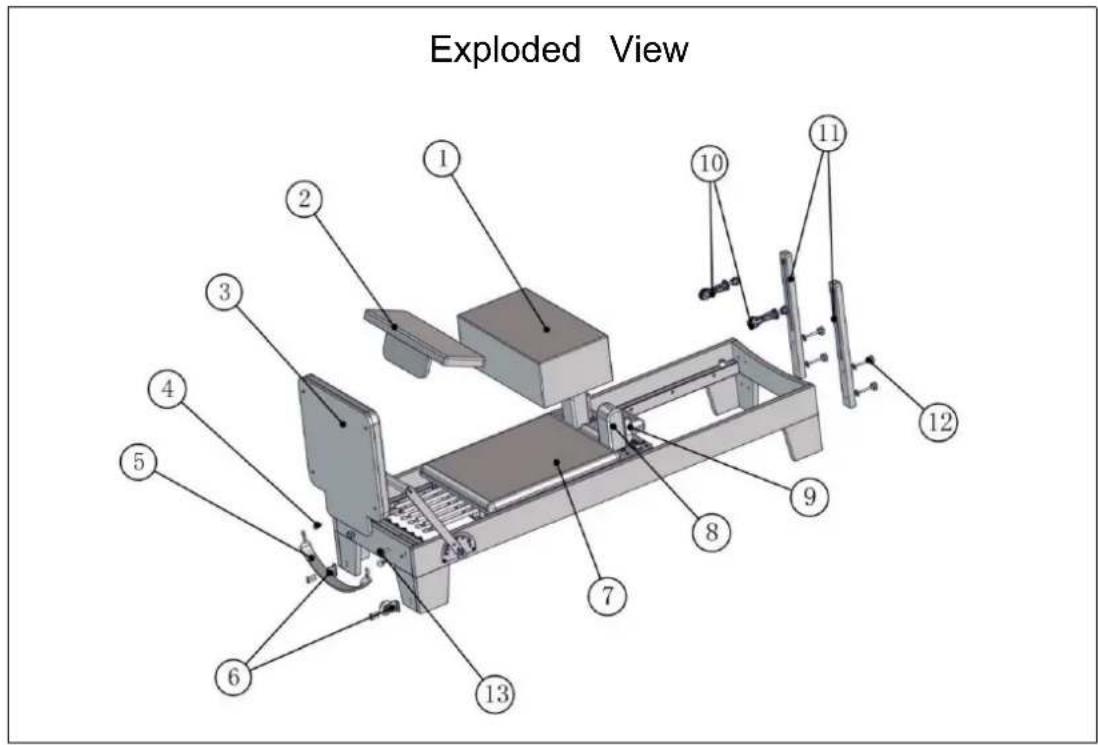

Exploded View 1 2 3 4 5 6 7 8 9 10 11 12

BOM ID	describe	quantity
①	Square Box	1
②	Pedals	1
③	springboard	1
④	M8 lifting ring	2
⑤	Hook strap	1
⑥	Mobile wheel frame	2
⑦	Skateboard assembly	1
⑧	Shoulder pillow	2
⑨	Bakelite handrail	2
⑩	Rope pulley	2
⑪	Wooden pole	2
⑫	8X50 Knob Screw	4
⑬	8X40 Knob Screw	2
⑭	8X16 Knob Screw	2
⑮	M8 anti-loosening nut	4
⑯	8X45 stainless steel screws	4
⑰	Double layer drawstring	2
⑱	Stainless steel large gasket	6
⑲	Tension rope	2
㉐	13-16 wrench	1
㉔	M5 hexagonal wrench	1
㉕	M8 spring washer	2

3D rendering of a rectangular prism with shaded faces (no text or symbols)

① Square box X1

3D rendered image of a gray mechanical component with a flat top and curved base (no text or symbols)

② Foot pedal x1

Simple 3D-rendered gray square object with rounded corners and a small protrusion at the bottom (no text or symbols)

③Springboard x1

Two identical metallic ring-shaped objects with protrusions, no text or symbols visible

④M8 lifting ring x2

Curved metal beam with two loop handles, no text or symbols present

⑤ Hook strap X1

3D rendering of a mechanical clamp or bracket assembly (no text or symbols visible)

⑥ Mobile wheel frame X2

3D rendering of a gray electronic component with mounting holes and a rectangular body (no text or symbols)

⑦ Skateboard assembly X1

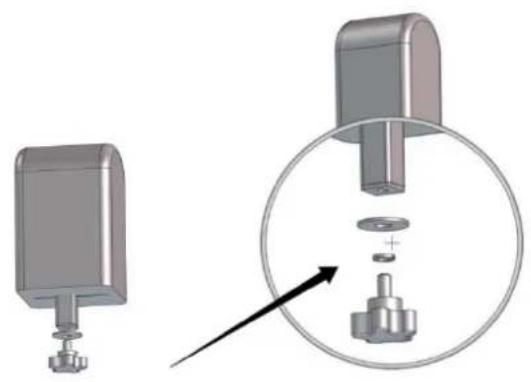

⑧Shoulder pillow x2 (under the shoulder pillow is ⑭8X16 knob screw + ⑱stainless steel large washer⑫+M8 spring washer) See installation steps (3) for details

3D mechanical assembly diagram showing a component being inserted into a housing, with an arrow indicating the process (no text or symbols present)

Two identical mechanical spring-loaded components with bolts and fasteners (no text or symbols visible)

⑨ Bakelite

handrail

X2

⑩ Rope

pulley X2

⑪ Wooden pole X2

⑫ 8X50 knob screw X4

⑬ 8X40 knob screw X2

⑭ 8X16 knob screw X2

⑮ M8 anti-loosening nut X4

(Screw rod length 50 mm) (Screw rod length 40 mm)

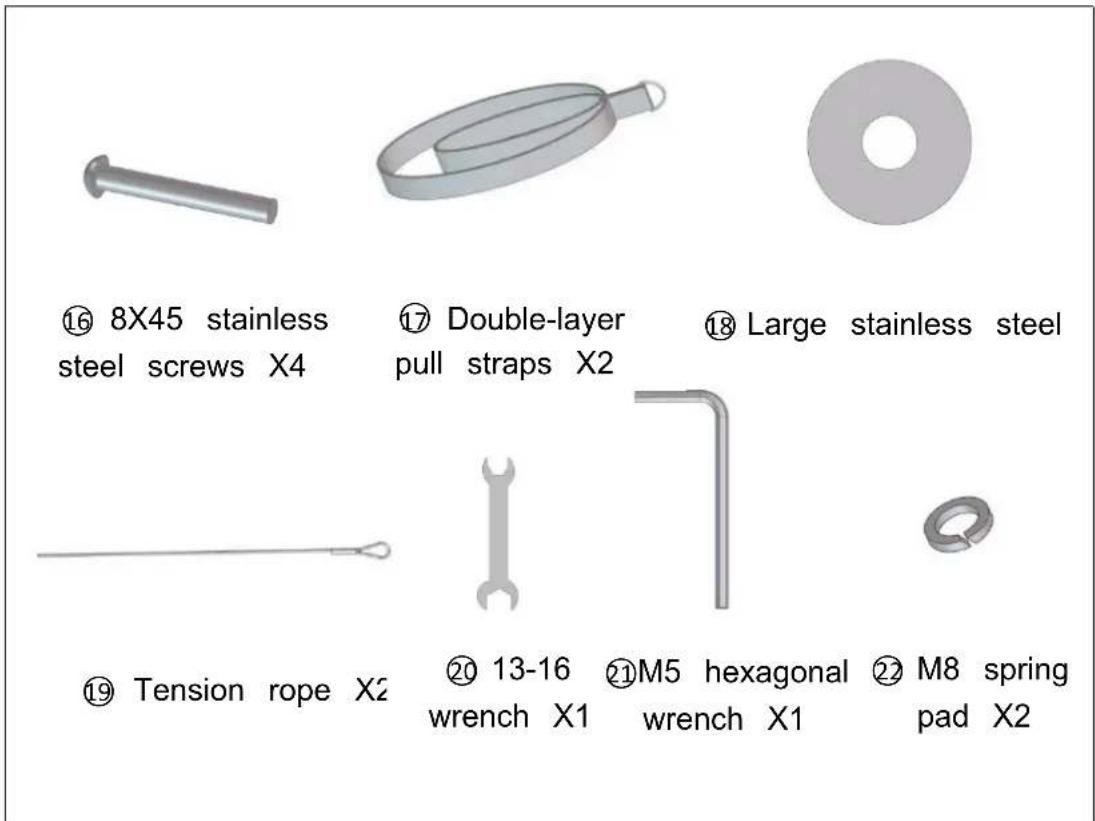

⑯ 8X45 stainless steel screws X4 ⑰ Double-layer pull straps X2 ⑱ Large stainless steel ⑲ Tension rope X2 ⑳ 13-16 wrench X1 ㉑ M5 hexagonal wrench X1 ㉒ M8 spring pad X2

Installation Steps

Technical diagram of a mechanical assembly with numbered components, likely a valve or connector assembly.

Step (1)

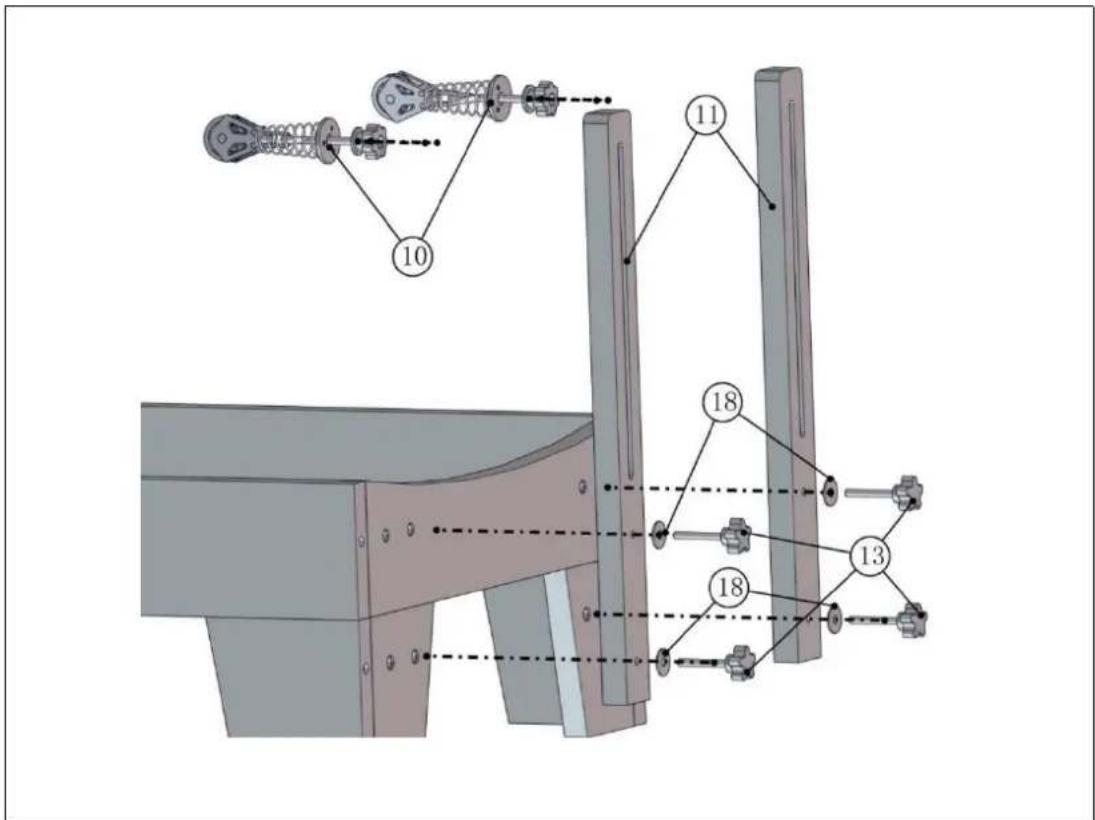

Prepare accessories:⑩ rope pulley X211 wooden pole X213 8X50 knob screw X4, ⑱ stainless steel large gasket X4.

(1: First⑪ align the hole on the wooden pole with the reserved hole on the bed frame, ⑬ put a⑱ large stainless steel gasket on the 8X50 knob screw, then align it with ⑪ the hole on the wooden pole, and ro⑬ the 8X50 knob screw to tighten it. (Note: Do not tighten the 8X50 knob screw first, screw ⑪ 4X50 knob screws into the holes, and then tighten them to prevent the holes from being misaligned.)

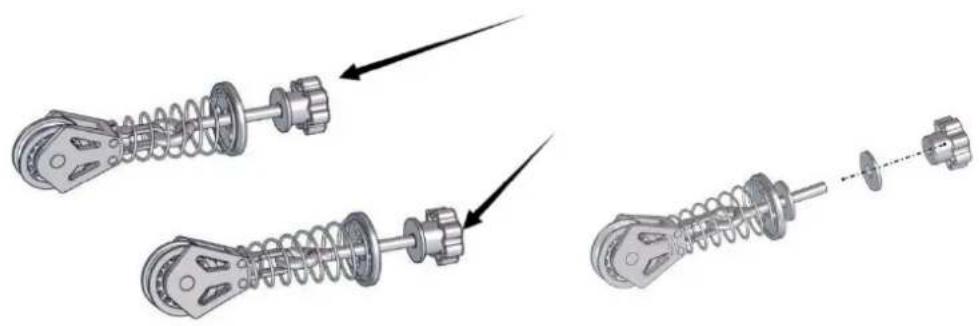

Mechanical assembly diagram showing three stages of a spring-loaded component with no visible text or symbols

(2: First⑩ unscrew the knob nut on the rope pulley, then take down a large stainless steel gasket, and then insert it into the long groove in the middle of the wooden pole, and then install the removed stainless steel gasket and knob nut.

Step (2)

Technical diagram of a mechanical device with numbered components and measurement scales

Technical diagram of a mechanical assembly with numbered components labeled 6, 15, and 16

Prepare accessories:④ M8 lifting ring X2⑤ hook strap X1⑥ mobile stand X2,

⑯ 8X45 stainless steel screws X15 M8 anti-loosening nut X13 8X40 knob

screw X2

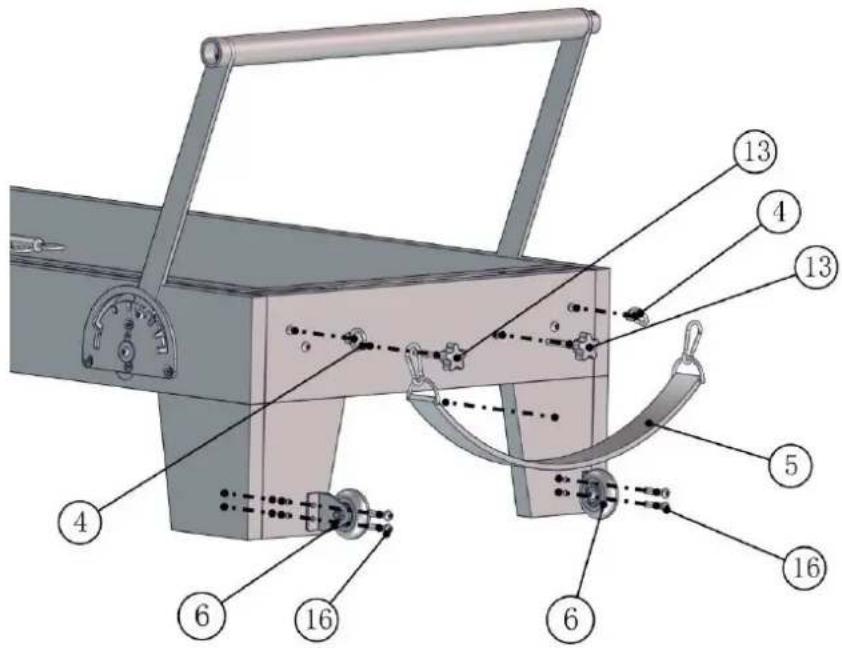

(1: ④ Screw the M8 lifting ring into the reserved holes on both sides and tighten it clockwise.

(2: ⑤ Hang the hook with the safety buckle on the M8 lifting ring.

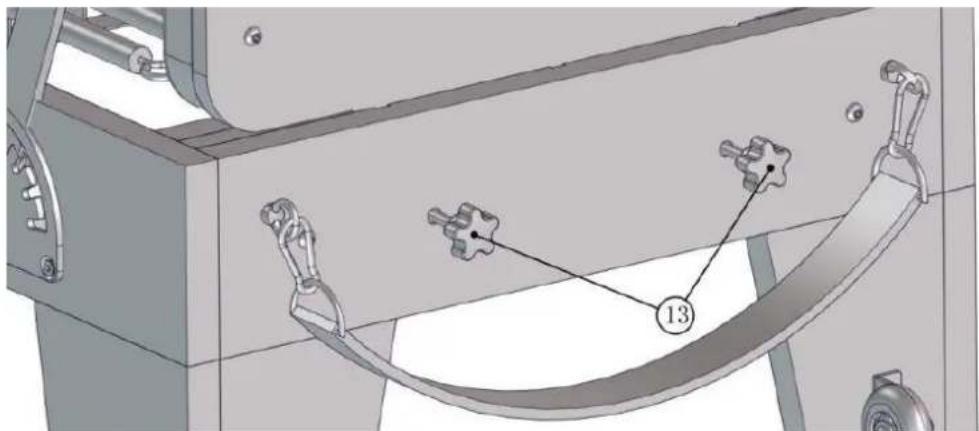

(3: ⑬ Screw the 8X40 knob screw into the reserved hole in the middle. (4: ⑥ Align the hole on the moving wheel frame with the hole under the bed frame, use ⑯ 8X45 stainless steel screws to pass through from the outside to the inside, and ⑮ tighten the inside with M8 anti-loosening nu⑳ (A 13-16 open-end wrench and ㉑ an M5 hexagonal wrench are required for tightening)

Step (3)

Technical diagram of a mechanical assembly with numbered components and an inset close-up showing a mechanical component with a knob.

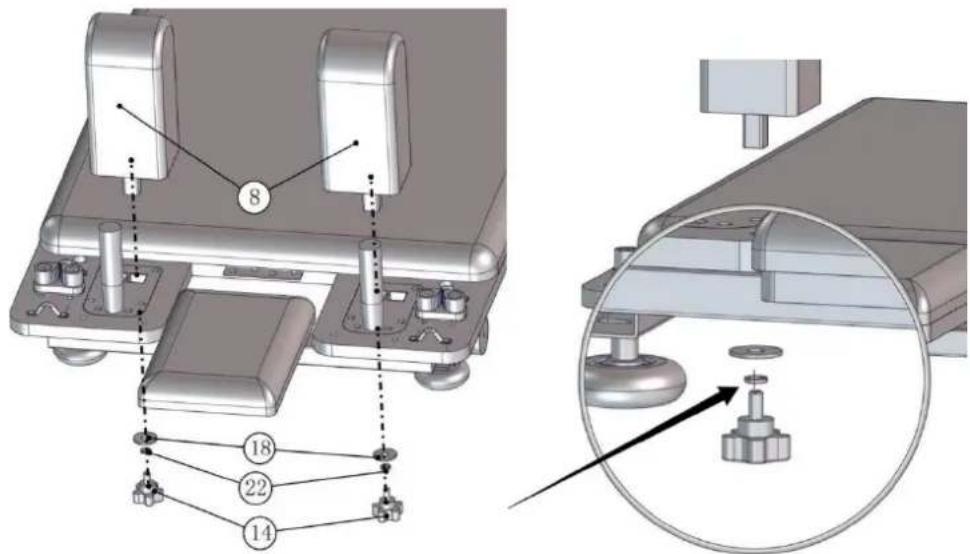

Prepare accessories:⑧ shoulder pillow X2,⑭ 8X16 knob screw X2⑧ stainless steel large gasket X2② M8 spring washer X2

Align ⑧ the shoulder pillow with the square hole on the shoulder pillow block on the skateboard, and insert it from top to bottom. There is a reserved hole on the shoulder pillow. Align the 8X16 knob screw below the shoulder pillow with the reserved hole on the shoulder pillow to tighten ⑭ The 8X16 knob screw has an ② M8 spring washer and ⑧ a large stainless steel washer)

Step (4)

Mechanical assembly diagram showing a metal bracket with mounting holes and a numbered component (no text or symbols present)

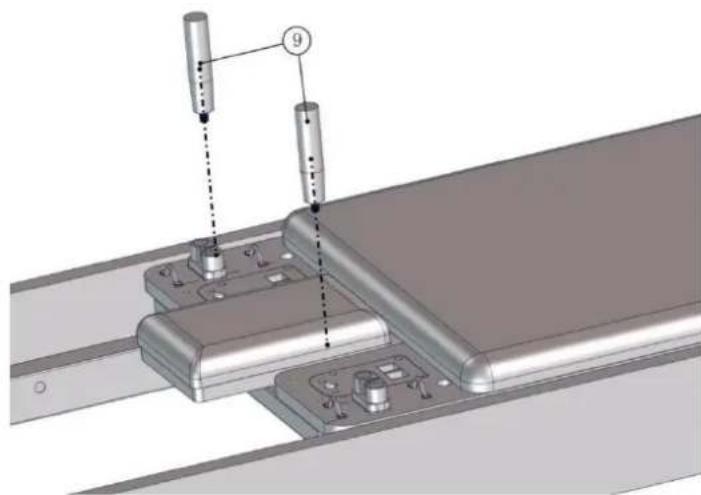

Prepare accessories⑨ bakelite handrails X2.

There are two round holes on the shoulder pillow with nuts inside. Just align them with the holes and screw them in.

Step (5)

Technical diagram showing mechanical linkage components with numbered parts labeled 10 and 19

Mechanical assembly diagram showing a shaft, pulley, and mounting bracket (no text or symbols)

Prepare accessories⑰ - double-layer pull straps x⑲ pull ropes x2,

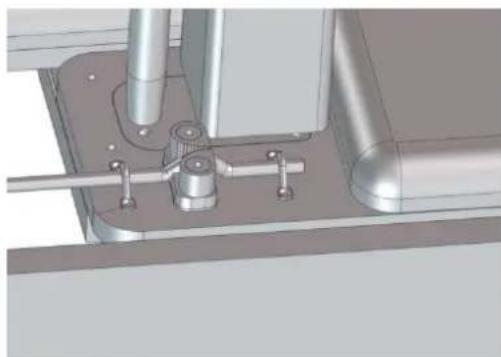

Use ⑲ the tension rope to pass through the wheel of the rope pulley from top to bottom ⑩ , then pull it toward the skateboard, and pass it through the hump hook, rope clamp, and hump hook on the skateboard in the direction of the arrow in the picture.

Close-up of a mechanical pulley system attached to a wall-mounted frame, no visible text or symbols

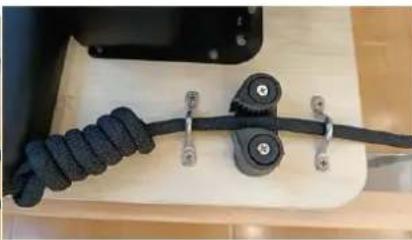

Close-up of a black knitted rope and mechanical pulley system mounted on a white surface (no text or symbols visible)

Wooden mechanical device with articulated legs and a black base, no visible text or symbols

Step (6)

Technical illustration of a mechanical assembly with two views showing internal components and alignment arrows (no text or symbols)

Prepare accessories:③ springboard x1,

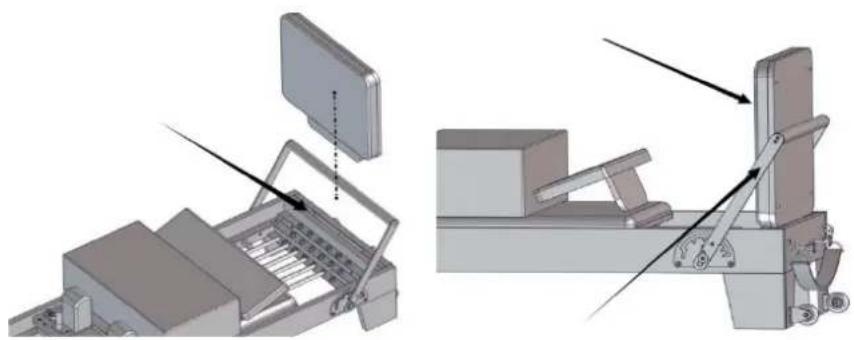

When using a springboard, first insert it into the slot at the head of the bed, and then move the handlebars behind the springboard to prevent damage to the springboard during use.

Mechanical assembly diagram showing a curved component with mounting flanges and a numbered connection point (13), no readable text or symbols present.

After the springboard is inserted into the ①t, tighten it clockwise with the 8X40 knob screw to hold the springboard in place.

Prepare accessories:② pedal x1

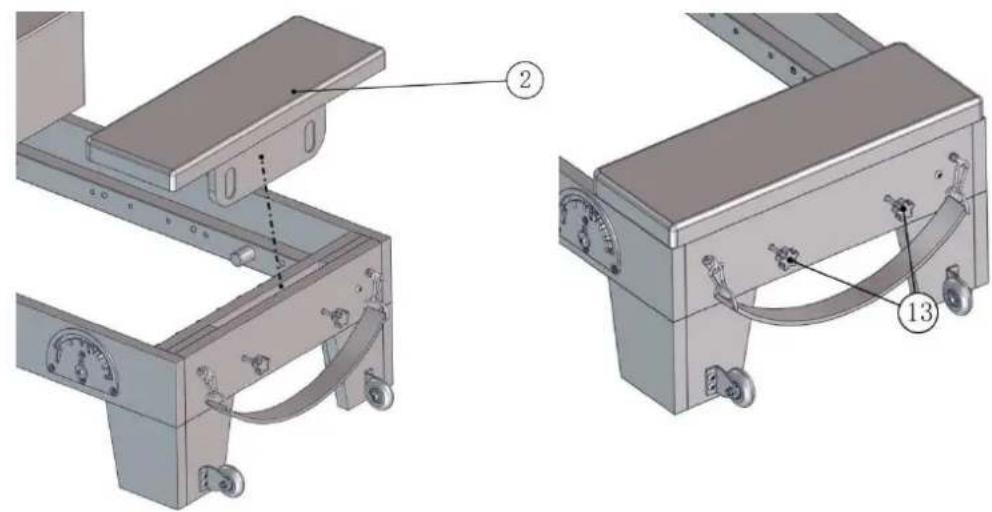

Technical diagram showing mechanical assembly with labeled parts 2 and 13, including gauges and adjustment knobs.

The foot pedal is used as shown in the figure the springboard and the foot pedal share a slot and can be replaced alternately. The foot pedal needs to be put into the slot and ⑬ tightened clockwise with the 8X40 knob screw to ⑭ the foot pedal.

3D rendering of a Pilates reformer machine with mounting base and control panel (no text or symbols visible)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

3D rendering of a Pilates reformer machine with visible frame and mounting bracket (no text or symbols)

www.vevor.com/support

Technical diagram of a mechanical device with numbered components for identification

3D rendering of a rectangular prism with shaded faces (no text or symbols)

•1 Boîte carrée X1

3D rendered image of a gray rectangular object with a curved base, resembling a stylized lamp or bracket (no text or symbols)

•2 Pédale x1

Simple 3D-rendered gray rectangular object with rounded corners and a small protrusion at the bottom (no text or symbols)

•3 Tremplin x1

Two metallic ring-shaped objects with metal fasteners, no text or symbols visible

•4 Anneau de levage M8 x2

Curved metal beam with two handles, no text or symbols visible

3D rendering of a mechanical assembly with a metallic bracket and cylindrical component (no text or symbols visible)

3D rendering of a gray electronic component with mounting holes and a rectangular body (no text or symbols)

•7 Ensemble de skateboard X1

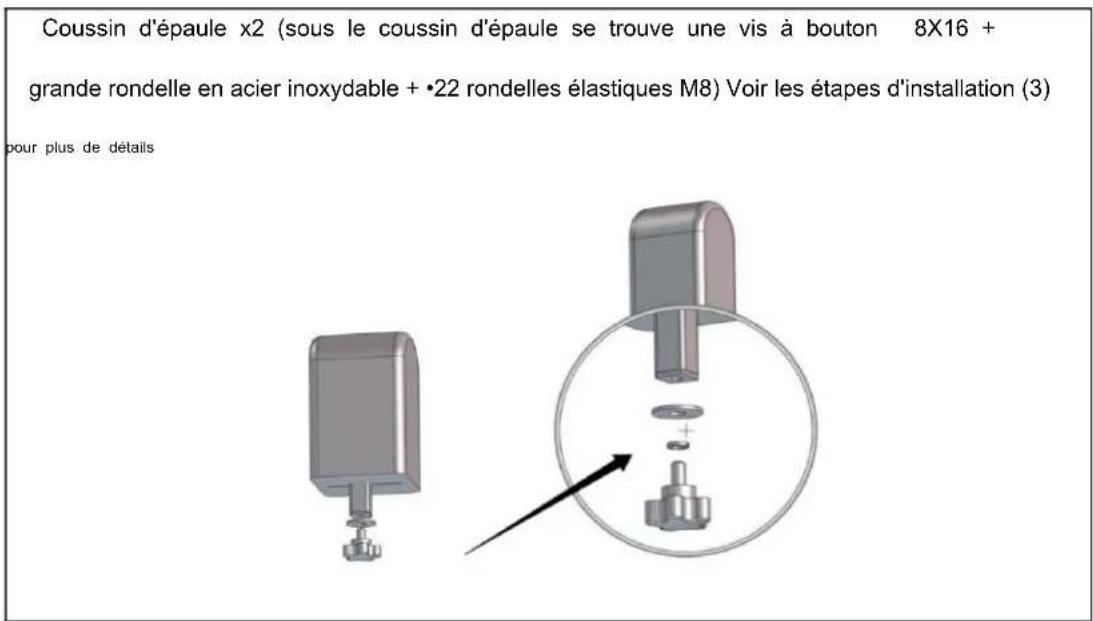

Technical diagram of a mechanical assembly with numbered components, likely a valve or connector assembly.

Étape (1)

Mechanical assembly diagram showing two connected spring components with directional arrows indicating motion (no text or symbols)

Technical diagram of a mechanical device with numbered components and measurement scales

Technical diagram of a mechanical assembly with numbered components labeled 15, 6, and 16

Technical diagram showing mechanical assembly with numbered components and a magnified inset view of a mechanical component.

Mechanical assembly diagram showing a metal bracket with mounting holes and a numbered connection point (no text or symbols present)

Technical diagram showing two mechanical components with numbered parts labeled 10 and 19

Mechanical assembly diagram showing a shaft and housing with mounting flanges (no text or symbols visible)

Three-panel photo showing a fitness apparatus: a spring-loaded arm, a black rope with pulley, and a wooden leg with a small device (no visible text or symbols)

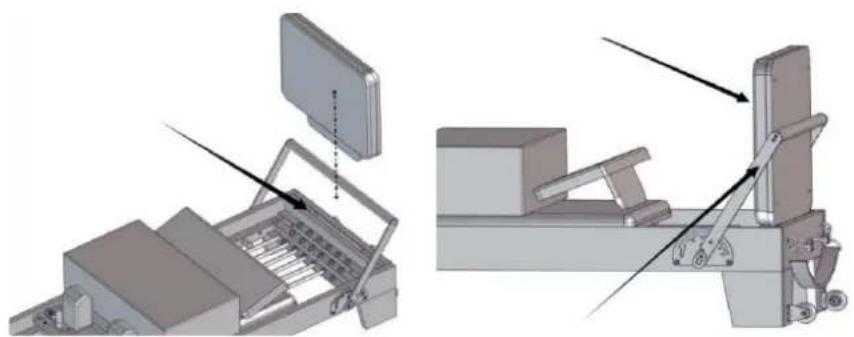

Étape (6)

Technical illustration of a mechanical assembly with two views showing internal components and alignment arrows (no text or symbols)

Mechanical assembly diagram showing a bracket with mounting holes and a curved pipe, labeled with number 13 (no text or symbols beyond label)

Technical diagram showing mechanical assembly with labeled parts 2 and 13, including gauges and adjustment knobs.

3D rendering of a Pilates reformer machine with mounting base and control panel (no text or symbols visible)

Fabricant : Shanghaimuxinmuyeyouxiangongsi Adresse :

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importé en Australie : SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australie

YH CONSULTING LIMITED. C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT

DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Pilates Reformer

MODELL:H88-FB

3D rendering of a Pilates reformer machine with mounting base and control panel (no text or symbols visible)

Technical diagram of a mechanical assembly with numbered components for identification

3D rendering of a rectangular prism with shaded faces (no text or symbols)

3D rendered image of a gray rectangular object with a curved base, resembling a mechanical or architectural component (no text or symbols visible)

Simple 3D-rendered gray rectangular object with rounded edges and a small protrusion at the bottom (no text or symbols)

•3 Sprungbrett x1

Two metallic ring-shaped objects with metal fasteners, no text or symbols visible

•4 M8 Hebering x2

Curved metal object with two handles, no text or symbols visible

•5 Hakenband X1

3D rendering of a mechanical clamp or bracket assembly (no text or symbols visible)

•6 Mobiler Radrahmen X2

3D rendering of a gray electronic component with mounting holes and a rectangular body (no text or symbols)

•7 Skateboard-Montage X1

Diagram showing two mechanical components with a magnified inset highlighting a disassembled part (no text or symbols present)

Two identical mechanical spring-loaded components with bolts and fasteners (no text or symbols visible)

•10 Seilrolle X2

•11 Holzstange X2

Technical diagram of a mechanical assembly with numbered components, likely a valve or connector assembly.

Schritt (1)

Mechanical assembly diagram showing three stages of a spring-loaded component with no visible text or symbols

Technical diagram of a mechanical device with numbered components and measurement scales

Technical diagram showing mechanical assembly with numbered components and alignment lines

Technical diagram showing mechanical assembly with numbered components and a magnified inset view of a mechanical component.

Mechanical assembly diagram showing a metal bracket with mounting holes and a numbered connection point (no text or symbols present)

Technical diagram showing mechanical components with numbered labels 10 and 19, likely for assembly or maintenance instructions.

Mechanical assembly diagram showing a shaft, pulley, and mounting bracket (no text or symbols)

Three-panel photo showing a fitness apparatus: a spring-loaded arm, a black rope with pulley, and a wooden leg (no text or symbols visible)

Schritt (6)

Technical illustration of a mechanical assembly with two views showing internal components and alignment arrows (no text or symbols)

Mechanical assembly diagram showing a bracket with mounting holes and a curved pipe, labeled with number 13 (no text or symbols beyond label)

Technical diagram showing mechanical assembly with labeled parts 2 and 13, including gauges and adjustment knobs.

3D rendering of a Pilates reformer machine with mounting base and control panel (no text or symbols visible)

Hersteller: Shanghaimuxinmuyeyouxiangongsi Adresse:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Nach AUS importiert: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Rancho Cucamonga, CA 91730

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

Riformatore Pilates

MODELLO:H88-FB

3D rendering of a Pilates reformer machine with visible frame and mounting bracket (no text or symbols)

Technical diagram of a mechanical device with numbered components for identification

3D rendering of a rectangular prism with shaded faces (no text or symbols)

3D rendered image of a gray rectangular object with a curved base, resembling a stylized lamp or bracket (no text or symbols)

-2 Pedale x1

Simple 3D-rendered gray rectangular object with rounded corners and a small protrusion at the bottom (no text or symbols)

-3 Trampolino x1

Two identical metallic ring-shaped objects with metal contacts, no text or symbols visible

Curved metal beam with two loop ends, no text or symbols present

•5 Cinghia a gancio X1

3D rendering of a mechanical clamp or bracket with mounting holes and a central hub (no text or symbols visible)

3D rendering of a gray electronic device casing with mounting holes and a small protrusion (no text or symbols visible)

-7 Montaggio skateboard X1

Diagram showing two mechanical components with a magnified inset highlighting a disassembled part (no text or symbols present)

•9 Corrimano in bachelite X2

Two identical mechanical pulley or spring components with bolts and connectors (no text or symbols)

Technical diagram of a mechanical assembly with numbered components, likely a valve or connector assembly.

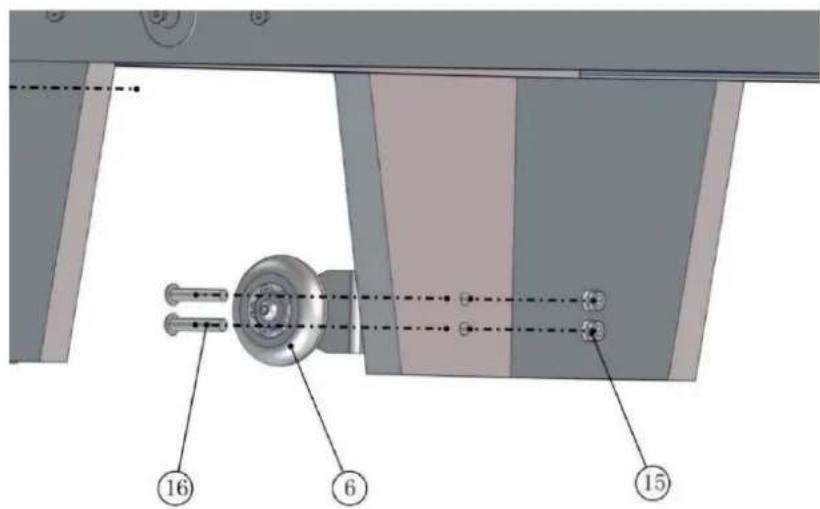

Passo (1)

Mechanical assembly diagram showing three stages of a spring-loaded component with no visible text or symbols

Technical diagram of a mechanical device with numbered components and measurement scales

Technical diagram of a mechanical assembly with numbered components labeled 15, 6, and 16

Technical diagram of a mechanical assembly with numbered components and an inset close-up view showing a bolted component.

Mechanical assembly diagram showing a metal bracket with mounting holes and a numbered connection point (no text or symbols present)

Technical diagram showing mechanical components with numbered labels 10 and 19, likely for assembly or maintenance instructions.

Mechanical assembly diagram showing a shaft, pulley, and mounting bracket (no text or symbols)

Three-panel photo showing a fitness apparatus: a spring-loaded arm, a black rope with pulley, and a wooden leg with a small device (no visible text or symbols)

Passo (6)

Technical illustration of a mechanical assembly with two views showing internal components (no text or symbols)

Mechanical assembly diagram showing a bracket with mounting holes and a curved pipe, labeled with number 13 (no text or symbols beyond label)

Technical diagram showing mechanical assembly with labeled parts 2 and 13, including gauges and adjustment knobs.

3D rendering of a Pilates reformer machine with mounting base and control panel (no text or symbols visible)

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

RAPPRESENTANZA DEL REGNO UNITO

YH CONSULTING LIMITED. C/O YH Consulting Limited Ufficio 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

3D rendering of a Pilates reformer machine with visible frame and mounting bracket (no text or symbols)

www.vevor.com/support

Technical diagram of a mechanical device with numbered components for identification

3D rendering of a rectangular prism with shaded faces (no text or symbols)

3D rendered image of a gray rectangular object with a curved base, resembling a mechanical or architectural component (no text or symbols visible)

Simple 3D-rendered gray rectangular object with rounded edges and a small protrusion at the bottom (no text or symbols)

•3 Trampolín x1

Two metallic ring-shaped objects with metal fasteners, no text or symbols visible

Curved metal beam with two loop ends, no text or symbols present

3D rendering of a mechanical assembly with a metallic bracket and wheel (no text or symbols visible)

3D rendering of a gray electronic component with mounting holes and a rectangular body (no text or symbols)

Technical diagram of a mechanical assembly with numbered components, likely a valve or connector assembly.

Paso (1)

Mechanical assembly diagram showing three stages of a spring-loaded component with no visible text or symbols

Technical diagram of a mechanical device with numbered components and measurement scales

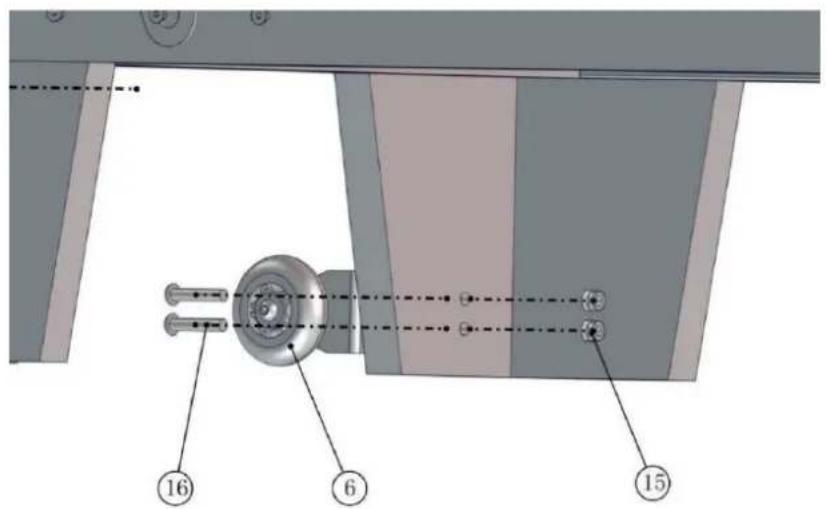

Technical diagram of a mechanical assembly with numbered components labeled 15, 6, and 16

Technical diagram showing mechanical assembly with numbered components and a magnified inset view of a mechanical component.

Mechanical assembly diagram showing a metal bracket with mounting holes and a numbered component (no text or symbols present)

Technical diagram showing mechanical components with numbered parts labeled 10 and 19

Mechanical assembly diagram showing a shaft, pulley, and mounting bracket (no text or symbols)

Three-panel photo showing a fitness apparatus: a spring-loaded arm, a black rope with pulley, and a wooden leg with a small device (no visible text or symbols)

Paso (6)

Technical illustration of a mechanical assembly with two views showing internal components and alignment arrows (no text or symbols)

Mechanical assembly diagram showing a bracket with mounting holes and a curved pipe, labeled with number 13 (no text or symbols beyond label)

Technical diagram showing mechanical assembly with labeled parts 2 and 13, including gauges and adjustment knobs.

3D rendering of a Pilates reformer machine with visible frame and mounting bracket (no text or symbols)

Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE CE

E-CrossStu GmbH

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

3D rendering of a Pilates reformer machine with mounting base and control panel (no text or symbols visible)

Technical diagram of a mechanical device with numbered components for identification

3D rendering of a rectangular prism with shaded faces (no text or symbols)

3D rendered image of a gray rectangular object with a curved base, resembling a stylized lamp or bracket (no text or symbols)

•2 Pedat nożny x1

Simple 3D-rendered gray rectangular object with rounded corners and a small protrusion at the bottom (no text or symbols)

•3 Trampolina x1

Two metallic ring-shaped objects with metal fasteners, no text or symbols visible

Curved metal beam with two handles, no text or symbols visible

3D rendering of a mechanical assembly with a metallic bracket and cylindrical component (no text or symbols visible)

3D rendering of a gray electronic component with mounting holes and a rectangular body (no text or symbols)

3D mechanical assembly diagram showing a component being inserted into a housing, with an arrow indicating the process (no text or symbols present)

Two identical mechanical spring-loaded components with bolts and fasteners (no text or symbols visible)

Technical diagram of a mechanical assembly with numbered components, likely a valve or connector assembly.

Krok (1)

Mechanical assembly diagram showing two connected spring components with directional arrows indicating motion (no text or symbols)

Technical diagram of a mechanical device with numbered components and measurement scales

Technical diagram of a mechanical assembly with numbered components labeled 15, 6, and 16

Technical diagram showing mechanical assembly with numbered components and a magnified inset view of a mechanical component.

Mechanical assembly diagram showing a metal bracket with mounting holes and a numbered component (no text or symbols present)

Technical diagram showing mechanical components with numbered labels 10 and 19, likely for assembly or maintenance instructions.

Mechanical assembly diagram showing a shaft, pipe, and housing components (no text or symbols visible)

Three-panel photo showing a fitness apparatus: a spring-loaded arm, a black rope with pulley, and a wooden leg (no text or symbols visible)

Krok (6)

Technical illustration of a mechanical assembly with two views showing internal components and alignment arrows (no text or symbols)

Mechanical assembly diagram showing a bracket with mounting holes and a curved pipe, no visible text or symbols

Technical diagram showing mechanical assembly with labeled parts 2 and 13, including gauges and adjustment knobs.

3D rendering of a Pilates reformer machine with visible frame and mounting bracket (no text or symbols)

Producent: Shanghaimuxinmuyeyouxiangongsi Adres:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, szanghaj 200000 CN.

Importowane do AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importowane do USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REP WIELKIEJ BRYTANII

YH CONSULTING LIMITED. C/O YH Consulting Limited Biuro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Przedstawiciel UE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Pilates-hervormer

MODEL:H88-FB

3D rendering of a Pilates reformer machine with visible frame and mounting bracket (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Technical diagram of a mechanical device with numbered components for identification

3D rendering of a rectangular prism with shaded faces (no text or symbols)

3D rendered image of a gray rectangular object with a curved base, resembling a mechanical or architectural component (no text or symbols visible)

Simple 3D-rendered gray rectangular object with rounded edges and a small protrusion at the bottom (no text or symbols)

Two metallic ring-shaped objects with metal fasteners, no text or symbols visible

Curved metal object with two handles, no text or symbols visible

•5 Haakriem X1

3D rendering of a mechanical assembly with a metallic bracket and circular component (no text or symbols visible)

•6 Mobiel wielframe X2

3D rendering of a rectangular electronic component with mounting holes and a small protrusion (no text or symbols visible)

•7 Skateboardmontage X1

Diagram showing two mechanical components with a magnified inset highlighting a disassembled part (no text or symbols present)

•9 Bakelieten leuning X2

Two identical mechanical spring-loaded components with bolts and fasteners (no text or symbols visible)

•10 Touwkatrol X2

•11 Houten paal X2

Technical diagram of a mechanical assembly with numbered components, likely a valve or connector assembly.

Stap (1)

Mechanical assembly diagrams showing spring-loaded components with no visible text or symbols

Technical diagram of a mechanical device with numbered components and measurement scales

Technical diagram of a mechanical assembly with numbered components labeled 15, 6, and 16

Technical diagram showing mechanical assembly with numbered components and a magnified view of a mechanical component.

Mechanical assembly diagram showing a metal bracket with mounting holes and a numbered component (no text or symbols present)

Technical diagram showing mechanical components with numbered labels 10 and 19, likely for assembly or maintenance instructions.

Mechanical assembly diagram showing a shaft, pulley, and mounting bracket (no text or symbols)

Three-panel photo showing a fitness apparatus: a spring-loaded arm, a black rope with pulley, and a wooden leg with a small device (no visible text or symbols)

Stap (6)

Technical illustration of a mechanical assembly with two views showing internal components and alignment arrows (no text or symbols)

Mechanical assembly diagram showing a bracket with mounting holes and a curved pipe, labeled with number 13 (no text or symbols beyond label)

Technical diagram showing mechanical assembly with labeled parts 2 and 13, including gauges and adjustment knobs.

3D rendering of a Pilates reformer machine with mounting base and control panel (no text or symbols visible)

Fabrikant: Shanghaimuxinmuyeyouxiangongsi Adres:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

YH CONSULTING LIMITED. C/O YH Consulting Limited Kantoor 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH Mainzer Landstr.69, 60329 Frankfort aan de Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Pilates reformator

MODELL: H88-FB

3D rendering of a Pilates reformer machine with visible frame and mounting bracket (no text or symbols)

Technical diagram of a mechanical device with numbered components for identification

3D rendering of a rectangular prism with shaded faces (no text or symbols)

3D rendered image of a gray rectangular object with a curved base, resembling a stylized lamp or bracket (no text or symbols)

•2 Fotpedal x1

Simple 3D-rendered gray rectangular object with rounded corners and a small protrusion at the bottom (no text or symbols)

•3 Språngbräda x1

Two metallic ring-shaped objects with metal fasteners, no text or symbols visible

•4 M8 lyftring x2

Curved metal beam with two handles, no text or symbols visible

•5 Krokband X1

3D rendering of a mechanical assembly with a metallic bracket and cylindrical component (no text or symbols visible)

•6 Mobil hjulram X2

3D rendering of a gray electronic component with mounting holes and a rectangular body (no text or symbols)

•7 Skateboardenhet X1

Diagram showing two mechanical components with a magnified inset highlighting a disassembled part (no text or symbols present)

•9 Bakelithandledare X2

Two identical mechanical spring-loaded components with bolts and fasteners (no text or symbols visible)

•10 Repremskiva X2

•11 Trästolpe X2

•12 8X50 knoppskruv X4

•13 8X40 knoppskruv X2

•14 8X16 knoppskruv X2

•15 M8 anti-lossningsmutter X4

Technical diagram of a mechanical assembly with numbered components, likely a valve or connector assembly.

Steg (1)

Mechanical assembly diagram showing two connected spring components with directional arrows indicating motion (no text or labels)

Technical diagram of a mechanical device with numbered components and measurement scales

Technical diagram of a mechanical assembly with numbered components labeled 15, 6, and 16

Technical diagram showing mechanical assembly with numbered components and a magnified view of a mechanical component.

Mechanical assembly diagram showing a metal bracket with mounting holes and a numbered component (no text or symbols present)

Technical diagram showing two mechanical components with numbered parts labeled 10 and 19

Mechanical assembly diagram showing a shaft and housing with mounting flanges (no text or symbols visible)

Three-panel photo showing a fitness apparatus: a spring-loaded arm, a black rope with pulley, and a wooden leg (no text or symbols visible)

Steg (6)

Technical illustration of a mechanical assembly with two views showing internal components and alignment arrows (no text or symbols)

Mechanical assembly diagram showing a bracket with mounting holes and a curved pipe, labeled with number 13 (no text or symbols beyond label)

Technical diagram showing mechanical assembly with labeled parts 2 and 13, including gauges and adjustment knobs.

3D rendering of a Pilates reformer machine with mounting base and control panel (no text or symbols visible)

Tillverkare: Shanghaimuxinmuyeyouxiangongsi Adress:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
