USER MANUAL XLS-215WG Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

COMMERCIAL REFRIGERATOR

MODEL:XLS-215WG/XLS-295WG/XLS-365WG/XLS-450WG

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Line drawing of a simple refrigerator with lid, front panel, and side drawers (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Symbol	Symbol Description
	Warning: To reduce the risk of injury, the user must instructions manual carefully.
	This symbol, placed before a safety comment, indicates of precaution, warning, or danger. Ignoring this warning lead to an accident. To reduce the risk of injury, the electrocution, please always follow the recommendation shown below.
	CORRECT DISPOSAL:This product is subject to the provision of European D 2012/ 19/EC. The symbol showing a wheelie bin cro through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices.

Important Safeguards

• This equipment is intended for the storage and display of non-time /temperature control for safety foods bottled or canned products only.
• This appliance is not intended for use by persons (including children) reduced physical, sensory or mental capabilities, or lack of experience knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safe
• Children should be supervised to ensure that they do not play with appliance.
• Cleaning and user maintenance shall not be made by children with supervision.
• Do not store explosive substances such as aerosol cans with a fla

propellant in this appliance.

- If the supply cord is damaged, it must be replaced by the manufa its service agent or a similarly qualified person in order to avoid a h - Please according to local regulations regarding disposal of the applia for its flammable blowing gas. Before you scrap the appliance, please off the doors to prevent children trapped.

- WARNING – Keep ventilation openings, in the appliance enclosure of the built-in structure, clear of obstruction.

- WARNING – Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer

- WARNING – Do not damage the refrigerant circuit.

- WARNING – Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommender by the manufacturer.

- This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other w environments; farm houses and by clients in hotels, motels and other residential type environments; Catering and similar non-retail applications

- The appliance shall not be installed in public corridors or lobbies.

- Warning: the appliance shall be installed in accordance with national wiring regulations

- The appliance is to be installed in accordance with the Safety Star for Refrigeration Systems, ANSI/ASHRAE 15.

Notice: Any person who is involved with working on or breaking into refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification.

Notice: Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of person competent in the use of flammable refrigerants.

Notice: Component parts shall be replaced with like components so as minimize the risk of possible ignition due to incorrect parts.

The appliance is to be installed in accordance with the Safety

- WARNING

Do not use means to accelerate the defrosting process or to clean, than those recommended by the manufacturer.

The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance an operating electric heater.

Do not pierce or burn.

Be aware that refrigerants may not contain an odour.

- Warning: The appliance shall be stored in a well-ventilated area with the room size corresponds to the room area as specified for operation. Warning: The appliance shall be stored in a room without continuously operating open flames (for example an operating gas appliance) and ignition sources (for example an operating electric heater). Warning: The appliance shall be stored so as to prevent mechanical damage from occurring.

- Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges, or any other adverse environmental effects. The check shall also take into account the effects of aging and continual vibration from sources such as compressors or fans.

- Before carrying out Decommissioning procedure, it is essential that the technician is completely familiar with the equipment and all its detail. recommended good practice that all refrigerants are recovered safely. It to the task being carried out, an oil and refrigerant sample shall be case analysis is required prior to re-use of recovered refrigerant. It is essential that electrical power is available before the task is commencing. When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants removed safely.

The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be su

for the recovery of all appropriate refrigerants including, when applicab

FLAMMABLE REFRIGERANTS

The recovered refrigerant shall be returned to the refrigerant supplier for correct recovery cylinder, and the relevant waste transfer note arranged. Do not mix refrigerants in recovery units and especially not in cylinder

Refrigerant class A3 per ANSI/ASHRAE 34

Warning:

Risk of fire / flammable materials, taking care to causing a fire by igniting flammable material.

The maximum loading of each type of shelf is 50lbs/22.35kg.

The ambient temperature and humidity conditions of the show case climate class following the tab below

Test room climate class	Dry bulb temperature °C	Relative humidity %	Dew Point °C	Water vapour mass in dry g/kg
0	20	50	9.3	7.3
1	16	80	12.6	9.1
8	23.9	55	14.3	10.2
2	22	65	15.2	10.8
3	25	60	16.7	12.0
4	30	55	20.0	14.8
6	27	70	21.1	15.8
5	40	40	23.9	18.8
7	35	75	30.0	27.3

NOTE the water vapour mass dry air is one of the main point the performance and the energy consumption of the cabinets. The order of the climate class in the table is based on the v mass column.

See also Annex B to compare lab and store conditions

- All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided.

- If any hot work is to be conducted on the refrigerating equipment any associated parts, appropriate fire extinguishing equipment shall be available on hand. A dry chemical or CO2 fire extinguisher should be adjacent to the charging area.

- Notice: Any person who is involved with working on or breaking into refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification.

- Notice: Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.

- No person carrying out work in relation to a REFRIGERATING SYSTEM which involves exposing any pipe work shall use any sources of ignition in such a manner that it may lead to the risk of or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal,during which refrigerant can possibly be rel leased to the surrounding space. Prior to work taking place, area around the equipment shall be surveyed to make sure that there are no flammable hazards or ignition risks. “No Smoking” signs shall be displayed.

- Checking for presence of refrigerant, The area shall be checked with

an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially toxic or flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with all applicable refrigerants, i.e., non-sparking, adequately sealed, or intrinsically safe.

- Ensure that the area is in the open or that it is adequately ventilating before breaking into the system or conducting any hot work. A degree ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any rel leased refrigerant and preferably expel it externally into the atmosphere. Where electrical components are being changed, they shall be fit for the purpose and the correct specification. At all times, the manufacturer's maintenance as service guidelines shall be followed. If in doubt, consult the manufacture technical department for assistance.

- Detection of flammable refrigerants: Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.

Details of Product

It uses quality, effective and hermetic compressor with wide range of voltage, suitable ambient temperature: not higher than 100^ F/38°C, reasonable matching of the showcase system guarantees its powerful refrigerant ability and energy saving.

Goods stored can be displayed clearly through the door made from c glass.

The thermal insulation layer of the appliance made from hard polyuret makes it be light and good ability to keep the items inside cold. Cabinets are powder-coated steel exterior and white HIPS interior.

Specifications:

• Doors: 1
  • Temperature inside: 0°C -- 10°C / 32°F -- 50°F
  • LED illuminated exterior canopy
  • LED interior illumination
• Double pane tempered glass door
• Highly effective compressor with Hydro Carbon R600a and R290 refrigerant
• Adjustable shelves for different height of drinks and other items
  • Built-in lock to secure the goods safe

Caution for Safety

1. If used in North America area, the range of operating voltage: 98\~1 V. In order to avoid damaging the electrical performance of the compressible please equip with a Voltage Stabilizer appliance of power not less than 500w, to protect the Cooler when the voltage is lower than 98V or I than 132V. If used in Europe area, the range of operating voltage: 187\~242V.

2. Individual single-phase socket must be used. It should be reliably connected to a grounding wire. Caution: The grounding wire is not all to connect to a water pipe or a gas pipe.

3. Strong base, strong acid, organic solvent and corrosive goods or the are easy to pollute to food are prohibited storing in the showcase; otherwise, it can cause corrosiveness or accident.

4. Don't raise the showcase or the shell of the electric parts, or it with the decline in insulation and cause corrosion.

5. When the showcase will be out of use for a long time, disconnect power first, then clean it. Please examine the circuit whether it is ok reuse.

6. Appliance is Freestanding Installation Type and not suitable for outdoor use.

1. Unpack all packages before using the showcase. Don't Bend it over more than 60^ , while moving it.

2. The showcase should be installed in the environment of good ventilator. Cool and dry and without corrosive gas. It should not be installed close to heat sources or directly under the sunlight. The space more than 10c between the wall of the front and the back of the showcase should

allowed. When installing, the universal wheels should be padded well. as to make the showcase be level and stable, or it will cause vibration too much noise.

1. When initial operation, the refrigerator should run emptily about one before storing food in it.

2. The evaporator fans run continuously during the refrigeration cycles to maintain the factory set internal temperature range.

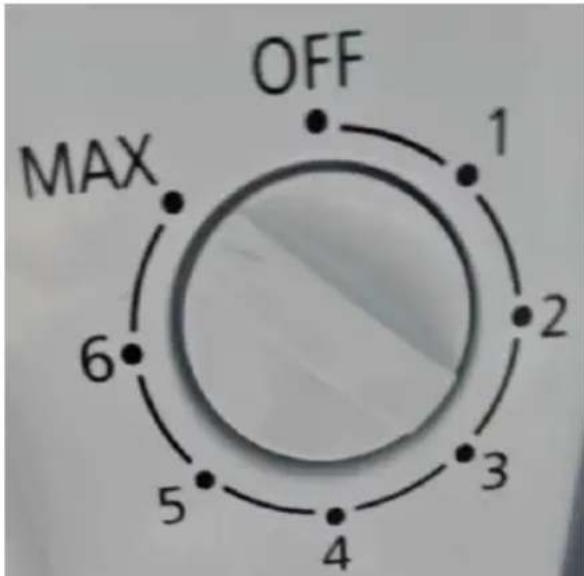

3. How to use the temperature control: the thermostat could adjust the temperature inside the showcase. When you turn the knob in clockwise. The bigger the figure, the lower the temperature. Generally, the position '5' is suitable.'OFF' position stands for no cooling.'Max' position stands maximum cooling. The temperature will vary depending on the quantity of the food and drinks stored and on the frequency with which the door opened.

OFF MAX 1 2 3 4 5 6

6.Light switch location varies by XLS model. Most models have the light switch located on the right side of the top light box.

1. To save energy, the door should not be frequently opened or left of a long time.

2. Refrigerators with mechanical temperature controls will defrost during every compressor off-cycle.

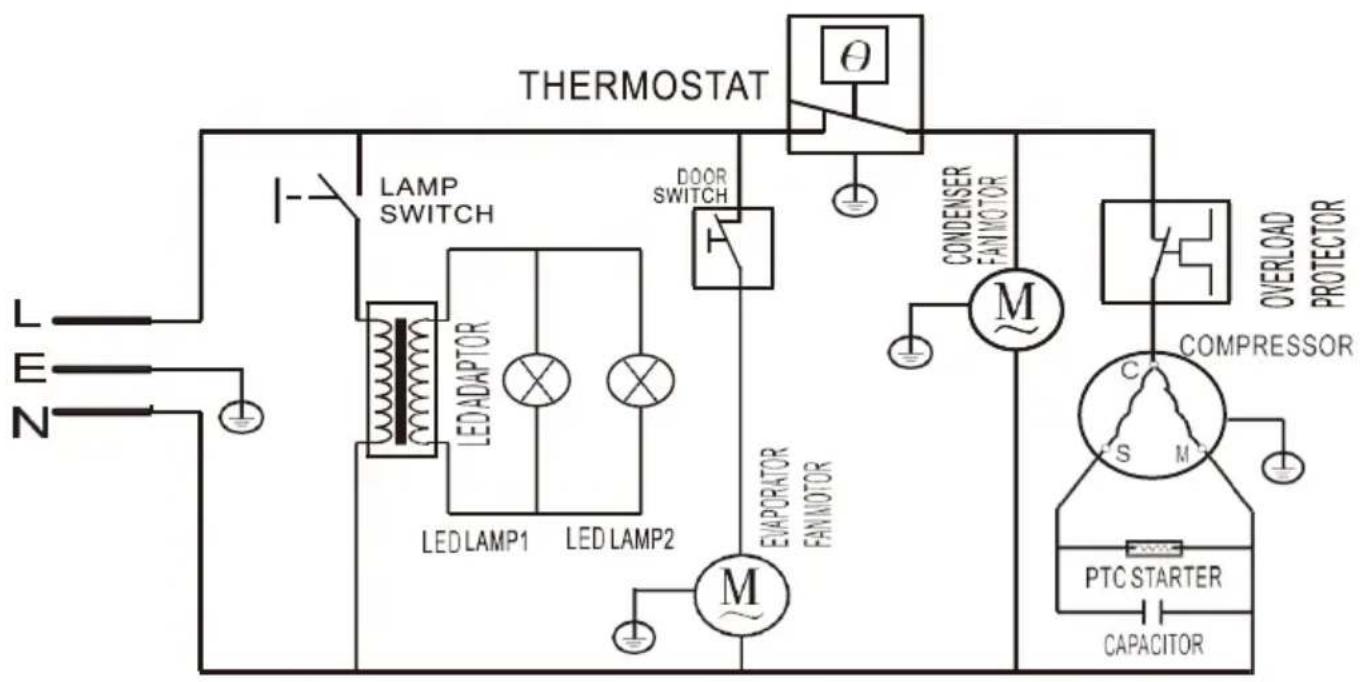

Wiring Diagrams

Caution for Using

The surface and the inside of the showcase should be dry and clear term moisture with cause the showcase rust slowly. (There will be so stains on the surface.)

Periodical cleaning is suggested for your reference. Generally, 30-45 d once is best. When cleaning, it is best to wipe the inside and the s the showcase with the soft cloth with neutral soap or detergent.

Gasket Maintenance: gaskets require cleaning to prevent mold and mil buildup and to maintain the gasket elasticity. Clean gaskets with warm soapy water. Avoid full strength cleaning products on gasket, this can cause the gaskets to become brittle and prevent proper sealing. Neve sharp tools or knives, which could tear the gasket and/or rip the bell scrape or clean the gasket. Gaskets are easy to replace and do not the use of tools. To remove and replace the dart style gaskets, pull gasket out of the groove in the door and press the new gasket bac place.

Attention: To ensure safety, the power plug must be pulled out before cleaning. All safety precautions must be followed. Dispose of properly accordance with Federal or local regulations. Risk of fire or explosion to puncture of refrigerant tubing. Follow handling instructions carefully.

DANGER: Risk of fire or explosion. Flammable refrigerant R600a or R used. To be repaired only by trained service personnel. Do not use mechanical devices to defrost refrigerator. Do not puncture refrigerant tubing.

Children should not operate this equipment.

Children should not play around this equipment.

The manual is only for reference. We have the right to change mate and specifications without notice.

Trouble Shooting

Breakdown	Case	Removal method
The indicator is on.The compressor doses not start.	The plug isn't connect to the socket really	Replug it.
	no power	Connect the socket with power.
The indicator is on ,but the compressor doesn't work and buzzes only	The power voltage is 98V in North America <187V in Europe	Put a power-regulator more than 1000W power together .
The compressor stops a minute after, and restart after a few minutes and so repeatedly	The power voltage is 132V in North America <242V in Europe.
The compressor works normally, but the temperatu in the cabinet lowers too slowly	The door is opened frequently.	Reduce open times.
	The food in the cabin too much, and place improperly.	Place foods properly kee place between them fo ventilation of cold air.
	The frost film is too	Take out foods and def
	The surface of the condenser is too dirt	Stop and clean the condenser .
	The door seals badly	Adjust the door seal.
The noise is too	The freezer is place unstably.	Place it stably.
	The fixing of the free is loose.	Tighten the fixing.
	there's contact betwee pipes.	Separate them.

The following are not faults:

• When the freezer is working or after stopping for a while, the refri the pipes is cycling and give 'running water' sounds.
• The surface temperature of the compressor may be up 70°C -- 80 158°F -- 176°F when it is working.
• The back side of step freezer gives out heat.
• In rainy season, the outer surface of the cabinet may have dew, makes no defects on normal use. Just dry it with a piece of cloth.
