YH3345DYA-E-B-H-6# - Mirror Vevor - Free user manual and instructions

Product Type	Towing Mirror
Brand	Vevor
Model	YH3345DYA-E-B-H-6#
Compatible Vehicles	Ford F250 / F350 / F450 / F550 (2008-2016)
Power Supply	12 V DC
Functions	Heated, turn signal, light arrow, manual telescoping, manual adjustment (convex glass), electric adjustment (flat glass)
Color	Black
Estimated Dimensions	Approximately 30 x 20 x 15 cm
Estimated Weight	Approximately 2.5 kg
Material	Convex glass and flat glass, ABS plastic
Glass Type	Convex (driver side) and flat (passenger side)
Installation	Direct replacement of original mirrors, requires removal of door panel
Maintenance	Clean with a soft cloth and non-abrasive cleaner
Safety	Compliant with FCC Part 15, WEEE Directive 2012/19/EU
Warranty	Electronic warranty certificate available at www.vevor.com/support
Country of Origin	China (imported by Vevor)

Frequently Asked Questions - YH3345DYA-E-B-H-6# Vevor

Which vehicles are compatible with this Vevor mirror?

This mirror is designed for Ford F250, F350, F450 and F550 models from 2008 to 2016.

Is the mirror heated?

Yes, it features a heated function to remove frost and fog. The corresponding wire must be connected to the vehicle's harness.

How to install this mirror?

Installation requires removing the door panel, disconnecting the old mirror, cutting a ridge on the base of the new one, inserting the studs, and tightening the nuts to 80 lb·in. Consult the provided detailed manual.

Is the mirror electrically adjustable?

The flat glass (passenger side) is electrically adjustable, while the convex glass (driver side) is manually adjustable.

What are the light functions?

It features an integrated turn signal and a light arrow (position light) to improve visibility when towing.

Is the mirror telescopic?

Yes, it is manually telescoping to adapt to the width of the trailer.

How to maintain the mirror?

Clean it with a soft cloth and a non-abrasive product. Remember to fold it when parking to avoid impacts.

Where to find the wiring diagram?

The diagram is provided in the manual. Pins 1-3 are for the motor, 4 for the turn signal, 5 for ground, 6 for heating, 7 for the position light.

What to do if parts are missing or damaged?

Take a photo of the missing or damaged parts and contact Vevor support via www.vevor.com/support.

Is this mirror compliant with standards?

Yes, it is compliant with FCC Part 15 rules and the European WEEE Directive 2012/19/EU for recycling.

USER MANUAL YH3345DYA-E-B-H-6# Vevor

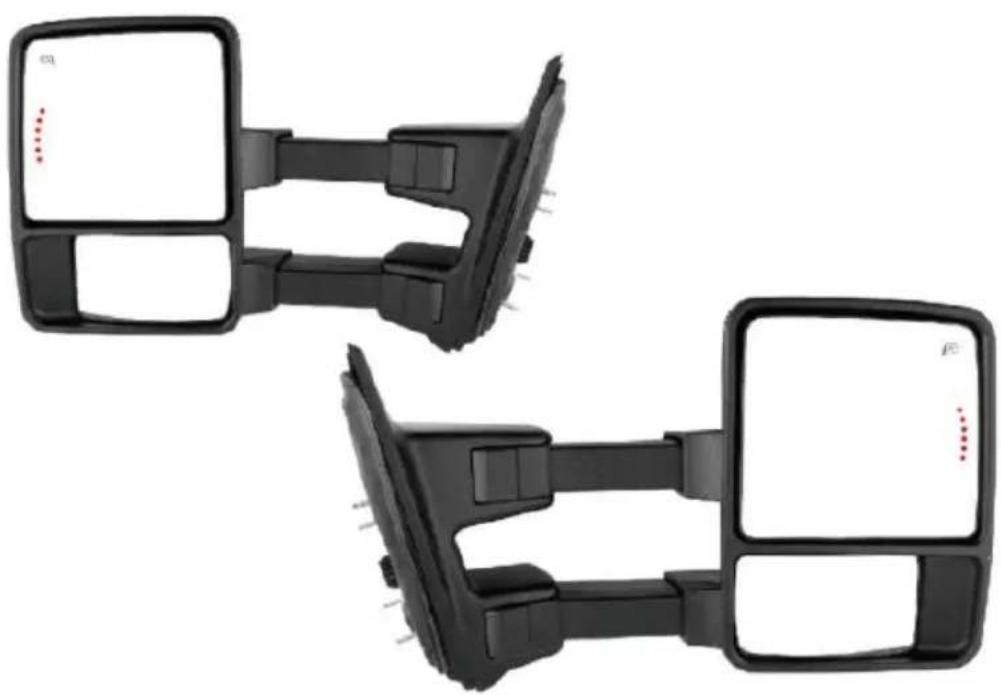

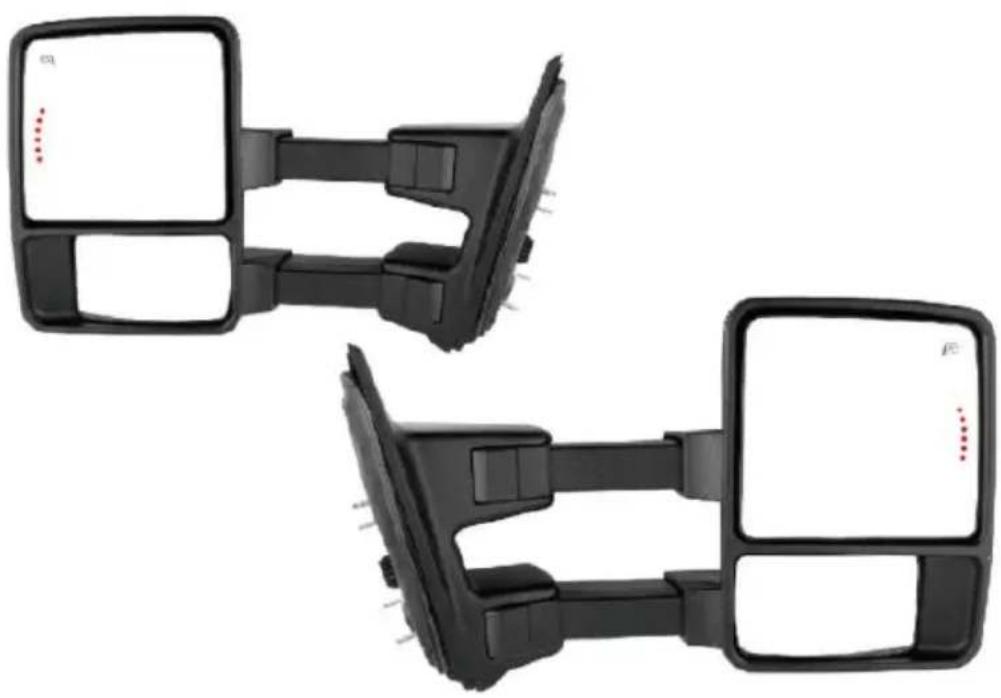

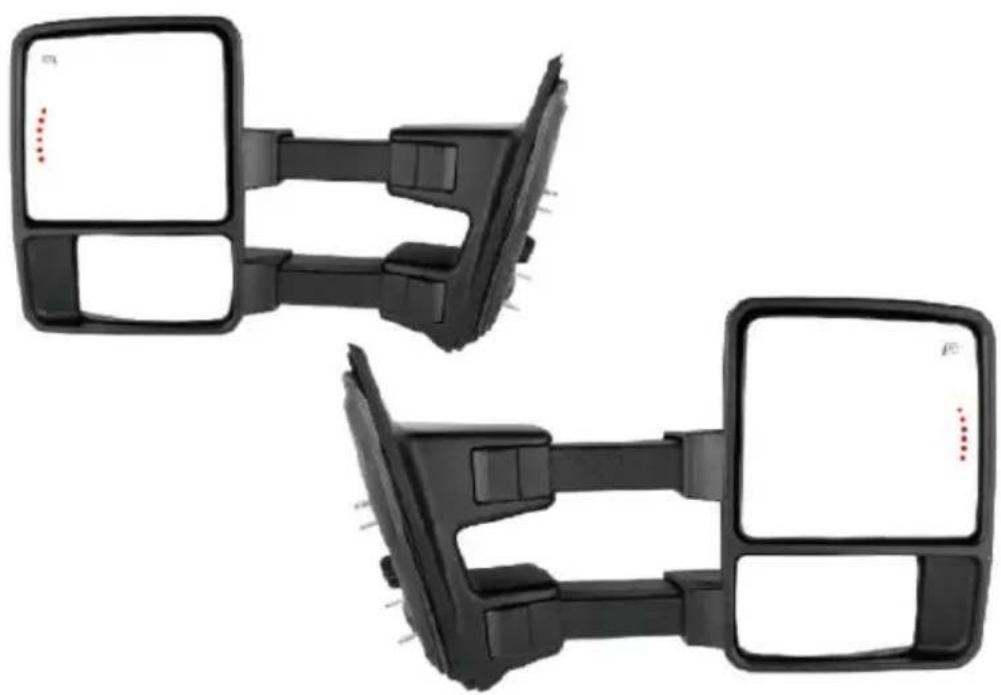

TOWING MIRRORS

MODEL: YH3345DYA-E-B-H-6#

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us whether you are actually saving half in comparison with the top major brands.

MODEL: YH3345DYA-E-B-H-6#

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

CORRECT DISPOSALThis product is subject to the provisions of European Di 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refus collection in the European Union. This applies to the pro and all accessories marked with this symbol. Products m as such may not be discarded with normal domestic wa must be taken to a collection point for recycling electrica electronic devices.

FCC Information:CAUTION:Changes or modifications not expressly approved by the responsible for compliance could void the user's authority operate the equipment!This device complies with Part 15 of the FCC Rules. O is subject to the following two conditions:1) This product may cause harmful interference.2)This product must accept any interference received, inc interference that may cause undesired operation.

NOTES

1. Please read this instruction carefully before starting installation.
2. Proper tools will improve the quality of installation and reduce the required time.
3. All mirrors are symmetrical and designed for a better view range.
4. If you find missing parts or damage, please take a photo and call us.
5. Please reference the vehicle owner's manual to adjust the new mirrors.
6. If you can't install it yourself, contact an auto repair professional to replace it for you.

MODEL AND PARAMETERS

Model	YH3345DYA-E-B-H-6#
Auto Part Position	Front Outside
Input	DC 12V
Fold	Manual Telescopic
Functions	Heated+Turn Signal Light+Arrow SignLight
Applicable Vehicle Type	2008-2016 Ford F250/F350/F450/F550
Color	Black

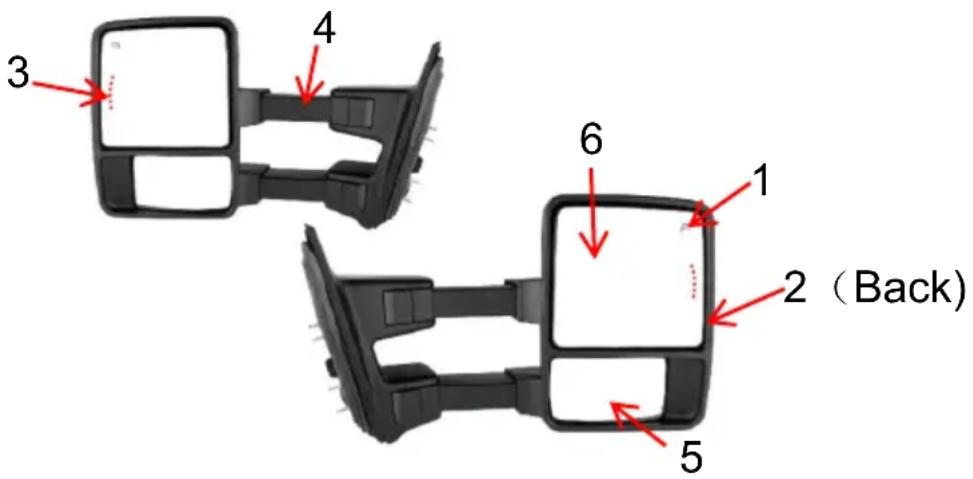

STRUCTURE DIAGRAM

1. Heated 2. Turn Signal Light 3. Arrow Signal Light 4. Manual Telescopic 5. Convex Glass (Manual Adjustment) 6. Flat Glass (Power Adjustment)

INSTALLATION INSTRUCTIONS

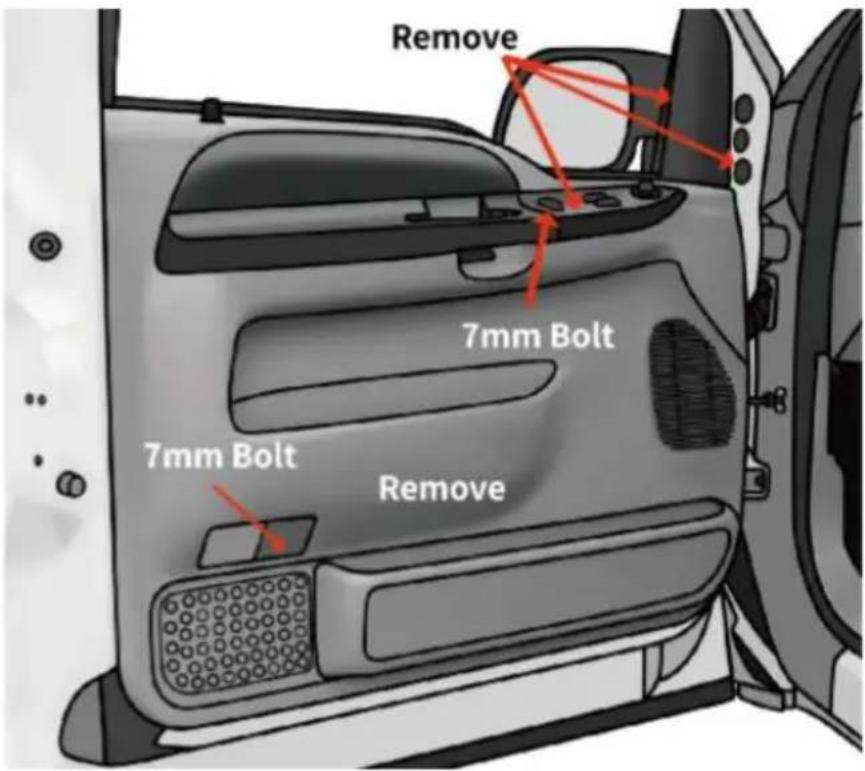

STEP 1

1. Open the front door to remove the upper extension triangular trim panel.
2. Remove (3) rubber plugs beside the triangular trim panel.
3. Remove the courtesy lamp cover.
4. Pry up the door switch panel, and disconnect all connectors.
5. Remove (2) 7mm bolts.
6. Carefully pull the door trim panel up and remove the courtesy lamp socket.

STEP 2

1. Peel up the weather shield (do not remove), and disconnect mirror harness.
2. Remove (4) 11mm hex nuts.
3. Carefully remove factory mirror.

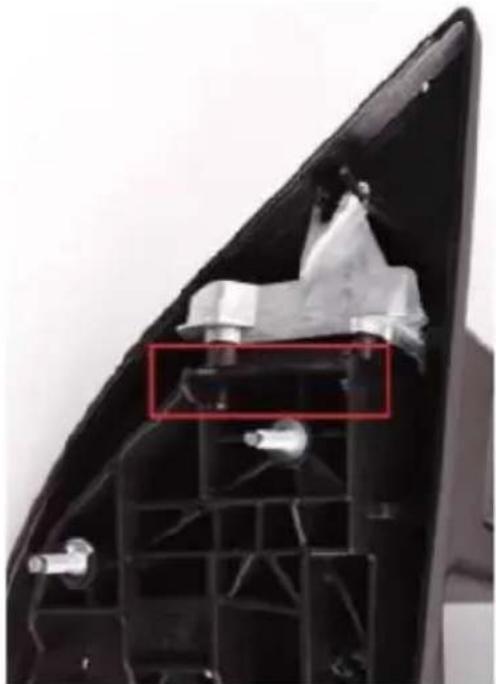

4. Cut off the ridge on the base of the new mirror.

STEP 3

1. Take the new mirror, feed studs and harness through the holes of panel.
2. Install (4) provided hex nuts to secure the new mirror. Torque to
3. Connect mirror harness, 99-02 models require the provided adaptor.

STEP 4

1. Take the door trim panel, reinstall the courtesy lamp socket and door lock tab through the hole.
2. Position the door trim panel and reinstall (2) 7mm bolts.
3. Connect all connectors back to door switch panel, and reinstall the
4. Reinstall the courtesy lamp cover.
5. Reinstall the triangular trim panel and (3) rubber plugs.

STEP 5

1. Repeat above steps on the passenger side.
2. Carefully check all mirror functions before the first drive.

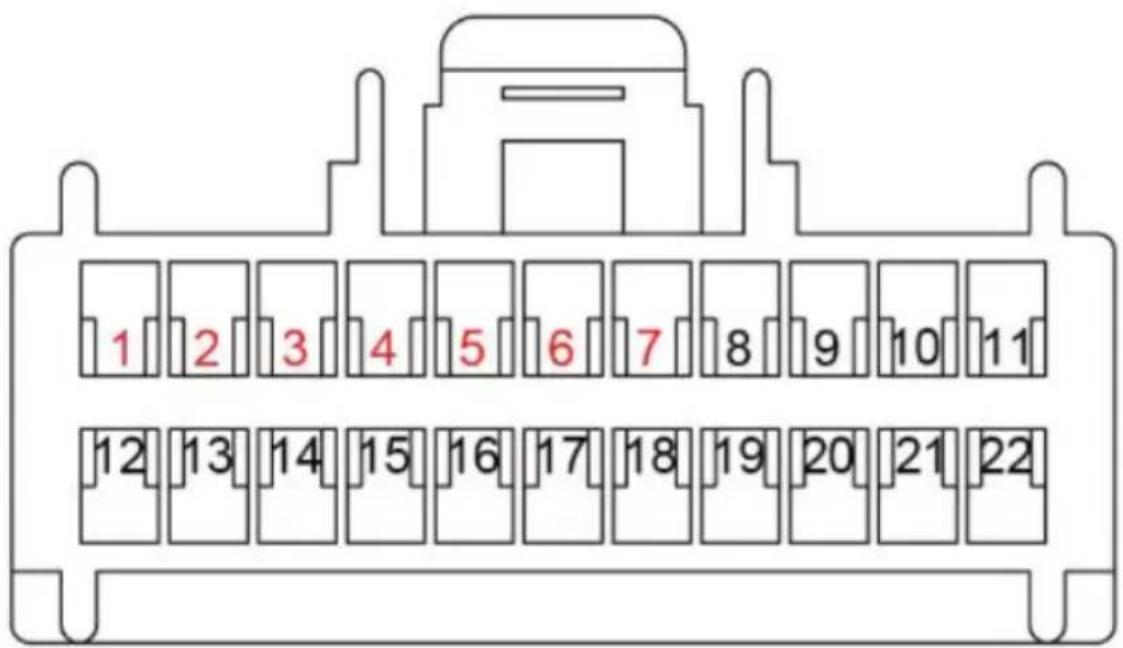

REFERENCE WIRE DIAGRAM

See the connector from the wire side.

1/2/3: Mirror Motor 4. Turn Signal Light 5. Ground (Light/Heater)

6. Mirror Heater 7. Position Light 8-22: Not Used

MAINTENANCE

1. Scrub the towing mirror when it is dirty.
2. Get into the habit of folding the towing mirrors when parking.
