CQ5545 - Mirror Vevor - Free user manual and instructions

Product Type	Courtesy mirror with LED lighting
Brand	Vevor
Model	CQ5545
Shape	Square
Mirror size	55 × 45 cm
Rated power	24 W
Power supply	12 V DC via power adapter (USB also available)
Lighting type	Integrated LED light strip
Controls	Touch sensor: on/off, color change (M button), brightness adjustment (P button)
Lighting functions	Multiple colors, adjustable brightness
Rotation	Tilt up and down
Included accessories	Mirror, cleaning cloth, power plug, magnifying glass, screwdriver, base, phone holder
Installation	Screw on the base and phone holder, connect the power
Care and cleaning	Use a soft dry cloth; do not use abrasive products
Safety	Do not use outdoors, do not use with a damaged plug, unplug before cleaning
Warranty	Electronic warranty certificate available at www.vevor.com/support
Standards	Compliant with FCC Part 15 rules (Class B)

Frequently Asked Questions - CQ5545 Vevor

How to install the Vevor CQ5545 mirror?

Screw the base to the bottom of the mirror, then screw on the phone holder. Plug the power adapter into the mirror's 12 V/USB port.

How to turn the mirror on and off?

Briefly press the touch sensor (power button) to turn the lighting on or off.

How to change the light color?

Press the M button to cycle through the available colors.

How to adjust the brightness?

Press and hold the P button to increase or decrease brightness.

What is the power of the CQ5545 mirror?

The rated power is 24 W.

Can the mirror be tilted?

Yes, the mirror can tilt up and down to adjust the viewing angle.

How to clean the mirror?

Use a soft dry cloth. Do not use abrasive chemicals or harsh cleaners.

What safety precautions should be observed?

Do not use the mirror outdoors, do not use it if the cord or plug is damaged, and unplug it before cleaning. Do not handle it with wet hands.

Where to find the warranty certificate?

The electronic warranty certificate is available at www.vevor.com/support.

Is the mirror compliant with FCC standards?

Yes, it complies with FCC Part 15 rules (Class B digital device) and must not cause harmful interference.

USER MANUAL CQ5545 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

Dresser Vanity Mirror

Model: CQ3041/CQ3041-DD/CQ5545

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to top brands, and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

DRESSER VANITY MIRROR

CQ3041

CQ3041-DD

CQ5545

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

CORRECT DISPOSAL

This product is subject to the provisions of European Directive 2012/19/EC. The symbol showing a wheelie bin with a cross through it indicates that the product requires separate collection in the European Union. This applies to the product and all accessories marked with this symbol. Such products may not be discarded with normal domestic waste and must be taken to a collection point for recycling of electrical and electronic devices.

SECURITY & WARNINGS

WARNING

To reduce the risk of fire, electric shock, or injury:

Do not use outdoors.

Use only as described in this manual. Use only manufacturer's recommended attachments.

Do not use with a damaged power cord or plug.

Do not use extension cords or outlets with inadequate current carrying capacity. Turn off all controls before unplugging.

Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord. Do not handle the plug or vacuum cleaner with wet hands or operate without shoes.

Do not put any object into openings. Do not use with the opening blocked. Keep the hose free of dust, lint, hair, and anything that may reduce airflow.

Protect your eyes and do not use for a long time.

SAVE THESE INSTRUCTIONS

PARAMETER LIST

Model	CQ3041	CQ3041-DD	CQ5545
Power	13W	19W	24W
Shape	Square	Square	Square
Mirror Size	30×41cm	30×41cm	55×45cm
Type	Bulbs	Light Strip	Light Strip
Ports	12V Power	12V Power	12V Power/USB

PART LIST

When unpacking this product, ensure the parts listed below are included and carefully inspect for any damage that may have occurred during shipping. Do not attempt to assemble or use the product if any part is missing or damaged.

	CQ3041		CQ3041-DD		CQ5545
Mirror		×1		×1		×1
Cloth		×1		×1		×1
Plug		×1		×1		×1
Magnification		×1		×1		×1
Screwdriver	/	/	/	/		×1
Base	/	/	/	/		×1
Phone Holder	/	/	/	/		×1

INSTALLATION METHOD (only CQ5545)

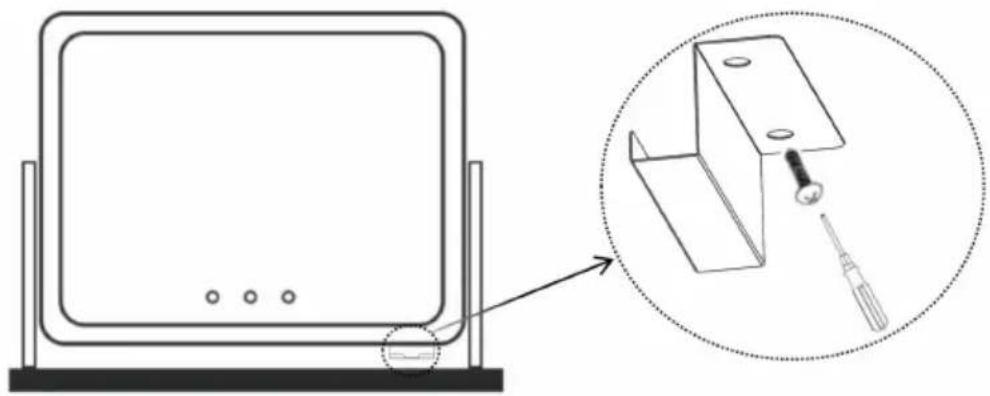

1. Connect the base screws to the bottom of the mirror and the base.

1. Connect the phone holder screws to the bottom of the mirror and phone holder.

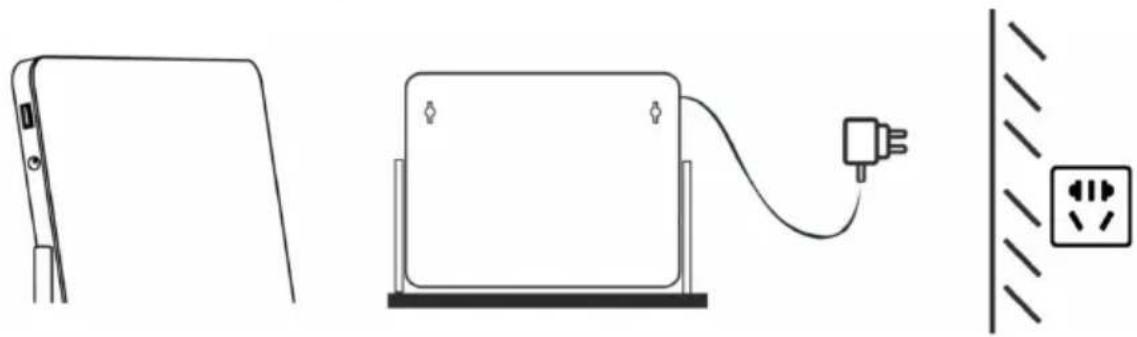

3. Link the power plug of the mirror.

OPERATION METHOD

Turn on the light, switch the color and brightness.

One tap on power sensor to turn on One tap on M button to change light Hold the P button to adjust the brightness.

Turn On/Off

Touch to change color

The Hollywood Mirror can pivot up and down.

FCC Information:

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference. 2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.
