USER MANUAL GS-E Vevor

Affordable. Reliable. Home Improvement.

BENCH GRINDER PEDESTAL

MODEL:GS-E

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

BENCH GRINDER PEDESTAL

MODEL: GS-E

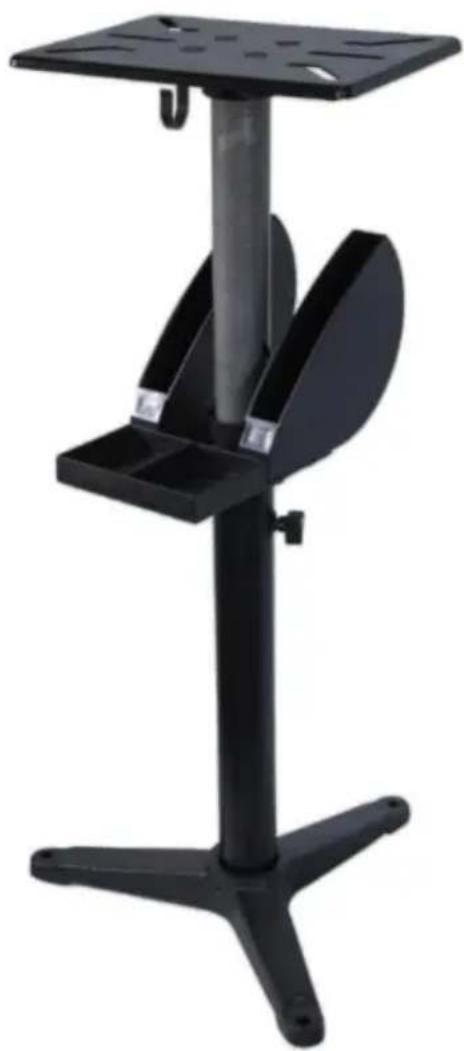

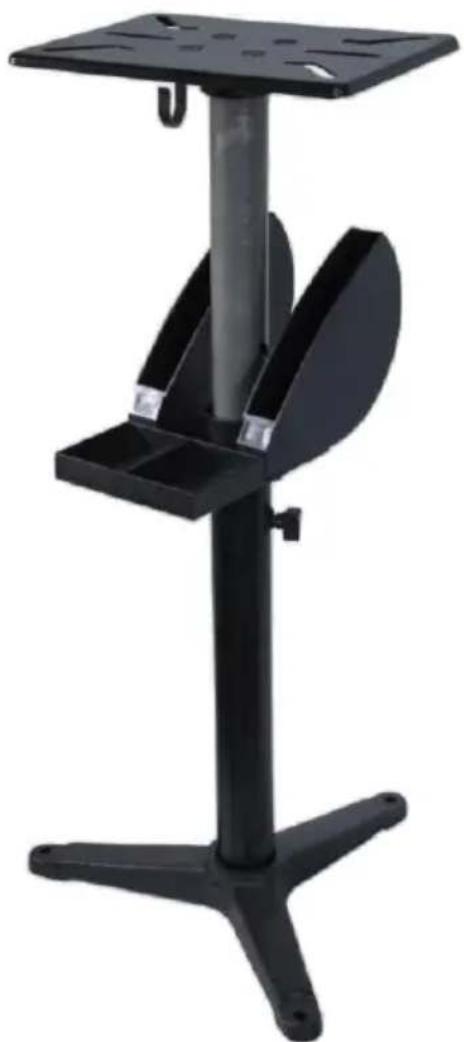

Black metal stand with four legs and a flat top, no visible text or symbols

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

INSTRUCTIONS

Thank you for purchasing a VEVOR product. Manufactured to a high standard product will, if used according to these instructions, and properly maintained, you years of trouble free performance.

Read the instruction manual.

IMPORTANT: please read these instructions carefully. note the safe operationa requirements, warnings & cautions. use the product correctly and with care for purpose for which it is intended. failure to do so may cause damage and/or personal injury and will invalidate the warranty. keep these instructions safe fo future use.

1. Only use on firm, level, unobstructed surfaces which are capable of support the bench grinder floor stand and bench grinder.
2. Ensure bench grinder floor stand is fixed to surface capable of supporting bench grinder and work piece.
3. Always use bench grinder floor stand in a well lit clean and dry place.
   Make sure surface is firm under foot. preferably concrete.
4. Enlist help to place and remove the bench grinder from its working position
5. Replace or repair any damaged parts using only the recommended components. Unauthorized parts may pose a safety hazard and will void the warranty.
6. Ensure the bench grinder floor stand remains dry at all times. Keep children and unauthorized individuals away from the work area.

Ensure that the unit is properly and securely assembled before use.

WARNING! Failure to comply with these instructions may result in damage to stand or other property and/or personal injury.

WARNING! The warnings, cautions and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It be understood that common sense and caution are factors which cannot be into this product, but must be applied by the operator.

INTRODUCTION

Sturdy bench grinder stand with floor mounting holes for added security. Heavy-duty cast iron base. Adjustable heights from 700mm to 900mm, a total five gears can be adjusted. Features accessory tray and two compartments for storage of grinding wheels. Power cable hook for safe storage of grinder power cords. Compatible with the VOVER range of bench grinders, and also suitable other leading brands of bench grinders.

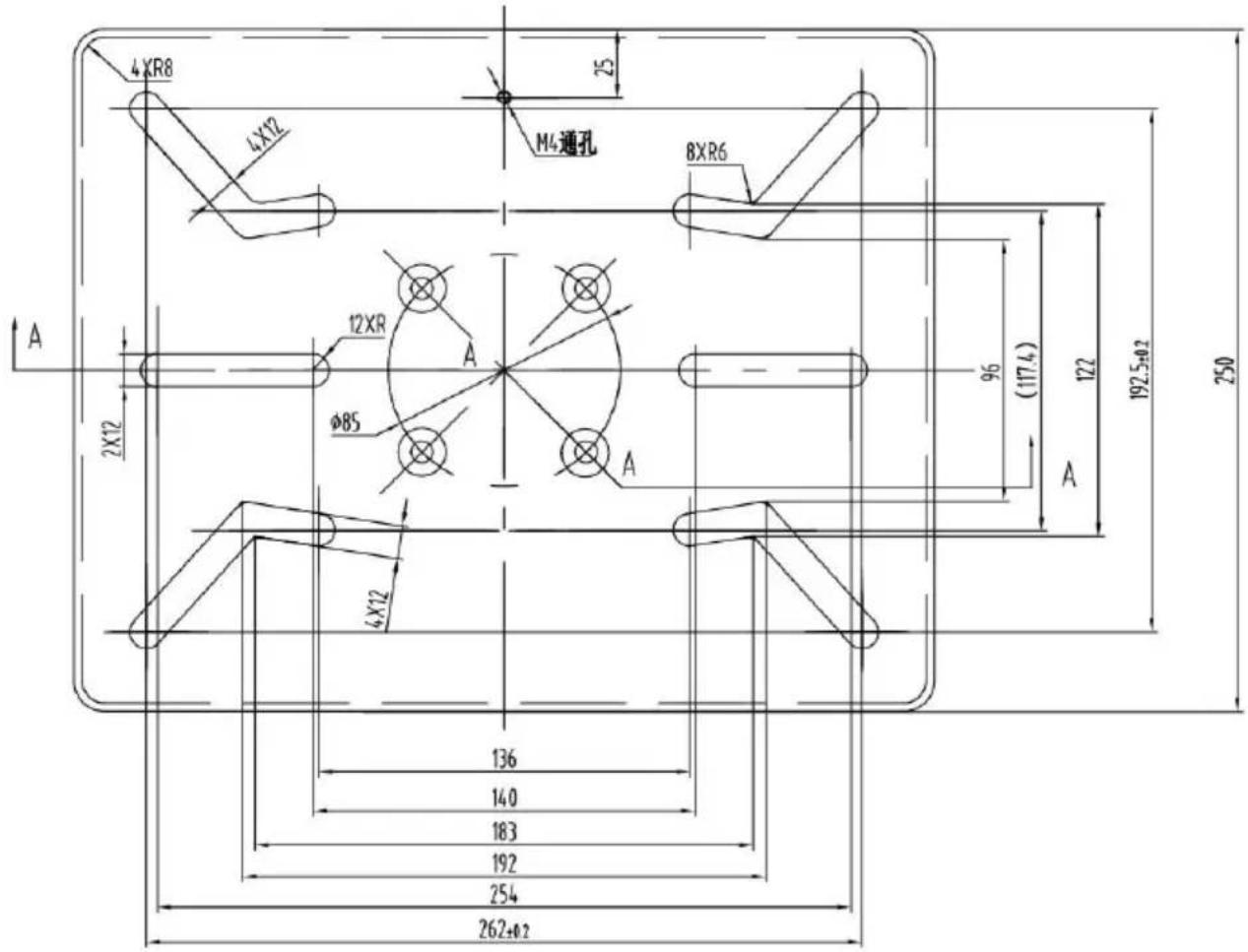

NOTE: Dimensions of the mesa mounting holes, Consumers can choose the appropriate fixing hole position according to the installation size of the fixed machine base.

4XR8 4X12 M4通孔 8XR6 A 2X12 12XR φ85 A 96 (117.4) 122 192.5+0.2 A 250 4X12 136 140 183 192 254 262+0.2

Numbers refer to attached parts list.

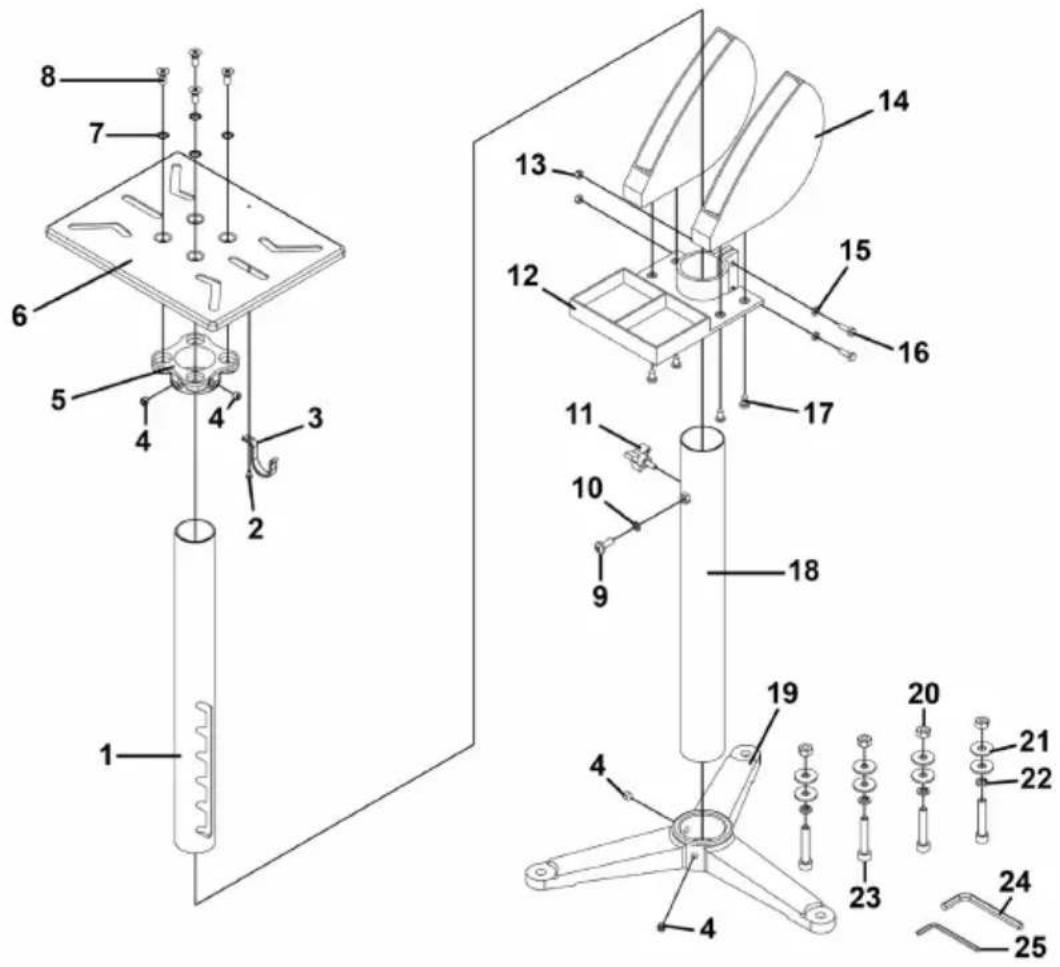

Technical diagram of a mechanical device with numbered components and exploded view, likely for assembly or maintenance instructions.

FIG.1

Before you begin, separate all parts and group by size and style. If any pair missing, contact your VEVOR stockist immediately.

NOTE: finger tighten nuts and bolts when assembling. Once assembled, use adjustable wrench to ensure all fixings are secure.

WARNING! This stand must be installed on solid level ground and in combination with compatible bench grinders.

4.1. ASSEMBLING THE STAND (FIG.1)

4.1.1. Slide upright (18) into base (19) use grub screws M10 x 10 (4) to set 4.1.2. Attach grinding wheel storage compartment (14) to accessory tray (12) using self-tapping screws ST6,3 x 16 (17). Slide completed unit over upright Use flat M6 zinc washer (15), hex head set screws M6 x 20 zinc (16), and nuts M6 zinc (13) to attach.

4.1.3. ASSEMBLING THE TOP TRAY

4.1.4. Assemble top tray holding bracket (5) to top tray (6) using retaining w (7) and countersunk Phillips machine screw M8 x 20 zinc

(8). Slide unit over movable bracket arm (1) and secure using grub screws I 10 (4).

4.1.5. Attach storage hook (3) to top tray (6) using machine screw pan head Phillips M4 x 8mm (2).

4.1.6. Slide the completed table assembly onto the upright (18) secure using adjustable threaded (11) and spring washer M8 zinc (10)

and machine screw pan head Phillips M8 x 20mm (single) (9).

4.2. SECURING A GRINDER

4.2.1. Make sure bench grinder stand is bolted down securely to the floor be installing bench grinder to the top.

WARNING! To avoid injury, turn the grinder switch OFF and unplug from the power source before mounting onto the stand.

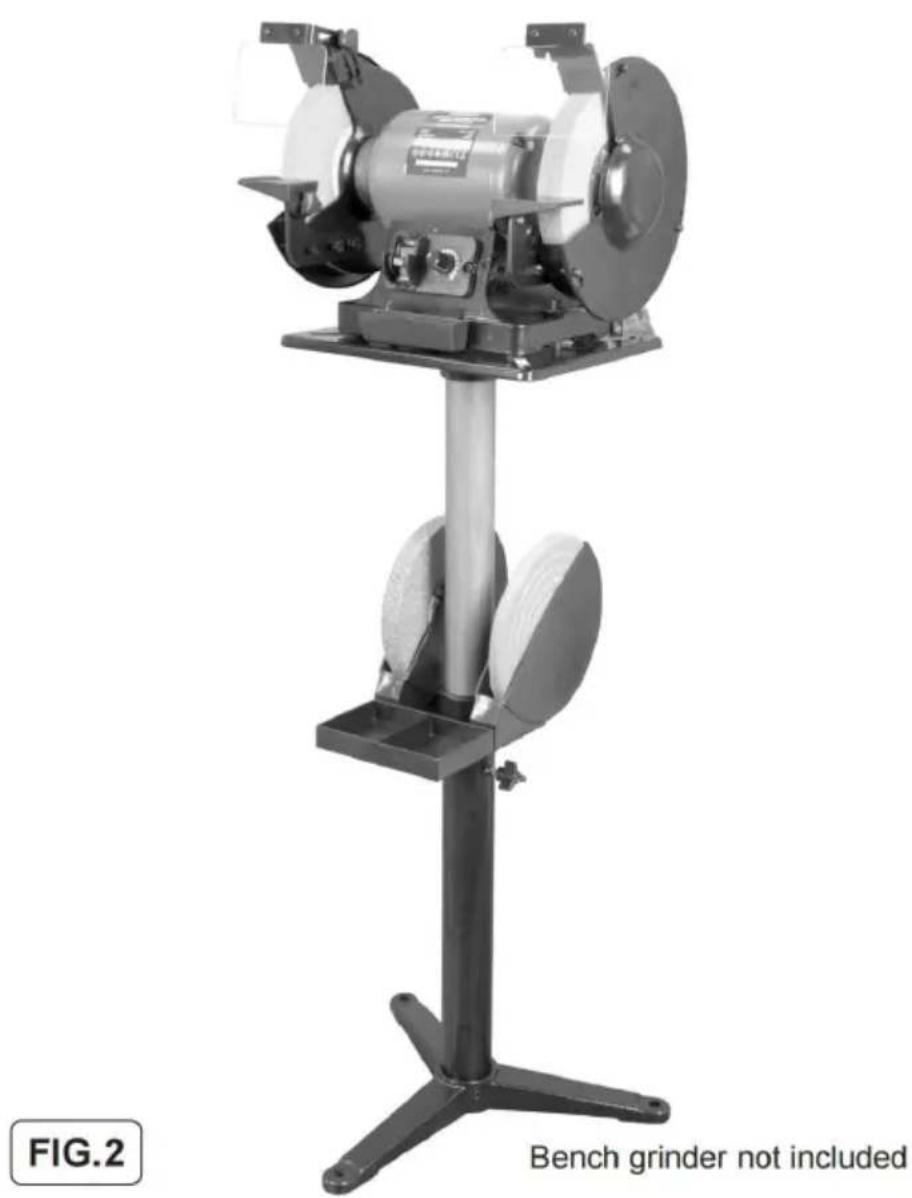

4.2.2. Mount grinder onto the grinder floor stand. See (fig.2).

Industrial machine with dual levers mounted on a stand, labeled 'FIG.2' and noting that it is not included in the image.

ENVIRONMENT PROTECTION

Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely unserviceable and requires disposal, drain any fluid (if applicable) into approved

containers and dispose of the product and fluids according to local regulations

Note: It is our policy to continually improve products and as such we reserve right to alter data, specifications and component parts without prior notice.

Important: No Liability is accepted for incorrect use of this product.

CARE & MAINTENANCE

1. Maintain the tool with care. A tool in good condition is efficient, easier to and will have fewer problems.
2. Inspect the tool components periodically. Repair or replace damaged or wo components. Only use identical replacement parts when servicing.
3. Maintain the tool's labels and name plates. These carry important information unreadable or missing, contact Princess Auto Ltd.

for replacements.

WARNING! Only qualified service personnel should repair the tool. An improved repaired tool may present a hazard to the user and/or others.

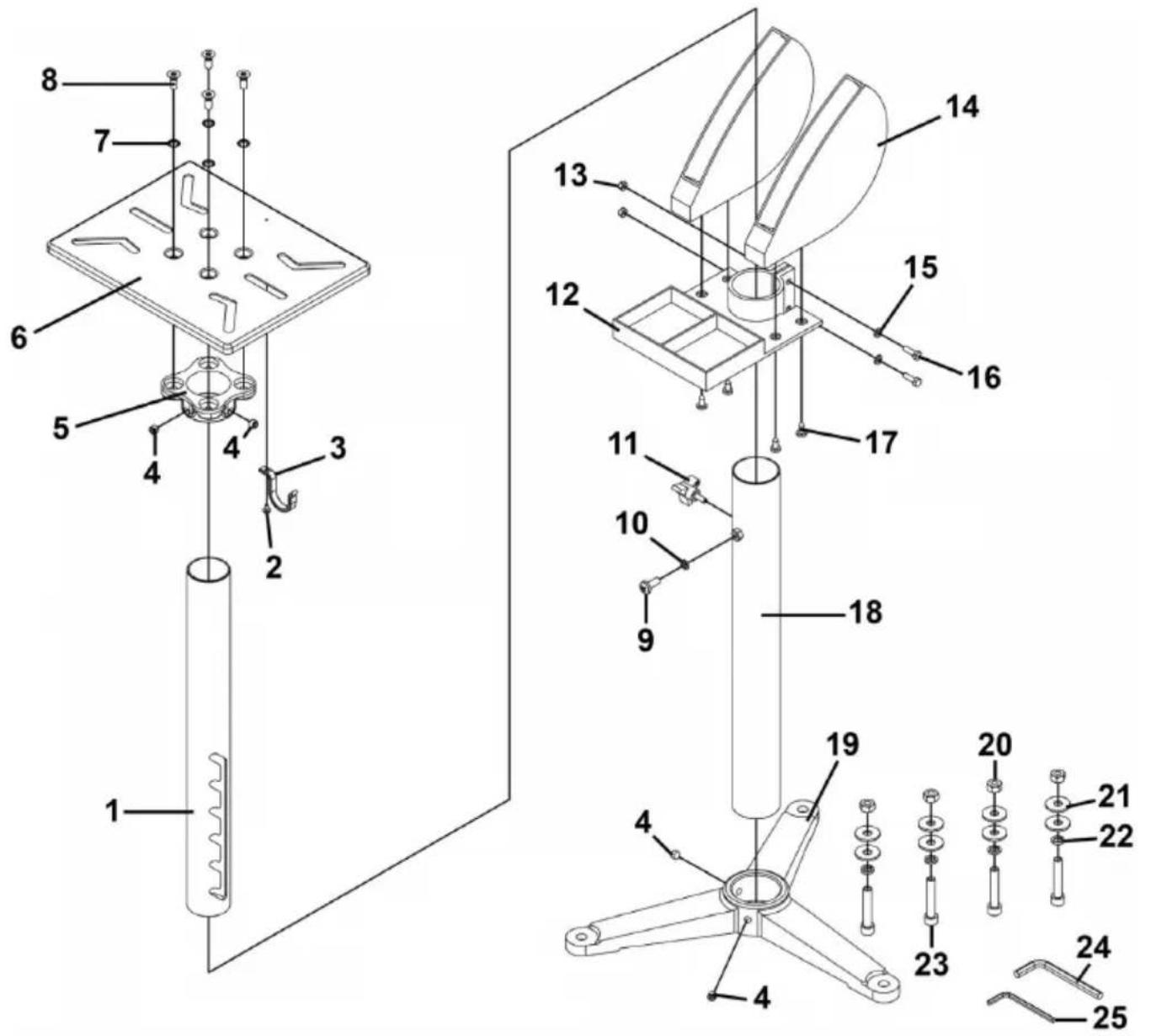

BREAKDOWN AND PARTS

Technical diagram of a mechanical assembly with numbered components and exploded view, likely for assembly or maintenance instructions.

Item	part No.	Description	Qty
1	BGST1 - 01	Movable Bracket Arm	1
2	MSP48.S	Machine screw pan Head phillips M 8mm	1
3	BGST1 - 03	storage HooK	1
4	GSM1010 .S	Grub screw M10 X 10	4
5	BGST1 - 05	TOP Tray Holding Bracket	1
6	BGST1 - 06	TOP Tray	1
7	BGST1 - 07	Retaining washer	4
8	MSC820 .S	csk phillips Machine screw M8x20 z	4
9	MSP820 .S	Machine screw pan Head phillips M8x20mm (single)	1
10	SWM8.S	spring washer M8zinc	1
11	BGST1 -11	knob, Adjustable Threaded	1
12	BGST1 -12	Accessory Tray	1
13	SN6 .S	steel Nut M6 zinc	2
14	BGST1 -14	Grinding wheel storage compartment	2
15	FWM6 .S	Flat washer M6 zinc	2
16	SS620 .S	Hex Head set screw M6 X 20 z	2
17	BGST1 -17	self-Tapping screw ST6 . 3 x 10	4
18	BGST1 -18	upright	1
19	BGST1 -19	Base	1
20	SN10 .S	steel Nut M10 zinc	4
21	FWM10 . S	Flat washer M10 zinc	8
22	SWM10 .S	spring washer M10 zinc	4
23	SCB1055 .S	socket cap Bolt M10 x 55mm	4
24	BGST1 -24	Hex key8mm	1
25	BGST1 -25	Hex key 5mm	1

SPECIFICATIONS

Model	GS-E
Color	Black
Adjustable height	700-900mm
The steel table size	315*254mm
Applicable size of grinding machin	125-250mm
Other functions	A tank for the grinding who A water tank.
Net weight	7.45kg

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
