USER MANUAL GS-C Vevor
Affordable. Reliable. Home Improvement.

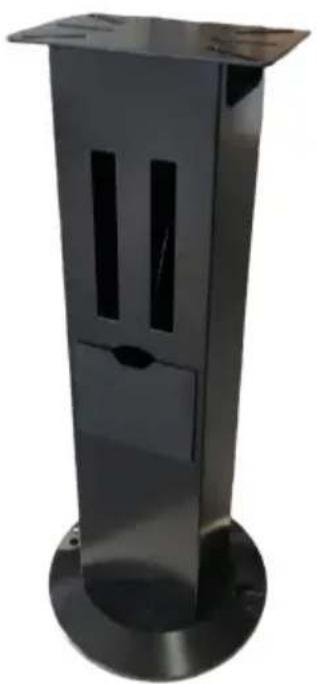

BENCH GRINDER PEDESTAL
MODEL: GS-C
Technical Support and E-Warranty Certificate
www.vevor.com/support
MODEL:GS-C
This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the produ received. Please forgive us that we won't inform you again if there a technology or software updates on our product.
Warning-To reduce the risk of injury, user must read instruct manual carefully.
INSTRUCTIONS
Thank you for purchasing a VEVOR product. Manufactured to a high standard, product will, if used according to these instructions, and properly maintained, for you years of trouble free performance.
Read the instruction manual.
IMPORTANT: please read these instructions carefully. note the safe operationa requirements, warnings & cautions. use the product correctly and with care for purpose for which it is intended. failure to do so may cause damage and/or personal injury and will invalidate the warranty. keep these instructions safe for future use.
- Only use on firm, level, unobstructed surfaces which are capable of supporting the bench grinder floor stand and bench grinder.
- Ensure bench grinder floor stand is fixed to surface capable of supporting bench grinder and work piece.
- Always use bench grinder floor stand in a well lit clean and dry place. Make sure surface is firm under foot. preferably concrete.
- Enlist help to place and remove the bench grinder from its working position
- Replace or repair damaged parts. Use only recommended parts. Unauthorised parts may be dangerous and will invalidate the warranty.
- Keep bench grinder floor stand dry.
- Keep children and unauthorised persons away from the work area.
Ensure that the unit is properly and securely assembled before use.
WARNING! Failure to comply with these instructions may result in damage to stand or other property and/or personal injury.
WARNING! The warnings, cautions and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It
be understood that common sense and caution are factors which cannot be into this product, but must be applied by the operator.
INTRODUCTION
Sturdy bench grinder stand with floor mounting holes for added security. Heavy-duty cast iron base. Features accessory two compartments for the storage of grinding wheels. Compatible with the VOVER range of bench grinders, and suitable for other leading brands of bench grinders.

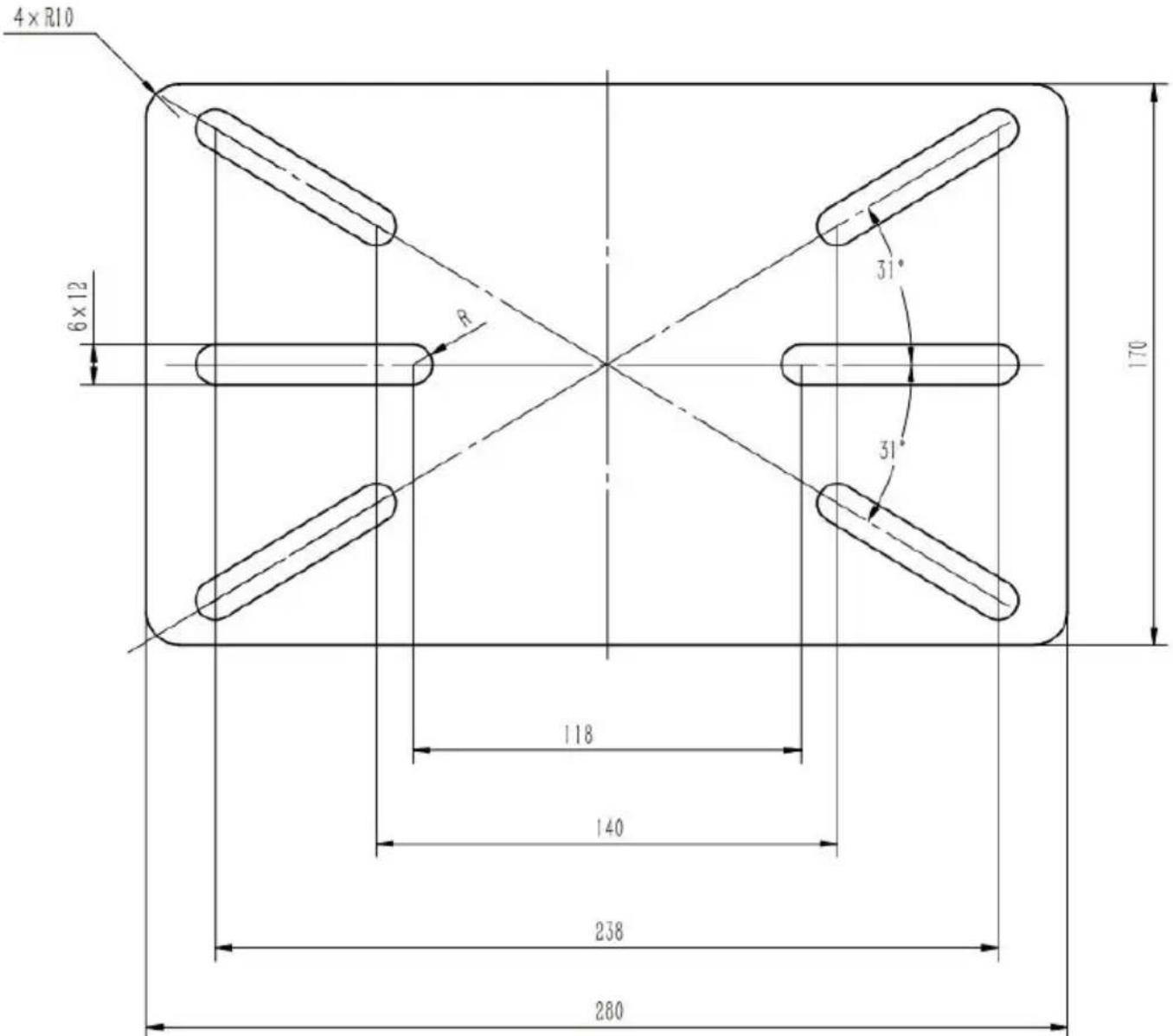

NOTE: Dimensions of the mesa mounting holes, Consumers can choose the appropriate fixing hole position according to the installation size of the fixed machine base.
ASSEMBLY
Numbers refer to attached parts list.

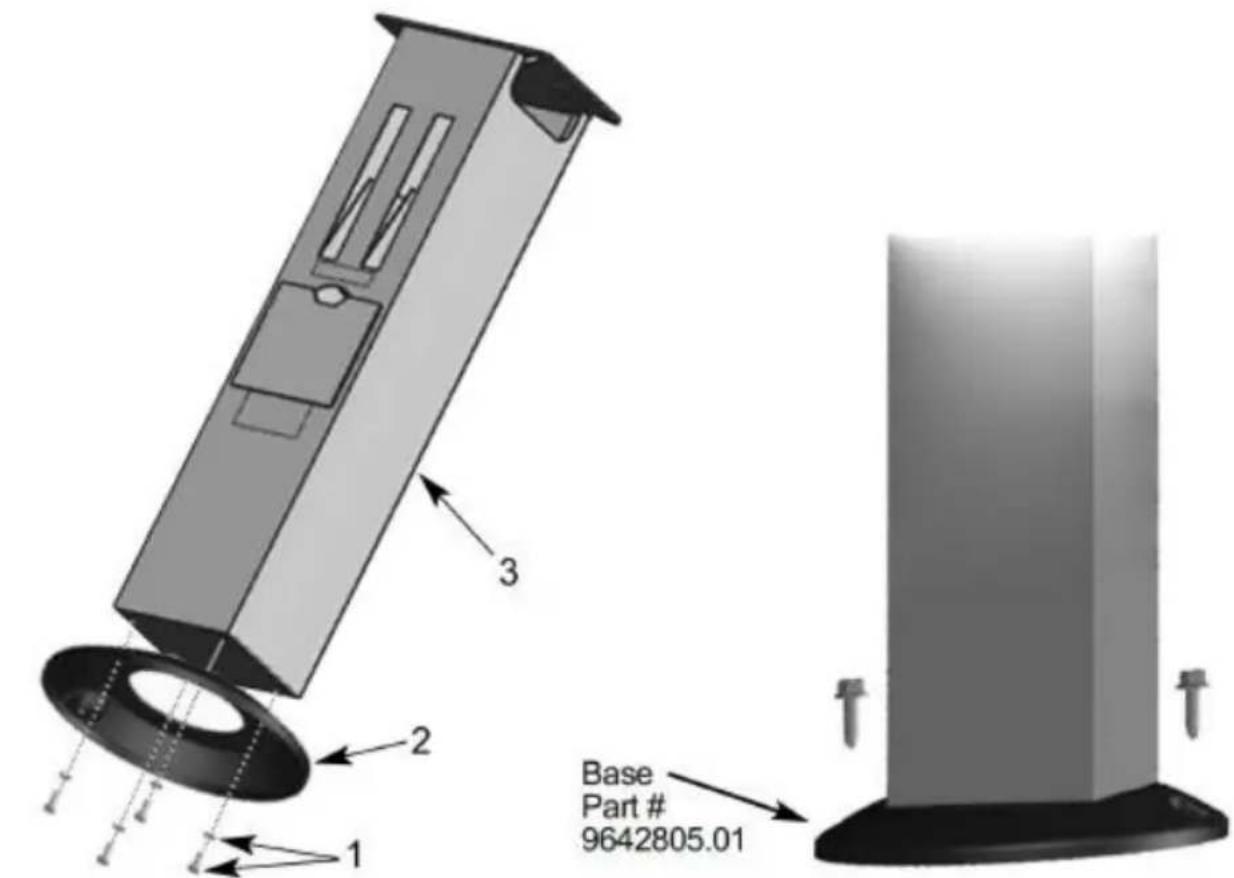

Figure A
Figure B
Assemble Stand
Refer to Figure A. Using the screws and washers (1) provided, screw together footplate (2) and column (3), as illustrated. Tighten the screws securely. Posit stand 400H50 securely.
Mount Stand to Surface
Refer to Figure B. Ensure it is steady. Install the stand on a level, stable a ground surface and secure it against falling over with screws that are appropri for the ground surface.
The screws must securely anchor the stand in the ground surface. (Screws r included in scope of delivery).
Secure Bench Grinding to Stand
Using appropriate screws, secure the bench grinder to be attached to stand. (Screws not included in scope of delivery).
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely unserviceable and requires disposal, drain any flui (if applicable) into approved containers and dispose of the product and fluids according to local regulations.
Note: It is our policy to continually improve products and as such we reserve right to alter data, specifications and component parts without prior notice.
Important: No Liability is accepted for incorrect use of this product.
CARE & MAINTENANCE
- Maintain the tool with care. A tool in good condition is efficient, easier to and will have fewer problems.
- Inspect the tool components periodically. Repair or replace damaged or wo components. Only use identical replacement parts when servicing.
- Maintain the tool's labels and name plates. These carry important information unreadable or missing, contact Princess Auto Ltd.
for replacements.
WARNING! Only qualified service personnel should repair the tool. An improper repaired tool may present a hazard to the user and/or others.

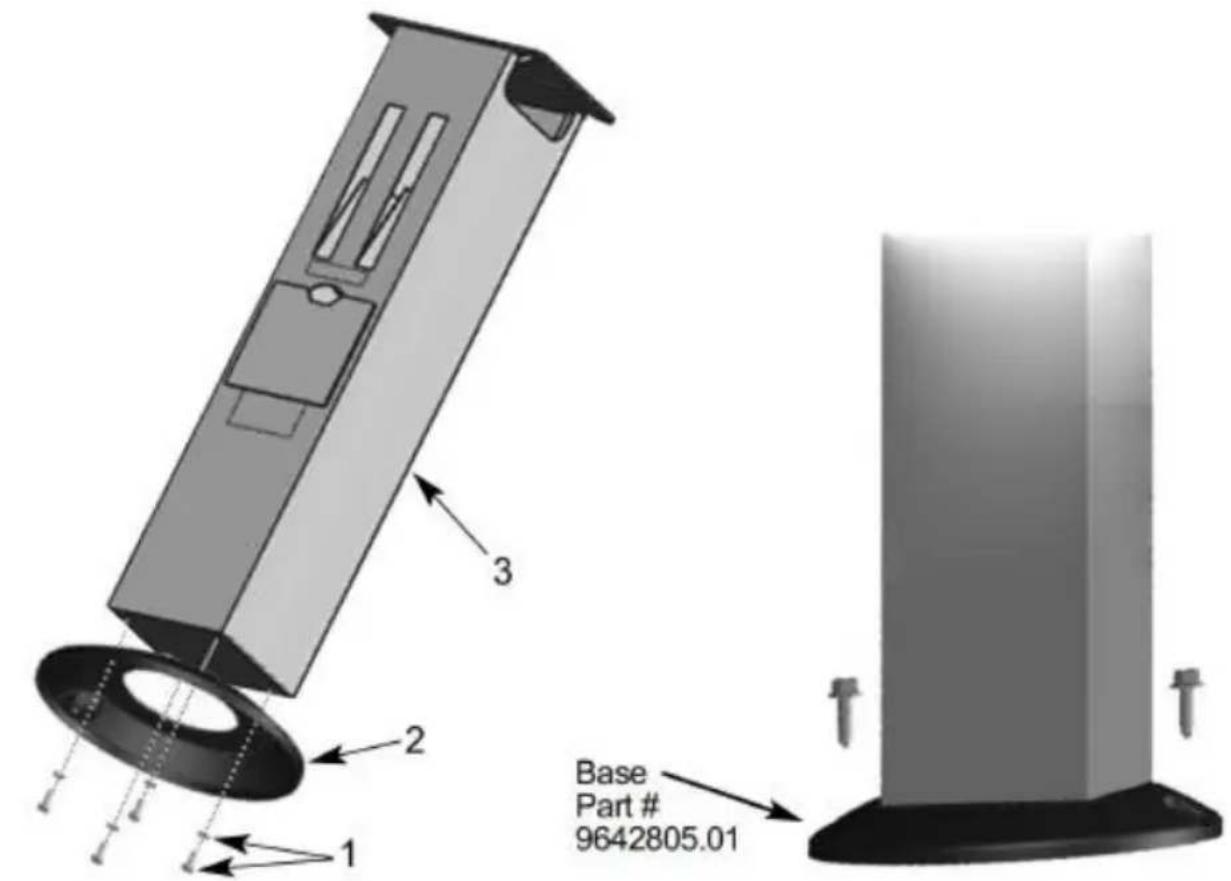

Figure A
Figure B
| Item | Description | Qty |
| 1 | Screw assembly M8 x 20mm | 4 |
| 2 | Base | 1 |
| 3 | Support Pole | 1 |
| 4 | Grinding wheel storage compartment | 1 |
| 5 | socket cap Bolt M8 x 60mm | 2 |
SPECIFICATIONS
| Model | GS-C |
| Color | Black |
| The steel table size | 280*170mm |
| Other functions | A tank for the grinding wheel |
| Net weight | 12kg |
Manufacturer: Shanghaiuxinmuyeyouxiangonsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| UK | REP |
YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A
| EC | REP |
