GSH - Bench grinder Vevor - Free user manual and instructions

Product Type	Bench Grinder Stand
Model	GS-H
Color	Black
Steel Table Dimensions	270 x 270 mm (10-5/8 x 10-5/8 inches)
Net Weight	22 kg
Main Material	Cast Iron and Steel
Maximum Load Capacity	272 kg (600 lb)
Included Accessory	Cooling Liquid Tray (Water Tank)
Compatibility	VEVOR Bench Grinders and Other Major Brands
Maximum Mounting Bolt Diameter	3/8 inch
Support Pole Height	About 1000 mm (estimate)
Number of Adjustment Screws	5
Floor Fixing Type	3/8 inch Bolts (recommended anchoring)
Maintenance	Regular cleaning, component inspection, replacement of worn parts only with recommended parts
Safety Instructions	Use on a firm and level surface, keep away from children, do not exceed maximum load
Warranty	Electronic warranty certificate available at www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shanghai, China
Importer	SIHAO PTY LTD (Australia), Sanven Technology Ltd (USA)
EU Representative	60329 Frankfurt am Main, Germany

Frequently Asked Questions - GSH Vevor

Is this stand compatible with all bench grinders?

It is designed for VEVOR grinders but also fits most major brands. Check the alignment of mounting holes.

How to fix the stand to the floor?

Use 3/8 inch bolts suitable for your floor type (concrete recommended). Drill holes in the base and secure firmly.

Can I use this stand without fixing it to the floor?

It is highly recommended to fix it to the floor for stability and safety. A flat and firm surface is essential.

What to do if parts are missing?

Contact your VEVOR dealer immediately. The parts list is provided in the manual.

How to install the cooling liquid tray?

Slide the collar onto the pole, leave at least 4 inches of pole exposed, then tighten the adjustment screw.

What is the maximum load capacity?

The table can support up to 600 lb (272 kg), including the grinder and workpiece.

Do I need to remove the rubber feet from the grinder before mounting?

Yes, so that the grinder sits flat on the stand and ensures a stable fixation.

How to maintain this stand?

Regularly inspect the screws and welds. Clean with a dry cloth. Replace damaged parts only with VEVOR parts.

Is this stand delivered with the grinder?

No, it is only the stand. The bench grinder is sold separately.

How to get technical support?

Go to www.vevor.com/support to download the electronic warranty certificate and access support.

USER MANUAL GSH Vevor

Affordable. Reliable. Home Improvement.

BENCH GRINDER PEDESTAL

MODEL:GS-H

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

BENCH GRINDER PEDESTAL

MODEL:GS-H

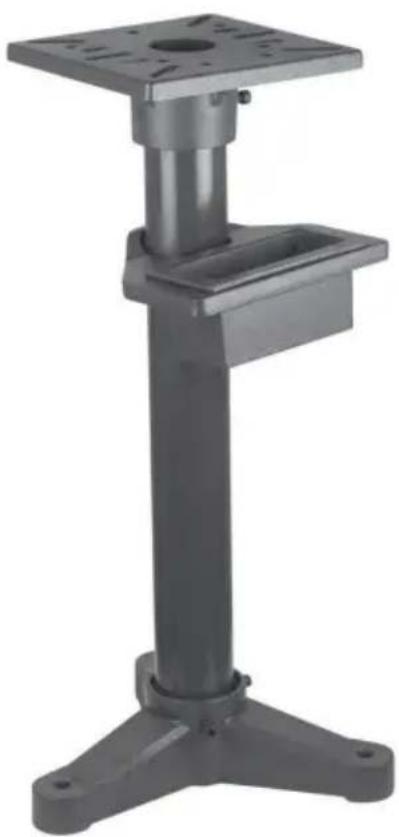

Metal mechanical stand with three legs and a square top (no text or symbols visible)

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

INSTRUCTIONS

Thank you for purchasing a VEVOR product. Manufactured to a high standard product will, if used according to these instructions, and properly maintained, you years of trouble free performance.

Read the instruction manual.

IMPORTANT: please read these instructions carefully. note the safe operationa requirements, warnings & cautions. use the product correctly and with care fo purpose for which it is intended. failure to do so may cause damage and/or personal injury and will invalidate the warranty. keep these instructions safe fo future use.

1. Only use on firm, level, unobstructed surfaces which are capable of support the bench grinder floor stand and bench grinder.
2. Ensure bench grinder floor stand is fixed to surface capable of supporting bench grinder and work piece.
3. Always use bench grinder floor stand in a well lit clean and dry place. M sure surface is firm under foot. preferably concrete.
4. Enlist help to place and remove the bench grinder from its working position
5. Replace or repair damaged parts. Use only recommended parts. Unauthoris parts may be dangerous and will invalidate the warranty.
6. Keep bench grinder floor stand dry.
7. Keep children and unauthorised persons away from the work area. Ensure the unit is properly and securely assembled before use.

WARNING! Failure to comply with these instructions may result in damage to stand or other property and/or personal injury.

WARNING! The warnings, cautions and instructions discussed in this instruction

manual cannot cover all possible conditions and situations that may occur. It be understood that common sense and caution are factors which cannot be into this product, but must be applied by the operator.

INTRODUCTION

Secure bench grinders to this heavy duty cast -iron stand with ease. It anch floors and features a large 10-5/8 x 10-5/8in. table with 600 lb capacity. Features accessory a water tank. Compatible with the VOVER range of bench grinders, and also suitable for other leading brands of bench grinders.

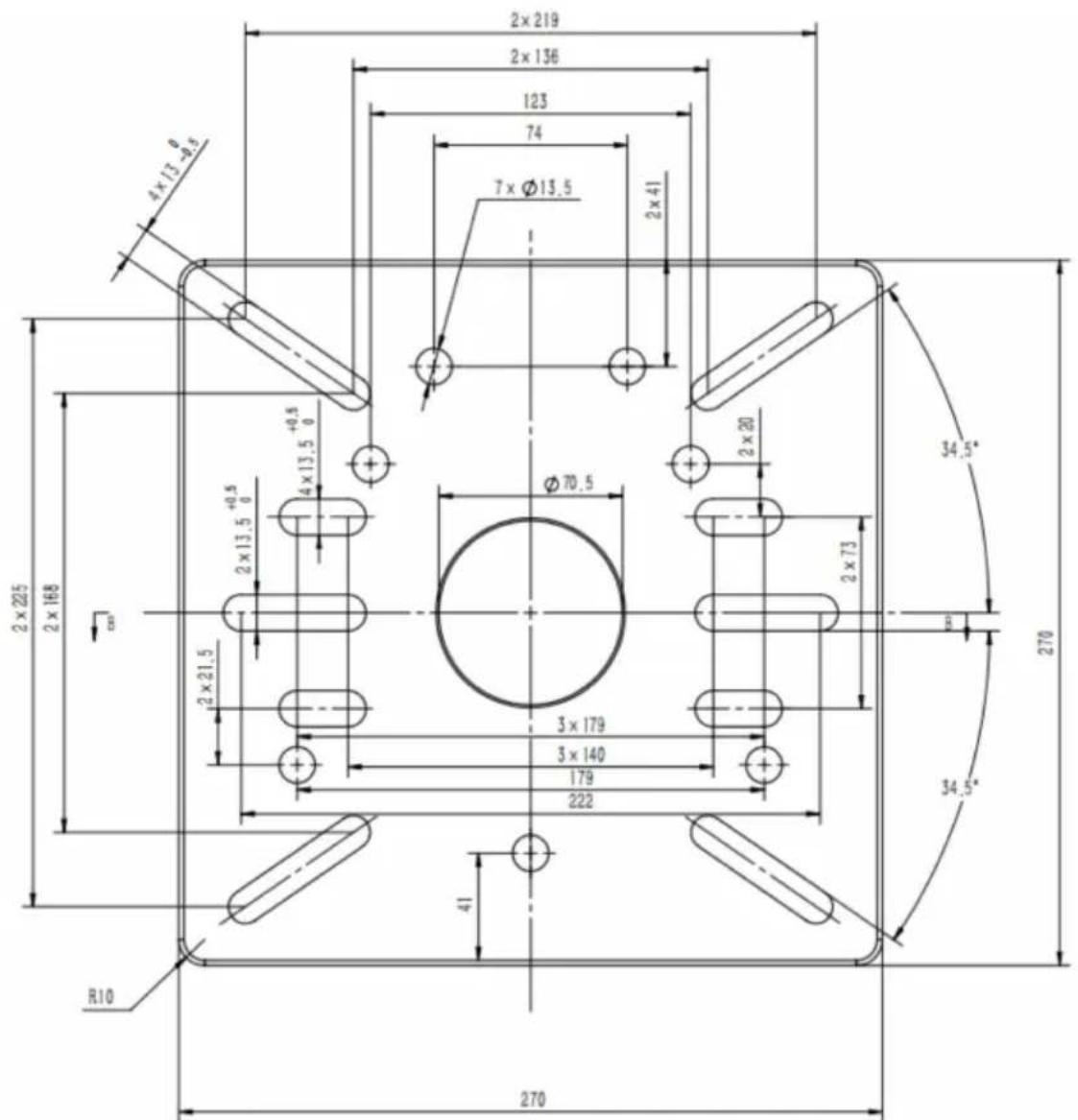

NOTE: Dimensions of the mesa mounting holes, Consumers can choose the appropriate fixing hole position according to the installation size of the fixed machine base.

ASSEMBLY

Numbers refer to attached parts list.

Before you begin, separate all parts and group by size and style. If any pair missing, contact your VEVOR stockist immediately.

NOTE: finger tighten nuts and bolts when assembling. Once assembled, use adjustable wrench to ensure all fixings are secure.

WARNING! This stand must be installed on solid level ground and in combining with compatible bench grinders.

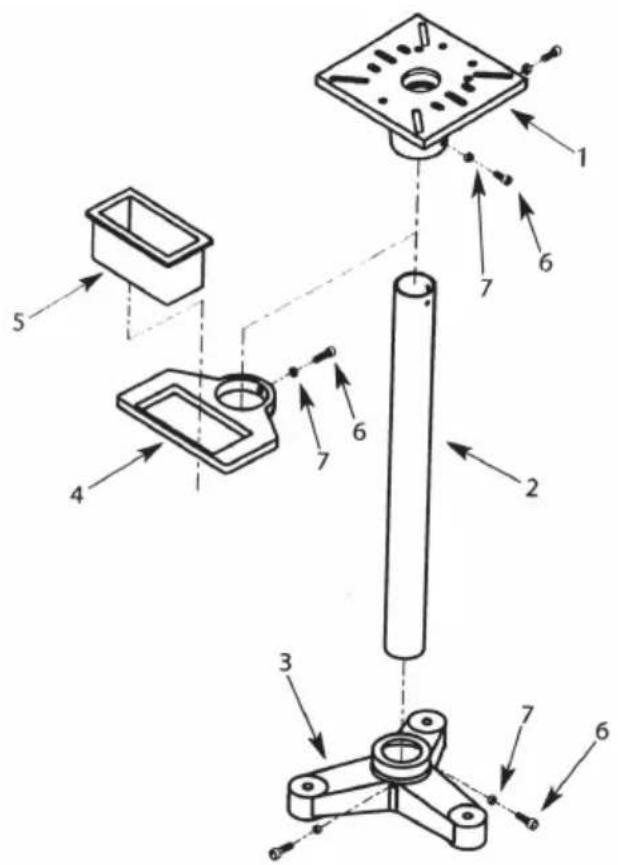

ASSEMBLING THE STAND

1. Place the base (# 3) on a flat, level surface.

2. Place the support pole (# 2) into the centre of the base.

3. Tighten the 2 set screws (#6 and #7) in the base.

4. Slide coolant tray collar (#4) onto the support pole. Slide it far enough do that at least 4 in. of pole is showing above the collar.

5. Secure the coolant tray (#5) in place by tightening the set screw.

6. Place the fixed plate (#1) over the support pole. Secure it in place by tigs its 2 set screws.
7. It is strongly recommended that you mount the baseto the floor using 3/8 bolts of a type compatible with the floor surface.

MOUNTING A GRINDER

1. If the grinder (or other stationary power tool) has rubber feet, remove the This will allow the grinder to sit flat on the pedestal stand.
2. Place the grinder on top of the pedestal stand, aligning the mounting hole both the grinder and the pedestal stand. Ideally, the front of the grinder shows square with the front of the mounting surface.
3. Secure the grinder with the hardware described in its owner's manual. If I mounting hardware is not listed, use a hex bolt not exceeding 7/16 in. in di two flat washers, a lock washer and a hex nut.

ENVIRONMENT PROTECTION

Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely unserviceable and requires disposal, drain any fluid (if applicable) into approved containers and dispose of the product and fluids according to local regulations.

Note: It is our policy to continually improve products and as such we reserve right to alter data, specifications and component parts without prior notice.

Important: No Liability is accepted for incorrect use of this product.

CARE & MAINTENANCE

1. Maintain the tool with care. A tool in good condition is efficient, easier to and will have fewer problems.

2. Inspect the tool components periodically. Repair or replace damaged or wo components. Only use identical replacement parts when servicing.

3. Maintain the tool's labels and name plates. These carry important information unreadable or missing, contact Princess Auto Ltd.

for replacements.

WARNING! Only qualified service personnel should repair the tool. An improved repaired tool may present a hazard to the user and/or others.

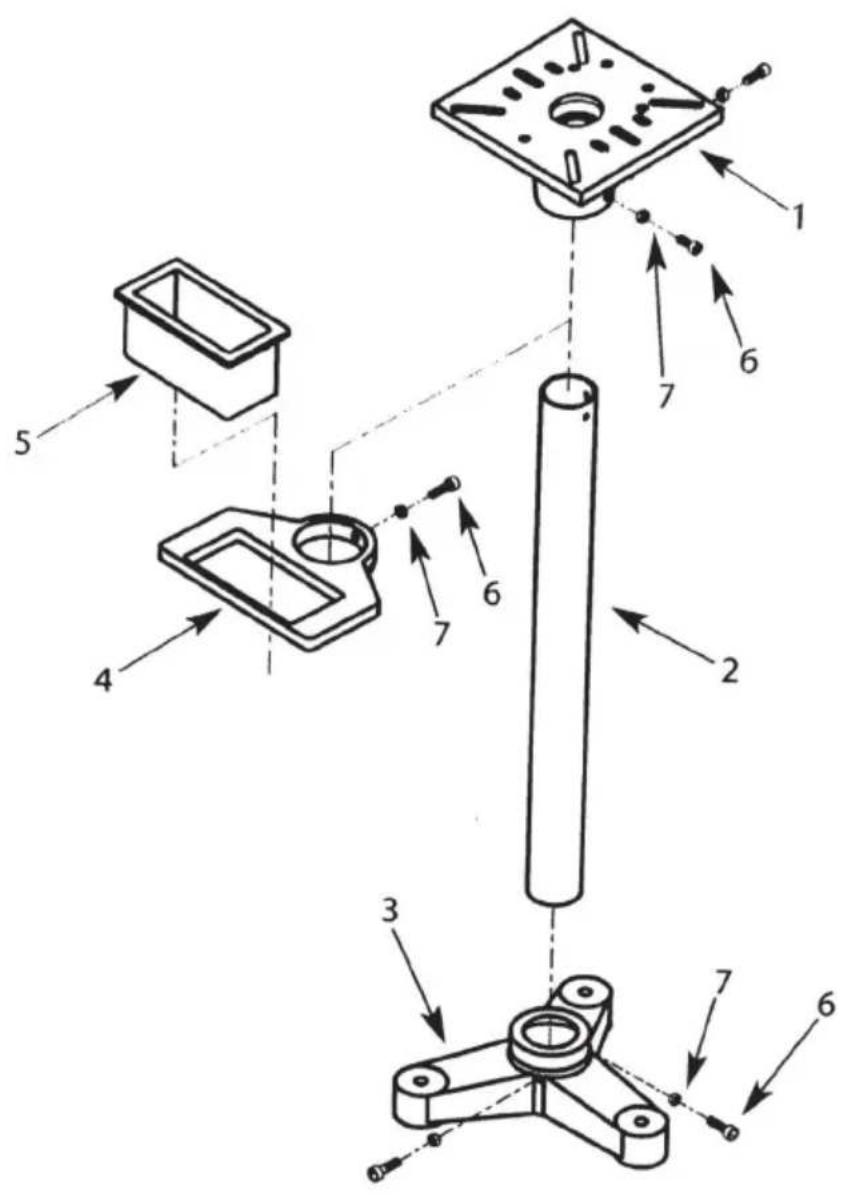

BREAKDOWN AND PARTS

Item	Description	Qty
1	Fixed Plate	1
2	Support Pole	1
3	Base	1
4	Coolant Tray Collar	1
5	Coolant Tray	1
6	Small Screw	5
7	Small Washer	5

SPECIFICATIONS

Model	GS-H
Color	Black
The steel table size	270*270mm
Other functions	A water tank.
Net weight	22 kg

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate www.vevor.com/support
