USER MANUAL YK-SX-26L Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ROOF RACK WATER TANK

MODEL: YK-SX-20L / YK-SX-15L / YK-SX-26L / YK-SX-30L

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ROOF RACK WATER TANK

Model: YK-SX-20L / YK-SX-15L / YK-SX-26L / YK-SX-30L

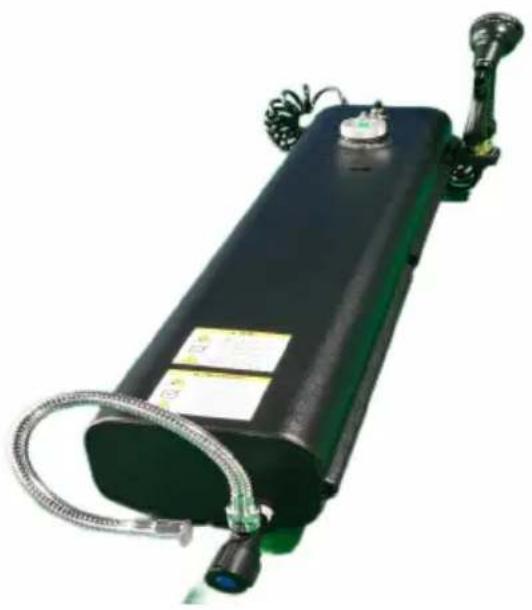

Black rectangular industrial tank with coiled tubing and a small top component (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or other updates on our product.

SAFETY INSTRUCTIONS

Please read and understand this manual carefully before using the Roof Rack Water Tank.
The installation should be done by an adult, and children should not use without supervision.
Please ensure that the Roof Rack Water Tank is firmly installed, otherwise it may fall off and cause harm to people.
Check and tighten the mounting bracket regularly. Also, when driving on rough roads, always stop to check and tighten the mounting bracket. Otherwise, the tank may fall from your vehicle during driving or cause a crash. This can cause damage, injury, or death to the water tank, your vehicle, or other vehicles. We are not responsible for any damage or injury caused by the detachment of the water tank from the vehicle.
Do not leave water in the Roof Rack Water Tank at freezing temperatures, as this may damage your equipment. Do not put RV antifreeze in the equipment. Ensure that the water tank is emptied under icing conditions.
For cars with a Roof Rack Water Tank installed, do not use automatic car washes. Before entering an automatic car wash, you must remove the Roof Water Tank from the vehicle to avoid damage to your vehicle and the Roof Water Tank.
Do not drink any water from the water tank.
Service temperature of water tank: 0°C - 60°C, service pressure of water tank: less than 3 Bar.
Safety warnings are attached to the Roof Rack Water Tank. It is important to follow these safety protocols when operating the Roof Rack Water Tank.

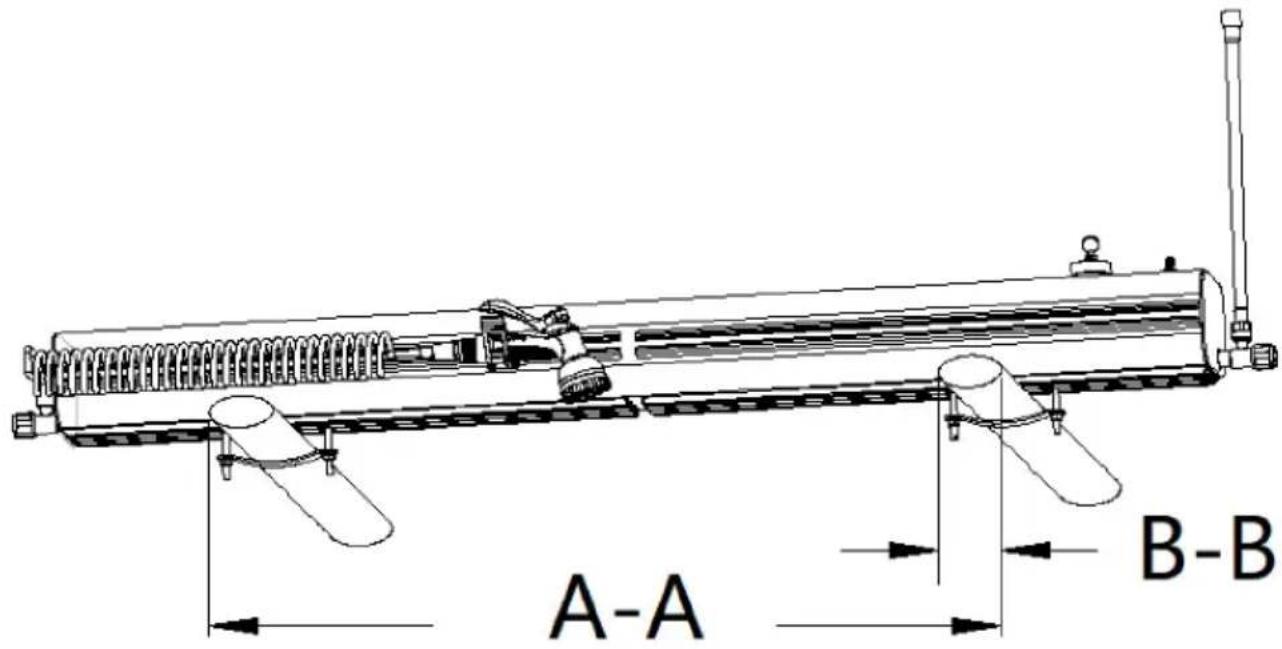

PARAMETER LIST

Model	YK-SX-20L	YK-SX-15L	YK-SX-26L	YK-SX-30L
Volume	17L	15L	26L	30L
Pressure discharge valu	2.7-3bar	2.7-3bar	2.7-3bar	2.7-3bar
Install the horizontal ba distance (A-A)	<1080mm	<810mm	<1420mm	<1630mm
Crossbar width(B-B)	<130mm	<130mm	<130mm	<130mm

A-A B-B

List of parts

1: water tank × 1pc	2: Expansion hose× 1p	3: Water gun nozzle×1pc

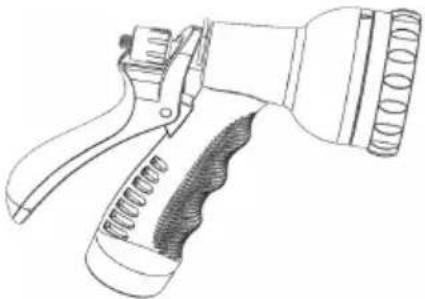

4: sprinkler×1pc	5: angle valve×2pcs	6: Male Quick disassembly joint×1pc
7: female Quick disassembly joint×1pc	8: Faucet extension×1pc	9: ∅20×2mm Silicone gasket×1pc
10: ∅20×2.5mm Silicone gasket×1pc	11: ∅20×3.5mm Silicone gasket×1pc	12: Plastic seal cover×1pc
13: Electroplated plastic sealant sleeve×1pc	14: raw adhesive tape×1pc	15: Horizontal rod installation sheet×2pcs
16: Luggage frame installation sheet×2	17: M8×65 Type T bolt×4pcs	18: M8×45 Type T bolt×4pcs
19: M8 pine nut×8pcs	20: metallic gasket ×8p	21: Spray head clip×1
22: atmospheric valve ×1p	23:Pressure valve×1pc

INSTRUCTIONS

Safety and Care Advice

- Check you have all the components and tools listed on the following pages.

- Remove all fittings from the plastic bags and separate them into their groups.

- Keep children and animals away from the work area; small parts could be swallowed.

- Make sure you have enough space to layout the parts before starting.

- Parts of the assembly will be easier with 2 people.

- You need to buy your own pressure tools to pressurize the water tank.

- The atmospheric valve should be removed from the water tank; fill water from the mounting hole of the atmospheric valve and install the atmospheric valve after water injection.

- It is recommended that the water tank should store no more than 80% of maximum capacity.

THE STANDARD INSTALLATION METHOD

Step 1: Install Angle Valve

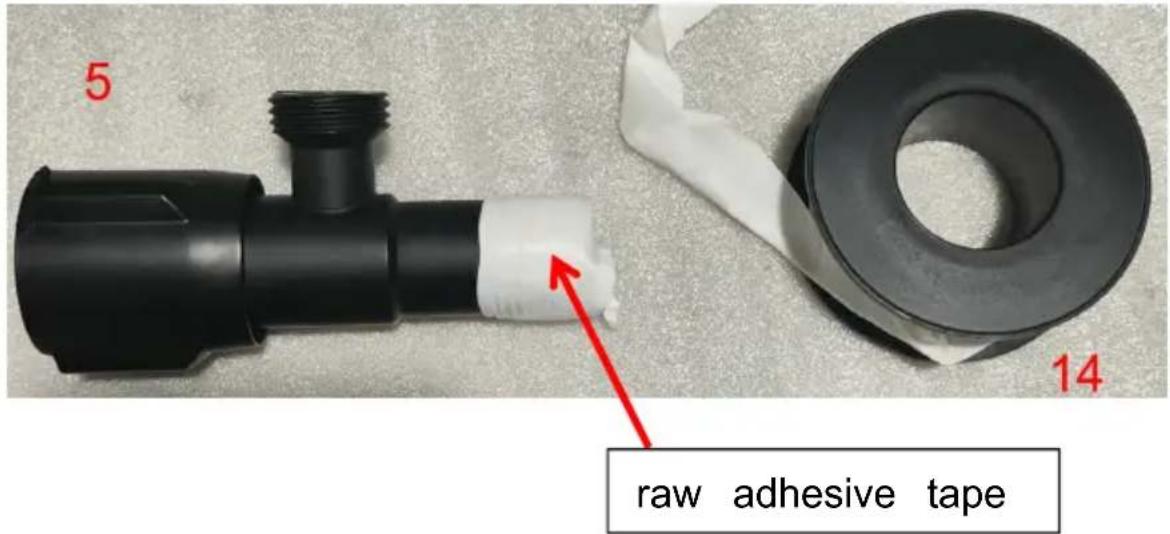

- Wrap 2-3 laps of raw adhesive tape at the angle valve thread.

5 raw adhesive tape 14

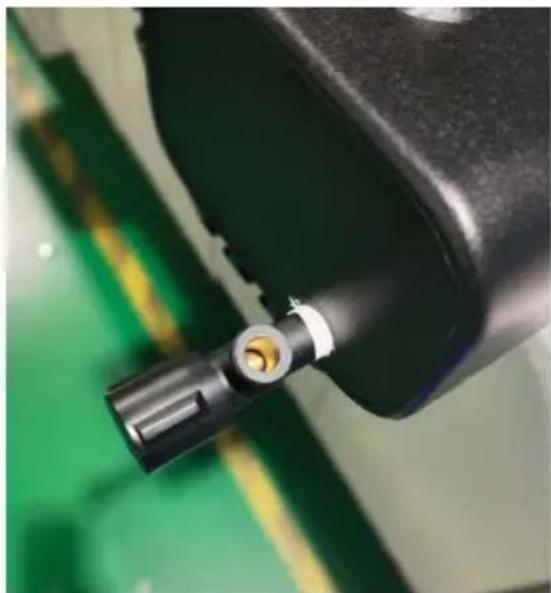

- Install the two corner valves on each side of the water tank.

Close-up of a black mechanical component with a yellow circular end, mounted on a green surface (no visible text or symbols)

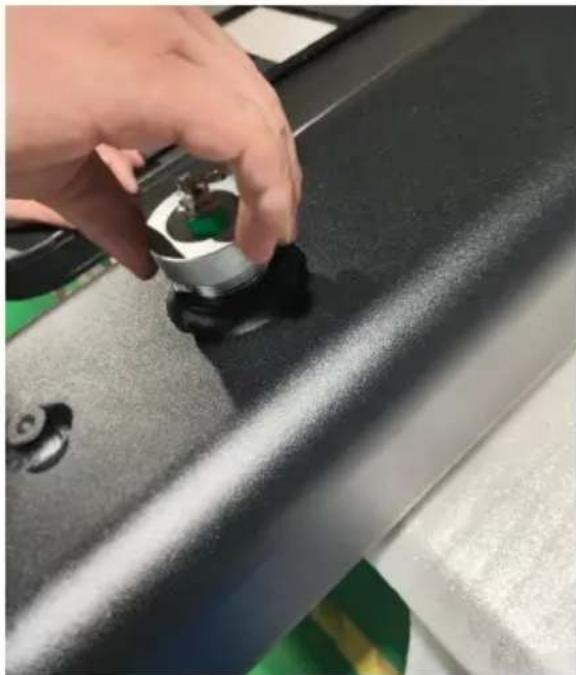

Step 2: Install the atmospheric valve 22 and the pressure valve 23.

- Install the atmospheric valve at the threaded hole at the top of the water tank.

Close-up of a hand adjusting a small mechanical component on a dark metal surface (no visible text or symbols)

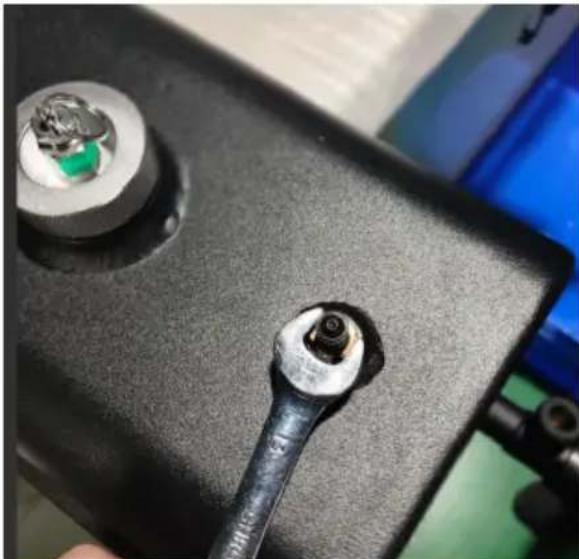

- Use a wrench for opening 13 to screw the pressure valve 23 into the top tank.

Close-up of a black battery pack with two metallic components and a wrench inserted, showing internal wiring (no text or symbols visible)

Step 3: Install water gun nozzle 3 and sprinkler 4.

- Screw the expansion hose 2 into the angle valve 5.

Close-up of a black mechanical pipe fitting with a white connector, against a green circuit board background (no text or symbols visible)

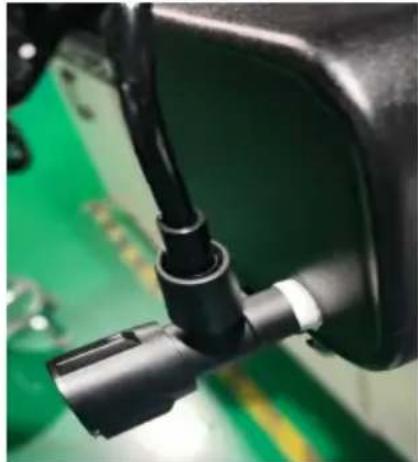

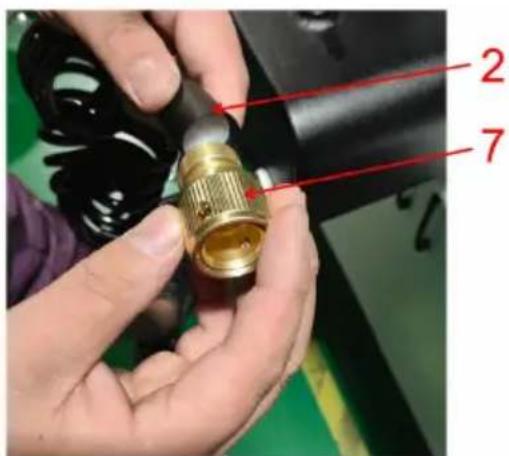

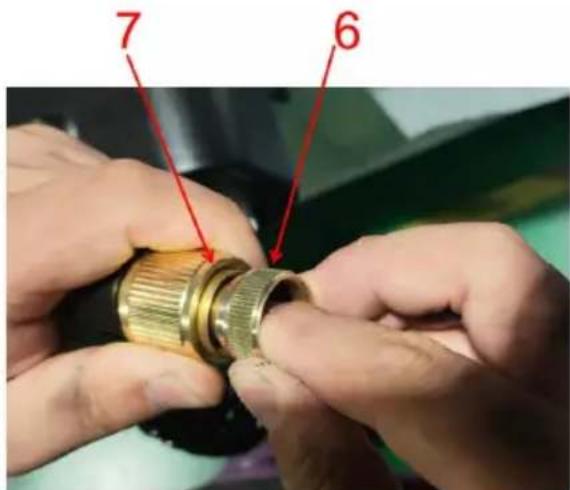

- Install female quick disassembly joint 7 in the screw hole of expansion hose 2 first.

2 7

- The outer circle of the next female quick disassembly joint 7 is pressed b and then put the male quick disassembly joint 6 sets into the hole position of female quick disassembly joint 7.

7 6

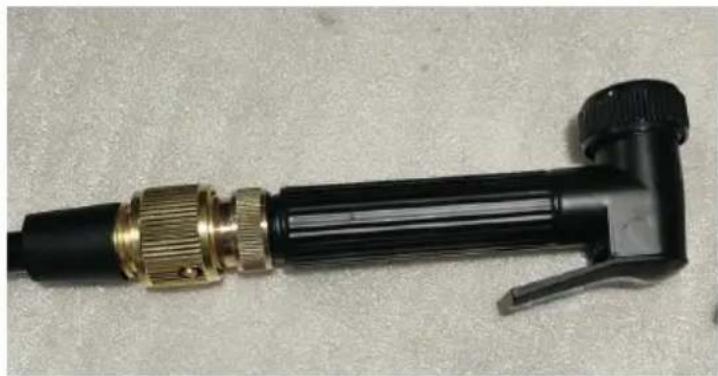

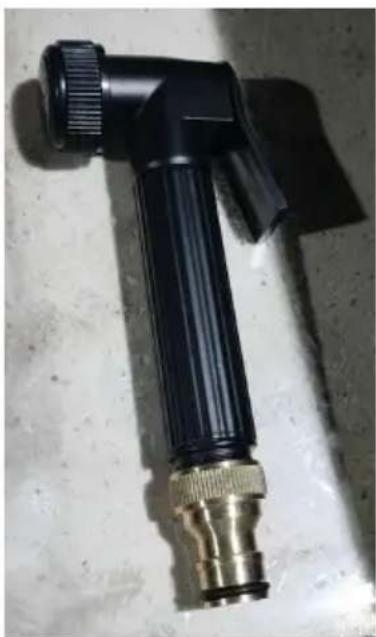

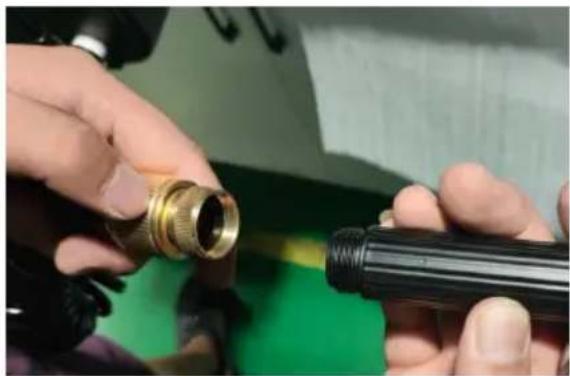

- Screw the Water gun nozzle 3 into the screw hole of the Male Quick disassembly joint 6.

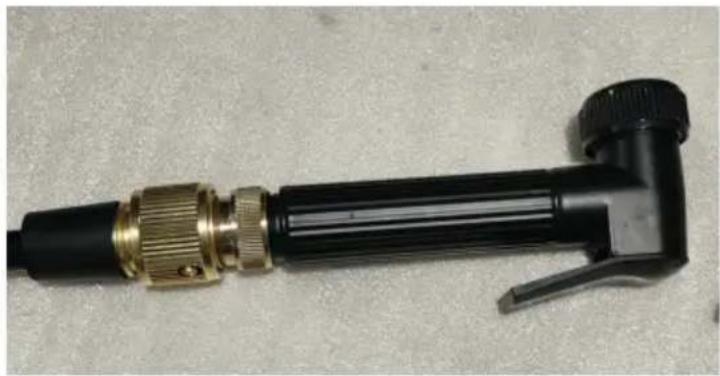

Close-up of hands holding a brass connector next to a black cylindrical device (no visible text or symbols)

Close-up of a black welding torch with brass and gold fittings (no text or symbols visible)

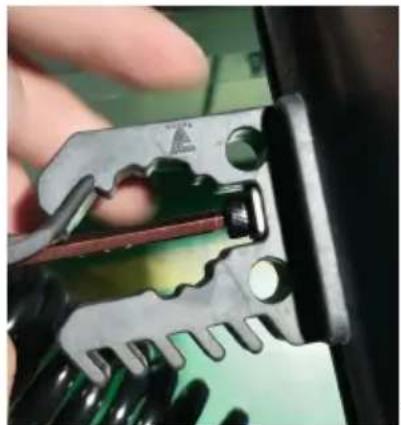

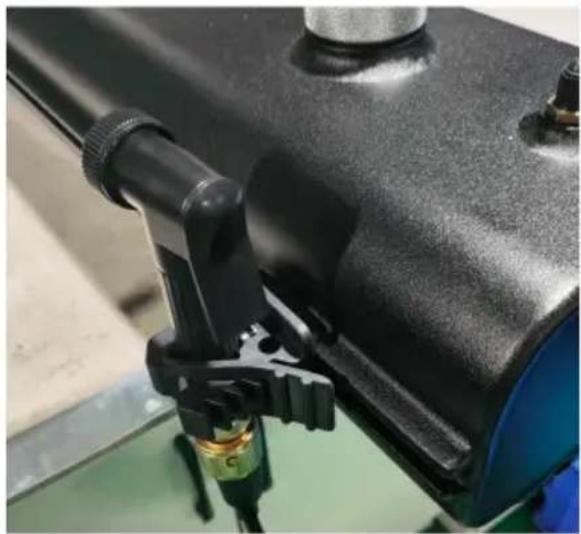

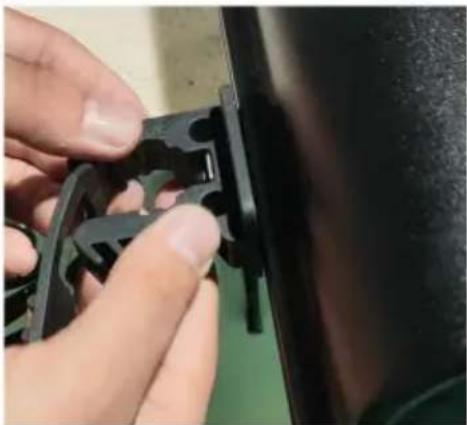

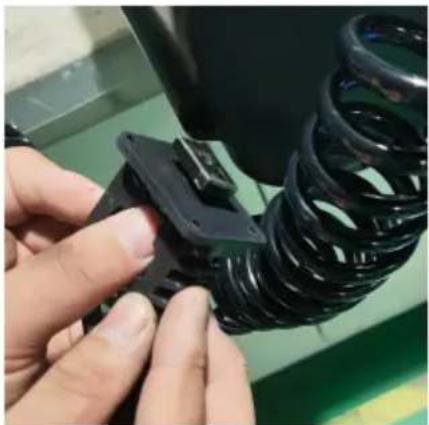

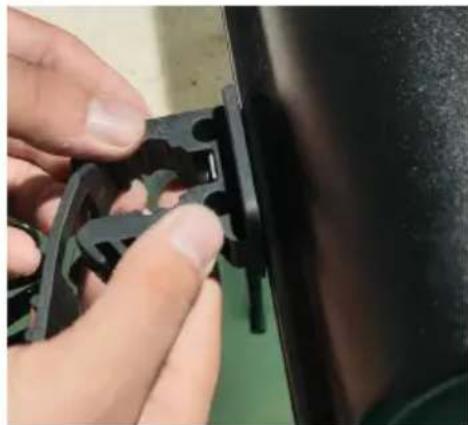

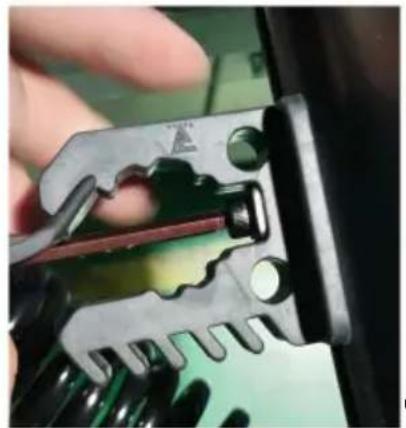

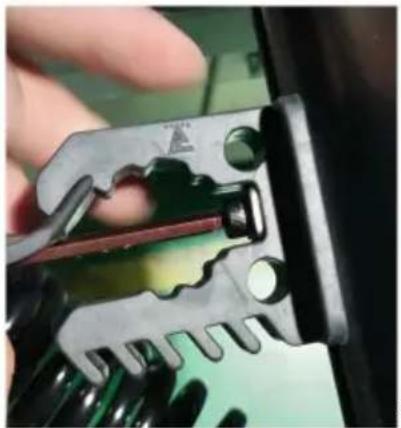

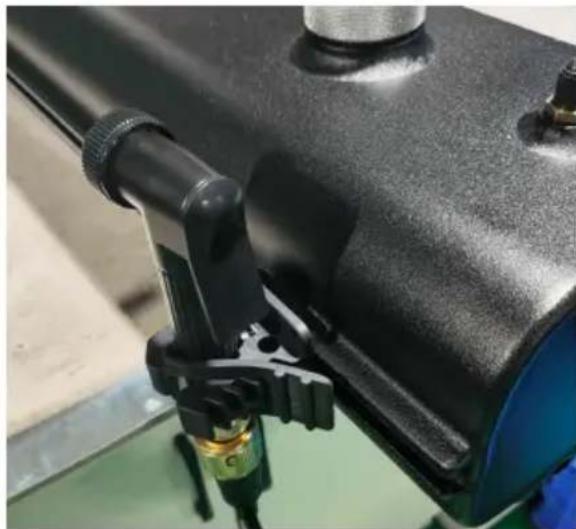

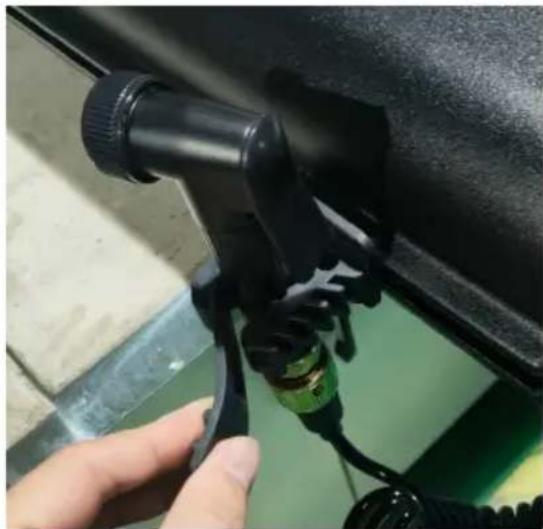

- Place the Spray head clip 21 into the side slot of the water tank and tighten the threads on the Spray head clip 21 using the S4 inner hexagonal wrench.

Close-up of hands adjusting a black plastic spring component (no visible text or symbols)

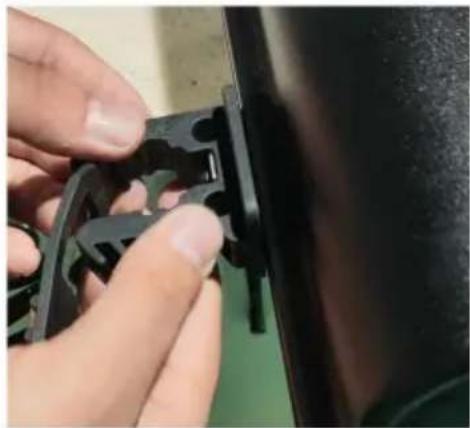

Close-up of hands installing a black plastic clip into a black plastic container (no text or symbols visible)

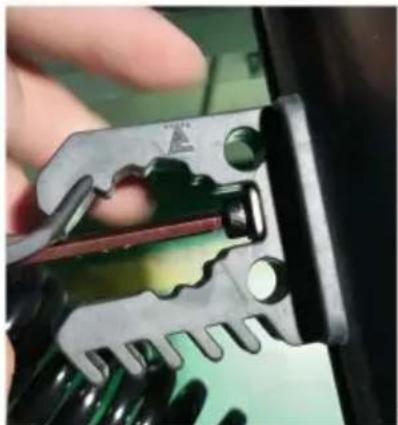

Close-up of a hand using a tool to cut a circuit board component (no visible text or symbols)

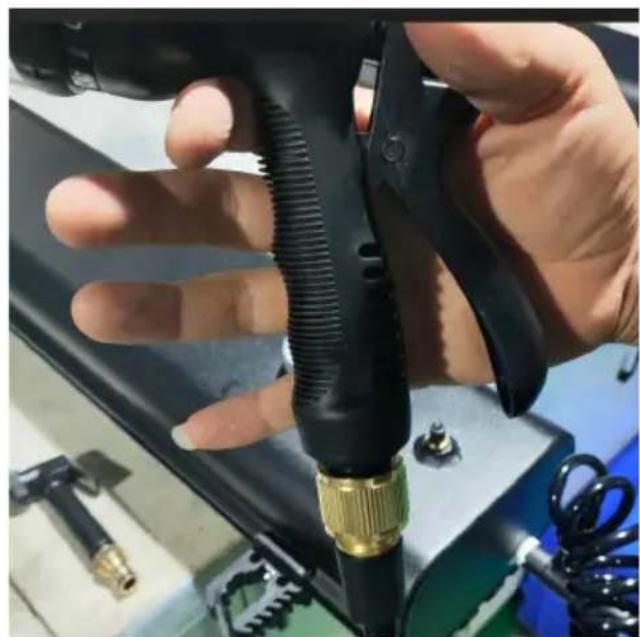

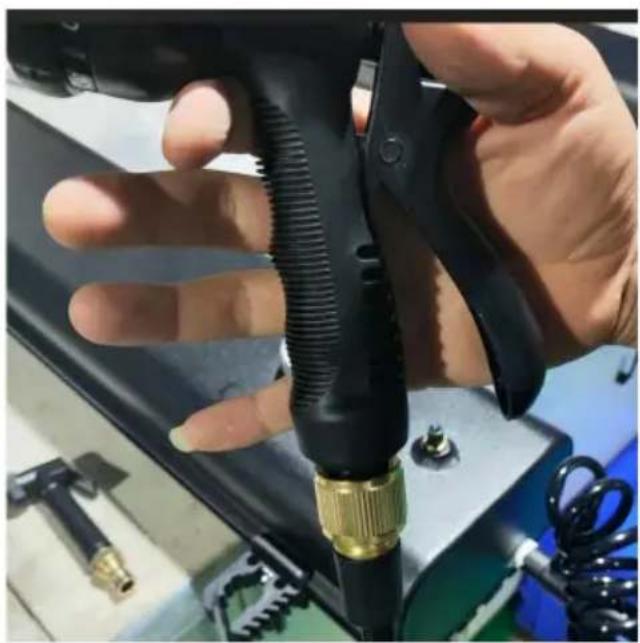

- Install the Water gun nozzle 3 on the Spray head clip 21 and tighten the knob of the clip to stabilize the Water gun nozzle 3.

Close-up of a hand adjusting a black mechanical component with a green connector (no visible text or symbols)

Close-up of a mechanical component with black and blue parts, no visible text or symbols.

- The outer circle of the next female Quick disassembly joint 7 is pressed by. After pulling out the Water gun nozzle 3, insert the shower 4 into the female disassembly joint 7.

Close-up of a black and gold mechanical tool with a threaded handle and brass fitting, no visible text or symbols.

Close-up of a hand holding a black spray gun with a golden hose, surrounded by tools and equipment, no visible text or symbols.

Step 4: Install the faucet extender 8.

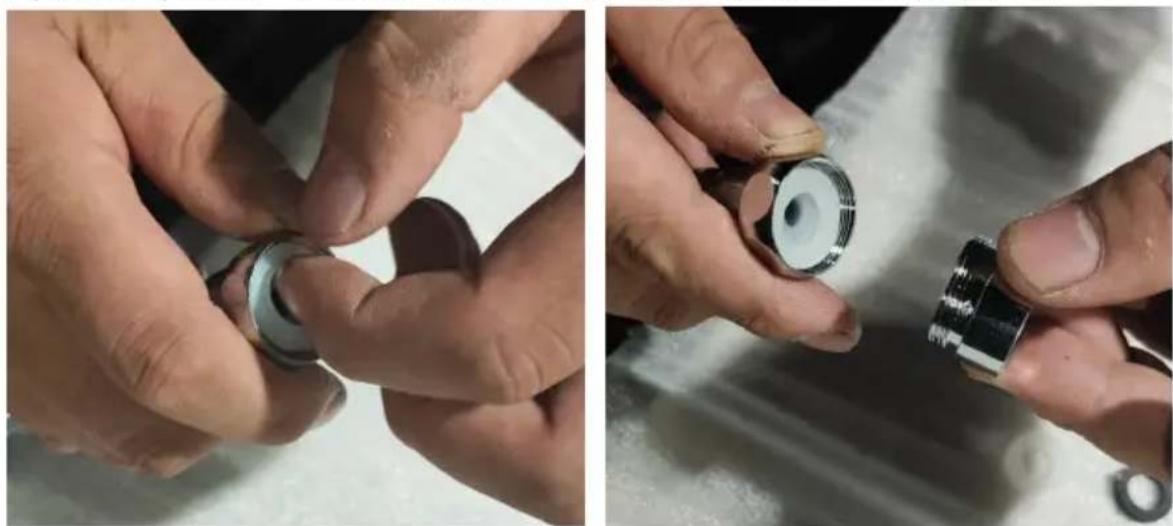

- Place the white silicone gasket into the faucet extender 8 and screw the Electroplated plastic sealant sleeve 13 into the faucet extender 8.

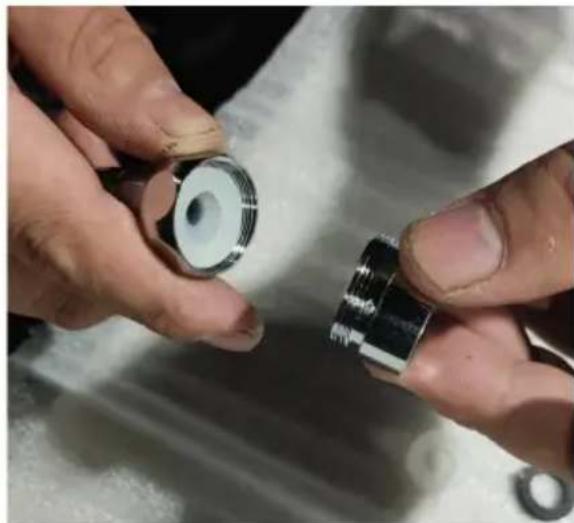

Close-up of hands adjusting a small mechanical component, showing the part being held, no visible text or symbols.

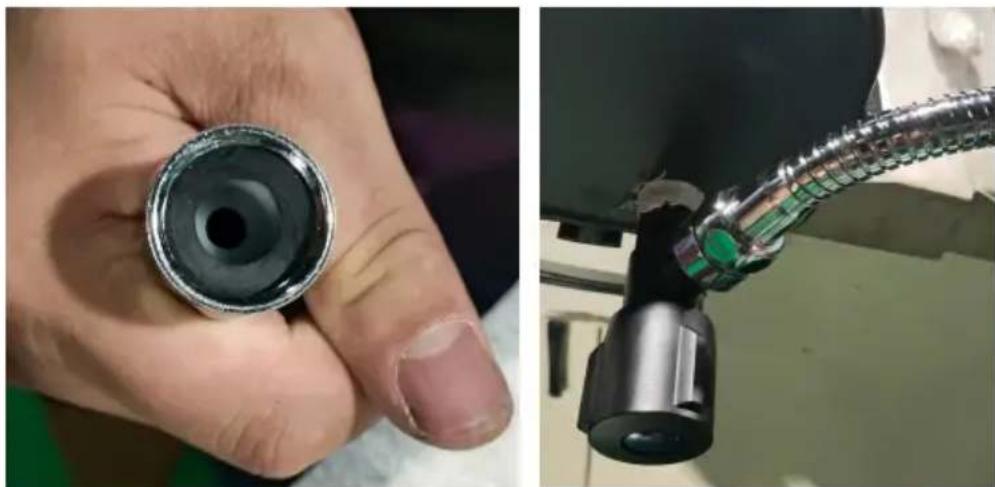

- Place the black silicone gasket into the Electroplated plastic sealant sleeve 13 and screw the faucet extender into the angle valve 5.

Close-up of a hand holding a black circular component, alongside a close-up of a metal showerhead with a green handle, no text or symbols visible.

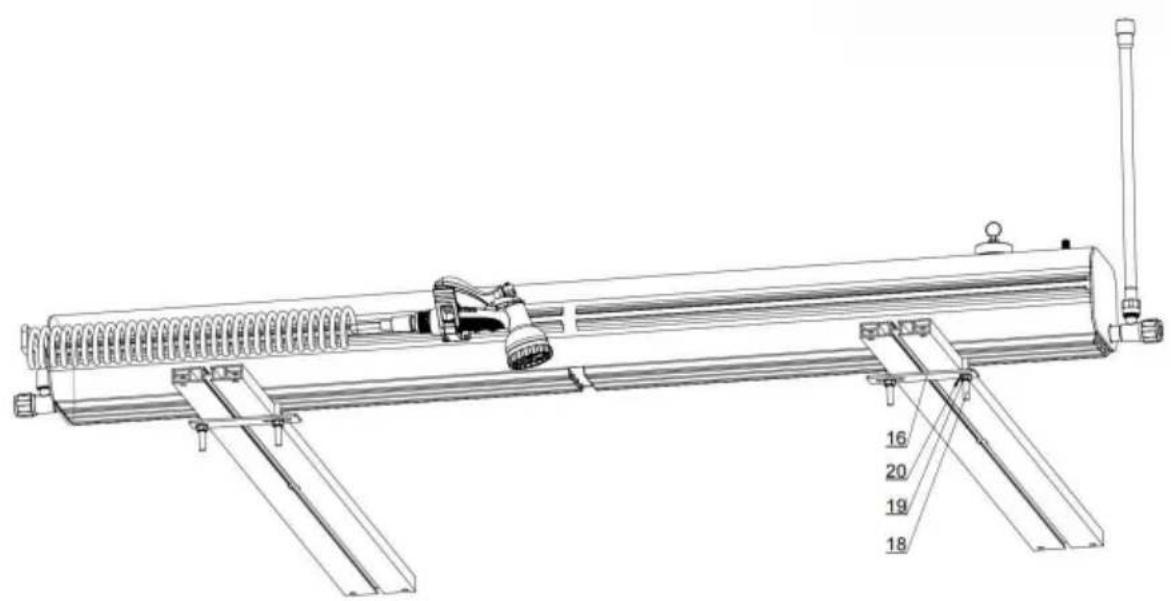

Step 5: The water tank 1 is mounted on the top bracket of the car.

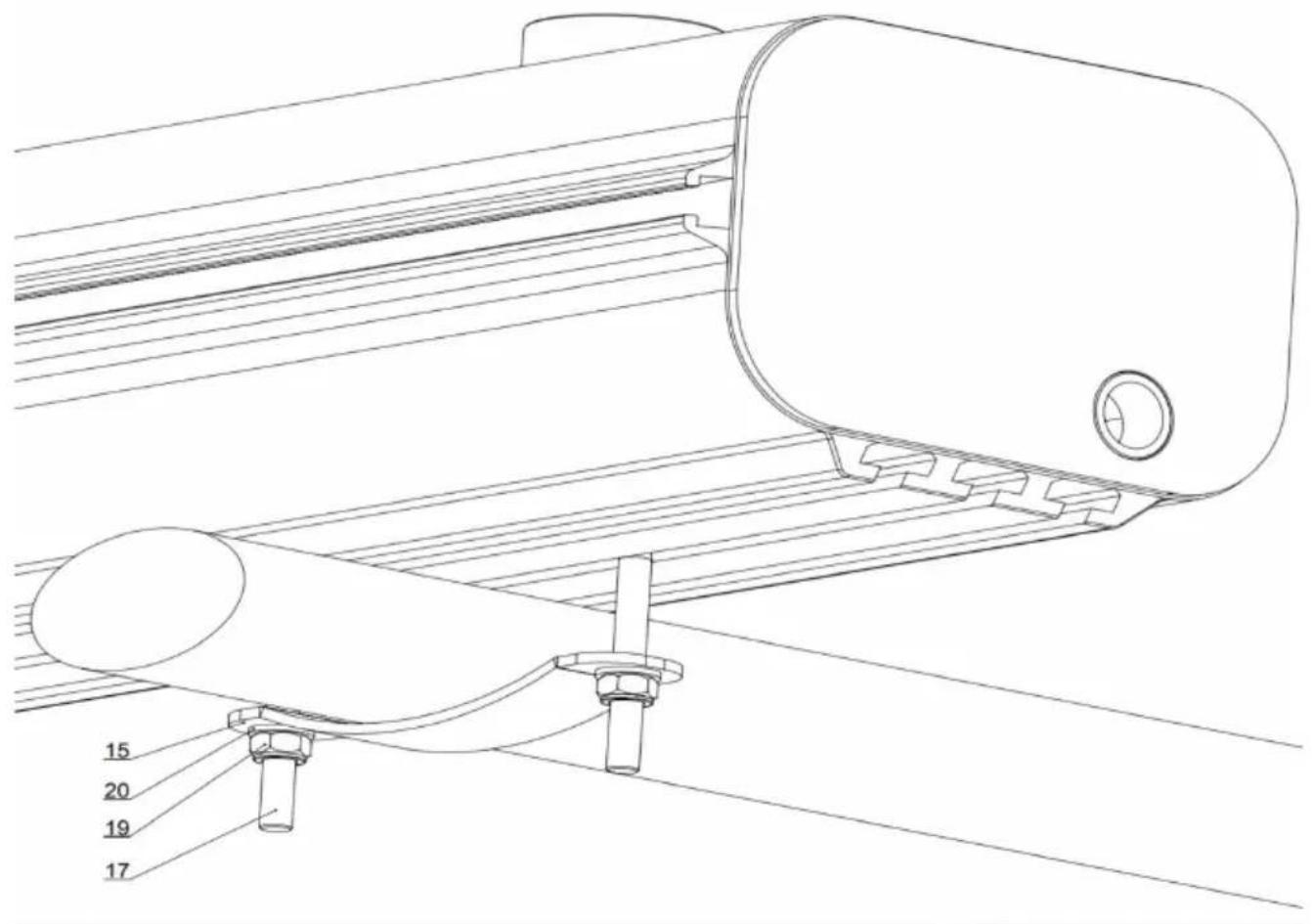

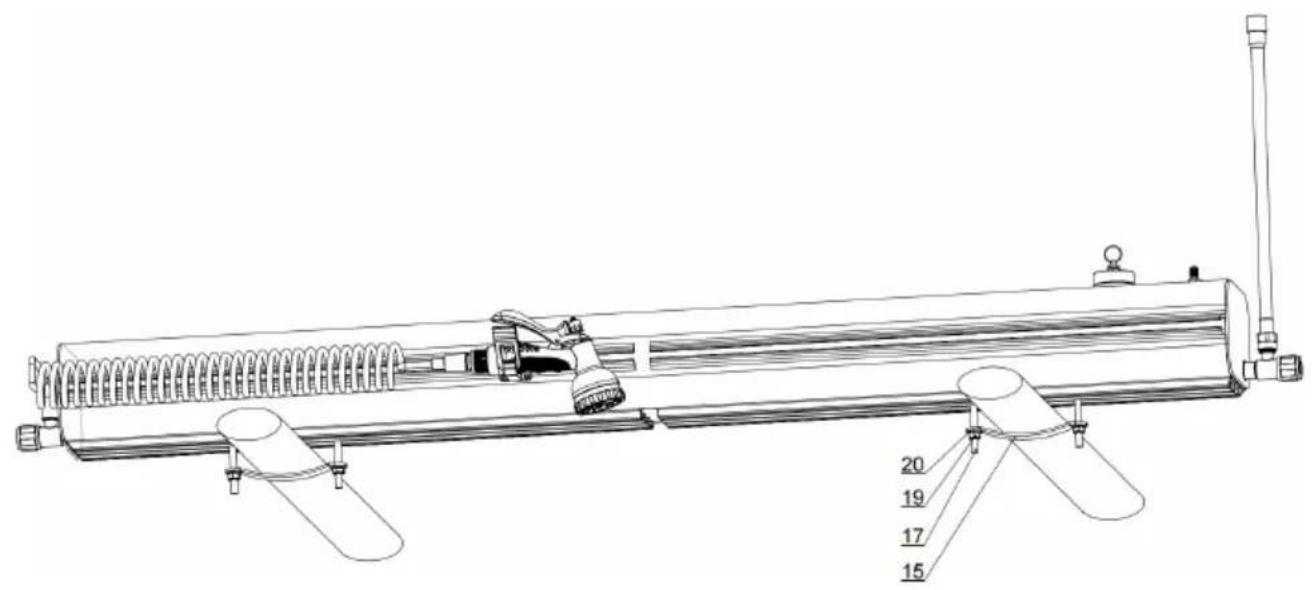

Oval cross-bar is mounted: Place the water tank 1 on the support of the car and put the M8×65 type T bolt 17 into the T-type groove at the bottom of the tank; one bolt is distributed on each side of the oval horizontal bar; put the Horizontal rod installation sheet 15 into the bolt, then into the metallic gasket, and finally tighten the M8 pine nut 19.

Attach the other end of the water tank to the oval bar of the roof in the same manner.

15 20 19 17

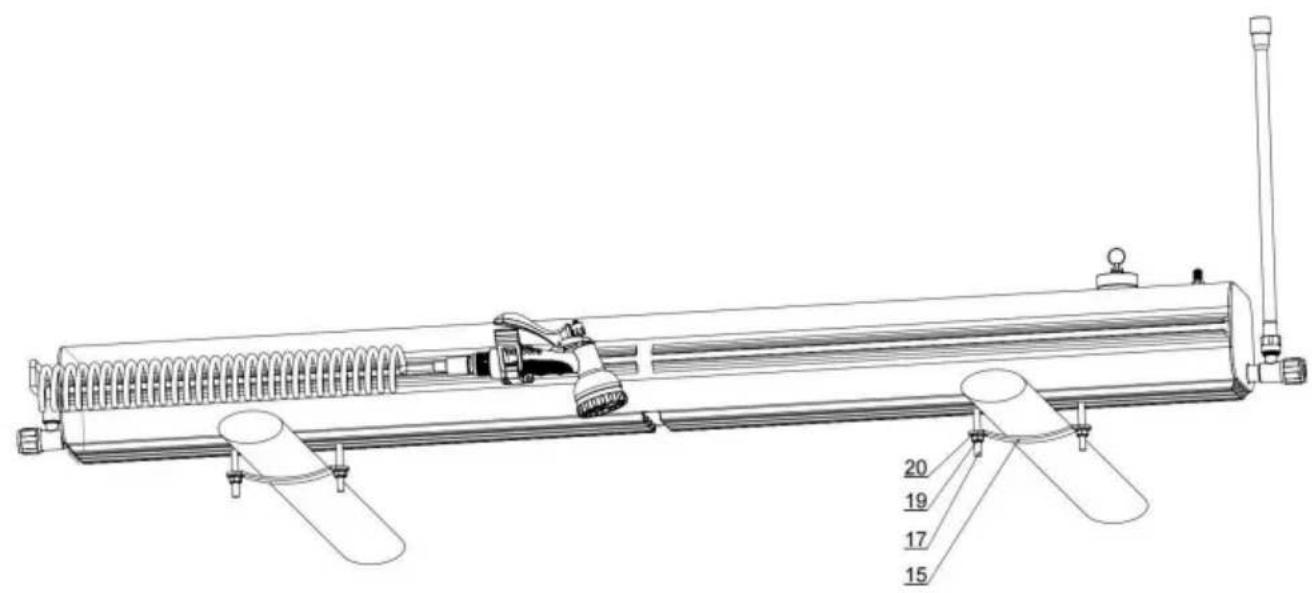

Technical line drawing of a mechanical device with numbered components labeled 15, 17, 19, and 20.

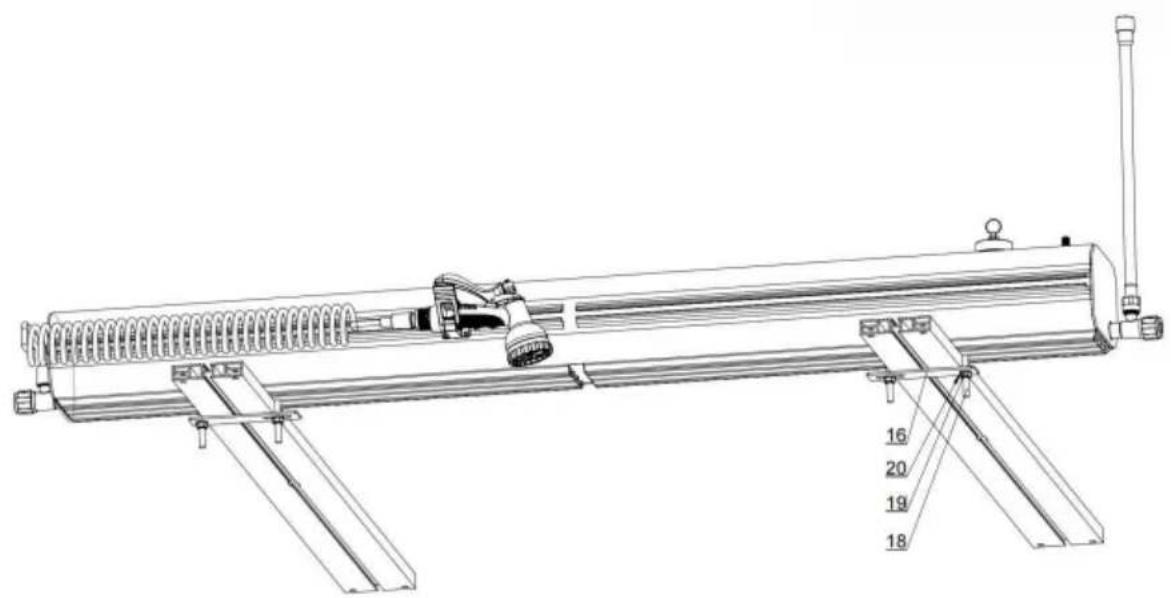

Square horizontal bar mounting mode: Place the water tank 1 on the support of the roof car, and put the M8×45 type T bolt 18 into the T-type groove at the bottom of the water tank; one bolt is distributed on each side of the square horizontal bar; put the luggage frame installation sheet 16 into the bolt, then the metallic gasket 20, and finally tighten the M8 pine nut 19.

Attach the other end of the water tank to the square bar of the roof in the same manner.

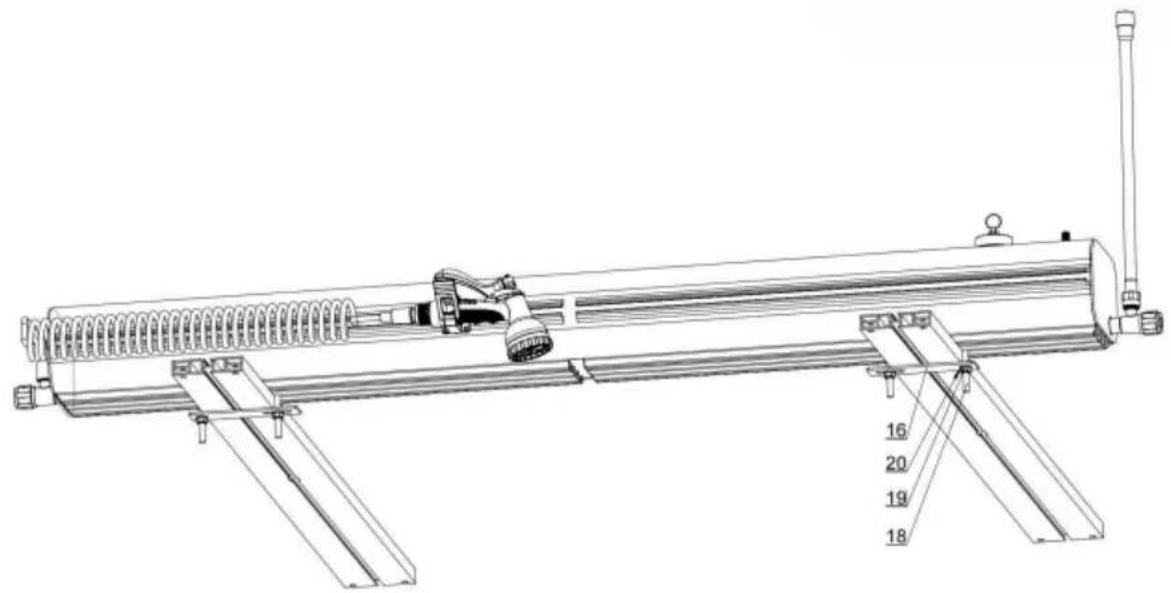

Technical diagram of a mechanical assembly with numbered components labeled 16, 18, 20, and 19.

Technical line drawing of a mechanical device with numbered components labeled 16, 20, 19, and 18.
