Product Type	Roof Kayak Carrier
Brand	Vevor
Model	C10-4
Material	Alloy steel and nylon
Color	Black
Maximum Load Capacity	150 lb (68 kg)
Number of Carriers	4 sets
Fixation Type	J-cradles with straps
Compatibility	Vehicle with roof bars
Carrier Dimensions (approx.)	Adjustable height, width suitable for standard kayaks
Package Weight	Approximately 12 kg
Package Contents	4 carriers, 8 bolts, 8 nuts, 16 washers, 4 straps, wrench
Main Functions	Transport kayaks on roof, secure fastening with straps
Maintenance and Cleaning	Clean with damp cloth, dry after use, check for corrosion
Safety	Respect max load, check fastenings before each trip, do not use for children or animals
Spare Parts and Repairability	Bolts, nuts and straps available separately; contact Vevor support
Warranty	Electronic warranty certificate available at www.vevor.com/support
General Information	Made in China; imported by Sanven Technology (US), SIHAO PTY (AU), Pooledas Group (UK)

Frequently Asked Questions - C10-4 Vevor

Is the C10-4 kayak carrier compatible with all types of roof bars?

Yes, the C10-4 model is designed to fit most standard roof bars. Ensure the bars are sturdy and in good condition before installation.

What is the maximum load capacity for this kayak carrier?

The maximum capacity is 150 lb (68 kg) for the entire system. Never exceed this limit.

How many kayaks can I transport with the C10-4?

The C10-4 model includes 4 carriers, allowing you to transport up to 2 kayaks (one per pair of carriers) or a single heavy kayak.

Are the provided straps long enough for a wide kayak?

Yes, the straps (part #9) have a standard length sufficient for most kayaks. Adjust the strap so it is tight without over-tightening.

Can I install this kayak carrier by myself?

It is recommended to have two people to lift and center the kayak on the roof. The assembly of the carriers can be done alone using the included wrench.

What regular maintenance is required?

Regularly check that all screws and nuts are tight. Clean the rack with a damp cloth and dry it to prevent rust. Inspect the straps for any signs of wear.

Is the kayak carrier delivered with detailed instructions?

Yes, an installation and use manual is included in the package. You can also download the manual in PDF format on the Vevor website.

What tools are required for installation?

The kit contains an S14 wrench for tightening the bolts. No additional tools are required.

What to do if a part is missing or damaged?

Contact Vevor customer service at www.vevor.com/support. Do not attempt to use the product with missing or damaged parts.

Is this product warranted?

Yes, Vevor offers an electronic warranty certificate available on their website. Keep your proof of purchase for any claims.

USER MANUAL C10-4 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

KAYAK ROOF RACK

MODEL:C10-2 / C10-4

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

KAYAK ROOF RACK

C10-2

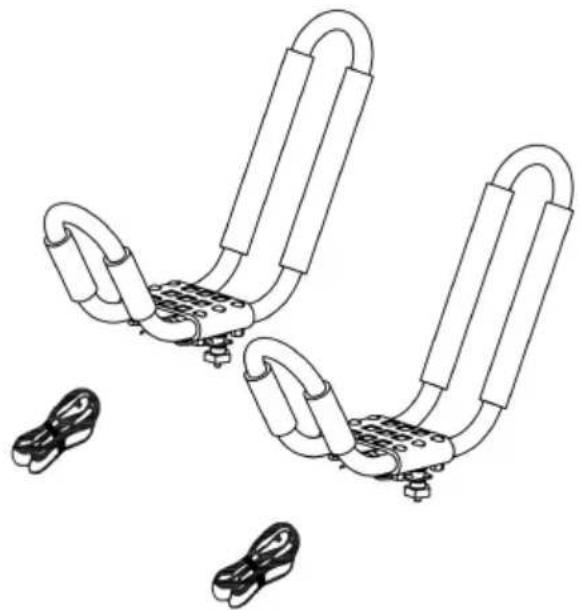

Technical line drawing of two U-shaped cable connectors with attached clips, plus two separate clamps below (no text or symbols)

C10-4

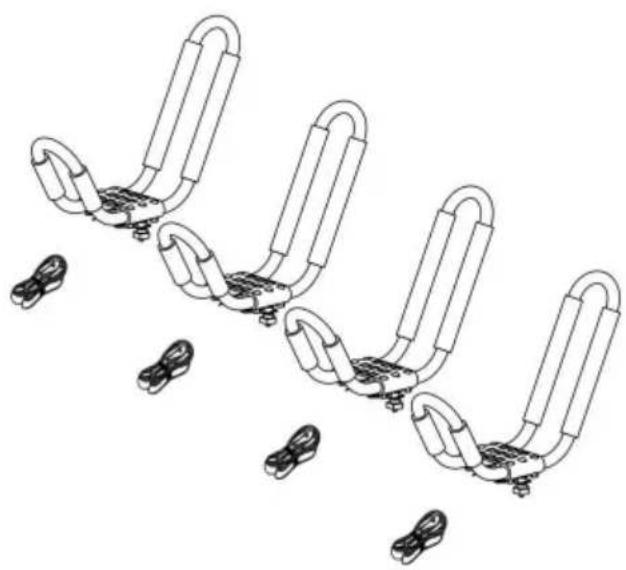

Line drawing of three identical curved mechanical linkages with small footprints below (no text or symbols)

*Tip: Your car must have a roof rack to be used.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

• Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause death, personal injury, or damage valuable property
• Adhere to all Department of Transportation (D.O.T.) requirements when using this product. Use ropes and tie-downs to securely hold all cargo in place
• Do not overload the Roof Rack. Never exceed the maximum weight capacity of 150 lbs.
• Before and after each use, check to make sure that all hardware is tightly secured. Regularly inspect for damage. If fraying or distortion is found, immediately discontinue use.
• Make sure the vehicle's engine is OFF, with the parking brake set, before loading or unloading the Kayak Roof Rack.
• Do not use to hold or restrain human or animal weight in any manner.
• Use common sense when working. Stay alert and concentrate when setting up and using the Kayak Roof Rack. Never work while under the influence alcohol, drugs, or medications.
• While assembling and using the Kayak Roof Rack, keep the work area clean and well-lighted. Keep spectators and children out of the work area.
• CHOKING HAZARD -- Small parts. Not for children under 3 yrs.

SAVE THESE INSTRUCTION

PRODUCT PAREMETERS

Model	C10-2	C10-4
Material	Alloy Steel & Nylon	Alloy Steel & Nylon
Color	Black	Black
Load Capacity	150 lbs	150 lbs
Part Quantity	2 Set	4 Set

PART LIST

When unpacking this product, check to make sure the parts listed be are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use the product.

NO	PICTURE	PART NAME	C10-2	C10-4
1		Carrier	2 PCS	4 PCS
2		Spring Washer M8	4 PCS	8 PCS
3		Bracket	2 PCS	4 PCS
4		Plastic Nut M8	4 PCS	8 PCS
5		Nut M8	4 PCS	8 PCS
6		Washer M8	8 PCS	16 PCS
7		Carrier Bolt M8 x 80	4 PCS	8 PCS
8		Wrench S14	1 PCS	1 PCS
9		Tie Down	2 PCS	4 PCS

STEP 4

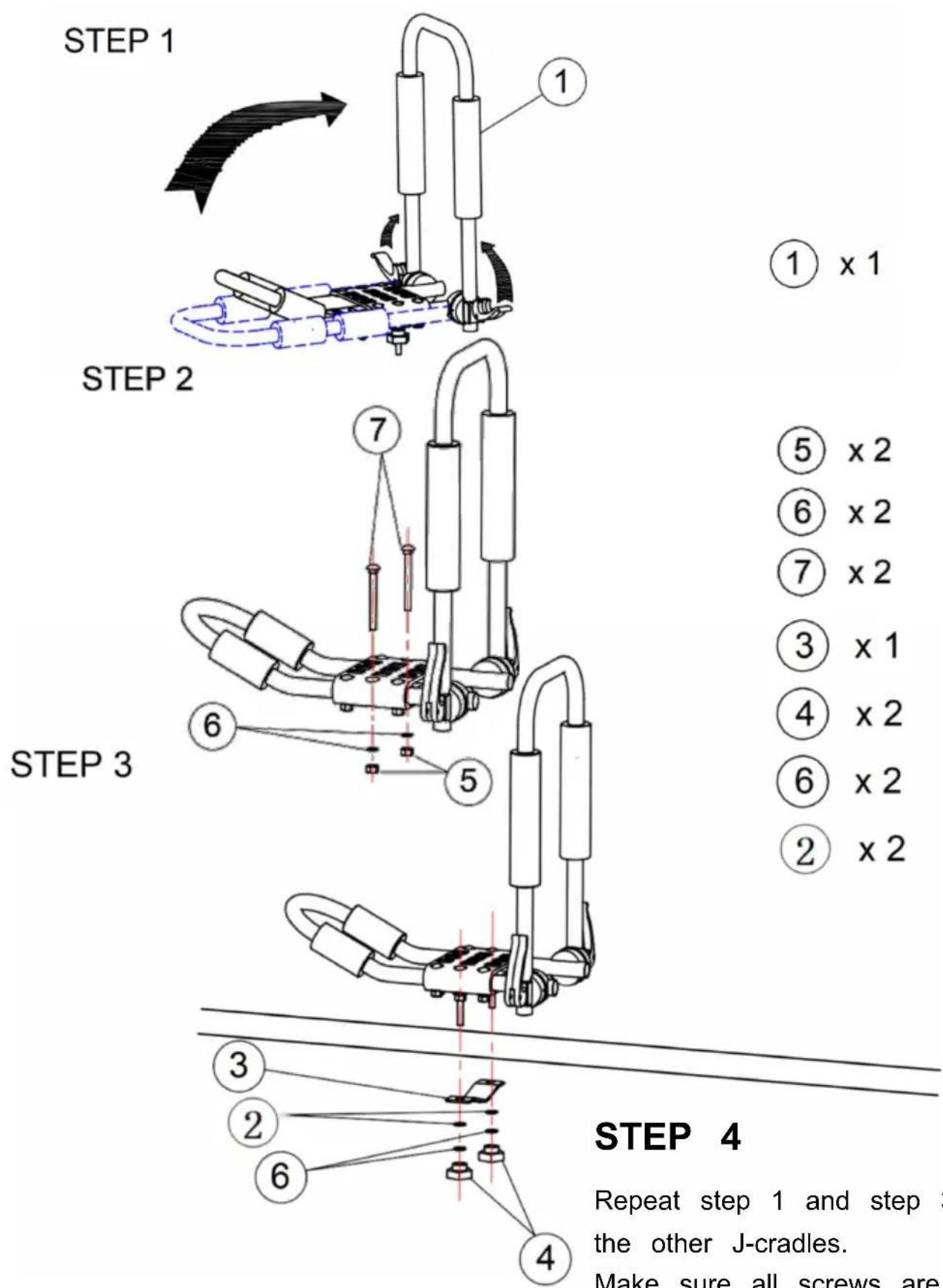

Repeat step 1 and step 3 the other J-cradles.

Make sure all screws are locked.

STEP 5

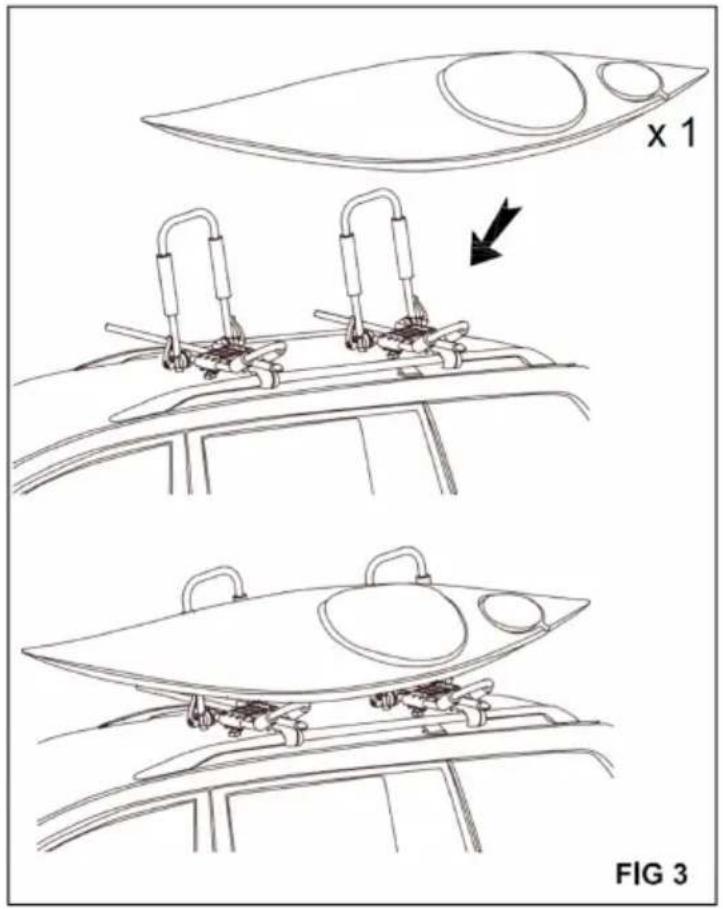

With another person's help, load kayak onto the car rooftop and center the kayak between the tv J-cradles. Make sure the cockpit facing toward you. See figure 3.

STEP 6

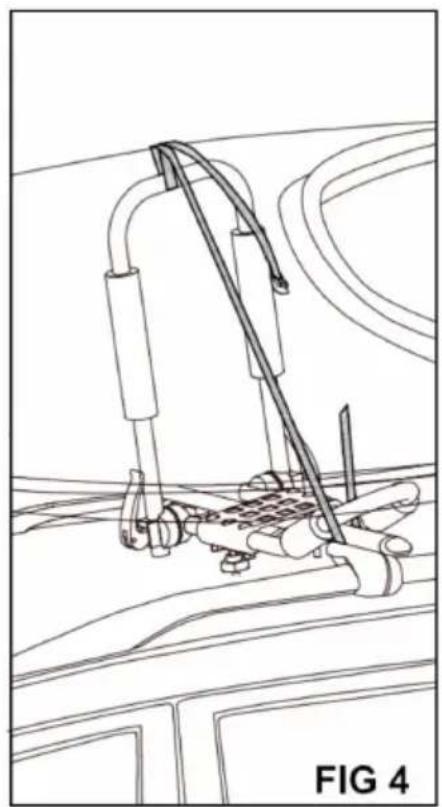

Route the free end the strap (9#) arou the top of the long arms of the J-cradl Pull and route both the buckle end and free end of the str (9#) over the kayal Pull down the free end of the strap (9 until the buckle end positioned halfway up the side of the kayak. Thread the free end of the str (9#) down and under the crossbar. See figure 4.

Technical line drawing of a mechanical assembly with pipes and components, labeled 'FIG 4' (no readable text or symbols)

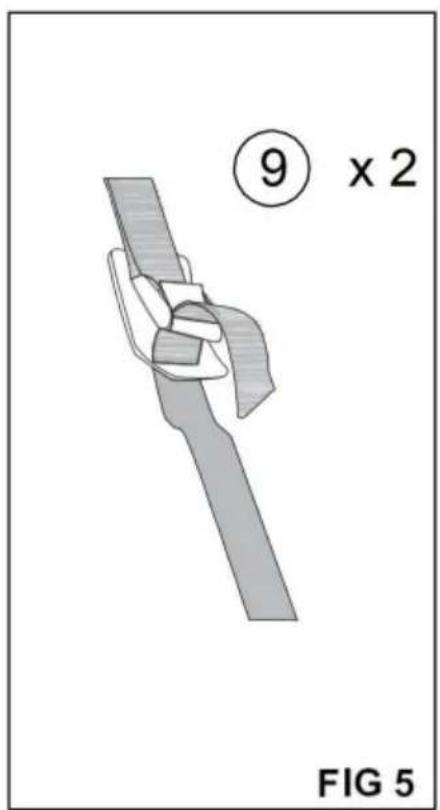

Press the buckle and insert the free end through the buckle. Pull down the to take up the excessive strap to avoid the excessive strap flapping in the v

STEP 7

Repeat step 5 and step 6 for the other kayaks.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS:SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA91730

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Technical Support and E-Warranty Certificate

www.vevor.com/support
