USER MANUAL THCB-T1123 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Roof Cargo Bag

MODEL:

THCB-T0420/THCB-T0415/THCB-T1120/THCB-T1123/THCB-P0320

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Roof Cargo Bag

MODEL:

THCB-T0420/THCB-T0415/THCB-T1120/THCB-T1123/THCB-P0320

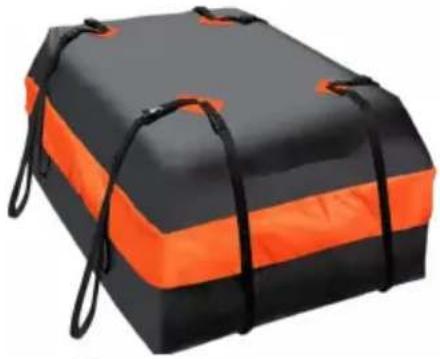

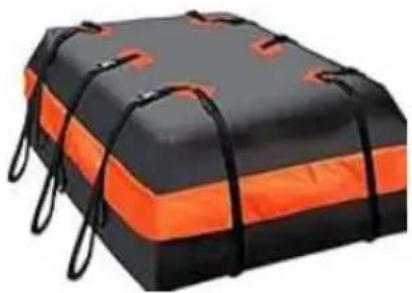

Black and orange striped cargo box with black straps and black straps (no text or symbols visible)

Black and orange striped rectangular object with black straps, no visible text or symbols

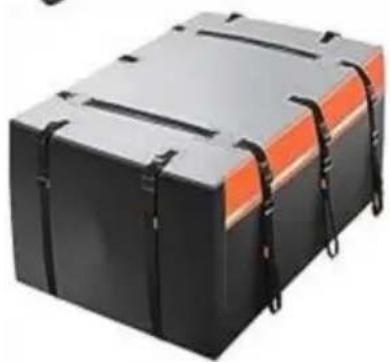

Black rectangular device with orange stripe and black straps, no visible text or symbols

Black rectangular object with white trim and a transparent lid, resembling a vehicle roof or trailer (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING

1. Loading limits

To Prevent Serious Injury or Death:

INSPECT for signs of wear and damage BEFORE using every time.

DO NOT use if it is worn or damaged.

DO NOT EXCEED your vehicle's rated roof capacity. Consult the owner's ma for your vehicle.

DO NOT use your cargo bag to transport people, animals, or flammable liqui Check local and state laws governing projection of objects beyond the perime a vehicle. Be aware of the width and height of your cargo since low clearar branches, bridges, and parking garages can affect the load.

2. Driving safety

After installing the roof cargo bag, the overall height of the vehicle increases. Before driving, be sure to understand and pay attention to the height limit of road you pass. Pass through height-limited areas such as bridges, tunnels, and parking lot entrances slowly.

When driving at high speed, the wind resistance will increase. It is recommended that the speed does not exceed the maximum safe speed when the vehicle carrying items on the roof as specified by the vehicle manufacturer. Pay attention to changes in vehicle handling and avoid dangerous operations such as sudden braking and sharp turns.

3. Daily maintenance

Regularly check the fixing devices of the cargo bag, such as straps and buc there is wear or loosening, replace or reinforce them in time.

After use, clean the dust, debris, and stains on the inside and outside of the bag in time and keep the cargo bag dry to extend its service life. If the car damaged, repair or replace it in time.

INSTALLATION METHOD

1. Before installation, please ensure that the vehicle roof is clean, dry, and f obstacles.
2. Place the roof cargo bag on the roof and determine the appropriate install position.
3. Use the included straps. Start from one end of the cargo bag and pass through the luggage rack or fixing point on the vehicle roof.
4. Cross and tighten the straps to ensure that the cargo bag is tightly attach the roof without shaking or loosening. Repeat this step and fix the straps at different positions to ensure that the cargo bag is evenly stressed.
5. Check whether all straps and buckles are firmly installed. You can slightly shake the cargo bag for testing.
6. Before placing the cargo bag on the cargo rack, lay the non-slip m the cargo rack.

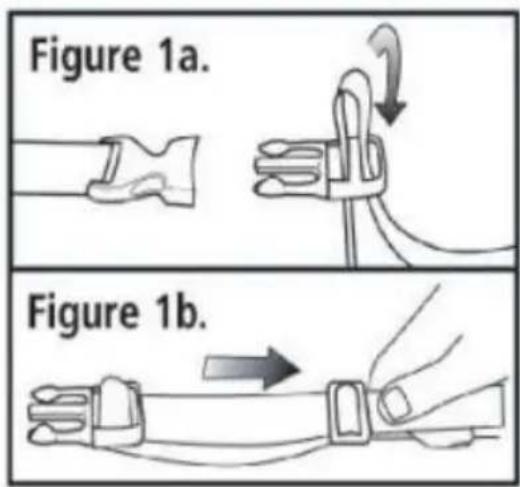

Figure 1a. Figure 1b.

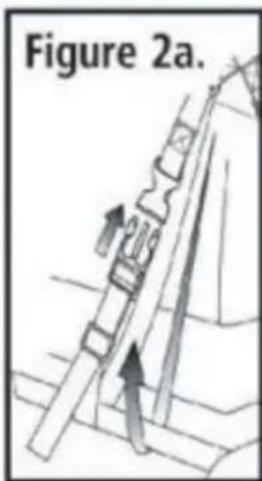

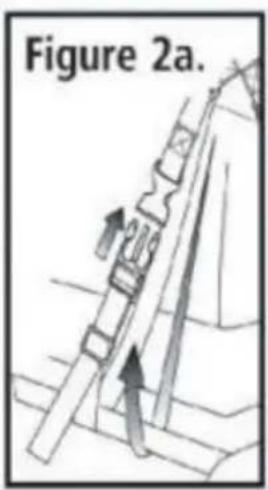

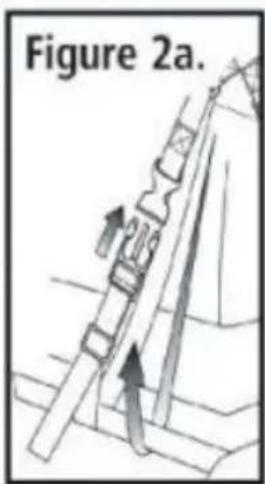

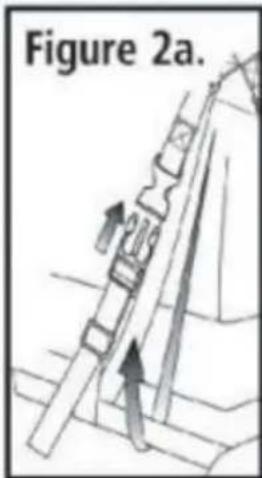

Figure 2a.

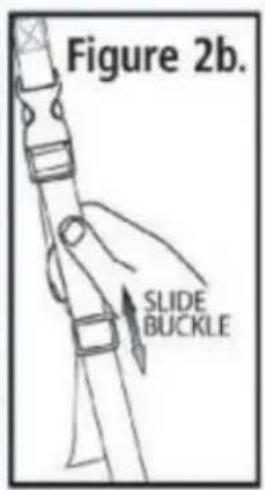

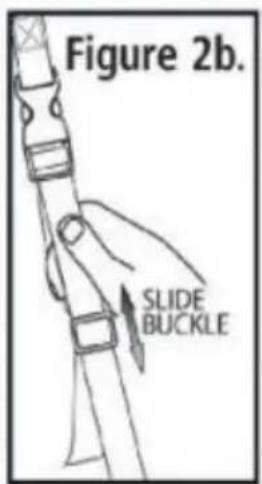

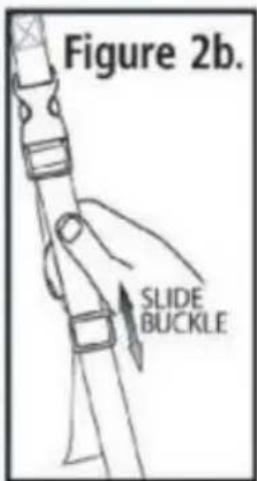

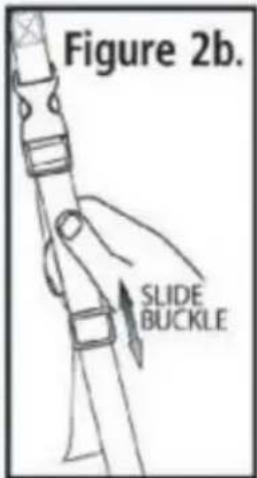

Figure 2b. SLIDE BUCKLE

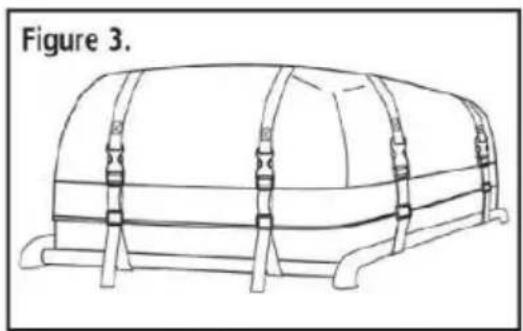

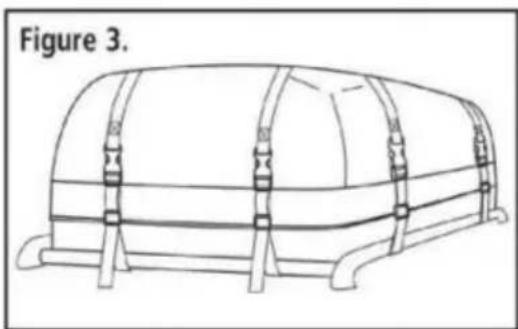

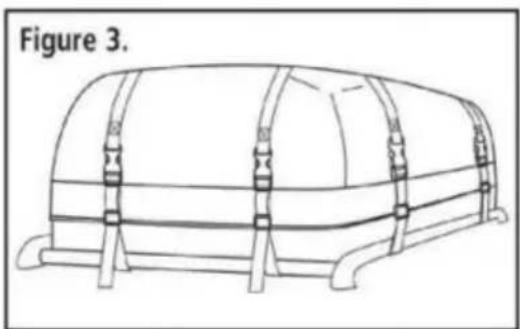

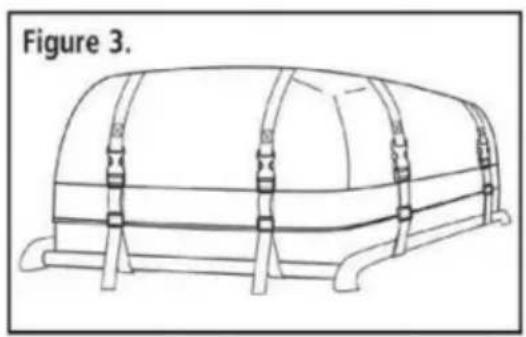

Line drawing of a cylindrical object with attached straps, labeled 'Figure 3.' (no text or symbols on the diagram itself)

Note: Do not pull the buckle of the strap in the reverse direction. As for direction of using the zipper, it is recommended not to face forward.

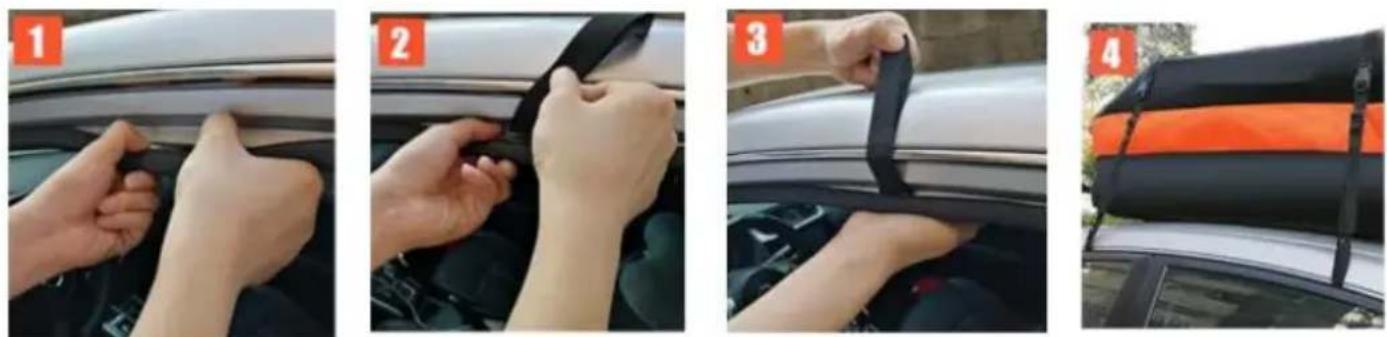

Installation method without roof rack

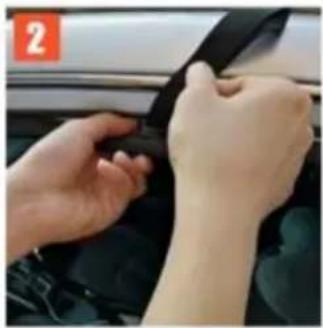

1. Open the door and carefully pull back the sealing strip.
2. After pulling back the seal, place one of the four door hooks provided or metal door frame.

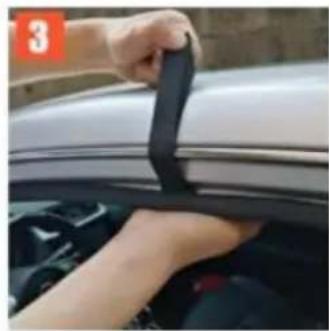

3. Gently apply force and use your hand to snap the weatherstrip sealing st back into place, then close the door.
4. Apply the same process to the other doors. These hooks will securely fix roof cargo bag.

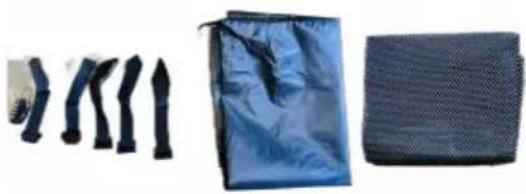

PART LIST

Model	Name/Quantity	picture
THCB-T0420THCB-T0415THCB-T1120THCB-T1123	1. Non-slip mat *1pcs2. storage bag *1pcs3. door hook *6pcs4. lock *1pcs
THCB-P0320	1. Non-slip mat *1pcs2. storage bag *1pcs3. door hook *6pcs4. lock *1pcs5. 2.5cm buckle strap *2pc

MAINTENANCE INSTRUCTIONS

1. Cleaning

After use, use a soft brush and mild cleaner for surface and interior. Avoid cleaners. Ensure it's dry before storage.

2. Waterproof Care

Check coating and seals regularly. Repair or replace damaged parts. after rain and avoid sun exposure.

3. Component Checks

Inspect straps, buckles, etc. regularly. Replace worn parts. Remove rust metal parts and apply anti-rust agent.

4. Storage

Clean and dry before storing. Use a storage bag. Check and air dur season changes in a dry, ventilated place

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4
