USER MANUAL C11-2 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

KAYAK ROOF RACK

MODEL:C11-2

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

KAYAK ROOF RACK

MODEL: C11-2

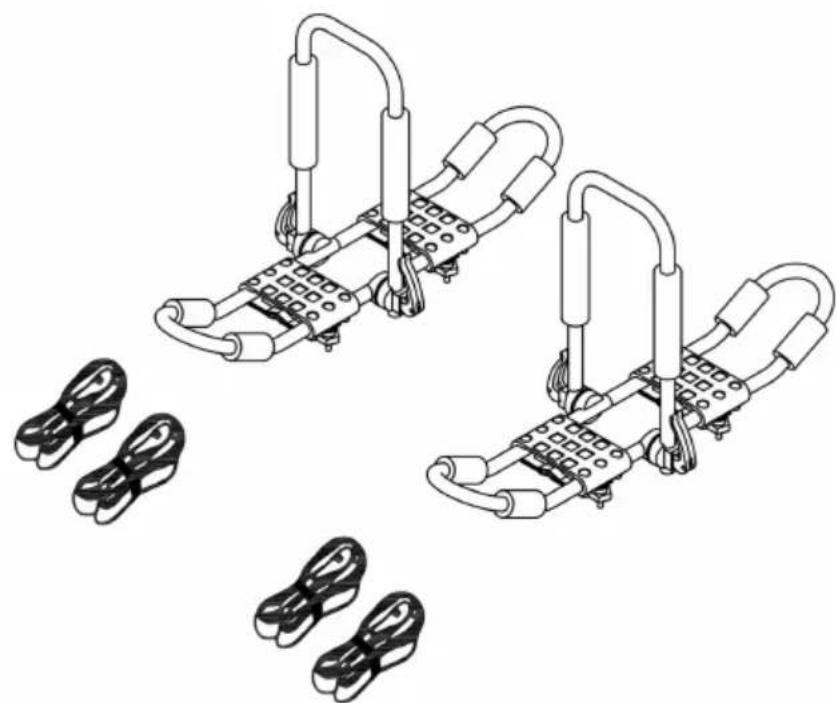

Technical line drawing of two identical cable clamp assemblies with attached clips, plus two separate clamps below (no text or symbols)

*Tip: Your car must have a roof rack to be used.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

• Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause death, personal injury, or damage valuable property
• Adhere to all Department of Transportation (D.O.T.) requirements when using this product. Use ropes and tie-downs to securely hold all cargo in place
• Do not overload the Roof Rack. Never exceed the maximum weight capacity of 150 lbs.
• Before and after each use, check to make sure that all hardware is tightly secured. Regularly inspect for damage. If fraying or distortion is found, immediately discontinue use.
• Make sure the vehicle's engine is OFF, with the parking brake set, before loading or unloading the Kayak Roof Rack.
• Do not use to hold or restrain human or animal weight in any manner.
• Use common sense when working. Stay alert and concentrate when setting up and using the Kayak Roof Rack. Never work while under the influence alcohol, drugs, or medications.
• While assembling and using the Kayak Roof Rack, keep the work area clean and well-lighted. Keep spectators and children out of the work area.
• CHOKING HAZARD -- Small parts. Not for children under 3 yrs.

SAVE THESE INSTRUCTION

PRODUCT PAREMETERS

Model	C11-2
Material	Alloy Steel & Nylon
Color	Black
Load Capacity	150 lbs
Part Quantity	2 Set

PART LIST

When unpacking this product, check to make sure the parts listed below are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use product.

NO	PICTURE	PART NAME	QTY
1		Carrier A	2
2		Carrier B	2
3		Bracket	4
4		Plastic Nut M8	8
5		Nut M8	8
6		Washer M8	16
7		Carrier Bolt M8 x 80	8
8		Wrench S14	1
9		Tie Down	4
10		Spring Washer M8	8

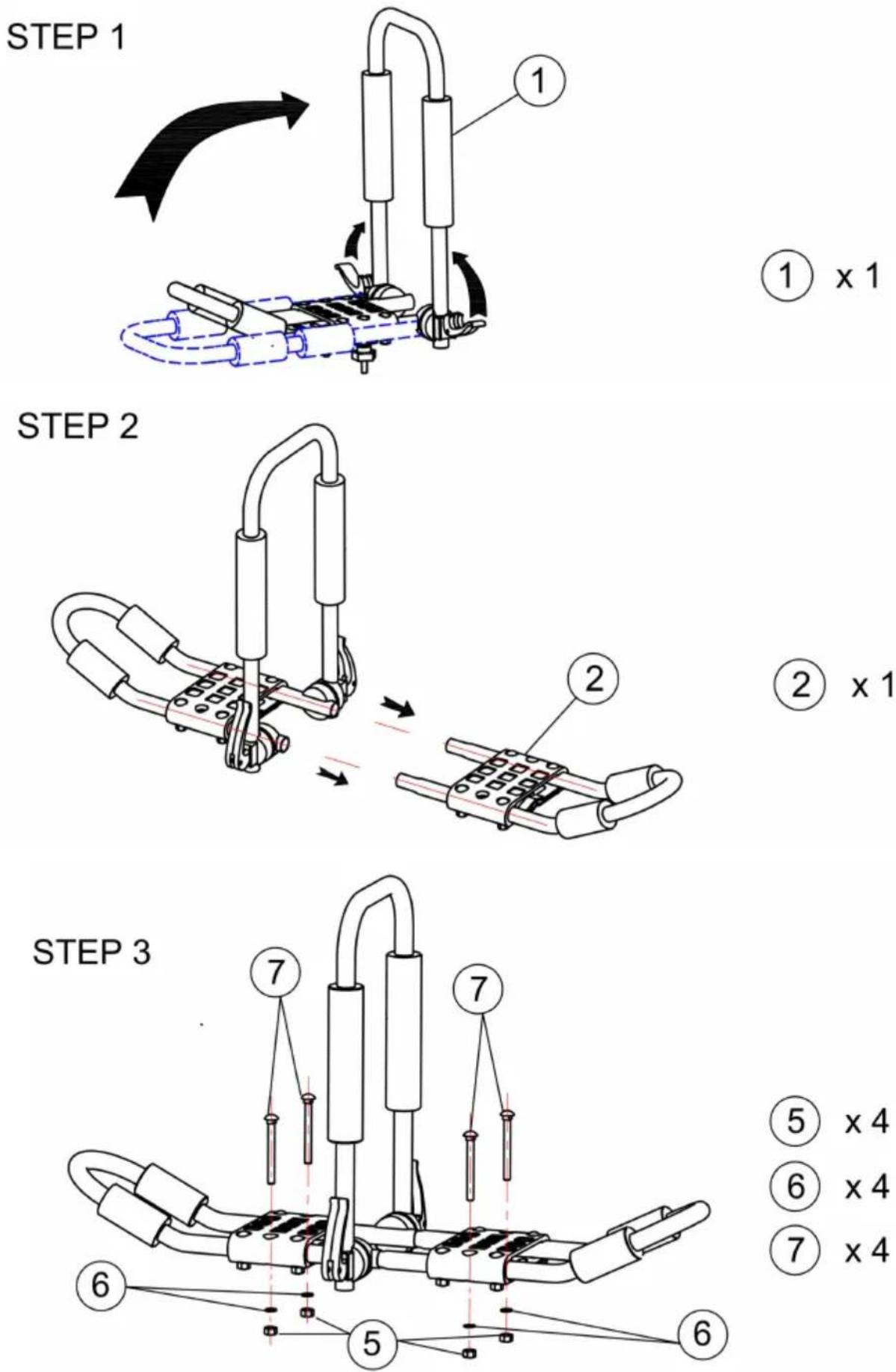

① x 1
② × 1
⑤ × 4
⑥ × 4
⑦ × 4

STEP 5

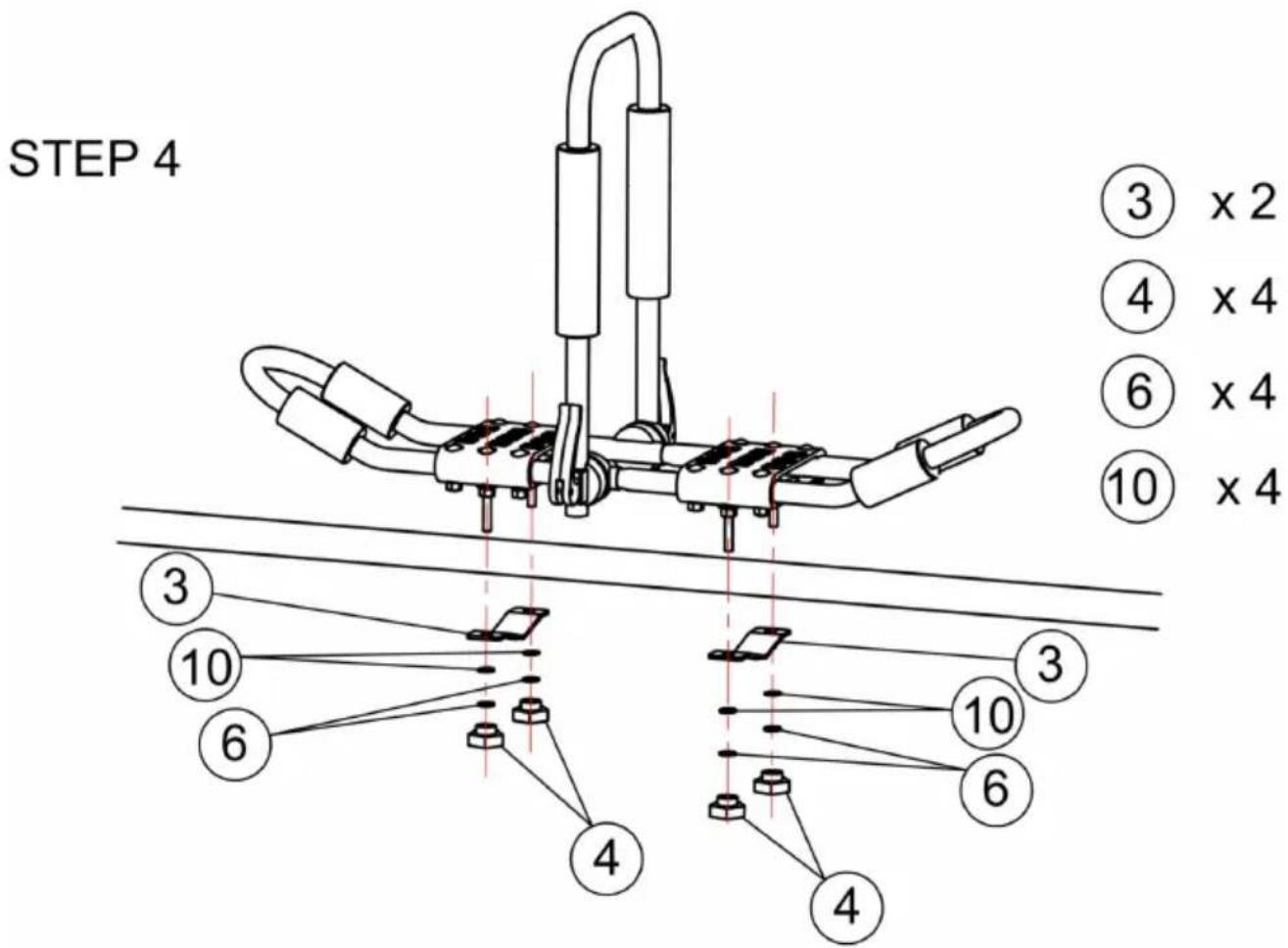

Repeat step 1 and step 4 for the other J-cradles.

Make sure all screws are locked.

STEP 6

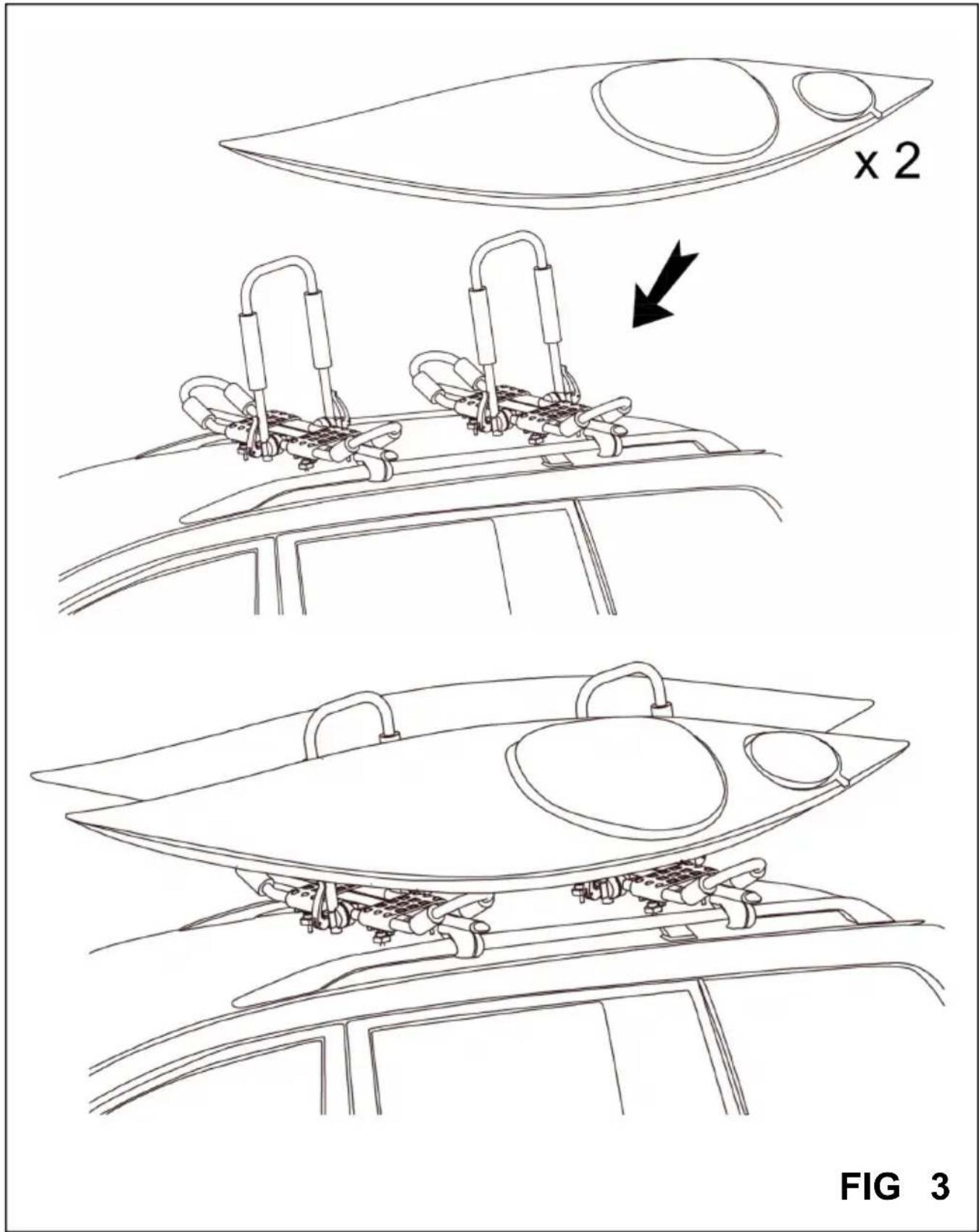

With another person's help, load the kayak onto the car rooftop and center I kayak between the two J-cradles. Make sure the cockpit is facing toward you figure 3.

STEP 7

Route the free end of the strap (9#) around the top of the longer arms of J-cradle. Pull and route both the buckle end and free end of the strap (9#) kayak. Pull down the free end of the strap (9#) until the buckle end of the Thread the free end of the is positioned halfway up the side strap (9#) dow under the crossbar. See figure 4.

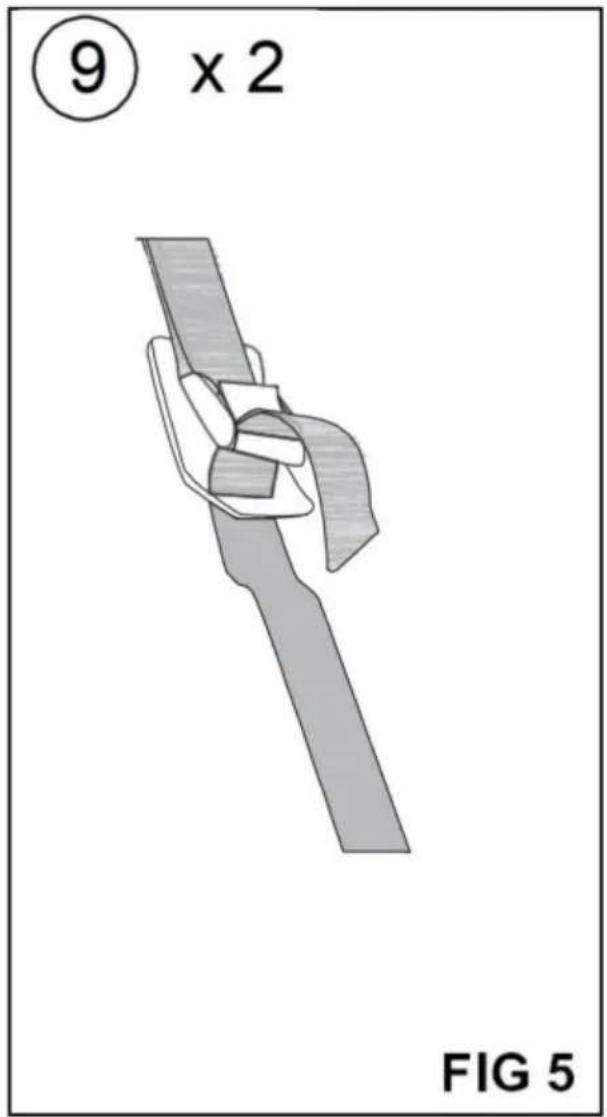

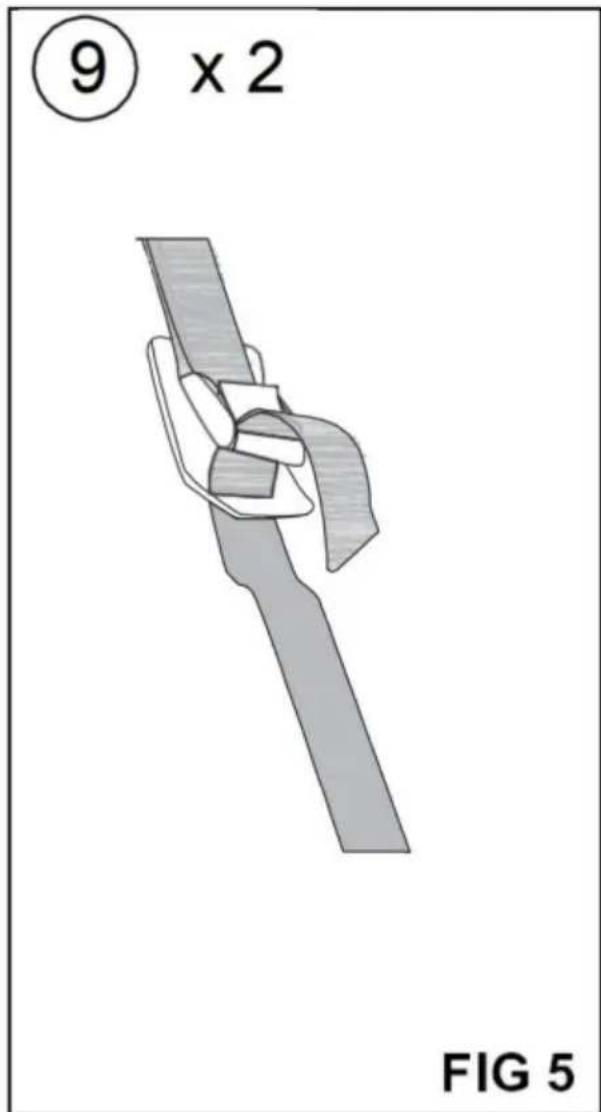

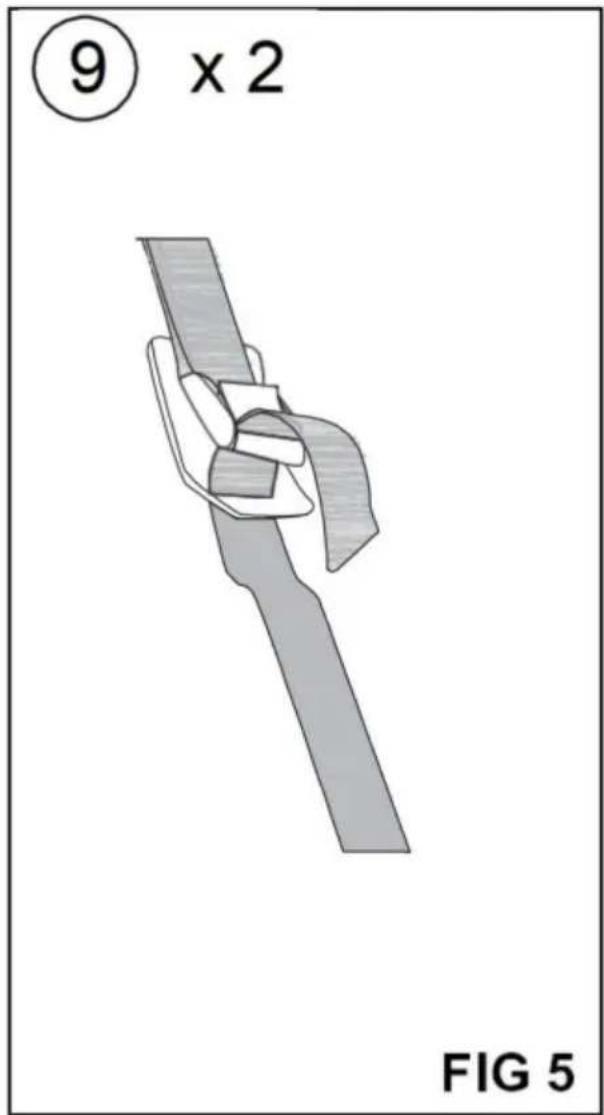

Press the buckle and insert the free end through the buckle. Pull down the to take up the excessive strap to avoid the excessive strap flapping in the v

Technical line drawing of a mechanical assembly with wires and components (no text or symbols)

STEP 8

Repeat step 6 and step 7 for the other kayaks.
