This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user make. The appearance of the product shall be subject to the product you need. Please forgive us that we won't inform you again if there are any technical or software updates on our product.

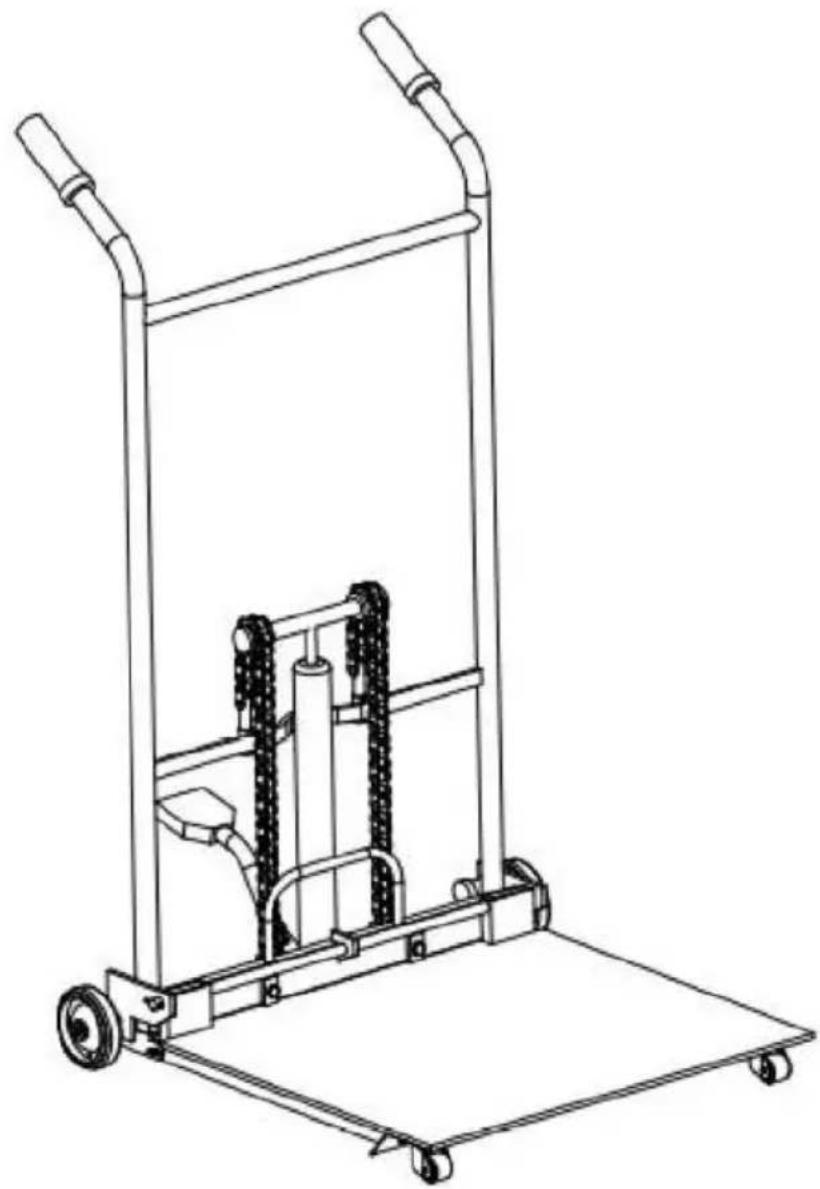

ASSEMBLY PARTS LIST

Number	Description	Qty
A	Outrigger	2
B	Car Frame	1
C	Shaft	1
D	Pallet Fork	2
E	Tray	1
F	Pedal	1
1	Caster	2
2	M5*15 ( bolt+nut )	8
3	M12*60 ( bolt+nut )	2

Number	Description	Qty
4	Coupling pin	2
5	R-type pin	2
6	Split pin	2
7	Rear-Wheel	2
8	M20*100 (shoulder bolt+nut)	2
9	Plain Washer	2
10	Bolt M8*20 [TO6D]	1
11	M8*20 ( bolt+nut ) [D806]	2

Note: During installation, do not tighten the screws until all parts installed.

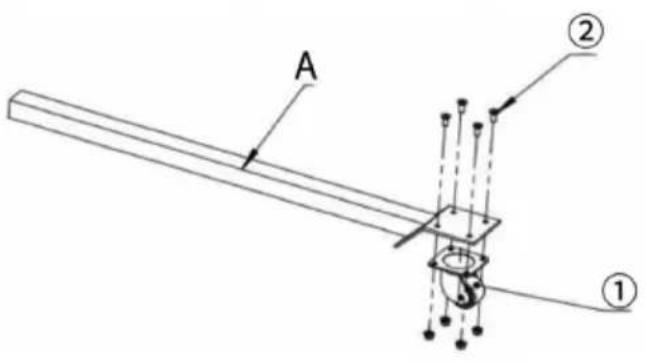

Step1Connect Part1" and Part "A" wit bolt and nut2".	Step2Connect Part "B" and Part "A" bolt,nut 3", Coupling pin4" and R-type pin5".

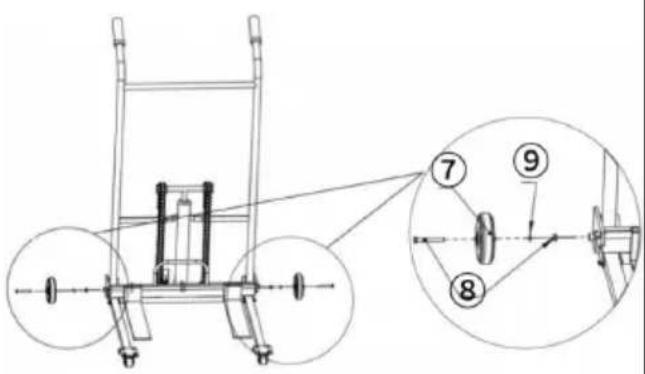

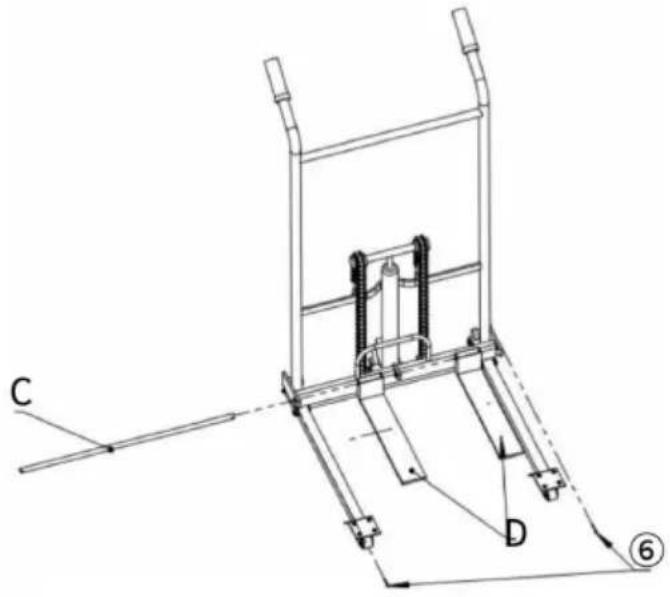

Step3Connect Part "B" and Part "D" w Part "C",then install the Split6"into Part "C".	Step4Install Part7" onto Part "B" wi shoulder bolt, nut8" and Plain Washer9".

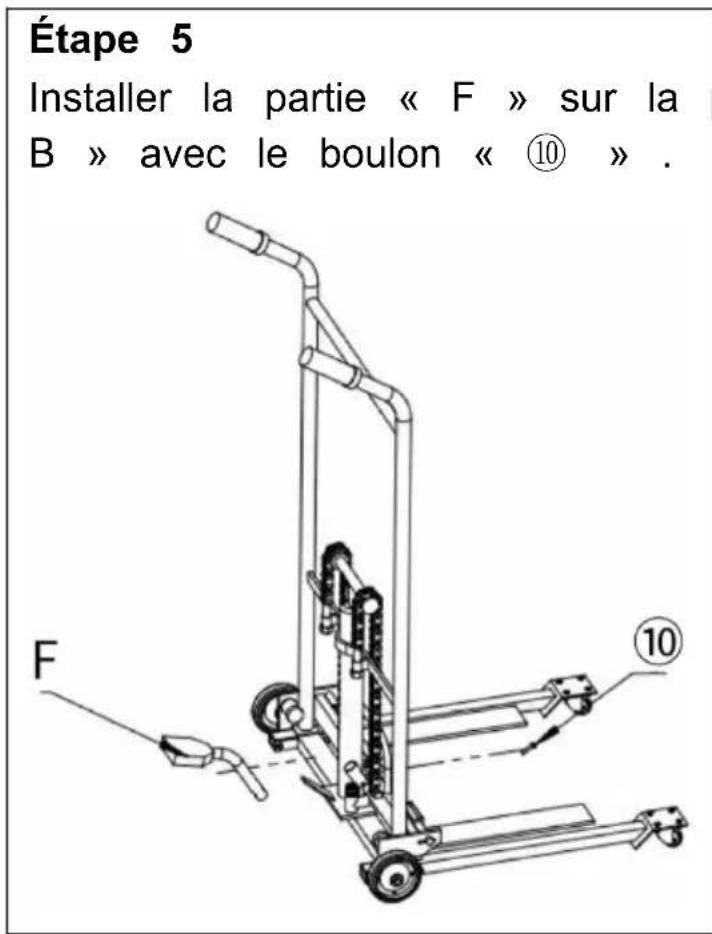

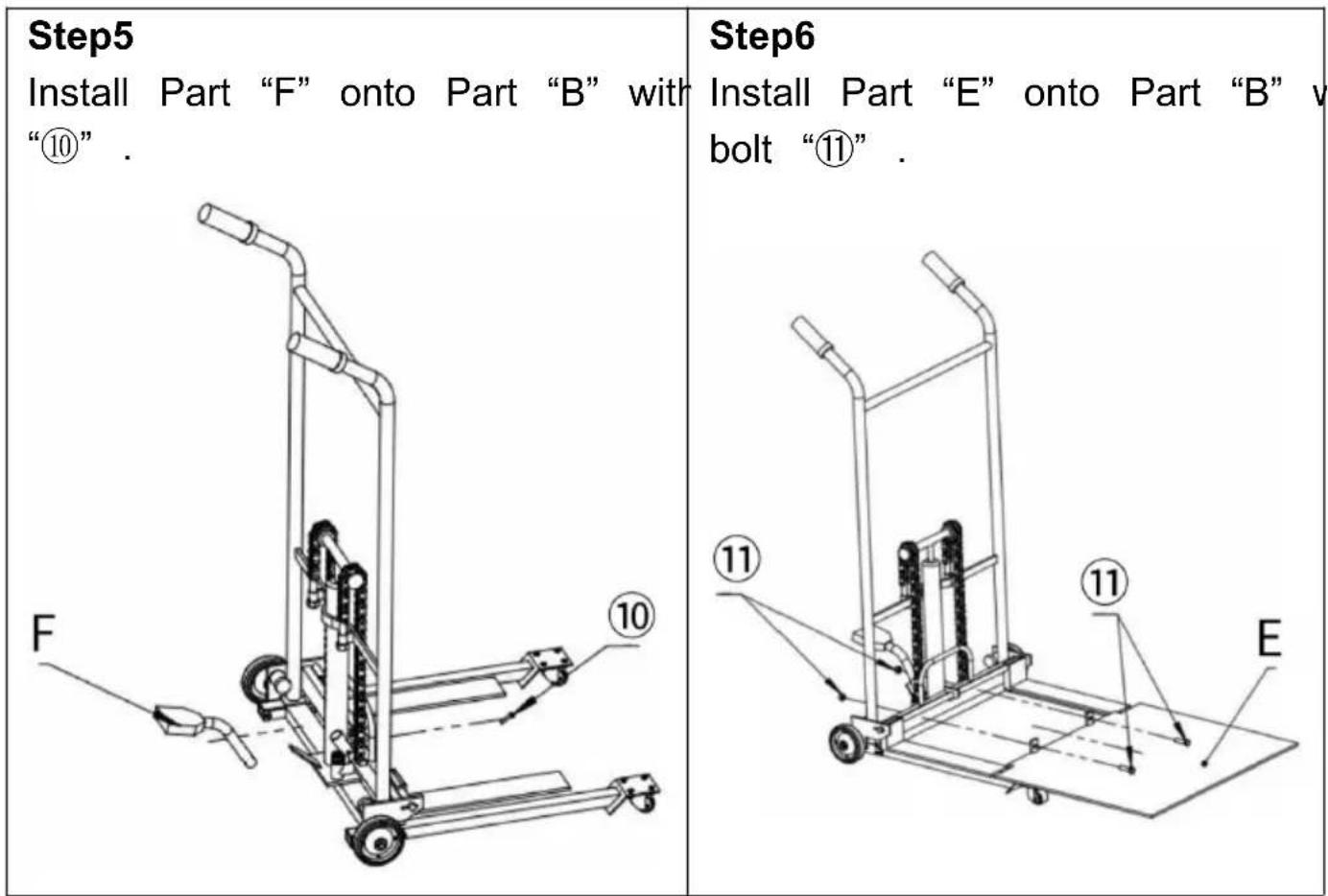

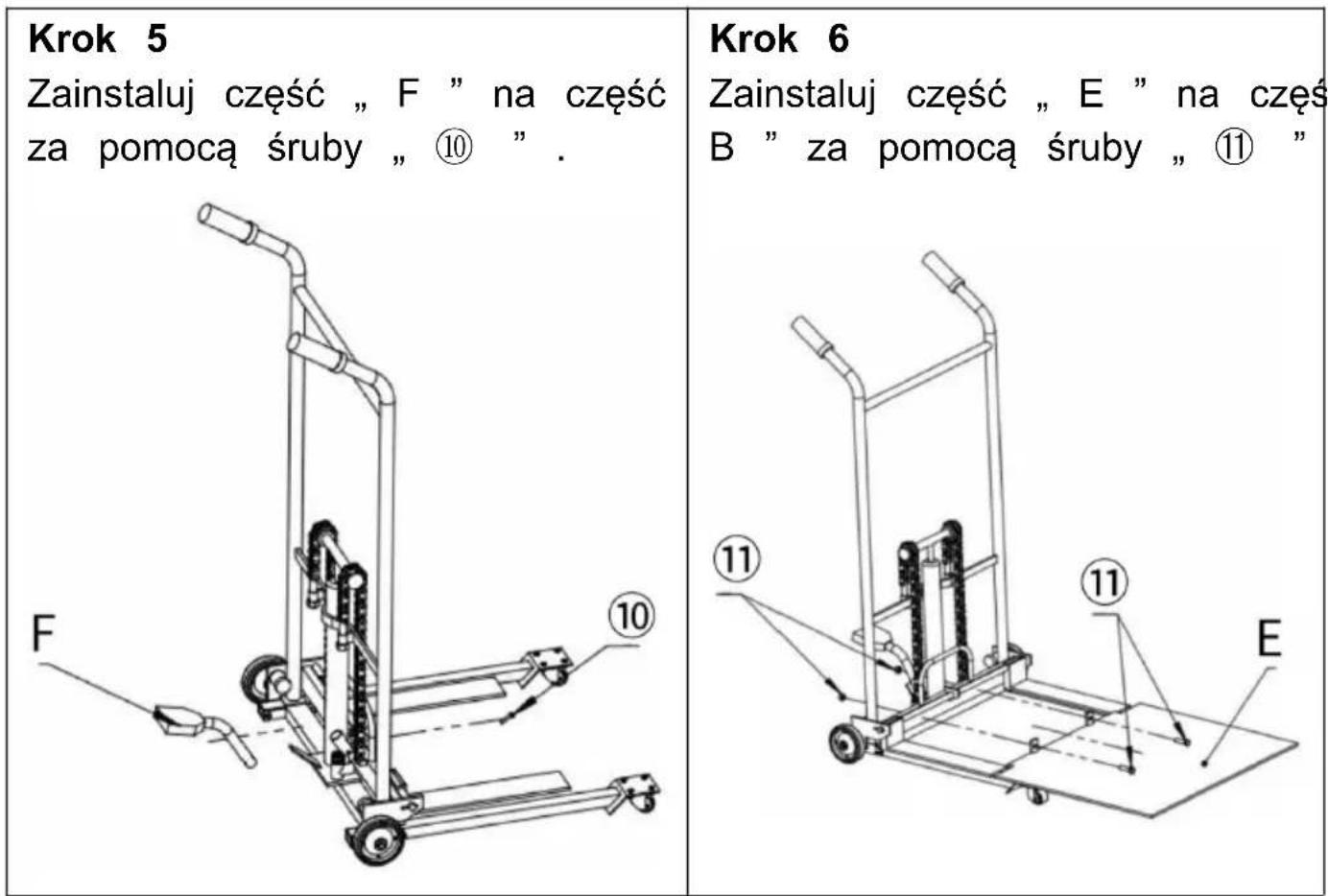

Step5 Install Part "F" onto Part "B" with “⑩” . Step6 Install Part "E" onto Part "B" v bolt "⑪" . F ⑩ ⑪ ⑪ E

PARAMETER

MODEL	scddc900	scddc1000
Maximum lifting heigh	900 mm	1000 mm
Total load limit	450 lbs	450 lbs
Power Source	Hand Hydraulic	Hand Hydraulic

Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to the precautions and safety rules in this page to ensure your safe us This manual will outline safety warnings and precautions, operating, maintenance and cleaning. The warnings and instructions reviewed in

manual cannot cover all possible conditions and situations that may of Caution and common sense are not built into this product, since we that the uses will comply with these codes.

Please read ALL the instructions before using your machine.

1. Do NOT let children and minors get close to or touch the produc

2. Using any accessories or attachments that are not provided or recommended by the manufacturer may cause injury.

3. Do not attempt to modify the machine in any way.

4. If the machine is not to be used for a long period of time, clear and store it in a dry and safe place.

5. KEEP IT OUT OF CHILDREN'S REACH.

6. Children shall not play with the machine alone. Cleaning and user maintenance shall not be made by children without supervision.

7. The machine must never be left unattended during operation or cleaning.

8. Make sure that the machine is always placed on a firm, level and retardant surface, and also placed far away from combustibles. Improp placement can cause the product to tip over, slide, or cause items of table to fall off!

9. While every effort has been made in the manufacture of your ma to remove any sharp edge, you should handle all components with ca order to avoid accidental injury.

10. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.

11. The machine should only be repaired or serviced by an authorize Service Engineer and only genuine approved spare parts should be u

12. This product cannot be used for other purposes.

13. Not suitable for commercial use.

14. Wear safety goggles and heavy-duty work gloves during assembly using.

15. Do not assemble when tired or when under the influence of alco drugs or medication.

WARNING! Remove all packaging materials and keep them for future use. Packaging materials are not a toy.

WARNING! Don't let children and pets play with the packaging material

they swallow the packaging materials, they will suffocate!

WARNING! Keep children and pets away.Children must not operate or near this machine.

WARNING! Failure to follow instructions could result in death, serious bodily injury and/or property loss.

WARNING! This product is not a toy. Do not allow children to play approach this item.

WARNING! Use as intended only. Do not sit or stand on table.

ATTENTION! Inspect before every use. Do not use if parts are loose or damaged.

ATTENTION! Use only on flat, level, hard surface.

ATTENTION! The weight on the countertop must be evenly distributed, careful of tipping and weight falling!

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>
