HX-3 - Forklift Vevor - Free user manual and instructions

Product Type	Forklift Fork Extension
Brand	Vevor
Model	HX-3
Length	1820 mm
Inner Width	140 mm
Maximum Load Capacity	4000 lb (1.815 t) per pair
Material	Steel
Intended Use	Forklift Fork Extension
Number of Pieces per Set	2 (one pair)
Installation	Insert the rings into the fork, push down, and place horizontally
Safety	Do not exceed capacity, do not stand on, use only with forklift
Maintenance	Regularly inspect for deformation or wear, clean after use
Warranty	Electronic warranty certificate available at www.vevor.com/support

Frequently Asked Questions - HX-3 Vevor

How to install the HX-3 fork extensions?

Remove the fork cover, lay it flat, adjust the distance between the trolley and the fork. Insert the ring of the fork cover into the fork, push down, then place horizontally. See figures in the manual.

What is the maximum load capacity of the HX-3 extensions?

The maximum capacity is 4000 lb (1.815 t) per pair. Never exceed this load.

Are the HX-3 extensions compatible with all forklifts?

They are designed for standard forklift forks. Check the inner width of 140 mm to ensure compatibility.

What is the material of the HX-3 extensions?

The extensions are made of robust steel to support heavy loads.

Can the HX-3 extensions be used on a mast forklift?

Yes, they are designed to be attached to the existing forks of the forklift, regardless of mast type.

How to maintain the fork extensions?

Clean after use to remove dirt and debris. Regularly inspect for any deformation, cracks, or excessive wear.

Where to find the warranty certificate?

The electronic warranty certificate is available at www.vevor.com/support. Keep your proof of purchase.

What to do if the extensions do not fit properly?

Check that the inner width (140 mm) matches that of your forks. If necessary, adjust the position or contact technical support.

Are the HX-3 extensions sold as a pair?

Yes, the product is sold as a pair of two identical extensions.

What are the important safety instructions?

Never exceed the load capacity. Do not stand on the extensions. Use only with a forklift. The center of load must not exceed 50% of the extension.

USER MANUAL HX-3 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FORK EXTENSIONS USER MANUAL

MODEL: HX-1/HX-2/HX-3/HX-4/HX-5 HX-6/HX-7/HX-8/HX-11

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: HX-1/HX-2/HX-3/HX-4/HX-5/HX-6/HX-7/HX-8/HX-11

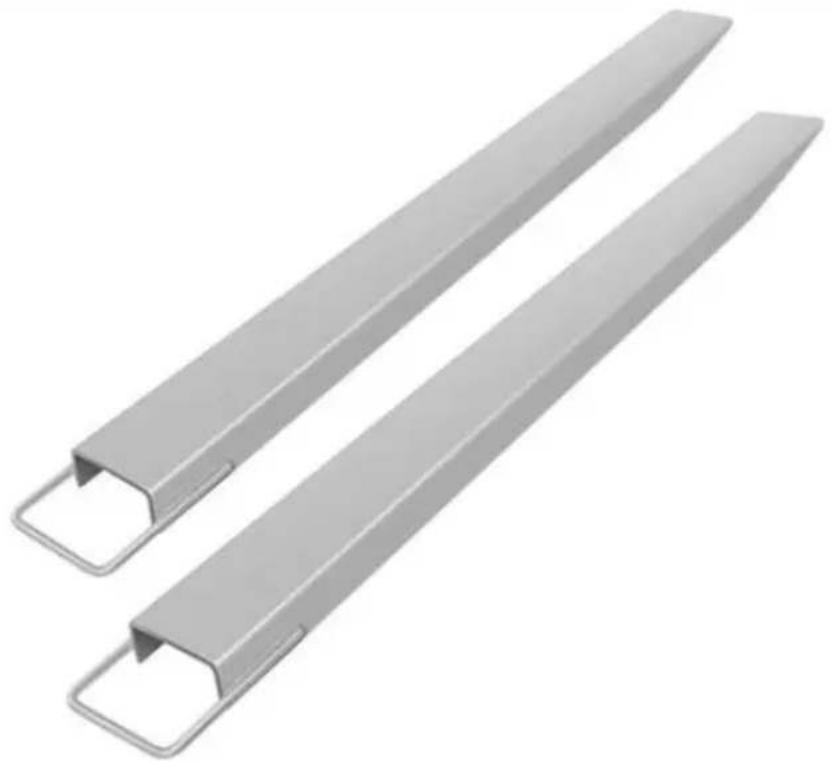

Two metallic metal bars with curved cutouts, shown against a white background (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTION AND PRECAUTIONS

WARNING:

Read this material before using this product. Failure to do so can re serious injury.

1. This product is not a toy. Do not allow children to play with this
2. Use as intended only. Do not stand on the product.
3. This product needs to be used with a forklift truck.
4. Never exceed the load capacity of the fork extenders.
5. When picking up a load, the load center should never exceed 50% fork extension.

OPERATION AS BELOW

1. Take out the extended fork cover, place it flat on the ground, and the distance between the forklift truck and the fork according to the goods.
2. Insert the ring of the extended fork cover into the fork of the fork through it. (Figure 1, Figure 2)

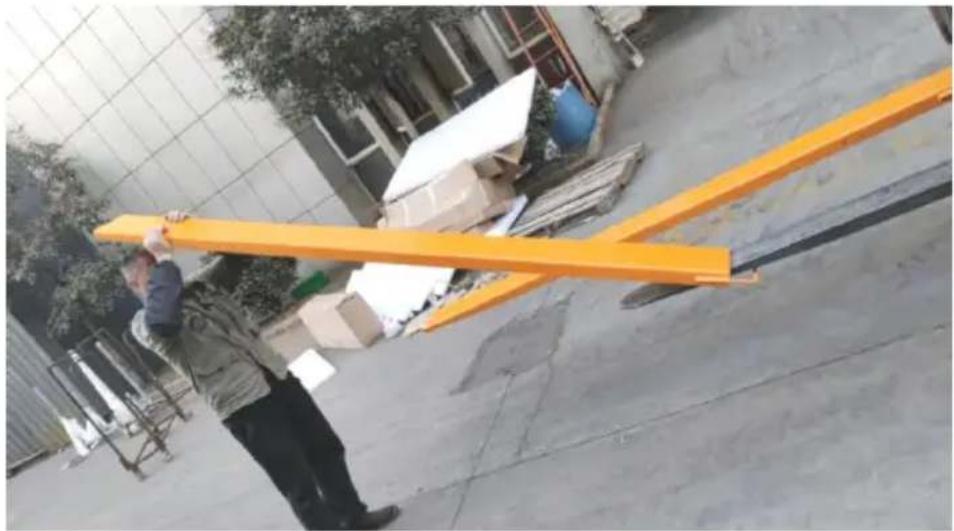

Exterior view of a construction site with workers handling large yellow metal beams (no visible text or symbols)

(Figure 1)

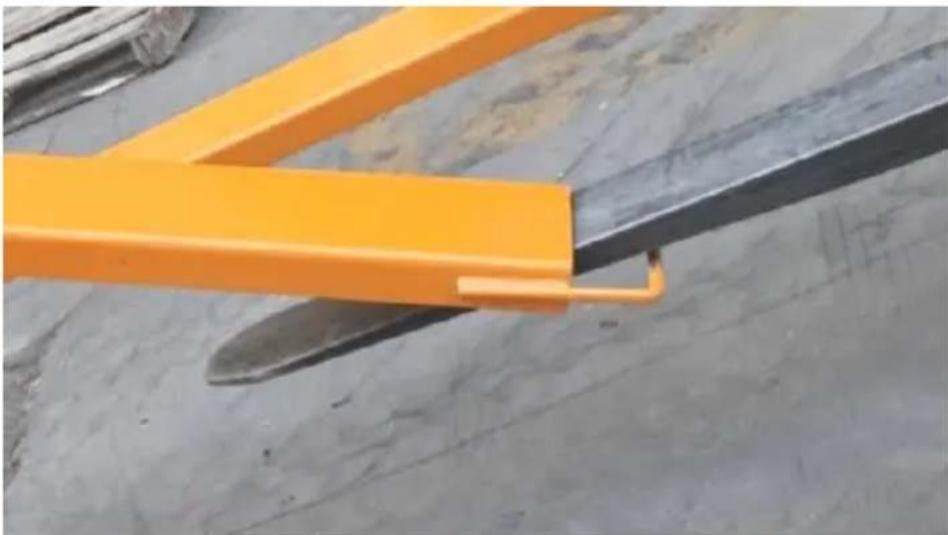

Close-up of yellow metal beams and a black handle against a concrete wall (no text or symbols visible)

(Figure 2)

1. Push the extended fork cover directly to the bottom of the fork of forklift truck. (Figure 3, Figure 4)

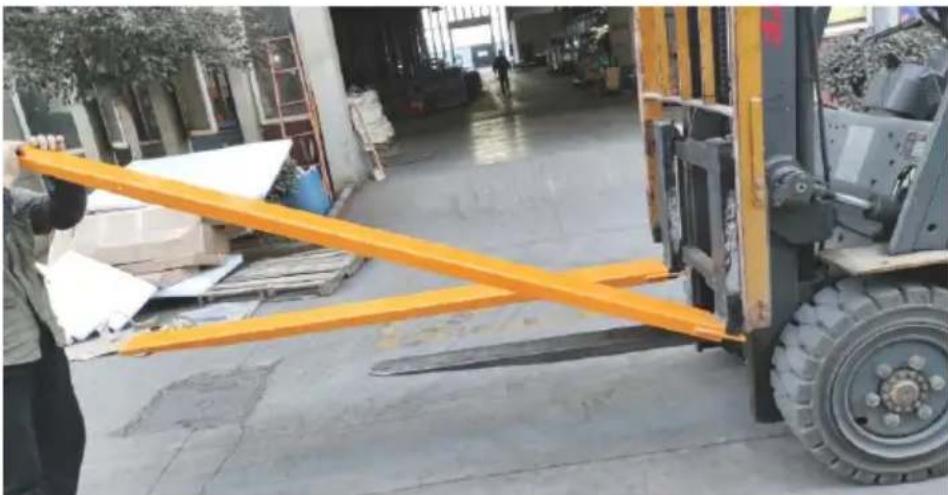

Exterior view of a warehouse with a forklift lifting a large orange bar; no visible text or symbols.

(Figure 3)

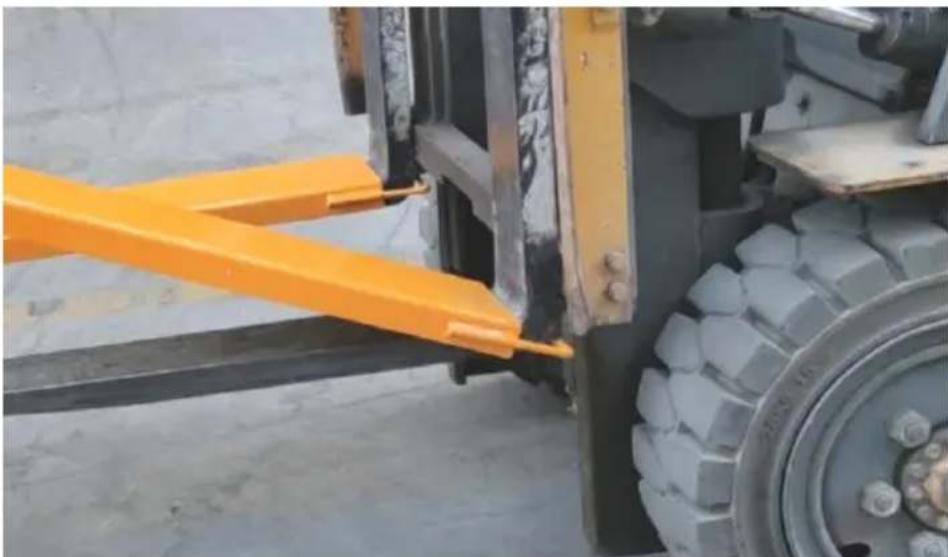

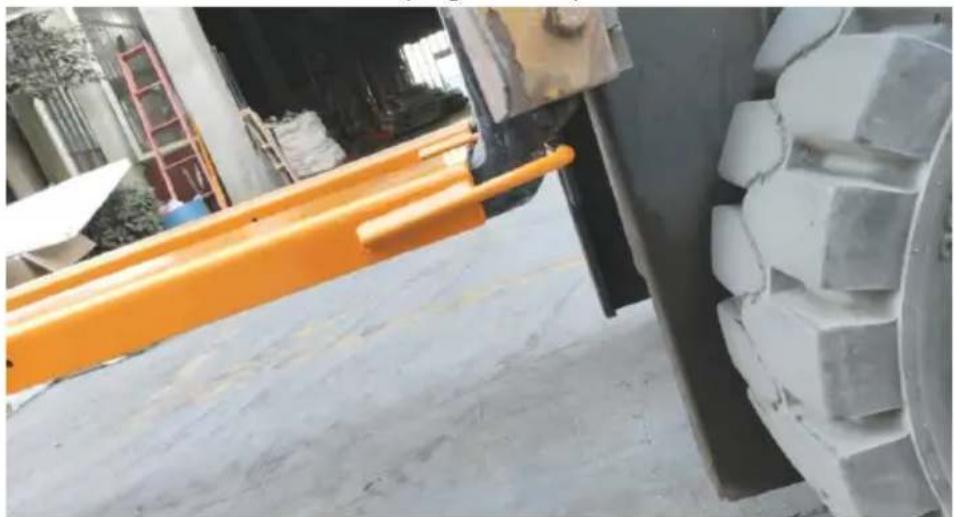

Close-up of a yellow hard truck with a large tire and orange lever attachment (no visible text or symbols)

(Figure 4)

1. Then place the lengthened fork cover horizontally on the fork of the forklift to complete the installation (Figure 5, Figure 6)

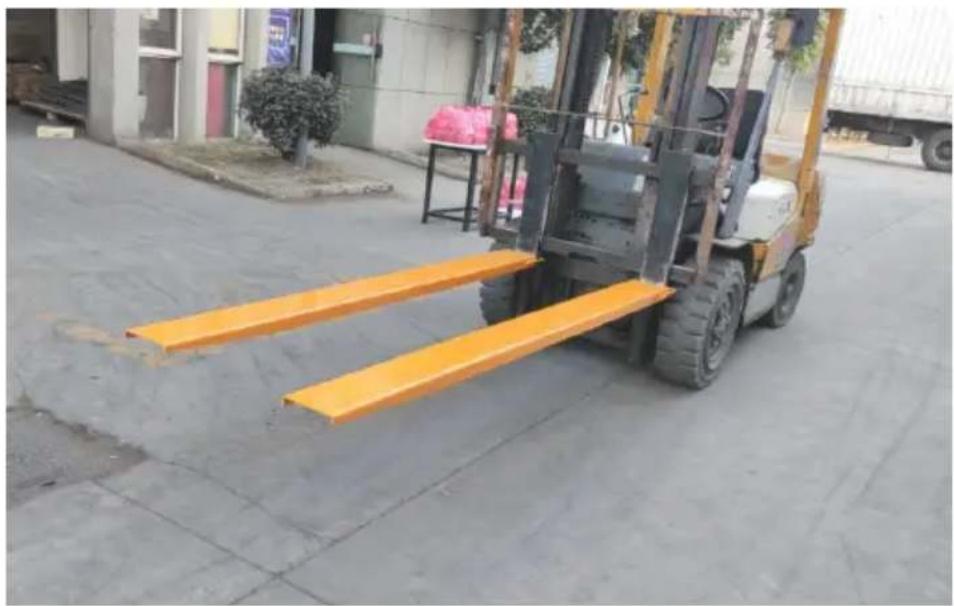

Forklift lifting yellow metal bars on a paved lot, with no visible text or symbols.

(Figure 5)

Construction site with orange safety barriers and large vehicle wheel (no visible text or symbols)

(Figure 6)

1. After the extension fork sleeve is installed, you can use the forklif pick up the goods normally.

	Items	Description
1	Name	Fork Extensions
2	Model	HX-1
3	Parameter	Length: 1520mm, Inside width 115mm, Integrated MAX load bearing4000lbs(1.815t)/per pair
2	Model	HX-2
3	Parameter	Length: 1820mm, Inside width: 115mm, IntegratedMAX load bearing: 4000lbs(1.815t)/per pair

	Items	Description
1	Name	Fork Extensions
2	Model	HX-3
3	Parameter	Length: 1820mm, Inside width: 140mm, Integrated MAX load bearing: 4000lbs(1.815t)/per pair

	Items	Description
1	Name	Fork Extensions
2	Model	HX-4
3	Parameter	Length: 2130mm, Inside width: 115mm, IntegratedMAX load bearing: 4000lbs(1.815t)/per pair

	Items	Description
1	Name	Fork Extensions
2	Model	HX-5
3	Parameter	Length: 2130mm, Inside width: 140mm, IntegratedMAX load bearing: 4000lbs(1.815t)/per pair

	Items	Description
1	Name	Fork Extensions
2	Model	HX-6
3	Parameter	Length: 2440mm, Inside width 115mm, Integrated MAX load bearing4000lbs(1.815t)/per pair
2	Model	HX-7
3	Parameter	Length: 2440mm, Inside width: 140mm, IntegratedMAX load bearing: 4000lbs(1.815t)/per pair

	Items	Description
1	Name	Fork Extensions
2	Model	HX-8
3	Parameter	Length: 2440mm, Inside width: 165mm, Integrated MAX load bearing: 4000lbs(1.815t)/per pair

	Items	Description
1	Name	Fork Extensions
2	Model	HX-11
3	Parameter	Length: 1520mm, Inside width: 140mm, IntegratedMAX load bearing: 4000lbs(1.815t)/per pair
