USER MANUAL XAQL36-36 Vevor

Support and E-Warranty Certificate https://www.vevor.com/support

FORKLIFT PLATFORM

USER MANUAL

Model: XAQL36-36/AQL45-43

VEVOR®

TOUGH TOOLS, HALF PRICE

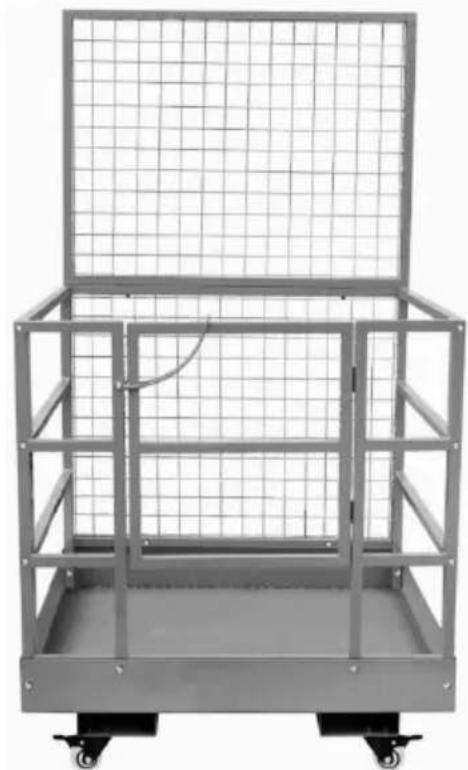

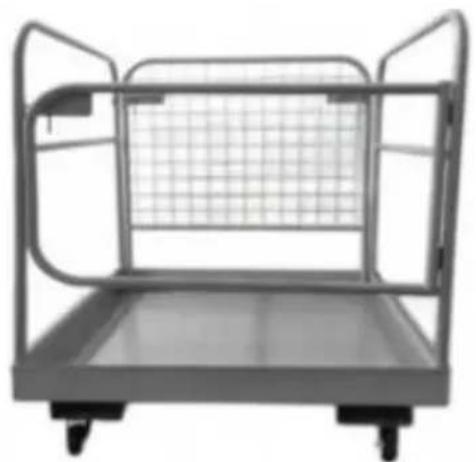

FORKLIFT PLATFORM

XAQL36-36 AQL45-43

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

SAFE INSTRUCTIONS

This equipment must be used with care by capable and competent individuals under supervision, if necessary. The use of any equipment, including this one, involves the potential risk of injury.

You accept and assume full responsibility for any and all injuries, damage (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge VEVOR, its employees, officers, directors, associates, and agents from any and all claims, demands, damages, rights of action, or causes of action, present or future, whether the same be known or unknown, anticipated, or unanticipated, resulting from or arising out of the use of said equipment. VEVOR MAKES NO WARRANTY WHATSOEVER WITH RESPECT TO THE EQUIPMENT, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, WHETHER EXPRESS OR IMPLIED BY LAW, COURSE OF DEALING, COURSE OF PERFORMANCE, USAGE OF TRADE OR OTHERWISE. BUYER ASSUMES ALL LIABILITY IN USE OF THE EQUIPMENT.

WARNING:

1. Check whether the screws or pins are loose before use.
2. The door buckle must be fastened firmly.
3. The chain shall be fixed.
4. The safety belt and safety rope shall be fixed.
5. Minors are not allowed to enter the equipment! 6. When working, no one is allowed to stand under the forklift platform. 7. Do not exceed the load capacity of the forklift platform.

Failure to observe these warnings could result in severe injury or death.

CAUTION: Carefully read instructions and procedures for safe

operations.

PRODUCT INTRODUCTION

MODEL SPEC.	XAQL36-36	AQL45-43
Product size	L36*W36*H37 inch	L45*W43*H80inch
Load Capacity	1200lbs	1500lbs
Fork slot	6.3*2.75inch	6.3*2.55inch
Floor	Non-slip floor, thickness: 1.5mm	Non-slip floor, thickness: 1.5mm

PACKAGE CONTENT

NO. \MODEL\Parts\	XAQL36-36	AQL45-43
1	Forklift Platform*1pc	Forklift Platform *1pc
2	Safety Chain * 1pc	Elastic Rope with Hook*1pc
3	User Manual *1pc	4" Swivel Casters*2pcs4" Directional Casters*2pcs
4	3"Universal Wheel withBrakes*2pcs3"Universal Wheel *2pcs	Iron Basket *1pc
5	M8*10 Bolt *16pcsM8*16Bolt *16pcs	Safety Belt*1pc
6	Open-ended Wrench*1pc	Non-Slip Adhesive Strip*3pcs
7	Hexagonal Wrench * 1pc	Safety Chain*1pc
8	Pin * 2pcsCotter Pin * 2pcs	User Manual *1pc

1) XAQL36-36

#	Name	Quantity
1	Baseboard	1
2	Rear guardrail	1
3	Right guardrail	1
4	Left guardrail	1
5	Front door	1
6	Forklift slot	4
7	Bolt	32
8	Universal Wheel	4

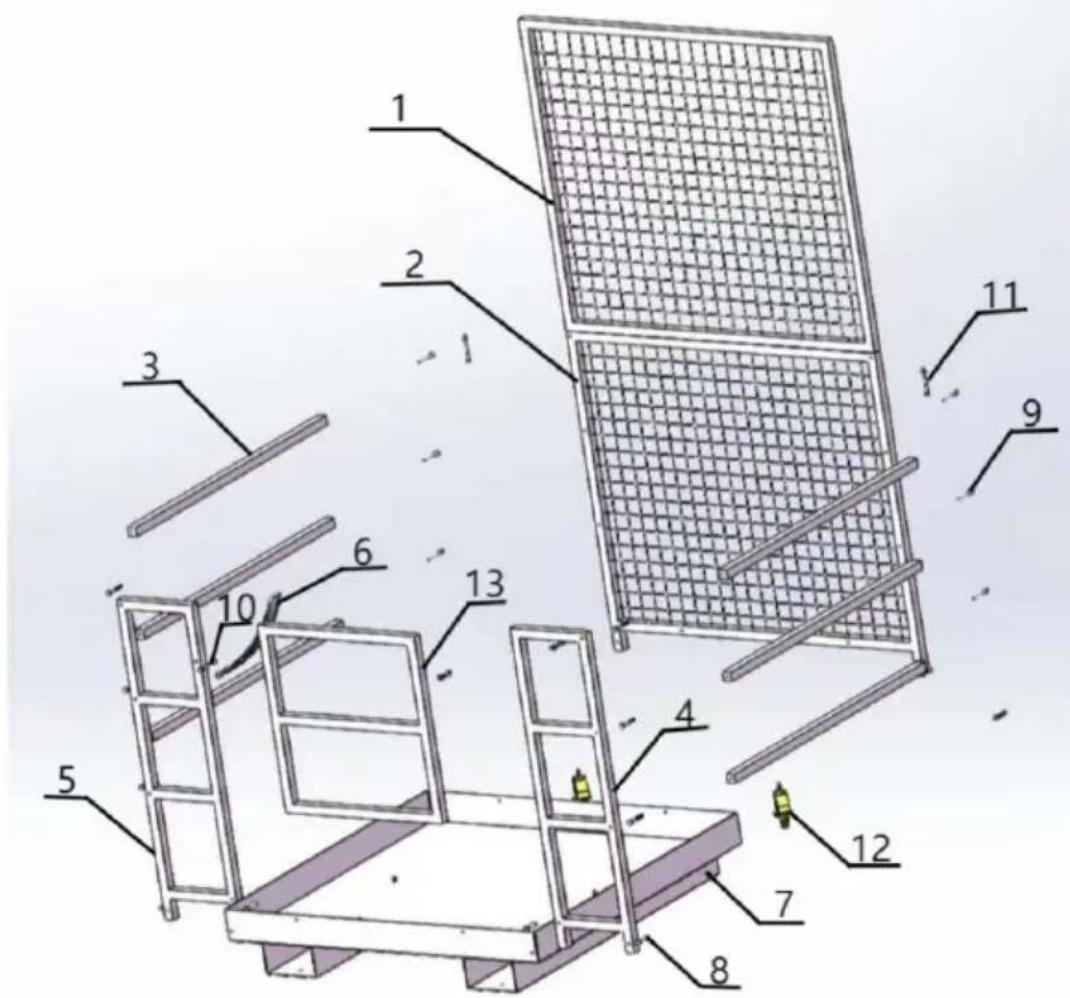

2) AQL45-43

#	Description	Qty	#	Description	Qty
1	Upper guardrail	1	8	Screw with nut	8
2	Lower guardrail	2	9	screw	12
3	Side crossbar	6	10	Screw with nut	1
4	Right mast	1	11	Screw with nut	2
5	Left mast	1	12	casters	4
6	Safety latch	1	13	emergency door	1
7	base	1

INSTALLATION INSTRUCTION

XAQL36-36

1. Open the package and check whether the accessories are complete.

2. Open the three guardrails in turn, and buckle them left and right.

1. Secure the front door with pins and cotter pin.

1. Attach 4 casters to the forklift slot with M8*1 bolts.

1. Lock the forklift slot to the baseboard with bolts (M8*16).

1. Finally, lock all the bolts with a wrench.

AQL45-43

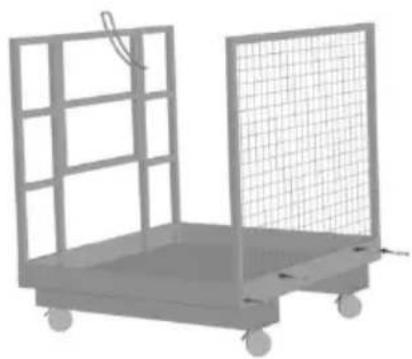

1. Install the four casters on the base in turn.

1. Fix the front side guardrail and safety door on the base.

1. Finally, connect the other safety mesh with the lower mesh and tighten all bolts.

1. Fix the rear safety net on the opposite side of the safety door.

1. Connect 6 cross bar tubes to the front and rear guardrails in turn.

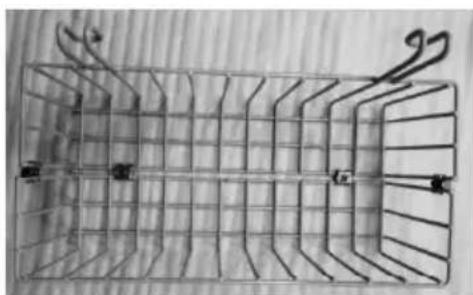

1. Prepare the components of the iron basket.

2. Lock the screw as shown in the picture.

3. Lock the four screws as shown in the picture.

OPERATION GUIDE

Before use, please check whether there is water stain on the skid plate. If there is, remove the residual water stain to prevent personnel from slipping. Then check whether all screws on the equipment are loose to ensure safe operation.

Before entering the forklift platform, the personnel shall fix the safety belt and lock the safety lock after entering.

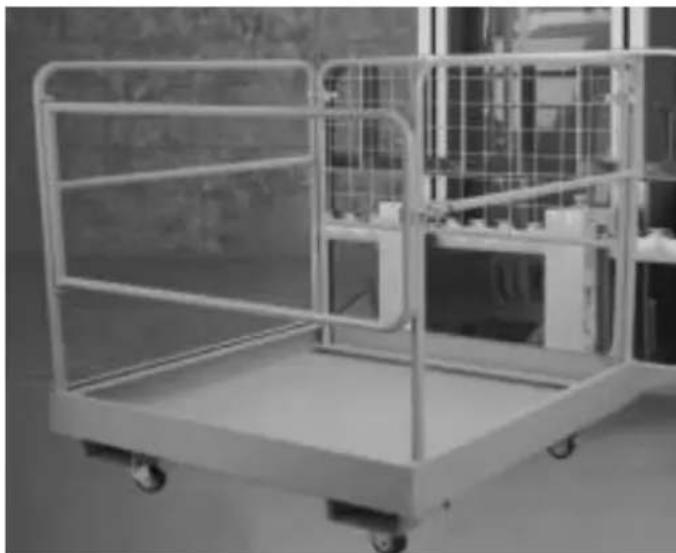

Before lifting the forklift platform, make sure the forklift fork is inserted into the bottom of the platform as shown in the picture.

Before lifting the forklift platform, make sure to lock the forklift platform and forklift truck with a safety chain as shown in the picture.

When lifting and lowering the forklift platform, the speed should be slow to avoid causing damage to it or causing injury to personnel.

Minors are not allowed to enter the equipment!

This forklift platform can help you complete air missions. Use it to check lights and repair roofs. You can also use it to draw the exterior of buildings or to perform tree services. The cage has a baking varnish surface so it can effectively prevent rust and corrosion.

TROUBLESHOOTING, MAINTENANCE AND REPAIR

1. Regularly check whether the screws are loose.
2. Regularly check whether the coating has scratches on the surface. Any collision damage shall be repaired in time to prevent the product from rusting or corroding, which could affect safety.
3. Before each use, check whether the safety buckle can be effectively locked.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

PRODUCT DIAGRAM

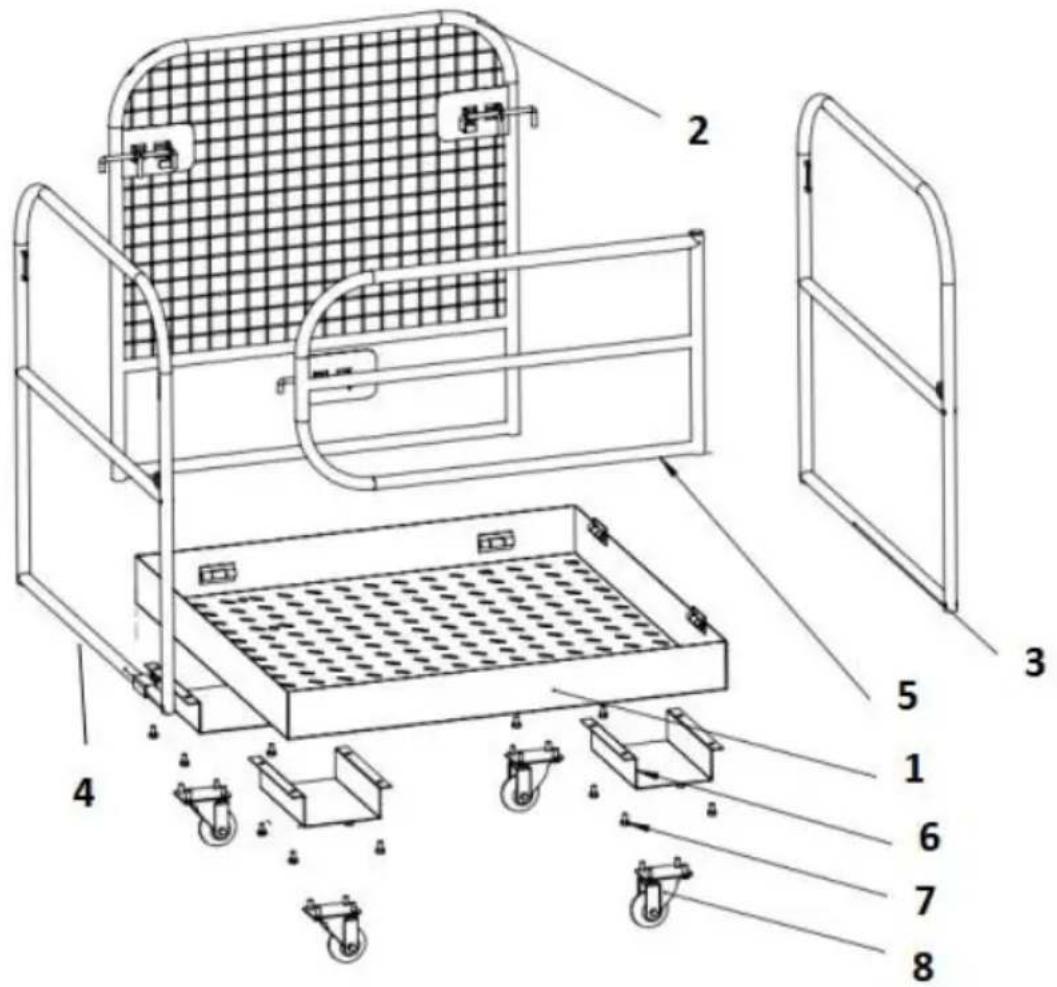

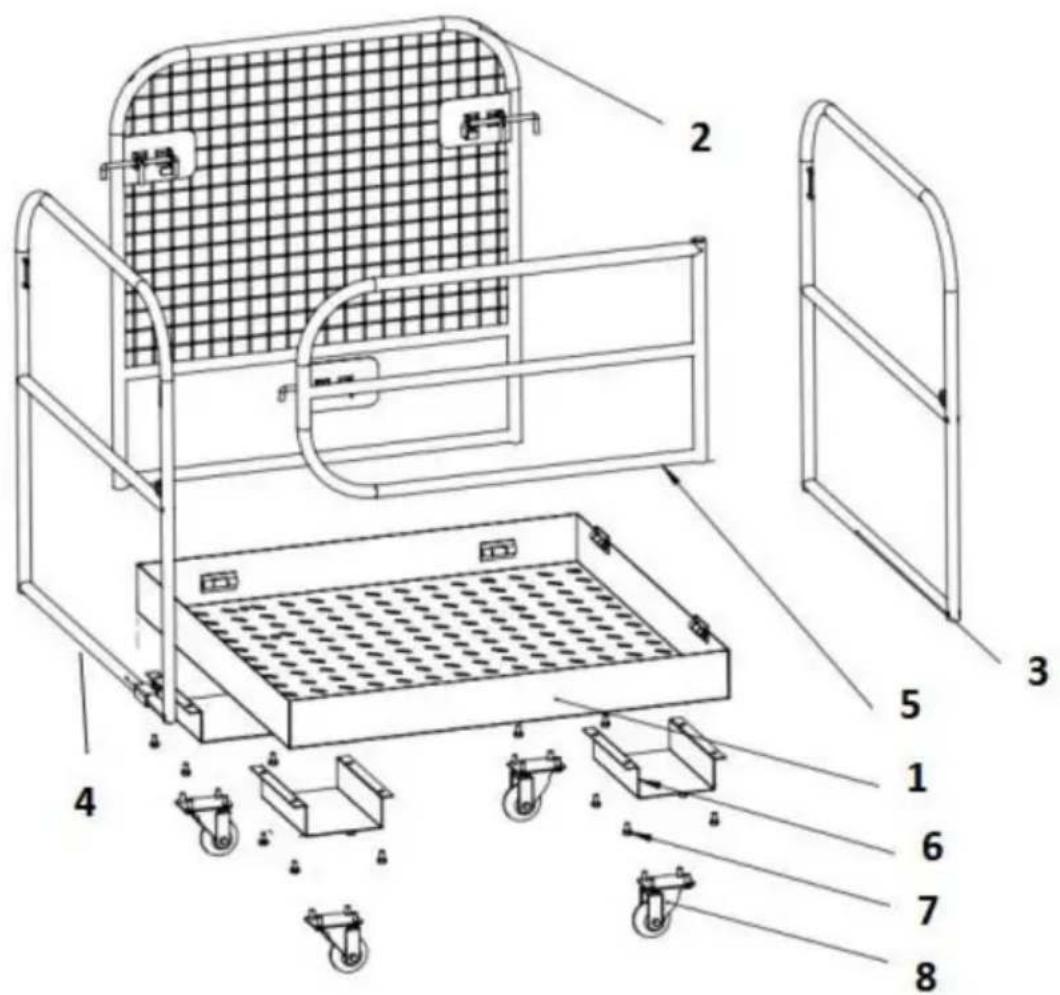

1) RIGHT 36-36

PRODUCT DIAGRAM

1) RIGHT 36-36

NEED HELP? CONTACT US!
