Product Type	Fork Extensions
Brand	Vevor
Model	HX-8
Length	2440 mm
Inner Width	165 mm
Maximum Load Capacity	1815 kg (4000 lb) per pair
Material	Steel
Usage	For forklift
Installation	Slip onto existing forks
Fixation Type	Sliding
Safety Standards	CE (European conformity)
Warranty	Electronic at www.vevor.com/support
Technical Support	www.vevor.com/support
Package Contents	1 pair of extensions
Maintenance	Inspect before each use
Safety	Do not exceed capacity; load center limited to 50% of extension
Country of Origin	China
Repairability	Contact after-sales service

Frequently Asked Questions - HX-8 Vevor

How to install HX-8 fork extensions on a forklift?

Remove the extended fork cover, place it flat, adjust the distance between the carriage and the fork. Insert the ring into the fork, push down, then place horizontally. See figures 1 to 6 in the manual.

What is the maximum load capacity of HX-8 extensions?

The maximum capacity is 4000 lb (1815 kg) per pair.

Are HX-8 extensions compatible with all forklifts?

They are designed for forks with an inner width of 165 mm. Check the width of your forks before purchase.

What are the dimensions of HX-8 extensions?

Length: 2440 mm, inner width: 165 mm.

Are there important safety instructions to follow?

Never exceed the load capacity. The load center must not exceed 50% of the fork extension. Do not stand on the product.

How to maintain the fork extensions?

Visually inspect before each use for cracks, deformations, or wear. Clean with a dry cloth and store away from moisture.

Are HX-8 extensions under warranty?

Yes, Vevor offers an electronic warranty. Go to www.vevor.com/support to register your product.

Can I use the extensions on a forklift with a retractable mast?

Yes, as long as the forks have an inner width of 165 mm and the forklift capacity is sufficient.

What is the weight of HX-8 extensions?

The weight is not specified in the manual, but it is approximately 40-50 kg per pair for this type of product.

Where can I find the complete manual?

Download the manual in PDF format for free from notice-facile.com or from the Vevor website.

USER MANUAL HX-8 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FORK EXTENSIONS USER MANUAL

MODEL: HX-1/HX-2/HX-3/HX-4/HX-5 HX-6/HX-7/HX-8/HX-11

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

MODEL: HX-1/HX-2/HX-3/HX-4/HX-5/HX-6/HX-7/HX-8/HX-11

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY INSTRUCTION AND PRECAUTIONS

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

1. This product is not a toy. Do not allow children to play with this product.
2. Use as intended only. Do not stand on the product.
3. This product needs to be used with a forklift truck.
4. Never exceed the load capacity of the fork extenders.
5. When picking up a load, the load center should never exceed the fork extension.

OPERATION AS BELOW

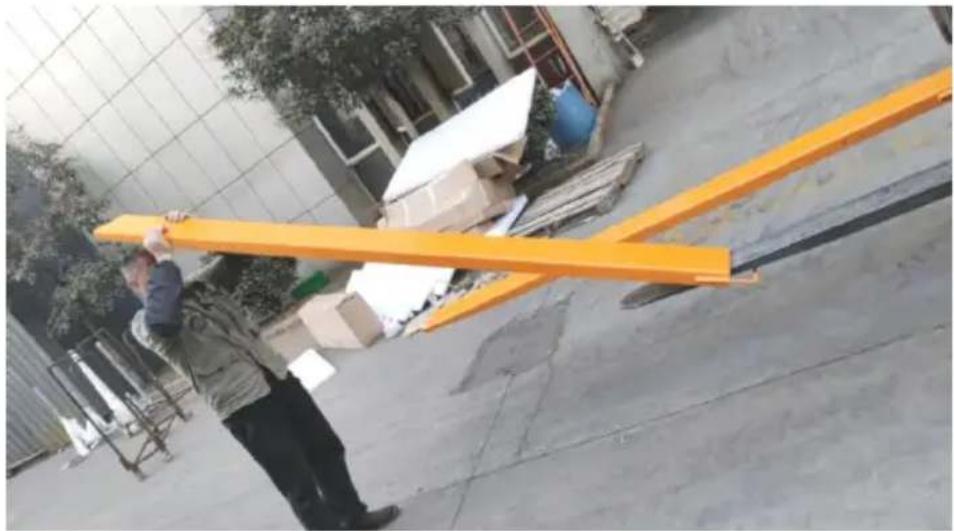

1. Take out the extended fork cover, place it flat on the ground, and adjust the distance between the forklift truck and the fork according to the goods.

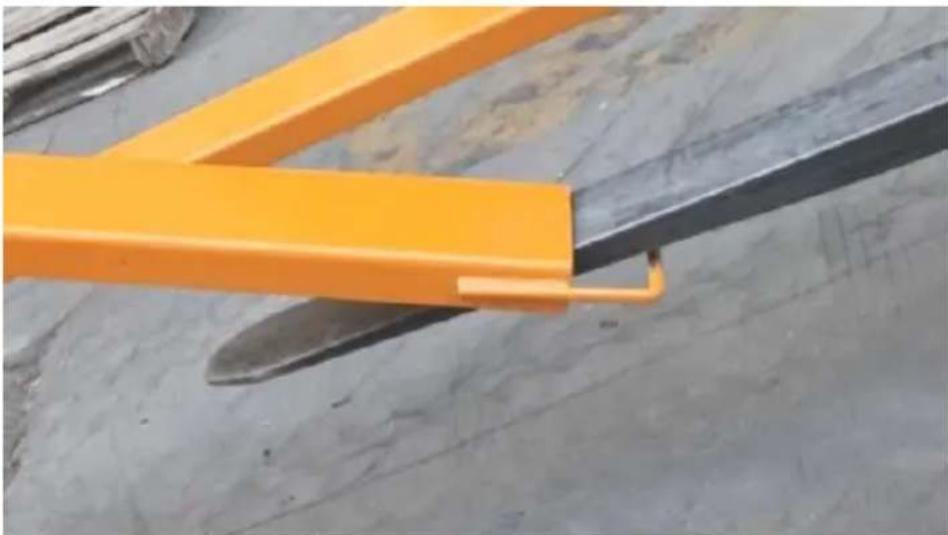

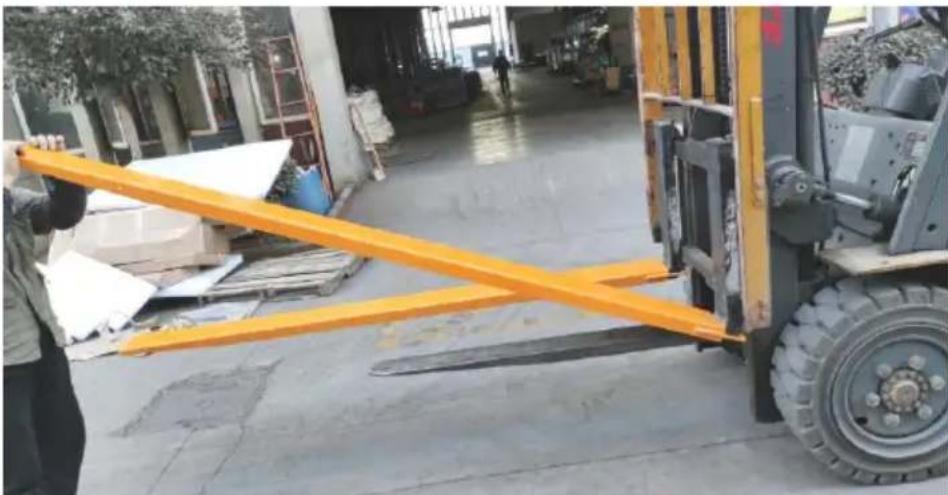

2. Insert the ring of the extended fork cover into the fork of the forklift. (Figure 1, Figure 2)

(Figure 1)

(Figure 2)

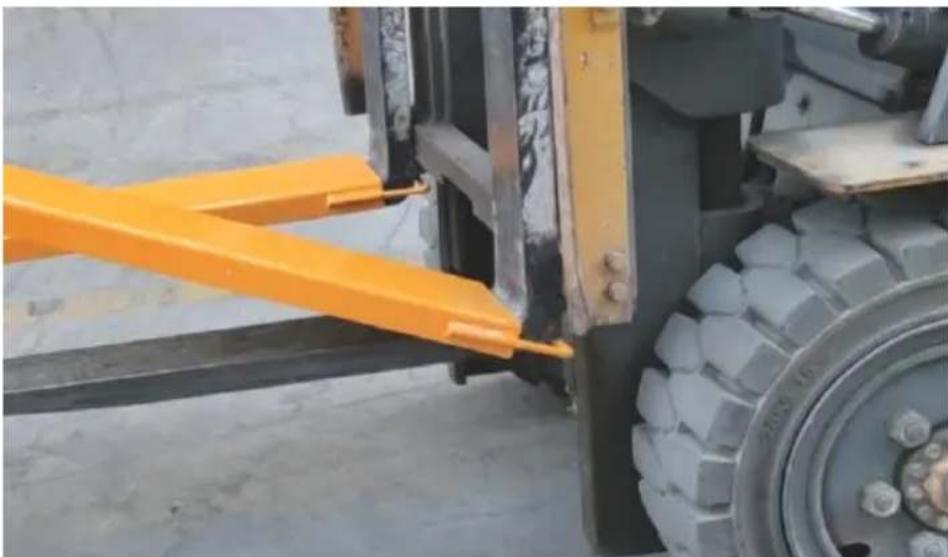

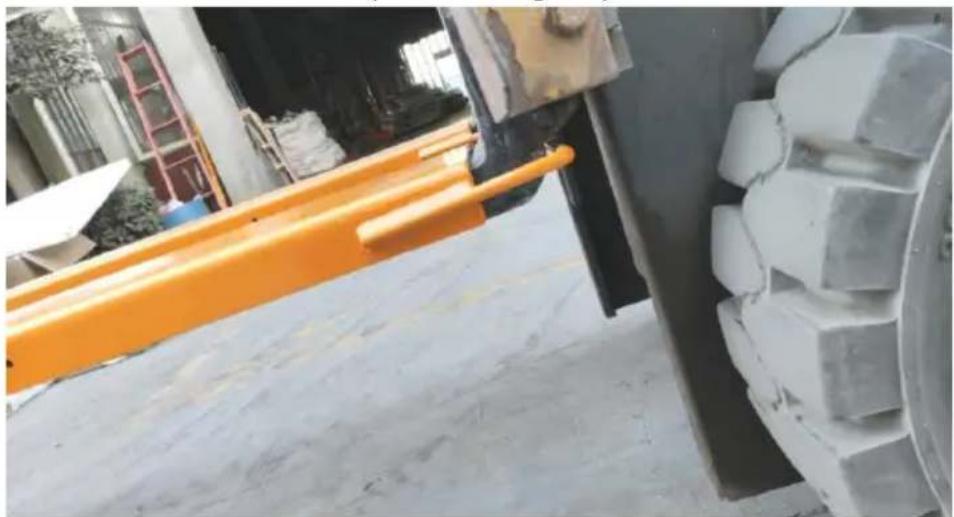

1. Push the extended fork cover directly to the bottom of the fork of the forklift truck. (Figure 3, Figure 4)

(Figure 3)

(Figure 4)

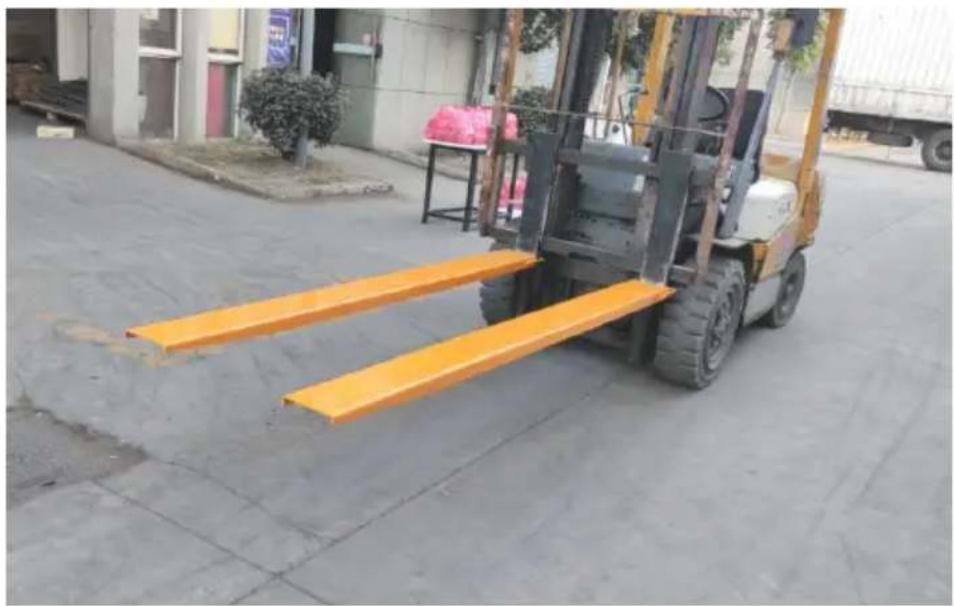

1. Then place the lengthened fork cover horizontally on the fork of the forklift to complete the installation. (Figure 5, Figure 6)

(Figure 5)

(Figure 6)

1. After the extension fork sleeve is installed, you can use the forklift to pick up the goods normally.

	Items	Description
1	Name	Fork Extensions
2	Model	HX-1
3	Parameter	Length: 1520mm, Inside width 115mm, Integrated MAX load bearing4000lbs(1.815t)/per pair
2	Model	HX-2
3	Parameter	Length: 1820mm, Inside width: 115mm, IntegratedMAX load bearing: 4000lbs(1.815t)/per pair

	Items	Description
1	Name	Fork Extensions
2	Model	HX-3
3	Parameter	Length: 1820mm, Inside width: 140mm, Integrated MAX load bearing: 4000lbs(1.815t)/per pair

	Items	Description
1	Name	Fork Extensions
2	Model	HX-4
3	Parameter	Length: 2130mm, Inside width: 115mm, IntegratedMAX load bearing: 4000lbs(1.815t)/per pair

	Items	Description
1	Name	Fork Extensions
2	Model	HX-5
3	Parameter	Length: 2130mm, Inside width: 140mm, IntegratedMAX load bearing: 4000lbs(1.815t)/per pair

	Items	Description
1	Name	Fork Extensions
2	Model	HX-6
3	Parameter	Length: 2440mm, Inside width 115mm, Integrated MAX load bearing4000lbs(1.815t)/per pair
2	Model	HX-7
3	Parameter	Length: 2440mm, Inside width: 140mm, IntegratedMAX load bearing: 4000lbs(1.815t)/per pair

	Items	Description
1	Name	Fork Extensions
2	Model	HX-8
3	Parameter	Length: 2440mm, Inside width: 165mm, Integrated MAX load bearing: 4000lbs(1.815t)/per pair

	Items	Description
1	Name	Fork Extensions
2	Model	HX-11
3	Parameter	Length: 1520mm, Inside width: 140mm, IntegratedMAX load bearing: 4000lbs(1.815t)/per pair

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW : Australia

Imported to USA: Sanven Technology Ltd, Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made In China
