HX-4 - Forklift Vevor - Free user manual and instructions
Find the device manual for free HX-4 Vevor in PDF.
| Product Type | Forklift Fork Extensions |
| Brand | Vevor |
| Model | HX-4 |
| Length | 2130 mm |
| Inside Width | 115 mm |
| Maximum Load Capacity | 4000 lb (1815 kg) per pair |
| Intended Use | Extending the reach of forklift forks |
| Material | Integrated steel (unspecified, estimated) |
| Installation | Insert the ring into the fork and push to the bottom of the fork |
| Load Center | Must not exceed 50% of the fork extension |
| Safety Instructions | Read the manual before use, do not exceed capacity, do not stand on the product, do not allow children to play |
| Maintenance | Check for damage before each use, clean after use |
| Repairability | Spare parts available via Vevor support |
| Warranty | Electronic warranty certificate available at www.vevor.com/support |
Frequently Asked Questions - HX-4 Vevor
User questions about HX-4 Vevor
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Forklift in PDF format for free! Find your manual HX-4 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HX-4 by Vevor.
USER MANUAL HX-4 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
FORK EXTENSIONS USER MANUAL
MODEL: HX-1/HX-2/HX-3/HX-4/HX-5 HX-6/HX-7/HX-8/HX-11
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODEL: HX-1/HX-2/HX-3/HX-4/HX-5/HX-6/HX-7/HX-8/HX-11

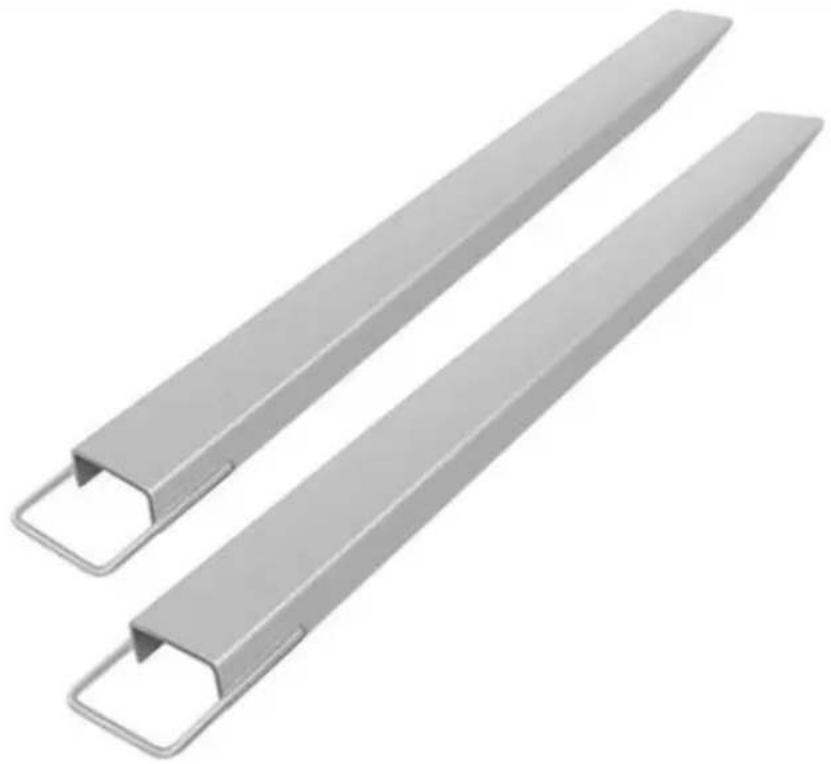

Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
SAFETY INSTRUCTION AND PRECAUTIONS
WARNING:
Read this material before using this product. Failure to do so can re serious injury.
- This product is not a toy. Do not allow children to play with this
- Use as intended only. Do not stand on the product.
- This product needs to be used with a forklift truck.
- Never exceed the load capacity of the fork extenders.
- When picking up a load, the load center should never exceed 50^ fork extension.
OPERATION AS BELOW

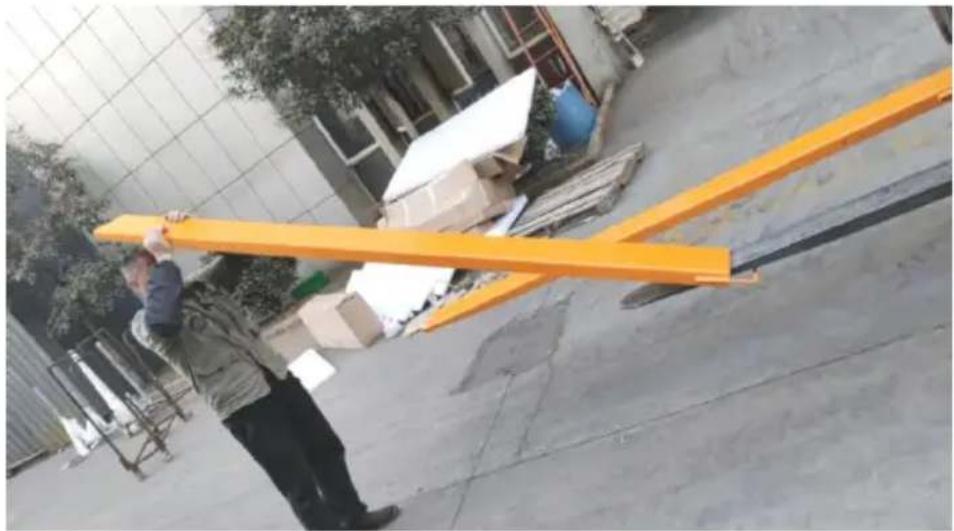

- Take out the extended fork cover, place it flat on the ground, and the distance between the forklift truck and the fork according to the goods.

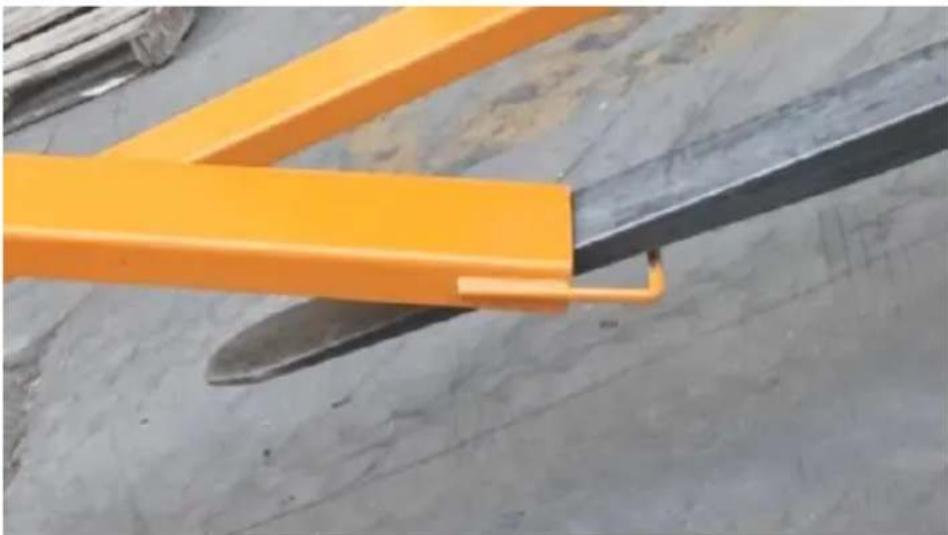

- Insert the ring of the extended fork cover into the fork of the fork through it. (Figure 1, Figure 2)


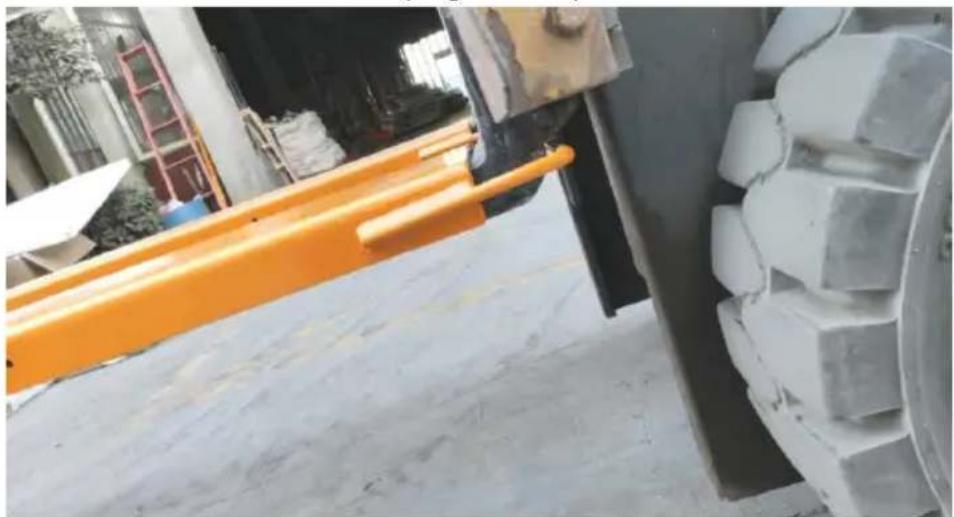

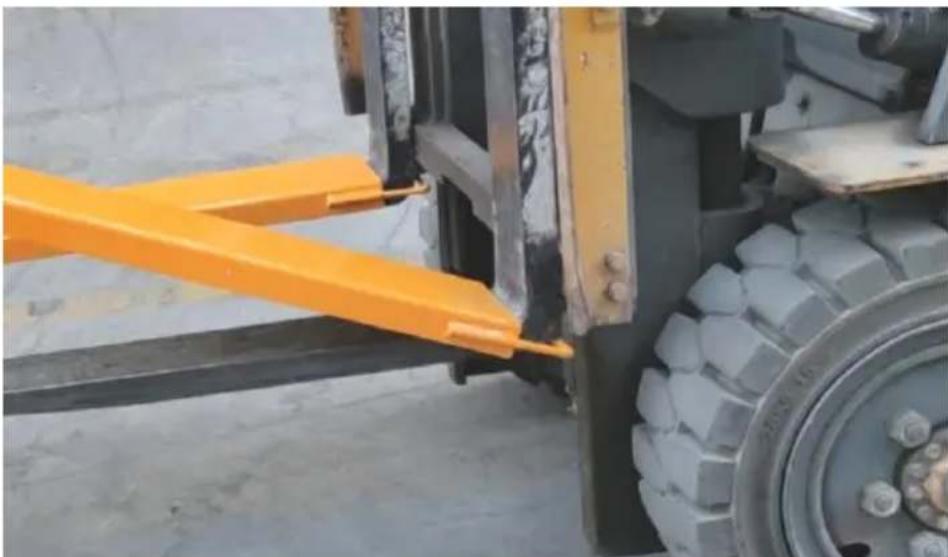

- Push the extended fork cover directly to the bottom of the fork of forklift truck. (Figure 3, Figure 4)


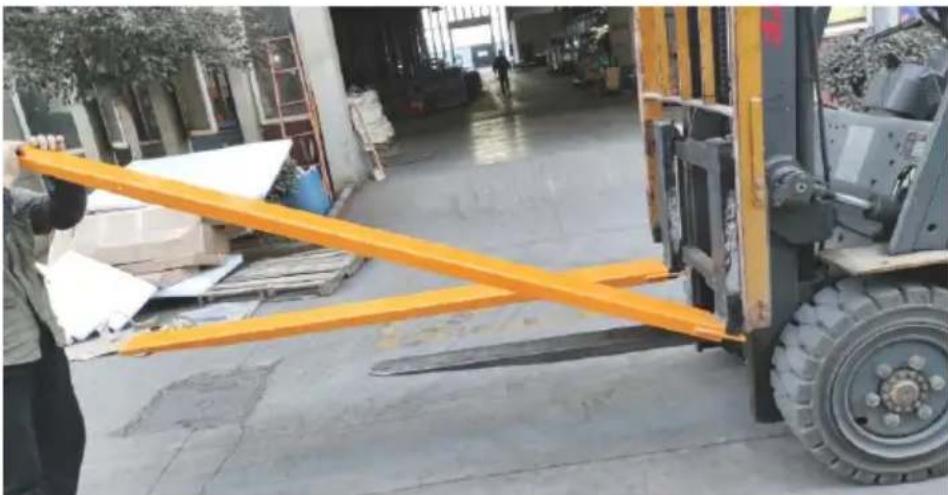

- Then place the lengthened fork cover horizontally on the fork of the forklift to complete the installation (Figure 5, Figure 6)


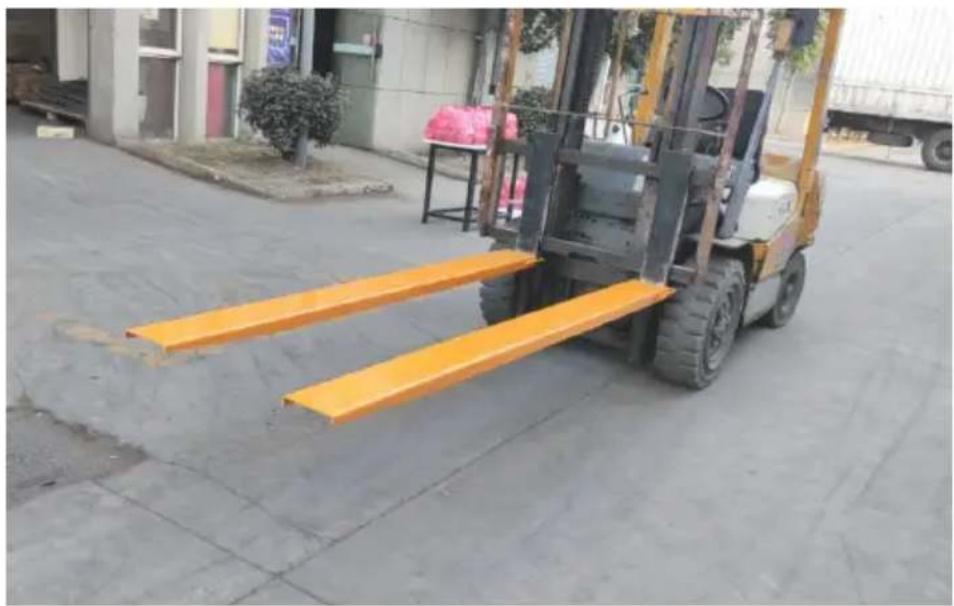

- After the extension fork sleeve is installed, you can use the forklif pick up the goods normally.
| Items | Description | |
| 1 | Name | Fork Extensions |
| 2 | Model | HX-1 |
| 3 | Parameter | Length: 1520mm, Inside width 115mm, Integrated MAX load bearing4000lbs(1.815t)/per pair |
| 2 | Model | HX-2 |
| 3 | Parameter | Length: 1820mm, Inside width: 115mm, IntegratedMAX load bearing: 4000lbs(1.815t)/per pair |
| Items | Description | |
| 1 | Name | Fork Extensions |
| 2 | Model | HX-3 |
| 3 | Parameter | Length: 1820mm, Inside width: 140mm, Integrated MAX load bearing: 4000lbs(1.815t)/per pair |
| Items | Description | |
| 1 | Name | Fork Extensions |
| 2 | Model | HX-4 |
| 3 | Parameter | Length: 2130mm, Inside width: 115mm, IntegratedMAX load bearing: 4000lbs(1.815t)/per pair |
| Items | Description | |
| 1 | Name | Fork Extensions |
| 2 | Model | HX-5 |
| 3 | Parameter | Length: 2130mm, Inside width: 140mm, IntegratedMAX load bearing: 4000lbs(1.815t)/per pair |
| Items | Description | |
| 1 | Name | Fork Extensions |
| 2 | Model | HX-6 |
| 3 | Parameter | Length: 2440mm, Inside width 115mm, Integrated MAX load bearing4000lbs(1.815t)/per pair |
| 2 | Model | HX-7 |
| 3 | Parameter | Length: 2440mm, Inside width: 140mm, IntegratedMAX load bearing: 4000lbs(1.815t)/per pair |
| Items | Description | |
| 1 | Name | Fork Extensions |
| 2 | Model | HX-8 |
| 3 | Parameter | Length: 2440mm, Inside width: 165mm, Integrated MAX load bearing: 4000lbs(1.815t)/per pair |
| Items | Description | |
| 1 | Name | Fork Extensions |
| 2 | Model | HX-11 |
| 3 | Parameter | Length: 1520mm, Inside width: 140mm, IntegratedMAX load bearing: 4000lbs(1.815t)/per pair |
Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW : Australia
Imported to USA: Sanven Technology Ltd, Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| EC | REP |
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
Unit 5 Albert Edward House, The
Pavilions Preston, United Kingdom
Made In China
