USER MANUAL HX-6 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FORK EXTENSIONS USER MANUAL

MODEL: HX-1/HX-2/HX-3/HX-4/HX-5 HX-6/HX-7/HX-8/HX-11

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: HX-1/HX-2/HX-3/HX-4/HX-5/HX-6/HX-7/HX-8/HX-11

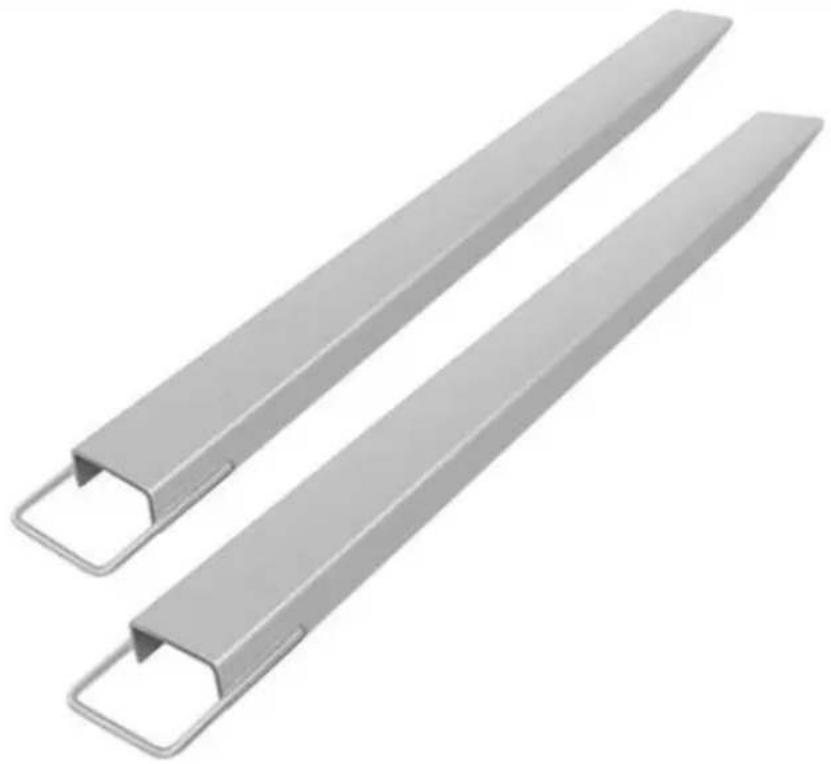

Two metallic metal bars with curved cutouts, shown against a white background (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTION AND PRECAUTIONS

WARNING:

Read this material before using this product. Failure to do so can re serious injury.

1. This product is not a toy. Do not allow children to play with this
2. Use as intended only. Do not stand on the product.
3. This product needs to be used with a forklift truck.
4. Never exceed the load capacity of the fork extenders.
5. When picking up a load, the load center should never exceed 50% fork extension.

OPERATION AS BELOW

1. Take out the extended fork cover, place it flat on the ground, and the distance between the forklift truck and the fork according to the goods.

2. Insert the ring of the extended fork cover into the fork of the fork through it. (Figure 1, Figure 2)

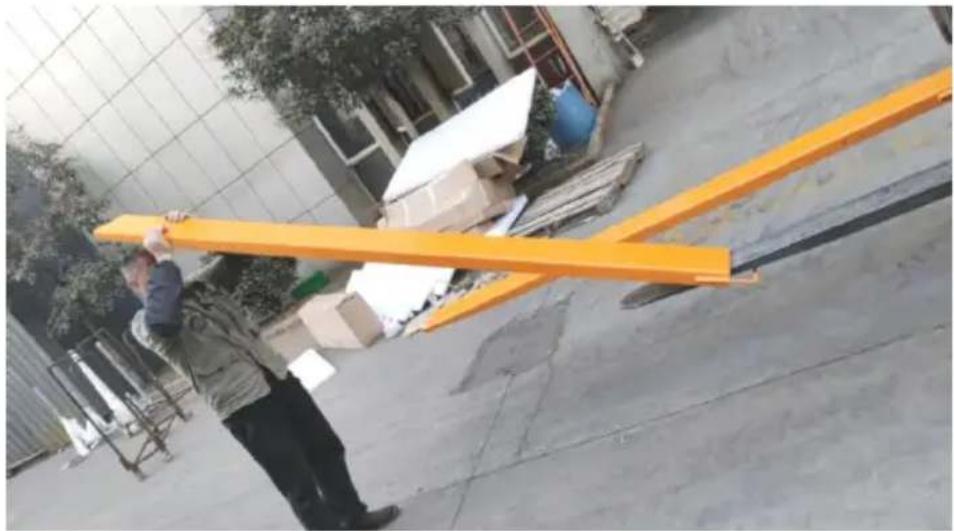

Exterior view of a construction site with workers handling large orange metal beams (no visible text or symbols)

(Figure 1)

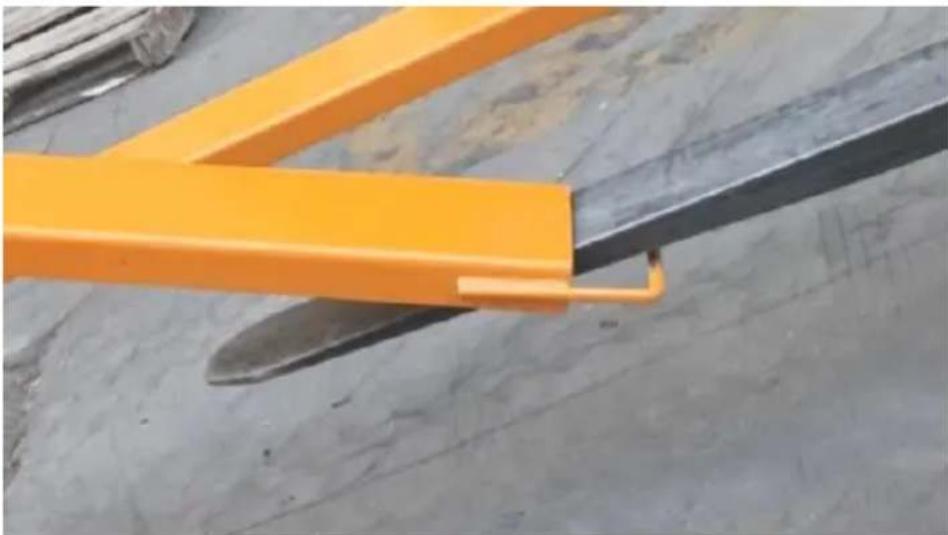

Close-up of yellow metal beams and a black handle against a concrete wall (no text or symbols visible)

(Figure 2)

1. Push the extended fork cover directly to the bottom of the fork of forklift truck. (Figure 3, Figure 4)

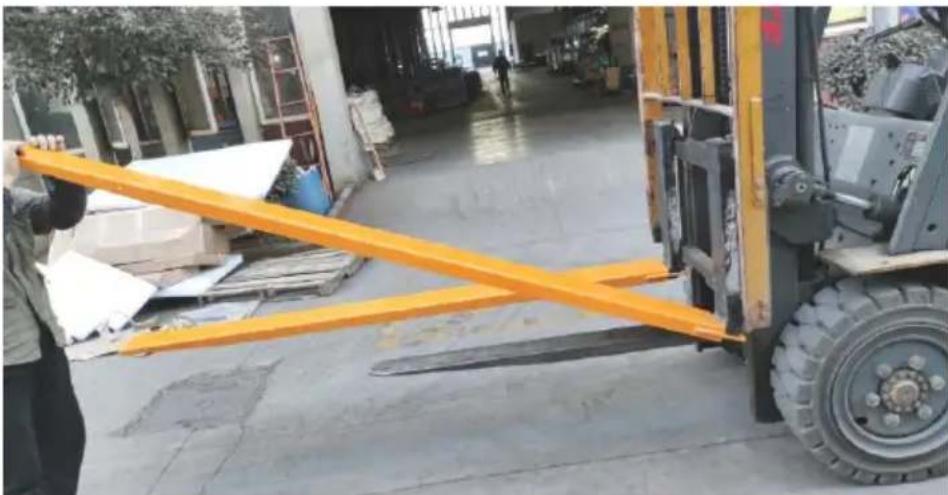

Exterior view of a warehouse with a forklift lifting a large orange bar, no visible text or symbols

(Figure 3)

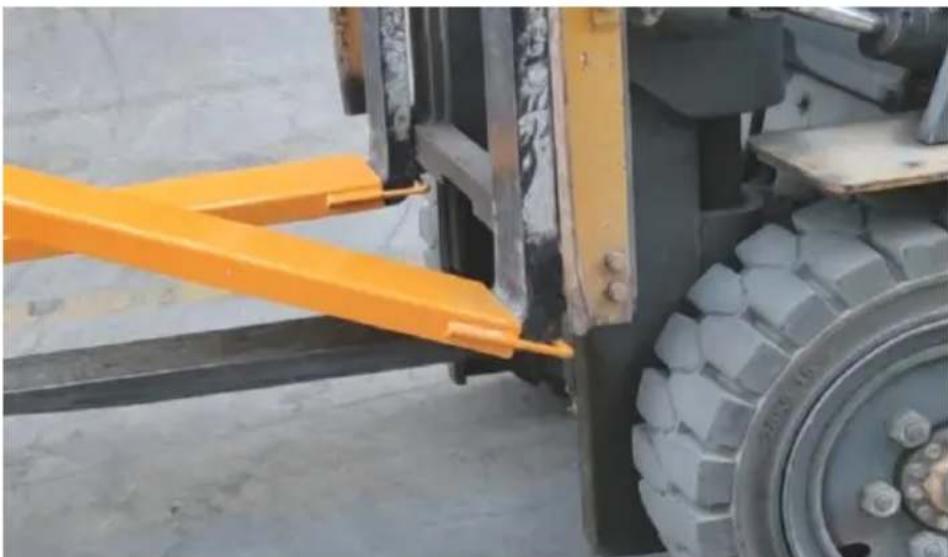

Close-up of a yellow hard truck with a large tire and orange lever attachment (no visible text or symbols)

(Figure 4)

1. Then place the lengthened fork cover horizontally on the fork of the forklift to complete the installation (Figure 5, Figure 6)

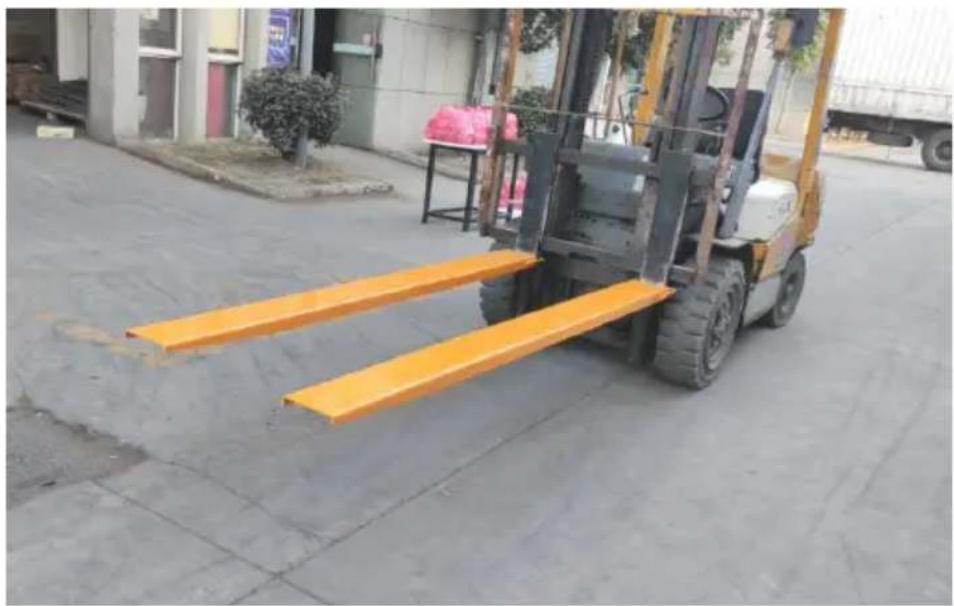

Forklift lifting yellow metal bars on a paved lot, with buildings and a truck in the background (no visible text or symbols)

(Figure 5)

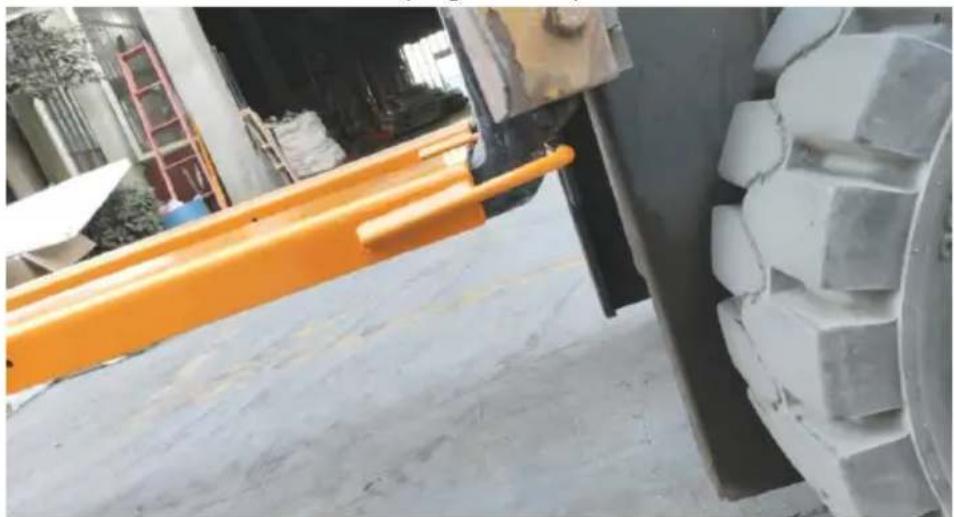

Exterior view of a construction site with orange safety barriers and large vehicle wheel (no signage or text visible)

(Figure 6)

1. After the extension fork sleeve is installed, you can use the forklif pick up the goods normally.

	Items	Description
1	Name	Fork Extensions
2	Model	HX-1
3	Parameter	Length: 1520mm, Inside width 115mm, Integrated MAX load bearing4000lbs(1.815t)/per pair
2	Model	HX-2
3	Parameter	Length: 1820mm, Inside width: 115mm, IntegratedMAX load bearing: 4000lbs(1.815t)/per pair

	Items	Description
1	Name	Fork Extensions
2	Model	HX-3
3	Parameter	Length: 1820mm, Inside width: 140mm, Integrated MAX load bearing: 4000lbs(1.815t)/per pair

	Items	Description
1	Name	Fork Extensions
2	Model	HX-4
3	Parameter	Length: 2130mm, Inside width: 115mm, IntegratedMAX load bearing: 4000lbs(1.815t)/per pair

	Items	Description
1	Name	Fork Extensions
2	Model	HX-5
3	Parameter	Length: 2130mm, Inside width: 140mm, IntegratedMAX load bearing: 4000lbs(1.815t)/per pair

	Items	Description
1	Name	Fork Extensions
2	Model	HX-6
3	Parameter	Length: 2440mm, Inside width 115mm, Integrated MAX load bearing4000lbs(1.815t)/per pair
2	Model	HX-7
3	Parameter	Length: 2440mm, Inside width: 140mm, IntegratedMAX load bearing: 4000lbs(1.815t)/per pair

	Items	Description
1	Name	Fork Extensions
2	Model	HX-8
3	Parameter	Length: 2440mm, Inside width: 165mm, Integrated MAX load bearing: 4000lbs(1.815t)/per pair

	Items	Description
1	Name	Fork Extensions
2	Model	HX-11
3	Parameter	Length: 1520mm, Inside width: 140mm, IntegratedMAX load bearing: 4000lbs(1.815t)/per pair

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW : Australia

Imported to USA: Sanven Technology Ltd, Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made In China
