USER MANUAL Y2 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

VACUUM CHAMBER INSTRUCTIONS

MODEL:Y2/T3/T5/T1.5

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

VACUUM CHAMBER

MODEL:Y2/T3/T5/T1.5

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING: Read this material before using this product.

Failure to do so can result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Keep the assembly area clean and well-lit.
3. Keep bystanders out of the area during assembly.
4. Do not assemble when tired or when under the influence of alcohol drugs or medication.
5. The product capabilities apply to properly and completely assembled products only.

CAUTION :

1) When the vacuum gauge of the vacuum barrel is connected with acrylic plate, rubber rings must be installed on the upper and lower: otherwise, there will be air leakage.
2) In some cases, the red rubber ring on the outer edge of the ch cover may be uneven, causing poor sealing when directly placed on chamber. This can result in the vacuum gauge showing no pressure response. To resolve this issue, follow these steps:

a. Start the vacuum pump.
b. Using both hands, firmly press down on the chamber cover for approximately 5 seconds.
c. Release the pressure on the chamber cover after observing the rotation of the pointer on the vacuum gauge.
d. The rotation of the vacuum gauge pointer indicates that the vacuum chamber and vacuum pump are operating normally.
e. By applying this treatment, you can ensure proper sealing and establish the normal operation of the vacuum chamber and vacuum pump.

Use precautions

WARNING: TO PREVENT SERIOUS INJURY FROM TIPPING:

1. This product is not a toy. Do not allow children to play with this
2. Use as intended only. Do not stand or sit on the product.
3. Make sure the red rubber ring is not loose before each use.

SAVE THESE INSTRUCTIONS

INSTRUCTIONS FOR VACUUM PUMP AND VACUUM CHAMB

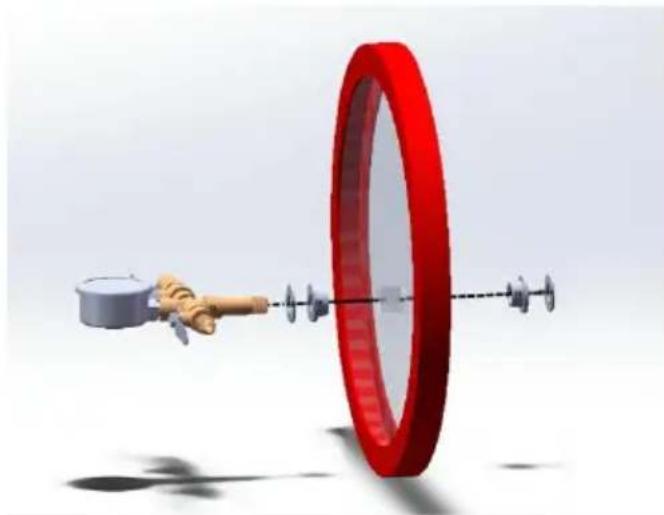

1. After removing the vacuum gauge assembly, install the vacuum gauge assembly in the order shown in the diagram, and then tighten the nut with appropriate force.

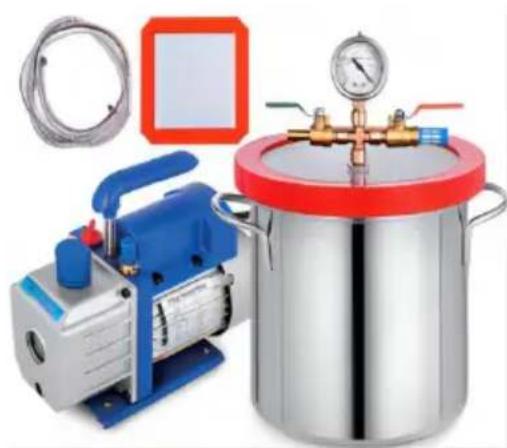

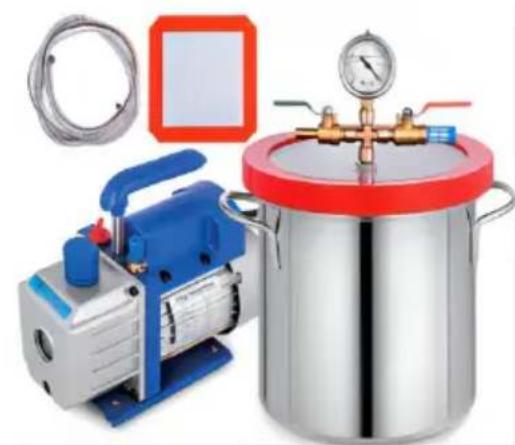

2. Prepare 1 vacuum pump, 1 vacuum chamber, and vacuum pump oil.

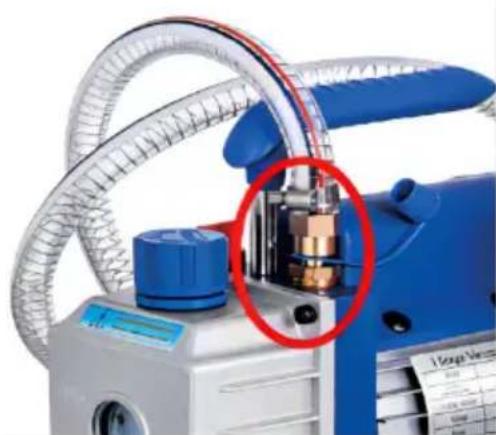

3. After filling the vacuum pump, connect the hose to the air inlet nozzle of the vacuum pump.

3D illustration of a red circular object with mechanical arms extending from its center, resembling a target or target (no text or symbols present)

Product photo of a stainless steel industrial machine with pressure gauge and coiled tubing (no visible text or symbols)

Close-up of a medical or industrial machine component with blue and silver parts, no visible text or symbols

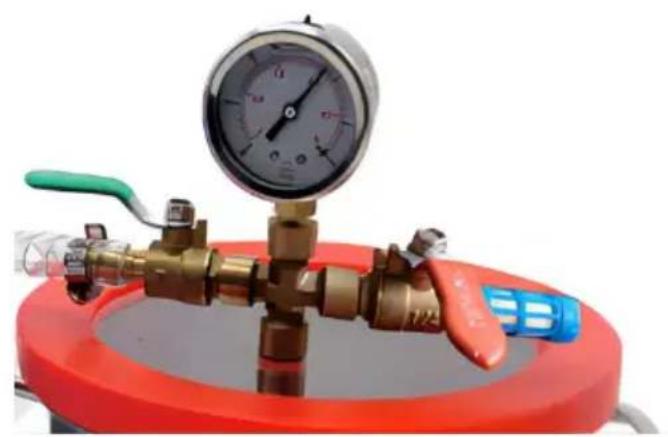

1. The interface at the other of the hose is connected with vacuum gauge, and the valve switch is shown in the figure.

Close-up of a pressure regulator with brass fittings and a red circular base (no visible text or symbols)

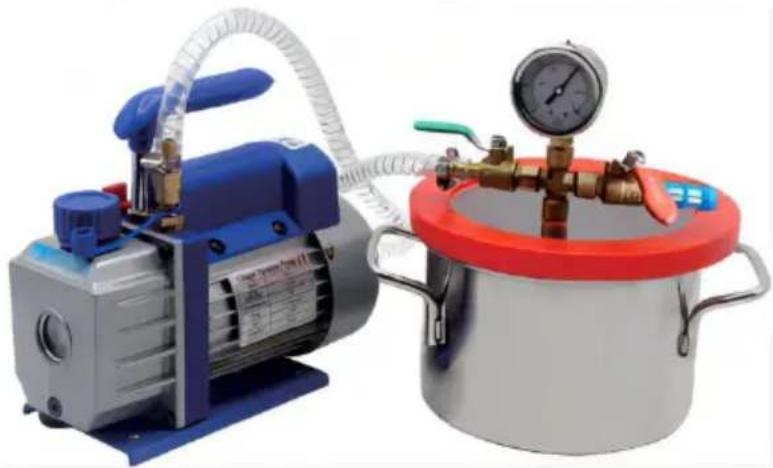

1. After the connection, start the power normally, and you can see that the pointer pressure of the vacuum gauge will rotate.

Two industrial vacuum pumps and a red-capped cylindrical tank with pressure gauge (no visible text or symbols)

TECHNICAL PARAMETER

Model	T3	T5	Y2	T1.5
Volume	11L(3gal)	18L(5gal)	7L(2gal)	5.5L(1.5gal)
Product size(mm)	230*270	280*300	210*200*180	230*160
Chamber Material	304	304	Acrylic	304
Cover Material	Temped Glass	Temped Glass	Acrylic	Temped Glass
Connecting port of gauge	1/4inchSAE female	1/4inchSAE female	1/4inchSAE female	1/4inchSAE female

The general information given in this specification is not binding .

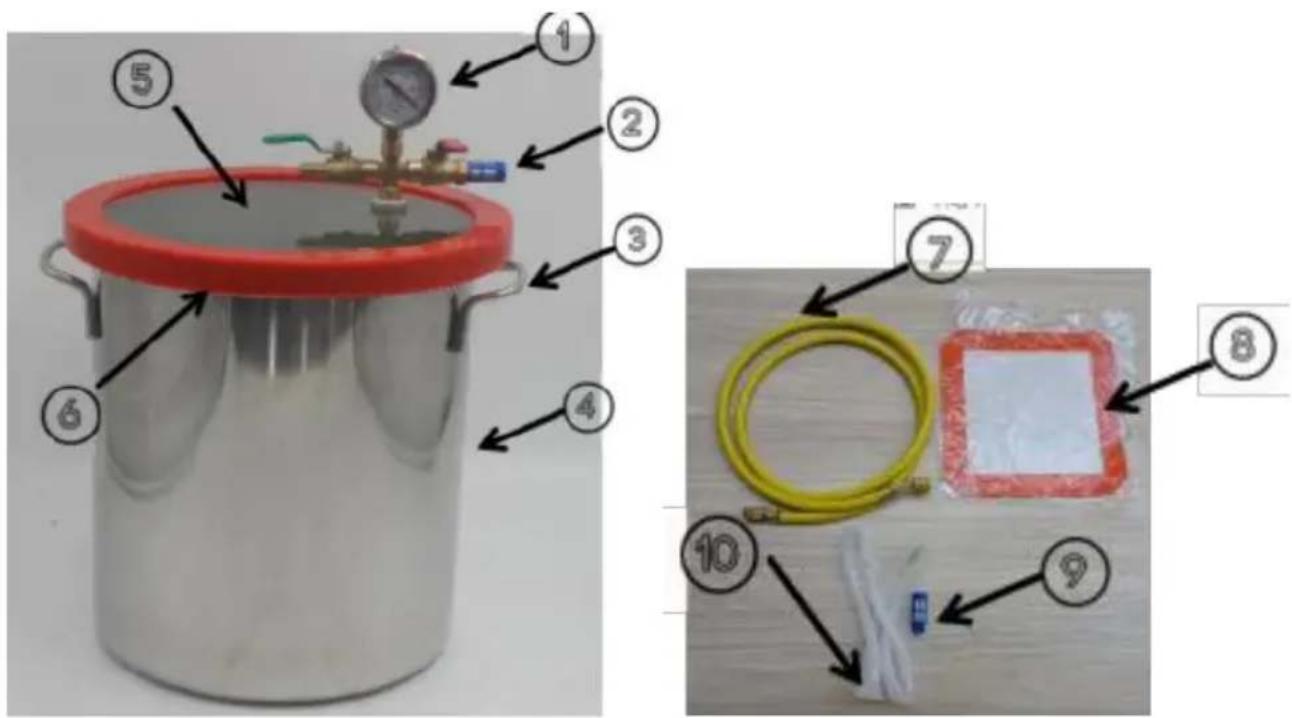

Composition of vacuum chamber components (T5, T1.5)

Labeled diagram of a gas storage tank and its internal components, including pressure gauge, tubing, and plastic bag.

1. Vacuum gauge
2. Silencer
3. Handle
4. Barrel body stainless steel
5. Tempered glass
6. Red rubber ring
   7.1.5 beige rubber tube
7. Square gasket

8. White rubber ring (complimentary)

9. One additional accessory silencer (complimentary)

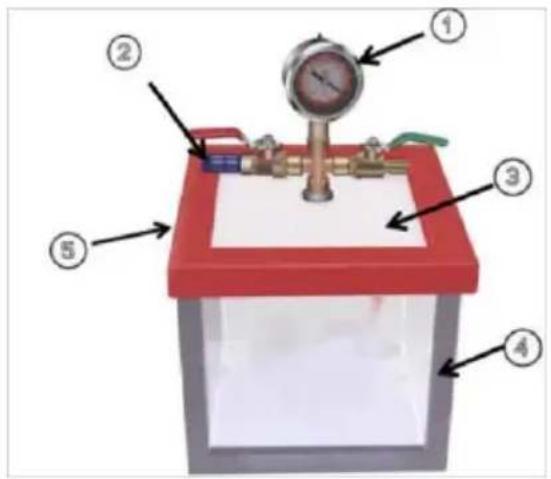

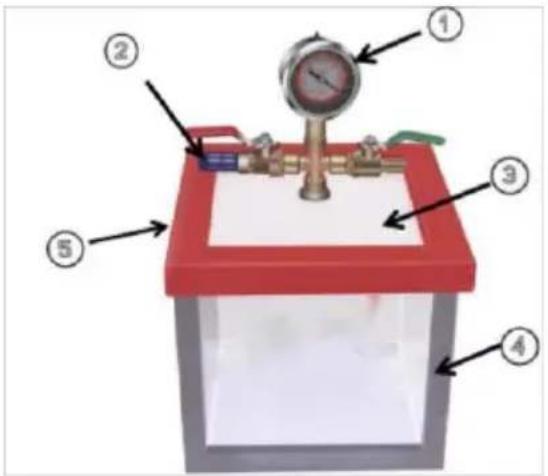

Composition of vacuum chamber components (2)

Labeled diagram of a pressure regulator device with numbered components

Diagram showing a yellow hose with labeled parts and a red square patch, marked with numbers 6, 7, and 8.

1. Vacuum gauge
2. Silencer
3. Acrylic cover plate
4. Barrel body acrylic
5. Square red rubber ring
   6.1.5 beige rubber tube

6. Square gasket

7. One additional accessory silencer (complimentary)

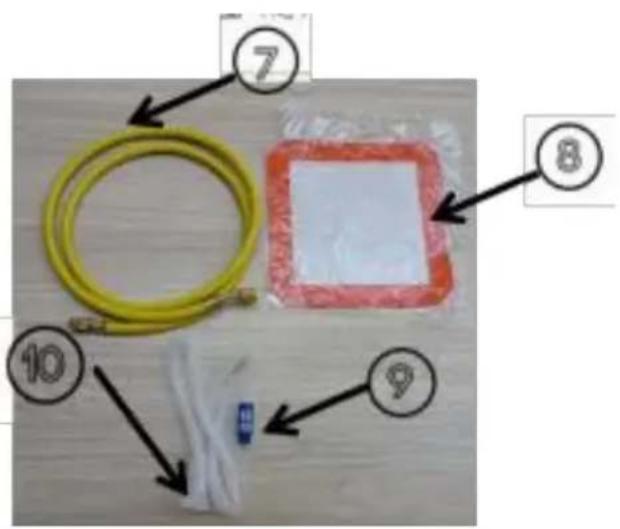

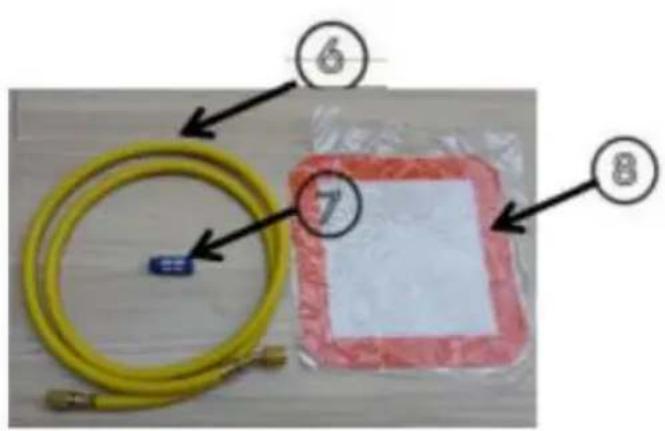

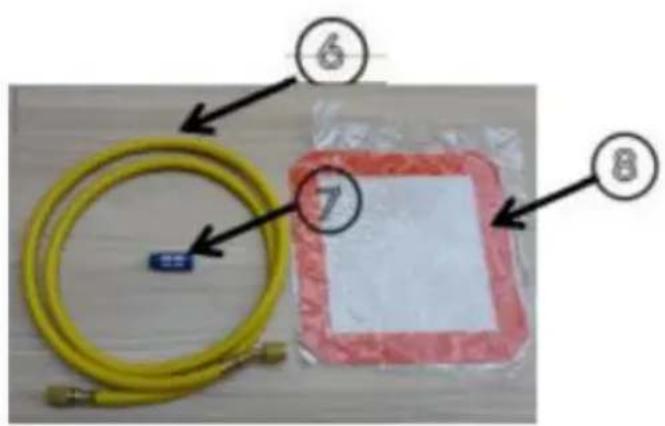

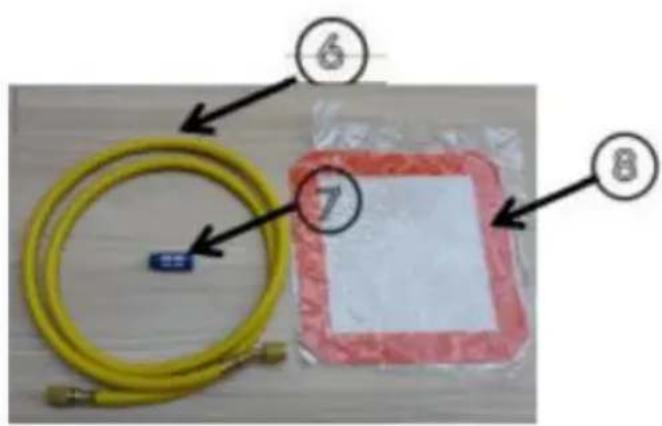

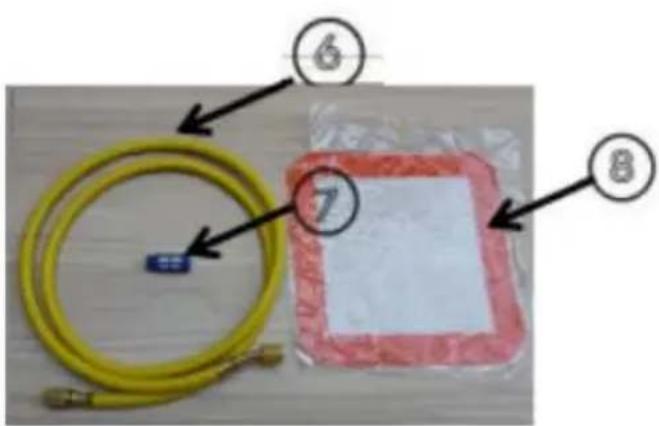

STANDARD ACCESSORIES

PART NO.	DESCRIPTION	QTY
1	1.5 meter rubber tube (yellow)	1
2	White rubber ring (No include Y)	1
3	Silencer	1
4	Square gasket	1
5	Vacuum gauge (No include Y2)	1
6	Wrench(No includd Y2)	1

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

VACUUM CHAMBER

MODÈLE : Y2/T3/T5/T1.5

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

Illustration of industrial equipment including a red circular component, pressure pump, and a metallic storage tank (no text or symbols)

Close-up of a blue industrial machine with coiled tubing and a highlighted component (no visible text or symbols)

Close-up of a pressure regulator with a red valve and blue handle, no visible text or symbols

Two industrial vacuum pumps and a red-capped cylindrical tank with pressure gauge (no visible text or symbols)

TECHNICAL PARAMETER

Labeled diagram of a gas storage tank and its internal components, including pressure gauge, tubing, and sample.

Labeled diagram of a pressure regulator device with numbered components

Diagram showing a yellow hose with labeled parts and a pink square patch, marked with numbers 6, 7, and 8.

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

VACUUM CHAMBER

MODELL: Y2/T3/T5/T1.5

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Illustration of industrial equipment including a red circular component, pressure pump, and a metallic cylindrical container (no text or symbols)

Close-up of a blue industrial machine with coiled tubing and a red circle highlighting a component (no visible text or symbols)

Close-up of a pressure gauge and tubing component mounted on a red circular base (no visible text or symbols)

Two industrial vacuum pumps and a red-capped cylindrical container with pressure gauge (no visible text or symbols)

TECHNICAL PARAMETER

Labeled diagram of a gas storage tank and its internal components, including pressure gauge, tubing, and plastic bag.

Labeled diagram of a pressure measurement device with numbered components

Diagram showing a yellow hose connected to a red square patch, with numbered annotations pointing to each component.

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

VACUUM CHAMBER

MODELLO: Y2/T3/T5/T1.5

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

3D illustration of a red bicycle wheel with a hand holding a cylindrical object, no text or symbols present

Product photo of a stainless steel industrial machine with pressure gauge and coiled tubing (no visible text or symbols)

Close-up of a blue industrial machine with coiled tubing and a highlighted component (no visible text or symbols)

Close-up of a pressure regulator with a red circular base and blue handle, no visible text or symbols.

Two industrial vacuum pumps and a red-capped cylindrical tank with pressure gauge (no visible text or symbols)

TECHNICAL PARAMETER

Labeled diagram of a gas storage tank and its internal components, including pressure gauge, tubing, and plastic bag.

Labeled diagram of a pressure regulator device with numbered components

Diagram showing a yellow hose with labeled parts and a pink square patch, marked with numbers 6, 7, and 8.

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

VACUUM CHAMBER

MODELO: Y2/T3/T5/T1.5

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

3D illustration of a red circular object with a hand holding a small container, connected by mechanical arms (no text or symbols)

Product photo of industrial equipment including a blue hydraulic pump, stainless steel storage tank, and coiled tubing (no visible text or symbols)

Close-up of a blue industrial machine with coiled tubing and a highlighted component (no visible text or symbols)

Close-up of a pressure regulator with a red circular base and blue handle, no visible text or symbols.

Two industrial vacuum pumps and a red-capped cylindrical tank with pressure gauge (no visible text or symbols)

TECHNICAL PARAMETER

Labeled diagram of a gas storage tank and its internal components, including pressure gauge, tubing, and plastic bag.

Labeled diagram of a pressure regulator device with numbered components

Diagram showing a yellow hose with labeled parts and a pink square patch, marked with numbers 6, 7, and 8.

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

VACUUM CHAMBER

MODELE: Y2/T3/T5/T1.5

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

Illustration of industrial equipment including a red circular component, a pressure pump, and a stainless steel storage tank (no text or symbols)

Close-up of a blue industrial machine with coiled tubing and a highlighted component (no visible text or symbols)

Close-up of a pressure regulator with brass fittings and a red circular base (no visible text or symbols)

Two industrial vacuum pumps and a red-capped cylindrical tank with pressure gauge (no visible text or symbols)

TECHNICAL PARAMETER

Labeled diagram of a stainless steel cylindrical container with numbered parts and a pressure gauge

Labeled diagram showing a yellow hose, a red square patch, and numbered items 7, 8, 9, 10 on a wooden surface.

Labeled diagram of a pressure regulator device with numbered components

Diagram showing two labeled components: a yellow hose with connector and a red square patch, marked with numbers 6 and 8.

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en E-garantiecertificaat www.vevor.com/support

VACUÜM KAMER INSTRUCTIES

MODEL: Y2/T3/T5/T1.5

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

VACUUM CHAMBER

MODEL: Y2/T3/T5/T1.5

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

3D illustration of a red bicycle with a hand holding a cylindrical object, no text or symbols present

Product photo of industrial equipment including a blue hydraulic pump, stainless steel storage tank, and coiled tubing (no visible text or symbols)

Close-up of a blue industrial machine with coiled tubing and a highlighted component (no visible text or symbols)

Close-up of a pressure regulator with a red circular base and blue handle, no visible text or symbols.

Two industrial vacuum pumps and a red-capped cylindrical tank with pressure gauge (no visible text or symbols)

TECHNICAL PARAMETER

Labeled diagram of a gas storage tank and its corresponding assembly with numbered parts and components

1. Vacuümmeter
2. Geluiddemper
3. Handvat
4. Vatlichaam roestvrij staal
5. Gehard glas
6. Rode rubberen ring
   7.1.5 beige rubberen buis

7. Vierkante pakking

8. Eén extra accessoire-demper (gratis)

9. Witte rubberen ring (gratis)

Samenstelling van vacuumkamercomponenten ( Y2 )

Labeled diagram of a pressure regulator device with numbered components

Diagram showing a yellow hose and a red square patch with numbered annotations pointing to each.

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

VACUUM CHAMBER

MODELL: Y2/T3/T5/T1.5

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

Illustration of industrial equipment including a red circular component, pressure pump, and a metallic storage tank (no text or symbols)

Close-up of a blue industrial machine with coiled tubing and a highlighted component (no visible text or symbols)

Close-up of a pressure regulator with brass fittings and a red circular base (no visible text or symbols)

Two industrial vacuum pumps and a red-capped cylindrical tank with pressure gauge (no visible text or symbols)

TECHNICAL PARAMETER

M odel	T3	T5	Y2	T 1,5
Volym	11L(3gal)	18L (5gal)	7L (2gal)	5,5 L (1,5 gal)
Produktstorlek (mm)	230*270	280*300	210*200*180	230*160
Kammarmaterial	304	304	Akryl	304
Täckmaterial	Temperat glas	Temperat glas	Akryl	Temperat glas
Anslutningsport för mätare	1/4 tum SAE hona	1/4 tum SAE hona	1/4 tum SAE hona	1/4 tum SA hona

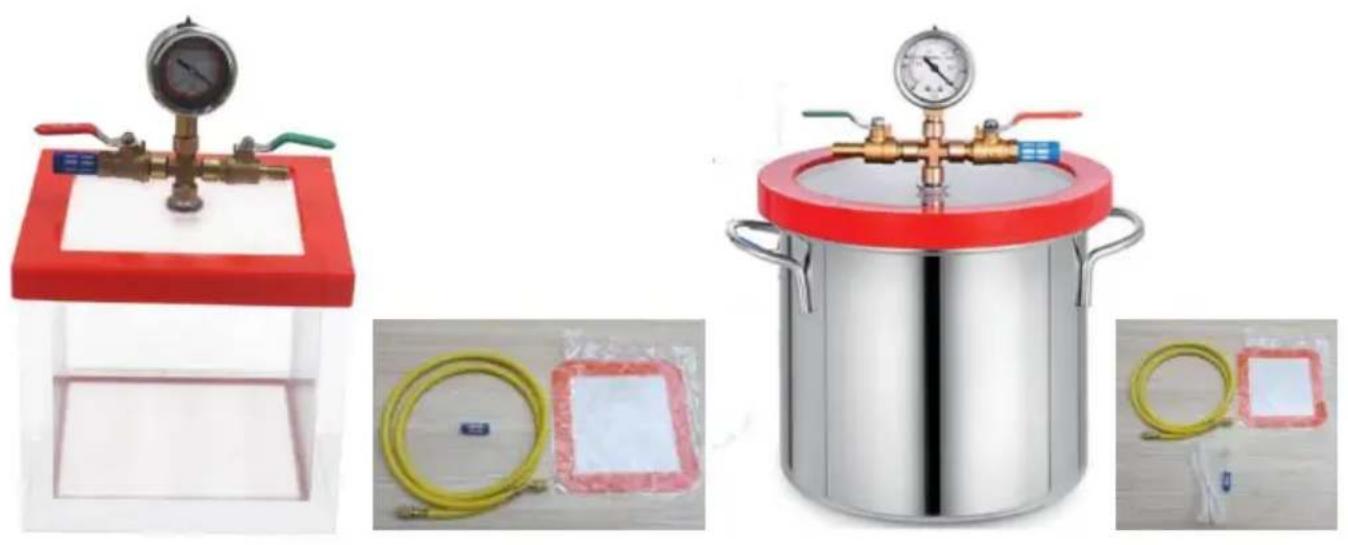

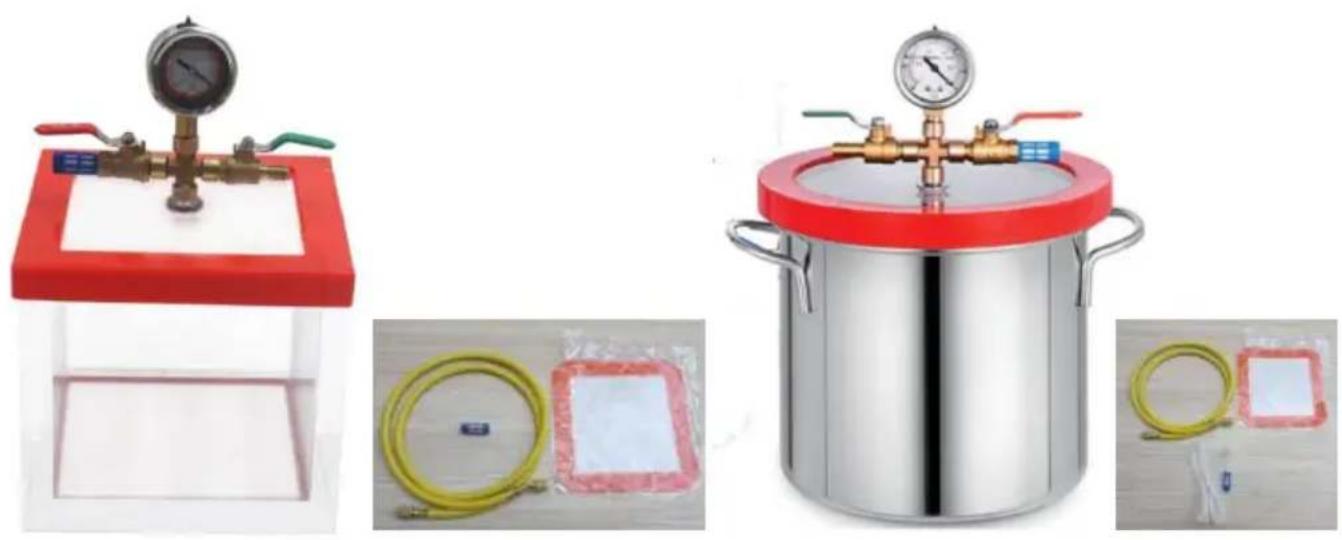

Labeled diagram of a gas storage tank and its internal components, including pressure gauge, tubing, and plastic bag.

1. Vakuummätare
2. Ljuddämpare
3. Handtag
4. Fatkropp i rostfritt stål
5. Härdat glas
6. Röd gummiring

7.1.5 beige gummislang
8. Fyrkantig packning
9. Ytterligare en ljuddämpare (gratis)
10. Vit gummiring (gratis)

Labeled diagram of a pressure regulator device with numbered components

Diagram showing a yellow hose with labeled parts and a red square patch, marked with numbers 6, 7, and 8.

www.vevor.com/support
