USER MANUAL PL-80M Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

STUD WELDER DENT REPAIR KIT

MODEL:PL-80M

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

STUD WELDER DENT REPAIR KI'

MODEL: PL-80M

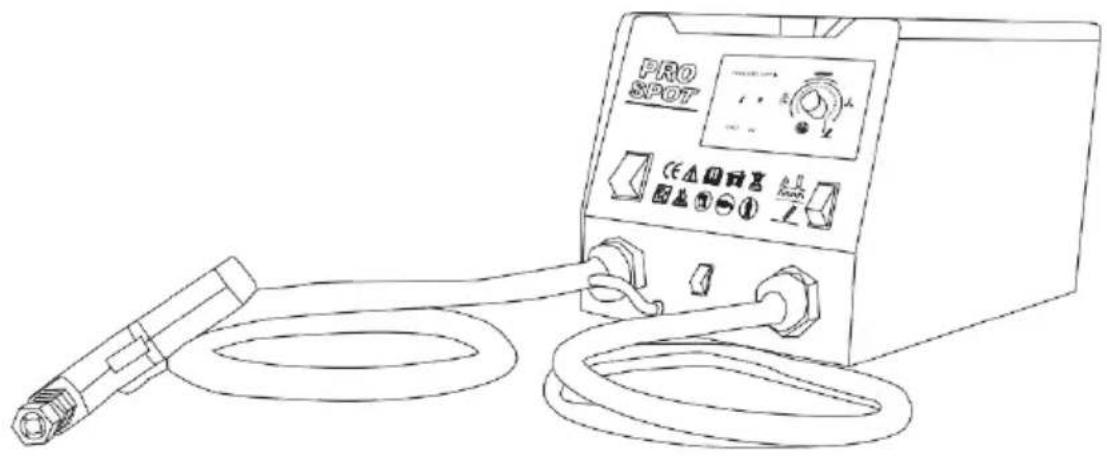

Line drawing of a PRO SPOT testing device with attached probe and tubing (no text or symbols on main body)

Photos are for reference only, in kind prevail.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

[e-mail]

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your use, there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	This device complies with Part 15 of the FCC Rules. is subject to the following two conditions:(1)This device not cause harmful interference, and (2)this device must any interference received, including interference that may cause undesired operation.
	This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electri electronic devices.

Thank you for choosing this VEVOR product; please read this instruction manual carefully before installing and using this product, and keep it in a safe place for future reference. This product is designed to carry out the following operations in a car body workshop: dent pulling, welding of round meson pad, OT meson, wavy wire and stud; spot v direct pulling; flattening; removal of bumps and dents.

Power Attention

- Ensure that the product is connected to the ground wire and the grounding power supply line is well.

- Ensure that the work table is connected to the grounding device.

- To prevent the operator from touching the metal parts to be welded absence of protection or wet clothing

- Avoid contacting with the weld place.

- Do not spot weld on very wet or wet ground.

- Do not use worn or broken cable for welding. Check whether the

has insulation defects or bare copper wire, whether the connection is whether has water leakage and other unsafe factors.

• Turn off the machine before replacing the wire..
• Turn off the machine and cut off the power supply before all insp and maintenance..

Eyes and Body Protection:

• The operator should wear protective clothing to prevent metal melt splash during welding, such as: leather gloves, leather apron, safety masks or protective glasses.
• At the same time, the eyes should be protected during polishing a hammering.
• Do not wear rings, watches, jewelry and other conductive materials, because they have the risk of causing serious burns.

Power supply

- PL-80M; 1ph 110V or 2ph 220V 50/60Hz, 16A circuit breaker, curve 16 A fuse aM type.

If the product trips the circuit breaker, please check whether using the fuse and circuit breaker.

This product is designed to be used in an industrial or professional environment. In a different environment, it can be difficult to ensure electromagnetic compatibility due to conducted disturbances as well as radiation.

Setting

• Connect the machine to an appropriate power supply.
• Start the machine and turn on the potentiometer. The initial indicator "0" and the standby mode is Tool 2" round meson pad.
• Different modes are selected by adjusting the potentiometer:

* Adjust triangle plate: sheet tension welding.
* Adjust wave wire: wave line welding, suitable for bending flat welding
* Adjust flattening: remove the bump by pressing.

* Adjust carbon rod: carbon rod shrinking (fire reduction).

- Rotating the potentiometer to change the power level in accordance regarding demand.

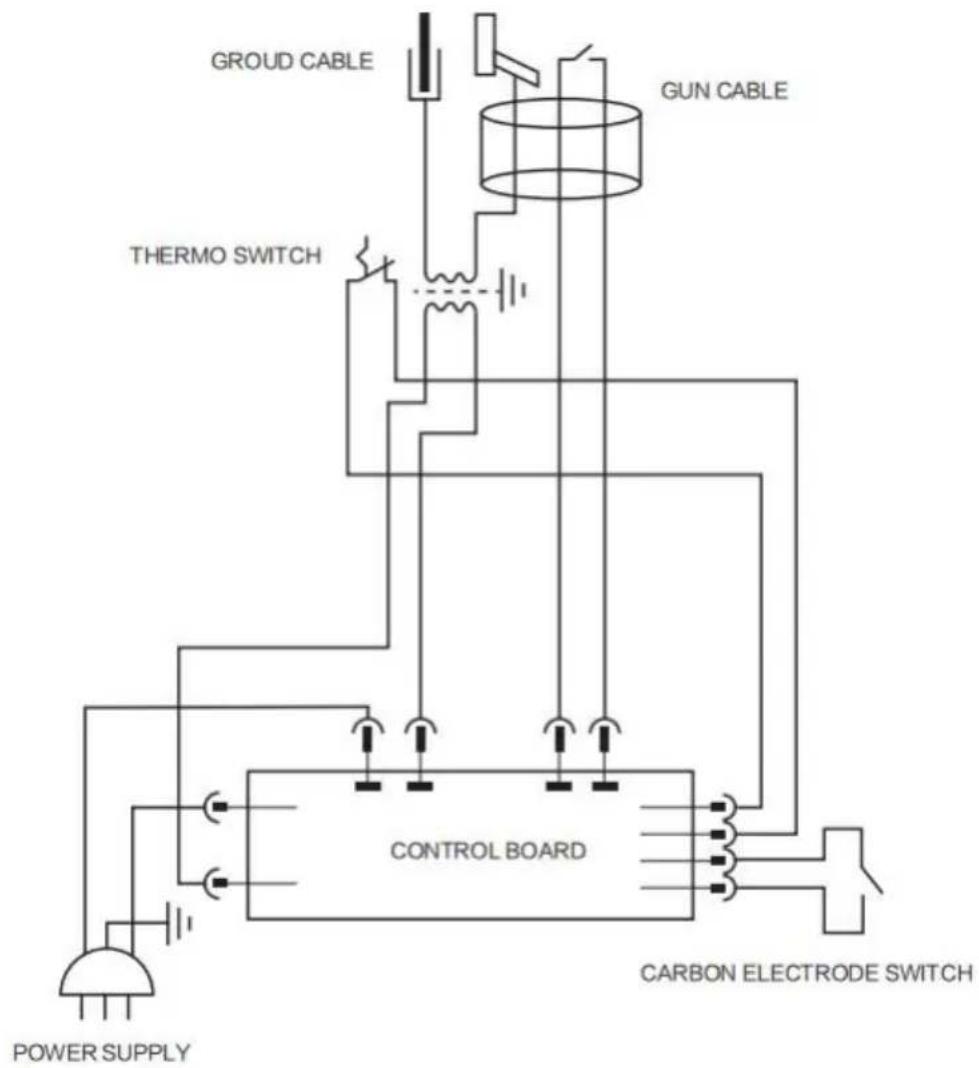


Operation

1-Automatic Arc:

PL-80M

Adjust the "Carbon Rod" function by the function switch on the panel Potentiometer to adjust power, different rotation angle corresponding to different power.

2-How to operate:

Follow process:

Connect the earth clamp of the generator to the sheet metal to be straightened and follow the instructions below:

Connect it as close as possible to the place to be welded

Do NOT connect it to a different part of the car body.

Ensure the metal has been properly stripped at the connection point.

• Strip the area where the metal is to be worked.
• Attach the required tool to the end of the gun, tightening the nut
• Select the tool and the power level(see"Operating and Setting")on the machine
• Make contact between the tool on gun and the metal
• Generate your welding arc.

PL-80M

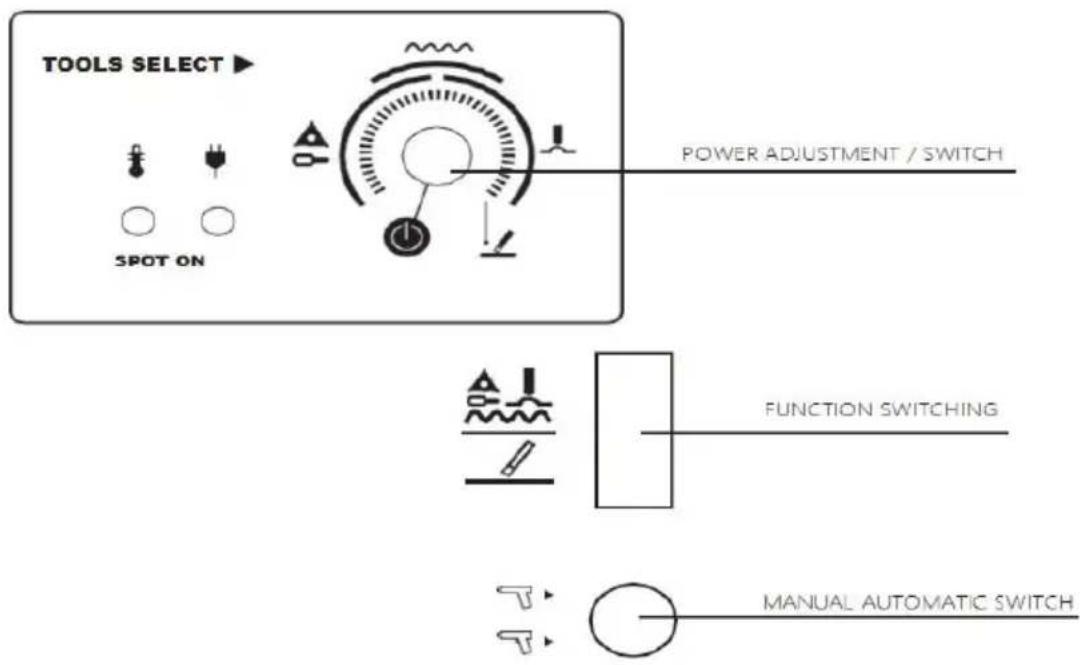

TOOLS SELECT ▶ SPOT ON POWER ADJUSTMENT / SWITCH FUNCTION SWITCHING MANUAL AUTOMATIC SWITCH

Overheat Protection System

This machine is equipped with an automatic overheat protection system and this system can automatically stop the machine from operating for few minutes in the case of excessive use of the machine. In this ca buzzer will emit (hum...... hum...... hum...... ) sound.

Automatic Pulse System

This machine is equipped with an automatic pulse system with automatic pulse function. For full contact welding tools and steel plate, the host automatically detects the power link, then generates a point in 2 seconds change to programming welding mode, solid welding and joint, smaller point, reduce the degree of carbonation, and improve work efficiency.

Safety Regulations and General Considerations

In any of the following circumstances, no liability shall be borne for damage to the personnel or goods caused by the use of the machin

• The customer may modify the safety element by himself or prevent from running.
• Failure to comply with this instruction.
• Modify product performance.
• Use of non original parts or accessories.
• Do not comply with the country's special regulations and settings in which the machine was installed.

Summary

• Disconnect the power supply before disconnecting the machine shell
• The operator must be properly trained.
• The maintenance of the machine must be carried out by profession
• The operator has the responsibility to comply with the protection of electrical and electronic equipment (computer display panel, radio, alarm airbags etc.) The electrode, welding arm and other secondary conducti physical can reach very high temperature and maintain long-term high temperature after the operation, paying attention to the risk of burns.
• Need to ensure regular preventive maintenance.
