USER MANUAL TC4278 Vevor

Affordable. Reliable. Home Improvement.

GARDEN TRAILERS

MODEL:TC4268/TC4278/TC4288

MODEL:TC4268/TC4278/TC4288

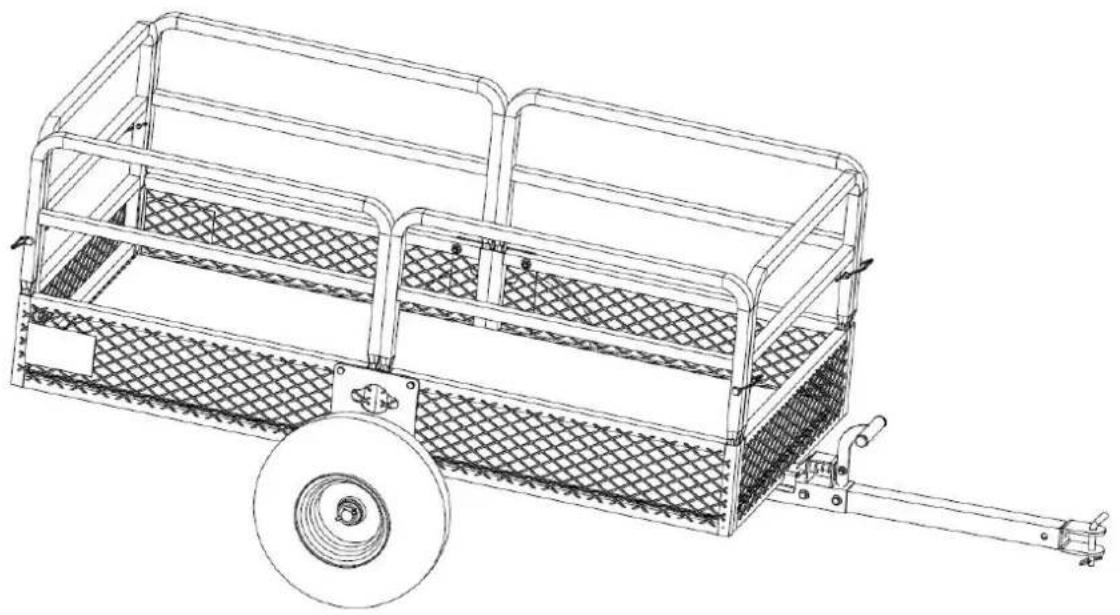

Technical line drawing of a two-wheeled cart with mesh panels and a wheel (no text or symbols)

QR code image containing encoded data, no visible human-readable text

https://youtu.be/aIQyVCV19sY

For the installation video, please scan the QR code to access.

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appeal of the product shall be subject to the product you received. Please forgive us won't inform you again if there are any technology or software updates on our

WARNING:

Read this material before using this product. Failure to do so can result serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazard
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, drugs or medical
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of safely supporting the Garden Trailer.
8. For additional information regarding the parts listed in the following pages, please run the Assembly Diagram of this manual. Unwrap and separate all parts in a clean
9. It is estimated that the installation of this product can be completed in 20 minutes person.
10. Since a large number of screws are required for assembling this product, we have provided spare screws. Therefore, there is no need to worry if you have any rem screws after completing the product assembly.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or near this item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safely support a fully Garden Trailer.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damaged.

SAVE THIS MANUAL

PARTS LIST

NO.	Explanatory Chart	NO.	Explanatory Chart
1	Frame A	2	Frame B
3	Fixed plate X2	4	Axle
5	U - shaped part	6	Connecting rod A
7	Connecting rod B	8	Wheel X2
9	Left and right guardrails X4	10	Front guardrail

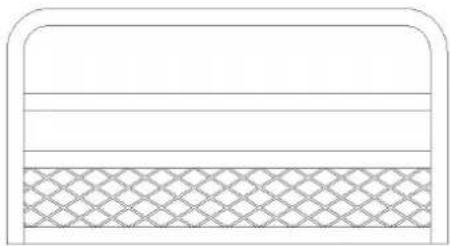

11	Rear guardrail	12	Plastic mat

NO.	Explanatory Chart	Quantity
A	Screw M8*70mm	5
B	Screw M8*45mm	8
C	Screw M10*25mm	4
D	Washer 50*3mm	4
E	Screw M12*90mm	1
F	O - type cotter pin	2
G	pin	1
H	R - type cotter pin	1
I	D - type cotter pin	4
x2
x1

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

ASSEMBLY STEP

STEP 1

Illustration of a rectangular device with a honeycomb pattern on top (no text or symbols)

1 x 1

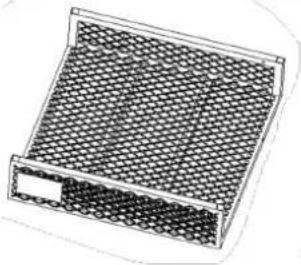

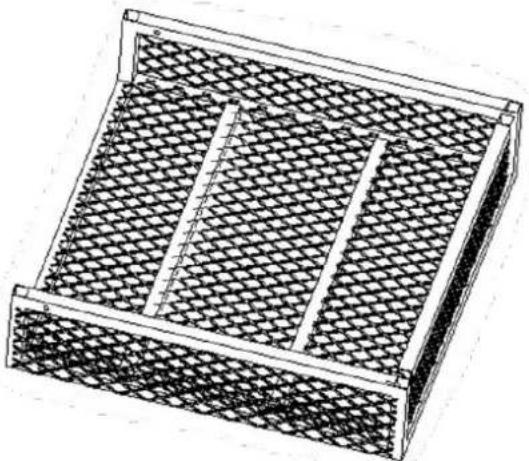

Illustration of a rectangular container filled with honeycomb patterns, no text or symbols present

2x1

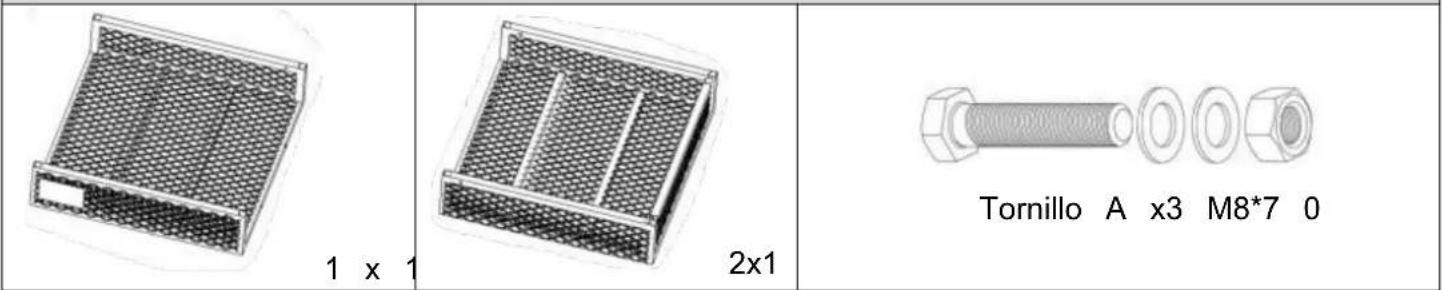

A x3 Screw M8*70

Technical diagram of a metal frame structure with lattice patterns and red dashed measurement lines (no text or symbols)

A

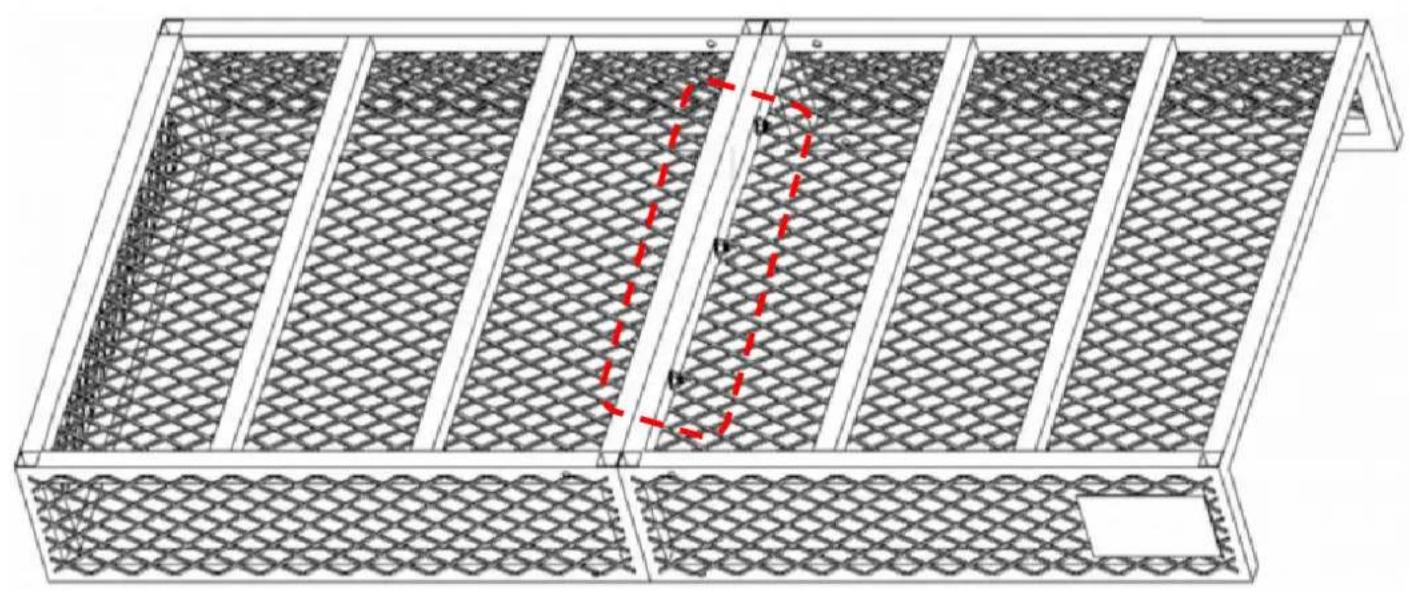

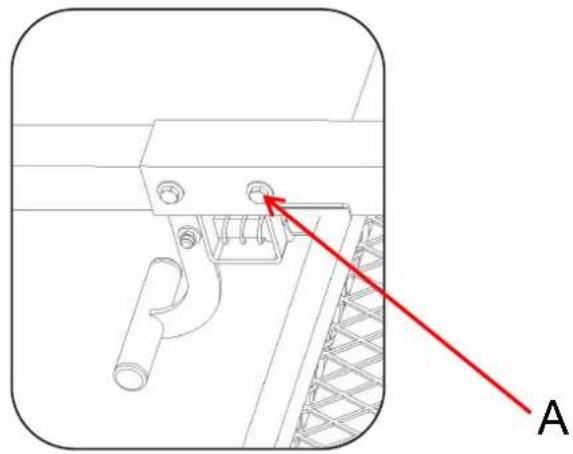

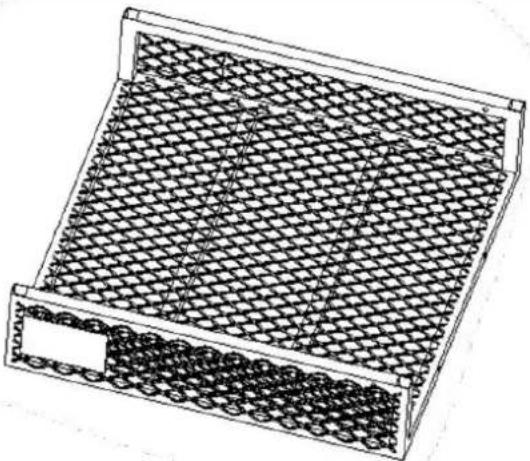

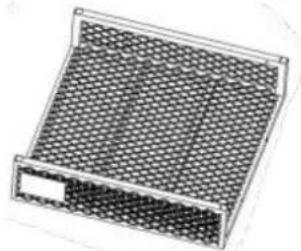

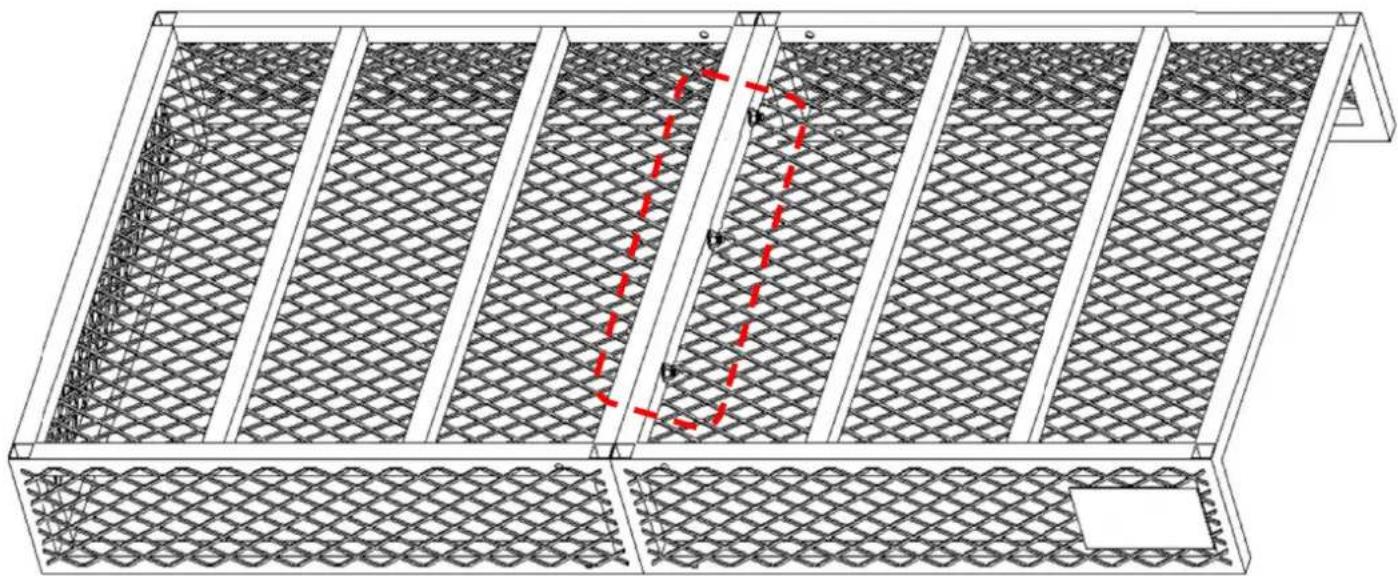

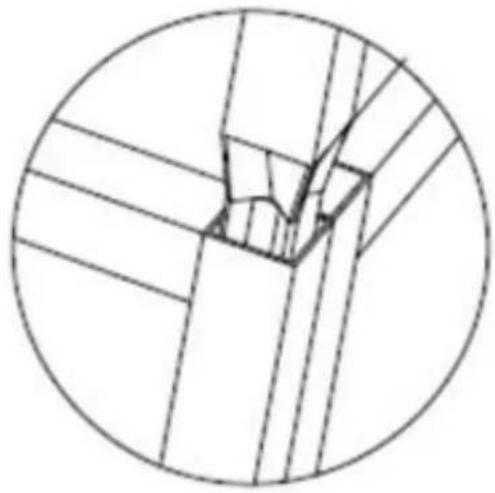

1. Align Frame A(No.1) and Frame B(No.2) in the correct positions (with the cart bed fa
2. When fixing the frame with screws, please note that the washers must be used in a the requirements specified in the detail drawing.
3. Finally, tighten them to secure the connection.

STEP 2

Technical line drawing of a mechanical housing or plate with two circular indentations and mounting holes (no text or symbols)

3 x 1

B x4 Screw M8*45

Technical diagram showing a structural frame with mesh patterns and a magnified view labeled B, indicating assembly or installation details.

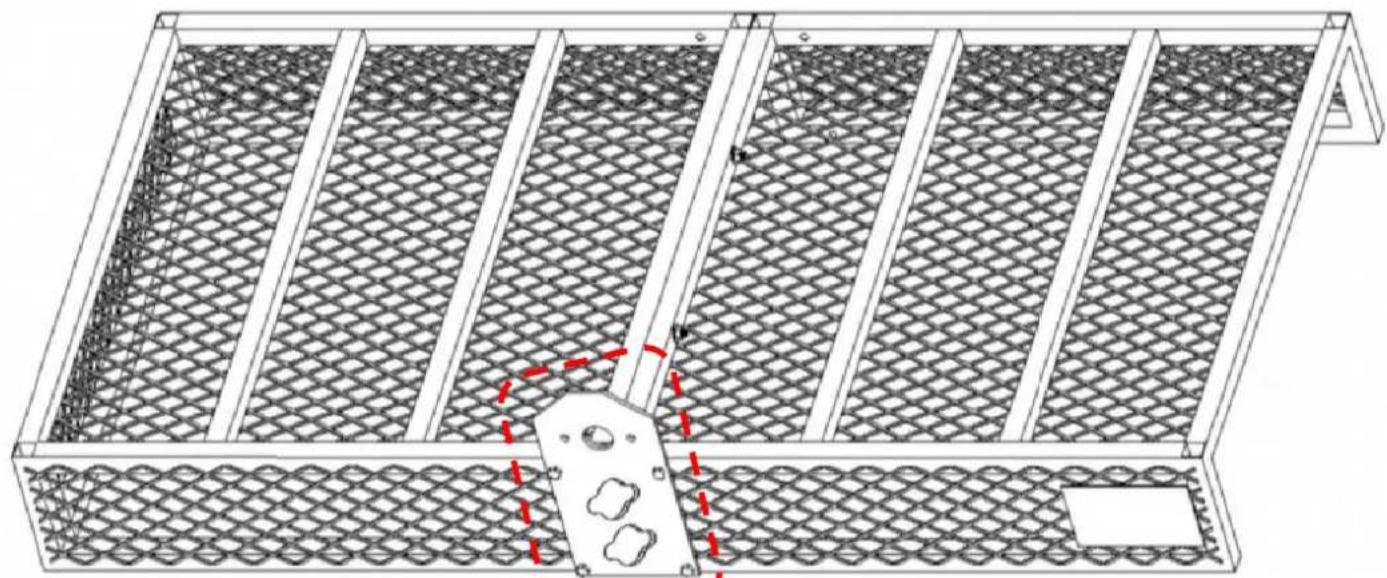

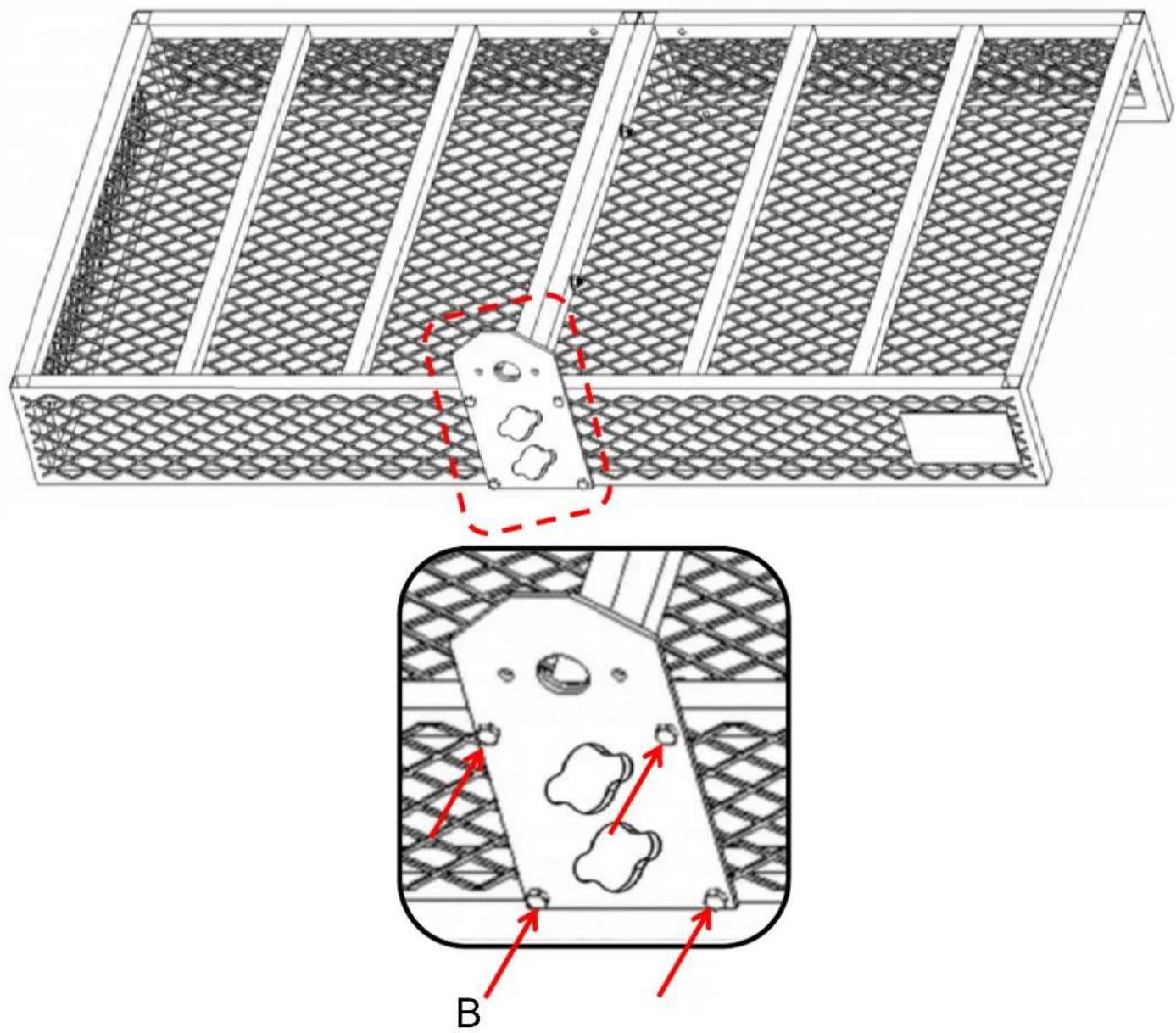

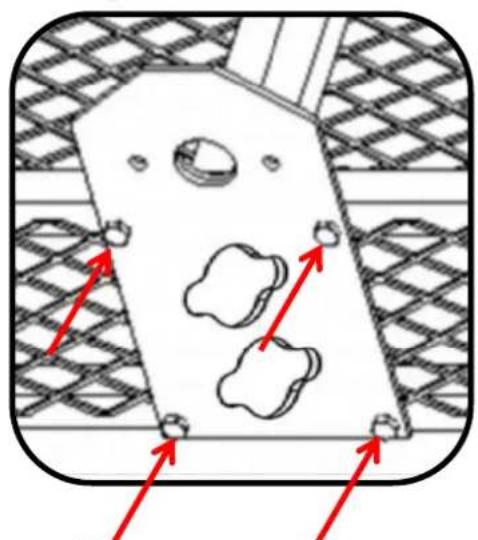

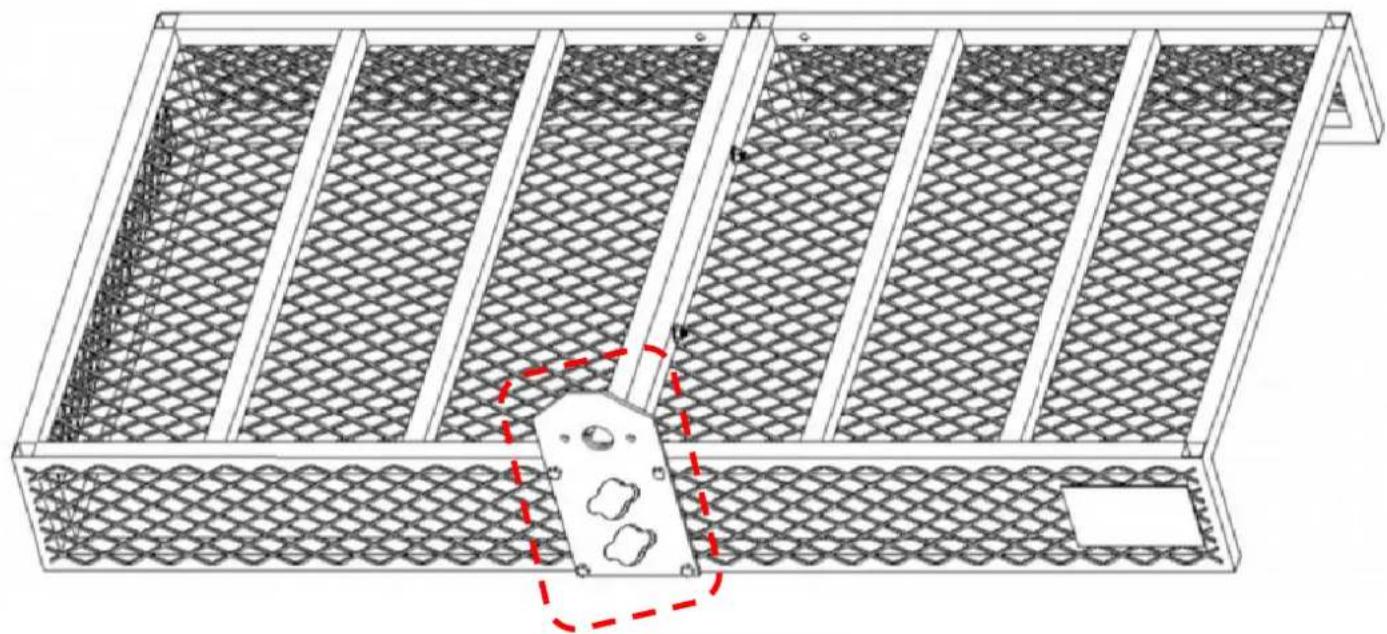

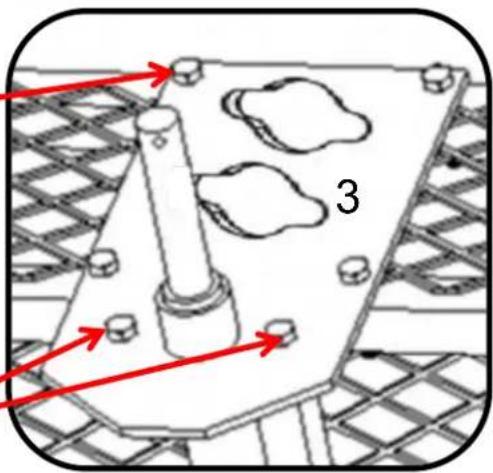

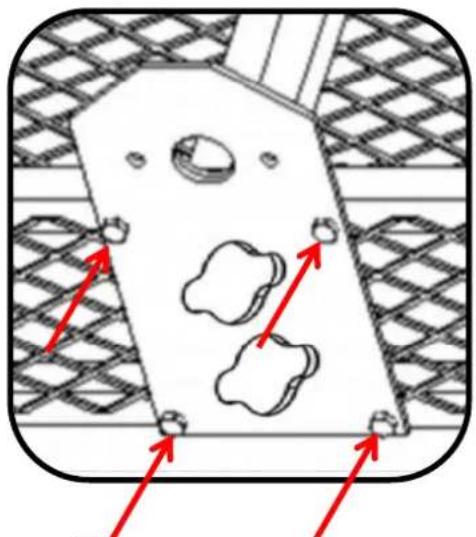

1. Install the Fixed plate(No.3) on the Frame.
2. At the fixing holes, insert Screw(No.B) first. Then place washer and nut in sequence
3. Finally, tighten them to secure the connection.

STEP 3

Simple line drawing of a horizontal rod with three circular ends, labeled '4 x1' at the bottom (no other text or symbols)

C x2 Screw M10*25

4 C 3

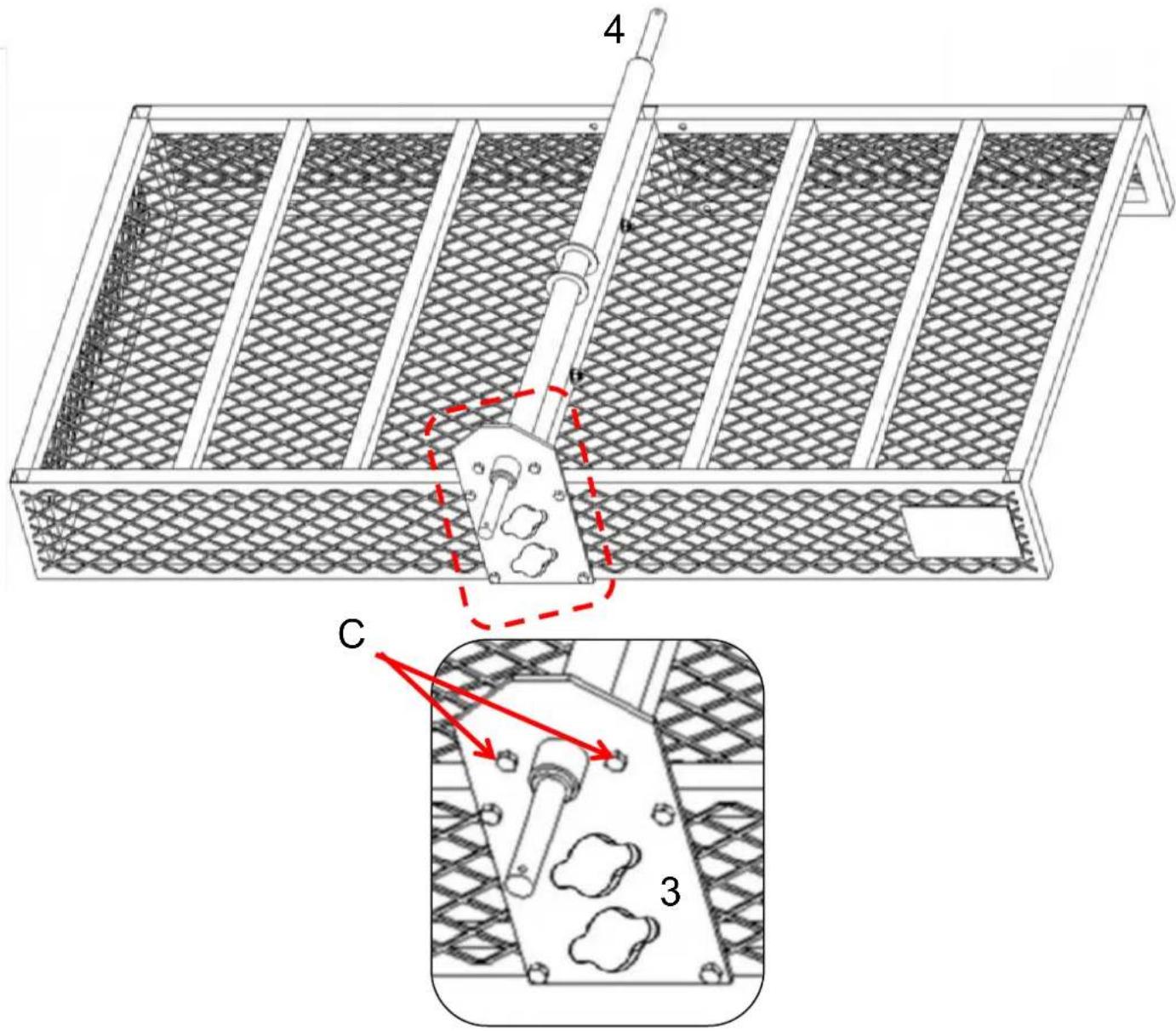

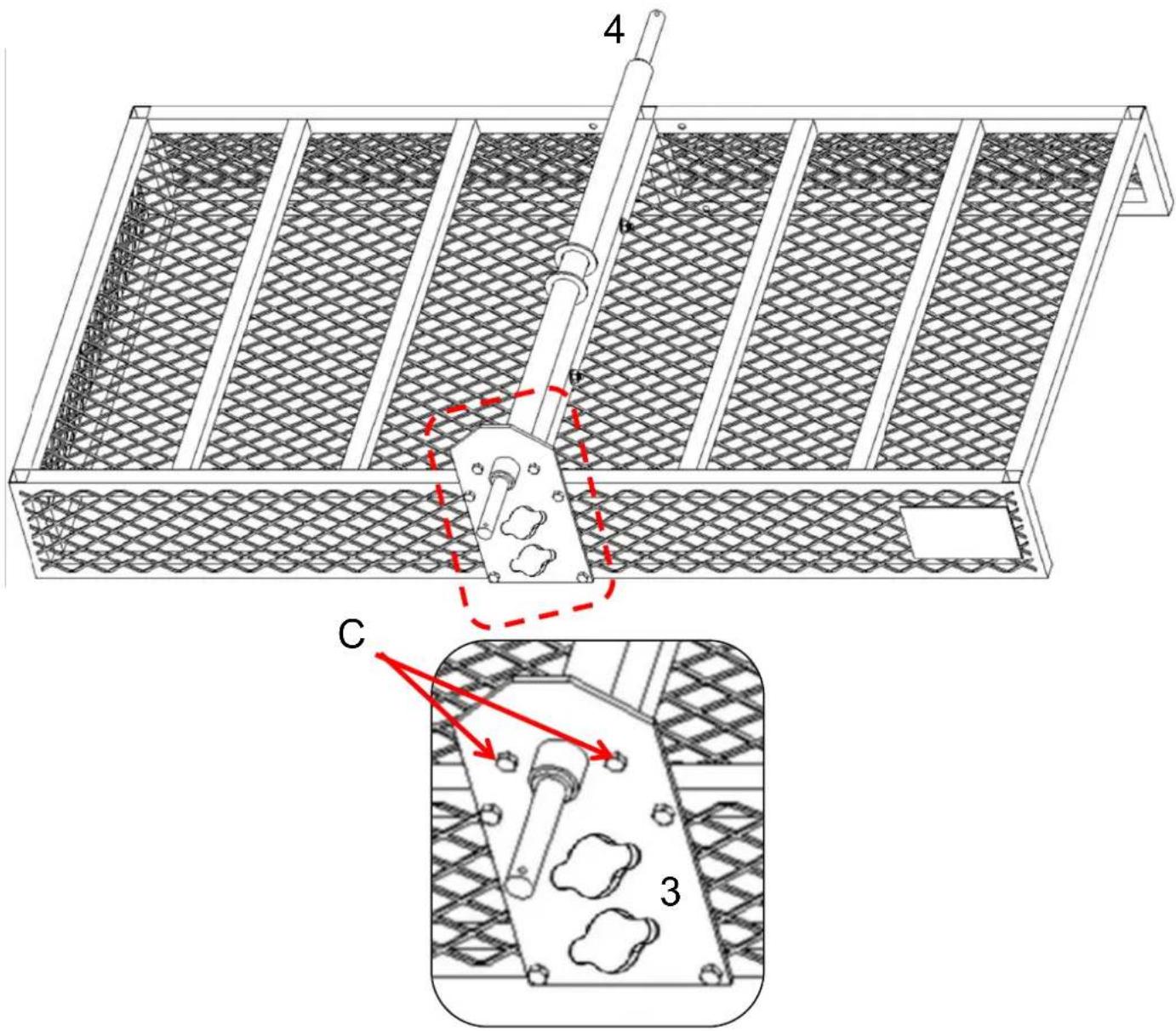

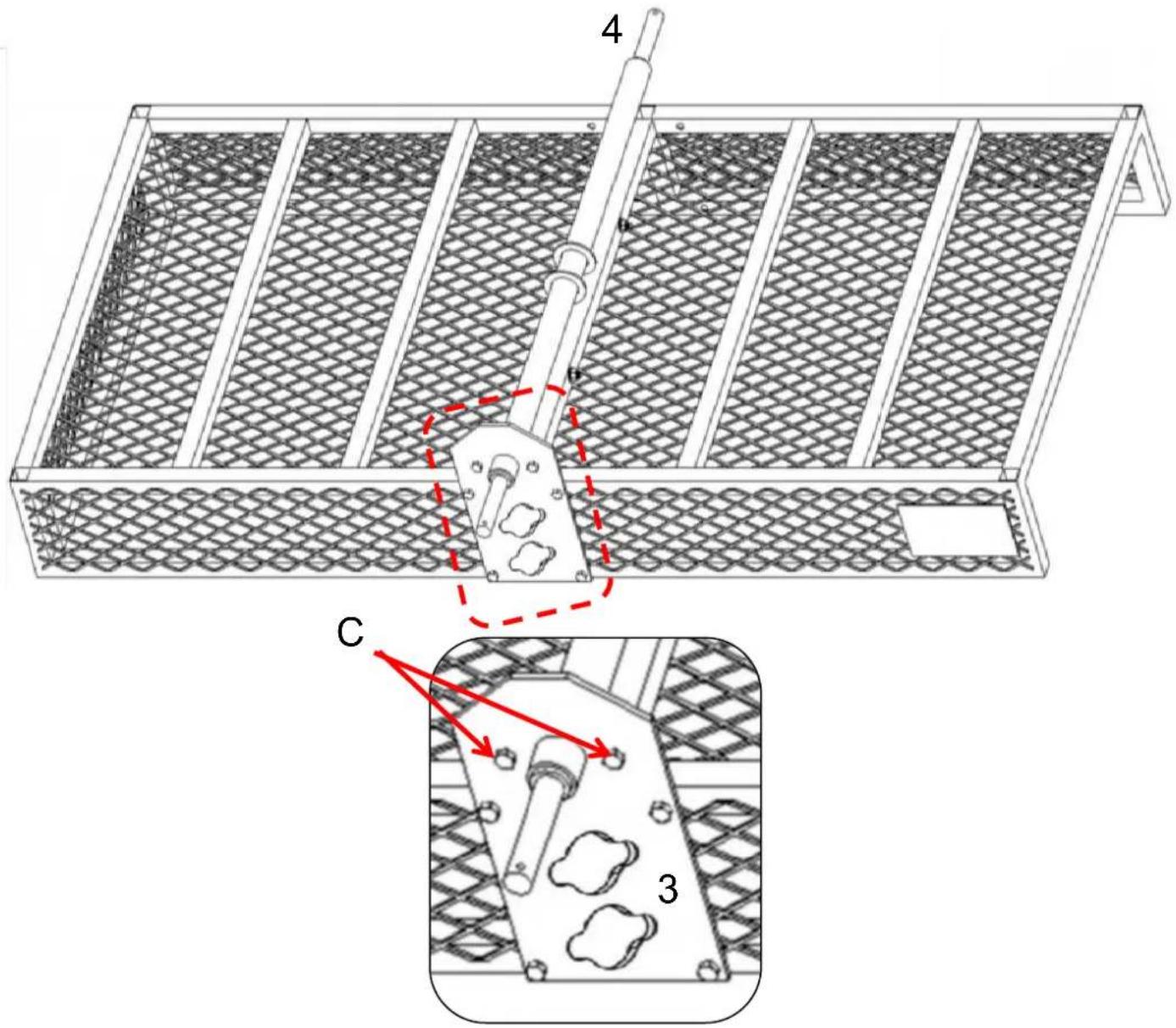

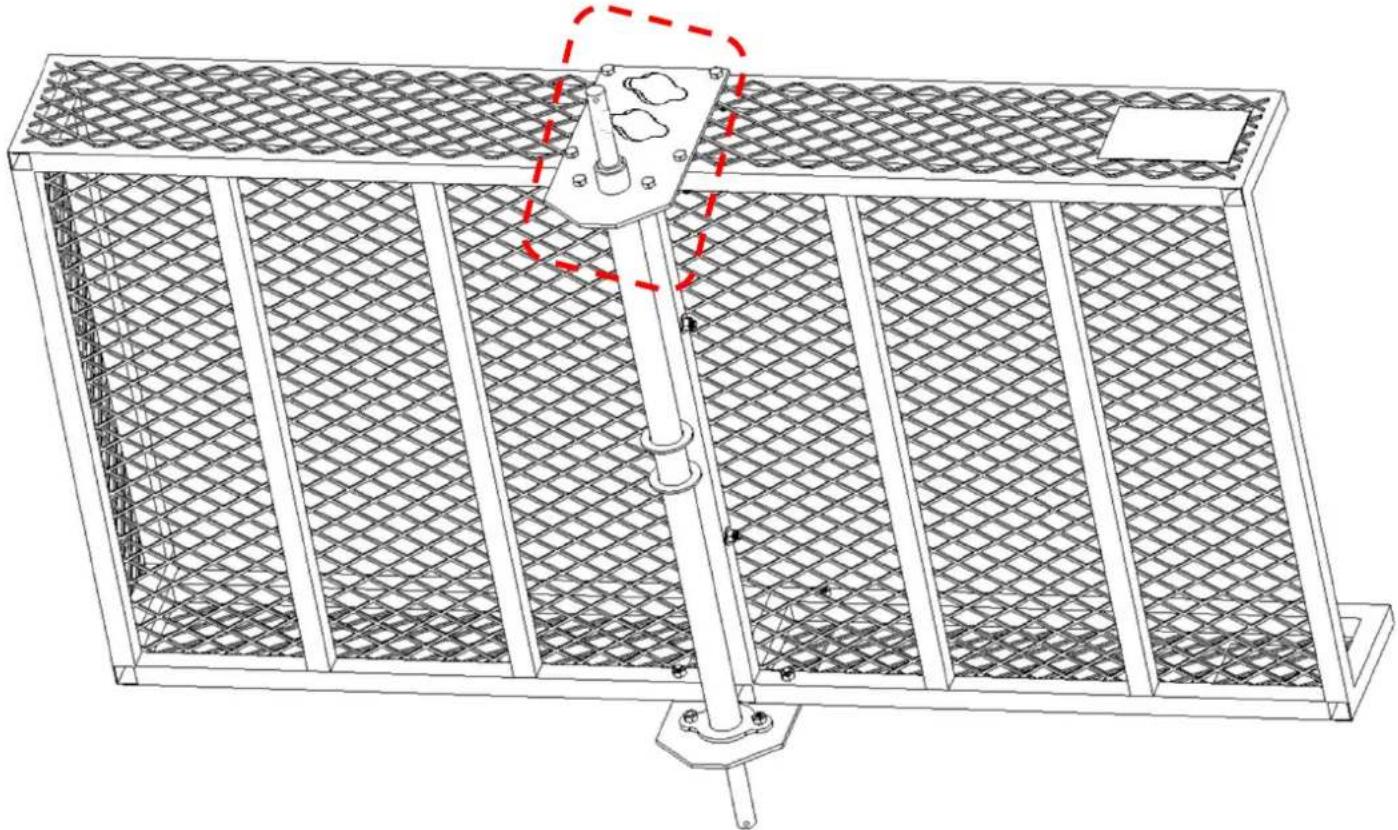

1. Insert the Axle(No.4) into the holes of the Fixed plate(No.3).
2. Insert Screw(No.C) into the connection holes between the Axle and the Fixed plate. T other side, place washer and nut in sequence.
3. Finally, tighten them to secure the connection.

STEP 4
3 x1	B x4Screw M8*45	C x2 Screw M10*25
1. Insert the Axle(No.4) into the holes of the Fixed plate(No.3).2. Insert Screw(No.B) and Screw(No.C) into the connection holes between the Axle and tplate. Then, on the other side, place washer and nut in sequence.3. Finally, tighten them to secure the connection.

1. Insert the Axle(No.4) into the holes of the Fixed plate(No.3).

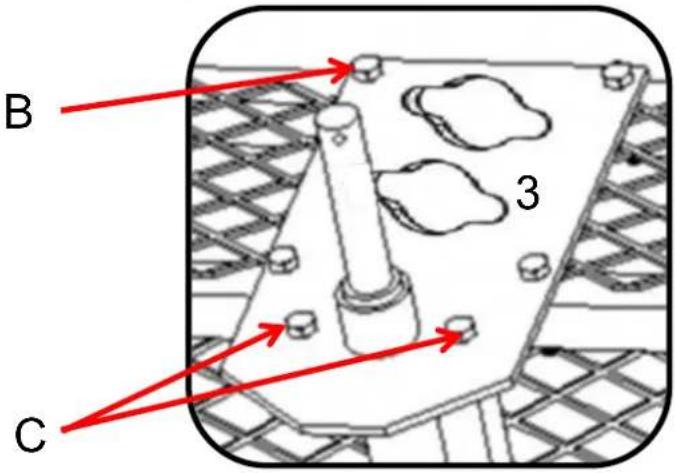

2. Insert Screw(No.B) and Screw(No.C) into the connection holes between the Axle and t plate. Then, on the other side, place washer and nut in sequence.
3. Finally, tighten them to secure the connection.

STEP 5
[Z7GKE x1]	[w8zx]5 x1	7 x1

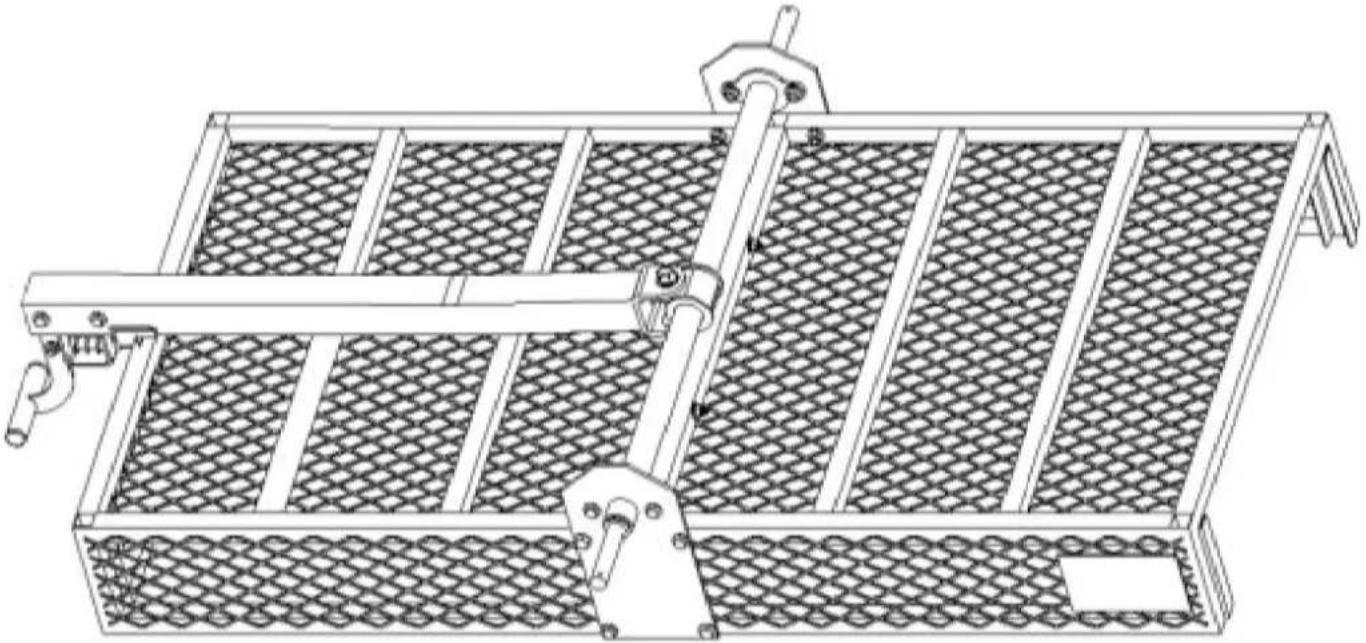

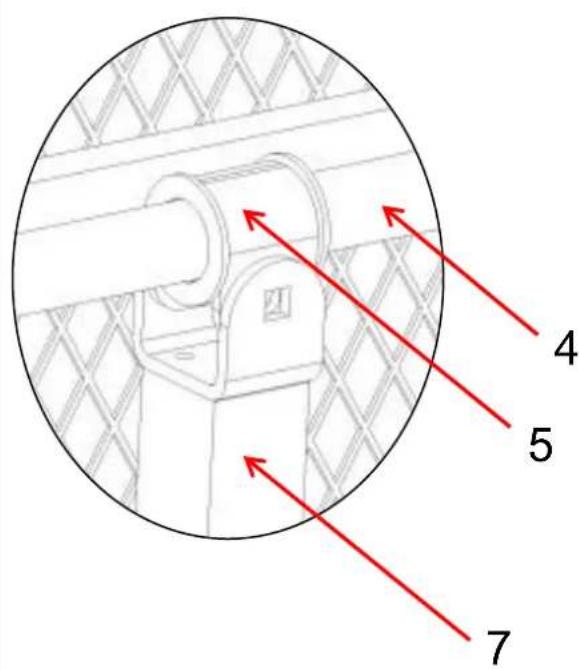

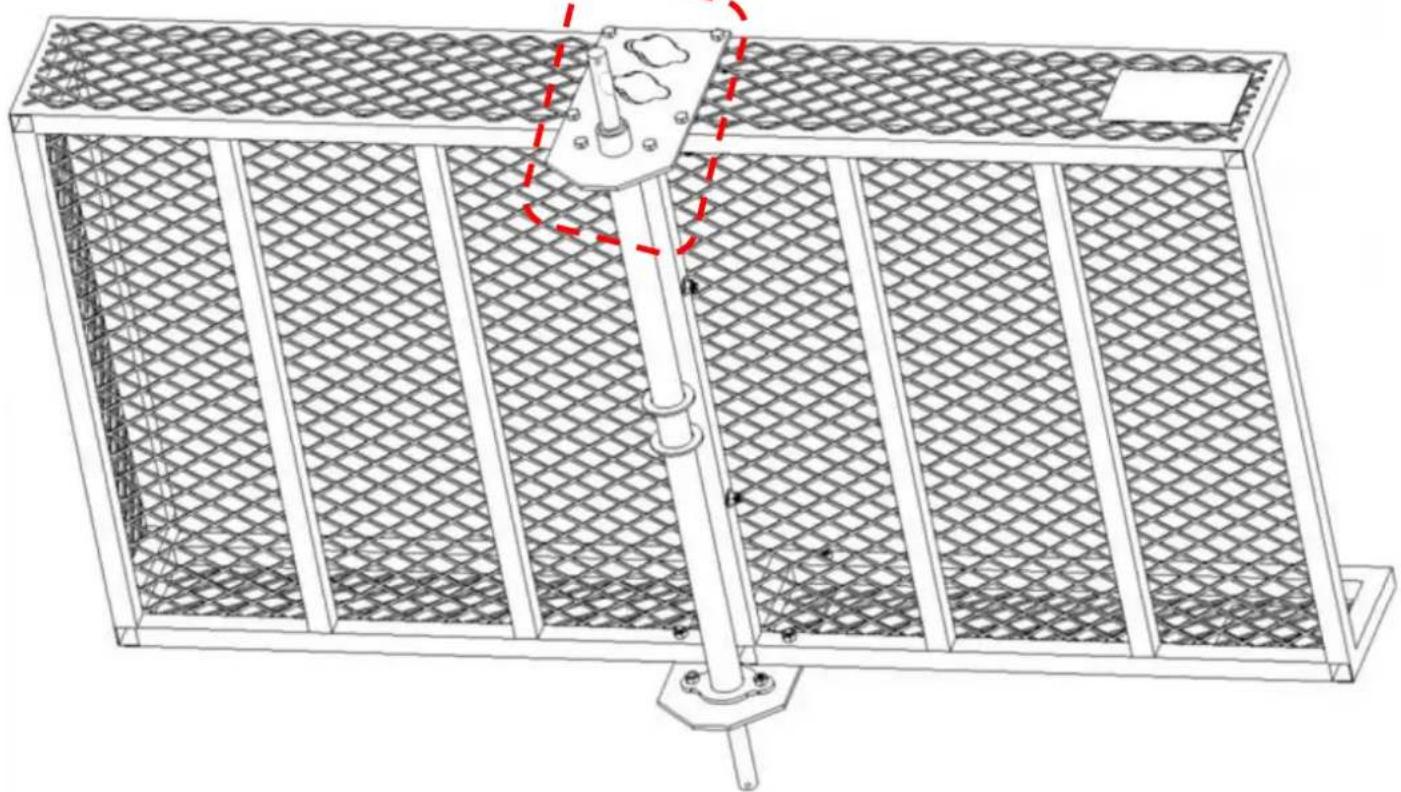

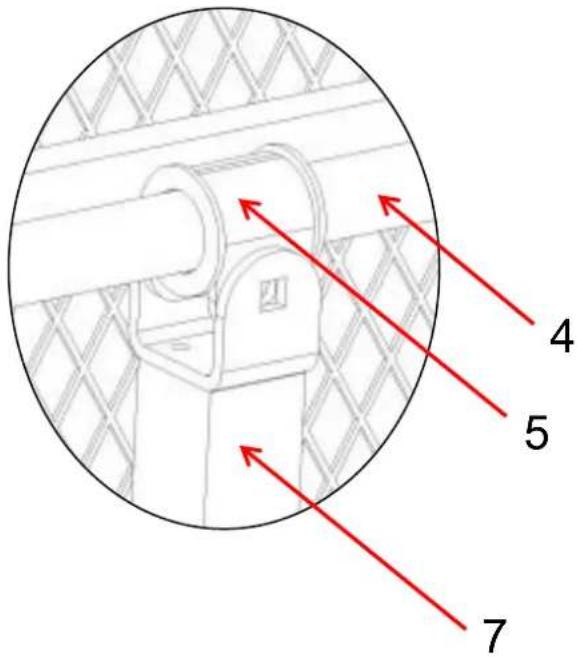

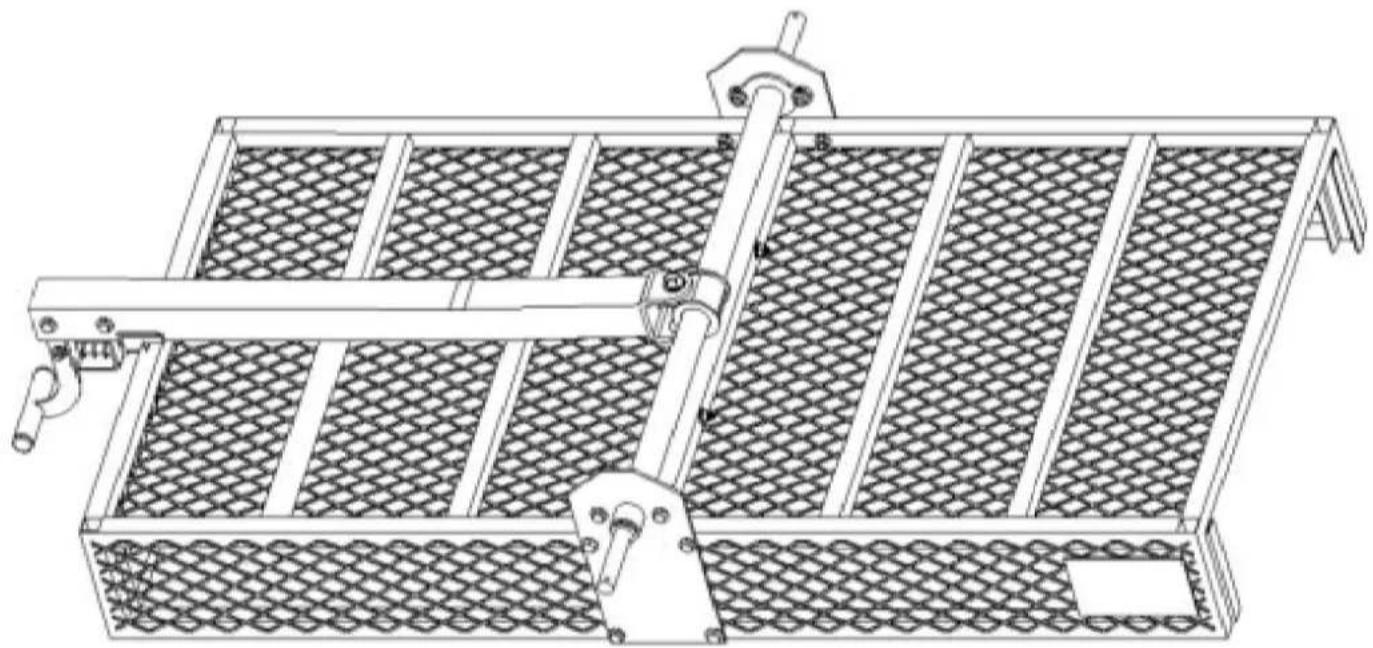

1. Place the U-shaped part(No.5) in the middle position of the axle(No.4).2. Align the U-shaped part(No.5) and Connecting rod B(No.7) with the installation holes.3. Insert Screw (No.E) through the holes of the two connecting rods, and then screw or

1. Place the U-shaped part(No.5) in the middle position of the axle(No.4).

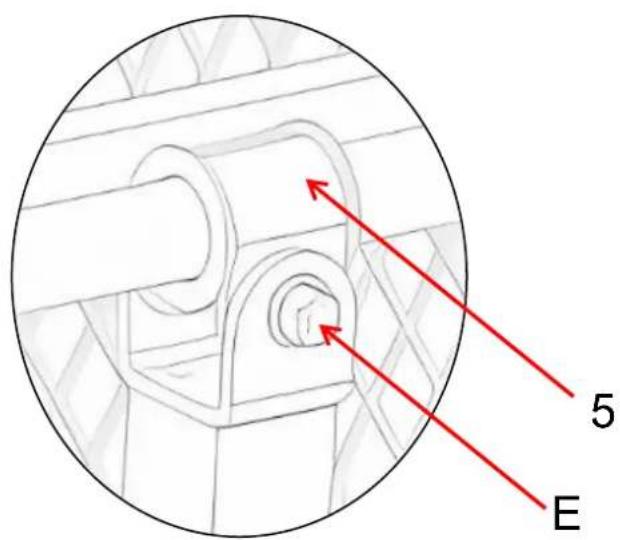

2. Align the U-shaped part(No.5) and Connecting rod B(No.7) with the installation holes.

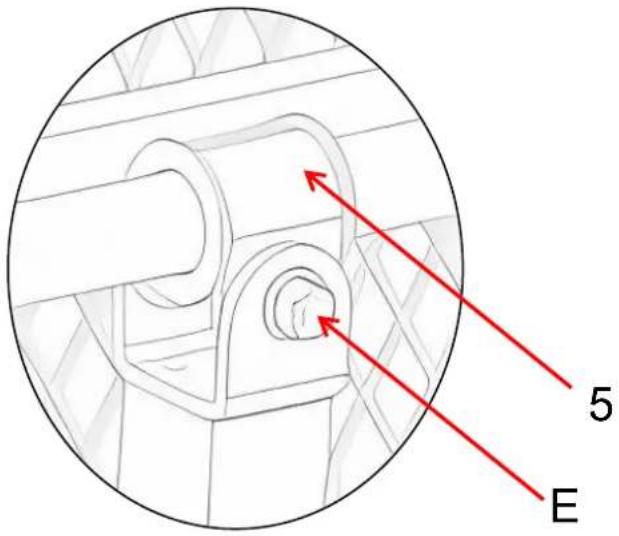

3. Insert Screw (No.E) through the holes of the two connecting rods, and then screw or

STEP 6

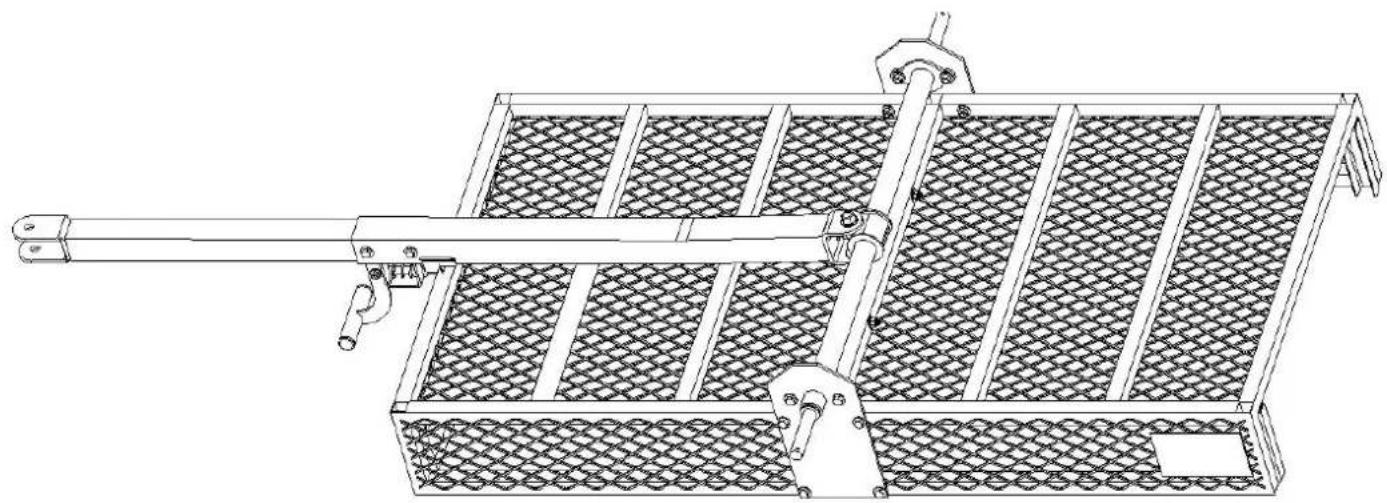

A x2 Screw M8*70

Technical line drawing of a metal bracket with two mounting holes (no text or symbols)

6 x1

Technical line drawing of a mechanical device with a horizontal rod and mesh panel (no text or symbols)

STEP-1

6 7

STEP-2

Technical line drawing of a mechanical component with a red arrow and label 'A' (no text or symbols on the diagram itself)

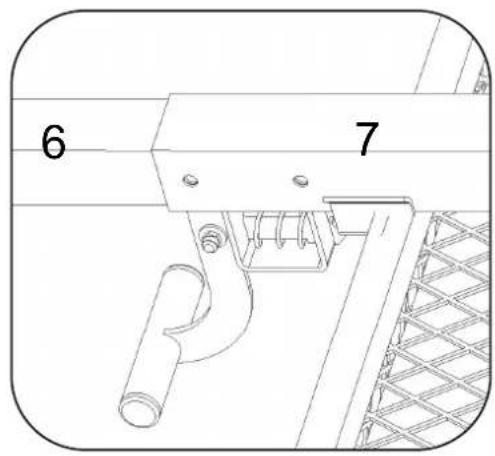

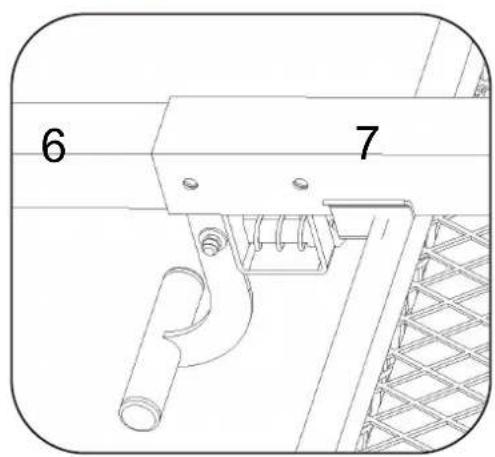

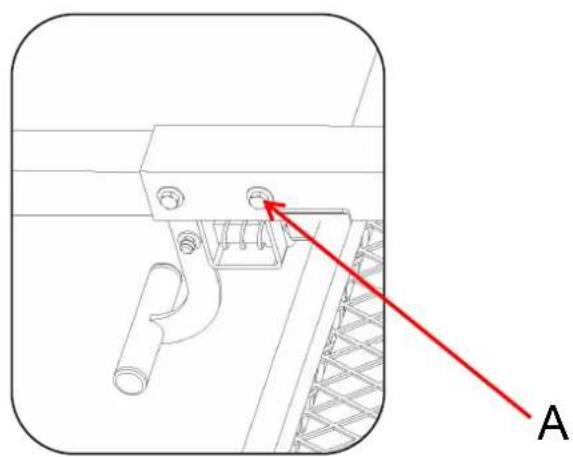

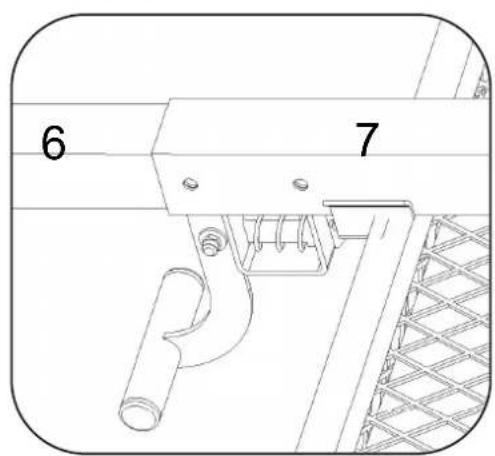

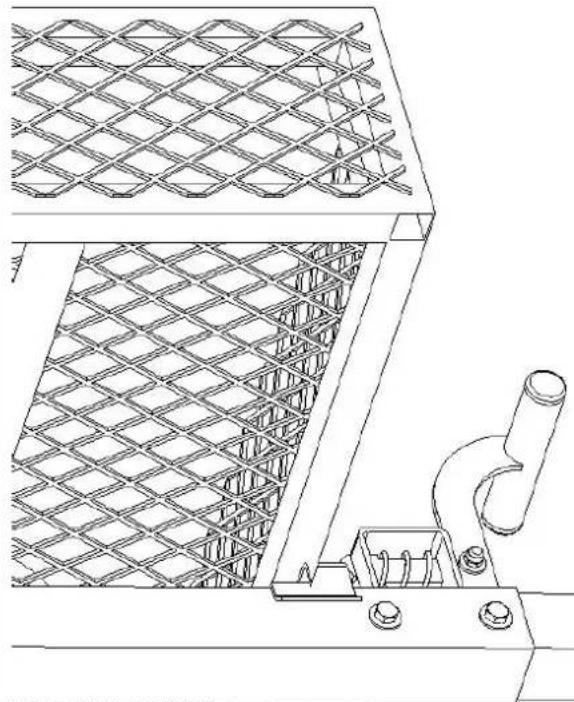

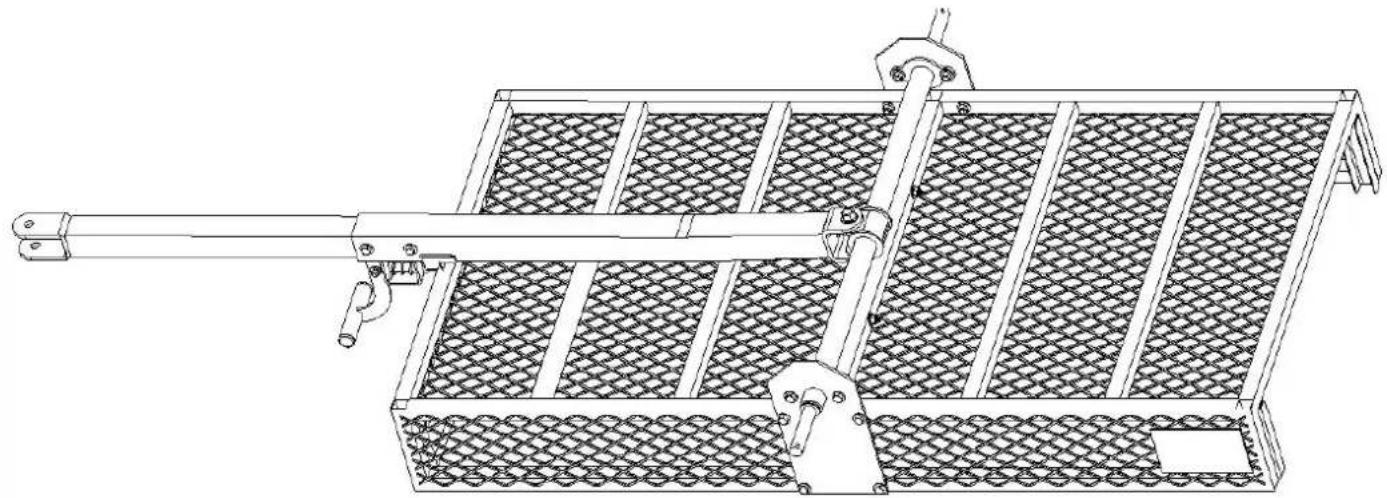

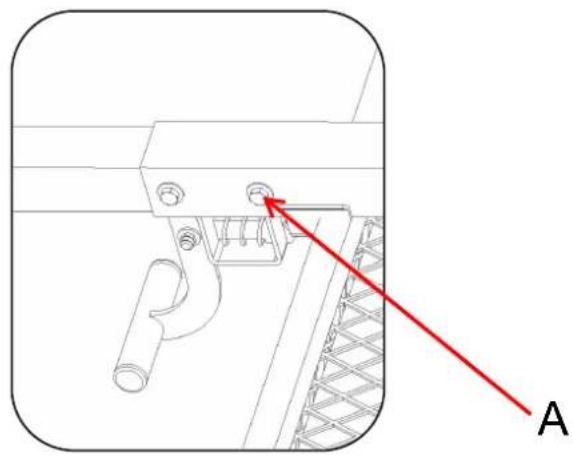

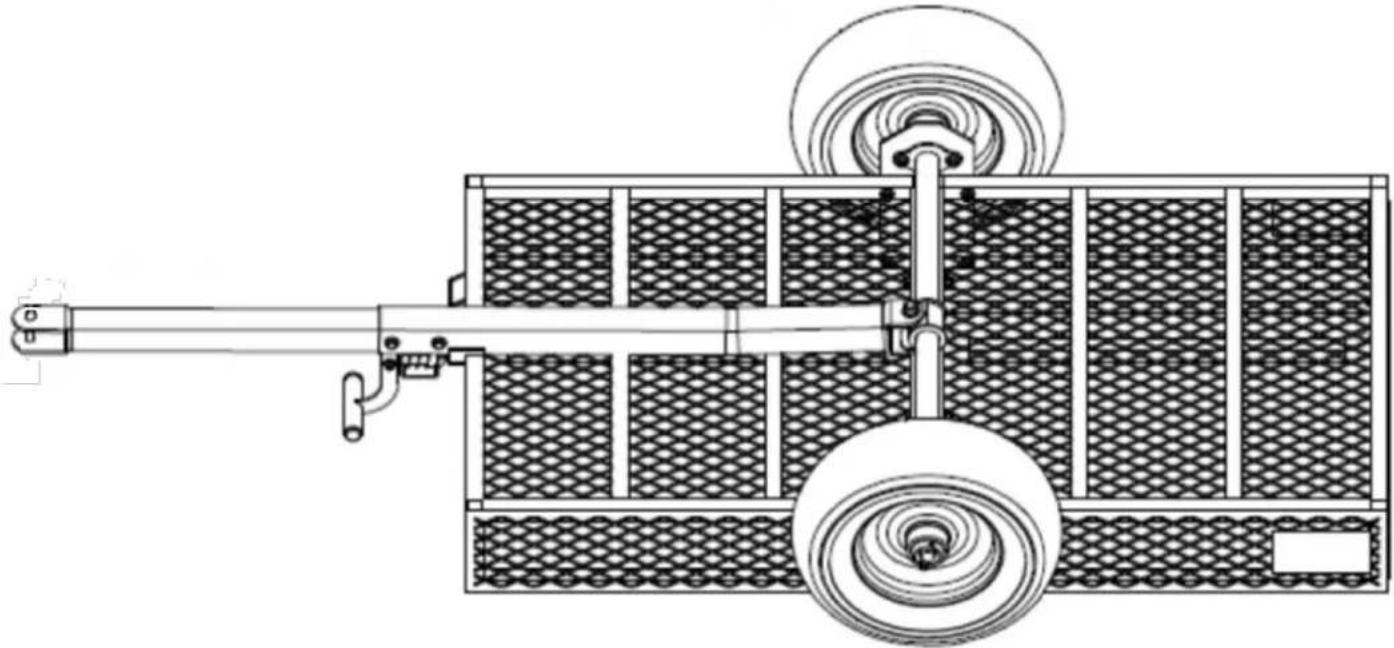

1. Insert Connecting rod A(No.6) and Connecting rod B(No.7) into each other.
2. Insert Screw(No.A) and place washer into the connection holes, and then place washe sequence on the other side.
3. Finally, tighten them to secure the connection.

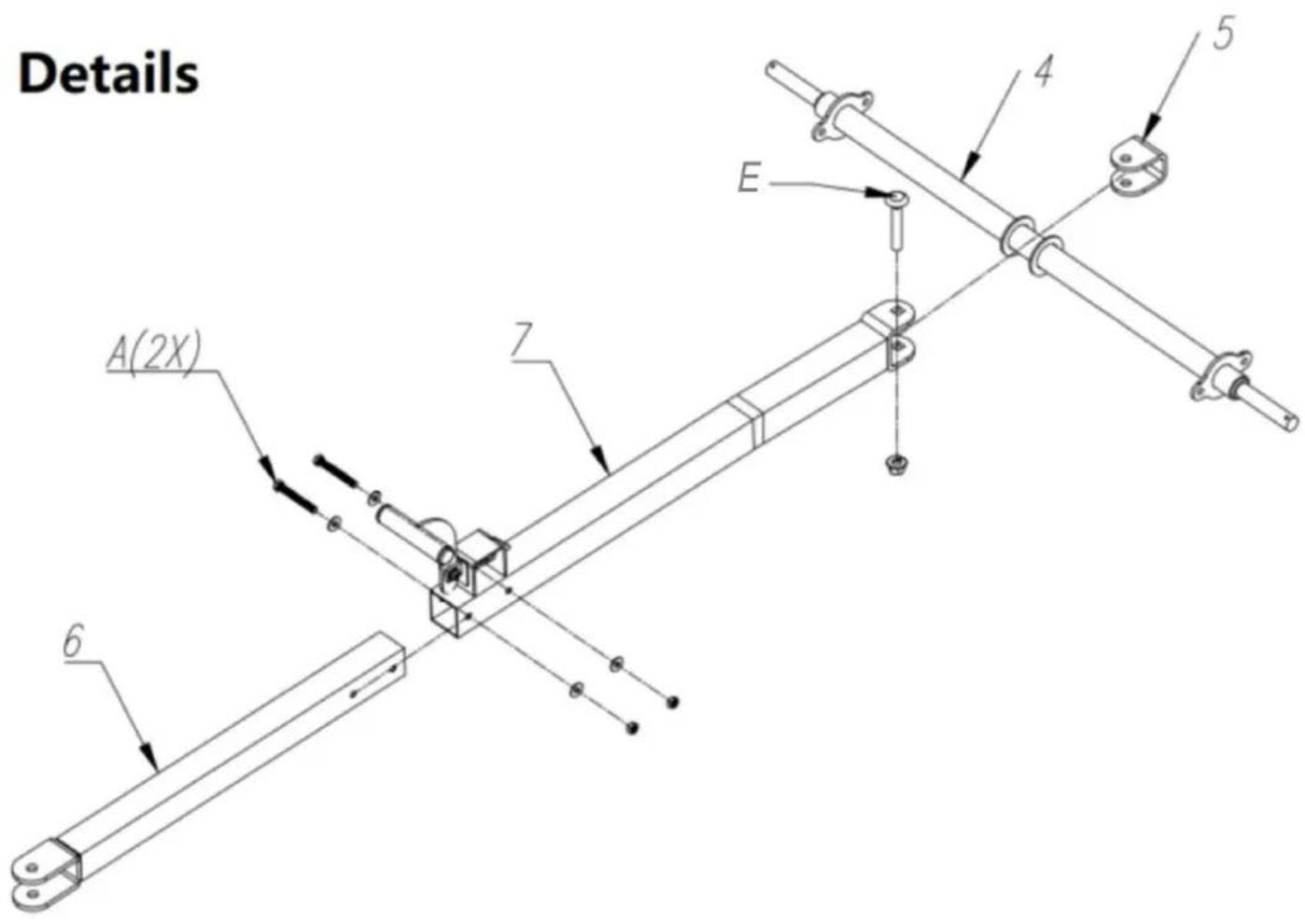

Details A(2X) E 7 6 4 5

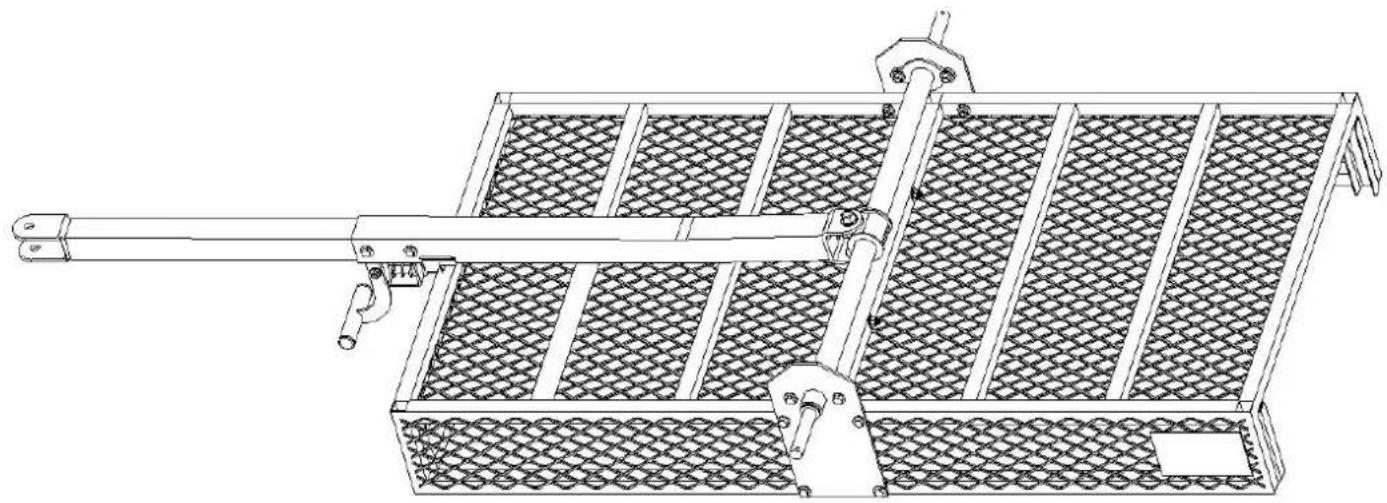

NOTE: This page shows the exploded view of parts from Step 3 to which is convenient for you to check if the installation is corre

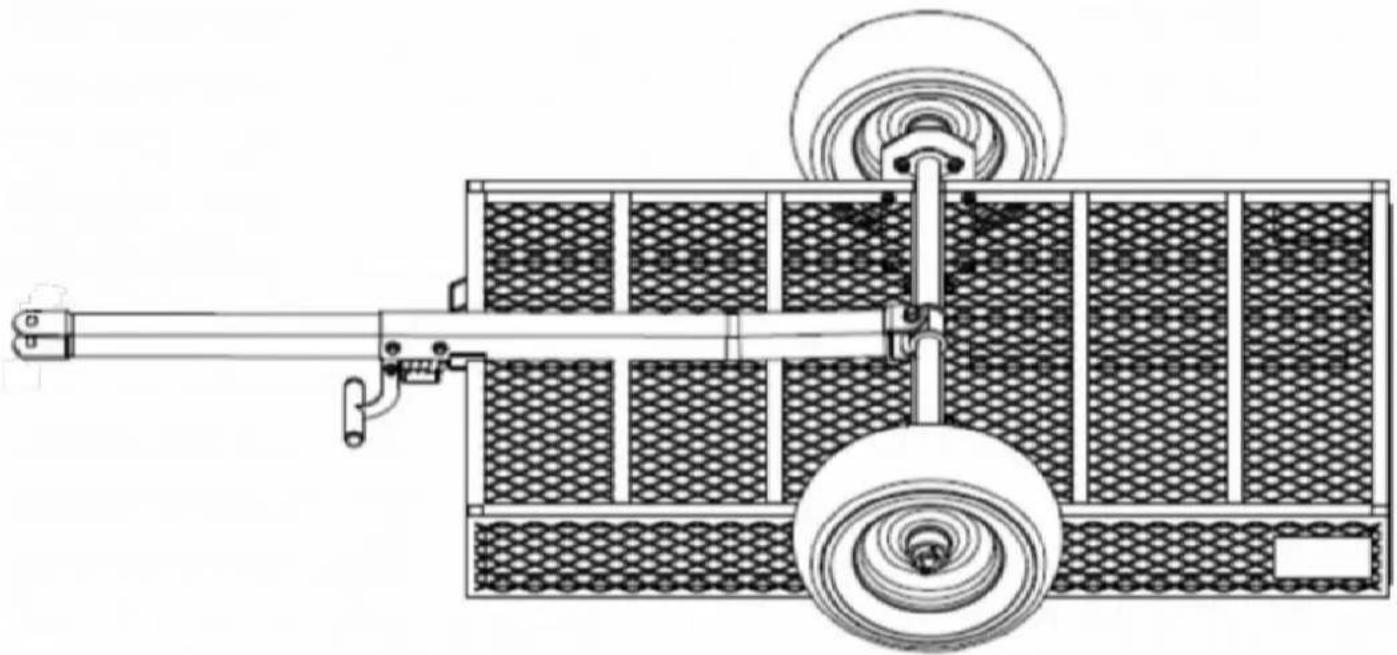

STEP 7
F x2	D x4	3 x2
8

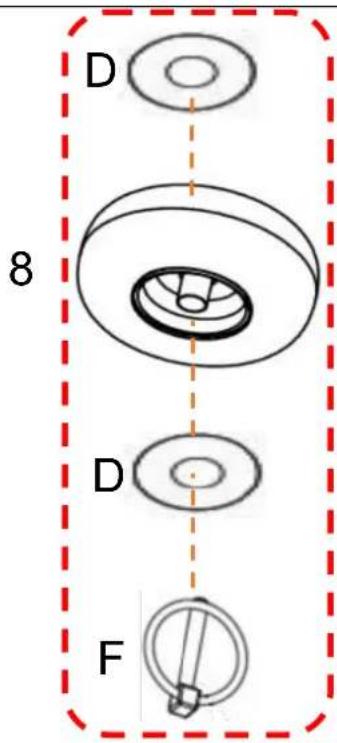

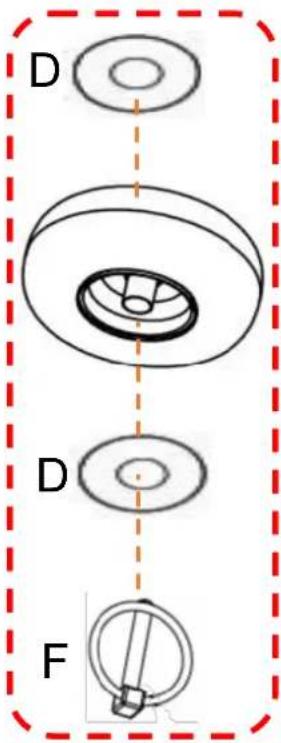

1. First, put Washer(No.D) on the mounting shaft of the Wheel, and then install the Wh designated position.2. Put Washer(No.D) on first, and then insert the O-type cotter pin(No.F) into the corresp on the mounting shaft.3. Note: The inflation port should face outwards.
STEP 8
G x1	H x1

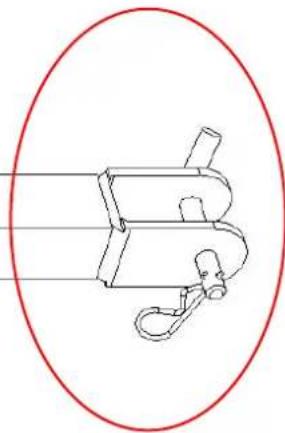

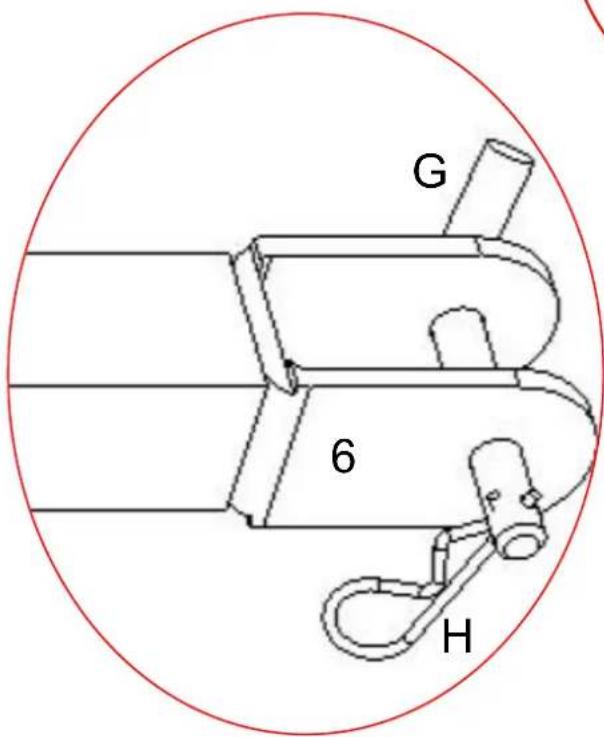

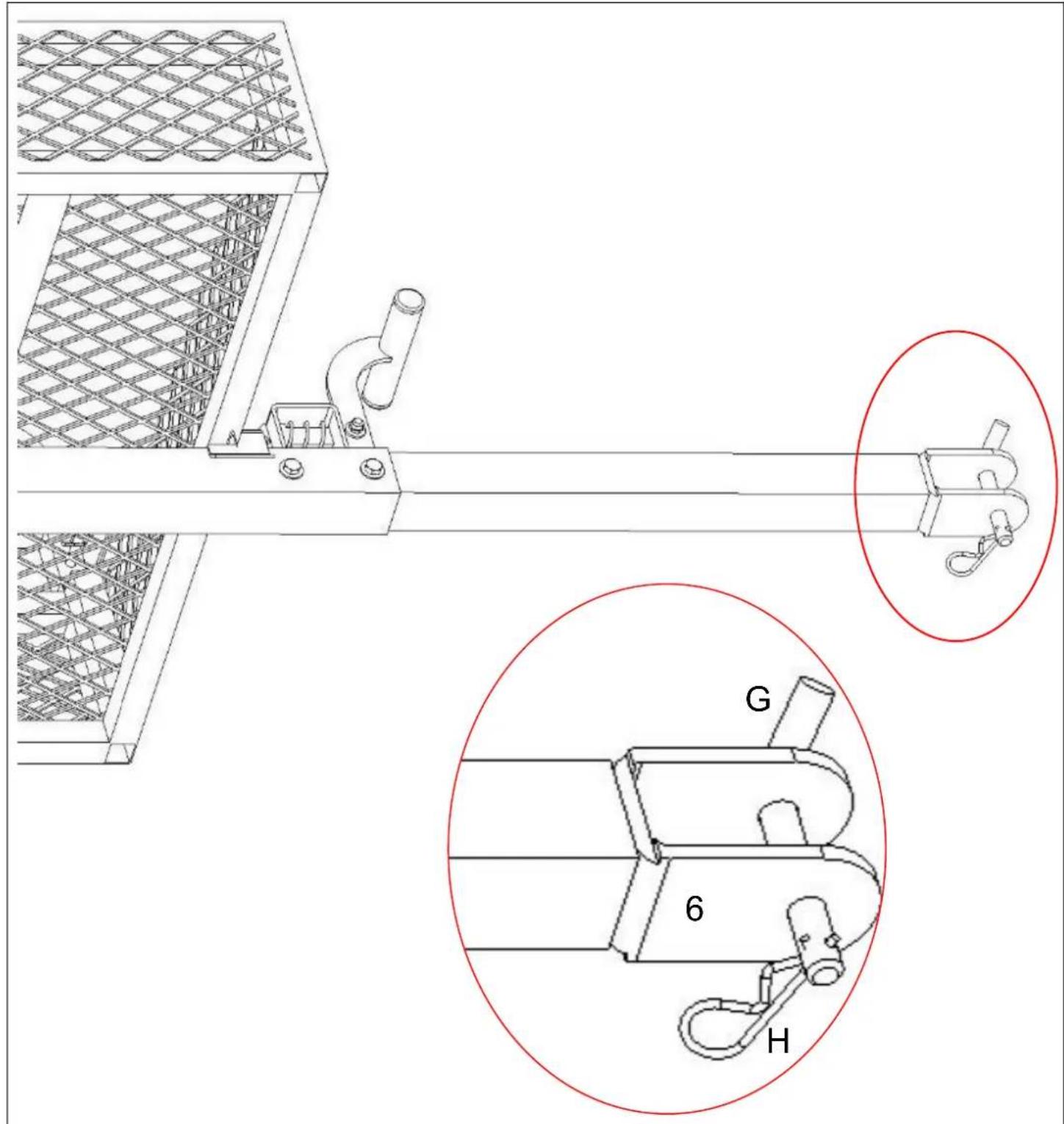

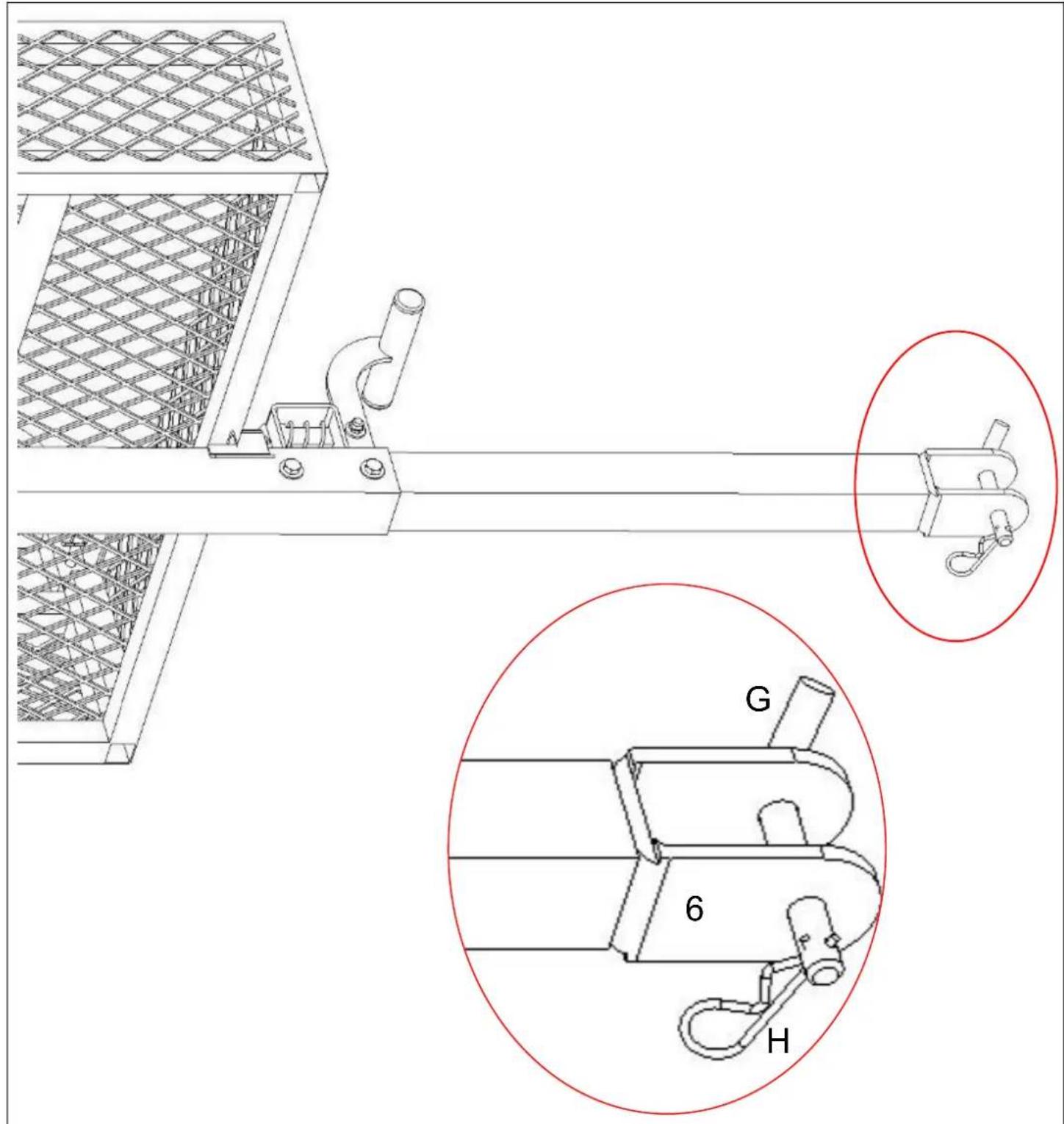

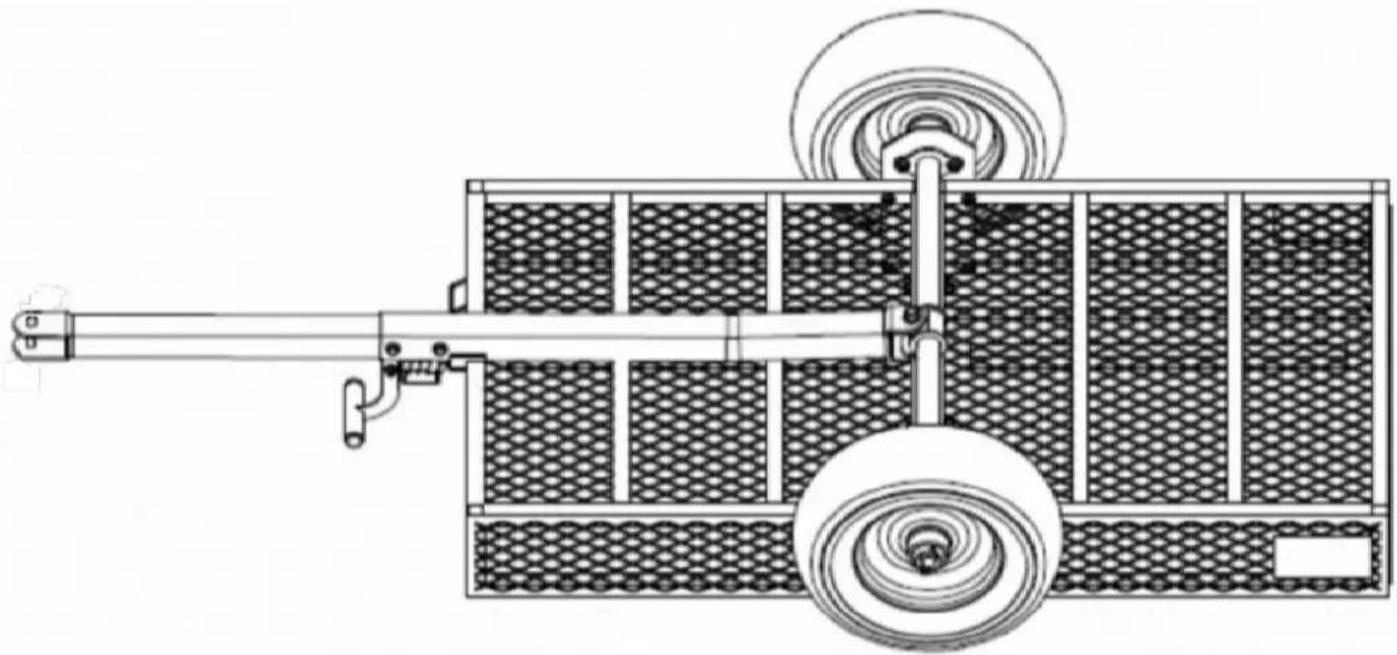

1. Insert the pin(No.G) into Connecting rod A(No.6).
2. Insert the R-type cotter pin(No.H) into the hole of the pin(No.G).

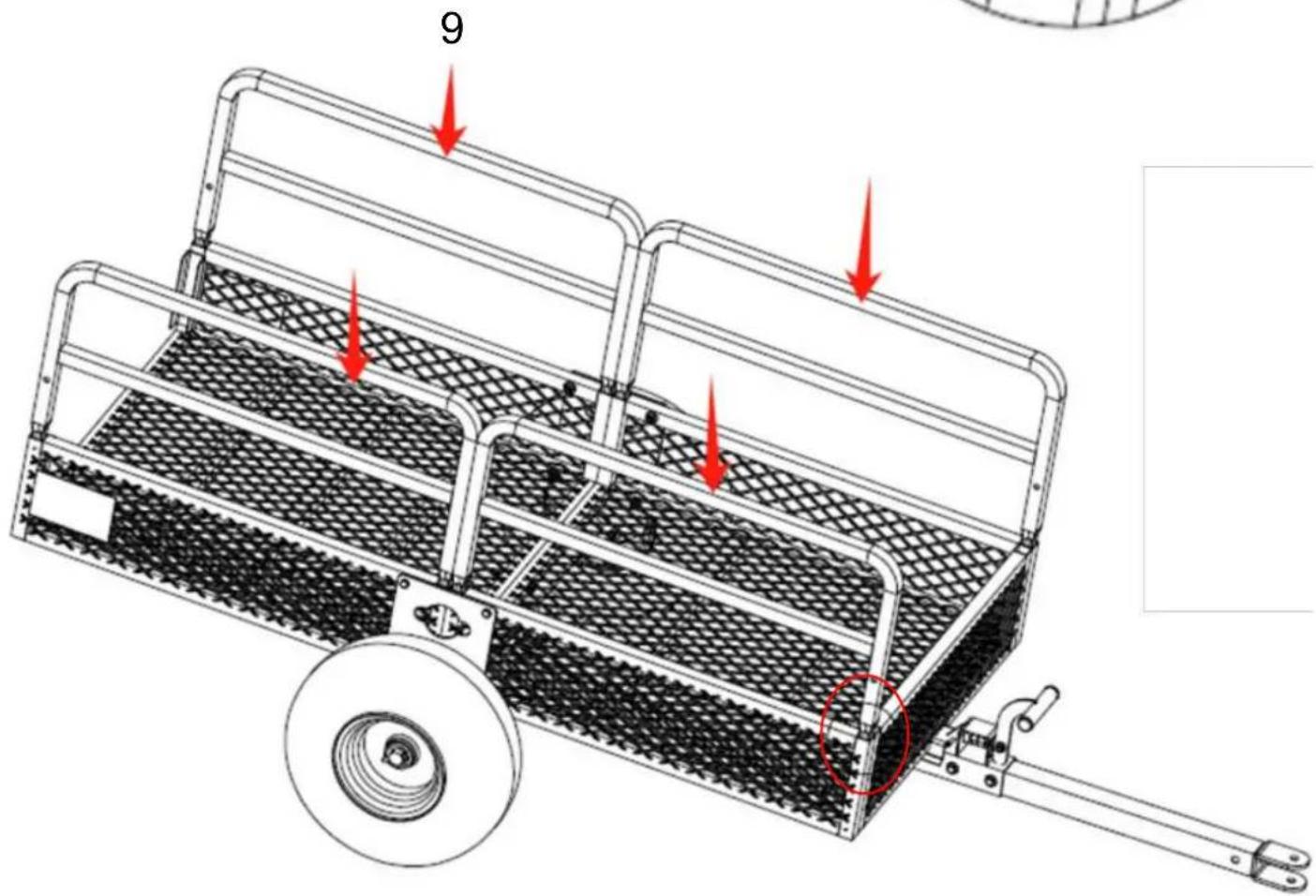

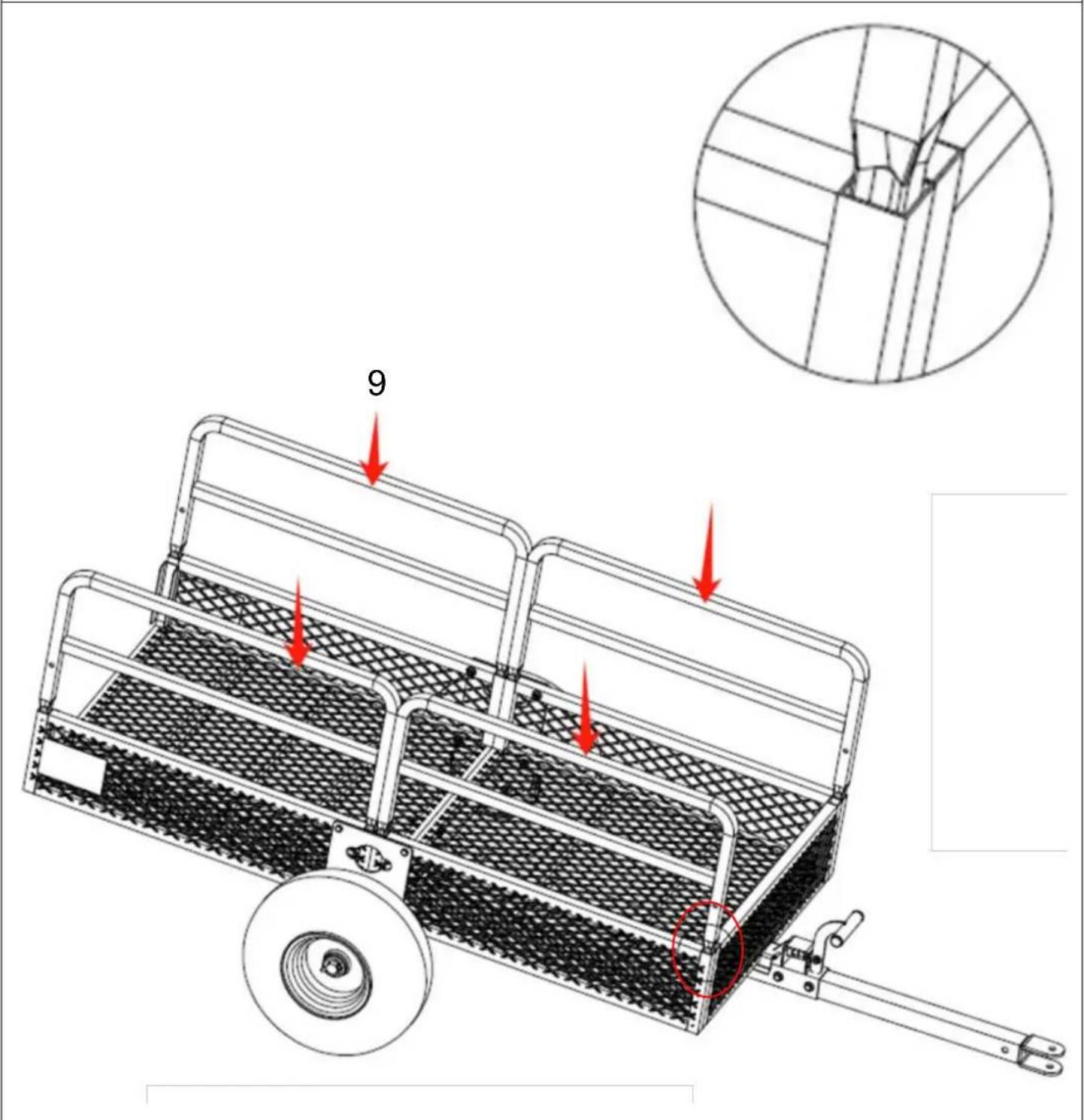

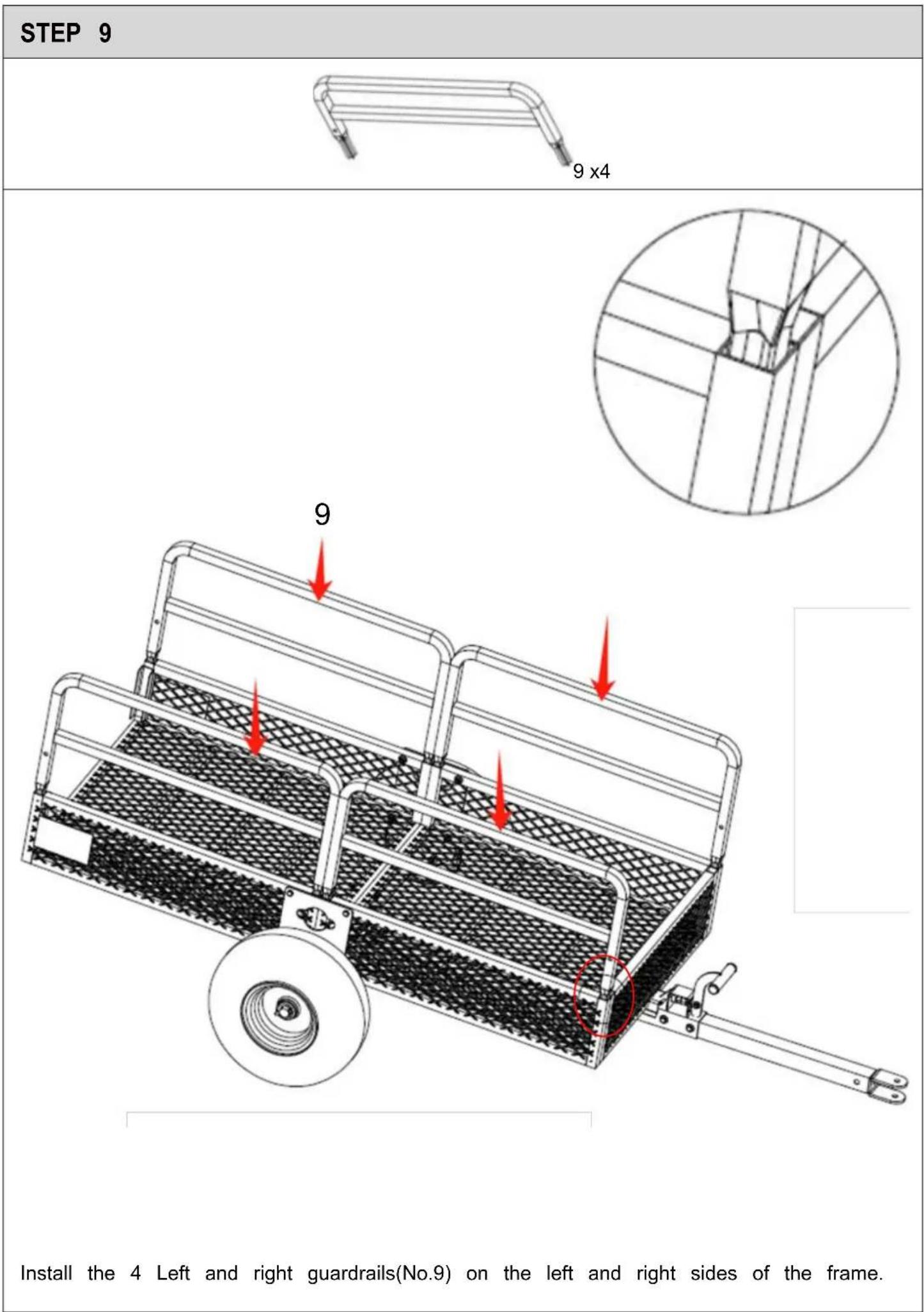

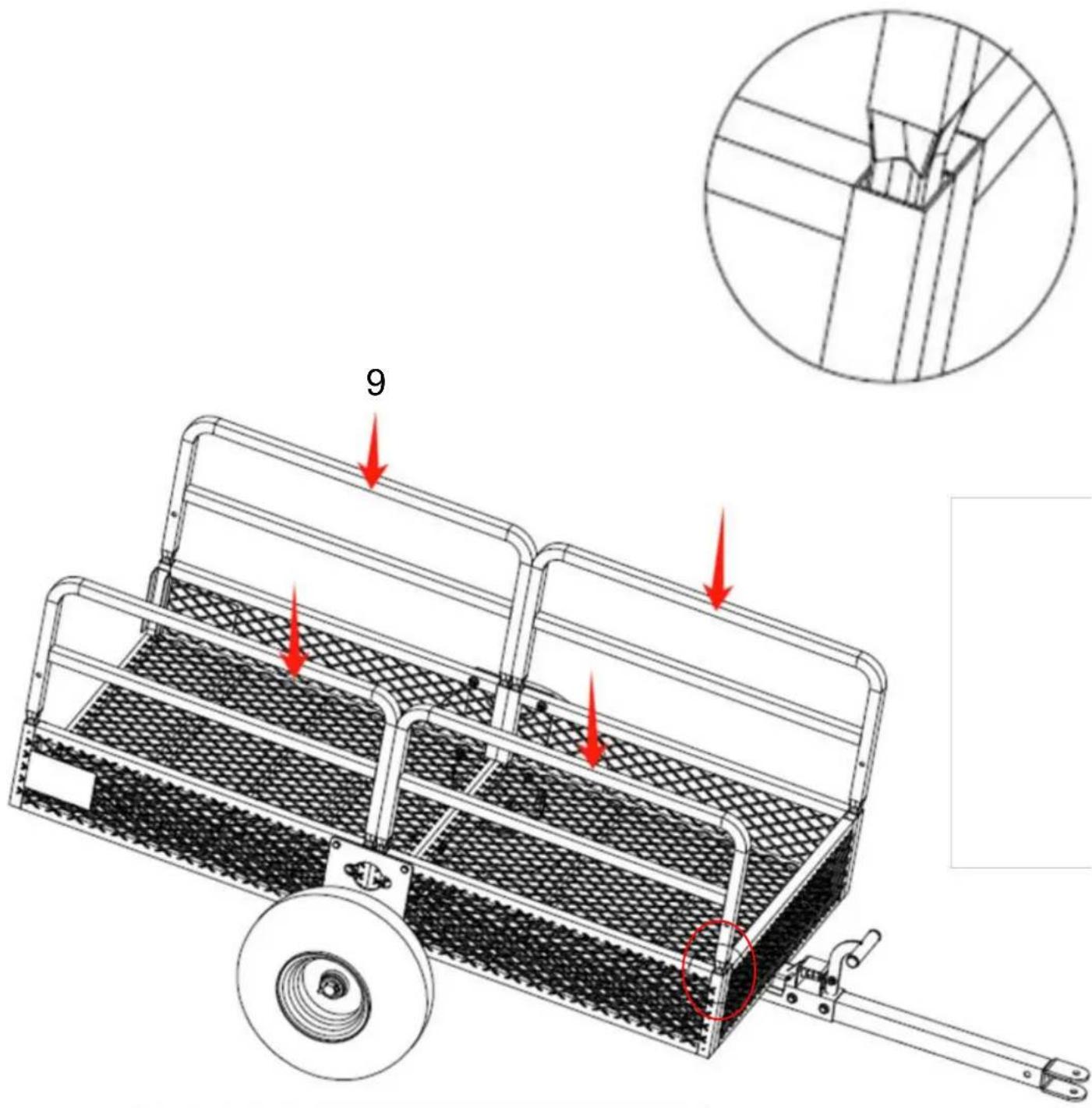

STEP 9 9 x4 9 Install the 4 Left and right guardrails(No.9) on the left and right sides of the frame.

STEP 10

Pure technical line drawing of a bent pipe or duct with no text, numbers, or symbols

Technical line drawing of a rectangular device with grid pattern and curved top edge (no text or symbols)

Technical line drawing of a wheeled cart with mesh pattern and a labeled component (no text or symbols beyond the number 10)

Technical line drawing of a wheeled cart with mesh pattern and a wheel, no text or symbols present

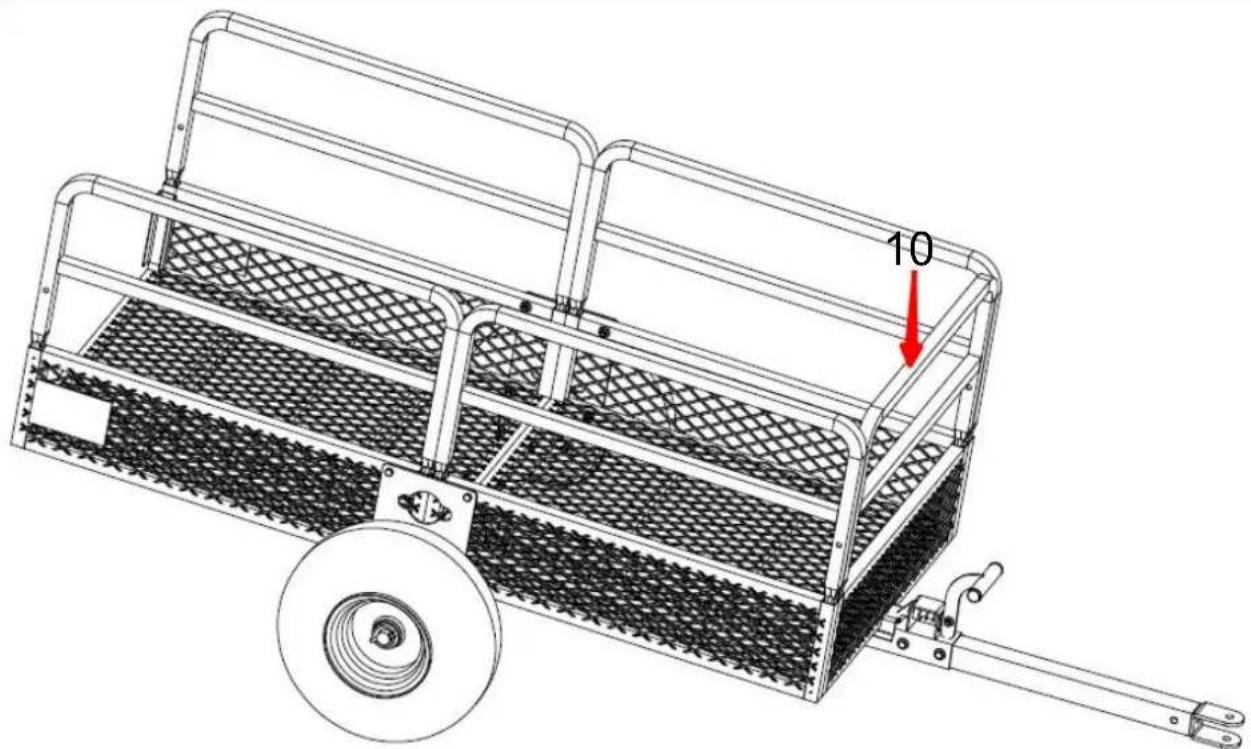

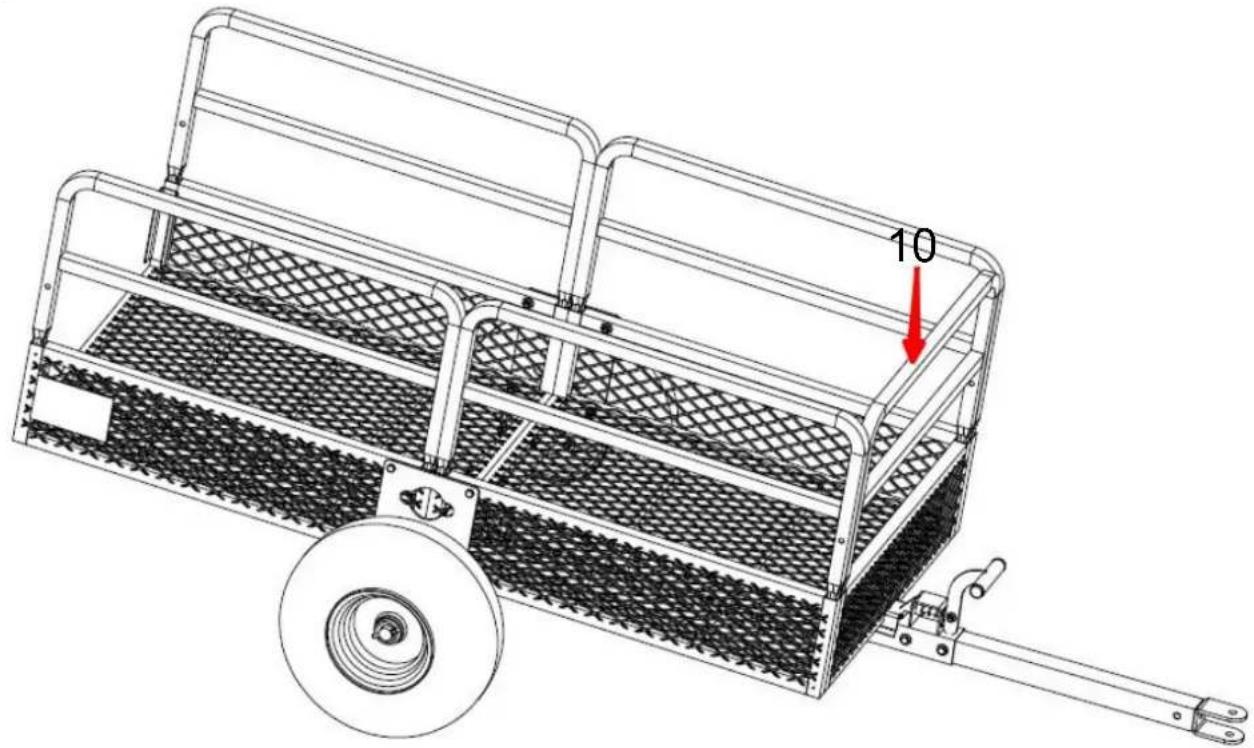

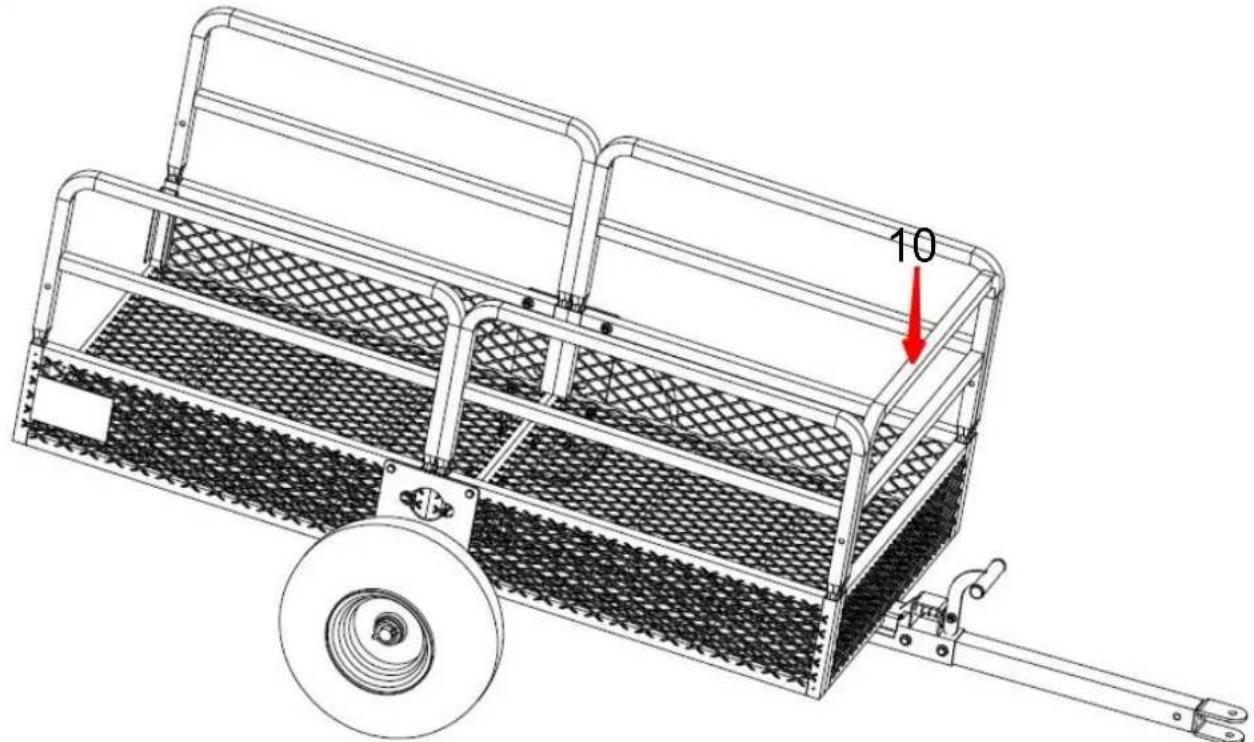

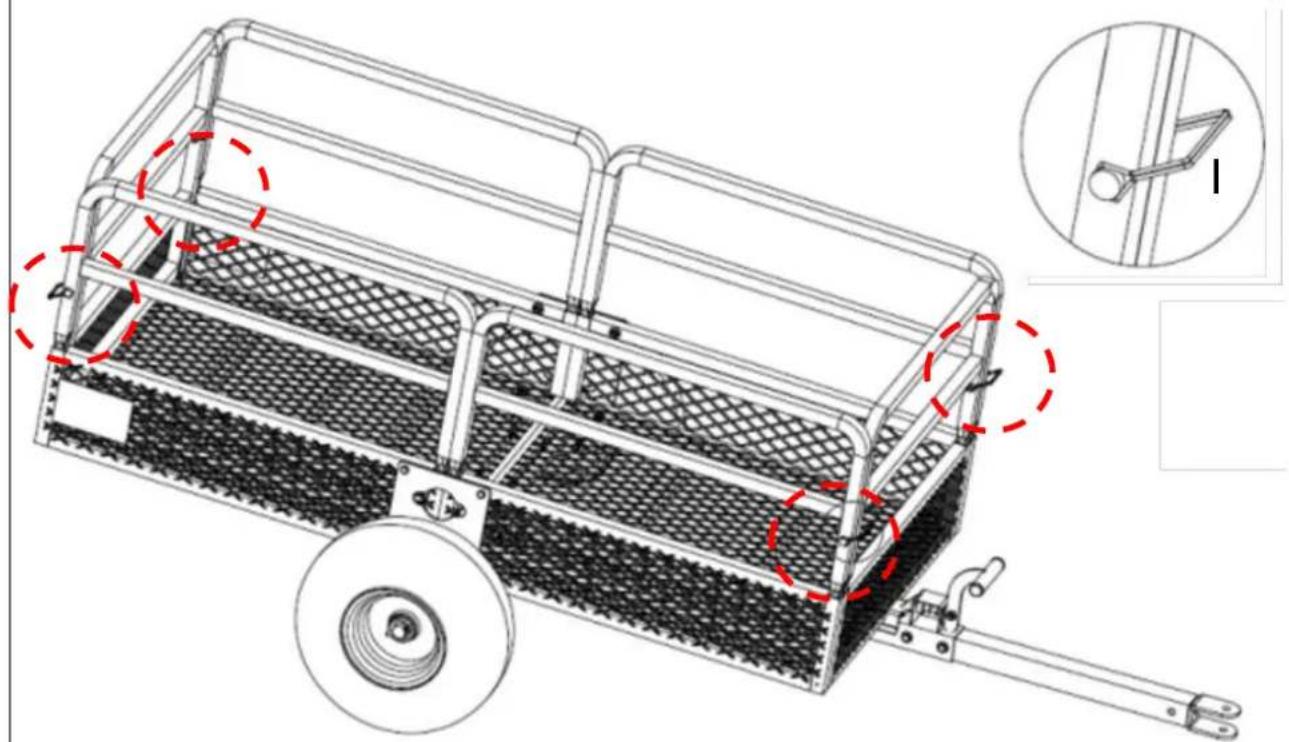

1. Install the Front guardrail(No.10) on the left and right sides of the frame.

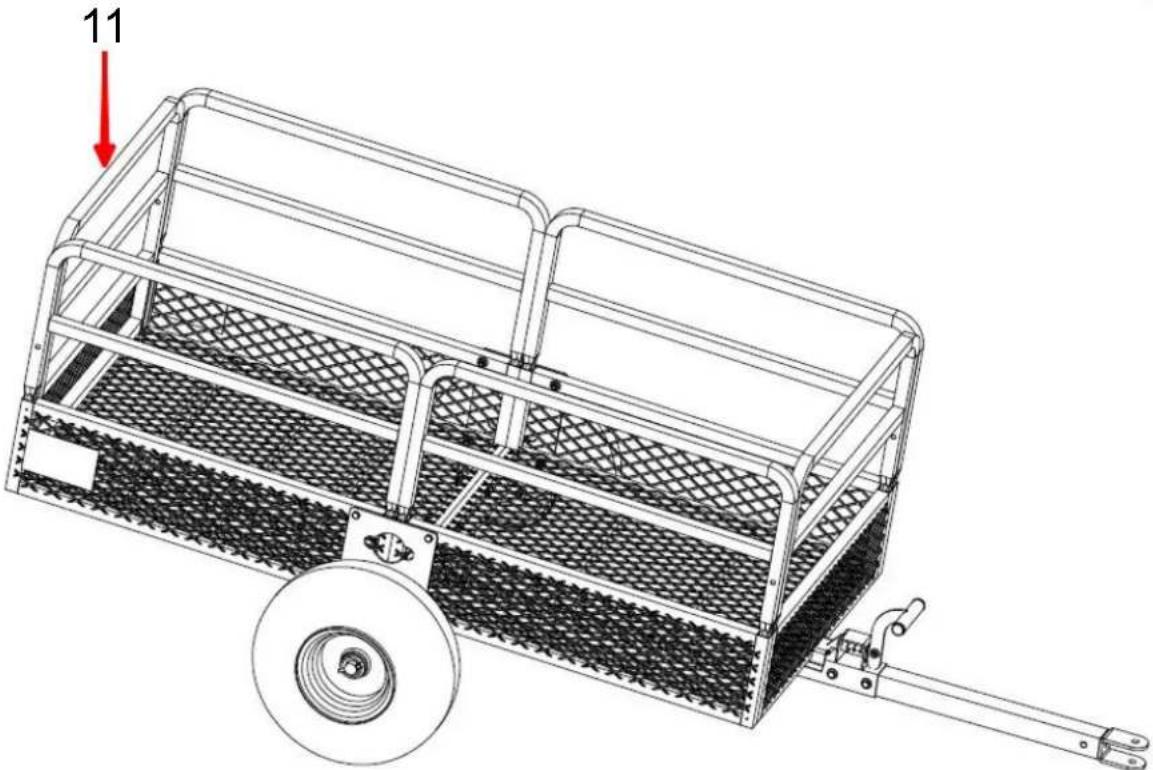

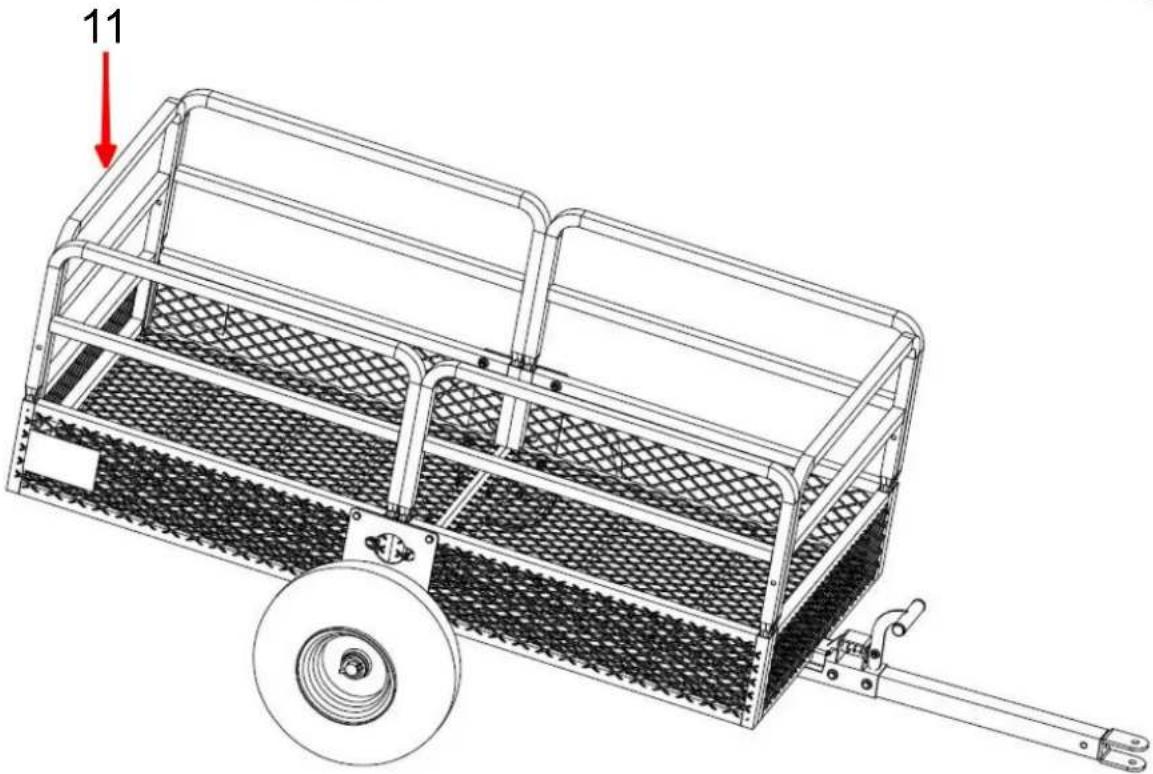

2. Install the Rear guardrail(No.11) on the left and right sides of the frame.

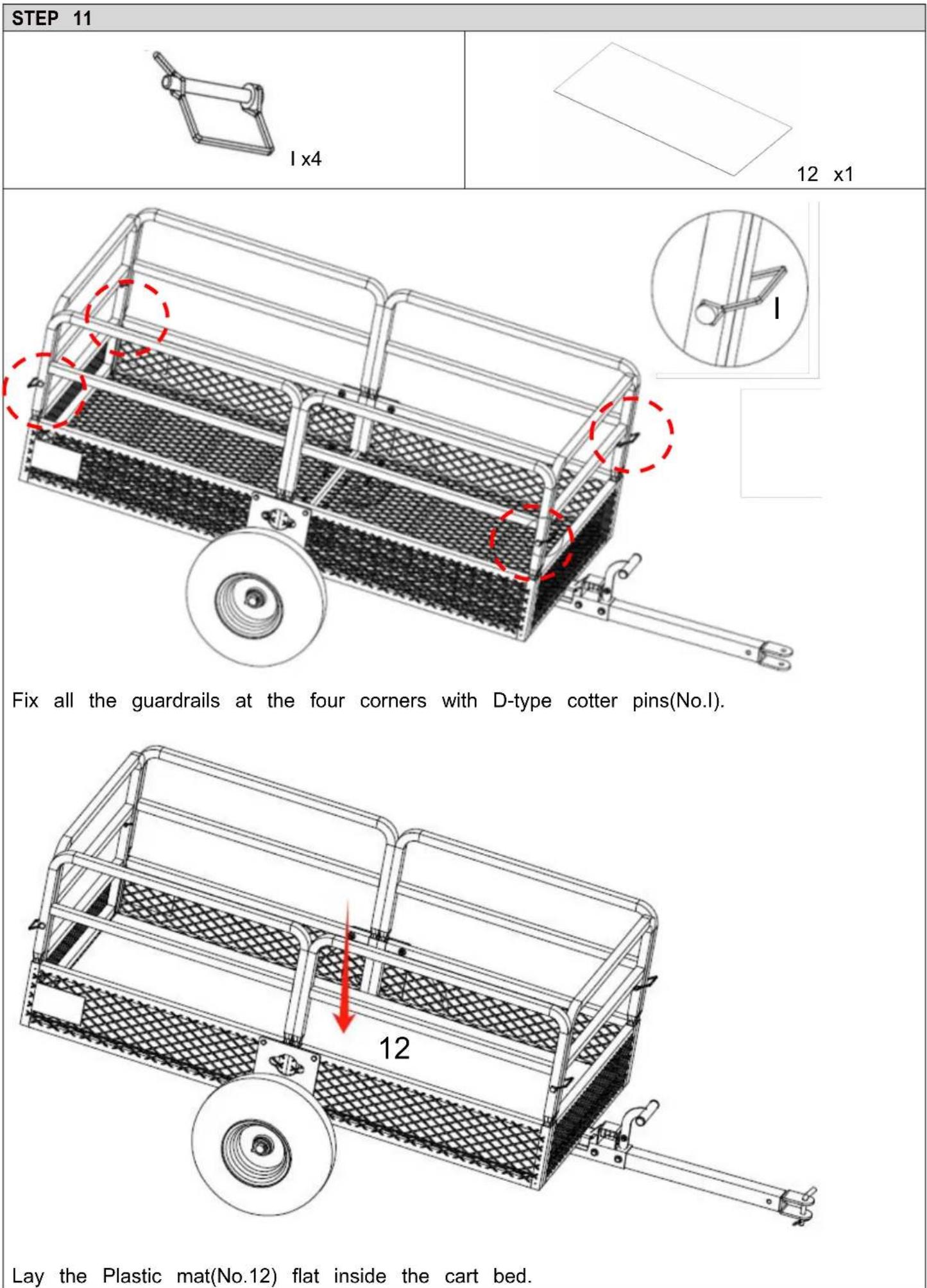

PRODUCT PARAMETER

Model	TC4268
Volume	15 cu.ft
Carriage size	1370*710*395mm / 54*28*15.5inchs
Maximum loading capacity	1500 LBS

Model	TC4278
Volume	22 cu.ft
Carriage size	1490*735*575mm / 58.6*28.9*22.6inchs
Maximum loading capacity	1600 LBS

Model	TC4288
Volume	28 cu.ft
Carriage size	1524*810*635mm / 60*32*25inchs
Maximum loading capacity	1765 LBS

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

PRZYCZEPY OGRODOWE

MODELE: TC4268/TC4278/TC4288

MO DEL: TC4268/TC4278/TC4288

Line drawing of a two-wheeled cart with mesh panels and a wheel, no text or symbols present

QR code image containing encoded data, no visible human-readable text

https://youtu.be/aIQyVCV19sY

Technical diagram of a multi-compartment electric motor with numbered parts for identification and assembly reference.

ASSEMBLY STEP

KROK 1

3D rendering of a rectangular electronic device with a mesh panel and top frame (no text or symbols visible)

1 x 1

3D diagram of a rectangular container filled with mesh patterns, no text or symbols present

2x1

Śruba x3 M8*7 0

Technical line drawing of a metal frame structure with lattice pattern and red dashed measurement lines (no text or symbols)

A

Isometric line drawing of a rectangular metal plate with two circular indentations on both sides (no text or symbols)

3 x 1

Śruba B x4 M8* 45

Technical line drawing of a metal frame structure with lattice panels and a central mounting bracket (no text or symbols)

Technical diagram of a mechanical component with red arrows indicating directional movement (no text or symbols)

B

Technical line drawing of a metal bracket with two mounting holes (no text or symbols)

6 x 1

Technical line drawing of a mechanical device with a horizontal rod and mesh panel (no text or symbols)

STEP-1

6 7

STEP-2

Technical line drawing of a mechanical assembly with a red arrow pointing to a component labeled 'A' (no text or symbols beyond label)

NOTE: This page shows the exploded view of parts from Step 3 to which is convenient for you to check if the installation is corre

Pure mechanical component diagram with no text or symbols

Technical line drawing of a rectangular component with a mesh base and curved top edge, labeled '11 x1' (no text or symbols on the diagram itself)

Technical line drawing of a two-wheeled cart with a wheel and handle, featuring a red arrow pointing to the number 10 (no text or symbols on the cart itself)

Technical line drawing of a wheeled cart with mesh pattern and a wheel, no text or symbols present

YH CONSULTING LIMITED. C/O YH Consultin

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

GARTENANHÄNGER

MODELL: TC4268/TC4278/TC4288

MODELL : TC4268/TC4278/TC4288

Line drawing of a two-wheeled cart with a wheel and handle, no text or symbols present

QR code image containing encoded data, no visible human-readable text

https://youtu.be/aIQyVCV19sY

Technical diagram of a multi-compartment electric motor with numbered components and exploded views

ASSEMBLY STEP

SCHRITT 1

3D rendering of a rectangular electronic device with a mesh panel and top frame (no text or symbols visible)

1 x 1

3D diagram of a rectangular container filled with mesh patterns, no text or symbols present

2x1

A x3 Schraube M8*7 0

Technical line drawing of a metal frame structure with lattice pattern and red dashed measurement lines (no text or symbols)

A

Isometric line drawing of a rectangular metal plate with two circular indentations on both sides (no text or symbols)

3 x 1

Technical line drawing of a metal frame structure with lattice pattern and mounting holes (no text or symbols)

Technical diagram of a mechanical component with red arrows indicating directional movement (no text or symbols)

B

NOTE: This page shows the exploded view of parts from Step 3 to Step 6, which is convenient for you to check if the installation is correct.

Pure diagram of a bent pipe or tube with no text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

9

Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

REMORQUES DE JARDIN

MODÈLE : TC4268/TC4278/TC4288

MODÈLE : TC4268/TC4278/TC4288

Line drawing of a two-wheeled cart with mesh panel and wheel (no text or symbols)

QR code image containing encoded data, no visible human-readable text

https://youtu.be/aIQyVCV19sY

Technical diagram of a multi-compartment electric motor with numbered parts for identification and assembly reference.

ASSEMBLY STEP

ÉTAPE 1

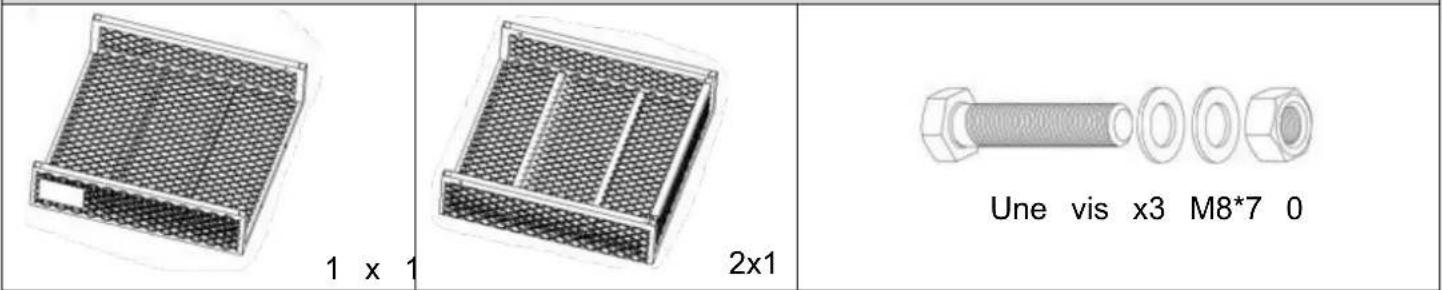

1 x 1 2x1 Une vis x3 M8*7 0

Technical line drawing of a metal frame structure with lattice pattern and red dashed measurement lines (no text or symbols)

A

Isometric line drawing of a rectangular metal plate with two circular indentations on both sides (no text or symbols)

3 × 1

Vis B x4 M8* 45

Technical line drawing of a metal frame structure with lattice pattern and mounting holes (no text or symbols)

Technical diagram of a mechanical component with red arrows indicating directional movement (no text or symbols)

B

Technical line drawing of a metal bracket with two mounting holes (no text or symbols)

6 x 1

Technical line drawing of a mechanical assembly with a horizontal rod and meshed panel (no text or symbols)

STEP-1

6 7

STEP-2

Technical line drawing of a mechanical component with a red arrow and label 'A' pointing to a feature (no text or symbols beyond labels)

NOTE: This page shows the exploded view of parts from Step 3 to which is convenient for you to check if the installation is corre-

ÉTAPE 7
F x2	D x4		8 x 2

D 8 D F

Simple line drawing of a bent pipe or elbow joint (no text or symbols)

G x1

H×1

Technical diagram showing mechanical assembly with labeled components G, 6, and H, including meshed panel and bracket details.

Pure technical line drawing of a U-shaped pipe or support structure without any text, labels, or symbols

9 x 4

9

Pure technical line drawing of a U-shaped pipe or support structure without any text, labels, or symbols

10 x 1

Technical line drawing of a rectangular component with horizontal grooves and a textured base (no text or symbols)

11 x 1

Technical line drawing of a wheeled cart with a wheel and handle, featuring a red arrow pointing to the number 10 (no text or symbols on the cart itself)

Technical line drawing of a wheeled cart with mesh pattern and a wheel, no text or symbols present

Blank white rectangular shape with no text, numbers, or symbols

12 x 1

Technical line drawing of a wheeled cart with mesh pattern and wheel, showing structural details (no text or symbols)

YH CONSULTING LIMITED. C/O YH Consultin

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

TUINTRAILERS

MODEL: TC4268/TC4278/TC4288

Line drawing of a two-wheeled cart with mesh panels and a wheel, no text or symbols present

QR code image containing encoded data, no visible human-readable text

https://youtu.be/aIQyVCV19sY

Technical diagram of a multi-compartment electric motor with numbered components and exploded view

ASSEMBLY STEP

STAP 1

3D rendering of a grid-patterned rectangular device with a label on the front panel (no text or symbols visible)

1x1

3D diagram of a rectangular container filled with mesh patterns, no text or symbols present

2x1

Technical line drawing of a metal frame structure with lattice pattern and red dashed measurement lines (no text or symbols)

A

Isometric line drawing of a rectangular metal plate with two circular indentations on both sides (no text or symbols)

3x1

B x4 Schroef M8* 45

Technical diagram showing a structural frame with mesh patterns and a magnified view of a component labeled B, annotated with red arrows.

Simple line drawing of a cylindrical object with three curved ends, resembling a wire or filament (no text or symbols)

4x1

C x2 Schroef M10* 25

Technical diagram of a mechanical assembly with labeled components and a magnified inset showing component C.

NOTE: This page shows the exploded view of parts from Step 3 to which is convenient for you to check if the installation is corre

Pure diagram of a bent pipe or tube with no text, numbers, or symbols

Diagram of a rectangular container with a mesh pattern and a side label '11 x1' (no text or symbols on the diagram itself)

Technical line drawing of a two-wheeled cart with a wheel and handle, featuring a red arrow pointing to the number 10 (no text or symbols on the cart itself)

Technical line drawing of a wheeled cart with mesh pattern and a wheel, no text or symbols present

YH CONSULTING LIMITED. C/O YH Consultin

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

TRÄDGÅRDSVAGNAR

MODELL: TC4268/TC4278/TC4288

MODELL : TC4268/TC4278/TC4288

Line drawing of a two-wheeled cart with mesh panel and wheel (no text or symbols)

QR code image containing encoded data, no visible human-readable text

https://youtu.be/aIQyVCV19sY

Technical diagram of a multi-compartment electric motor with numbered parts for identification and assembly reference.

ASSEMBLY STEP

STEG 1

3D rendering of a rectangular metal tray with a mesh pattern on top (no text or symbols)

1 x 1

3D diagram of a rectangular container filled with mesh patterns, no text or symbols present

2x1

A x3 Skruv M8*7 0

Technical line drawing of a structural frame with lattice pattern and red dashed lines indicating hidden edges (no text or symbols)

A

Isometric line drawing of a rectangular metal plate with two circular indentations on both sides (no text or symbols)

3 x 1

B x4 Skruv M8* 45

Technical diagram showing a structural frame with mesh patterns and a magnified view of a component labeled B, annotated with red arrows.

Simple line drawing of a cylindrical object with three curved ends, resembling a wire or filament (no text or symbols)

4x1

C x2 Skruv M10* 25

Technical diagram of a mechanical assembly with labeled components and a magnified inset showing component C.

Isometric line drawing of a rectangular metal plate with two circular indentations and mounting holes (no text or symbols)

3 x 1

B x4 Skruva M8* 45

C x2 Skruv M10* 25

B

3

C

Technical line drawing of a structural frame with mesh pattern and vertical supports (no text or symbols)

Technical line drawing of a mechanical lever or support structure (no text or symbols)

7×1

Technical line drawing of a mechanical frame assembly with no visible text or symbols

4 5 7

5 E

Technical line drawing of a metal bracket with two mounting holes (no text or symbols)

6x1

Technical line drawing of a mechanical device with a horizontal rod and mesh panel (no text or symbols)

STEP-1

6 7

STEP-2

Technical line drawing of a mechanical component with a red arrow pointing to a detail labeled 'A' (no text or symbols on the diagram itself)

NOTE: This page shows the exploded view of parts from Step 3 to which is convenient for you to check if the installation is corre

Pure technical line drawing of a bent pipe or support structure without any text, numbers, or symbols

10 x 1

Technical line drawing of a rectangular component with internal layered structure and mesh texture (no text or symbols)

11 x 1

Technical line drawing of a two-wheeled cart with a wheel and handle, featuring a red arrow pointing to the number 10 (no text or symbols on the cart itself)

Technical line drawing of a wheeled cart with mesh pattern and a wheel, no text or symbols present

YH CONSULTING LIMITED. C/O YH Consultin

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

REMOLQUES DE JARDÍN

MODELO: TC4268/TC4278/TC4288

MODELO : TC4268/TC4278/TC4288

Line drawing of a two-wheeled cart with mesh panels and a wheel, no text or symbols present

QR code image containing encoded data, no visible human-readable text

https://youtu.be/aIQyVCV19sY

Technical diagram of a multi-compartment electric motor with numbered parts for identification and assembly reference.

ASSEMBLY STEP

PASO 1

1 x 1 2x1 Tornillo A x3 M8*7 0

Technical line drawing of a metal frame structure with lattice pattern and red dashed measurement lines (no text or symbols)

A

Isometric line drawing of a rectangular metal plate with two circular indentations on both sides (no text or symbols)

3x1

Tornillo B x4 M8* 45

Technical line drawing of a metal frame structure with lattice panels and a central mounting bracket (no text or symbols)

Technical diagram of a mechanical component with red arrows indicating directional movement (no text or symbols)

B

Technical line drawing of a metal bracket with two mounting holes (no text or symbols)

6x1

Technical line drawing of a mechanical assembly with a horizontal rod and meshed panel (no text or symbols)

STEP-1

6 7

STEP-2

Technical line drawing of a mechanical component with a red arrow and label 'A' pointing to a specific part (no text or symbols beyond labels)

NOTE: This page shows the exploded view of parts from Step 3 to which is convenient for you to check if the installation is corre

PASO 7
F x2	D x4	8 x 2

D 8 D F

Simple line drawing of a bent pipe or elbow joint (no text or symbols)

G x1

Alto x1

Technical diagram showing mechanical assembly with labeled components G, 6, and H, including meshed panel and bracket details.

Pure technical line drawing of a U-shaped pipe or support structure without any text, labels, or symbols

9 x 4

Technical diagram of a mechanical cart with labeled parts and an inset showing a close-up of the component.

Pure technical line drawing of a U-shaped pipe or support structure without any text, labels, or symbols

10 x 1

Technical line drawing of a rectangular component with a textured base and curved top (no text or symbols)

11 x 1

Technical line drawing of a wheeled cart with a wheel and handle, featuring a red arrow pointing to the number 10 (no text or symbols on the cart itself)

Technical line drawing of a wheeled cart with mesh pattern and a wheel, no text or symbols present

Blank white rectangular shape with no text, numbers, or symbols

12 x 1

Technical line drawing of a wheeled cart with mesh pattern and wheel, showing structural details (no text or symbols)

YH CONSULTING LIMITED. C/O YH Consultin

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
