Product Type	Electric Rebar Cutter
Brand	Vevor
Model	RC-20
Power	1000 W
Net Weight	18.75 kg
Gross Weight	18.15 kg
Power Supply	220-240 V / 120 V, 50/60 Hz
Cutting Capacity (max)	20 mm
Cutting Capacity (min)	4 mm
Cutting Speed	≤ 3 seconds
Drive System	Hydraulic
Compatible Materials	Concrete rebar bars
Number of cutting edges per block	4
Routine Maintenance	Check oil level, clean metal shavings, tighten bolts
Spare Parts Available	Cutting blocks, carbon brushes, oil seals
Repairability	Replacement of blocks and brushes possible by user
Required Safety	Safety glasses, gloves, safety screens, keep visitors away
Warranty	Technical support and electronic warranty certificate at www.vevor.com/support

Frequently Asked Questions - RC-20 Vevor

What type of hydraulic oil to use for the Vevor RC-20?

Use a hydraulic oil of weight 20 with anti-foam and anti-abrasion properties, viscosity grade ISO VG46 (e.g., Shell Tellus 46, Mobil DTE-25, Esso Uni Power SQ46).

How to check the oil level of the rebar cutter?

Warm up the tool, perform a few cuts, then unplug. Tilt the device so that the oil cap is at the highest point. Remove the cap and washer. The level should be flush with the bottom of the hole. If necessary, add oil and bleed the air by tilting the tool.

How to adjust the stop on the Vevor RC-20?

Screw the cap to release the bar. Insert the bar into the U-shaped support, at a right angle to the cutting block. Unscrew the cap until it touches the bar. The adjustment is valid for this diameter.

What are the essential safety precautions?

Always wear safety glasses, gloves, and use protective screens. Keep visitors away. Do not cut in the rain. Check grounding. Use appropriate extension cords.

How to replace the cutting blocks?

Unscrew the two bolts on each block. Rotate the block to use a new edge (4 edges per block). If all edges are worn or the block is damaged, replace both blocks. Tighten the bolts well.

When should the carbon brushes be replaced?

Inspect the brushes every two months or every 200 hours. Unscrew the caps, remove the brushes. Replace if they measure less than 6 mm long.

How to bleed air from the hydraulic system?

After topping up the oil, gently tilt the cutter in one direction, then the other, refilling each time until air bubbles disappear. Replace the cap.

What to do if the piston does not fully retract?

Unplug the device. Use a metal bar to manually push the cutting block backward. Never use hands. Then check for metal shavings and clean. If the problem persists, return the device for repair.

What is the power and voltage of the Vevor RC-20?

The power is 1000 W. There are two versions: 220-240 V 50 Hz or 120 V 60 Hz. Check the nameplate of your device.

How to clean the rebar cutter after use?

Unplug the tool. Wear gloves. Brush or wipe off dirt and metal shavings, especially around the piston. Do not use compressed air.

USER MANUAL RC-20 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

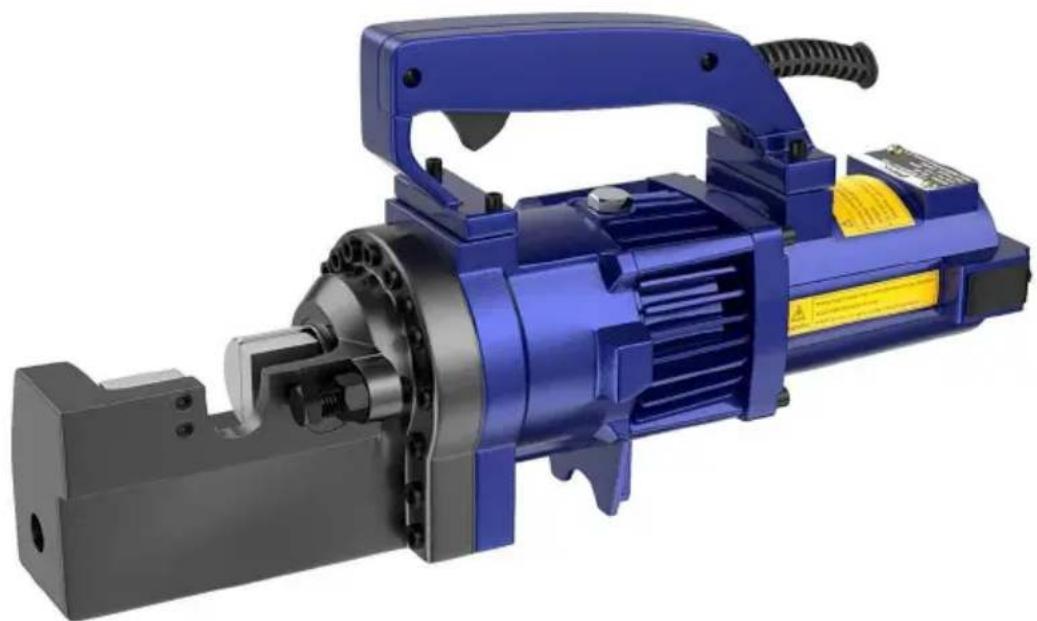

ELECTRIC REBAR CUTTER

MODEL:RC-16/RC-25/RC-20/RC-22

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:RC-16/RC-25/RC-20/RC-22

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

Usage

Use rebar cutters on concrete re-forcing bars only.

Restrict use to designated materials

There is always a chance that the cut end may shoot out, especially than 30cm in length. Exceeding designated material specifications great increases this risk and will also damage the tool. Do not attempt to rebars. Harder, thicker or thinner than those specified.

Use eye protection

Wear safety goggles, safety glasses with side shields, or a face shield when using the cutter.

Provide safety barriers.

Erect safety screens to protect co-workers from possible flying ends. If working in high places, place a safety screen under the rebar.

Exercise proper control.

Hold the cutter firmly and maintain proper footing and balance. Do not over-reach when working in high places; secure the cutter to scaffolding or a safety rope. Check that the power cord is not fouled and keep the cord away from sharp edges and heat. Check that all adjusting wrenches have been removed before using the cutter.

Guard against electric shock.

To avoid possible electric shock, do not handle the cutter with wet hands or use it in the rain or damp places. Be aware of all power lines, circuits, and other hazards that may be contacted, especially those below the surface or otherwise hidden from view.

Unplug the tool.

Disconnect the cutter from the outlet when not in use and before cleaning, adjusting, or servicing. Do not disconnect the plug from the outlet by pulling the cord. Always check that the switch lock is OFF before plugging in.

Beware of the environment.

Do not use the cutter in the presence of flammable materials (e.g., paint, thinner, petroleum products, adhesives).

Do not use the cutter in a possibly lighted area and keep the area clear of obstructions. The operator should at all times have an unobstructed view of the cutter, rebar, and surrounding area.

Wear proper apparel.

Do not wear loose clothes, dangling objects, or jewelry. Restrain long hair. The use of a safety helmet and rubber-soled boots is recommended. If safety gloves are worn, be especially careful that the gloves do not get caught in moving parts.

Keep visitors away.

Keep all visitors at a safe distance from the work area for their own protection and to prevent distraction of the operator.

Maintain cutter with care.

Inspect cutter before each application. Faulty or loose cutter blocks can result in personal injury. Keep handle dry, clean and free from oil and grease. Keep housing and piston free of dirt and iron filings. Check screws or bolts are loose or missing. Following instruction for maintenance. Inspect switch, cord, plug and any extension cable at regular intervals.

Store carefully.

When not in use, store cutter and accessories in a dry place where they cannot be accessed by unauthorized persons.

PARAMETER LIST

Model	RC-16	RC-25	RC-20	RC-22
Wattage(W)	1000	1700	1000	1350
G.W.(kg)	12.34	31.33	18.15	14.4
N.W.(kg)	12.84	32.13	18.75	14.9
Cutting speed	≤2.5s	≤4S	≤3s	≤3.5s
Max Rebar	16mm	25mm	20mm	22mm
Min Rebar	4mm	5mm	4mm	4mm

Note: There are two versions of the voltage of the above product, namely AC220-240V 50Hz and 120V 60Hz, please see the nameplate information of the product.

INSTRUCTIONS

Caution: Indicates hazard that could result in minor personal injury or product damage.

Care: Indicates hazard that will result in product damage.

Pre-use checks

Check oil level.

Check condition of cutter blocks and tightness of cutter block bolts.

Caution: Using loose or cracked cutter blocks may result in injury to operators as well as damage to unit.

Check that the power source is appropriate for the cutter.

Care: If voltage is too high, the motor will burn out. If voltage is insufficient, power will be reduced. Never use DC current.

Check that power supply is properly earthed.

Caution: Failure to earth power supply may result in electric shock to operator.

Check that cord is undamaged and that plug is not loose.

Caution: Cut or abraded covering could result in a short and electric shock to operator.

If an extension cable is to be used, make sure that it is undamaged and that it is the proper thickness for the length.

Cable size Cable length	110V	230V
	AWG	Normalization size
Up to 10 m	16	1.0 mm2²
Up to 15 m	14	1.25 mm2²
Up to 30 m	10	1.5 mm2²

Warm-up

In cold weather, warm up unit for 30-60 seconds so that the hydraulic fluid reaches the proper viscosity. Pull trigger-switch to extend piston and release when it has reached its full stroke. Repeat 15-20 times.

Stopper adjustment

The correct position during cutting must be properly set for each size rebar before making a cut.

1. Screw in stopper to provide sufficient clearance for rebar.

2. Insert rebar fully into U-shaped support. Make sure that rebar rests on the base of the stopper.

1. Keeping rebar at right angles (90°) to front cutter block, screw out stopper until it is just touching the rebar. Once set, the stopper needs no further adjustment while cutting rebar of the same diameter, but must be re-set for a different size rebar.

Caution: Failure to correctly set the stopper will result in excessive wear on cutter block and may cause cut end to fly out.

Cutting

1. Insert rebar between stopper and front cutter block, making sure that it is properly seated in U-shaped support.

2. Pull trigger-switch and keep depressed while piston advances and is cut. (If switch is released at an intermediate point, piston will stop)

1. When cut is completed, release switch. Piston retracts automatically. (Note that switch can't be re-activated until piston has fully retracted.)

Points of attention

1. Be especially careful when cutting off short lengths (30cm or less) and cut end tends to fly out.

Caution: Flying ends are a hazard to all personnel in the vicinity. Ensure safety screens.

2. Do not cover air vents.

Care: If vents are covered, motor will overheat and may burn out.

3. If hydraulic oil exceeds 70°C (158°F) in temperature, power will drop. Allow until to cool before resuming operation. (Be particularly careful in summer, when the aluminum pump case heats up quicker.)

4. If a drop in power is observed and motor is unusually hot, check brush.

5. If piston should ever fail to retract completely, push rear cutter block backwards to manually retract piston.

Caution: Use a rebar or flat metal bar for this purpose. Never push block with any part of the hand, even if gloved.

Once piston has been retracted, pull trigger-switch long enough to advance piston. Unplug unit. And check piston and housing for accumulated dust iron filings that may be jamming the piston. After cleaning, piston still does not automatically retract when fully extended piston itself may be damaged. Return the unit to an authorized agent repair.

Cutter blocks

Before using, always check that the two bolts on each cutter block are properly tightened. Using a loose block will result in damage to block housing. Also check condition of cutter blocks. If either cutting edge is worn or chipped, remove retaining bolts and rotate both blocks so that two edges come into use. Replace and tighten bolts (each block has four cutting edges)

When all four cutting edges have been used or if either block is cracked or otherwise damaged, replace both blocks.

Caution: A loose or cracked block may result in injury to the operator.

Cleaning

Clean the cutter after use.

Caution: Wear gloves to protect hands from metal splinters. Do not use an air gun; blasting with air can cause metal filings and/or dust to get into the respiratory system.

1. Disconnect the unit.

1. Wipe or brush away all dirt and metal filings. Pay particular attention to the lower half of the piston, where dirt is more easily accumulated.

Oil-level check

As the cutters are hydraulically operated, the oil level must be checked at frequent intervals, preferably every day. Failure to maintain the oil at the proper level results in a drop in pressure and loss of cutting power.

Caution: Hydraulic oil is highly flammable. Keep away from sparks and naked flames. Do not smoke.

Caution: Hydraulic oil may cause inflammation of the eyes and skin. If ingested, it will cause diarrhea and vomiting.

In case of eye contact, rinse in clean water for at least 15 minutes and consult a physician. In case of skin contact, wash thoroughly with soap and water.

In case of ingestion, consult a physician immediately. Do not deliberately induce vomiting.

1. Oil should be warm but not hot. Warm up the unit if cold.

1. Adjust the stopper and make three or four cuts, noting exactly at what point the rebar is actually breaking.

3. Pinch a short piece of rebar, stopping just before it breaks off. Unplug from power source.

1. With partially severed rebar in place, turn unit over so that oil-plug is uppermost. (If unit is hot, allow to cool down.)

5. Remove oil-plug and seal-washer (packing).

Caution: Never remove oil plug when unit is hot or oil will spurt out. 6. Check that oil is level with bottom of plug hole (i.e., that pump can is to the brim). If oil level is too low, top up with 20-weight hydraulic oil.

anti-foam and anti-abrasion properties. (ISO viscosity grade VG46. E.g., Shell oil Tellus 46, Mobil oil DTE-25, or Esso Uni Power SQ46.)

1. After topping up, extract air from system. Gently tilt cutter lengthwise and return it to a level position. Top up again and tilt in the opposite direction. Repeat this process until all air has been extracted.

Care: Cutter can't function properly if oil contains air bubbles.

1. Replace seal washer (packing) and plug. Connect cutter to power and completely sever rebar.

Oil change

The hydraulic oil should be changed at least once a year. Sooner if it appears dirty.

1. Unplug unit from power source. Remove oil plug and packing. Turn over and drain oil into a suitable receptacle. When oil ceases to drain, tilt unit to rear so that oil trapped in the piston housing can run out. When housing is empty, tilt unit in the opposite direction to empty the residue in the pump case.
2. With drain-hole uppermost, slowly fill the unit with fresh oil. Replace and lightly tighten. Connect unit to power source and advance piston three times. Unplug unit and remove oil-plug. Top up oil level and plug. 3. Finally follow procedure for oil level check.

Note: Dispose of hydraulic oil in accordance with local regulations. Do not pour into the sea, river, lake or drains.

Bolt tightness

Once a week or after every 500 cuts, check the tightness of all bolts, especially those securing the housing to the cylinder. Loose bolts will result in a loss of power.

Carbon brushes

Inspect the two carbon brushes at least once every two months. (Normal brush life is 200 hours.)

Care: Worn brushes will result in power loss, cause the motor to run

and irreparably damage the armature's commutator.

1. Disconnect unit. 2. Unscrew both brush caps and pull out carbon brushes. 3. Replace brushes if less than 6 cm in length.

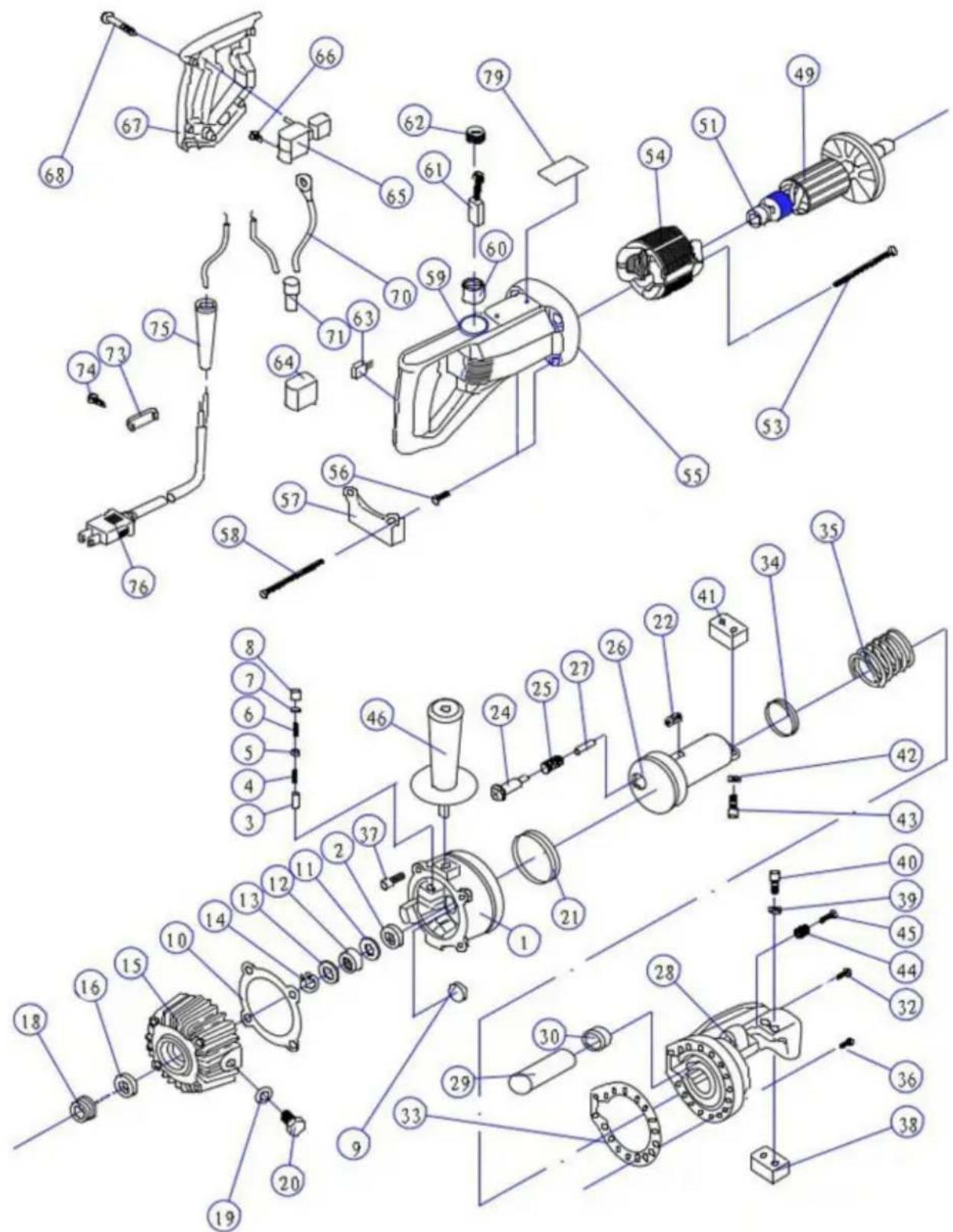

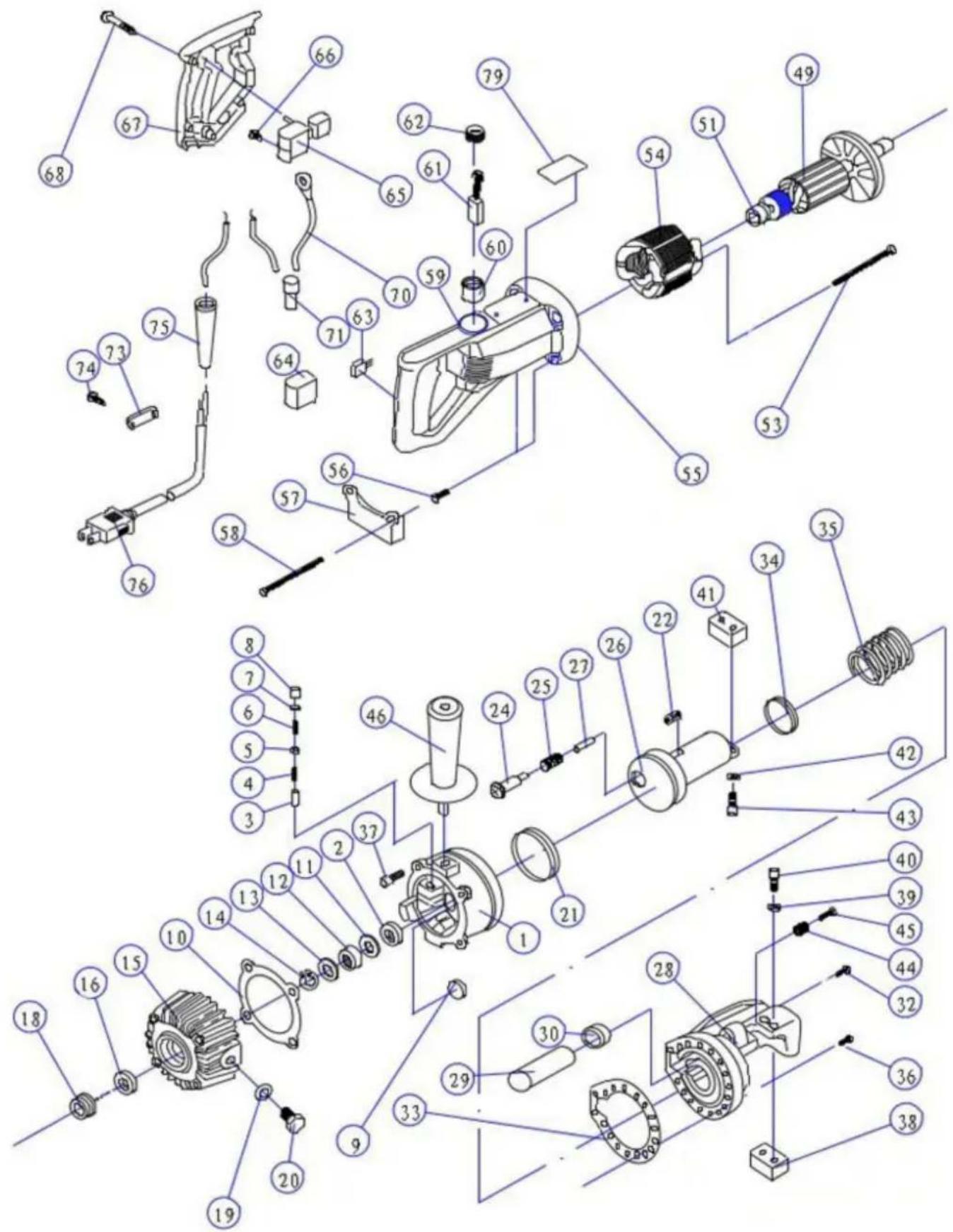

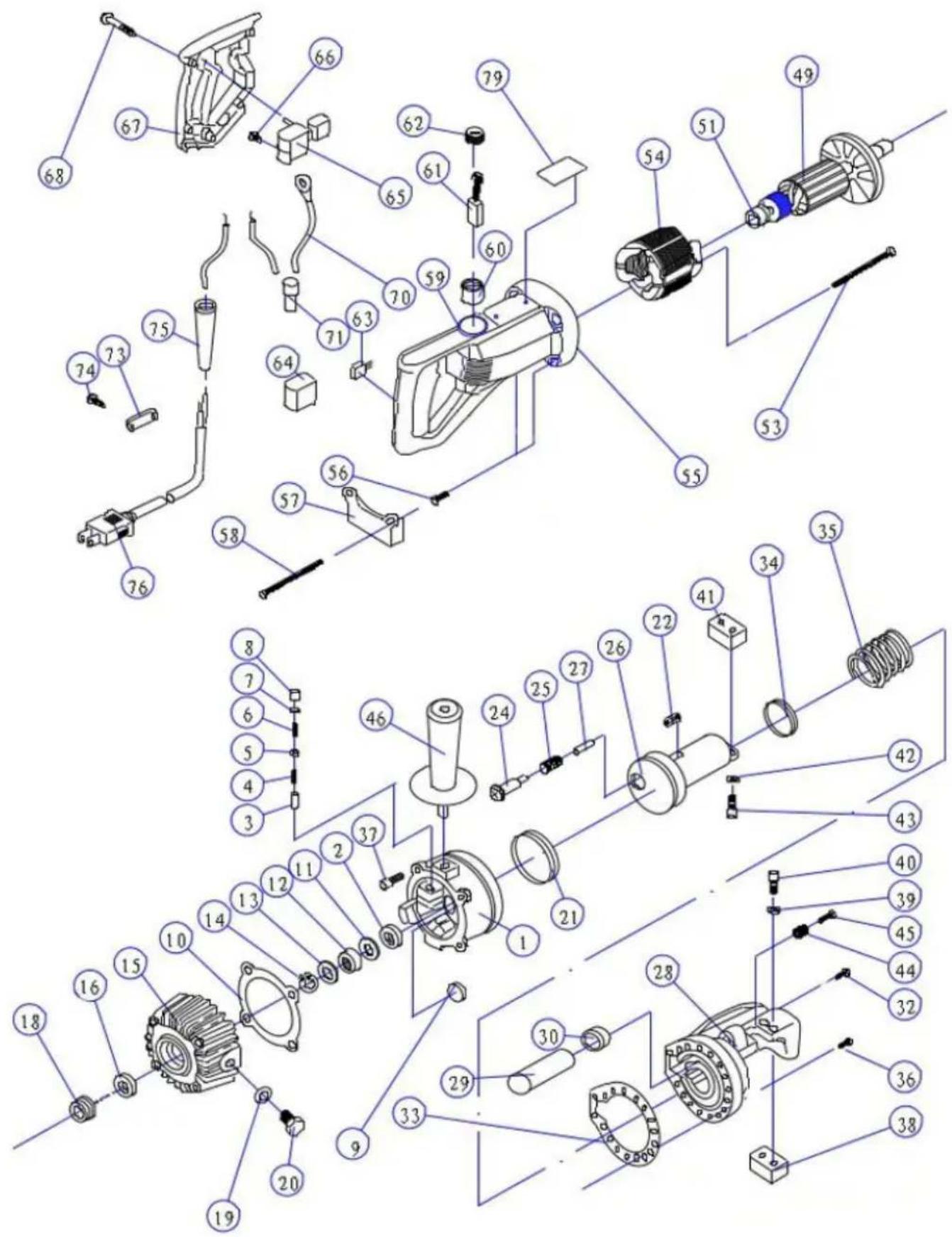

Portable Rebar Cutter Parts List

RC-16 Portable Rebar Cutter Parts List

RC-16 PARTS LIST

NO.	PARTS NAME	NO.	PARTS NAME
1	CYLINDER	40	hexagon socket screw M5 18
2	BALL BEARING 698	41	CUTTER BLOCK / BLADE
3	PISTON	42	SPRING WASHER Φ5
4	RETURN SPRING	43	hexagon socket screw M5×16
5	OIL VALVE	44	SPRING
6	VALVE SPRING	45	hex socket screw M10x40
7	SPRING GUIDE	46	HANDLE
8	PUMP SEAL	47	**
9	MAGNET FILTER	48	**
10	GASKET	49	ARMATURE
11	MANGANESE STEEL GASKET	50	**
12	NEEDLE BEARING 12×24×10	51	BEARING 608
13	MANGANESE STEEL GASKET	52	**
14	SNAP RING	53	TAPPING SCREW M4×60
15	SNAP RING	54	STATOR COIL
16	PUMP CASE OIL SEAL 15×25×7	55	MOTOR HOUSING
17	**	56	LOCATING SLEEVE
18	BEARING 6002	57	FOOT STAND
19	COMPOUND GASKET Φ10	58	hexagon socket screw M5×85
20	HEXAGONAL BOLT M10×16	59	hexagon socket set screw M4×5
21	GASKET RING 70×60×6	60	BRUSH HOLDER
22	PIN 8×25	61	CARBON BRUSH
23	**	62	BRUSH CAP
24	RETURN ROD	63	CONDenser
25	SPRING	64	CONDenser COVER
26	CUTTER ROD	65	SWITCH
27	SPRING	66	RUBBER PUSH BUTTON
28	CUTTER HEAD	67	HOUSING COVER
29	AIR BAG	68	TAPPING SCREW M4x20
30	NUT	69	**
31	**	70	**
32	SCREW	71	SAFETY CAP
33	GASKET	72	**
34	SEAL 40*30*6	73	CORD HOLDER
35	BIG SPRING	74	TAPING SCREW M4x14
36	hexagon socket screw Mx 20	75	CORD ARMOR
37	hexagon socket screw Mx 20	76	ELECTRICAL CORD
38	CUTTER BLOCK / BLAD	77	**
39	PRING WASHER M5	78	**
		79	NAME PLATE

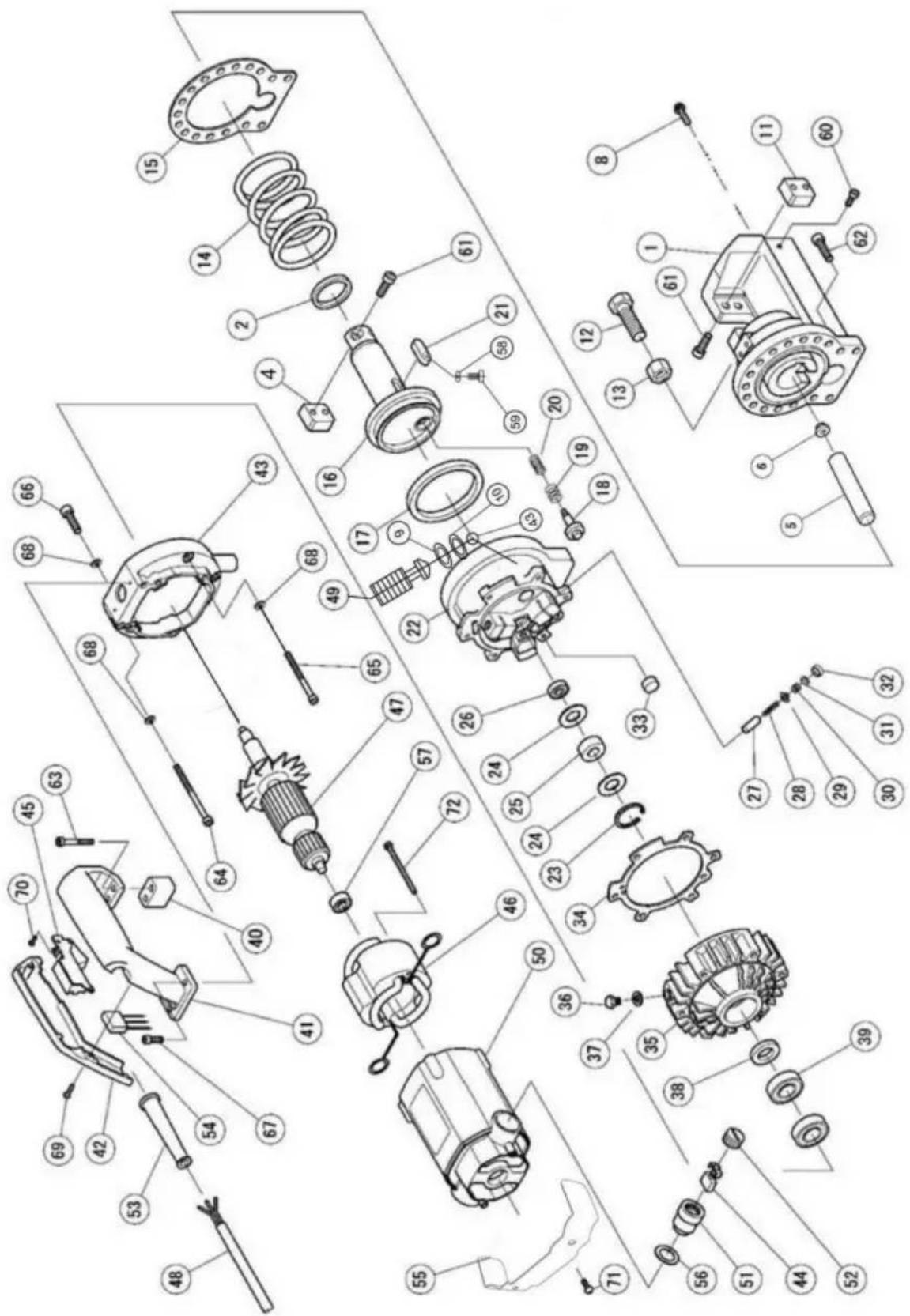

RC-20, RC-22, RC-25 Portable Rebar Cutter Parts List

RC-20/RC-22/RC-25 PARTS LIST

NO.	PARTS NAME	NO.	PARTS NAME
1	CUTTER HEAD	40	CONNECTING BLOCK
2	GASKET RING 40×50×6	41	HANDLE
3	**	42	HANDLE COVER
4	CUTTER BLOCK / BLADE	43	PHOTOSHERE Φ4.763
5	AIR BAG	44	CARBON BRUSH
6	NUT	45	SWITCH
7	**	46	STATOR COIL
8	SCREW	47	ARMATURE
9	O RING	48	ELECTRICAL CORD
10	O RING	49	BOLT
11	CUTTER BLOCK / BLADE	50	MOTOR HOUSING
12	HEXAGONAL SCREW	51	CARBON BRUSH HOLDER
13	NUT	52	CARBON BRUSH CAP
14	BIG SPRING	53	CABLE ARMOR
15	GASKET	54	**
16	CUTTER ROD	55	**
17	GASKET RING 80×95×9	56	GUM WASHER
18	RETURN SHAFT	57	BEARING 6200
19	SPRING	58	WAVE WASHER
20	SPRING	59	BOLT M4*8
21	PIN 12×40	60	BOLT M8*25
22	CYLINDER	61	BOLT M8*30
23	SNAP RING	62	BOLT M8*30
24	MANGANESE STEEL GASKET	63	BOLT M6*20
25	NEEDLE BEARING 14×30×12	64	BOLT M6*20
26	BEARING 609	65	BOLT M6*25
27	PISTON	66	BOLT M6*50
28	SPRING	67	BOLT M6*20
29	OIL VALVE	68	WASHER
30	SPRING	69	BOLT M4*12
31	SPRING GUIDE	70	BOLT M4*8
32	OIL SEAL	71	**
33	FILTER MAGNET	72	BOLT M5*75
34	GASKET	73	CONNECTING PLATE
35	PUMP CASE
36	HEXAGONAL SCREW M10×16
37	COMPOUND GASKET Φ10
38	OIL SEAL 20×35×8
39	BEARING 104

Manufacturer: Shanghai Xinmu Industrial Co., Ltd.

Address: Room 1602A-1609, No. 11, Lane 803, Shuangcheng Road, Baoshan District, Shanghai 200000, China.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited, Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

Portable Rebar Cutter Parts List

Parts list for portable rebar cutter RC-16

PARTS LIST RC-16

NON.	NOM DES PIECES	NON.	NOM DES PIECES
1	CYLINDRE	40	vis à six pans creux M5 x 18
2	ROULEMENT À BILLES 698	41	BLOC DE COUPE / LAME
3	PISTON	42	RONDELLE RESSORT F5
4	RESSORT DE RAPPEL	43	vis à six pans creux M5x16
5	SOUPAPE D'HUILLE	44	PRINTEMPS
6	RESSORT DE SOUPAPE	Vis à	six pans creux 45 M10x40
7	GUIDE À RESSORT	46	POIGNÉE
8	JOINT DE POMPE	47	**
9		48FILTRE MAGNETIQUE	**
dix	JOINT	49	ARMATURE
11	ACIER AU MANGANÈSE JOINT	50	**
12	ROULEMENT À AIGUILLES 12x24x10	51	ROULEMENT 608
13	ACIER AU MANGANÈSE JOINT	52	**
14	ANNEAU À PRESSION	53	VIS TARAUDEUSES M4x60
15	ANNEAU À PRESSION	54	BOBINE DE STATOR
16	JOINT D'HUILLE DE CARTER DE POMPE 15x25x7	55	CARTER MOTEUR
17	**	56	MANCHON DE LOCALISATION
18	ROULEMENT 6002	57	SUPPORT DE PIED
19	JOINT COMPOSEF10	58	vis à six pans creux M5x85
20	BOULON HEXAGONAL M10×16	59	vis de réglage à six pans creux M4×5
21 JOINT D'ETANCHÉITÉ 70×60×6 60		PORTE-BALAIS
22	BROCHE 8×25	61	BROSSE EN CARBONE
23	**	62	BOUCHON DE BROSSE
24	TIGE DE RETOUR	63	CONDENSEUR
25	PRINTEMS	64 COUVERCLE DU CONDENSEUR
26	TIGE DE COUPE	65	CHANGER
27	PRINTEMS	66 BOUTON POUSSOIR EN CAOUTCHOUC
28	Tête DE COUPE	67	COUVERCLE DU BOÎTIER
29	AIRBAG	68 VIS TARAULEUSES M4x20
30	NOIX	69	**
31	**	70	**
32	VIS	71	CAPUCHON DE SÉCURITÉ
33	JOINT	72	**
34	JOINT 40*30*6	73	SUPPORT DE CORDON
35	GRAND PRINTEMS	74 VIS À RUBAN M4x14
36	vis à six pans creux M6 x20	75	ARMURE DE CORDON
37	vis à six pans creux M6 x20	76	CORDON ÉLECTRIQUE
38	BLOC DE COUPE / LAME 77		**
39	RONDELLE IMPRIMANTE M5	78	**
		79	PLAQUE SIGNALÉTIQUE

RC-20, RC-22, RC-25 Portable Rebar Cutter Parts List

PARTS LIST RC-20/RC-22/RC-25

NON.	NOM DES PIEÇES	NON.	NOM DES PIEÇES
1	Tête DE COUPE	40	BLOC DE CONNXION
2	JOINT D'ÉTANCHÉITÉ 40×50×6	41	POIGNée
3	**	42	COUVERCLE DE POIGNée
4	BLOC DE COUPE / LAME	43	PHOTOSPHÈRE Φ4.763
5	AIRBAG	44	BROSSE EN CARBONE
6	NOIX	45	CHANGER
7	**	46	BOBINE DE STATOR
8	VIS	47	ARMATURE
9	JOINT TORIQUE	48	CORDON ÉLECTRIQUE
dix	JOINT TORIQUE	49	BOULON
11	BLOC DE COUPE / LAME	50	CARTER MOTEUR
12	VIS HEXAGONALE	51	PORTE-BALAIS EN CHARBON
13	NOIX	52	BOUCHON DE BROSSE DE CHARBON
14	GRAND PRINTEMPS	53	ARMURE DE CÂBLE
15	JOINT	54	**
16	TIGE DE COUPE	55	**
17	JOINT D'ÉTANCHÉITÉ 80×95×9	56	RONDELLE DE GOMME
18	ARBRE DE RETOUR	57	ROULEMENT 6200
19		58PRINTEMPS	RONDELLE ONDULÉE
20	PRINTEMPS	59	BOULON M4*8
21	BROCHE 12×40	60	BOULON M8*25
22	CYLINDRE	61	BOULON M8*30
23	ANNEAU À PPRESSION	62	BOULON M8*30
24 JOINT ACIER AU MANGANÈSE 63			BOULON M6*20
25 ROULEMENT À AIGUILLES 14×30×12 64			BOULON M6*20
26	ROULEMENT 609	65	BOULON M6*25
27	PISTON	66	BOULON M6*50
28	PRINTEMPS	67	BOULON M6*20
29	SOUPAPE D'HUILLE	68	MACHINE À LAYER
30	PRINTEMPS BOULON M4*12	69
31	GUIDE À RESSORT	70	BOULON M4*8
32	JOINT HUILLE	71	**
33	AIMANT DE FILTRE	72	BOULON M5*75
34	JOINT	73	PLAQUE DE RACCORDEMENT
35	CARTER DE POMPE
36 VIS HEXAGONALE M10×16
37 JOINT COMPOSE Φ10
38	JOINT D'HUILLE 20×35×8
39	ROULEMENT 104

Manufacturer: Shanghai Xinmu Ye You Xian Gong Si Address:

Shuangcheng Road 803, Lane 11, Room 1602A-1609, Baoshan District, Shanghai 200000 CN.

Imported into Australia: SIHAO PTY LTD. 1 ROKEVA STREET, ASTWOOD NSW 2122 Australia

YH CONSULTING LIMITED. C/O YH Consulting Limited, Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

Portable Rebar Cutter Parts List

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Shell oil tellus 46, mobil oil DTE-25 O Esso uni power SQ46.)

Portable Rebar Cutter Parts List

Imported into AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

YH CONSULTING LIMITED. C/O YH Consulting Limited

Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

TOUGH TOOLS, HALF PRICE

electronics www.vevor.com/support

VEVOR

TOUGH TOOLS, HALF PRICE

Technical support and electronic warranty certificate www.vevor.com/support

Shell oil tellus 46, mobil oil DTE-25 O Esso uni power SQ46.)

Portable Rebar Cutter Parts List

YH CONSULTING LIMITADO. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

Portable Rebar Cutter Parts List

LIABILITY. C/O YH Consulting Limited

Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW1

E-CrossStu GmbH

REPRESENTATIVE

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR

TOUGH TOOLS, HALF PRICE

Technical support and e-warranty certificate www.vevor.com/support

ELECTRIC REBAR CUTTER

MODEL:RC-16/RC-25/RC-20/RC-22

NEED HELP? CONTACT US!

Portable Rebar Cutter Parts List

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

warranty certificate www.vevor.com/support

VEVOR

TOUGH TOOLS, HALF PRICE

Portable Rebar Cutter Parts List

RC-16 Portable Rebar Cutter Parts List

RC-16 Parts List

NEJ.	DELARENS NAMN	NEJ.	DELARENS NAMN
1	CYLINDER	40	sexkantsskruv M5 x 18
2	KULLAGER 698	41	KNIVBLOCK / BLAD
3	KOLV	42	FJÄDERBRUCK y5
4	ÄTERVÄND VÄR	43	sexkantsskruv M5x16
5	OLJEVENTIL	44	VÄR
6	VENTILFJÄDER	45	insexskruv M10x40
7	VÄRENGUIDE	46	HANTERA
8	PUMPTÄTNING	47	**
9	MAGNETISKT FILTER	48	**
10		49	PACKNING ARMATUR
11	MANGASTÄL PACKNING	50	**
12	NÄLLAGER 12x24x10	51	LAGER 608
13	MANGASTÄL PACKNING	52	**
14	KNAPPRING	53	TAPPSKRUV M4x60
15	KNAPPRING	54	STATORSPOLE
16	PUMPHUSET OLJETÄTNING 15x25x7	55	MOTORHUS
17	**	56	PLACERINGSHÄRM
18	LAGER 6002	57	FOTSTÄLLNING
19	SAMMANSSÄTT TÄCKNING F10	58	sexkantsskruv M5x85
20	HEXAGONAL BULT M10×16	59	ställskruv med sexkant M4×5
21	PACKNINGSRING 70×60×6 60		BORSTHÄLLARE
22	PIN 8×25	61	KOLBORSTE
23	**	62	BORSTKAPP
24	RETURSPÄNG	63	KONDENSOR
25	VÄR	64	KONDENSATORLOCK
26	KLIPPARE	65	VÄXLA
27	VÄR	66	GUMMI TRYCKKNAPP
28	SKÄRHUVUD	67	BOLIGTÄCK
29	AIRBAG	68	GÄNGSKRUV M4x20
30	NÖT	69	**
31	**	70	**
32	SKRUVA	71	SÄKERHETSKAPP
33	PACKNING	72	**
34	FÖRSEGLING 40*30*6	73	SLADSHÄLLARE
35	STOR VÄR	74	TEJPINGSSKRUV M4x14
36	sexkantsskruv M6 x 20	75	SLADBEVYSNING
37	sexkantsskruv M6 x 20	76	ELEKTRISK SLADD
38	KNIVBLOCK / KNIV 77		**
39	PRINGBRICKA M5	78	**
		79	NAMNSKILTA

RC-20, RC-22, RC-25 Portable Rebar Cutter Parts List

RC-20/RC-22/RC-25 Parts List

NEJ.	DELARENS NAMN	NEJ.	DELARENS NAMN
1	SKÄRHUVUD	40	ANSLUTNINGSBLOCK
2	PACKNINGSRING 40×50×6	41	HANTERA
3	**	42	HANDTAGSKål
4	KNIVBLOCK / BLAD	43 FOTOSFÄR ŷ4.763
5	AIRBAG	44	KOLBORSTE
6	NÖT	45	VÄXLA
7	**	46	STATORSPOLE
8	SKRUVA	47	ARMATUR
9	O RING	48	ELEKTRISK SLADD
10	O RING	49	BULT
11	KNIVBLOCK / BLAD	50	MOTORHUS
12	HEXAGONAL SKRUV	51 KOLBORSTHÄLLARE
13	NÖT	52	KOLBORSTEKAPP
14	STOR VÄR	53	KABELPANSAR
15	PACKNING	54	**
16	KLIPPARE	55	**
17	PACKNINGSRING 80×95×9	56	GUMMASKIN
18	RETURN AXEL	57	LAGER 6200
19	VÄR	58	VÄGBRITKA
20	VÄR	59	BULT M4*8
21	PIN 12×40	60	BULT M8*25
22	CYLINDER	61	BULT M8*30
23	KNAPPRING	62	BULT M8*30
24	MANGANSTÄLPAKNING 63		BULT M6*20
25	NÄLLAGER 14×30×12 64		BULT M6*20
26	LAGER 609	65	BULT M6*25
27	KOLV	66	BULT M6*50
28	VÄR	67	BULT M6*20
29	OLJEVENTIL	68	BRICKA
30	VÄR	69	BULT M4*12
31	VÄRENGGUIDE	70	BULT M4*8
32	OLJETÄTNING	71	**
33	FILTERMAGNET	72	BULT M5*75
34	PACKNING	73	ANSLUTNINGSPLATA
35	PUMPHÄLLA
36	HEXAGONAL SKRUV M10×16
37	SAMMANSSÄTT TÄCKNING y10
38	OLJETÄTNING 20×35×8
39	LAGER 104

Manufacturer: Shanghaiixinmuyeyouxianggsi Address:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support
