ELEVATED TYPE GARAGE CREEPER

MODEL:XF8163

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ELEVATED TYPE GARAGE CREEPER

MODEL:XF8163

Line drawing of a simple table with a curved support base and metal legs (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

For your safety, read, understand, and follow the information provided with an this Elevated type Garage Creeper. The owner and operator shall have an understanding of this product and safe operating procedures before attempting use. The owner and operator shall be aware that use of this product may r special skills and knowledge. Instructions and safety information shall be conveyed in the operator's native language before use of this product is auth Make certain that the operator thoroughly understands the inherent dangers associated with the use and misuse of the product.If any doubt exists as to safe and proper use of this product, remove from service immediately.

WARNING

Do not use this device for any purpose other than that for which it is expressed intended

• Read, understand, and follow all instructions before operating this device.
• Do not exceed rated capacity. Rated capacity is 330 lbs. (includes user, to equipment and personal items)
• Sit down gently. Avoid shock loads caused by jumping or falling onto seat.
• Do not stand on seat.
• Beware of pinch and crush hazards when folding and unfolding.
• Keep out of the each of children! This device is not appropriate for children
• Use only on hard, level surface capable of supporting the load.

PARAMETER LIST

Model	XF8163
Maximum load bearing	330lbs
Length	40inch
Spacer size	38.97*10.43inch

PAPTS LIST

Name	Quantity
Reclining plate assembly (reclining plate *1+ squ plate *1+M6*20 bolts *4)	1
base	1
Regulating lever	1
Adjusting seat	1
Connecting frame	1
M6*20 bolt	2
M8*50 bolt	1
M6*40 bolt	2
pull-link	2
Φ18mm washer	1
Φ12mm washer	2
M8 Lock nut	1
M6 locknut	2
14mm open end wrench	2
10mm open end wrench	1
5mm hex key	1

INSTRUCTIONS

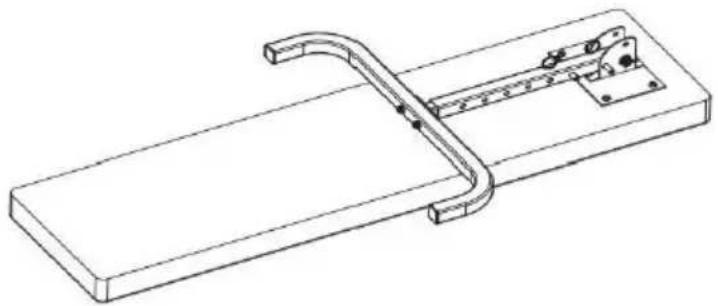

1. Install the base on the iron plate on the creeper in the direction and lock it tightly with screws.

Isometric line drawing of a rectangular electronic component with a small mounting bracket (no text or symbols)

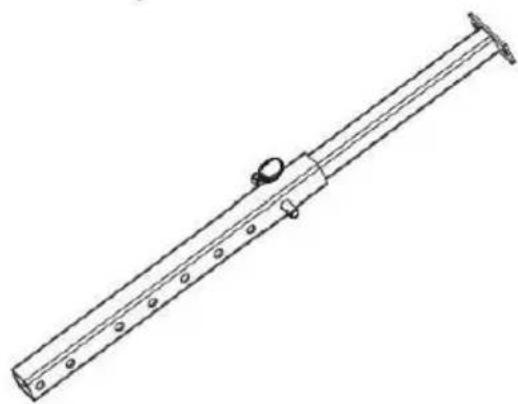

1. Assemble the regulating rod and the regulating rod support together with the pull ring latch as shown, and confirm that the latch passes through the inner and outer tubes.

Technical line drawing of a mechanical support or rod with mounting holes and a central circular component (no text or symbols)

1. As shown, assemble the assembled adjusting rod assembly on the support frame, and lock the screw through the hole with gasket and anti-loose nut.

Technical line drawing of a mechanical support structure with no visible text or symbols

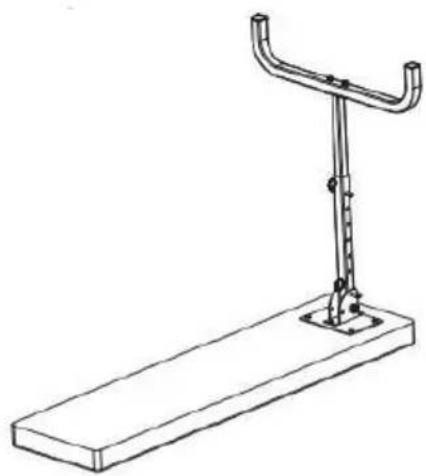

1. Assemble the assembled adjustment bracket assembly on the base as shown, and lock the outer hexagon screw through the hole of the base with gasket and M8 anti-loose nut.

Line drawing of a mechanical support structure with a curved bracket and base plate (no text or symbols)

1. By adjusting the position of the pull ring latch, adjust the height, carefully clamp the hand. Note that this product must have the creeper in a horizontal state, otherwise there is a risk of tipping.

Line drawing of a simple table with a metal frame and support bracket (no text or symbols)

1. Insert the pull out card of the pull ring latch into the base as sh so that the adjustment support assembly can be laid flat for convenience.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)
