USER MANUAL RC-1803H Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

HITCH BIKE RACK

MODEL: RC-1803H

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HITCH BIKE RACK

MODEL: RC-1803H

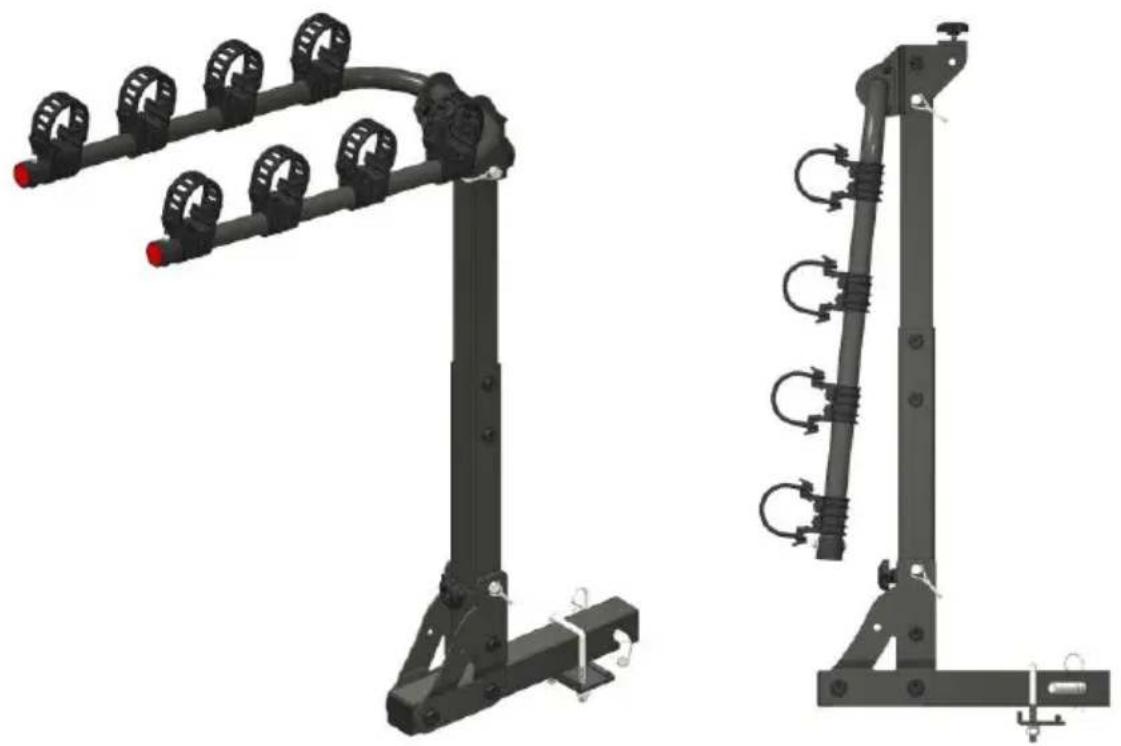

Technical illustration of two mechanical device assemblies with attached pipes and mounting brackets (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel f contact us: Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, users must read instructions manual carefully.

PRODUCT PAREMETERS

Model	RC-1803H
Capacity (Bicycles)	4
Maximum Load	150 lbs
Vehicle Service Type	Car, SUV, Truck, Trailer
Applicability(Bicycles)	Road Bikes/Dirt Bikes
Mounting Size	2 inch
Color	Black

PACKING LIST

When unpacking this product, check to make sure the parts listed below are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use product.

NO	PICTURE	PART NUMBER	QTY	NO	PICTURE	PART NUMBER	QTY
A		Cross beam assembly	1	B		Pressure plate	1
C		Upper Clamping Plate	1	D		Knob M8*30	1
E		Lifting tube 45*45*500	1	F		Knob M8*15	1
G		Support tube 50*50*450	1	H		Strap	1
I		Support Assembly	1	J		R Pin	1
K		Safety pin	2	L		Strap	8
M		Outer hexagonal screw M10*80	2	N		Flat washer M10	8
O		External hexagonal screw M10*65	2	P		Locknut M10	4
Q		Fixed Pivot Pin	1	R		Locknut M8	4
S		Half round head hex socket screw M8*20	4	T		Hexagon nut M10	2
U		Pressing plate screw M10	1	V		Pressing plate	1
W		Spring washer M10	2	X		Flat washer M10	2

Read these instructions carefully and retain them for future use. If the product is passed to a third party, then these instructions must be included.

When using the product, basic safety precautions should always be followed 1 reduce the risk of injury including the following:

DANGER

Risk of accidents!

• Any rear overhang on a vehicle must not exceed 60% of the wheelbase c 12.14 ft (3.7 m), whichever is less.
• The maximum dimensions for any vehicle, including its load, are 8.2 ft (2.5 in width and 14 ft(4.3 m) in height. A vehicle fitted with a bicycle carrier, with any bicycles must not exceed these limits.(Take into consideration the proportionality of the load to the vehicle size.)
• When installed with this product, the vehicle's speed must under no circumstances exceed 75 mph (120 kph). Always observe applicable speed limits and other traffic regulations.

WARNING

Risk of damage!

• When the product is installed, with or without bicycles loaded, collision, damage to property and/or personal injury may result. Beware of the increase dimensions (length/ width/height) of the vehicle before reversing and driving into garages, closed parking lots, a car wash, under bridges, subways or tunnels.
• Failure to properly install this product and/or load the bicycles onto the pro may cause damage to the vehicle and/or the bicycles, and may result in personal injury.
• Off-road driving is not recommended especially when the product is loaded. This may result in damage to the vehicle, bicycles or the product.

Road Safety

CAUTION Risk of accidents!

• Risk of accidents! Sudden brakes, abrupt starts and sharp turns must be avoided as much as possible.
• The maximum speed of driving over speed bumps must not exceed 6.2 m/s (10 kph).
• If it is not possible to stay within the 3.94 ft (1.2 m) limit beyond the rear vehicle, a warning signal must be carried on the outermost part of the bid
• A warning signal must be, during the day, a brightly colored flag or piece material, with each side at least 12" (30 cm) long, and; if driving at nigh light that can be seen for at least 656 ft (200 m).
• Once the product is fitted, navigating parameters ( bends and braking) of the vehicle changes, especially when it is loaded (in particular crosswind sensitivity). Driving routines should be adjusted. The vehicle's driving characteristics and braking behavior change when loads are carried on the product.
• When carrying loads on the product, the driving speed has to be adjusted according to outside conditions such as road surfaces, side winds, general traffic situations, etc. It is recommended to keep to the applicable speed I for any road!
• Disable the automatic tailgate opening system when using this product if the vehicle is equipped with this function. Operate the tailgate manually.
• Open the tailgate according to the instructions when bicycles are loaded on product.

Product Safety

• Assembly must be carried out according to the instructions.
• Keep children and pets away while assembling the product.
• Do not use this product if any parts are missing, damaged, or worn.

• This product should be installed, maintained and operated only by an experienced adult. If in doubt, consult a professional.

• This product is designed such that, with proper assembly, mounting and operation cause no damage to the vehicle.

• Do not over-tighten the fasteners.
• This product is designed to be fitted directly on a vehicle and has a 2-inch hitch.
• This product is not designed to resist extreme weather conditions, especially seacoast air.

NOTICE

• Check the clearance. It is the responsibility of the driver to ensure there is sufficient clearance. This is dependent on the vehicle, the load, and the rear clearance should allow for the distance away from the rear wheels and the movements imposed by driveway ramps and speed bumps. It should be between 12" and 15" (30 and 38 cm).
• Do not use this product for purposes other than carrying bicycles. Do not modify any components of the product.
• Do not exceed the maximum load capacity, or carry more bicycles than recommended for each model.
• Always use the safety strap to attach the bicycles to this product. Replace safety strap at the first sign of wear.
• Ensure there is a safe distance between the bicycles and the ground, especially when entering a driveway. This product is for carrying standard-b frames. Do not transport tandem or recumbent bicycles.
• Do not transport bicycles with attachments such as baby seats, panniers, wheel covers, full bicycle covers, or motors.
• All loose or removable parts and accessories of bicycles (e.g. toolbars, baby carriers, pumps, etc.) must be removed before loading onto this product.
• Do not let children climb on or play with the product.
• For fuel economy and the safety of other road users, this product must be dismantled from the vehicle when not in use.
• Keep a safe distance between the exhaust pipe and the bicycle(s) so that exhaust heat cannot affect the bicycle(s) or the straps. Make sure bike tires

not directly behind the exhaust pipe.

• Use extra protections to protect the bicycles and the tailgate from scratches necessary.
• Always position the biggest/heaviest bicycle closest to the vehicle first, and then place others outwards in order of size.
• The vehicle should be in good condition in the area in which the product located.
• Do not mount to any type of trailer or RV, including Class B vehicles.

Inspection

• Regularly examine the product for corrosion, wear and tear. Stop using the product at the first sign of damage or if parts become detached.
• Regularly ensure that all hardware, screws, strap, knobs, and hubs of this product are securely tightened.
• After each new installation of this product on the vehicle and after each n loading, the product and loads must be checked after a short driving time (maximum 30 minutes on a bad road or 31.1 mi(50 km) on a normal road re-tightened if necessary.
• The screw connections between this product and the vehicle must be checked for a firm seat at regular intervals - at the latest after every 310.7 mi (5 and tightened if necessary, particularly during longer journeys. In case of road conditions, the check of the screw connections should be repeated every 2 hours.
• Before any journey, all connections of the screws, the basic rack and attachments, and other supports must be checked for firmness and tightness Tighten if necessary.
• After breaks, during which the vehicle with this product is left without supervision, all accessible fastenings of the product and the load must be checked for strength and functionality (examination for harmful external influences)!

Before First Use

- Check the product for transport damages.

• Remove all the packing materials.
• Clean the vehicle before installation, especially those parts that come into contact with this product.
• Clean the surface of this product before installing this product.

INSTALLATION INSTRUCTION

Technical line drawing of mechanical components including mounting brackets, vertical supports, and mounting brackets (no text or symbols)

Required tools:

1× Pair Of Protective Gloves
1× 200mm Adjustable Wrench
1× 17mm Wrench
1× 13mm Wrench
1× 5mm Allen Wrench

Tip: This product does not include tools.

1. Assembly Procedures

1

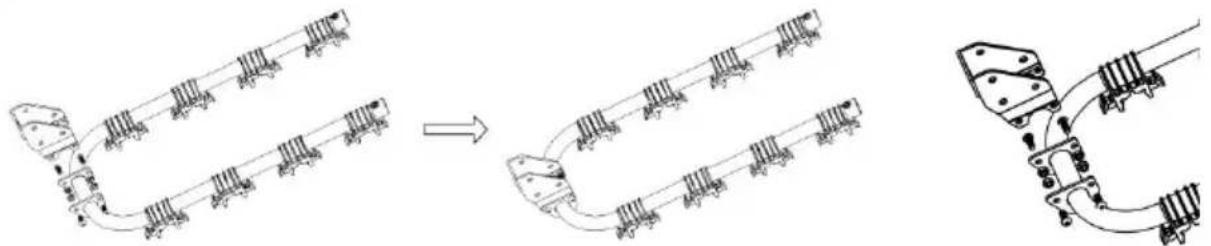

Assemble parts A, C, S and R (do not reverse the direction of part the figure), and tighten all screws using tools such as a 13 mm wren 5mm Allen wrench.

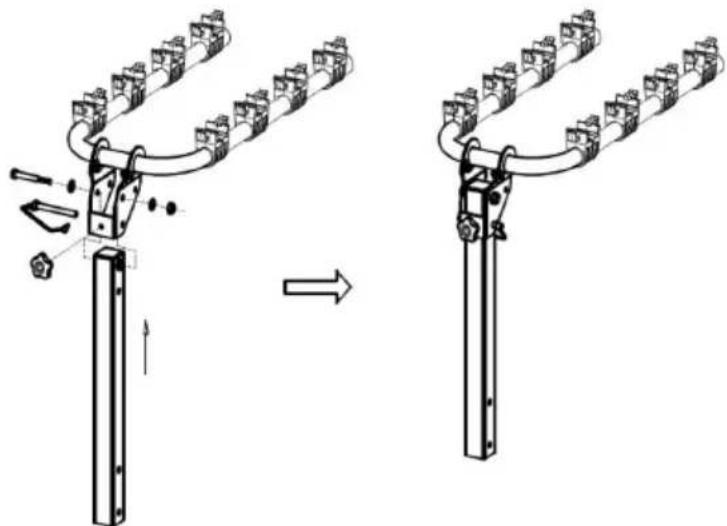

2		Install part E into the component in step 1,as shown in the figure and align the empty hole positions. Take parts Kx1, Ox1, Rx1, and Px2 for assembly and tighten the screws. After completion, install the knob F. Note: Before installation, open the safety buckle o K.

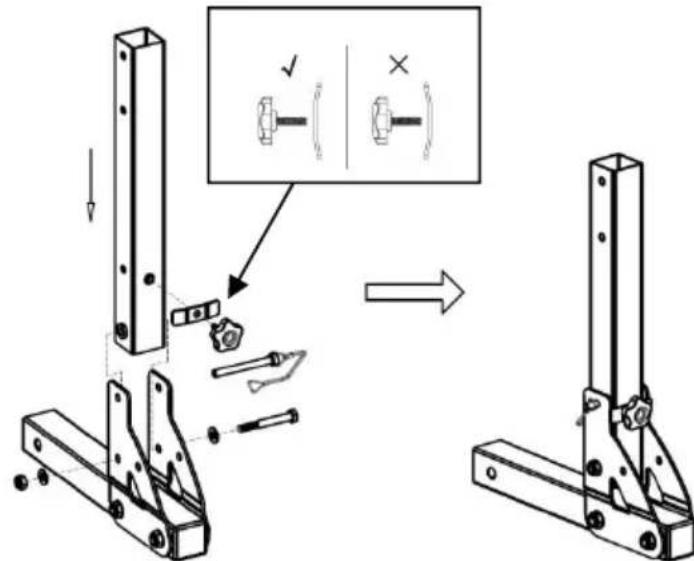

3		After aligning the installation holes of G and I as show the figure, take parts Kx1, Mx1, Px1, and Nx2 for assembly and tightening of screws. After completion, ta B and D for installation an tightening. Note: Before installation, open the safety buckle of first.

4

Mechanical assembly diagram showing two stages of a multi-stage connector or mounting mechanism, with no visible text or symbols.

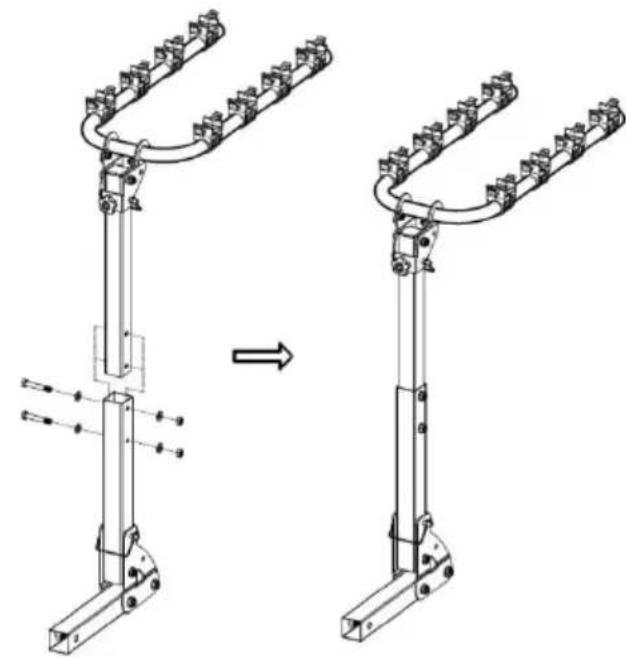

Assemble the components of steps 2 and 3 as shown in figure and align the upper a lower hole positions. Take Ox2, Px2, and Nx4 pieces assembly and tighten the screws with tools.

5

Mechanical assembly diagram showing a left-hand rule transforming a multi-arm support structure into a right-hand rule (no text or symbols present)

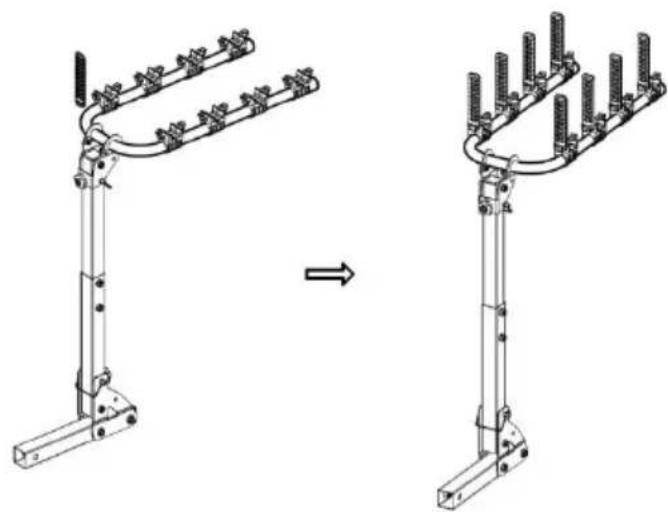

Take Lx8 parts and assemble them onto the component in step 4 as shown in the figure.

2. Installation Procedures

6

Line drawing of a car's rearview assembly with mounting bracket and tire alignment (no text or symbols)

Technical diagram showing a mechanical assembly with two parts and an arrow indicating direction (no text or symbols)

Pure technical line drawing of a mechanical bracket or mounting bracket without any text, numbers, or symbols

Pure technical line drawing of a mechanical clamp or bracket assembly without any text, numbers, or symbols

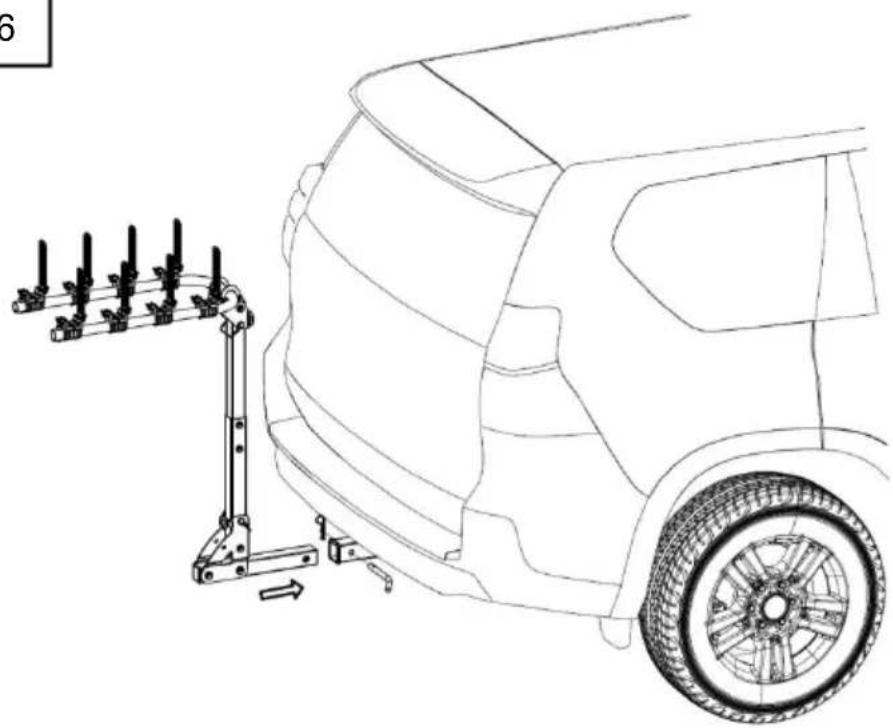

Install the product from step 5 onto the fixed bracket at the rear of the shown in the picture. Take the Q pin and pass it through the pin hole pin to pass it through the circular hole of the Q pin to ensure that the fall off.

7

Technical line drawing of a vehicle rear view with tire rack and support structure (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and a support structure (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

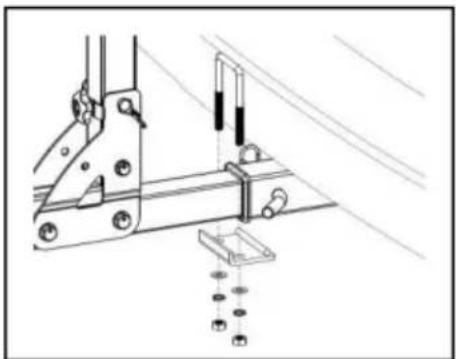

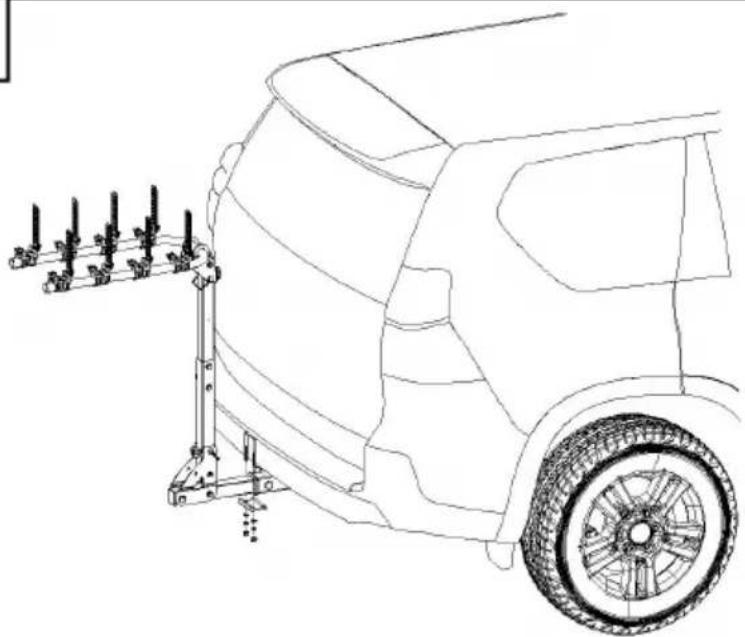

After completing step 6, remove the T, U, V, W, and X accessories as figure for clearance assembly, ensuring that the T nut is tightened with tool.

8

Line drawing of a bicycle chassis mounted on a vehicle, showing wheel brackets and suspension components (no text or symbols)

Diagram illustrating three steps of a robotic arm manipulation, labeled 1, 2, and 3.

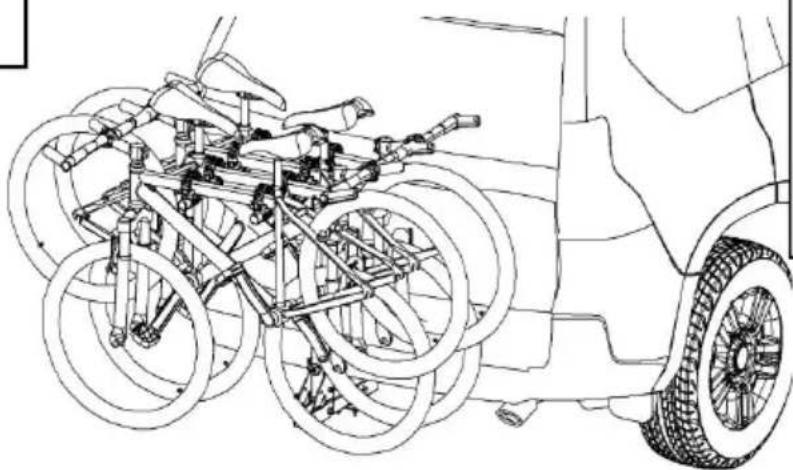

Hang the bicycle and tighter the L strap according to the methods shown in Figure 1, and 3, and tie the H strap properly.

9

Technical line drawing of a vehicle engine assembly with motor arms and suspension components (no text or symbols)

Max

37 lbs

(17 kg)

Min 16.5" (42 cm)

Note: Some models of bicycles cannot use this product.Maximum load calbs x4.

10

Technical diagram showing mechanical assembly with labeled parts and directional arrows, including a close-up of the component being adjusted.

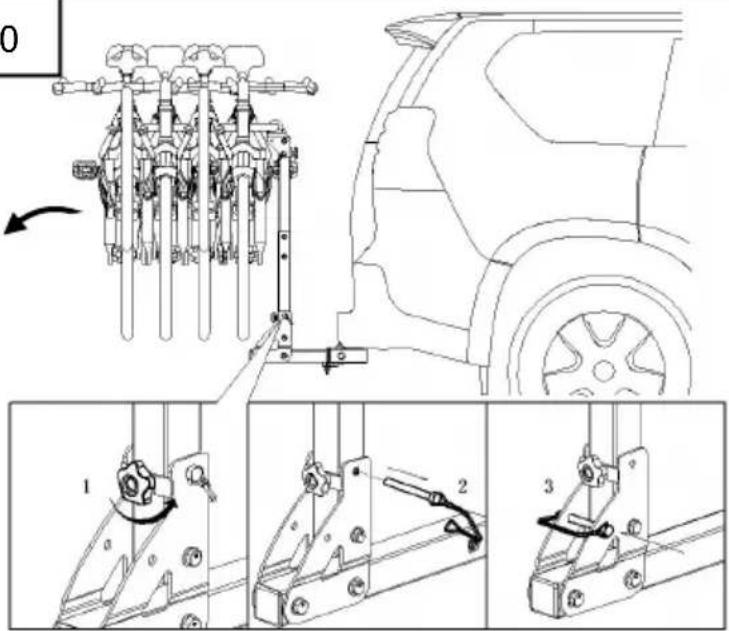

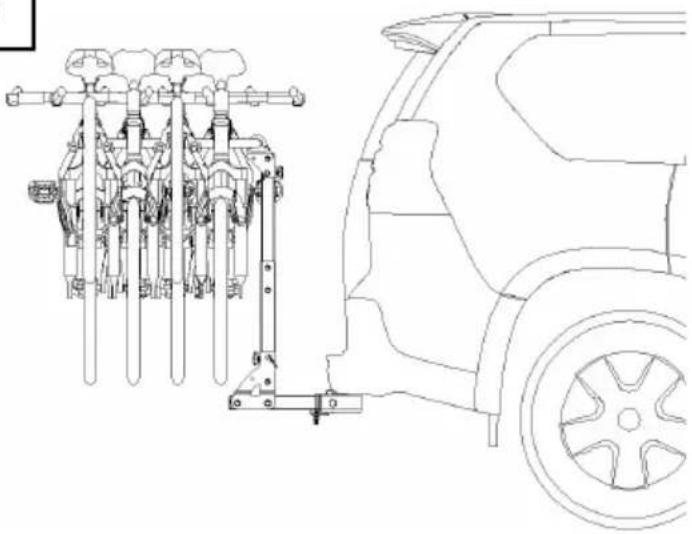

At this point, if you want to open the tailgate of the ca please follow the order of 1-2-3.

Note: This operation must I carried out by two or more people, one person holding the bicycle and frame, and the other person inserting and removing the K safety pin.

Line drawing of a mechanical assembly with a vehicle and a tricycle (no text or symbols)

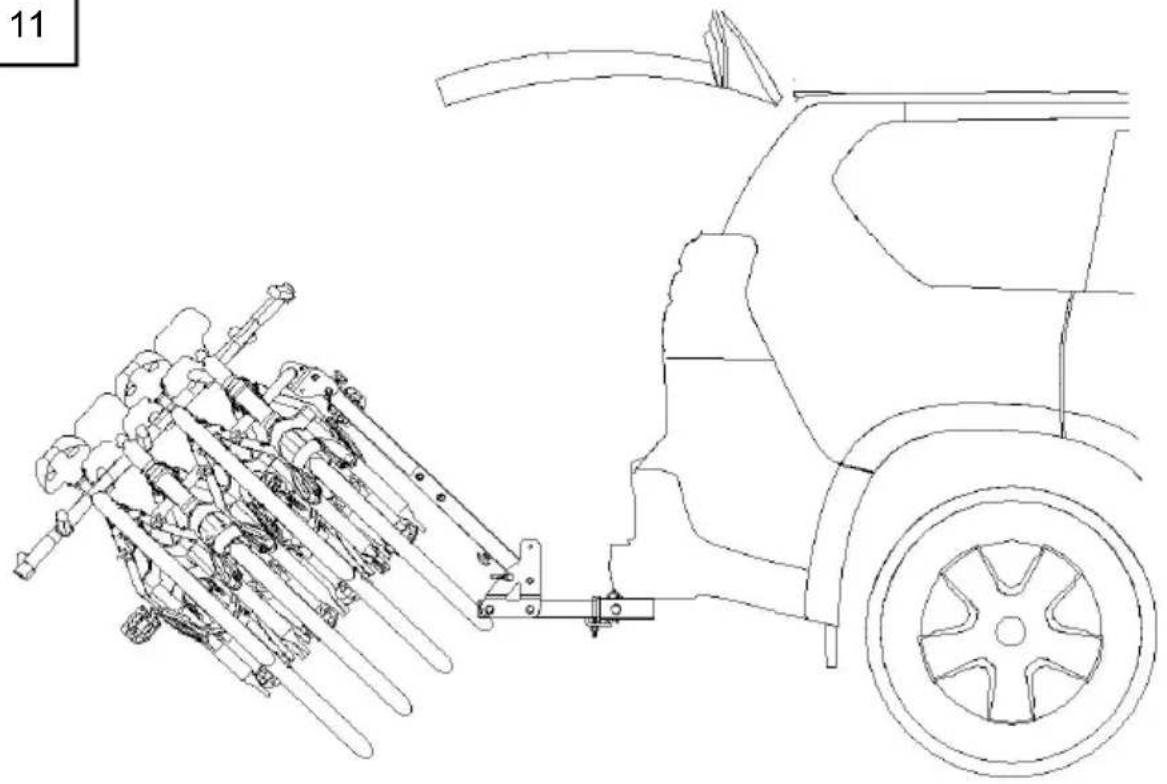

After opening the safety latch on the shelf, the trunk of the car can be smoothly.

12

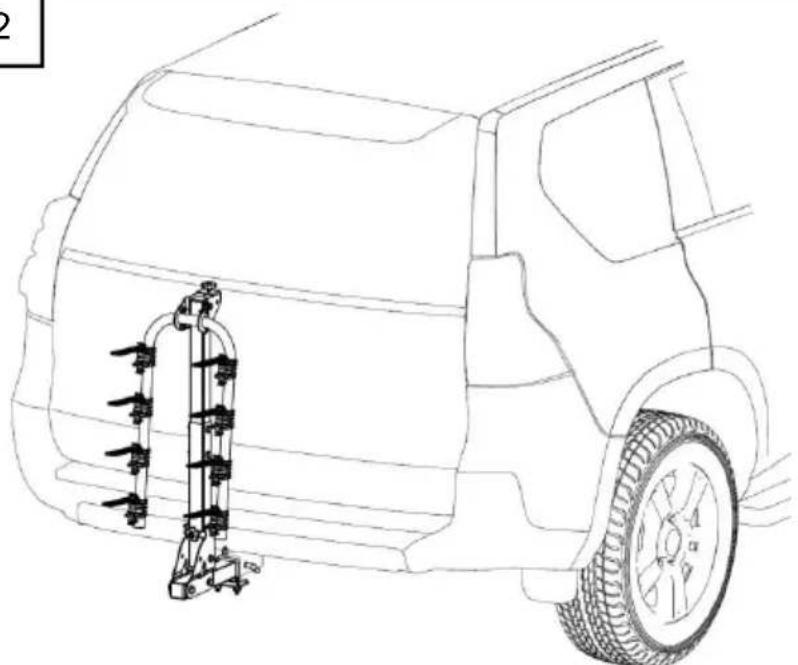

Line drawing of a car exterior showing a mounted vehicle with suspension components (no text or symbols)

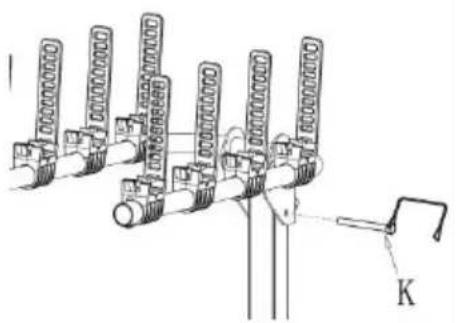

When the bicycle is temporarily not attached to frame, the K safety pin on the frame can be Pull out as shown in the above figure, then flip the A crossbeam, and align the hole position a flipping down

Mechanical assembly diagram showing multiple spring-loaded components connected to a vertical rod and a labeled component 'K' (no text or symbols beyond label)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

CAUTION

- Risk of damage! Do not take the product through a car wash.

Cleaning

- When cleaning vehicles and products, use only water-soluble cleaners.

- Never use corrosive detergents, wire brushes, abrasive scourers, metal or sharp utensils to clean the product.

Maintenance

• This product must always be cleaned and maintained, especially in winter.
• Screws, nuts and locks (if fitted) must be lubricated at regular intervals.
• Store the product in a cool and dry place away from children and pets, is its original packaging.
