USER MANUAL BY1020D Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Brushless DC motor

Model: BY1020D

We continue to be committed to provide you tools with competitive price "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offere are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

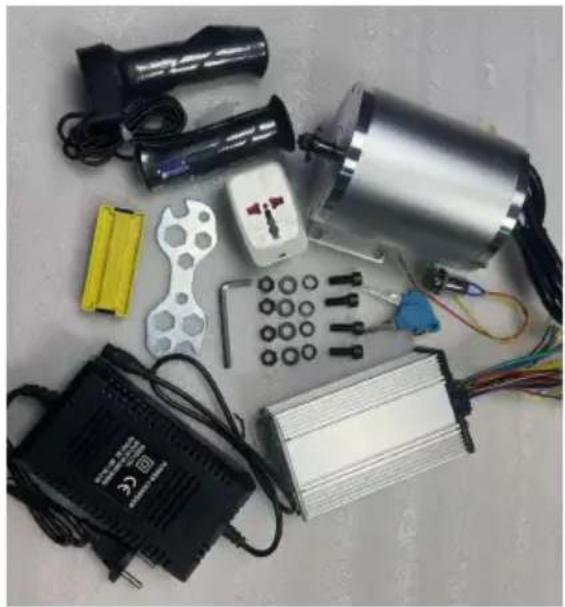

MODEL: BY1020D

Assorted electronic components including a motor, electric motor, and power supply unit (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on our product.

Safety precautions

1.1 Safety advisory warning

Please read carefully before operation.

Be sure to read all safety warnings and all instructions before operating the Failure to comply with warnings and instructions may result in electric shock, serious injury.

If you encounter problems, please communicate with customer service in time solve, your satisfaction is our service purpose.

1.2 Warning sign for safe operation of motor

WARNING ELECTRIC SHOCK WARNING CAUTION MECHANICAL INJURY WARNING CAUTION DANGER

1.3 Risk factor

1) Mechanical damage
2) Get an electric shock
3) Extrusion collision
4) Object impact
5) Other injuries

1.4 Operational considerations and triggers for motor non-work accidents

1) Check whether all accessories are connected tightly and not loose, check whether the pins in each plug-in are bent, and visually check whether each interface is consistent with the instructions in the wiring manual and whether connection is correct. To avoid writing errors and burning the controller.

2) It is recommended to use lead-acid batteries. Lithium batteries can also write (note that the battery voltage and battery power match the kit power). The recommended battery capacity is 12AH-20AH. The battery voltage needs to be consistent with the motor kit voltage, allowing an over voltage range of +10% positive and negative terminals of the power supply must be connected correctly (the positive terminal is connected to the thick line of the controller in red, a negative terminal is connected to the thick line of the controller in black). Which the battery and controller creates small arcing and sparks, which is normal for charging.

3) The electric door lock (orange, red) must be connected (you can use the electric door lock, or you can shorten the orange and red wires with wires), operation is the last step.
4) The accessories outside this kit, which belong to the accessories purchase you, may not match with the kit and need to be used after matching. Pleas contact customer service in time to match the kit with each other.

1.5 Precautions and suggestions

All machine operators should be trained and certified in electrical skills.

1) Before opening the box, check whether the package is intact, broken, and whether there is water. After removing the cover, carefully remove dust from motor.
2) Install in a dry, dust less place;
3) Install in a well-ventilated place;
4) It is installed in a wide and smooth place for easy daily operation and maintenance.

Thank you for your reading, if you still have operational problems, please cor customer service in time, before contacting customer service, please provide c photos taken by the motor and controller nameplate, provide clear photos and clear videos of the accessory wiring connected to each plug-in of the controll you need to clearly see the color of each wire and the color of the access In order to provide you with a more convenient and faster solution.

TECHNICAL INFO
PERFORMANCE PARAMETERS OF BY1020D MOTOR

Parameter	Numerical value
Rated Voltage	36V DC
Max Wattage	500W
Rated Speed	3500RPM
Rated Torque	2.5N.m
Rated Current	28A
No-load Speed	4700RPM
No-load Current	≤4A
Motor Efficiency	≥85%
Sprocket Number	T8F-11T
Screw thread	M8*1.25Left-hand tighten the thread (Heat 80 °C 1-2 minutes, rotate right and remove)
Reduction gear ratio	11T:64T
Load weight	≤100KG
Size	124mm×107mm×112mm
Weight	2.85KG
Range of application	Small electric car, Electric bicycle, Electric go-kart, Electric scooter......

PERFORMANCE PARAMETERS OF BY12WF02-F CONTROLLER

Parameter	Numerical value
Rated Voltage	36V DC
Max Wattage	500W
Rated Current	28A
Brake	BRAKE LOW LEVEL
Under Voltage Protection	29V
Working Temperature	-40°C~60°C
Size	178mm×81mm×47mm
Weight	0.5KG

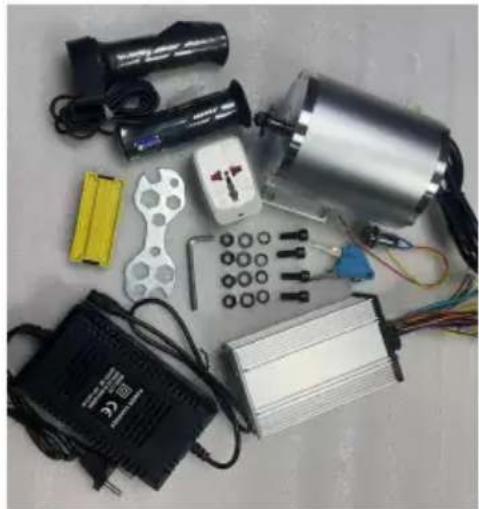

CONFIGURATION LIST

Assorted electronic components including a motor, batteries, and power supply (no visible text or symbols)

Configuration list

1. Motor
2. The controller
3. Throttle
4. Charger
5. Electronic key
6. Wiring box
7. Hardware
8. tools Plug universal converter

INSTALLATION PROCEDURE

Step 1

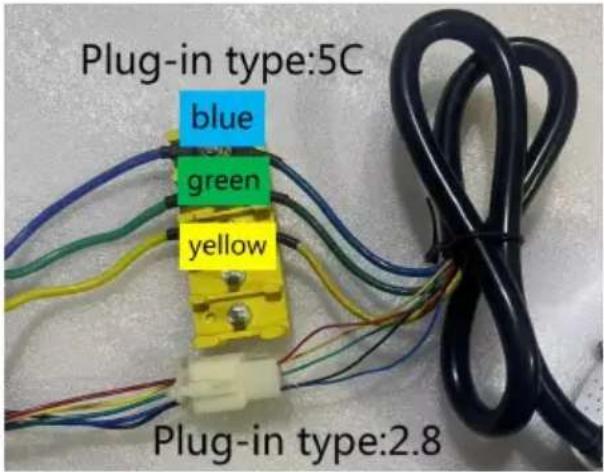

	Same color on both sides

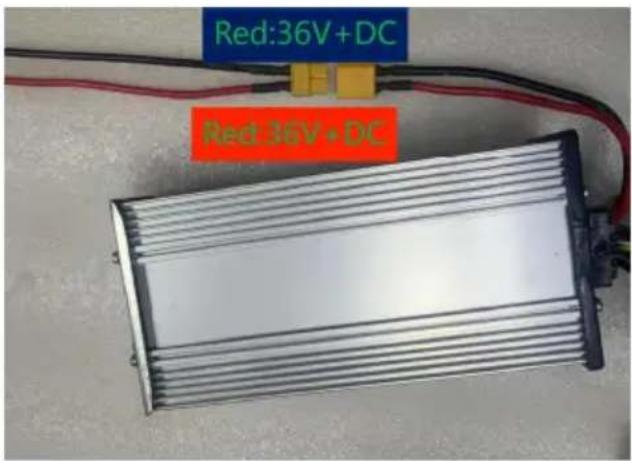

Step 2
	Voltage: DC36V-41V1. Red: 36v+2. Black: 36V- Positive and negat can not be connected wrong, otherwise it will burn the controlle There may be a slight spark whe connecting, which is a normal phenomenon of power-on.
Step 3

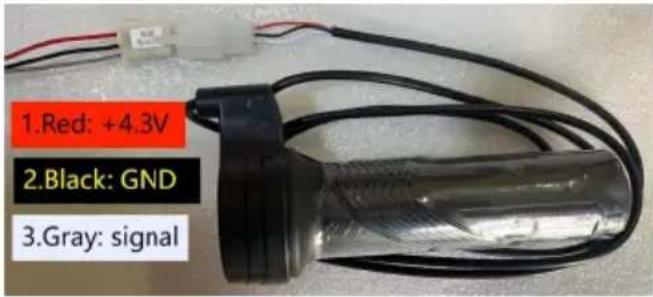

	Throttle(Step on the throttle):1. Red: +4.3V2. Black: GND3. Gray: signal

Red:P+ Orange:VCC

Electric lock:

1. Red: p+

2. Orange:VCC

Instructions for other functions

Please purchase the necessary accessories by yourself

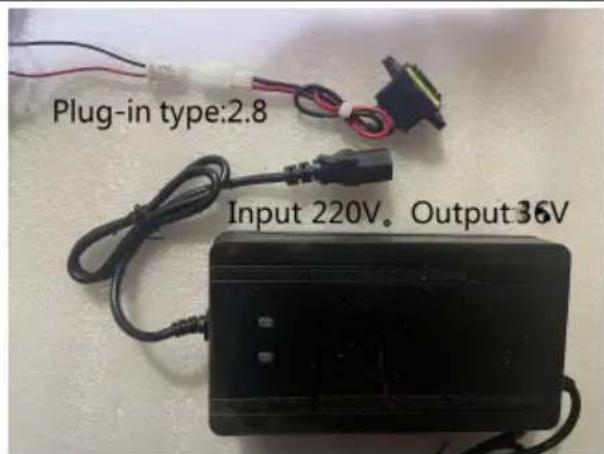

Plug-in type:2.8 Input 220V. Output 36V

Charging port:(Charger input voltage AC220)

Red: DC36V input

Black: - input

The positive and negative terminals must be connected correctly.

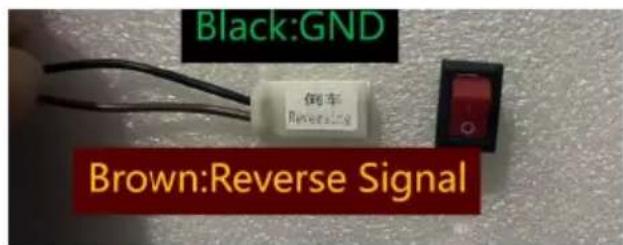

Black:GND 倒车 Reverse Brown:Reverse Signal

Reverse Key: Switch brown and black short, reverse

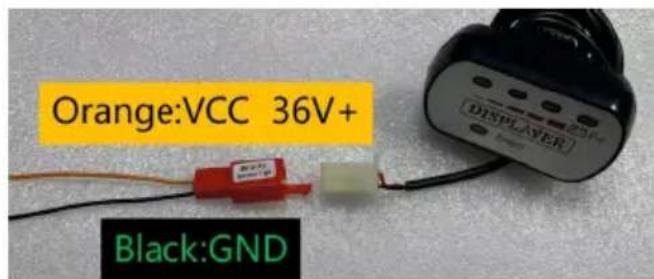

Orange:VCC 36V+ Black:GND

Indicator Light: Connect the battery level display.

It can also be used as a DC36V voltage output to supply DC36V Iig The positive

Step 3 and negative terminals

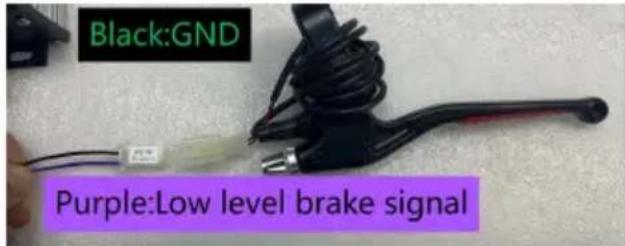

	Brakes:Connect the electronic brake to realize the braking power off function.

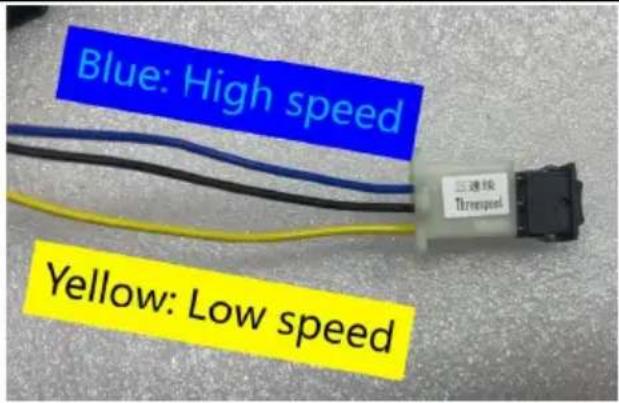

	3 Speed: The default speed is 2.blue and black lines areshort-circuited at 3 speed, and the yellow and black lines areshort-circuited at 1 speed

COMMON PROBLEMS AND REMEDIES

Phenomenon :

The electronic lock must be opened, When the electronic lock is opened, the throttle is turned and the motor does not work

Reason:

Battery The battery is too low and does not reach the required operating vo

Solution:

1. Charging ;
2. Select a battery with the corresponding operating voltage ;
3. Check whether each plug-in is connected correctly and whether the connected terminals are connected reliably, so as to avoid failure to work normally due incorrect connection or poor contact.

Comply with the European security certification.

CORRECT DISPOSAL

This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the

European Union. This applies to the product and all accessories marked with symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electrical devices.

FCC Information:

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions:

1) This product may cause harmful interference.

2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate product.

Note: This product has been tested and found to comply with the limits for B digital device pursuant to Part 15 of the FCC Rules, These limits are desired to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

- Reorient or relocate the receiving antenna.

• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4A

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am

Main.
