USER MANUAL Citrine UFESA

UFesa blender with clear glass and white powder, no visible text or symbols on the device itself.

Technical diagram showing two views of a mechanical assembly with labeled components 1 and 2

Max—500ml 48oz— 40oz— 32oz— 24oz— 16oz— 8oz— (1Loz) 3

Technical diagram of a device with numbered annotations pointing to internal components

Smoothie Ice Crush Milk Shaker Juice Puree Auto Clean P + - START STOP

Fig.1

foodstuff liquid Max—500ml 46oz—250ml 40oz—500ml 32oz—750ml 24oz—800ml 16oz—250ml 8oz—110ml

Fig.2

Turn the cup cover clockwise. Front view Max—1500ml 48oz—1250ml 40oz—1000ml 32oz—750ml 24oz—500ml 16oz—250ml f/Load Max—1500ml 48oz—1250ml 40oz—1000ml 32oz—750ml 24oz—500ml 16oz—250ml f/Load

Turn the cup cover clockwise. top view

Fig.3

front view Turn the juice cup clockwise. top view

Fig.4

Line drawing of a blender with a tray and lid, emitting small cubes from above (no text or symbols)

ESPAÑOL

AGRADECEMOS QUE HAYA DEPOSITADO SU CONFIANZA EN UFESA Y DESEA-MOS QUE EL FUNCIONAMIENTO DEL PRODUCTO LE SATISFAGA PLENAMENTE.

ATENCIÓN

WE WOULD LIKE TO THANK YOU FOR CHOOSING UFESA. WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

1. Measuring cup
2. Lid

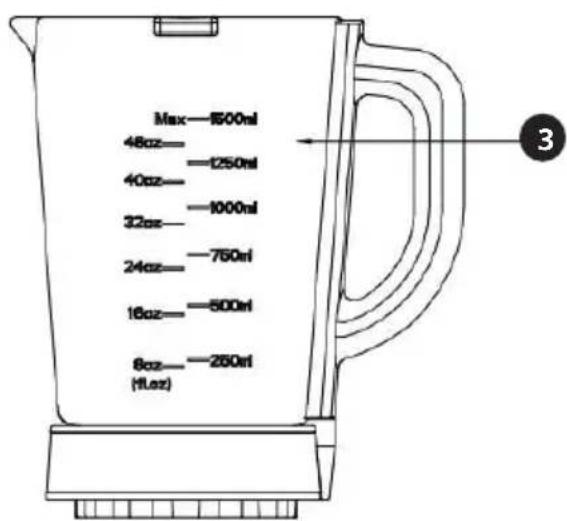

3. Glass jar

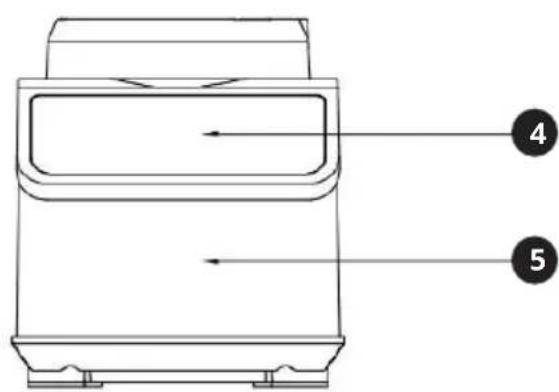

4. Operation panel
5. Main body

SAFETY INSTRUCTIONS

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Respect the operating times of the accessories indicated in their specific sections of the manual. Proceed according to maintenance and cleaning section of this manual for cleaning.

Warning: potential injury from misuse!

Care shall be taken when handling the sharp cutting blades, emptying the glass jar and during cleaning. Be careful if hot liquid is poured into the blender as it can be ejected out of the appliance due to a sudden steaming. Always disconnect the blender from the supply if it is left unattended and before assembling, disassembling or cleaning. Switch off the appliance and

disconnect from supply before changing accessories or approaching parts that move in use. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance. This appliance is intended for use at a maximum altitude of 2000m above sea level. This appliance is intended to be used in household. It is not intended to be use in applications such as:

-staff kitchen areas in shops, offices, and other working environments.
-farm houses.
-by clients in hotels, motels and other residential type environments.
-bed and breakfast type environments.

IMPORTANT WARNINGS

This appliance is designed for home use and should never be used for commercial or industrial use under any circumstances. Any incorrect use or improper handling of the product shall render the warranty null and void. Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label. The mains connection cable must not be tangled or wrapped around the product during use. Do not use the device, or connect and disconnect to the supply mains with the hands and / or feet wet. In order to ensure the sealing effect of blending blade, please do not allow the blending blade to work without load. Do not pull on the connection cord in order to unplug it or use it as a handle. Unplug the product immediately from

the mains in the event of any breakdown or damage and contact an official technical support service. In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official technical support service may carry out repairs or procedures on the device.

B&B Trends, S.L. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

INSTRUCTIONS FOR USE

First use

1. Before first use, open the packaging and remove the product, and place all components on the table.
2. Assemble the jar component (including the measuring cup, cup cover, and glass jar) onto the body base. Except for the base, all other detachable components can be disassembled and cleaned.

Please refer to the cleaning precautions in the last chapter.

Usage steps:

1. Put ingredients into cup:

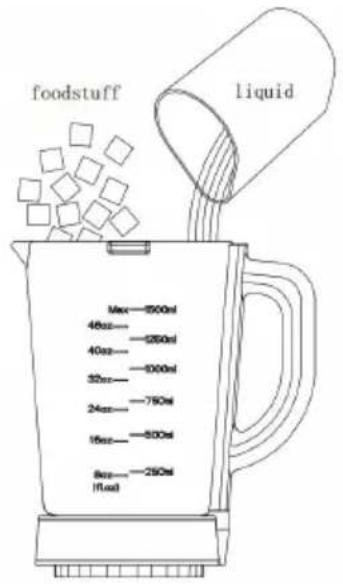

   Wash and cut the ingredients, then put them into a juice cup and pour in liquid such as milk. (See Fig.1)

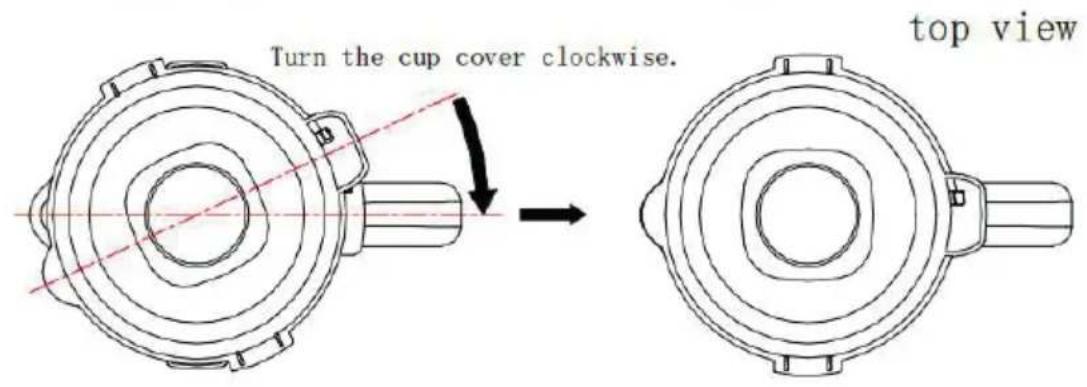

2. Clean and cut the ingredients and put them into the jar. Close the lid and turn the lid by clockwise. Place the measure cup exactly into the lid by aiming at the fixed position in the middle of the lid and turning the cup clockwise until tight. (See Fig.2)

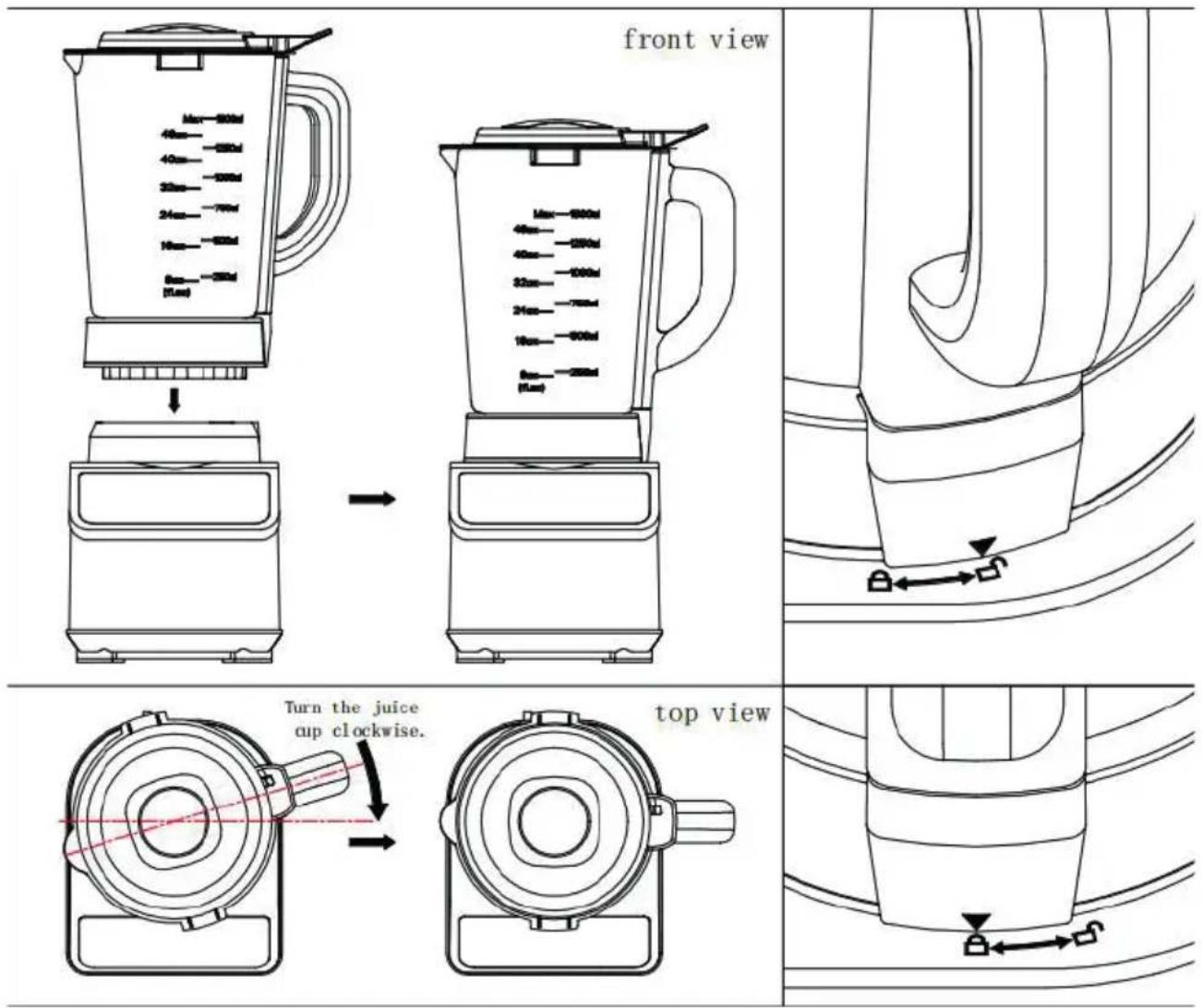

3. Install the jar component into the body:

1) Install the juice cup assembly in the position where the lower part of the handle is aligned with the main body.

2) Rotate clockwise to position (when you hear a "click" sound, it indicates that the cup is fully seated). (See Fig.3)

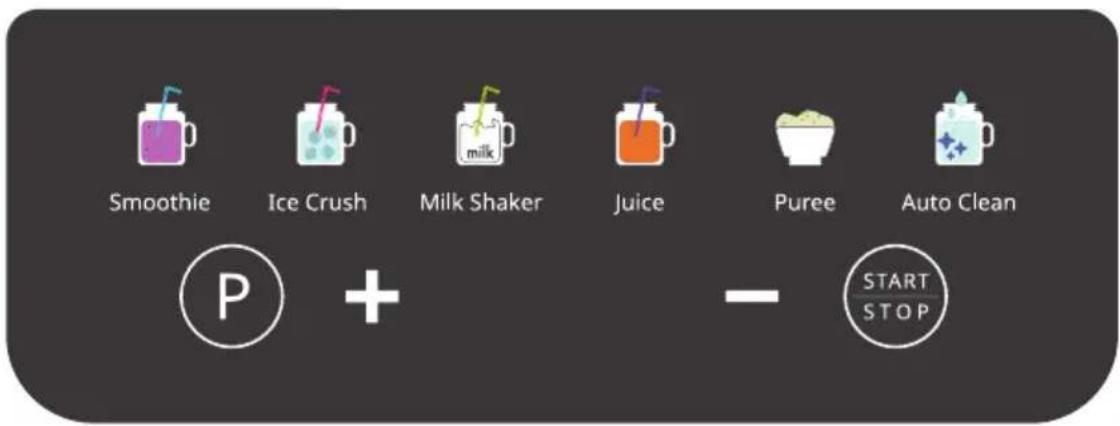

1. Functions and display panel.

1) Six function menu operations:

After the appliance is powered on, all indicator lights will be on. Press the desired menu option amongst the six function menu options, and the option will flash. Then, press the "Start/Stop" button to start the machine. If you need to switch to other functions during operation, you must first press the "Start/Stop" button to stop the current function.

2) P operation: (Pulse function)

After the appliance is powered on, all indicator lights will be on. Press and hold the "P" button. The P remains on (other lights are off) and the machine runs. Release the "P" button and the machine will pause.

3) +/- buttons

After the appliance is powered on, all indicator lights will be on. When the plus/minus button is pressed, the digital display shows the current speed. The “plus/minus” and “START” lights are on, while the other lights are off. Press the “Start/Stop” button to start the machine. Press the “Start/Stop” button again, and the machine will stop running.

Usage

1. Peel or remove the cores of the fruits or vegetables and then cut them into small pieces (approximately 15X15X15mm).
2. Put the food that needs to be stirred into jar, add an appropriate amount of drinking

water or other liquids. The ratio of food to water is 2:3. The total amount of mixture cannot exceed the maximum mark on the glass jar.

Attention: Please do not add HOT water to the jar and do not operate the appliance without liquid.

1. Cover the lid and ensure that the measuring cup is properly attached.
2. Plug the power cord into a standard wall mounted power outlet.
3. Select the menu button suitable for the desired mixing task. Press the "Start/Stop" button to start processing ingredients.
4. For fast or fragile mixing tasks, please press the "P" button and hold for a few seconds, then release and operate several times until you achieve the desired effect. If you want to add food while the jar is working, please open the measuring cup and put the food into it through the feeding port on the lid. (See Fig.4)

Note: For each use, the continuous operation time should not exceed 2 minutes, and at least 10 minutes rest time must be maintained between two consecutive cycles. Please let the unit cool to room temperature before performing next operation cycle.

When the desired effect is achieved, press the "Start/Pause" button to stop the appliance.

Attention:

1) Please ensure that the product has cooled to room temperature before the next operation cycle begins.
2) If you want to stop the appliance while it is running, please press the "Start/Pause" button.

Important operating tips

1. For best circulation of food that is to be blended with some liquid, pour the liquid into the jar first, then add solids.
2. Some of the tasks that cannot be performed efficiently with a blender are: beating egg whites, whipping cream, mashing potatoes, grinding meat, mixing dough, extracting juice from fruit and vegetables
3. The following items should never be placed in the unit as they may cause damage: bones, large pieces of solid, frozen food, or tough foods.

MAINTENANCE AND CLEANING

This product contains no user serviceable parts. Refer service to qualified service personnel.

1. Before cleaning, unplug the blender.
2. Always wash immediately after use for easier cleaning. Don't let food dry on the jar assembly as this will make cleaning difficult.

3. Pour a little warm soapy water into the jar and press the "P" button for a few seconds. And then empty the jar.

4. Disassemble all detachable parts, remove the jar assembly from the main unit. The jar holder can also be disassembled and it must be cleaned together with the jar.

5. Rinse the measuring cup, lid, seal ring, and jar and blade assembly by hand or in a dishwasher and then dry. They are dishwasher safe components, but the temperature setting must not exceed 60^ C.

6. Brush the blade using warm soapy water, then rinse thoroughly under the tap. Don't touch the sharp blades, handle them carefully. Don't immerse the blade assembly in water. Leave to dry upside down away from children.

7. Wipe the motor unit surface with a damp cloth and dry thoroughly. Remove the stub-

born spots by rubbing with non-abrasive cleaner. If liquids spill into the motor unit; first unplug the unit, then wipe with a dry cloth and dry thoroughly.

Self-cleaning function

Introduce water and a small amount of detergent into the jar.

Select the "Auto clean" option.

CAUTION

1) Do not immerse the motor unit in liquid to prevent the risk of electric shock.
2) Do not use rough scouring pads or cleansers on parts or finish.
3) Do not place engine base into dishwasher for cleaning. This unit is not suitable for dishwasher.

Table of recipes

Contents Time Speed
Soaked carrots: 600 gWater: 900 g	2 mins MAXIMUM

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste electrical and electronic equipment), which establishes the applicable legal framework in the European Union regarding the elimination and recycling of electrical and electronic devices. Do not put this product in the bin. Take it to your closest electrical and electronic waste treatment center.

Information related to power consumption in the off and standby modes, as well as in the network standby mode of the appliance pursuant to EU Regulation 2023/826 can be found at the following link: https://ufesa.es/pages/ecodesign-info

FRANÇAIS

NOUS AIMERIONS VOUS REMERCIER D'AVOIR CHOISI UFESA. NOUS ESPÉRONS QUE CE PRODUIT RÉPONDRA À VOS BESOINS ET À VOS GOÛTS.

AVERTISSEMENT

VEUILLEZ LIRE ATTENTIVEMENT LES INSTRUCTION AVANT D'UTILISER LE PRODUIT. CONSERVEZ-LES DANS UN ENDROIT SÛR POUR POUVOIR LES CONSULTER ULTÉRIEUREMENT.

DESCRIPTION

MISE AU REBUT DU PRODUIT

B&B TRENDS, SL. guarantees compliance of this product, for the use for which it is, during the period established by the legislation in force in the country of sale. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfil or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B & B TRENDS, SL. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENDS, SL., authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENDS, SL., or the careless or improper use of the same shall render this warranty null and void. You must keep the purchase invoice, receipt or delivery docket in order to exercise your warranty rights. For technical service and after-sales care outside the Spanish territory, please submit your query to the point of sale where you purchased the item.

BON DE GARANTIE

Check out your nearest service station at https://sat.ufesa.com/
