USER MANUAL Galaxy Max UFESA

Product photo of a kitchen appliance including a stand mixer, whisk, and blender (no visible text or symbols)

Illustration of a black glass bottle with a wire whisk and labeled points F and G (no text or symbols on the object itself)

H J I

Transparent beaker with a pointed tip and labeled point K, shown in grayscale (no text or symbols on the beaker itself)

ATENCIÓN

WE WOULD LIKE TO THANKS YOU FOR CHOOSING UFESA, WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

A. Variable speed control
B. Speed button (T)
C. Turbo speed button (Turbo)
D. Motor unit
E. Blending blade
F. Whisk coupling unit *
G. Whisk *

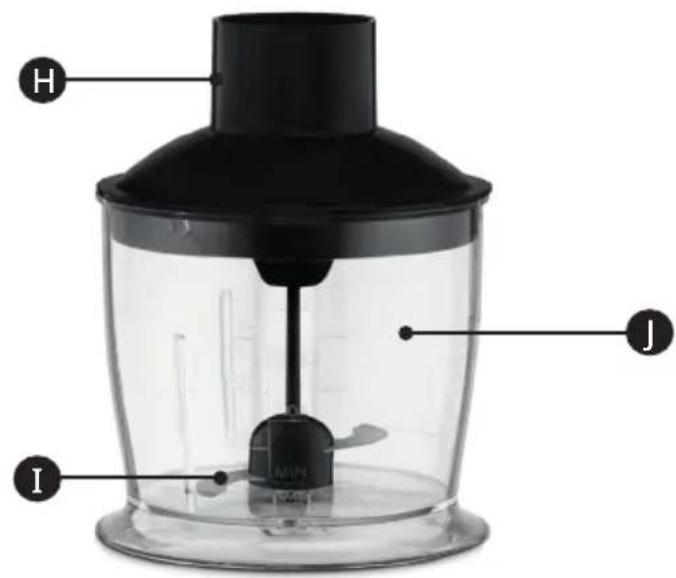

H. Chopper coupling unit *
I. Chopper blade *
J. Chopper bowl *

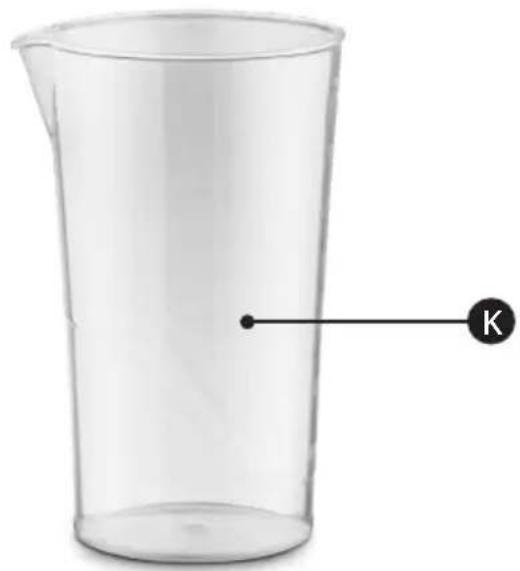

K. Beaker

(*) available in Galaxy Max

SAFETY INSTRUCTIONS

If the supply cord is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Respect the operating times of the accessories indicated in their specific sections of the manual. Proceed according to maintenance and cleaning section of this manual for cleaning. Warning: potential injury from misuse! Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning. Be careful if

hot liquid is poured into the blender as it can be ejected out of the appliance due to a sudden steaming. Always disconnect the blender from the supply if it is left unattended and before assembling, disassembling, or cleaning. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance.

CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

This appliance is intended for use at a maximum altitude of 2000m above sea level.

IMPORTANT WARNINGS

This appliance is designed for home use and should never be used for commercial or industrial use under any circumstances. Any incorrect use or improper handling of the product shall render the warranty null and void. Prior to plugging in the product, check

that your mains voltage is the same as the one indicated on the product label. The mains connection cable must not be tangled or wrapped around the product during use. Do not use the device or connect and disconnect to the supply mains with the hands and / or feet wet. In order to ensure the sealing effect of blending blade, please do not allow the blending blade to work without load. Do not pull on the connection cord in order to unplug it or use it as a handle Unplug the product immediately from the mains in the event of any breakdown or damage and contact an official technical support service. In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official technical support service may carry out repairs or procedures on the device. Only for indoor use. Product has a thermal safety component that operates in case of abnormal higher temperatures. In case of operation of this component, it is needed to unplug the product from mains and let cool for at least 15min.

B&B Trends, S.L. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

BEFORE USE

1. Thoroughly clean the parts that come into contact with food before you use the appliance for the first time.
2. Let hot ingredients cool down before you process them (max. temperature 60°C).
3. Cut large ingredients into pieces of approximately 2 cm before you process them.
4. Assemble the appliance properly before you put the plug in the wall socket.

INSTRUCTIONS FOR USE

USE OF THE HAND BLENDER

The hand blender is intended for blending liquids (e.g. dairy products, sauces, fruit juices, soups, mixed drinks and shakes), mixing soft ingredients, and pureeing cooked ingredients (e.g. for making baby food)

1. Attach the blender blade to the motor unit. It will "click" into place.
2. Immerse the blade guard completely in the ingredients.
3. Press the speed button ( ) for turbo speed button (Turbo) to switch on the appliance.
4. Move the appliance slowly up and down and in circles to blend the ingredient.

The appliance has variable speed control function showed on unit top. Turn the speed control clockwise to increase the power or counterclockwise to decrease the power.

USE OF THE CHOPPER

The chopper is intended for chopping ingredients such as nuts, meat, onions, hard cheese, boiled eggs, garlic, herbs, dry bread etc.

The blades are very sharp! So be very careful when handling the blade unit. Be especially careful when you remove the blade unit from the chopper bowl, when you empty the chopper bowl and during cleaning.

1. Attach the chopper blade unit in the chopper bowl.
2. Add the ingredients in the chopper bowl.
3. Fix the coupling unit onto the chopper bowl.
4. Insert the motor unit onto the chopper bowl.
5. Press the speed button (Tor turbo speed button (Turbo) to switch on the appliance. If the ingredients are sticked to the wall of the chopper bowl, loosen them by adding

liquid or using a spatula. Always let the appliance cool down after chopping meat.

USE OF THE WHISK

The whisk is intended for whipping cream, whisking egg whites, desserts etc.

1. Insert the whisk to the coupling unit.
2. Insert the coupling unit to the motor unit.

3. Add the ingredients in a bowl (use a large and deep bowl for best result).

4. Immerse the whisk completely in the ingredients. To avoid splashing, start processing by selecting a low speed on the variable speed control and press the speed button (T).

MAINTENANCE AND CLEANING

Unplug the power cable before cleaning.

Do not touch the blade.

Use a dry kitchen cloth to clean the product. It is strictly forbidden to rinse the main unit with water or immerse it in water.

Do not use metal or nylon brushes, abrasive household products, thinners or other similar cleaning products to clean the appliance as they can damage its surface structure. Use a soft, dry cloth to remove any dirt from the power cable.

Cleaning requirements for each accessory

Contents Time Speed Accessory
Soaked carrots: 240gWater: 360g	10" MAXIM	MUM Mixing blade
Cubes of meat: 200g 10" MAXIMUM Chopper
Egg whites: 4 eggs 120" MAXIMUM Whisk

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste electrical and electronic equipment), which establishes the applicable legal framework in the European Union regarding the elimination and recycling of electrical and electronic devices. Do not put this product in the bin. Take it to your closest electrical and electronic waste treatment centre.

FRANÇAIS

NOUS TENONS À VOUS REMERCIER D'AVOIR CHOISI UFESA. NOUS ESPÉRONS QUE VOUS SEREZ PLEINEMENT SATISFAIT DE CE PRODUIT ET QU'IL RÉPONDRA À VOS ATTENTES.

ATTENTION

VEUILLEZ LIRE ATTENTIVEMENT LE MANUEL D'UTILISATION AVANT D'UTILISER LE PRODUIT. CONSERVEZ CE MANUEL D'UTILISATION DANS UN ENDROIT SÛR EN VUE DE CONSULTATION FUTURE.

DESCRIPTION

B&B TRENDS, SL. guarantees compliance of this product, for the use for which it is, during the period established by the legislation in force in the country of sale. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfil or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B & B TRENDS, SL. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENDS, SL., authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENDS, SL., or the careless or improper use of the same shall render this warranty null and void. You must keep the purchase invoice, receipt or delivery docket in order to exercise your warranty rights. For technical service and after-sales care outside the Spanish territory, please submit your query to the point of sale where you purchased the item.

BON DE GARANTIE

Check out your nearest service station at https://sat.ufesa.com/

ufesa

B&B TRENDS, S.L. · C.I.F. B-86880473
