BP4580 - Blender UFESA - Free user manual and instructions

Product type	Blender
Brand	Ufesa
Model	BP4580
Power	600 W
Bowl capacity	1.5 L
Bowl material	Glass
Blades	Stainless steel, 4 blades
Speeds	2 speeds + pulse
Functions	Mix, chop, pulse, crush ice
Dimensions (L x W x H)	20 x 18 x 40 cm
Weight	2.5 kg
Power supply	220-240 V ~ 50/60 Hz
Cable length	1 m
Safety	Safety lock if bowl is not properly positioned
Maintenance	Bowl and lid are dishwasher safe
Cleaning	Wipe base with a damp cloth
Spare parts	Bowl, lid, gasket, blades available
Repairability	Repairability index: 7.5/10
Warranty	2 years
Color	White and transparent

Frequently Asked Questions - BP4580 UFESA

How to use the Ufesa BP4580 blender?

Place food in the bowl, lock the lid, plug in the appliance and press the desired speed. Use the pulse function for short bursts.

What is the maximum bowl capacity?

The bowl capacity is 1.5 liters. Do not exceed the maximum mark to avoid overflow.

How to clean the blender?

The bowl, lid and measuring cap are dishwasher safe. Wipe the motor base with a damp cloth without immersion.

Can I crush ice with this blender?

Yes, use the pulse function by pressing the button in bursts of 5 seconds max to avoid overheating.

What to do if the blender does not start?

Check that the bowl is correctly placed on the base and that the lid is locked. Ensure the socket is working.

Can I blend hot liquids?

No, wait for liquids to cool to room temperature to avoid internal pressure and leaks.

How to change the blades?

The blades are not user removable. Contact Ufesa after-sales service for replacement.

The blender makes abnormal noise, what to do?

Stop the appliance, check that no hard object (bone, pit) is stuck. If the noise persists, contact a professional.

Can I blend dry herbs?

Yes, but chop in short pulses to avoid overheating and to obtain a uniform texture.

Where to find spare parts?

Parts such as the bowl, lid and gasket are available on the official Ufesa website or from authorized dealers.

USER MANUAL BP4580 UFESA

Product photo of aUFCO brand blender with a measuring cup and whisk, no visible text or symbols

3D mechanical part diagram showing a curved bracket with two circular holes, labeled with number 6 (no text or symbols on the object itself)

Illustration of a hairbrush with a stand and accessories (no text or symbols)

Three-step illustration of a kitchen utensil with an arrow indicating the process (no text or symbols)

Diagram of a cylindrical device with internal oval structure and directional arrows, no text or symbols present

Diagram of a mechanical device with an open lid and internal components, showing a downward arrow indicating motion (no text or symbols present)

		100 g	10 – 20 s
		100 g	30 – 40 s
		100 g	10 s
		15 g	20 – 30 s
			15 s
		100 g	15 s
		150 g	30 – 40 s
	[3874] [54KO]5...C	120 g + 120 g	5 s

5...C

Estimados clientes:

Congratulations on your choice of our appliance, and welcome among the users of ufesa products.

Please read this instruction manual carefully. Pay special attention to important safety instructions. Keep this instruction manual for future reference.

For your safety

Before use, read these instructions carefully in order to become familiar with important safety and operating instructions for this appliance.

If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded.

This appliance is designed for processing normal household quantities in the home or similar quantities in non-industrial applications. Non-industrial applications include e.g. use in employee kitchens in shops, offices, agricultural and other commercial businesses, as well as use by guests in boarding houses, small hotels and similar dwellings.

Use the appliance for processing normal quantities of food for domestic use.

The appliance is only suitable for cutting

or mixing food. It must not be used for processing other objects or substances.

Please keep the operating instructions in a safe place. If passing on the appliance to a third party, always include the operating instructions.

△ General safety instructions

Electric shock risk

The appliance must not be used by children.

The appliance and its power cord must be kept away from children. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance. Connect and operate the appliance only in accordance with the specifications on the rating plate. Only use indoors. Do not use the appliance if the power cord and/or appliance are damaged.

Before replacing accessories or additional parts, which move during operation, switch off the appliance and disconnect from the power supply. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

Do not place the power cord over sharp edges or hot surfaces.

To prevent injury, a damaged power cord must be replaced by the manufacturer or his customer service or a similarly qualified person. Only our customer service may repair the appliance. Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

⚠️ Safety instructions for this appliance

Risk of injury Electric shock risk

Do not use the hand blender with damp hands and do not operate it at no load.

Do not immerse the appliance in liquid above the blender foot-base unit connection point. Never immerse the base unit in liquids and do not clean in the dishwasher.

Caution when processing hot liquids. Liquids may splash during processing.

Never place blender foot on hot surfaces or use in very hot food.

Leave hot food to cool down to at least 80°C before processing with the blender! Before using the hand blender in a cooking pot, take the pot off the hotplate.

Operate the hand blender with original accessories only.

Do not attach or remove tools until the appliance is at a standstill.

Recommendation: Never switch on the appliance for longer as you need to processing the ingredients.

The blender jug is not suitable for use in the microwave.

Risk of injury from sharp blades/rotating drive!

Never grip the blade in the blender foot. Never clean the blades with bare hands. Use a brush.

Overview

1 Base unit
2 ON button
3 Turbo button, maximum speed
4 Speed selector
5 Foot with blade
6 Wall mount
7 Mixing jug
8 Lid for mixing jug

Safety devices start lock-out

If motor stops during operation, unplug the appliance and cool it down for 5 minutes.

Overload protection switches on.

Possible causes:

• The food has jammed the blender blade.
- Too much pressure exerted on the food during the cutting process.
Eliminate the cause and switch on the appliance again after cooling period.

Wall mount (B1 & B2)

(Depending on the model)

To fix the support to a wall, drill two holes

and attach the support by means of the wall plugs and screws which are supplied.

Use

The blender is suitable for preparing mayonnaise, puree, compotes, milkshakes, jams, baby food or for chopping up small quantities of walnuts or almonds

The blender is not suitable for preparing mashed potato.

• Slot the foot 5 onto the blender's motor housing 1 and twist it to the left (anticlockwise) (B3).
• Place the food you wish to process with the blender into the corresponding jug 7
• Hold the blender and the jug. To stop the food from splashing out during use, only switch the blender on or off when the foot is immersed in the food being processed.

To switch the blender on, press button 2 (B4). If you wish to use maximum speed during use, press button 3 (B4).

Speed selector

The speed selector allows you to set the speed for the type of food being processed. Low speeds are suitable for starting the blending process, churning, beating and mixing ingredients, as well as whipping egg whites. Higher speeds are suitable for beating eggs, preparing batters, etc. (B5).

Universal mincing accessory (Depending on the model)

Safety instructions for this appliance

Risk of injury from sharp blades/rotating drive!

Never grip the blade in the universal cutter. Take hold of the universal cutter blade by the plastic handle only. Never clean the blades with bare hands. Use a brush.

Risk of scalding!

When processing hot milk, use a tall, narrow receptacle for blending. Hot milk may splash and scald you.

Important!

Do not attach or remove accessories until the base unit is at a standstill.

Never use the hand blender/blender foot in the universal cutter. The universal cutter is not microwave-safe.

Never immerse the attachment of the universal cutter in liquids and do not clean under flowing water or in the dishwasher.

Never insert the whisk into the base unit without the gear attachment.

Never immerse the gear attachment in liquids and do not clean under flowing water or in the dishwasher.

The accessories can also be acquired individually at any Official Technical Service Centre for the brand (A).

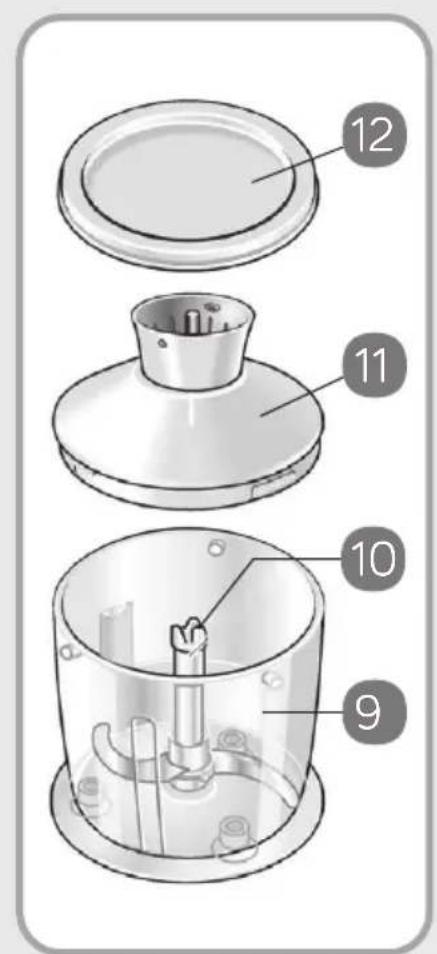

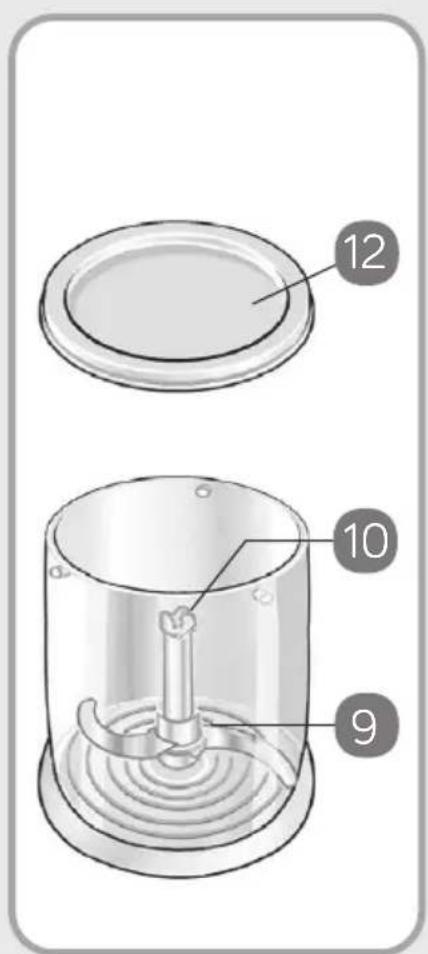

9 Universal mincing accessory

10 Blade

11 Adapter

12 Lid

15 Ice crusher blade

If the universal cutter is not included with the hand blender it can be ordered from customer service (order no. 640686).

General safety warnings

⚠️ Danger of injury from sharp blades / rotary action

Never touch the blade on the mincing accessory! Never clean the blade on the mincing accessory by hand! Always use a brush. The mincing blade must only be held by the integrated plastic handle.

The adapter for the mincing blade must only be fitted or removed with the appliance switch off.

Use

To mince meat, chop hard cheeses, onions, aromatic herbs, garlic, fruit, vegetables, nuts and almonds (see the table in fig. (B8))

Clean the meat of any bones, gristle or sinews before mincing the it.

The mincing accessory is not suitable for grinding very hard products (e.g. coffee beans, turnips, nutmeg) or frozen foods. Figure (B6)

• Push the mincing accessory 9 down onto a flat, clean work surface
• Fit the blade 10 into the mincing accessory.
• Place in the food you wish to process with the mincer.
• Fit the adapter 11 onto the mincing accessory and twist it to the right (clockwise) until it clicks shut.
• Place the drive unit onto the adapter and twist it to the right (clockwise).
• Hold the drive unit and the mincing accessory and switch the appliance on.

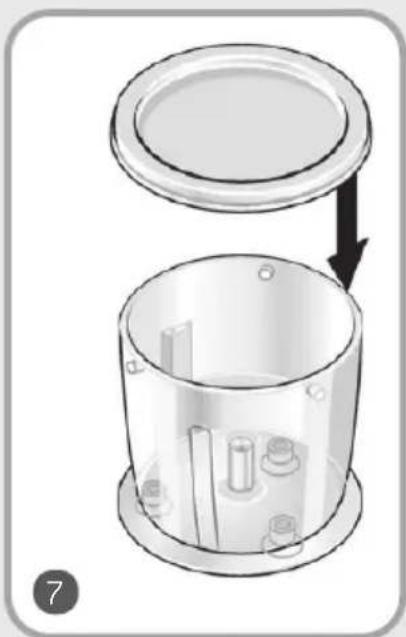

• Fit the lid 12 to protect the food minced with the mincing accessory (B7).

Examples of use:

Grated cheese for pasta dishes.

Blend 200 g of moderately hard cheese Emmental, etc.) for ten second to obtain a thickly grated cheese, ideal for sprinkling over pasta dishes.

Whisk accessory

(Depending on the model)

The accessories can also be acquired individually at any Official Technical Service Centre for the brand (A).

13 Drive mechanism

14 Whisk

Only fit or remove the drive mechanism with the balloon whisk attached when the appliance is switched off.

Use

To whip cream, egg whites or milk (cold milk, maximum temperature 8°C)

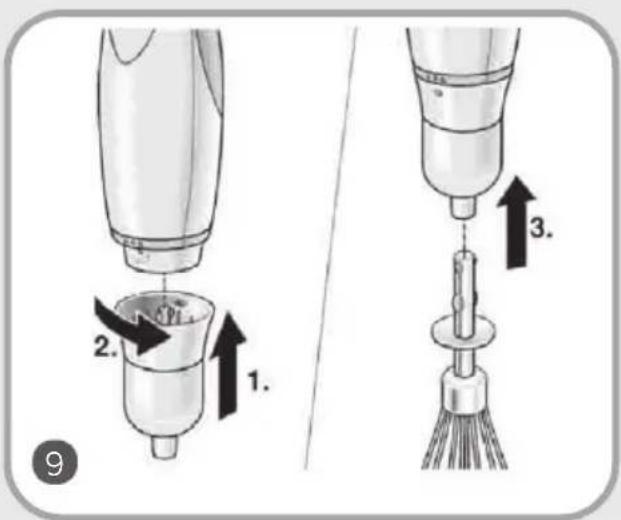

Figure (B9)

- Slot the drive mechanism into

the blender's drive unit and twist it to the left (anticlockwise).

• Slot the balloon whisk into the drive mechanism.
• Place the food you wish to whisk into the jug.
• Hold the blender and the jug. Press the on/off button.

Cleaning & Maintenance

Always unplug the appliance before cleaning it.

Motor housing

The adapter for the accessories and the motor housing must only be wiped clean with a damp cloth. Never immerse them in water or any other liquid.

Mixer foot

Do not immerse the foot in water as this will ruin the bearing lubricant. Clean it under a running tap, without using harsh detergents. Do not put it into the sishwasher. Turn it upside down to drain out any water that may have got into it.

Blender accessory

• Take the whisk out of the drive mechanism.
- Wash the whisk in the dishwasher. The drive mechanism must only be cleaned with a damp cloth.

Mincing accessory

Never immerse the adapter (11) or the mincing accessory in water! Do not wash it in the dishw

• Take the drive unit off the adapter 11.
- Twist the adapter 11 to the left (anticlockwise) and remove the mincing accessory 9.

• Hold the blade by the plastic handle and remove it.
• Both the mincing accessory and blade are dishwasher safe.
• The adapter must only be cleaned with a damp cloth.

Advice on disposal:

Our goods come in optimised packaging. This basically consists in using non-contaminating materials which should be handed over to the local waste disposal service as secondary raw materials.

This product complies with EU Directive 2012/19/CE. The crossed wheelie bin symbol shown

on the appliance indicates that when it comes to dispose of the product it must not be included in with household refuse. It must be taken to a special refuse collection point for electric and electronic appliances or returned to the distributor when purchasing a similar appliance. Under current refuse disposal regulations, users who fail to take discarded appliances to special refuse collection points may be penalised. Correct disposal of discarded appliances means that they can be recycled and processed ecologically, helping the environment and allowing materials used in the product to be reused. For more information on available waste disposal schemes contact your local refuse service or the shop where the product was purchased. Manufacturers and importers are responsible for ecological recycling, processing and disposal of products, whether directly or via a public system.

Your local town council can provide you with information about how to dispose of obsolete appliances.

Chers Clients!

Support mural (B1 et B2)
