USER MANUAL Bolero CoolMarket Combi 296 DF CECOTEC

Bolero CoolMarket Combi 296 DF White

Bolero CoolMarket Combi 296 DF Inox

Bolero CoolMarket Combi 296 DF Dark

Bolero CoolMarket Combi 296 DF WD Dark

Bolero CoolMarket Combi 296 DF WD Inox

Frigorífico combi / Combi fridge-freezer

Five white refrigerators arranged in a row, each with a black control panel on top (no visible text or labels)

Sarety Instructions 10

instructions be secure 14 Sichovskohimovir, 12

1. Parts and components 81

2. Before use

3. Installation 82

4. Operation 36

5. Instructions on food storage 86

6. Clearing and maintenance 88

7. Troubleshooting 89

8. Technical specifications

9. Disposal of old electrical and

electronic appliance

1. Technical support and warranty 92

2. Copyright 92

3. Simplified EU Declaration of Conformity 92

SOMMAIRE

1 Peres I components 195

1. Abans de fer servir

3.Installació 196

EU01_103708_Bolero CoolMarket Combi 296 DF White

EU01_103709_Bolero CoolMarket Combi 296 DF Inox

EU01_103710_Bolero CoolMarket Combi 296 DF Dark

EU01_103804_Bolero CoolMarket Combi 296 DF WD Dark

EU01_103805_Bolero CoolMarket Combi 296 DF WD Inox

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• It is important to make sure all users are familiar with the operation and safety features of the appliance to prevent faults and unnecessary accidents.
  • Make sure that the mains voltage in your house matches the voltage stated on the rating label of the appliance.
• This appliance can be used by children aged 8 and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the device. The cleaning and maintenance of the appliance should not be carried out by children without supervision.
• Keep the packaging material away from children, as there is a risk of suffocation.

.
.
- WARNING: if the interior light is damaged, contact the official Cecotec Technical Support Service. Do not try to repair it on your own.
- WARNING: when positioning the appliance, make sure the power cable does not get trapped or damaged. A crushed or damaged plug may heat up and cause a fire.
- WARNING: keep the ventilation grilles on the appliance

10

BOLERO COOLMARKET COMDI 295 DF WHITE

BOLERO COOLMARKET COMBI 296 DE INOX

BOLFCO COOL MARKET COMPL 285 DE DARK

BOLERO LOGOMARKET COMBI 293 OF DARK

BOLERO COOLMARKET COMBI 295 DF WD DARK

BOLERO COOLMARKET COMBI 296 DF WD INOX

body unobstructed.

• Make sure the appliance plug is accessible after installation.
• Do not place food directly against the air outlet on the interior of the appliance.
• Keep the ventilation openings clear from obstructions.
• Do not place carbonated or fizzy drinks in the freezer compartment, as this creates pressure in the container, which could explode and damage the appliance.
• WARNING: do not use mechanical appliances or other means to accelerate the defrosting process other than those recommended by Cecotec.
• WARNING: do not damage the refrigeration circuit.
• If the cable is damaged, it must be replaced by the manufacturer, the supplier, or qualified personnel to avoid hazards.
• WARNING: do not use electrical appliances inside the refrigerator.
  • We recommend you check the power cable regularly to detect any sign of possible damage. Do not use the appliance if the cable is damaged.
  • To avoid injuries or death caused by electric shock, do not use the appliance with your hands wet or over a wet surface.
• You should never use this refrigerator with an extension lead or a multi-socket adaptor. Make sure the appliance is plugged in directly to a power supply.
• When positioning the appliance, make sure there is enough free space at the rear, as it is the main heat outlet. This will allow for adequate ventilation.
• Do not place hot food or drinks in the refrigerator, allow them to cool down to room temperature beforehand.
• Do not place any other appliance on top of the refrigerator and do not get it wet.
• Do not store explosive substances such as aerosols or

BOLERO COOLMARKET COMBI 296 DF WHITE

BOLERO COOLMARKET COMBI 296 DE INOX

BOLFCO COOL MARKET COMPL 285 DE DARK

BOLERO COOLMARKET COMBI 290 DF DARK BOLERO COOL MARKET COMBI 295 DE WDR BABU

BOLERO COOLMARKET LOMB 296 DF WO DARK

BOLERO COOLMARKET COMBI 296 DF WD INOX

flammable propellants in this appliance.

• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• WARNING: to avoid any risk due to the instability of the refrigerator, you must install it according to the instructions.
• This appliance has a built-in earthed plug. Make sure the power supply in your house is properly earthed.
• Wait 5 minutes after a power failure before turning the appliance back on. Otherwise, the compressor may get damaged.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
  • Always handle the appliance carefully to avoid any damage on it.
• Frozen food can cause frostbites if consumed right after removing it from the freezer compartment.
• Do not remove or touch items in the freezer compartment with your hands wet, as it could cause skin abrasions or frost/freeze burns.
• Never use the base, drawers, or door as support.
• Do not overload the door shelves or place too much food on the drawers to prevent items from falling off and damaging the appliance.
• WARNING: do not attach multi-socket adaptors or multiple power supplies to the rear part of the appliance.
• To avoid food contamination, please follow the instructions below:

• Opening the door for a long period of time may cause a significant increase in temperature in the appliance compartments.

• Regularly clean the surfaces that come into contact with food and with the accessible draining systems.

• Clean the water tank if it has not been used for 48 hours.
• Store raw meat and fish in proper containers in the freezer, so they do not come into contact with or leak on other food.
• The two-star compartments are suitable for storing pre-frozen food, storing or making ice cream, and making ice cubes.
• Compartments with one, two, or three stars are not suitable for freezing fresh food.
• Before carrying out any maintenance and cleaning task, turn off the appliance and unplug it.
• It is advisable to wait for at least four hours before connecting the appliance to allow oil to flow through the compressor.
  • Air must flow around the appliance. Lack of air leads to overheating. To achieve good ventilation, follow the installation instructions.
• Whenever possible, the rear part of the appliance should not be too close to the wall to prevent it from touching or reaching the hot parts (the compressor and the condenser). To avoid risk of fire, follow the installation instructions.
• Make sure that the mains plug is accessible after installation of the appliance.
• All electrical work required to maintain this appliance must be carried out by a qualified electrician.

Refrigerant

- Isobutane refrigerant (R600a), contained within the refrigeration circuit of the appliance, is a natural gas with a high level of environmental compatibility; however,

BOLERO COOLMARKET COMBI 295 DF WHITE BOLERO COOLMARKET COMBI 295 DF INOX BOLERO COOLMARKET COMBI 295 DF DARK BOLERO COOLMARKET COMBI 295 DF WD DARK BOLERO COOLMARKET COMBI 295 DF WD INOX

BOLERO COOLMARKET COMBI 296 DF WHITE BOLERO COOLMARKET COMBI 296 DF INOX BOLERO COOLMARKET COMBI 296 DF DARK BOLERO COOLMARKET COMBI 296 DF WD DARK BOLERO COOLMARKET COMBI 296 DF WD INOX

it is flammable. Make sure that no components of the refrigeration circuit have been damaged during the transport and installation of the appliance.

• WARNING: the refrigerant and the insulator gas are flammable. When disposing of the device, only dispose of it at an authorised waste-disposal facility. Do not expose it to flames.
• WARNING: the appliance contains refrigerant and gases in the insulation. The appliance and gases must be disposed of professionally, as they may cause injuries to eyes or ignition. Make sure the refrigeration-circuit pipe is not damaged before disposing of it correctly.

• WARNING: risk of fire. If the refrigeration circuit is damaged:
• Avoid open flames and sources of ignition.
• Completely air the room where the appliance is located.

INSTRUCTIONS DE SÉCURITÉ

1. Refrigerator compartment
2. Temperature knob/Inner light
3. Inner shelf with steel profile
4. Inner glass shelf
5. Crisper drawer (with glass cover)
6. Freezer-compartment drawer
7. Feet
8. Upper door shelf
9. Central door shelf
10. Lower door shelf
11. Freezer compartment door

NOTE:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the appliance if you need to transport it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Refrigerator
• Instruction manual

Before using the refrigerator:
- Remove all transport packaging.
- Once installed, allow the refrigerator to stand for at least four hours before connecting it to the mains.
- It is recommended to clean the inside of the appliance before starting it up. To do this, use a solution of baking soda and warm water and then dry the inside of the refrigerator

BOLERO COOLMARKET COMBI 295 DF WHITE BOLERO COOLMARKET COMBI 295 DF INOX BOLERO COOLMARKET COMBI 295 DF DARK BOLERO COOLMARKET COMBI 295 DF WD DARK BOLERO COOLMARKET COMBI 295 DF WD INOX

thoroughly. The refrigerator may give off a peculiar smell when it is opened for the first time. This smell will disappear as the appliance cools down.

Levelling

• Make sure you level your refrigerator with the front levelling feet. If it is not levelled, the refrigerator performance will be affected, or it can even cause a malfunction.
• After installing the refrigerator, wait 4 hours before using it to allow the refrigerant to stabilise.

3. INSTALLATION

Place of installation

Ventilation conditions

The location you choose for the installation of the refrigerator must be properly ventilated and away from heat sources. Do not place the freezer near heat sources, like a cooker hob or pot, and avoid direct sunlight to ensure the cooling effect and save on energy consumption. Do not place the refrigerator in a damp place to avoid rust or loss of power. The result of dividing the total space of the room in which the refrigerator is installed by the amount of refrigerant load in the refrigerator must not be less than 8 g/m ^3 .

Note: The amount of refrigerant used by the refrigerator is specified on the rating plate.

Heat dissipation space

During operation, the refrigerator releases heat into the environment. Therefore, you should leave at least 30 mm of free space at the top, more than 100 mm on both sides, and more than 50 mm at the rear of the refrigerator. Fig. 2 Dimensions in mm (Fig. 2):

BOLERO COOLMARKET COMBI 296 DF WHITE

BOLERO COOLMARKET COMBI 296 DF INOX

BOLERO COOLMARKET COMBI 296 DF DARK

BOLERO COOLMARKET COMBI 296 DF WD DARK

BOLERO COOLMARKET COMBI 296 DF WD INOX

ENGLISHENGLISH

References Models W D H A B E F
EU01_103708 Bolero CoolMarket Combi 296 DF White		595.59	4.6184	47.5921	3106	2.250	100
EU01_103709 Bolero CoolMarket Combi 296 DF Inox
EU01_103710 Bolero CoolMarket Combi 296 DF Dark
EU01_103804 Bolero CoolMarket Combi 296 DF WD Dark
EU01_103805 Bolero CoolMarket Combi 296 DF WD Inox

Note: figure 2 only illustrates the space required for the appliance.

Stable surface

Place the refrigerator on a solid, flat surface (the floor) to keep it stable, otherwise vibrations and noises will occur. When the freezer is placed on a carpet, straw mat, or polyvinyl chloride, solid support plates should be placed under the refrigerator to avoid colour change due to heat dissipation.

Preparing for use

Waiting time

Once the refrigerator is properly installed and cleaned, do not switch it on immediately. Be sure to wait at least one hour before switching the refrigerator on to ensure normal operation.

Cleaning

Check the placement of the interior accessory parts and clean the inside of the refrigerator with a soft cloth.

Switch on

Connect the plug into a power socket to switch on the compressor. After one hour, open the freezer door: if the temperature inside the freezer compartment has dropped, the cooling system is running normally.

Food storage

After the refrigerator has been in operation for some time, the user may adjust its internal temperature. Once the refrigerator has cooled down completely, put the food in. These will take 2 to 3 hours to cool down completely. In summer, when the temperature is high, it may take more than 4 hours for food to cool down completely (try to open the refrigerator door as rarely as possible).

B4

BOLERO COOLMARKET COMDI 295 DF WHITE

BOLERO COOLMARKET COMBI 296 DE INOX

BOLERO COOL MARKET COMBI 295 DE DARK

BOLFCRO COOL MARKET COMPL 205 DE UND PARK

BOLERO COOLMARKET COMBI 295 DF WD DARK BOLERO COOLMARKET COMBI 306 DE IWD INOX

BOLERO COOLMARKET COMBI 295 DF WD INDX

If the refrigerator is installed in a wet place, be sure to check if the earthed cord and the leakage breaker are working normally. If vibration noises occur due to contact of the refrigerator with the wall or if the wall turns black due to air convection around the compressor, keep the refrigerator further away from the wall. The installation of the refrigerator may cause noise interference or image problems in mobile phones, landline phones, radio receivers, or TVs near the appliance, so in this case, keep the latter as far away from these objects as possible.

4. OPERATION

Switching on the refrigerator

• First, place the refrigerator in an upright position and wait at least 4 hours before connecting it to the mains.
• Then adjust the temperature using the temperature knob.
• It will take about 4 hours for the refrigerator to reach the desired temperature.

Setting the temperature

The temperature knob is located at the top of the refrigerator compartment next to the light. The knob has the following settings (Fig. 3):

• Position 0: The refrigerator is switched off.
• Position 1: The refrigerator is running at the highest temperature.
• Positions 2 to 6: The refrigerator is running at a normal temperature, i.e. suitable for most situations.
• Position 7: The refrigerator is running at the lowest temperature (Fast Cooling).

Note:

When the room temperature is high, it may be necessary to set the temperature knob to position 7. This will make the compressor to run continuously to maintain a low temperature.

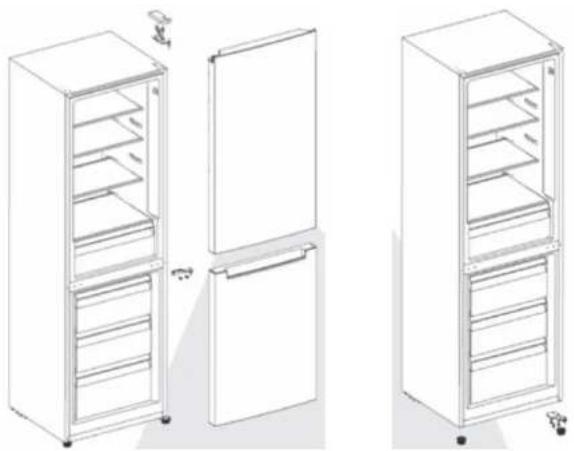

Changing the opening direction of the door

You can change the opening direction of the refrigerator according to your own needs. The specific operating sequence is as follows.

Note: The figures provide a guide for reversing the door. The appearance of the appliance may differ from the product purchased.

Fig. 4

First, remove the top hinge cover on the top of the right side of the appliance, and then remove the three screws securing the top hinge. Remove the top hinge cover and the top hinge first.

BOLERO COOLMARKET COMBI 296 DF WHITE

BOLERO COOLMARKET COMBI 296 DF INOX

BOLERO COOL MARKET COMBI 295 DE DARK

POLFCO COOL MARKET COMPL 205 DC WDR PARK

BOLERO COOLMARKET COMBI 298 DF WLD BANK BOLERO COOL MARKET COMBI 205 DC WLD INOK

BOLERO COOLMARKET COMBI 296 OF WD INOX

ENGLISHENGLISH

Fig. 5 Remove the refrigerator door body and set it aside first. Remove the two screws securing the centre hinge in the centre of the appliance, disassemble the centre hinge and put it aside. Remove the freezer door body and set it aside.

Fig. 6 Remove the three screws securing the bottom hinge at the bottom of the right-hand side of the appliance, remove the bottom hinge and, next, unscrew the right front feet under the bottom hinge. At the same time, use a spanner to remove the nut fixing the hinge shaft, then manually unscrew the left front foot at the bottom of the left-hand side of the appliance.

Fig 7-8 Install the unscrewed high front foot into the symmetrical bottom hole on the right side of the appliance and tighten it. Turn the disassembled bottom hinge 180 degrees (symmetrical with the mirror image when in the correct position), then assemble the bottom hinge shaft in the position of the hole in the corresponding panel. Tighten the nut at the bottom with a wrench, and the bottom hinge shaft will still be facing upwards. Screw the left front foot to the corresponding bottom hinge panel. Install the three bottom hinge fixing screws.

Fig. 9 Install the shaft hole at the bottom of the left side of the freezer door body into the shaft of the bottom hinge, and the door body will be fixed initially. Move the centre hinge to the left position in the centre of the appliance and take two screws to fix the centre hinge.

Fig. 10-11 Take the refrigerator door body and install the shaft hole at the bottom of the left side of the door body into the centre hinge shaft. Take the top hinge and fix it with screws. Install the top hinge cover and secure it with screws.

WARNING - The refrigerator must not be connected to the power socket when you change the opening direction of the door. Make sure to disconnect the plug from the power socket. - It is advisable that two people change the opening direction of the door. If the appliance is turned upside down or on its side during this process, it should be left in an upright position for 6 hours before plugging it in to prevent damage to the internal components.

Water dispenser Refrigerators with model A01_EU01_103804. Bolero CoolMarket Combi 296 DF WD Dark, A01_EU01_103805. Bolero CoolMarket Combi 296 DF WD Inox, include a water dispenser that makes it easy to fill the water glass and have cold water available.

86

BOLERO COOLMARKET COMBI 295 DF WHITE BOLERO COOLMARKET COMBI 295 DF INOX BOLERO COOLMARKET COMBI 295 DF DARK BOLERO COOLMARKET COMBI 295 DF WD DARK BOLERO COOLMARKET COMBI 295 DF WD INOX

The water dispenser includes a water tank that must be filled. To use the water dispenser, follow the instructions below:

1. Open the refrigerator door to ensure that the water dispenser is securely fastened.
2. Open the water tank filler cap, through the water inlet, and fill the tank slowly until full. Then, close the filler cap of the water tank. Fig. 12
3. Use a glass to press against the water outlet tap and make the water flow along the water spout into the glass. Once the glass is removed, the water flow will stop automatically.

Fig. 12 key

1. Open filler cap
2. Water inlet
3. Close filler cap
4. Water outlet tap

Note:

• When using the water dispenser, some water may drip and collect at the bottom of the dispenser. Please, wipe it with a cloth when necessary.
• The maximum fill must be lower than that indicated by the maximum fill line.
• If not used for a long time, clean the water tank.

5. INSTRUCTIONS ON FOOD STORAGE

Use precautions

• The refrigerator may not operate consistently (there may be some defrosting of the contents, or the temperature may become too hot in the freezer compartment) if placed in locations with a temperature outside of the temperature range for which it's designed for a long period of time.
• The internal temperature may be affected by factors such as the location of the refrigerator, room temperature, and door opening frequency, etc., and you should take these factors into account if you decide to use any temperature-control device.
• Effervescent or carbonated drinks should not be stored in the freezer compartment or drawer of the refrigerator.

Food location

• Due to the circulation of cold air in the refrigerator, the temperature in each zone is different, so food must be placed in different zones.
• The refrigerator compartment is suitable to store food that does not need to be frozen, cooked food, beer, eggs, some seasonings that need to be kept cold, milk, fruit juice, etc. The crisper drawer is the best place to store fruit and vegetables.

BOLERO COOLMARKET COMBI 296 DF WHITE BOLERO COOLMARKET COMBI 296 DF INOX BOLERO COOLMARKET COMBI 296 DF DARK BOLERO COOLMARKET COMBI 296 DF WD DARK BOLERO COOLMARKET COMBI 296 DF WD INOX

ENGLISHENGLISH

- The freezer compartment is suitable to store ice cream, frozen foods, and foods that need to be kept for a long time.

Use of the refrigerator compartment

- Shelves: to remove the shelves, first lift them up and then pull them out; to put them back, put them into their position before lowering them. (For the two-section shelf, push the first section towards the rear end and pull the second section out). Keep the rear edge of the shelf facing upwards to prevent food from coming into contact with the wall. When removing and fitting shelves, hold them firmly and handle them carefully to avoid damage.

- Crisper drawer: Pull out the crisper drawer to access the food. After using or cleaning the bottom shelf of the refrigerator (the drawer cover), put it back in place so that the internal temperature of the drawer is not affected.

Care for food storage

• Clean and dry food completely before storing it in the refrigerator. Before introducing food in the refrigerator, it is advisable to seal it to prevent water evaporation and thus keep fruit and vegetables fresh on the one hand, and to prevent odours on the other.
• Leave enough space between the food; if they are too close together, they will block the flow of cold air, which will affect the cooling effect. Do not store too much or too heavy food to prevent the shelves from bending. When storing food, leave a distance from the interior wall; do not place water-rich food too close to the inner wall of the refrigerator to prevent it from freezing on the interior wall.
• Food storage by category: place daily food items at the front of the shelf so that you can reduce the door opening time and avoid food spoilage due to expiry.
• Energy saving tips: let hot food cool down to room temperature before putting it in the refrigerator. Place frozen food in the refrigerator compartment to defrost it.

Storing fruits and vegetables

Please note that some types of fresh vegetables and fruits are sensitive to cold and therefore not suitable for storage in the refrigerator crisper drawer.

Using the freezer compartment

• The freezer compartment temperature is kept at -18 °C, so it is advisable to store food that you wish to keep for a long period of time in the freezer compartment, always respecting the storage time indicated on the food packaging.
• The freezer-compartment drawers are suitable to store food which needs to be frozen. Large fish and meat should be cut into small pieces and placed in freezer bags before placing them in the freezer-compartment drawers.
• Let hot food cool down to room temperature before putting it in the freezer compartment.

88

BOLERO COOLMARKET COMDI 295 DF WHITE

BOLERO COOLMARKET COMBI 295 DE INOX

BOLERO COOL MARKET COMBI 295 DE DARK

BOLFCRO COOL MARKET COMPL 205 DE UND PARK

BOLERO COOLMARKET COMBI 295 DF WD DARK BOLERO COOLMARKET COMBI 306 DE UNIV INOY

BOLERO COOLMARKET COMBI 295 DF WD INDX

• Do not place a glass container with liquid or sealed canned liquid in the freezer compartment to prevent them from exploding due to volume expansion after freezing the liquid.
• Divide food into small portions.
• Food should be packed or covered with suitable materials that are firm, tasteless, impermeable to air and water, non-toxic, and non-polluting to avoid cross-contamination and odour transfer.
• This refrigerator has a three-star freezer compartment that is suitable for long-term storage of frozen foods. It can also be used for freezing and preserving fresh food.

Energy saving tips

• Do not place the refrigerator near heat sources such as a hob, dishwasher or radiator.
• Place the appliance in a cool, well-ventilated room and make sure that the ventilation openings are not blocked.
• Avoid keeping the refrigerator doors open for a long time, as this will allow warm air to enter, affecting frost build-up and energy consumption.
• Make sure that there are no obstacles preventing the doors from closing completely.
• Make sure that the door gaskets are clean and undamaged.
• Store perishable foods in the coldest part of the refrigerator. Store fruit and vegetables in the crisper drawer.
• Do not overload the refrigerator; doing so may cause hot air pockets to form.
• Do not put hot food in the refrigerator or freezer, let it cool down first.

Instructions to be followed in case of power failure

First, make sure that the doors of both compartments are fully closed. When the power supply has been restored, the refrigerator will start to operate, but it may take some time to reach the preset temperature. Check the condition of stored food.

6. CLEANING AND MAINTENANCE

Before carrying out any maintenance or cleaning operations, disconnect the refrigerator from the mains power supply.

Cleaning the Interior

To clean the inside of the refrigerator, use a solution containing 5 ml of baking soda diluted in 500 ml of water. Rinse all parts thoroughly and dry them well. Do not use any abrasive cleaning product.

Cleaning the exterior

Clean the outside surface of the refrigerator with warm soapy water. Do not use any abrasive

BOLERO COOLMARKET COMBI 296 DF WHITE

BOLERO COOLMARKET COMBI 296 DE INOX

BOLERO COOL MARKET COMBI 295 DE DARK

POLFCO COOL MARKET COMPL 305 DC WDR PARK

BOLERO COOLMARKET COMBI 298 DF WLD BANK BOLERO COOL MARKET COMBI 305 PG WLD INOK

BOLERO COOLMARKET COMBI 296 OF WD INOX

ENGLISHENGLISH

cleaning product. Be careful when cleaning the underside, as there may be sharp edges. It is recommended to clean the dust from the back side 1 or 2 times a year, otherwise dust build-up may affect the performance of the appliance and lead to higher energy consumption.

Defrost

The refrigerator defrosting process is not automatic. For this reason, it must be carried out manually on a regular basis. When the frost build-up exceeds 5 mm, empty the refrigerator and switch it off. Leave the door open to allow the frost to melt. Place frozen food in a cooler bag or wrap it in thick newspaper. Do not use any sharp objects to scrape off the frost. When the frost has disappeared, close the door and reconnect the refrigerator to the mains. When the power supply has been restored, the refrigerator will start to operate, but it may take some time to reach the preset temperature.

Always unplug the appliance when not in use.

When the refrigerator is not to be used for a long period of time, disconnect it from the mains, remove all food and clean it. Leave the door alar to avoid unpleasant odours.

Replace the inner light bulb

First, unplug the refrigerator from the power socket. Then remove the plastic cover. Next, remove the light bulb. Replace the bulb with a new, suitable one, put the plastic cover back in place and reconned the refrigerator to the mains.

7. TROUBLESHOOTING

The appliance makes normal noises during operation

You may hear a slight noise in the following situations:

• When the refrigerant is pumped into the cooling system through the pipes at the back side of the refrigerator.
• When the compressor is running.
• When the temperature knob is turned, since it is in charge of controlling the compressor operation.

The appliance has no power supply

• Check if there has been a power failure.
• Check that the socket is powered.
• Check the plug or power socket.
• Check that the temperature knob is not set in position 0.

BOLERO COOLMARKET COMBI 296 OF WHITE BOLERO COOLMARKET COMBI 296 OF INOX BOLERO COOLMARKET COMBI 296 OF DARK

BOLERO COOL MARKET COMBI 295 DE WID DARK

BOLERO COOLMARKET COMBI 295 DE WD INOX

The compressor runs continuously

• Check that the doors are properly closed.
• If you have put a lot of food in the refrigerator, wait until the inside temperature rises again.
• If you have opened the doors too often, close them and wait until the inside temperature rises again.
• Check that the temperature knob is not set in position 7.

There is excessive frost/ice build-up

• Make sure the doors are properly closed.
• Check that the door gaskets are clean and seal properly.
• Check that the temperature knob is not set in position 7.

The appliance makes some noise

• There are some noises that are normal.
• Make sure that you have installed the refrigerator correctly.

If after the above checks the problem persists, please contact the official Cecotec Technical Support Service.

B. TECHNICAL SPECIFICATIONS

Appliance Bolero CoolMarketCombi 296 DF White	Bolero CoolMarketCombi 296 DF Inox	Bolero CoolMarketCombi 296 DF Dark
Reference EU01_103708 EU01_103709 EU01_103710
QR code
Rated voltage	220-240 V-

BOLERO COOLMARKET COMBI 296 DF WHITE

BOLERO COOLMARKET COMBI 296 DF INOX

BOLERO COOLMARKET COMBI 296 DF DARK

BOLERO COOL MARKET COMBI 296 DE WD IMOX

Rated frequency	50/60 Hz
Rated current	0.8 A
Climate class	SN/N/ST (°)
Refrigerant R600a (67 g)
Insulator Cyclopentane

Appliance Bolero CoolMarketCombi 296 DF WD Dark	Bolero CoolMarketCombi 296 DF WD Inox
Reference EU01 103804 EU01 103805
QR code
Rated voltage	220-240 V~
Rated frequency	50/60 Hz
Rated current	0.8 A
Climate class	5N/N/ST (°)
Refrigerant R600a (67 g)
Insulator Cyclopentane

(*) Refrigerator intended for use at room temperatures between 10 °C and 38 °C.
Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

9. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

92

BOLERO COOLMARKET COMBI 296 DF WHITE BOLERO COOLMARKET COMBI 296 DF INOX BOLERO COOLMARKET COMBI 296 DF DARK BOLERO COOLMARKET COMBI 296 DF WD DARK BOLERO COOLMARKET COMBI 296 DF WD INOX

FRANÇAISENGLISH

This symbol indicates that, according to the applicable regulations, the appliance and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities. For detailed information on how to properly dispose of electrical and electronic appliances and/or batteries, consumers should contact their local authorities. Compliance with the

above guidelines will help protecting the environment.

10. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations. Repairs should be carried out by qualified personnel. If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

11. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

12. SIMPLIFIED EU DECLARATION OF CONFORMITY

Cecotec innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested to meet the required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity.

BOLERO COOLMARKET COMBI 296 DF WHITE BOLERO COOLMARKET COMBI 296 DF INOX BOLERO COOLMARKET COMBI 296 DF DARK BOLERO COOLMARKET COMBI 296 DF WD DARK BOLERO COOLMARKET COMBI 296 DF WD INOX

93

FRANÇAISFRANÇAIS

1. PIÈCES ET COMPOSANTS

Image 1

7. PROBLEEMOPLOSSING

Referans Model	er W D H A B E F:
EU01_103708 Bo	ero CoolMarket Combi 296 DF White	595	594.6	847.5	9	21.3	10	62.2	50
EU01_103709	Bolero CoolMarket Combi 296 DF Inox
EU01_103710	Bolero CoolMarket Combi 296 DF Dark
EU01_103804	Bolero CoolMarket Combi 296 DF MD Dark
EU01_103805 Bo	ero CoolMarket Combi 296 DF MD Inox

EU01_103804 EU01_103805

Two circular diagrams with internal patterns, one containing a shaded circle and the other a white dial (no text or symbols)

Fig./img./Abb./Afb./Rys/Orb 3

Line drawing of a two-tier refrigerator with a side arm (no text or symbols)

Fig./Img./Abb./Afb./Rys/Orb 4

Line drawings of three different refrigerator units with doors and drawers, shown from different angles (no text or labels)

Fig./Img./Abb./Afb./Rys/Orb 5 Fig./Img./Abb./Afb./Rys/Orb 6

BOLERO COOLMARKET COMBI 296 OF WHITE BOLERO COOLMARKET COMBI 296 OF INOX BOLERO COOLMARKET COMBI 296 OF DARK BOLERO COOLMARKET COMBI 296 OF WD DARK BOLERO COOLMARKET COMBI 296 OF WD INOX

BOLERO COOLMARKET COMBI 296 DF WHITE BOLERO COOLMARKET COMBI 296 DF INOX BOLERO COOLMARKET COMBI 296 DF DARK BOLERO COOLMARKET COMBI 296 DF WD DARK BOLERO COOLMARKET COMBI 296 DF WD INOX

235234

Line drawing of a multi-tiered stainless steel refrigerator with glass doors and drawers (no text or symbols)

Fig./Img./Abb./Afb./Rys/Orb 7

Line drawing of a multi-tiered refrigerator cabinet with shelves and doors (no text or symbols)

Fig./img./Abb./Afb./Rys/Orb 8

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

Fig./Img./Abb./Afb./Rys/Orb 9

Line drawing of a two-tier refrigerator with lid and front panel (no text or symbols)

Fig./Img./Abb./Afb./Rys/Orb 10

BOLERO COOLMARKET COMBI 296 DF WHITE BOLERO COOLMARKET COMBI 296 DF INOX BOLERO COOLMARKET COMBI 296 DE DARK

BOLERO COOL MARKET COMPL 295 DE WID DARK

BOLERO COOLMARKET COMBI 296 DF WD INOX

BOLERO COOLMARKET COMBI 296 DF WHITE

BOLERO COOLMARKET COMBI 296 DF INOX

BOLERO COOLMARKET COMBI 296 DF DARK

BOLERO COOLMARKET COMBI 296 DF WD DARK

BOLERO COOLMARKET COMBI 296 OF WD INOX

Line drawing of a two-tier refrigerator with lid and frontrest (no text or symbols)

Fig./Img./Abb./Afb./Rys/Orb 17

Technical line drawing of a mechanical device with labeled components (no text or symbols)

Technical diagram of a mechanical device with labeled components and numbered parts

Technical diagram of a mechanical device with labeled parts and directional arrow

4 6 4

Fig./Img./Abb./Afb./Rys/Orb 12

BOLERO COOLMARKET COMBI 296 DF WHITE BOLERO COOLMARKET COMBI 296 DF INOX BOLERO COOLMARKET COMBI 296 DF DARK BOLERO COOLMARKET COMBI 296 DF WD DARK BOLERO COOLMARKET COMBI 296 DF WD INOX

BOLERO COOLMARKET COMBI 296 DF WHITE BOLERO COOLMARKET COMBI 296 DF INOX BOLERO COOLMARKET COMBI 296 DF DARK BOLERO COOLMARKET COMBI 296 DF WD DARK BOLERO COOLMARKET COMBI 296 DF WD INOX

239238

www.cecotec.es
