Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

- This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

- Do not store explosive substances such as aerosol cans with flammable propellant in this appliance.

- This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.

- To avoid food contamination, please follow the instructions below:

A. The door openings for a long period of time may cause a significant increase in temperature in the appliance's compartments.

B. Clean regularly the surfaces that might be in contact with food and accessible evacuation systems.

C. Store raw meat and fish in appropriate containers so as to prevent them from touching or dripping on each other.

D. The two-star compartments are suitable for storing pre-frozen food, storing, or making ice cream, and making ice cubes.

E. Compartments with one, two, or three stars are not suitable for freezing fresh food.

F. If the refrigerator appliance remains empty for a long period

of time, unplug it, defrost it, clean it, dry it, and leave the door open to prevent interior mould formation.

• WARNING: when positioning the appliance, make sure that the power cable does not get trapped or damaged.
• WARNING: do not place multiple mobile sockets or mobile power supplies on the rear of the appliance.
• WARNING: keep the appliance ventilation grilles or the cabinet for built-in installation free from any obstruction.
• WARNING: do not use mechanical devices or similar to accelerate the defrosting process other than those recommended by the manufacturer.
• WARNING: do not use electrical devices inside the food-preservation compartment unless they're of a type recommended by the manufacturer.
• WARNING: do not damage the refrigeration circuit.
• Inspect the power cable regularly for visible damage. If the cable is damaged, it must be replaced by the manufacturer, the supplier, or qualified personnel to avoid hazards.
• WARNING! It is dangerous for anyone other than authorised personnel to carry out maintenance or repairs involving the removal of covers. To prevent the electric shock risk do not attempt to repair the appliance yourself.
• Do not place carbonated beverages in the compartment when it is in freezer mode. Ice cream can cause frostbites.
• Do not remove items from the compartment with wet hands to avoid skin abrasions or frostbites.. Bottles and cans should not be placed in the compartment, as they may burst when their contents freeze.
• See the storage times recommended by the manufacturer.
• Do not allow children to play with the controls or the refrigerator. The refrigerator is a heavy household appliance. Caution must be taken when moving the appliance. It is

dangerous to alter specifications or attempt to modify this appliance in any way.

• This refrigeration appliance is not suitable for built-in installation.
• WARNING: if doors or lids are fitted with locks and keys, they must be kept out of reach of children and not in the vicinity of the refrigerating appliance, to prevent children from being locked inside.
• WARNING: the refrigerant used in your appliance and the insulation materials must be disposed of correctly.
• WARNING: when positioning the appliance, make sure that the power cable does not get trapped or damaged.
• WARNING: do not place power strips or multiple power supplies on the back of the appliance.
• Do not allow children from 3 to 8 years of age to load and unload refrigeration appliances.

Temperature range

The appliance temperature range information can be found on its marking. It indicates the optimum room temperature for proper operation of the appliance.

Climate range Optimum room temperature

SN From +10 °C to +32 °C

N From +16 °C to +32 °C

ST From +16 °C to +38 °C

T From +16 °C to +43 °C

Note

- Bearing in mind the limiting values of the room temperature range for the climates for which the cooling appliance is designed and that internal temperatures may be affected by factors such as the location of the cooling appliance, room temperature and frequency of door opening, it may be necessary to modify the setting of any temperature-control device according to these factors.

- If the appliance is operated in an environment other than the specified climate type (i.e. beyond the rated ambient temperature range), it may not be able to maintain the desired compartment temperatures.

Free of Freon

- This refrigerator uses freon-free refrigerant (R600a) and foaming insulation material (cyclopentane), which are environmentally friendly, do not cause damage to the ozone layer, and have a very low impact on global warming. R600a is flammable and does not leak during normal use when sealed in a refrigeration system. In the event of refrigerant leakage due to damage to the refrigerant circuit, be sure to keep the appliance away from open flames and open the windows to ventilate as soon as possible.

- This symbol means: Warning: Risk of fire/flammable materials.

INSTRUCTIONS DE SÉCURITÉ

The graphics in this manual are schematic representations and may not exactly match the device.

To make the most out of the appliance in terms of energy efficiency, place the shelf and drip tray in their original position, that is, as shown in Figure 1.

2. BEFORE USE

- This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the appliance when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.

- Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Refrigerator
• Instruction manual

3. INSTALLATION

Location

1. Ventilation

The location you choose to install the appliance must be well ventilated. Do not place the appliance near heat sources, like a hob, and avoid direct sunlight to ensure proper cooling and save energy. Do not place the appliance in a damp place to avoid rust or loss of power. The result of dividing the amount of cooling power of the appliance by the total space of the room in which it is installed must be less than 8 g/m^3 .

Note: the amount of refrigerant used by the appliance is specified on the rating plate.

2. Heat dissipation space

During operation, the appliance gives off heat. Therefore, you should leave at least 30 mm of free space at the top, more than 100 mm on both sides, and more than 50 mm at the rear of the appliance. Fig. 2

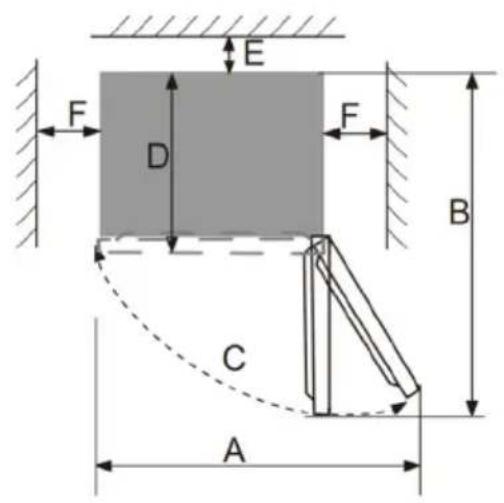

W (mm)	D (mm)	H (mm)	A (mm)	B (mm)	C(°)	E (mm)	F (mm)
474 447 4	96 800 875	130 ± 5	50 100

Note: figure 2 only shows the space required for the appliance.

3. Flat surface

- Place the appliance on a solid, flat floor to keep it stable, otherwise vibrations and noises will occur. When the appliance is placed on a carpet, straw mat, or polyvinyl chloride, solid support plates should be placed underneath the refrigerator to avoid colour change due to heat dissipation.

- The place where the appliance is installed must be well ventilated.

4. Levelling

• Make sure that the appliance is level with the front feet. If it is not level, performance will be affected.
• After installing the appliance, wait four hours before using it to allow the refrigerant to stabilise.

Preparation

1. Waiting time

Once the appliance is properly installed and cleaned, do not switch it on immediately. Wait at least one hour before starting it up.

2. Cleaning

Check that all accessories are securely in place and wipe the inside with a soft cloth.

3. Connecting the appliance to the mains

Connect the plug into a power socket to switch on the compressor. After 1 hour of operation, open the door. If you notice that the temperature inside the appliance is much colder than the room temperature, it means that the refrigeration system is working normally.

ENGLISH

4. Food storage

- When the appliance has been in operation for a considerable period of time, you can adjust the internal temperature. Once the appliance has cooled down completely, put the food in. It will take 2 to 3 hours for the food to cool down. In summer, when the temperature is high, it may take more than 4 hours for food to cool down completely (try to open the door as rarely as possible).

- If the appliance is installed in a wet place, be sure to check if the earth wire and

the leakage circuit breaker are working normally. If vibration noises occur due to contact of the appliance with the wall or if the wall turns black due to air convection around the compressor, keep the appliance further away from the wall. This appliance may cause interference in mobile phones, landline phones, radio receivers, or televisions near the refrigerator, so in this case, keep the appliance as far away from these objects as possible.

Instructions for reversing the door

1. Make sure the appliance is unplugged.
2. Remove the hinge cover and hinge, located on the top right side of the appliance. Remove the screw hole cover on the top left side of the appliance.

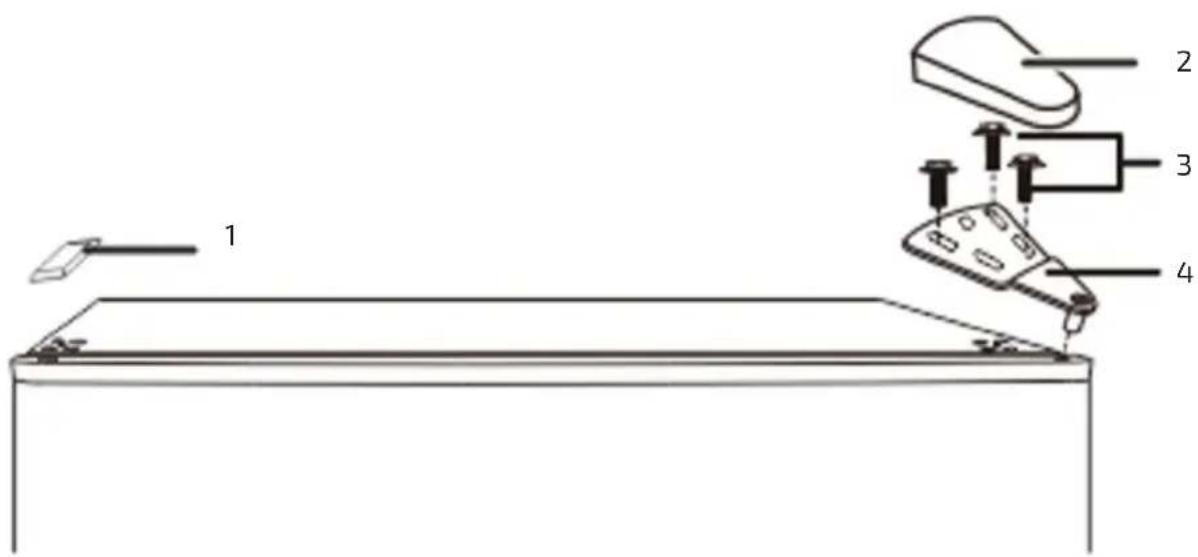

Fig. 3 key:

1. Screw-hole cover
2. Hinge cover
3. Screws

4. Top hinge

5. Remove the door.

6. Remove the screws securing the bottom hinge on the right side of the appliance, then remove the hinge. Remove the left foot.

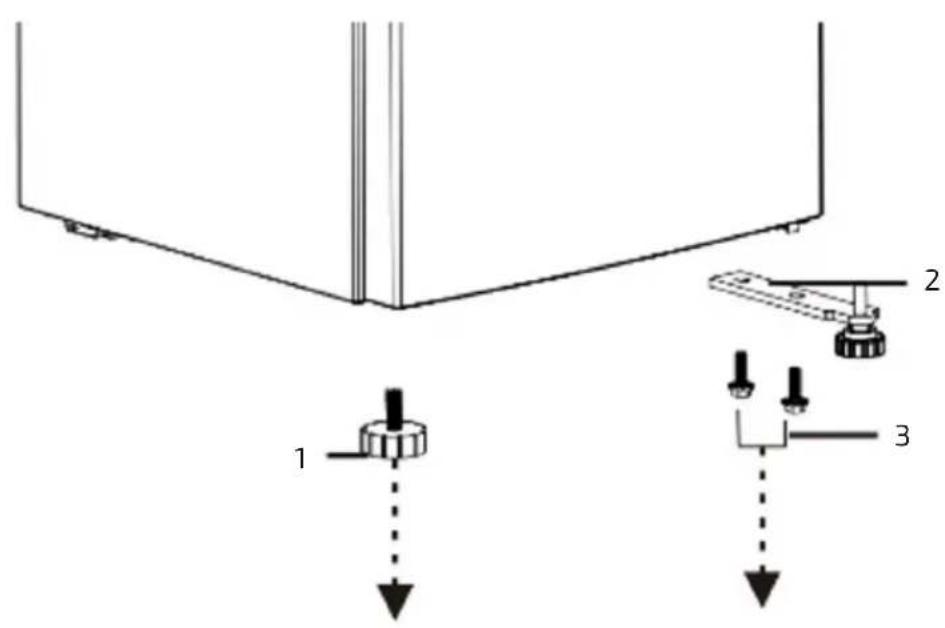

Fig. 4 key:

1. Adjustable foot
2. Bottom hinge

3. Screws

4. Remove the bottom hinge shaft foot, then remove the washer and nut.

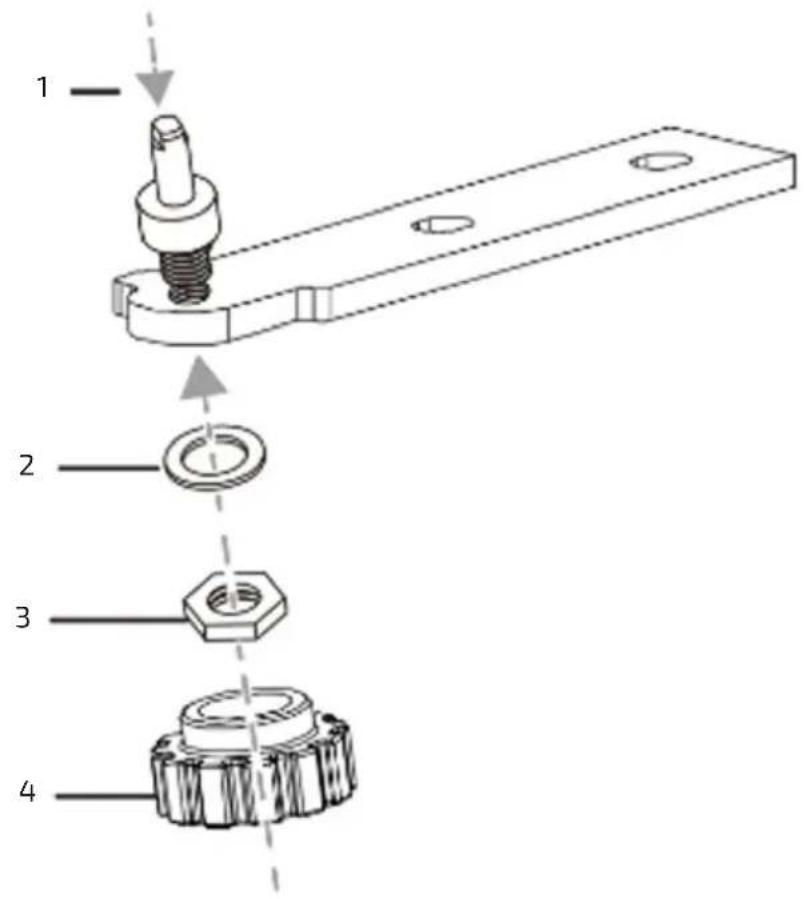

Fig. 5 key:

1. Pin shaft
2. Washer
3. Nut

4. Adjustable foot

5. Rotate the bottom hinge 180^ .

6. Fit the washer and nut into the hole in the pin shaft, then fit the foot.

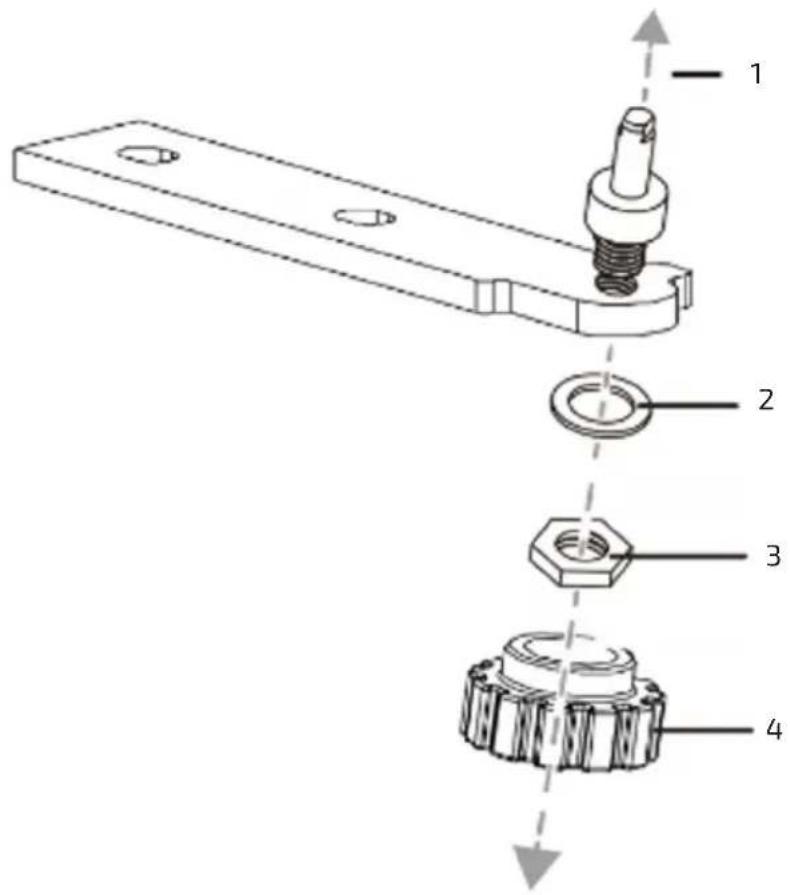

Fig. 7 key:

1. Pin shaft
2. Washer
3. Nut

4. Foot

5. Install the bottom hinge on the left side of the refrigerator. Place the foot on the right side.

Fig. 8 key:

1. Bottom hinge
2. Screws

3. Foot

4. Remove the screw that holds the door stop on the bottom right side of the door, then remove the door stop from the door. After that, install them in the bottom left side.

Fig. 9 key:

1. Door

2. Door stop

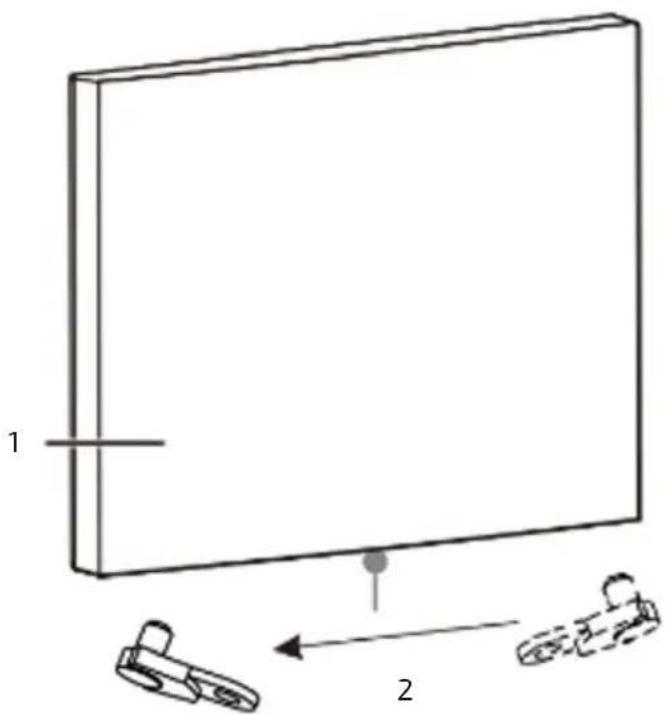

3. Place the door.

4. Move the door bushing from the top right side to the top left side. Next, move the left hole cover to the right side.

Fig. 10 key:

1. Door bushing

2. Screw-hole cover

3. Attach the top hinge to the top left side of the appliance with the screws removed before. Before tightening the top hinge screws, make sure that the top of the door is level with the refrigerator and that the rubber gasket makes a good seal.

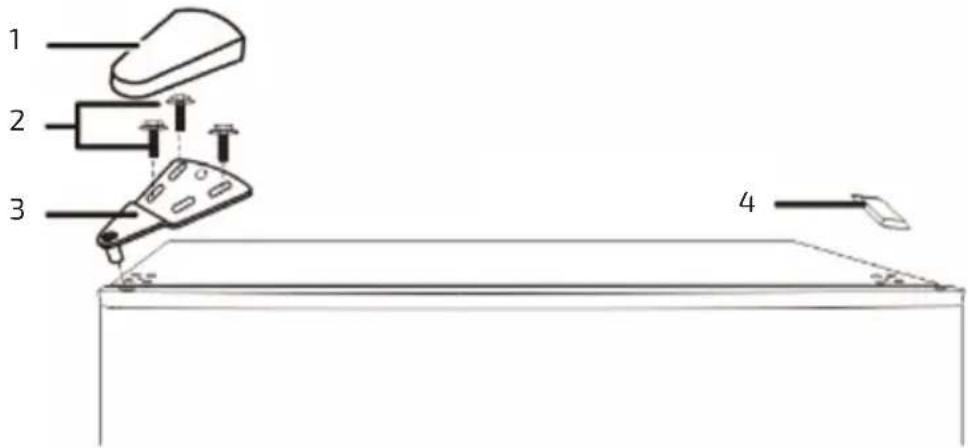

Fig. 11 key:

1. Hinge cover
2. Screws
3. Top hinge
4. Screw-hole cover

ENGLISH

4. OPERATION

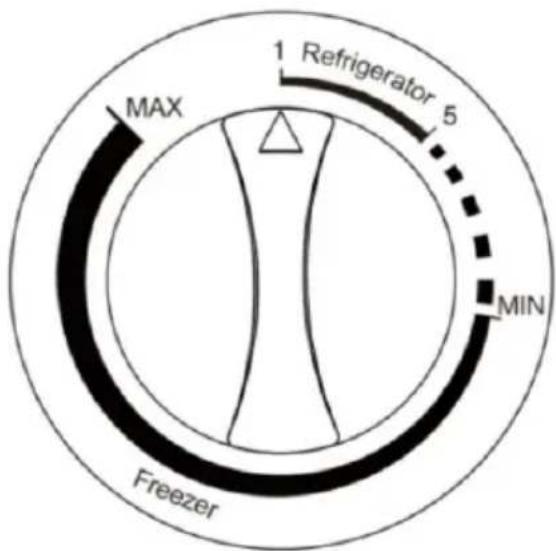

Temperature settings. Fig. 12

• The appliance temperature can be adjusted by turning the temperature knob. The temperature knob can be adjusted between levels 1 and 5. The temperature will decrease the higher the number selected.
• The temperature range of the freezer mode is from -15 °C to -24 °C.
• The temperature range of the refrigerator mode is from 0 °C to 10 °C.
• The temperature inside the appliance may vary depending on the room temperature, the number of products stored and how often the door is opened.

5. INSTRUCTIONS ON FOOD STORAGE

Use precautions

• If you select a high temperature for the freezer, the food may defrost.
• Information on the temperature range can be found on the rating plate.
• Temperature may be affected by factors such as location, room temperature and how often the door is opened.
• Do not put carbonated drinks in the freezer.

Food location

• Do not put too much or too heavy food in the appliance.
• Leave enough space between the food; if they are too close together, they will block the flow of cold air, which will affect the cooling effect.
• When storing food, do not stick it to any wall to prevent it from freezing.

Freezer mode

• Storage of food over a long period of time: The freezer mode, whose temperature will normally be below -18 °C, is suitable for storing food over a long period of time. However, bear in mind that you must respect the expiry date indicated on the food packaging.
• Let hot food cool down to room temperature before putting it in the freezer.
• Do not place liquids in glass or canned containers in the freezer; if you do, they may explode.
• Divide food into small portions.
• It is best to package food before freezing. Make sure that the container to be used is dry. Food should be packaged or covered with durable, non-toxic, non-polluting, tasteless, air-and water-tight materials to prevent cross-contamination and odour transfer.

Tips for buying frozen food

1. When buying frozen food, pay attention to the storage instructions on the package.

2. Check the temperature of the freezer of the shop where you buy them.

3. Make sure that the packaging of frozen food is in perfect condition.

4. Always buy frozen products last when shopping.
5. Try to keep frozen foods together while shopping and on the way home, as this will keep them fresher.
6. Do not buy frozen foods unless you can freeze them immediately. Special insulated bags are available in most supermarkets and department stores. In them, frozen food is kept cold for a longer period of time.
7. Some foods do not require defrosting before cooking. Vegetables and pasta can be added directly to boiling water or steamed. Frozen sauces and soups can be placed in a pan and heated gently until thawed.
8. Use quality foods and alter them as little as possible. When food is frozen in small quantities, it takes less time to freeze and thaw.
9. Calculate the amount of food to be frozen. When freezing large quantities of fresh food, set the temperature knob to a lower freezing temperature. This way food can be frozen quickly maintaining its freshness.

Using the ice cube tray

Place the ice cube tray in the top part of the freezer compartment so that it freezes as quickly as possible.

6. CLEANING AND MAINTENANCE

Before cleaning the appliance, disconnect it from the mains. Do not touch the plug with wet hands; doing so may result in electric shock. Avoid spilling water on the appliance, so that it does not rust or cause an accident. Do not reach into the bottom of the appliance, as this may cause damage.

Cleaning the interior and exterior

• Food residues in the appliance can cause unwanted odours, so it should be cleaned regularly, at least once a month.
• Remove the shelf and clean it with a soft cloth or sponge dampened with lukewarm water. You can also use a little neutral detergent.
• Clean the dust that accumulates on the rear panel and side plates of the appliance regularly.
• If you have used detergent, be sure to rinse it off with clean water. Next, dry it with a dry cloth.
• Do not use any abrasive materials or corrosive products to clean the appliance.
• Carefully dry the door gasket and clean the slot with a wooden stick wrapped with cotton. To rellt the gasket after cleaning, first xx the four corners and then push it into the slot a little at a time.

ENGLISH

• Power failure or cooling system fault
• If the appliance stops operating for a prolonged period of time, the food may defrost.
• Try to open the appliance door as little as possible, so that you can keep food in good condition for hours, even in summer.

• If you know that a power cut is going to occur in advance:

• Select the lowest temperature one hour in advance, so that the food is completely frozen/ cooled. Do not introduce new food. Adjust the temperature back to the original setting when power is restored.

• You can also make ice in an airtight container and place it on the top chamber of the appliance to extend the shelf life of fresh food.

Note: it is best not to interrupt the operation of the appliance; this could affect its lifespan.

Defrost

After some time, a thin layer of frost will form on the surface of the inner wall of the appliance (or on the evaporator), which may affect the performance if it is thicker than 5 mm. When this happens, gently scrape off the frost with an ice scraper. It is necessary to remove frost approximately every 3 months. Follow the steps below to remove the frost:

1. Remove the frozen food, disconnect the power supply, open the door, and gently remove the frost from the inside wall with an ice scraper. To speed up the defrosting process, we suggest that you place a container of hot water inside the appliance. When the frost comes off, use a scraper to remove it.

2. After defrosting, clean the inside of the appliance and switch on the power supply.

Safety check after maintenance

- Check that the power cable is not broken or damaged.

- Check that the plug is correctly inserted into the socket.

- Check that the plug does not overheat.

- Check that the power cable is not broken or damaged. - Check that the plug is correctly inserted into the socket. - Check that the plug does not overheat.

Note: if the power cord and plug are damaged or dusty, electric shock and fire may occur. If there is any malfunction, disconnect the power cable and contact the official Cecotec Technical Support Service.

Removing the shelf

Hold one end of the shelf and lift it up while pulling it out.

Interruption of use of the appliance for a long period of time

• If the appliance is not to be used for several months, first switch it off and disconnect the plug from the mains socket.
• Remove all the food.
• Clean and dry the interior completely. To prevent mould or unpleasant odours, leave the

door slightly open: lock it open or remove it if necessary.

• Store the appliance in a ventilated and dry place, away from heat sources; place the appliance carefully and do not place heavy objects on it.
• Keep the appliance out of the reach of children, so that they do not play with it.

Note: when using the refrigerator mode, empty the drip tray inside the appliance after a while. This will prevent overfilling and water overflow.

7. TROUBLESHOOTING

For the following minor malfunctions, please try to solve the problem yourself before contacting the official Cecotec Technical Support Service.

Problem Possible	causes Solutions
The appliance does not work	It is not plugged into the mains. Open the	door and check the light is on.
	Circuit breakers or fuses are damaged.	There has been a power cut.
	The appliance is not installed in a suitable location. It cannot be placed on balconies, garages, storage rooms or any other place where the room temperature is below 10 °C.	Install the appliance in a place with a room temperature above 10 °C.
Abnormal noise	The appliance is not stable. Adjust the adjustable feet.
	The appliance is in contact with the wall.	Move the appliance away from the wall.
Cooling is insufficient	You open the door too often or there is an object obstructing the door gasket.	Keep the door closed.
	The appliance receives direct sunlight or is close to a heat source.	Ventilate the room.
	The place where the appliance is placed is not well ventilated.	Remove the appliance from the heat source.
	The temperature setting is too high. Adjust the temperature.
There is accumulated water	The hole in the drain duct is blocked. Unlock the duct.

ENGLISH

The appliance gives off unpleasant odours	There is spoiled food inside. Dispose of	food which is spoiled.
	Clean the appliance. Clean the appliance.
	Food with a strong odour stored inside the refrigerator.	Pack the strong smelling foods.

Note: if none of these situations match your problem, do not attempt to disassemble, or repair the appliance yourself. All repairs must be carried out by qualified personnel. Contact the official Cecotec Technical Support Service. Repairs must be carried out

by an authorised technician and only original spare parts must be used.

When the appliance is not to be used for a long period of time, disconnect it from the mains, remove all food and clean it. Leave the door ajar to avoid unpleasant odours.

8. TECHNICAL SPECIFICATIONS

Reference 01973 01974 01975 01976
Model	Bolero CoolMarket TT 31 Dual White E	Bolero CoolMarket TT 31 Dual Black E	Bolero CoolMarket TT 31 Dual Grey Glass E	Bolero CoolMarket TT 31 Dual Black Glass E
QR code
Voltage 220 - 240 V
Rated frequency 50 Hz
Rated current 0.6 A
Climate class SN / N / ST / T
Capacity 31 l
Refrigerant	R600a (24 g)
Gas	Cyclopentane

(*) Refrigerating appliance intended for use at room temperatures between 10 °C and 43 °C. Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

9. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

10. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

11. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Image 1

7. PROBLEEMOPLOSSING

Technical diagram of a portable air conditioner unit with numbered components labeled 1 to 4

Fig./Img./Abb./Afb./Rys.1

W H

E F D F B C A

Fig./Img./Abb./Afb./Rys.2

1 2 3 4

Fig./Img./Abb./Afb./Rys. 3

1 2 3

Fig./Img./Abb./Afb./Rys. 4

Technical diagram of a mechanical assembly with numbered parts for identification

Fig./Img./Abb./Afb./Rys. 5

Diagram showing two identical mechanical components with circular holes and a black dot at the base, connected by an arrow (no text or symbols)

Fig./Img./Abb./Afb./Rys. 6

1 2 3 4

Fig./Img./Abb./Afb./Rys. 7

1 2 3

Fig./Img./Abb./Afb./Rys. 8

Simple line drawing of a rectangular panel with two labeled components (1 and 2), no text or symbols present.

Fig./Img./Abb./Afb./Rys. 9

1 2

Fig./Img./Abb./Afb./Rys. 10

1 2 3 4

Fig./Img./Abb./Afb./Rys. 11

MAX 1 Refrigerator 5 MIN Freezer

Fig./Img./Abb./Afb./Rys. 12

www.cecotec.es
