USER MANUAL Ferrari GT 2-in-1 Rumble Force THRUSTMASTER

2 in 1 Rumble Force Racing Wheel

For use with / Für / Pour

Playstation® 2

PC

Ferrari GT

2 in 1 Rumble Force Racing Wheel

For use with / Für / Pour

Playstation® 2

PC

User Manual

Diagram of a biological or anatomical structure with numbered parts and directional arrows, likely illustrating a biological or physiological system.

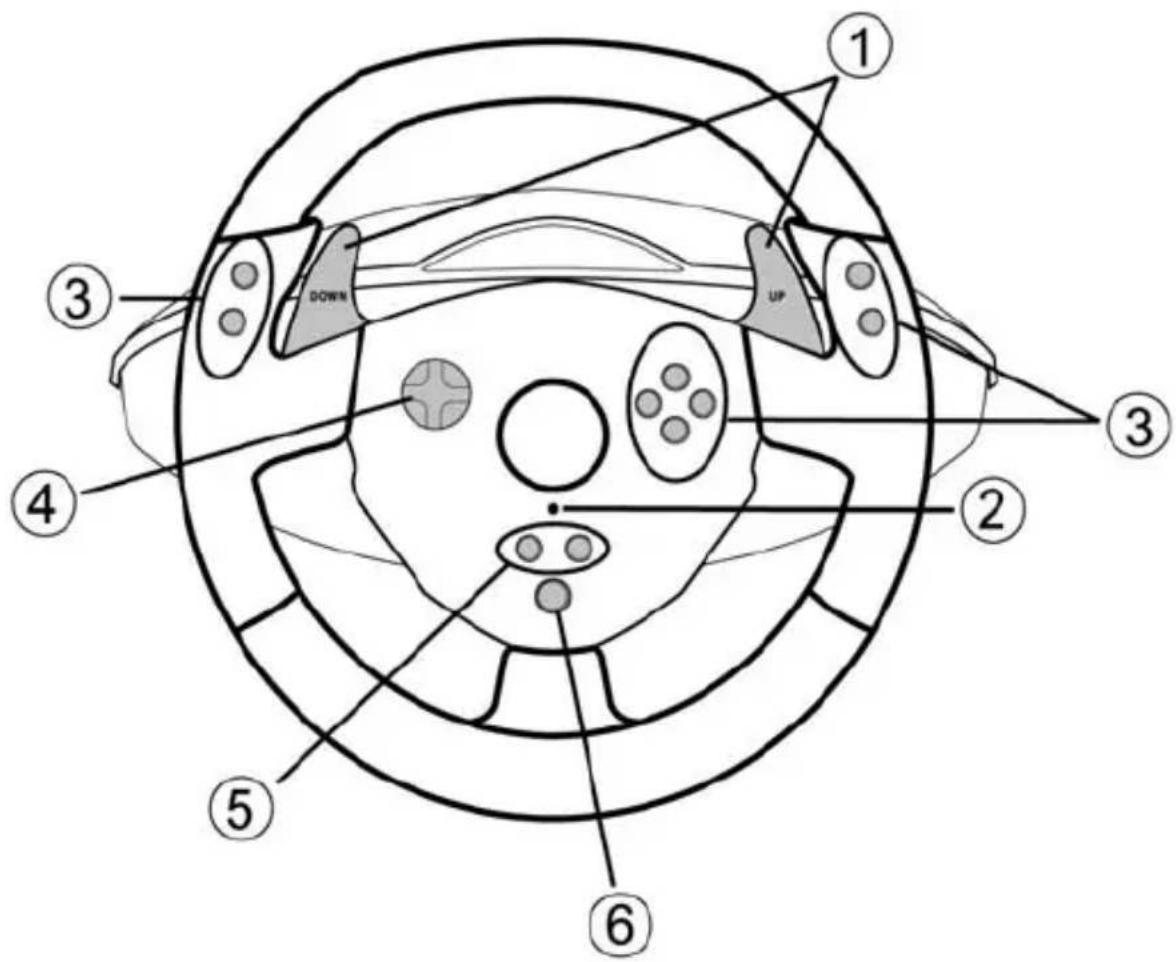

TECHNICAL FEATURES

1 2 digital gearshift levers
2 Mode led
3 Action buttons

4 D-pad
5 Select and Start buttons
6 Force button

Diagram of a medical device with numbered parts, likely for surgical or diagnostic purposes.

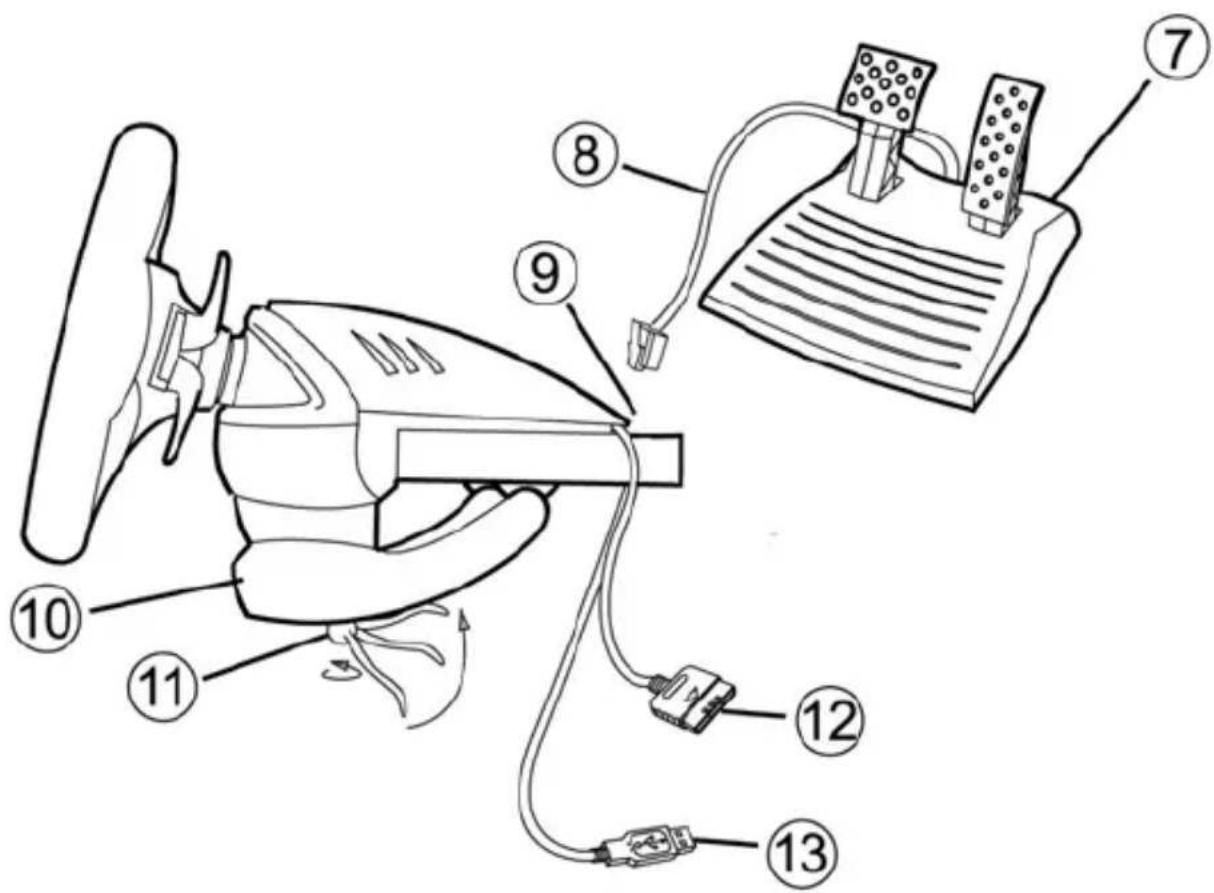

7 Analog pedal set
8 Pedal cable
9 Pedal connector
10 Table clamp

11 Clamp screw
12 GAMEPORT connector (for PlayStation2)
13 USB connector (for PC)

INSTALLING THE WHEEL

Fixing the wheel in place

1. Place the wheel on a table or other flat surface.
2. Place the clamp screw (11) in the table clamp (10) and then screw the clamping unit into the hole on the underside of the wheel until firmly fixed in place. Do not turn the screw too tightly, as you risk damaging the clamping unit and/or the table.

Connecting the pedal set

1. Connect the pedal connector (8) to the pedal receptor (9).

INSTALLATION FOR PC

System requirements: PC (Windows 98 SE, Me, 2000, XP) equipped with USB port.

The CD-ROM included with this product allows you to install the Vibrations Feedback drivers.

1. Insert the installation CD-ROM into your CD-ROM drive. Follow the on-screen instructions to install the Vibrations Feedback drivers. Once the installation is complete, click Finish and restart your computer.
2. Once your computer has restarted, connect the USB connector (10) to one of your computer's USB ports. Windows 98/Me/2000/XP will automatically detect the new device. (If you are connecting a USB device for the first time, Windows may ask you to insert the Windows CD-ROM during the installation procedure in order to install the required system files.)
3. Driver installation:

Windows 98: the Add New Hardware Wizard will search for the appropriate drivers. Click Next. Follow the on-screen instructions to complete the installation.

Windows Me/2000/XP : the drivers are installed automatically.

1. Select Start/All Programs/Thrustmaster/Force Feedback driver/Control Panel. The Game Controllers dialog box displays the gamepad's name with OK status.
2. In the Control Panel, click Properties to configure your gamepad:

- Test device: to test and visualize the buttons, D-pad and 3 axes (wheel, brake and gas pedals).

- Test forces: to test 8 Force effects and configure the Vibrations Feedback settings (2 possible settings: from 0 to 150 % : Forces Main and Static).

ADVANCED FUNCTIONS ON PC

Selecting "Separate" (3-axis) OR "Combined" (2-axis) acceleration/braking mode

By default, the wheel's acceleration/braking controls operate in "separate" 3-axis mode, i.e. with brake and gas pedals operating on independent axes.

3-axis support considerably improves driving precision in races.

If the 3-axis mode is not supported by your game, the wheel's gas pedals will not work properly. Please exit the game and select the "combined" 2-axis mode.

To activate this mode, press simultaneously the acceleration/braking controls (7) and the Force button (6).

To revert to the "separate" 3-axis mode, repeat the same procedure.

Note:

• When you select the "combined" (2-axis) mode, the led flashes red for a few seconds (Wheel = "X" axis, Accelerator and Brake = "RZ" axis).
• When you select the "separate" (3-axis) mode, the led flashes green for a few seconds (Wheel = X" axis, Accelerator = "RZ" axis and Brake = "Y" axis).

Configuring and setting "Vibrations Feedback" effects on PC

In contrast with other vibrating wheels that exist for PCs, your wheel will be recognized in games as a genuine "ForceFeedback" wheel.

You can thus enjoy all the possible force settings and effects (calibration, sensitivity, force intensity, etc.). However, the "Vibrations Feedback" effects cannot emulate recentering effects, if your game features this option, it is advisable to disable it.

Setting the control panel and options of your games will allow you to get the best from your wheel.

INSTALLATION FOR PLAYSTATION 2

CONNECTING THE WHEEL

1. Switch off your console before connecting the wheel.
2. Connect the console connector (12) to port 1 of your console.
3. Switch your console back on.
4. The led (2) is red to indicate that the Vibration mode is activated.

You are now ready to play!

ADVANCED FUNCTIONS ON PLAYSTATION 2

Configuring the wheel

On PlayStation 2, the wheel's acceleration/braking controls operate in "separate" 3-axis mode: Wheel = "Left Horizontal Joystick" axis, Accelerator = "Cross" and Brake "Square.

To change the configuration of the other buttons, go to the "gamepad control options" of your game.

Precision Drive mode

Precision Drive mode has been specially developed with a view to enhancing performance.

Depending on the game, it may help you to beat your best times (and those of your opponents) or make it easier to successfully complete the different driving events.

This new exclusive mode calculates and redistributes your wheel's various analogy points without generating any dead zones (as may be the case with other wheels which allow you to adjust their sensitivity).

How appropriate and effective this mode will be depends on the game you are playing and the course you are racing on. In this mode, the wheel is more sensitive and will allow you to powerslide more easily and thus avoid an excessive loss of speed, in courses with hairpin turns for example.

In games where the wheel's reactions are very sensitive (such as F1 racing, for example), you will therefore probably want to avoid using this mode.

We recommend that you use this mode with an interior view for maximum effectiveness.

To go into Precision Drive mode, simultaneously press the 2 gearshift levers (1) and the D-pad (4). Proceed in the same way to return to normal driving mode.

Note:

• When the Precision Drive mode is enabled, the led flashes continuously.
• When the Precision Drive mode is disabled, the led does not flash.

ADVANCED FUNCTIONS ON PC AND PLAYSTATION 2

Enabling/disabling the Vibrations Feedback effects directly on the wheel

To disable or re-enable the Vibrations Feedback effects, press the Force button (6).

This operation can be carried out while playing the game.

Note:

• When Vibrations Feedback effects are enabled, the led is Red.
• When Vibrations Feedback effects are disabled, the led is Green.

"Sequential gearbox mapping" function

The "Sequential gearbox mapping" function allows you to assign gear shifting directly to the 2 digital gearshift levers (1) in 100% of games.

Follow the same steps to return to "normal" mode.

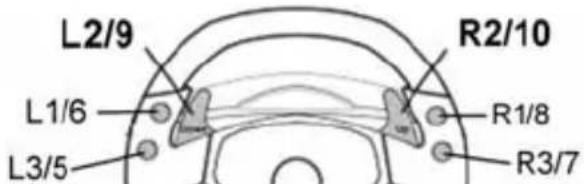

L2/9 R2/10 L1/6 R1/8 L3/5 R3/7

Default Sequential Gearbox

Note:

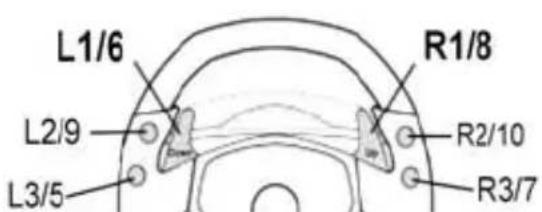

• To enable Mapping 1, simultaneously press L1/6, R1/8 and the 2 levers.

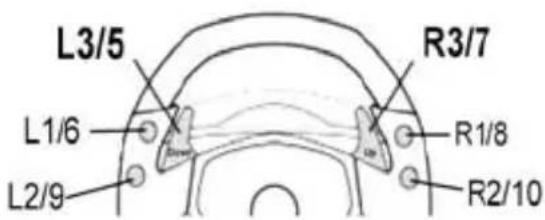

• To enable Mapping 2, simultaneously press L3/5, R3/7 and the 2 levers.

L1/6 R1/8 L2/9 R2/10 L3/5 R3/7

Mapping 1 Mapping 2

L3/5 R3/7 L1/6 R1/8 L2/9 R2/10

Note:

• When you select « Mapping 1 or 2 », the led flashes red for a few seconds.
• When you revert to the Default Sequential Gearbox, the led flashes green for a few seconds.

TROUBLESHOOTING

• My wheel doesn't work correctly or appears to be incorrectly calibrated. Switch off your PC or your console, then disconnect your wheel, reconnect all the cables (with pedals), switch back on and restart the game.
• My wheel moves by itself during the game. This is normal and is the recentering function featuring in some games. To stop these movements, just place your hands on the wheel or reduce the ForceFeedback intensity.
• My wheel stays turned to one side (left or right) after auto-calibration. This is normal in some games. The wheel will recenter itself once you have identified it as a wheel in the game's setup options.
• On PC, my wheel is detected by my computer but doesn't work in the game. Access your game's options to configure your wheel. Please refer to your game's manual for further information.
• On PC, my pedal set does not work correctly. Display your game's option management interface to reconfigure the wheel. If the problem persists, exit the game and switch the pedal set to the "combined" (2-axis) mode. Then return to the game to reconfigure the wheel with the new axes.

SAFETY RECOMMENDATIONS AND INFORMATION

- When connecting the wheel on PC or PLAYSTATION: to prevent any incorrect calibration, never turn the wheel, press the pedals or buttons.

TECHNICAL SUPPORT

If you encounter a problem with your product, please go to http://ts.thrustmaster.com and click Technical Support. From there you will be able to access various utilities (Frequently Asked Questions (FAQ), the latest versions of drivers and software) that may help to resolve your problem. If the problem persists, you can contact the Thrustmaster products technical support service ("Technical Support"):

By email:

In order to take advantage of technical support by email, you must first register online. The information you provide will help the agents to resolve your problem more quickly. Click Registration on the left-hand side of the Technical Support page and follow the on-screen instructions. If you have already registered, fill in the Username and Password fields and then click Login.

By telephone:

United Kingdom	020 7216 0047	price of a national phone call, Monday to Friday, from 12PM to 10PM
United States / Canada	514-279-9911	price of a long distance phone call, Monday to Friday, from 7AM to 5PM (Eastern time)
Australia	1902 262 514	$1.98/min, Monday to Friday from 9AM to 6PM
Denmark	82 33 28 58	price of a national phone call, Monday to Friday from 1PM to 10PM
Finland	09 81 71 01 54	price of a national phone call, Monday to Friday from 2PM to 11PM
Norway	23 50 01 16	price of a national phone call, Monday to Friday from 1PM to 10PM
Sweden	08-51992032	price of a national phone call, Monday to Friday from 1PM to 11PM

WARRANTY INFORMATION

Worldwide, Guillemot Corporation S.A. ("Guillemot") warrants to the consumer that this Thrustmaster product will be free from material defects and manufacturing flaws for a period of two (2) years from the original date of purchase. Should the product appear to be defective during the warranty period, immediately contact Technical Support, who will indicate the procedure to follow. If the defect is confirmed, the product must be returned to its place of purchase (or any other location indicated by Technical Support).

Within the context of this warranty, the consumer's defective product will, at Technical Support's option, be either repaired or replaced. Where authorized by applicable law, the full liability of Guillemot and its subsidiaries (including for indirect damages) is limited to the repair or replacement of the Thrustmaster product. The consumer's legal rights with respect to legislation applicable to the sale of consumer goods are not affected by this warranty.

This warranty shall not apply: (1) if the product has been modified, opened, altered, or has suffered damage as a result of inappropriate or abusive use, negligence, an accident, normal wear, or any other cause not related to a material defect or manufacturing flaw; (2) in the event of failure to comply with the instructions provided by Technical Support; (3) to software not published by Guillemot, said software being subject to a specific warranty provided by its publisher.

Additional warranty provisions

In the United States of America and in Canada, this warranty is limited to the product's internal mechanism and external housing. Any applicable implied warranties, including warranties of merchantability and fitness for a particular purpose, are hereby limited to two (2) years from the date of purchase and are subject to the conditions set forth in this limited warranty. In no event shall Guillemot Corporation S.A. or its affiliates be liable for consequential or incidental damage resulting from the breach of any express or implied warranties. Some States/Provinces do not allow limitation on how long an implied warranty lasts or exclusion or limitation of incidental/consequential damages, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other legal rights which vary from State to State or Province to Province.

COPYRIGHT

© 2005 Guillemot Corporation S.A. All rights reserved. Thrustmaster® is a registered trademark of Guillemot Corporation S.A. Microsoft® Windows® is a registered trademark of Microsoft Corporation in the United States and/or other countries. PlayStation® is a registered trademark of Sony Computer Entertainment Inc. All other trademarks and brand names are hereby acknowledged and are property of their respective owners. Illustrations not binding. Contents, designs and specifications are subject to change without notice and may vary from one country to another.

ENVIRONMENTAL PROTECTION RECOMMENDATION

At the end of its working life e, this product should not be disposed of with standard household waste, but rather dropped off at a collection point for the disposal of Waste Electrical and Electronic Equipment (WEEE) for recycling.

Symbol of a trash bin crossed with no text or labels

This is confirmed by the symbol found on the product, user manual or packaging.

Depending on their characteristics, the materials may be recycled. Through recycling and other forms of processing Waste Electrical and Electronic Equipment, you can make a significant contribution towards helping to protect the environment.

Please contact your local authorities for information on the collection point nearest you.

FAQs, tips and drivers available at www.thrustmaster.com

Ferrari GT 2 in 1 Rumble Force Racing wheel For use with / Für / Pour → Playstation® 2 PC

Diagram of a medical device with numbered parts, likely for surgical or diagnostic purposes.

Diagram of a biological or anatomical structure with numbered parts, likely illustrating a biological or physiological system.

TECHNISCHE FEATURES

1 2 digitale Schalthebel
2 Modus-LED
3 Action Buttons

Diagram of a medical device with numbered parts, likely for surgical or diagnostic purposes.

7 Analoges Pedalset

8 Pedalkabel

9 Pedalanschluss

10 Halteklemme

Diagram of a biological or anatomical structure with numbered parts, likely illustrating a biological or physiological system.

Diagram of a medical device with numbered parts, likely for surgical or diagnostic purposes.

Diagram of a medical device with numbered parts, likely for surgical or diagnostic purposes.

7 Pedaliera analogica

Line drawing of a computer interface with two cables and a connector (no text or symbols)

Diagram of a biological or anatomical structure with numbered parts and directional arrows, likely illustrating a biological or physiological system.

CARACTERÍSTICAS TÉCNICAS

Diagram of a medical device with numbered parts, likely for surgical or diagnostic purposes.

Line drawing of a device with two cables and a connector (no text or symbols)

FUNCIONES AVANZADAS EN PLAYSTATION 2

FAQs, tips and drivers available at www.thrustmaster.com

Ferrari GT 2 in 1 Rumble Force Racing wheel For use with / Für / Pour → Playstation® 2 PC

Guia do Utilizador

① ② ③ ④ ⑤ ⑥ DOWN UP

CARACTERÍSTICAS TÉCNICAS

Diagram of a medical device with numbered parts, likely for surgical or diagnostic purposes.

7 Conjunto de pedais analógicos
8 Cabo dos pedais
9 Conector dos pedais
10 Grampo de fixação à mesa

11 Parafuso do grampo
12 Conector GAMEPORT (para PlayStation2)
13 Conector USB (para PC)

INSTALAR O VOLANTE

Fixar o volante
