Product type	Electric fan heater
Brand and model	Fuxtec FX-EH3
Dimensions (L × H × D)	35.0 × 33.0 × 23.5 cm
Net weight	6 kg
Power supply	220-240 V ~, 50 Hz
Heating power	3000 W (max) with two levels: 1500 W and 3000 W
Airflow	284 m³/h
Maximum temperature	150 °C
Sound pressure level	70 dB(A)
Protection rating	IP24 (protected against water splashes)
Overheat protection	Yes, with automatic reset at 85 °C
Adjustable thermostat	Yes, mechanical rotary knob
Operating modes	Fan only, heat level 1, heat level 2
Recommended heating area	Up to 90 m²
Cable length	1.3 m with Type F plug
Housing material	Metal and plastic
Color	Gray, orange, black
Cleaning and maintenance	Unplug and allow to cool before cleaning. Use a slightly damp soft sponge. Do not immerse or spray liquid.
Spare parts and repairability	Use only original parts. Contact FUXTEC after-sales service for any repairs.
Warranty	Statutory warranty from the date of purchase. Does not cover normal wear and tear or damage due to improper use.

Frequently Asked Questions - FX-EH3 Fuxtec

How to turn on and adjust the FX-EH3 fan heater?

Plug the device into a power outlet. Use the left rotary knob to select the mode: 0 (off), fan only (without heating), level 1 (1500 W) or level 2 (3000 W). The right rotary knob allows you to adjust the thermostat: turn it towards the maximum heat symbol for fast heating, then reduce when the desired temperature is reached.

What safety distance should be maintained around the device?

Maintain a minimum distance of 1 meter at the front and sides, and at least 50 cm at the back. Never place the device directly under a power outlet and keep it away from flammable materials such as curtains, furniture, or papers.

What to do if the device emits a smell or smoke during first use?

This is normal. The stainless steel heating element is coated with a protective oil that evaporates when heated. This light smoke disappears after a few minutes. Make sure the room is well ventilated.

How to clean and maintain the fan heater?

Unplug the device and let it cool down completely. Clean the housing with a slightly damp soft sponge and mild detergent if necessary. Never spray liquid directly on the device and do not immerse it. Wipe with a dry cloth. Also clean the power cord.

Can the fan heater be used in a bathroom?

No. The device is not suitable for humid rooms like bathrooms, showers, or swimming pools. Its IP24 protection rating protects against water splashes, but it should not be exposed to constant humidity. Use it only in dry, well-insulated rooms.

How does the overheat protection work?

The device is equipped with a thermal safety device that automatically cuts off the heating if the internal temperature exceeds 85 °C. Once cooled, it resets automatically. If overheating persists, check that the air inlets/outlets are not blocked.

Can I use an extension cord with the FX-EH3?

Yes, but it must be as short as possible, fully unrolled, and suitable for the power (at least 3000 W). Do not plug other devices into the same outlet. Preferably use a direct outlet.

What to do if the device no longer heats but the fan is running?

Check that the thermostat is not set too low. Turn the right knob to maximum. If the problem persists, the thermal protection may have tripped: turn off the device, unplug it, and let it cool for 10-15 minutes before restarting. If the fault continues, contact after-sales service.

Where can I find spare parts for the FX-EH3?

Use only original FUXTEC parts. Visit the website www.FUXTEC.com or contact customer service at 070329560888 (Germany). For repairs, contact a certified professional.

How to store the device outside the heating season?

Let it cool down completely, unplug it, and clean it. Store it in a dry, well-ventilated place, preferably covered with a plastic bag to protect it from dust. Keep it in its original box if possible.

USER MANUAL FX-EH3 Fuxtec

Line drawing of a futuristic camera with a fox head design on the front panel (no text or symbols)

Orange icon of a person reading a book on black background (no text or symbols)

Deutsch....8

English Version....17

1. Introduction and security ....17

2. Note on safe use .... 18

3. Symbols displayed on the product....19

4. Scope of delivery....19

5. Operation....20

6. Cleaning and maintenance ....22

7. Maintenance....22

8. Accessories and spare parts....22

9. General description....22

10. Technical data....22

11. European Product Registry for Energy Labelling....23

12. Guarantee....25

13. Disposal....25

14. Customer service....26

15. Copyright protection ....26

Labeled diagram of a portable air conditioner unit with numbered parts for identification

Read these original operating instructions carefully before using the product for the first time and follow all instructions. Keep the document in a safe place for future reference or for subsequent owners. Familiarise yourself with the functions and proper use of the product. Observe all safety instructions listed in the service manual. Always act responsibly and considerably towards third parties. The operator is responsible for accidents or hazards to third parties.

Intended use

The product may only be used in accordance with its intended purpose. Any other use is considered improper use. The user or operator is solely liable for any resulting damage or injury of any kind; the manufacturer accepts no responsibility for this. Please note that the product is not designed for commercial, trade or industrial use. A guarantee or liability is excluded if the product is used in such areas of application or comparable activities

Do not allow anyone who has not fully read and understood these instructions to install, commission, adjust or operate the product. This product is intended exclusively for well-insulated rooms or for non-permanent use.

Safety instructions

Read all safety instructions, operating instructions, illustrations and technical information supplied with the product. Failure to follow these instructions may result in serious injury or damage. The operator is obliged to use the product as intended, to pay attention to the surroundings and to take special care

of other persons, especially children. Always adhere to the specified safety guidelines.

17. NOTE ON SAFE USE

• Read all instructions carefully before using the appliance for the first time.
• Do not place the appliance directly under a power socket.
• Caution: To avoid overheating, the appliance must not be covered.
• Do not use the appliance near bathtubs, showers or swimming pools.
• Do not use the appliance if it has been dropped.
• Do not use the appliance if it is visibly damaged.
• Only set up the appliance on a stable and level surface.
• Caution: Do not use the appliance in small rooms where there are people who cannot leave the room on their own, unless constant supervision is guaranteed.
• Warning: To avoid the risk of fire, keep textiles, curtains and other flammable materials at least 1 metre away from the air outlet.
• If the mains cable is damaged, it may only be replaced by the manufacturer, an authorised customer service agent or a similarly qualified specialist.
• This appliance can be used by persons aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children must not play with the appliance.
• Cleaning and maintenance must not be carried out by unsupervised children.
• Children under the age of 3 must be kept away from the appliance unless they are supervised at all times. Children between the ages of 3 and 8 may only switch the appliance on and off if it has been installed in the intended operating position and they have been supervised or instructed accordingly. They are not permitted to connect, regulate, clean or carry out maintenance work.
• Caution: Individual components can become very hot during operation and cause burns. Pay particular attention to children and vulnerable persons.
• Only connect the appliance to a single-phase socket outlet with the voltage specified on the rating plate.
• Do not leave the appliance unattended during operation. Always switch it off (OFF/0) and disconnect it from the power supply when it is not in use.
• Keep a minimum distance of 100 cm between the appliance and flammable materials such as furniture, cushions, curtains, paper or clothing.
• Disconnect the mains plug when the appliance is not in use. Do not pull on the cable.
• Keep the air inlet and outlet clear. A distance of at least 1 metre must be maintained in front of the appliance and at least 50 cm behind the appliance.
• Do not allow children or animals to touch or play with the appliance. The air outlet can become very hot during operation (over 160 °C / 320 °F).
• Do not use the appliance in rooms with explosive gases or in the presence of flammable solvents, paints or adhesives.
• Keep the appliance clean and do not allow any objects to enter the ventilation openings, as

this can lead to electric shock, fire hazard or damage.

18. SYMBOLS DISPLAYED ON THE PRODUCT

Symbols are used in this manual to draw your attention to possible dangers. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves do not eliminate any danger and cannot replace suitable accident prevention measures.

Read these operating instructions carefully before using the product and keep them in a safe place for later use.

Do not cover the appliance!

CE mark

The product complies with the requirements and regulations of the European Community.

19. SCOPE OF DELIVERY

Please check that the item is complete in accordance with the scope of delivery described. If parts are defective, please contact our FUXTEC customer service The fan heater is supplied complete with mains cable and plug.

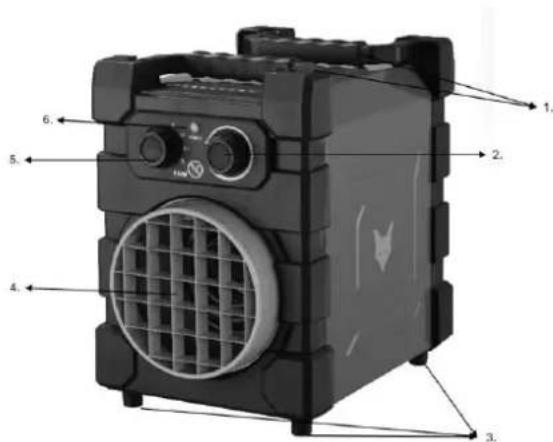

Labeled diagram of a portable air heater with numbered parts for identification

1. carrying handles
2. right rotary knob (thermostat control)
3. feet
4. ventilation grille
5. left rotary knob (heat output)

6. lamp

• Open the packaging and carefully remove the device from the packaging.
• Check that the delivery is complete.
• Check the appliance for transport damage.
• If possible, keep the packaging until the end of the warranty period.

20. OPERATION

Introduction

The fan heater is intended exclusively for use in households, garages, private halls or home workshops. The device has a thermostat for monitoring and controlling the ambient temperature and a self-resetting overheating protection. The thermostat continuously measures the room air temperature and controls the heat output accordingly. When the preset temperature is reached, the thermostat switches off the heating element, which also automatically stops the fan motor. In the event of overheating, the thermal safety device interrupts operation of the appliance and restores it automatically as soon as a safe temperature is reached.

When you operate the fan heater for the first time, a slight amount of smoke may be emitted. This is normal and will disappear after a short time. The heating element is made of stainless steel and has been coated with a protective oil at the factory. When heated, this oil vaporises and causes the brief development of smoke.

Description of the system control (switch mode)

The fan heater has a clear user interface with the following controls:

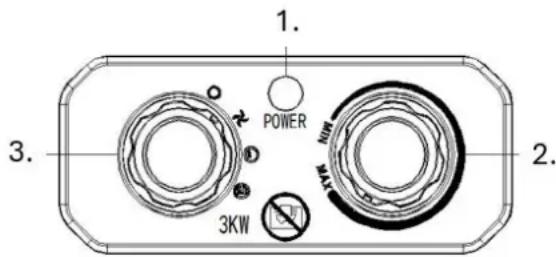

FX-EH3-3KW

• 1. Operating indicator light: There is a control light on the top of the device that indicates whether the fan heater is in operation.
• 1. Right rotary knob (thermostat control): Allows you to continuously adjust the desired room temperature. The thermostat automatically adjusts the heating output to maintain the set temperature.
• 1. Left rotary knob: Used to select the desired heating output. Depending on the setting, different operating modes can be selected, for example fan operation without heating, heating mode 1 (low output) or heating mode 2 (full output).

1. POWER 3KW MAX 2.

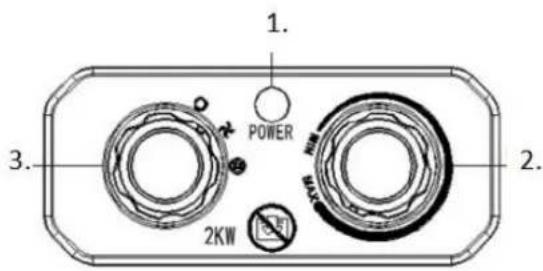

FX-EH2-2KW

- 1. Operating indicator light: There is an indicator light on the top of the unit that shows whether the fan heater is in operation.

- 2. Right rotary knob (thermostat control): Allows you to continuously adjust the desired room temperature. The thermostat automatically adjusts the heating output to maintain the set temperature.

- 3. Left rotary knob: Used to select the desired operating mode. Depending on the setting, you can choose between fan operation without heating and fan operation with heating.

1. POWER 2KW 3. 2.

Safety instructions for operation

- The fan heater is not suitable for use outdoors in damp weather, in bathrooms or in other wet or humid environments.

- Please note that the appliance can become very hot during operation. Always place it at a sufficient distance from flammable materials such as furniture, curtains or similar objects.

• Caution: Do not cover the appliance - risk of overheating!

• The appliance must not be operated directly under a socket outlet.

- Do not connect the fan heater to timers or other control devices that could switch it on or off automatically if left unattended.

• Do not operate the fan heater in rooms where flammable liquids or gases are stored or used.

• If an extension cable is used, it should be as short as possible and completely unwound.

• Do not connect any other appliances to the same socket as the fan heater.

• Do not use the fan heater in the immediate vicinity of bathtubs, showers or swimming pools.

- If the mains cable is damaged, it may only be replaced by the manufacturer, an authorised customer service agent or a suitably qualified specialist.

- Do not leave the appliance running unattended. Keep children and pets away from the fan heater.

• Do not place the appliance on moving or unstable surfaces that can easily tip over.

- Disconnect the fan heater from the power supply if you are not going to use it for a longer period of time. Always pull the plug straight out of the socket and never by the cable.

- Keep the appliance away from curtains or other materials that could block the air inlet or outlet.

- The mains plug is only splash-proof when it is not connected. Do not use the device with wet hands and do not operate it if there is moisture on the power cable.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children must be supervised to ensure that they do not play with the appliance.

Application

Position the fan heater upright on a firm, level surface. Ensure that the appliance is positioned at a safe distance from wet areas and flammable materials.

Connect the fan heater to the mains.

The appliance starts operating as soon as the heating selector is set to one of the available power levels. As soon as the desired room temperature is reached, the heating element switches off automatically. The fan remains active to maintain air circulation. If the room temperature falls below the set value again, the heating element is reactivated. The fan heater operates independently in this mode to keep the room temperature constant.

21. CLEANING AND MAINTENANCE

Always disconnect the appliance from the power supply before cleaning and allow it to cool down completely. Clean the housing regularly with a soft, slightly damp sponge. For more stubborn dirt, use a sponge dipped in lukewarm water (maximum 50 °C) with a mild detergent. Then wipe all cleaned surfaces with a clean, dry cloth. Ensure that no water penetrates the inside of the appliance. Do not use liquids for direct spraying and avoid aggressive cleaning agents such as petrol or solvents to prevent damage to the housing.

Clean the mains cable and plug carefully and dry them thoroughly.

If the fan heater is not to be used for a longer period of time, allow it to cool down completely before storing it. Store the appliance in a dry and well-ventilated place. Cover it with a plastic bag to protect it from dust and ideally store it in a cardboard box.

22. MAINTENANCE

Only use original accessories and original spare parts.

Only a regularly maintained and treated appliance can provide satisfactory assistance.

Inadequate maintenance and care can lead to unforeseen accidents and injuries.

23. ACCESSORIES AND SPARE PARTS

Only use original accessories and spare parts to ensure the safety and proper functioning of the appliance. Further information can be found at www.FUXTEC.com.

24. GENERAL DESCRIPTION

Item number: FX-EH2 | FX-EH3

Article description: FUXTEC Electric heater FX-EH2 | FX-EH3

25. TECHNICAL DATA

Model	FX-EH2	FX-EH3
Nominal voltage	220-240 V~	220-240 V~
Mains frequency	50 Hz	50 Hz
Colour	grey, orange, black	grey, orange, black
Material	Metal, plastic	Metal, plastic
Net weight	5.7 kg	6 kg
Motor type	Electrical	Electrical
Heating levels	1 level (2,000 W)	2 levels (1,500 W / 3,000 W)
Power in W	2000 W	3000 W
Sound power level LWA	70 dB (A)	70 dB (A)
Sound pressure level	70 dB (A)	70 dB (A)
Maximum temperature	130°C	150°C
Air flow rate	284 m3/h	284 m3/h
Overheating protection	85°C	85°C
Primary flame control	Bimetal sheet	Bimetal sheet
Protection class	IP24	IP24
Heatable area	60	90
Dimensions L*W*H	35.0×23.5×33.0 cm	35.0×23.5×33.0 cm
Mains plug	Type F	Type F
Cable length	1.3m	1.3m

26. EUROPEAN PRODUCT REGISTRY FOR ENERGY LABELLING

Contact details	FUXTEC GmbH
Model identifier(s):FX-EH2
Item Symbol Value Unit Item Unit
Heat output					Type of heat output/room temperature control (select one)
Nominal heat output	Pnom	2.000	kW		single stage heat output and no room temperature control	No
Minimum heat output (indicative)	Pmin	2.000	kW		two or more manual stages, no room temperature control	No
Maximum continuous heat output	Pmax,c	2.000	kW		with mechanic thermostat room temperature control	Yes
Power consumption					with electronic room temperature control	No
In off mode	Po	0.00	W		electronic room temperature control plus day timer	No

In standby mode	Psm	0.00	W
In idle mode	Pidle	0.00	W
In network standby	Pnsm	0.00	W
Standby mode with display information or status			No
Seasonal space heating energy efficiency in active mode	ηS,on	85.0	%

electronic room temperature control plus week timer	No
Other control options (multiple selections possible)
room temperature control, with presence detection	No
room temperature control, with open window detection	No
distance control option	No
adaptive start control	No
working time limitation	No
black bulb sensor	No
self-learning functionality	No
control accuracy	No

Contact details	FUXTEC GmbH
Model identifier(s):FX-EH3
Item Symbol Value Unit Item Unit
Heat output					Type of heat output/room temperature control (select one)
Nominal heat output	Pnom	3.000	kW		single stage heat output and no room temperature control	No
Minimum heat output (indicative)	Pmin	1.500	kW		two or more manual stages, no room temperature control	No
Maximum continuous heat output	Pmax,c	3.000	kW		with mechanic thermostat room temperature control	Yes
Power consumption					with electronic room temperature control	No

In off mode	Po	0.00	W
In standby mode	Psm	0.00	W
In idle mode	Pidle	0.00	W
In network standby	Pnsm	0.00	W
Standby mode with display information or status			No
Seasonal space heating energy efficiency in active mode	ηS,on	85.0	%

electronic room temperature control plus day timer	No
electronic room temperature control plus week timer	No
Other control options (multiple selections possible)
room temperature control, with presence detection	No
room temperature control, with open window detection	No
distance control option	No
adaptive start control	No
working time limitation	No
black bulb sensor	No
self-learning functionality	No
control accuracy	No

27. GUARANTEE

The warranty period begins on the date of purchase. Please keep the proof of purchase carefully as evidence. The warranty does not cover wearing parts and does not apply to damage caused by improper use, improper handling, the use of force, technical modifications, the use of unauthorised accessories or spare parts or repair attempts by unauthorised persons. Warranty work may only be carried out by authorised specialist companies or service partners. These conditions apply in addition to the statutory warranty rights, which may be regulated differently depending on the country.

28. DISPOSAL

The packaging material consists mainly of recyclable materials. Please dispose of all packaging components in accordance with local waste separation regulations. By recycling the packaging, you are making a valuable contribution to environmental protection and the sustainable use of resources.

This product must not be disposed of with normal household waste. In accordance with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), the device must be handed over to an authorised collection point for waste electrical and electronic equipment at the end of its service life.

Proper disposal and recycling of materials helps to protect the environment and human health. For more information on return and disposal, please contact your local waste authority or the retailer where you purchased the product.

29. CUSTOMER SERVICE

If you have any questions regarding warranty, repair or spare parts, please contact us:

FUXTEC GmbH

Kappstrasse 69

71083 Herrenberg

Herrenberg Germany

Phone: [phone]

Note: Please do not send any returns or repairs to this address. For returns under warranty, please contact our customer service.

30. COPYRIGHT PROTECTION

All rights reserved. The contents of these instructions are protected by copyright. Their use is permitted within the scope of operation. Any other use or reproduction is not permitted without written authorisation from FUXTEC GmbH. FUXTEC GmbH reserves the right to make changes to these operating instructions without prior communication.

VERSION FRANÇAISE

31. INTRODUCTION ET SÉCURITÉ

Remarques générales

33. SYMBOLES APPOSÉS SUR LE PRODUIT

Labeled diagram of a portable air heater with numbered components for identification

Labeled diagram of a portable electric heater with numbered components

53. ACCESSORI E RICAMBI

Labeled diagram of a black electric heating fan with numbered parts for identification

Labeled diagram of a portable electric heater with numbered parts for identification

Labeled diagram of a portable air heater with numbered components for identification

102. AFVALVERWERKING

107. SYMBOLER PÅ PRODUKTEN

Labeled diagram of a portable electric heater with numbered parts for identification

E-post: [e-mail]

Labeled diagram of a portable air heater with numbered components for identification

www.fuxtec.com | [e-mail]

www.FUXTEC.com
