WECIALOA - Griddle KRAMPOUZ - Free user manual and instructions

USER MANUAL WECIALOA KRAMPOUZ

Poffertjes (Dutch Mini-Pancake) Maker

Instructions for use 11

Poffertjes-Gerät

Original instructions

Ask for our brochure:

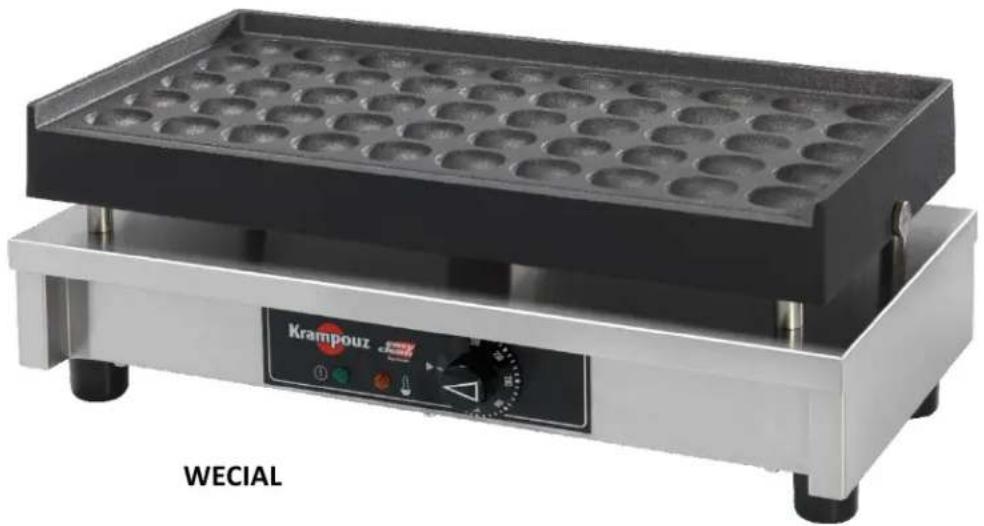

Exterior view of a Krampouz electric grill with grid tray and control panel (no text or symbols on the device itself)

Product photo of a Set Gautier kit with two black tools and a handle (no visible text or symbols)

Set gaufrier ASG2 Waffle iron set ASG2

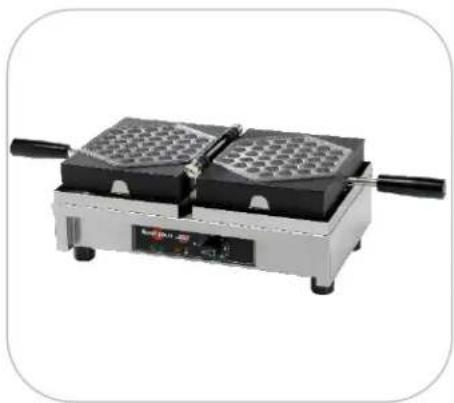

Exterior view of a two-walled electric grill (no text or symbols visible)

Gaufrier Bubble WECAUA Bubble waffles maker WECAUA

Modèle	Dimensions	Poids	Tension	Puissance
Model	Size	Weight	Voltage	Power
WECIAL	500 x 260 x 190 mm	20 Kg	220-240 V	2 400 W

Technical line drawing of a multi-tiered industrial machine with cylindrical cavities and connected piping (no text or symbols)

Technical diagram showing three stages of a laboratory apparatus with labeled components and directional arrows indicating motion.

Le fer

Thank you for purchasing one of our products. It is very simple to use. However, we advise you to read these instructions carefully, as they provide installation and operating information which will enable you to achieve the best results.

General requirements for electrical equipment

Always apply safety precautions when using electrical appliances.

Read all the instructions carefully.

• This appliance is intended for professional use.
• This appliance is intended for collective use, for example in the kitchens of restaurants, cafeterias, hospitals, and small businesses, such as bakeries, butcher's shops, etc., but not for the continuous mass production of food.
• The appliance must never be left unattended when in use.
• Do not use the appliance for any purpose besides its intended use.
• The use of different accessories to those recommended by the appliance manufacturer may result in accidents.
• You must install the mounting bracket supplied with the appliance. The appliance must be secured to a wall.
• The appliance must be earthed.
• The appliance must be powered by means of a residual current device with a rated residual operating current of no more than 30 mA.
• We do not recommend that you use this appliance in an environment that exceeds a temperature of 40^ C .
• We recommend that you inspect the power cable regularly for any sign of damage.

- Do not connect or use an appliance with a damaged lead or plug. If the power supply cable becomes damaged, it must be replaced by the manufacturer, their after-sales service or a qualified individual in order to avoid any danger.

- If the appliance has been damaged, return it to your local approved repairer or to your point of sale for inspection and repair.

- The appliance is not intended to be operated using an external timer or separate remote control system.

- When using an extension cord, it must be unwound fully to prevent the cable from overheating.

- Always set the appliance to the minimum temperature prior to connecting or disconnecting the electrical power lead.

- Do not leave the lead hanging from a table or counter.

- Do not place the appliance and its lead on or near a surface which is likely to become hot (cooking plate, gas burner, oven, etc.).

- Disconnect the plug when the appliance is not in use or before cleaning it.

- To prevent electric shock, do not immerse the lead, plug or body of the appliance in water or any other liquid. Do not handle these parts with wet hands.

- When cleaning, never immerse the appliance or use a high or low pressure water spray.

- Do not use chlorinated products to clean stainless steel.

- Do not handle the appliance when hot.

- Do not touch hot surfaces.

- The symbol means "Caution: hot surface".

• Leave the appliance to cool down before handling or cleaning it.
• This appliance is not suitable for outdoor use.
• Place the appliance on a stable, dry surface, slightly away from the edge and more than 10 cm away from a wall or heat-sensitive area.
• You may notice a few marks or stains on the products. These are due to the various stages of the production process. This is normal and does not affect the operation of the appliance (scratches, impacts, colour changes, etc.).
• Warning: Do not use the appliance with charcoal or any power source besides the one for which it is designed (electricity).
• We recommend that you keep the original packaging to store the appliance.

KEEP THESE INSTRUCTIONS

Krampouz's Poffertjes Maker is equipped with an "Easy Clean" system that allows for an easy and quick disassembly of the iron plates for effective cleaning. "Pack Resistance" technology guarantees a perfect, even cooking of the Poffertjes.

Technical features of the appliance:

• Stainless steel frame
  • Cast iron plate approved for contact with food
  • Thermostat with a dial marked from 50°C to 300°C
• Heating indicator
  • Single phase 230 V power supply
  • Power cable suitable for a 16 A socket
  • Size of the mini-pancakes = ∅ 40 mm
• 50 mini-pancakes per iron plate
  • Power: 2400 W

Installation

Work surface

Install the appliance on a work surface that is easy to clean. It should be kept at least 10 cm from any non-heat-resistant walls.

For maximum user comfort, a distance of 85 to 95 cm between the top of the iron plate and the floor is recommended.

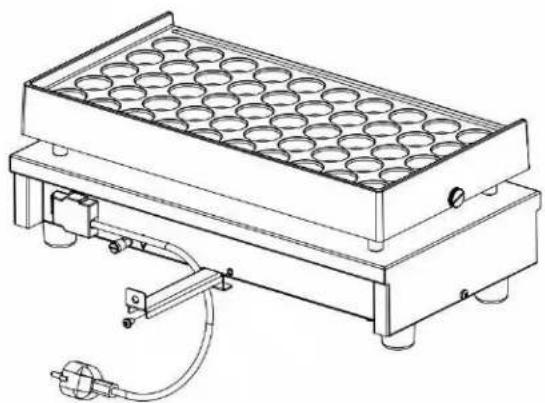

Installing the mounting bracket

Technical line drawing of a rectangular industrial machine with multiple circular cavities and a connecting rod (no text or symbols)

The mounting bracket is fitted at the rear or on the sides of the appliance, depending on the most appropriate location for your installation.

1. Using a Phillips screwdriver, fix the mounting bracket onto the frame with the screw provided.

2. Attach the other end to the wall. Choose a wall mounting with a strong enough fixing to anchor the appliance properly to the wall.

3. Always leave at least 10 cm between the appliance and any walls.

Electrical connection

The appliances must be connected to a single-phase 230 V power supply, a two-pin socket + a 16 Amp earth contact. It is shipped with a HO7RNF-type power cable with three conductors (phase + neutral + earth) with a 1.5 mm ^2 section.

Use

Seasoning the iron plate

Before the first use, the Poffertjes maker must be seasoned.

Season with edible oil that contains no other ingredients.

We recommend that you use the method below to season your iron plate (estimated time: 1 hour):

• With the appliance switched off, apply an even layer of oil to the iron plate using a food safe brush.
• Remove any surplus oil from the bottom of the moulds.
• Next, set the thermostat to 270^ C and leave to heat for approximately 45 minutes until the oil browns on the iron plate.
• Switch the appliance off.

Equipment you will need for use

Here are the recommended accessories for making perfect Dutch mini-pancakes:

• The Krampouz waffle iron set (Ref. ASG2) comes with a soft brush, fork and stainless steel brush.
• Edible oil to grease the iron plate
  • A container for the batter
  • A jug or a bottle for pouring the batter

Recipe for Poffertjes (Dutch Mini-Pancakes)

Temperature: 200 °C

Cooking time: 1 min on each side

Oil the plate before making each batch of Poffertjes.

Ingredients (approx. 150 mini-pancakes): 500 g flour, 2 sachets of traditional baker's yeast, 100 g sugar, 1 pinch of salt, 3 eggs, 700 ml milk, 10 cl lukewarm water (to rehydrate the yeast), 1 tablespoon of oil

Preparation:

Mix together the flour, sugar, pinch of salt and oil.

Add the yeast mixed in lukewarm water, then the whole eggs. Mix well and then gradually incorporate the milk.

Leave to rest for one hour.

Cooking:

Using a bottle, swiftly pour a measure of batter into each mould. Once the Poffertjes maker plate is completely filled, start to flip each mini-pancake with a fork or spoon.

Poffertjes can be served in a tray with butter, icing sugar, fresh fruit, melted chocolate or another topping.

Frame

Disconnect the appliance and allow the iron plate to cool down before cleaning.

Clean the frame with a sponge soaked in warm water and a liquid detergent.

Any stubborn stains can be removed by using a special industrial product.

Never use abrasive products or metal brushes to clean the frame.

Do not clean the appliance by immersing or with a water spray.

Disassembling the iron plate

• Let the iron plate cool down before disassembly.
• A screwdriver is required to loosen the two screws.

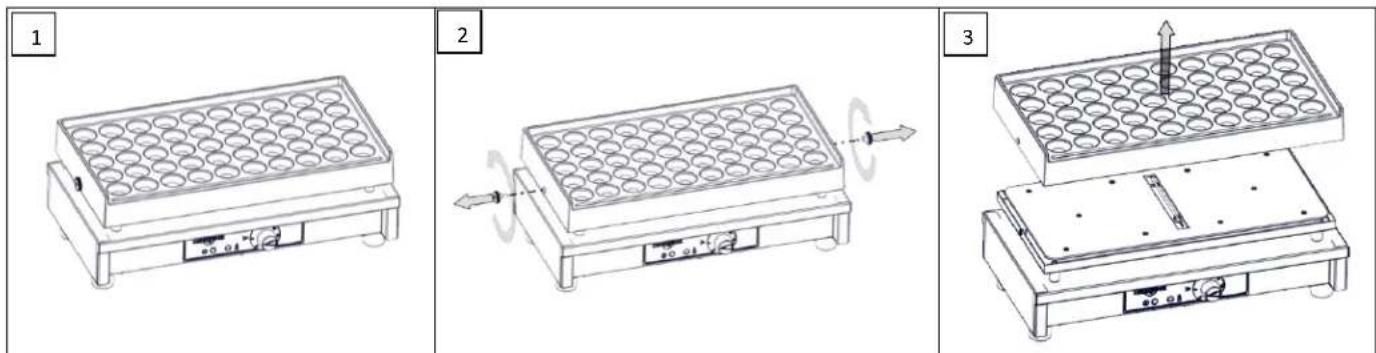

  • Disassemble the iron plate as shown below:

Technical diagram showing three stages of a laboratory apparatus with labeled components and directional arrows indicating motion or movement.

Iron plate

When making Poffertjes, a little oil must be added to the iron surface:

• greasing the irons with a food-safe brush before using the appliance,
• fat may be present in the batter depending on the recipe.

These fats will gradually add to the initial seasoning. It is important that the seasoning does not become too thick because:

• it acts as an insulator and disrupts the cooking process,
• it detaches or flakes off giving the impression that the metal is disintegrating.

Cleaning with water and regular brushing will prevent this phenomenon (do not be afraid to scratch the metal).

If this crust becomes too thick making any cleaning or brushing ineffective, the iron can be stripped by sanding or pyrolysis.

After these operations, it is necessary to repeat the seasoning using the method for a new iron plate.

Note: Never abruptly cool an iron that is hotter than 100^ C (for example, by immersing it in water) – the thermal shock could break your appliance.

This appliance comes with one year's warranty for spare parts.

We do our utmost to ensure that every one of our appliances reaches you in perfect working order. If you find a fault when unpacking, please advise the store within 48 hours.

If you notice a malfunction during the warranty period, refer to your retailer.

The following are excluded from the warranty:

• Normal wear of the product not impairing the operation of the appliance (scratches, impacts, colour changes, etc.)
• Damage resulting from an abnormal event or misuse, product modification or failure to observe the indications contained in the operating instructions.
• Damage resulting from a fall or knock.

Please send us your suggestions.

The crossed out bin symbol, affixed to the product or its packaging, indicates that the product must not be treated as household waste.

It must be taken to a collection point suitable for recycling electric and electronic

equipment:

• at distribution points if you purchased suitable equipment,
• at local collection locations (recycling centre, selective collection, etc.).

By ensuring that this product is disposed of properly, you will help to prevent the potential negative consequences for the environment and human health. Material recycling will help to preserve natural resources. For any additional information about recycling this product, please contact your local council, recycling centre, retailer or reseller.

Werter Kunde,

Technical line drawing of a rectangular industrial machine with multiple circular cavities and a connected piping (no text or symbols)

Technical diagram showing three stages of a laboratory apparatus with labeled components and directional arrows indicating motion.

Das Eisen

Technical line drawing of a multi-tiered industrial machine with internal cavities and connected piping (no text or symbols)

Technical diagram showing three stages of a laboratory apparatus with labeled components and directional arrows indicating motion or movement.

La plancha
