KCMG.1RCT22 - Griddle KRAMPOUZ - Free user manual and instructions

Product type	Professional gas crepe maker
Brand and model	Krampouz KCMG.1RCT22
Power supply	Natural gas (configurable for propane with conversion kit)
Burner power	21515 BTU/h (6.3 kW)
Dimensions (L × D × H)	430 × 521 × 195 mm
Weight	21 kg
Chassis material	Stainless steel
Heating plate material	Cast iron
Heating plate diameter	400 mm
Temperature range	Up to 300°C (570°F), adjustable from 1 to 10
Ignition	Piezoelectric
Safety device	Safety thermocouple and individual shut-off valve
Included accessories	Flat spreader and spatula
Initial seasoning	Necessary before first use (approximately 1 to 1.5 hours)
Daily cleaning	Non-abrasive cloth, warm water and mild soap; do not immerse
Maintenance	Periodic stripping with abrasive stone and re-seasoning
Intended use	Professional use only
Warranty	1 year parts and labor

Frequently Asked Questions - KCMG.1RCT22 KRAMPOUZ

How to light the burner?

Make sure the gas valve is open. Turn the thermostat to position 5, press and hold it down, then press the piezoelectric ignition button. Check that the burner is lit, then hold the thermostat down for 10 seconds to activate the safety thermocouple.

What is the plate seasoning procedure?

Before first use, follow the seasoning: set the thermostat to position 6, pour 1 teaspoon of vegetable oil, spread it and heat until smoke disappears. Repeat 3 times with 1 teaspoon, then 5 times with 1/2 teaspoon. Wipe without oil. The plate should have a light brown varnished appearance.

What are the safety distances to observe?

For a single plate (model KCMG-1RCT), leave a clearance of 203 mm (8") between the sides and back of the appliance and combustible surfaces. Do not obstruct ventilation openings.

How to convert the appliance from natural gas to propane?

Conversion requires replacing the orifice (160 µm for propane), adjusting the air ring to an interval of 12 mm and setting the lowest level. This operation must be performed by a qualified installer.

What to do in case of gas smell?

Immediately close the gas shut-off valve, do not create a spark, ventilate the room and contact emergency services. Do not attempt to use the appliance until the problem is resolved.

How to clean the heating plate?

After turning off and cooling the appliance, wipe the plate with a non-abrasive cloth. For deep cleaning, use an abrasive stone then re-season. Do not use excess water or harsh chemicals.

Why does the flame go out after a few seconds?

This may be due to a faulty safety thermocouple or incorrect positioning. Check that the spark plug is 3 mm from the thermocouple and that the thermocouple is well in the flame. Contact an authorized technician if the problem persists.

What accessories are available?

Accessories include: flat spreader (supplied), round steel spreader, 350 mm metal spatula, cleaning pad with refills, and abrasive stone for stripping the plate.

Can I use the appliance outdoors?

No, the appliance is not weather-resistant and must be used in a covered, well-ventilated area, in accordance with local regulations.

How to adjust the cooking temperature for crepes?

The ideal temperature for crepes is between 200°C and 230°C, corresponding to position 5 on the thermostat. Adjust according to the recipe after a few trials.

USER MANUAL KCMG.1RCT22 KRAMPOUZ

Do not operate this equipment unless you have read and understood the contents of this manual! Failure to follow the instructions contained in this manual may result in serious injury or death. This manual contains important safety information concerning the maintenance, use, and operation of this product. If you're unable to understand the contents of this manual, please bring it to the attention of your supervisor. Keep this manual in a safe location for future reference.

English = p 2

ADVERTENCIA

Important Owner Information....2

Introduction....2

Important Safety Information....3

Model Description 4

Model Designation 5

Specifications ....5

Ratings Charts....5

Dimensions....5

Installation....7

General....7

Connecting the Gas Supply....8

Operation....9

General 9

Control Panel....9

Lighting a Burner 9

Seasoning the Griddle(s)....9

Operating the Unit 10

Maintenance....11

General....11

Daily Cleaning 11

Converting Between Fuels 12

Safety Thermocouple 13

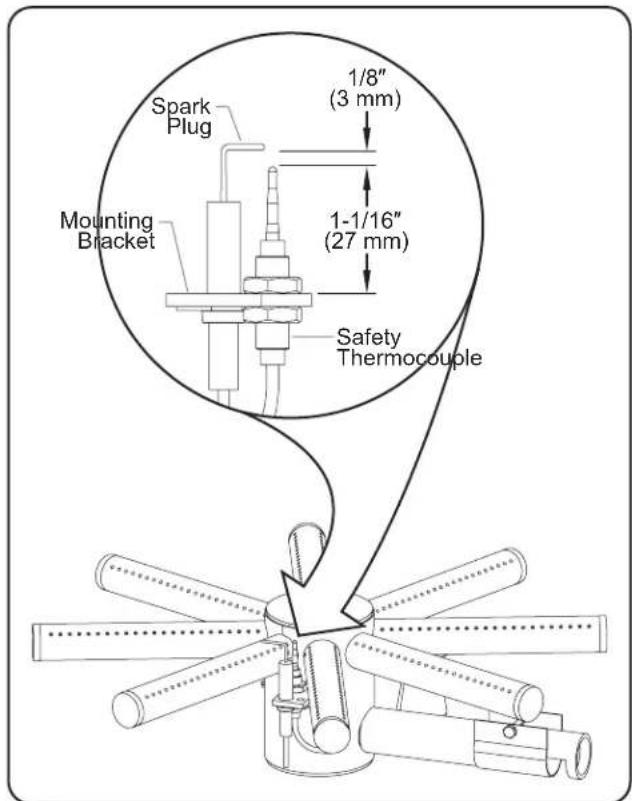

Ignition Spark Plug 13

Troubleshooting Guide 14

Options and Accessories 14

Limited Warranty 15

Authorized Parts Distributors ....Back Cover

IMPORTANT OWNER INFORMATION

Record the model number, serial number, voltage, and purchase date of the unit in the spaces below (specification label located on the bottom the unit). Please have this information available when calling Hatco for service assistance.

Model No. ____

Serial No.

Voltage

Date of Purchase

Register your unit!

Completing online warranty registration will prevent delay in obtaining warranty coverage. Access the Hatco website at www.hatcocorp.com, select the Support pull-down menu, and click on "Warranty".

Business

Hours: 7:00 AM to 5:00 PM Monday–Friday,

Central Time (CT)

(Summer Hours — June to September:

7:00 AM to 5:00 PM Monday–Thursday

7:00 AM to 4:00 PM Friday)

Telephone: [phone]

E-mail: [e-mail]

24 Hour 7 Day Parts and Service

Assistance available in the United States

and Canada by calling 800-558-0607.

Additional information can be found by visiting our web site at www.hatcocorp.com.

INTRODUCTION

Gas Crepe Makers cook continuous, excellent-quality crepes for commercial kitchens and display cooking locations. The adjustable temperature control enables operators to cook consistent quality crepes from a variety of different batters. The exclusive, large diameter 8-branch burner provides exceptional heat distribution over the entire griddle for even and fast cooking.

Gas Crepe Makers are products of extensive research and field testing. The materials used were selected for maximum durability, attractive appearance, and optimum performance. Every unit is inspected and tested thoroughly prior to shipment.

This manual provides installation, safety, and operating instructions for Gas Crepe Makers. Hatco recommends all installation, operating, and safety instructions appearing in this manual be read prior to installation or operation of a unit.

Safety information that appears in this manual is identified by the following signal word panels:

WARNING

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE

NOTICE is used to address practices not related to personal injury.

Read the following important safety information before using this equipment to avoid serious injury or death and to avoid damage to equipment or property.

WARNING

FIRE OR EXPLOSION HAZARD:

- This unit is designed to be used with propane or natural gas. Contact a qualified installer to determine and perform proper gas connections.

- Unit must be installed by qualified, trained gas equipment installers. Installation must conform to all local plumbing and gasfitting codes. Installation by unqualified personnel will void the unit warranty and may lead to fire or explosion causing property damage, personal injury, or death. Check with local plumbing inspectors for proper procedures and codes.

- In the absence of local plumbing and gasfitting codes, installation must conform with National Fuel Gas Code ANSI Z223.1/NFPA 54 or National Gas and Propane Installation Code CSA B149.1, as applicable.

- The gas used with this unit must be the type specified on the specification plate on this unit. To avoid personal injury or damage to the unit, never use any other than the specified gas.

- Unit must be connected to gas supply using a moveable gas connector that complies with current and local standards and codes.

- Inspect moveable gas connector regularly. Replace immediately if any signs of wear are present.

- Verify moveable gas connector has not exceeded its expiration date. Replace immediately if expired.

- Do not twist moveable gas connector.

- Keep moveable gas connector away from hot appliances and surfaces.

- The unit and its gas connections must be leak tested before placing unit in operation. Use soapy water or commercially available fluid for leak test. DO NOT use open flame to test for leaks.

- The unit and its individual gas shut-off valve must be disconnected and isolated from the gas supply piping system during any pressure testing of the system at test pressures in excess of 1/2 psi (3.5 kPa.).

- This unit must be isolated from the gas supply piping system by closing its individual gas shut-off valve during any pressure testing of gas supply piping system at test pressures equal to or less than 1/2 psi (3.5 kPa).

- Locate unit the appropriate distance from combustible walls and materials. If safe distances are not maintained, discoloration or combustion could occur.

- For single griddle units, locate sides and rear a minimum of 8" (203 mm) from combustible surfaces.

- For dual griddle units, locates sides a minimum of 8" (203 mm) and rear a minimum of 12" (305 mm) from combustible surfaces

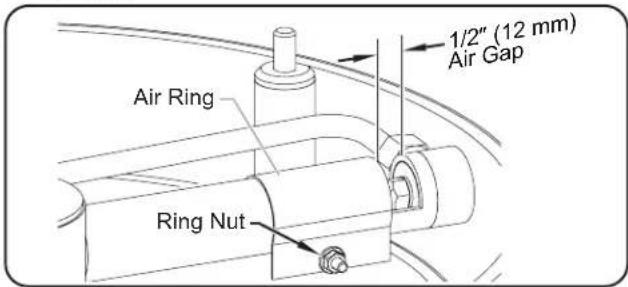

- Do not obstruct air ventilation openings on unit. Unit combustion or malfunction may occur.

- Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

WARNING

FIRE OR EXPLOSION HAZARD:

- If the information in these instructions is not followed exactly, fire or explosion may result causing property damage, personal injury, or death

- This unit must be serviced by qualified personnel only. Service by unqualified personnel may lead to explosion or burn.

- Use only Genuine Hatco Replacement Parts when service is required. Failure to use Genuine Hatco Replacement Parts will void all warranties and may subject operators of the equipment to hazardous conditions. Genuine Hatco Replacement Parts are specified to operate safely in the environments in which they are used. Some aftermarket or generic replacement parts do not have the characteristics that will allow them to operate safely in Hatco equipment.

Unit must be installed in location with sufficient ventilation to prevent buildup of unsafe levels of noxious fumes.

Turn Temperature Control to off ("0") position, close gas shut-off valve, and allow unit to cool before performing any cleaning, adjustments, or maintenance.

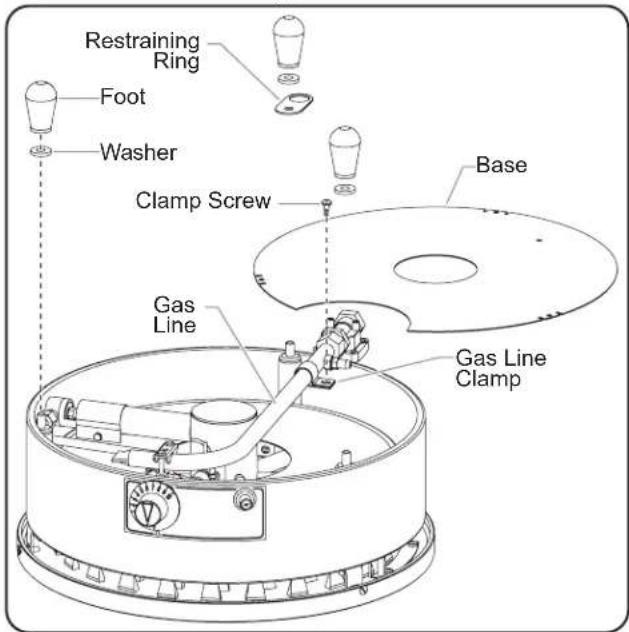

This unit is equipped with a restraining ring. Restraining ring must be used with appropriate restraining device to prevent strain on gas connection.

Unit is not weatherproof.

Do not steam clean or use excessive water on unit.

This unit is not "jet-proof" construction. Do not use jet-clean spray to clean this unit.

DO NOT submerge or saturate with water. Unit is not waterproof. Do not operate if unit has been submerged or saturated with water.

Do not allow liquids to spill into unit.

Make sure all operators have been instructed on the safe and proper use of the unit.

This unit is not intended for use by children or persons with reduced physical, sensory, or mental capabilities. Ensure proper supervision of children and keep them away from the unit.

Never leave unit unattended during use.

Always turn off individual gas shut-off valve when unit is not in use.

Do not make any modifications to unit. Personal injury and damage to unit may occur.

Do not use unit for any purpose other than for which it is designed.

This unit has no "user-serviceable" parts. If service is required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at 800-558-0607 or 414-671-6350.

CAUTION

BURN HAZARD:

• Some exterior surfaces on unit will get hot. Avoid unnecessary contact with unit.
• Do not come in contact with griddle during operation. Griddle is very hot.
• Allow unit to cool before performing any cleaning, adjustments, or maintenance.

Locate unit at proper counter height in an area that is convenient for use. Location should be level and strong enough to support weight of unit and contents.

NOTICE

Allow adequate ventilation around base of unit for proper air supply to gas burner.

Do not locate unit in an area subject to excessive temperatures or grease from grills, fryers, etc. Excessive temperatures and grease could cause damage to unit.

NOTICE

Damage to any countertop material caused by heat generated from this equipment is not covered under the Hatco warranty. Contact manufacturer of countertop material for application information.

For steel surfaces, use non-abrasive cleaners and cloths only. Abrasive cleaners and cloths could scratch finish of unit, marring its appearance and making it susceptible to soil accumulation.

Do not use harsh chemicals such as bleach, cleaners containing bleach, or oven cleaners to clean this unit.

Do not attempt to cool griddle quickly, such as by rinsing or immersing in water. Damage to griddle will occur.

This unit is intended for commercial use only—NOT for household use.

Clean unit daily to avoid malfunctions and maintain sanitary operation.

MODEL DESCRIPTION

All Models

Gas Crepe Makers consist of an easy-to-clean, stainless steel frame and a 15-3/4" (400 mm) diameter cast iron griddle(s). The units feature a large diameter 8-branch burner(s), an adjustable Temperature Control(s) with a range up to 570°F (300°C), and a piezoelectric ignition button(s).

All gas crepe makers come from the factory setup for use with natural gas. Conversion components are included to convert the units for use with propane. Refer to the MAINTENANCE section of this manual, and contact an Authorized Service Agent or Hatco for assistance.

NOTE: Gas crepe makers are equipped with a heat-activated safety thermocouple that will cut off gas supply to the unit if the burner flame goes out accidentally.

Model KCMG-1RND

Model KCMG-1RND has a round frame and a single cast iron griddle.

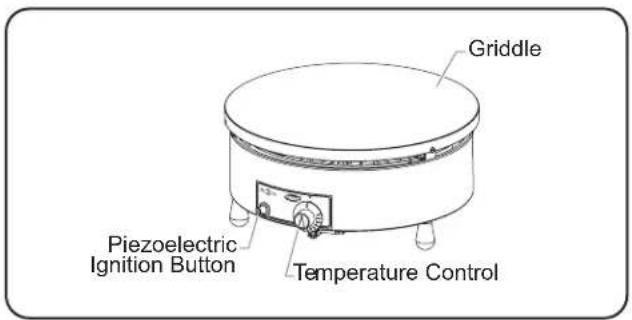

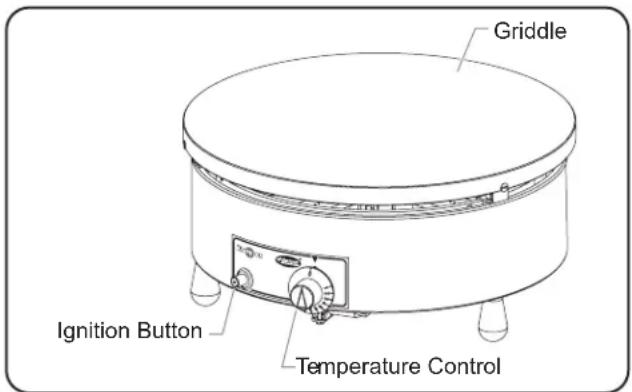

Griddle Piezoelectric Ignition Button Temperature Control

Model KCMG-1RND

Models KCMG-1RCT and KCMG-2RCT

Models KCMG-1RCT and KCMG-2RCT have a rectangular frame.

Model KCMG-1RCT is equipped with a single cast iron griddle and one piezoelectric ignition button.

Model KCMG-2RCT is equipped with two cast iron griddles and two piezoelectric ignition buttons—one for each griddle.

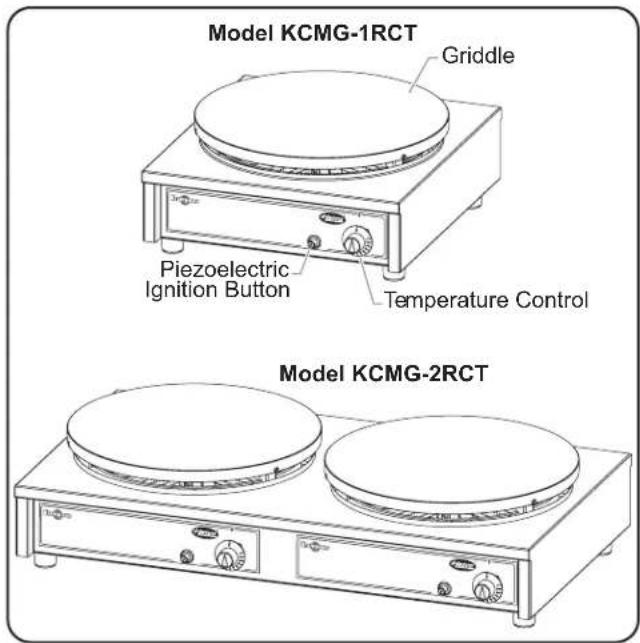

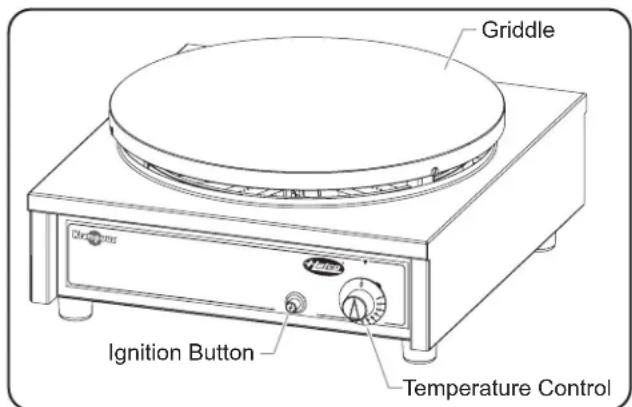

Model KCMG-1RCT Griddle Piezoelectric Ignition Button Temperature Control Model KCMG-2RCT

Models KCMG-1RCT and KCMG-2RCT

Refer to the OPTIONS AND ACCESSORIES section for additional items available with Crepe Makers.

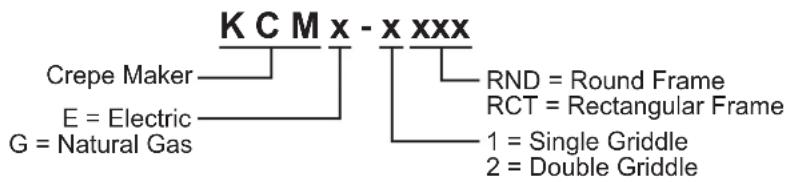


SPECIFICATIONS

Ratings Chart—Propane

Model	Burner Power (BTU/Hour)	Burner Power (Kilowatts)	Manifold Pressure	Pressure Regulator Factory Setpoint	Burner Orifice Size Unit	Weight
KCMG-1RND	21515	6.3	10.9 In WC	11 In WC	160 μm	35 lbs. (16 kg)
KCMG-1RCT	21515	6.3	10.9 In WC	11 In WC	160 μm	45 lbs. (21 kg)
KCMG-2RCT	40640	11.9	10.5 In WC	11 In WC	160 μm	90 lbs. (41 kg)

Ratings Chart—Natural Gas

Model	Burner Power (BTU/Hour)	Burner Power (Kilowatts)	Manifold Pressure	Pressure Regulator Factory Setpoint	Burner Orifice Size Unit	Weight
KCMG-1RND	21515	6.3	7 In WC	7 In WC	250 μm	35 lbs. (16 kg)
KCMG-1RCT	21515	6.3	7 In WC	7 In WC	250 μm	45 lbs. (21 kg)
KCMG-2RCT	40640	11.9	6.3 In WC	7 In WC	250 μm	90 lbs. (41 kg)

Dimensions—Models KCMG-1RND

Model	Width (A)	Depth (B)	Height (C)	Footprint Width (D)	Footprint Depth (E)
KCMG-1RND	15-3/4" (400 mm)	18-15/16" (481 mm)	7-7/16" (188 mm)	13-7/16" (341 mm)	12-3/16" (308 mm)

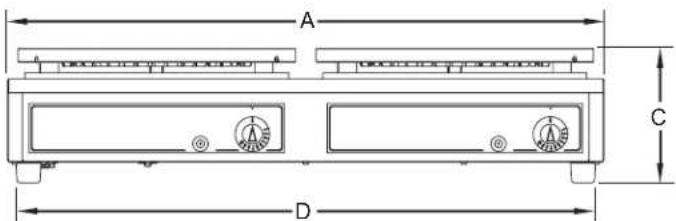

A C D

Front View

B E

Side View

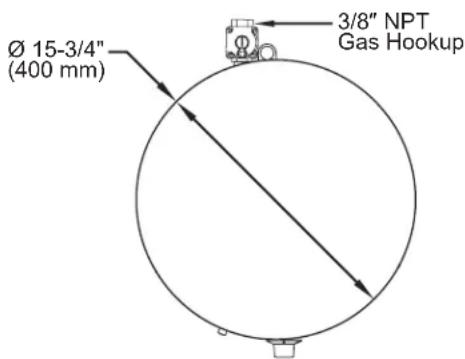

Ø 15-3/4" (400 mm) 3/8" NPT Gas Hookup

Top View

Dimensions—Models KCMG-1RCT and KCMG-2RCT

Model	Width (A)	Depth (B)	Height (C)	Footprint Width (D)	Footprint Depth (E)
KCMG-1RCT 16-15/16" (430 mm)		20-9/16" (521 mm)	7-5/8" (195 mm)	16" (406 mm)	15-3/16" (388 mm)
KCMG-2RCT 33-7/8" (860 mm)		20-9/16" (521 mm)	7-5/8" (195 mm)	32-15/16" (836 mm)	15-3/16" (388 mm)

A C D

Front View Side View

B E

Ø 15-3/4" (400 mm) 3/8" NPT Gas Hookup Model KCMG-2RCT shown

Top View

General

Gas Crepe Makers are shipped pre-assembled and ready for seasoning prior to their first use. Care should be taken when unpacking the shipping carton to avoid damage to the unit. The following installation procedure must be performed before operating the unit.

WARNING

FIRE OR EXPLOSION HAZARD:

- This unit is designed to be used with propane or natural gas. Contact a qualified installer to determine and perform proper gas connections.

- Unit must be installed by qualified, trained gas equipment installers. Installation must conform to all local plumbing and gasfitting codes. Installation by unqualified personnel will void the unit warranty and may lead to fire or explosion causing property damage, personal injury, or death. Check with local plumbing inspectors for proper procedures and codes.

- In the absence of local plumbing and gasfitting codes, installation must conform with National Fuel Gas Code ANSI Z223.1/NFPA 54 or National Gas and Propane Installation Code CSA B149.1, as applicable.

- The gas used with this unit must be the type specified on the specification plate on this unit. To avoid personal injury or damage to the unit, never use any other than the specified gas.

- Unit must be connected to gas supply using a moveable gas connector that complies with current and local standards and codes.

- Do not twist moveable gas connector.

- Keep moveable gas connector away from hot appliances and surfaces.

- The unit and its gas connections must be leak tested before placing unit in operation. Use soapy water or commercially available fluid for leak test. DO NOT use open flame to test for leaks.

- Locate unit the appropriate distance from combustible walls and materials. If safe distances are not maintained, discoloration or combustion could occur.

- For single griddle units, locate sides and rear a minimum of 8" (203 mm) from combustible surfaces.

- For dual griddle units, locates sides a minimum of 8" (203 mm) and rear a minimum of 12" (305 mm) from combustible surfaces

- Do not obstruct air ventilation openings on unit. Unit combustion or malfunction may occur.

- Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

- If the information in these instructions is not followed exactly, fire or explosion may result causing property damage, personal injury, or death

Unit must be installed in location with sufficient ventilation to prevent buildup of unsafe levels of noxious fumes.

This unit is equipped with a restraining ring. Restraining ring must be used with appropriate restraining device to prevent strain on gas connection.

Unit is not weatherproof.

1. Inspect the shipping carton for obvious signs of transit damage. If damaged, inform the freight company immediately. CAUTION! Stop! Do not attempt to use unit if damaged. Contact Hatco for assistance.

2. Remove the unit and any loose components/accessories from the shipping carton. The following loose components are included in every Crepe Maker:

- Flat Spreader

- Spatula

NOTE: To prevent delay in obtaining warranty coverage, complete online warranty registration. See the IMPORTANT OWNER INFORMATION section for details.

1. Remove tape and protective packaging from all surfaces of the unit.

- Make sure to remove all protective film from the stainless steel surfaces.

1. Inspect the unit for freight damage such as dents in housing or broken knobs. If damaged, inform the freight company immediately.

CAUTION

Locate unit at proper counter height in an area that is convenient for use. Location should be level and strong enough to support weight of unit and contents.

NOTICE

Allow adequate ventilation around base of unit for proper air supply to gas burner.

Do not locate unit in an area subject to excessive temperatures or grease from grills, fryers, etc. Excessive temperatures and grease could cause damage to unit.

Damage to any countertop material caused by heat generated from this equipment is not covered under the Hatco warranty. Contact manufacturer of countertop material for application information.

1. Place the unit in the desired location.

- Make sure the unit is at the proper counter height in an area convenient for use.

- Make sure the countertop is level and strong enough to support the weight of the unit and food product.

- Make sure all the feet on the bottom of the unit are positioned securely on the countertop.

1. Contact an authorized gas equipment installer to connect the gas supply line to the unit. Review "Connecting the Gas Supply" in this section with the installer.

continued...

Connecting the Gas Supply

Gas Crepe Makers must be connected to an approved gas supply line by an authorized and certified gas equipment installer. Understanding the following information is required for proper and safe installation.

• Verify that the unit is configured properly for the gas supply—natural gas or propane. The specification label indicating the gas configuration of the unit is located on the bottom of the unit.
  • Install the unit in a location with sufficient ventilation to prevent the buildup of unsafe levels of noxious fumes.
• Make sure there is proper air flow around the unit for combustion air. Do not obstruct the air ventilation openings around the griddle or frame of the unit.
• Connect the unit to the gas supply piping using a moveable gas connector that complies with ANSI Z21.69 / CSA 6.16 and a quick-disconnect device that complies with ANSI Z21.41 / CSA 6.9.
• Make sure unit is installed with a dedicated gas shut-off valve.
• Make sure a properly-sized restraining device is connected to the restraining ring on the unit to prevent strain on the gas connection. If the restraining device needs to be removed for any reason, make sure that it is reconnected before resuming operation of the unit.

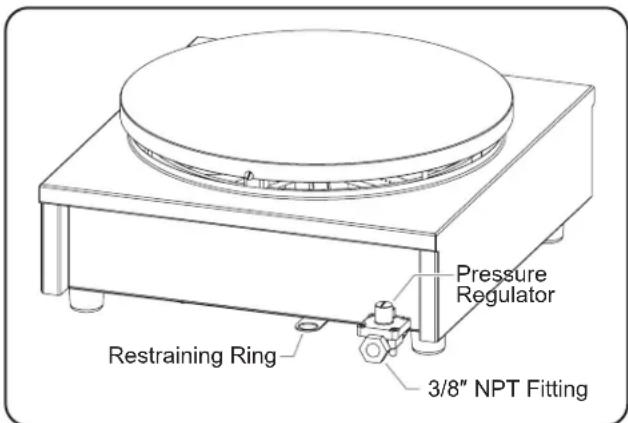

Pressure Regulator Restraining Ring 3/8" NPT Fitting

Rear View, Model KCMG-1RCT

IMPORTANT NOTE

After shutting down a Gas Crepe Maker, a five minute waiting period is required before relighting. This allows potential gas buildup to clear.

General

Gas Crepe Makers are designed for ease of operation. Use the following information and procedures to operate a Crepe Maker.

WARNING

Read all safety messages in the IMPORTANT SAFETY INFORMATION section before operating this equipment.

Improper installation, operation, or maintenance of this equipment may result in property damage, serious injury, or death. Do not operate or service this equipment before reading and understanding the contents of this manual!

Control Panel

The following are descriptions of the controls used to operate a Gas Crepe Maker. All controls are located on the control panel at the front of the unit.

Ignition Button

The piezoelectric Ignition Button ignites the gas burner below the griddle. Pushing the button creates a spark that ignites the gas burner.

Temperature Control

The Temperature Control controls the temperature setting/gas flow into the unit. Turn the Temperature Control counterclockwise to increase the temperature setting. Turn the Temperature Control clockwise to decrease the temperature setting. Push in the Temperature Control to supply gas when lighting a burner. The temperature range of the unit is indicated on the control as settings 1–10 (up to 570°F [300°C]).

NOTE: Gas crepe makers are equipped with a heat-activated safety thermocouple that will cut off gas supply to the unit if the burner flame goes out accidentally.

Lighting a Burner

Use the following procedure to light a burner on a Gas Crepe Maker.

1. Make sure the unit is connected properly to the gas supply, the restraining system is in place, and the gas shutoff valve is open. See the INSTALLATION section for details.
2. When lighting the unit for the first time after gas hook-up: a. Push in and turn the Temperature Control counterclockwise to the maximum setting of "10".
   b. Hold the Temperature Control for five seconds to flush air from the gas tubing through the burner.
   c. Release the Temperature Control.
3. Turn the Temperature Control clockwise to setting "5".
4. Push in and hold the Temperature Control; then push the Ignition Button.
5. Verify that the burner has ignited. If not, push the Ignition Button again.
6. Continue holding in the Temperature Control for ten seconds to activate the safety thermocouple.
7. Release the Temperature Control and allow the unit to heat for approximately five minutes. CAUTION: BURN HAZARD—Some exterior surfaces on unit will get hot. Avoid unnecessary contact with unit.
8. Turn the Temperature Control clockwise to the lowest setting of "1". The unit is now ready for use.

Seasoning the Griddle(s)

Use the following procedure to season the cast iron griddle(s) before using the Crepe Maker for the first time. This procedure will take approximately 1 to 1-1/2 hours.

NOTE: Perform the seasoning procedure in a well ventilated area—preferably underneath an extraction hood. A substantial amount of smoke will be generated, which is normal.

1. Perform the "Lighting a Burner" procedure in this section.

CAUTION

BURN HAZARD:

• Some exterior surfaces on unit will get hot. Avoid unnecessary contact with unit.
• Do not come in contact with griddle during operation. Griddle is very hot.
• Turn the Temperature Control counterclockwise to temperature setting "6".
• Leave the unit at this setting for the entire seasoning procedure.
• Allow the unit to preheat fully.
• Pour a teaspoon of vegetable-based cooking oil onto the center of the griddle.
• Spread the oil evenly over the entire griddle surface.

NOTE: A cleaning pad for spreading the oil and cleaning the griddle surface is available as an accessory. See OPTIONS AND ACCESSORIES for details.

Griddle Ignition Button Temperature Control

Model KCMG-1RCT

1. Allow the oil to cook for 5–10 minutes, until the smoke disappears.
2. The griddle will smoke as the oil cooks into the surface. The smoke will decrease and disappear as the oil drys on the surface.
3. Perform steps 4–6 of this procedure an additional three (3) times.
4. Perform steps 4–6 of this procedure five (5) more times, but decrease the amount of oil to 1/2 teaspoon.
5. As the griddle surface is seasoned, it gradually will turn a darker brown and will develop a shine.
6. Wipe the griddle surface one final time without adding any additional oil.
7. A properly seasoned griddle will look like it's varnished with a light chestnut color.
8. Go to the "Operating the Unit" procedure in this section.

Operating the Unit

NOTE: Make sure to perform the "Seasoning the Griddle(s)" procedure before the first use of the Crepe Maker. Make sure to wash all accessories before their first use.

Startup

1. Perform the "Lighting a Burner" procedure in this section, if necessary. WARNING! Never leave unit unattended during use.
2. Turn the Temperature Control counterclockwise to temperature setting "5".
3. The temperature setting for cooking crepes is between 390°F–450°F (200°C–230°C), which is approximately setting "5" on the Temperature Control.

CAUTION

BURN HAZARD:

• Some exterior surfaces on unit will get hot. Avoid unnecessary contact with unit.

• Do not come in contact with griddle during operation. Griddle is very hot.

• Allow the unit to preheat fully.

Griddle Ignition Button Temperature Control

Model KCMG-1RND

1. Spread a light coating of oil around the entire griddle surface.

NOTE: A cleaning pad for spreading the oil and cleaning the griddle surface is available as an accessory. See OPTIONS AND ACCESSORIES for details.

1. Pour a ladle of batter onto the griddle, and spread the batter using the included spreader.
2. Hold the spreader lightly and use a single gentle, circular motion around the entire griddle. Continue with the circular motion until the griddle is completely covered. Go back and fill holes/tears as they happen.

3. Allow the crepe to cook the appropriate amount of time on the first side, determined by the batter recipe. Cook time may need to adjusted after a few trial cooking cycles.

4. Carefully flip the crepe using the included spatula.

- Use the spatula to loosen the edges around the entire crepe before flipping.

NOTE: A metal spatula is available as an accessory. See OPTIONS AND ACCESSORIES for details.

1. Allow the crepe to cook the appropriate amount of time on the second side, determined by the batter recipe. Cook time may need to adjusted after a few trial cooking cycles.
2. Remove the crepe from the griddle using the spatula.
3. Continue to cook crepes by repeating steps 5–9 of this procedure.

- Wipe the griddle after every two crepes.

- If the crepes begin sticking, spread a small amount of oil around the griddle. Use additional oil on the griddle in between crepes as needed.

NOTE: During the first use of the crepe maker after the initial seasoning, spread a small amount of oil on the griddle surface in between each crepe.

Shutdown

1. Turn the Temperature Control fully clockwise to setting "0", and close the gas shut-off valve. WARNING! Always close gas shut-off valve when unit is not in use.

IMPORTANT NOTE

After shutting down a Gas Crepe Maker, a five minute waiting period is required before relighting. This allows potential gas buildup to clear.

1. Perform the "Daily Cleaning" procedure in the Maintenance section of this manual.

General

Gas Crepe Makers are designed for maximum durability and performance with minimum maintenance.

WARNING

Improper installation, operation, or maintenance of this equipment may result in property damage, serious injury, or death. Do not operate or service this equipment before reading and understanding the contents of this manual!

Turn temperature control to off ("0") position, close gas shut-off valve, and allow unit to cool before performing any cleaning, adjustments, or maintenance.

FIRE OR EXPLOSION HAZARD:

- Inspect moveable gas connector regularly. Replace immediately if any signs of wear are present.

- Verify flexible gas tubing has not exceeded its expiration date. Replace immediately if expired.

- Do not twist moveable gas connector.

- The unit and its individual gas shut-off valve must be disconnected and isolated from the gas supply piping system during any pressure testing of the system at test pressures in excess of 1/2 psi (3.5 kPa.).

- This unit must be isolated from the gas supply piping system by closing its individual gas shut-off valve during any pressure testing of gas supply piping system at test pressures equal to or less than 1/2 psi (3.5 kPa).

- If the information in these instructions is not followed exactly, fire or explosion may result causing property damage, personal injury, or death

- This unit must be serviced by qualified personnel only. Service by unqualified personnel may lead to explosion or burn.

- Use only Genuine Hatco Replacement Parts when service is required. Failure to use Genuine Hatco Replacement Parts will void all warranties and may subject operators of the equipment to hazardous conditions. Genuine Hatco Replacement Parts are specified to operate safely in the environments in which they are used. Some aftermarket or generic replacement parts do not have the characteristics that will allow them to operate safely in Hatco equipment.

Do not steam clean or use excessive water on unit.

This unit is not "jet-proof" construction. Do not use jet-clean spray to clean this unit.

DO NOT submerge or saturate with water. Unit is not waterproof. Do not operate if unit has been submerged or saturated with water.

This unit has no "user-serviceable" parts. If service is required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at 800-558-0607 or 414-671-6350.

CAUTION

BURN HAZARD: Allow unit to cool before performing any cleaning, adjustments, or maintenance.

Daily Cleaning

To preserve the finish of the unit as well as maintain performance, it is recommended that the unit be cleaned daily.

WARNING

Submerging or saturating unit with water may cause serious injury, will damage the unit, and void unit warranty.

NOTICE

For steel surfaces, use non-abrasive cleaners and cloths only. Abrasive cleaners and cloths could scratch finish of unit, marring its appearance and making it susceptible to soil accumulation.

Do not use harsh chemicals such as bleach, cleaners containing bleach, or oven cleaners to clean this unit.

Do not attempt to cool griddle quickly, such as by rinsing or immersing in water. Damage to griddle will occur.

Clean unit daily to avoid malfunctions and maintain sanitary operation.

1. Perform the "Shutdown" procedure in the OPERATION section of this manual, and allow the unit to cool. WARNING! Always close gas shut-off valve when unit is not in use.

2. Wipe the griddle using a clean, non-abrasive cloth.

NOTE: A cleaning pad for spreading the oil and cleaning the griddle surface is available as an accessory. See OPTIONS AND ACCESSORIES for details.

1. Wipe the frame of the unit with a non-abrasive cloth dampened in warm water and a mild soap. Stubborn stains may be removed with a good stainless steel cleaner. Hard to reach areas should be cleaned with a small brush and mild soap.

2. Wipe the frame of the unit thoroughly using a non-abrasive cloth dampened in warm water only.

3. Dry the frame of the unit using a clean, dry, non-abrasive cloth.

NOTE: Oil and fats will build up on the griddle surface over time. This eventually will begin affecting the performance of the Crepe Maker. An abrasive stone is available as an accessory (see OPTIONS AND ACCESSORIES). Use the abrasive stone to strip the griddle on a regular basis to maintain performance of the unit. The “Seasoning the Griddle(s)” procedure must be performed after stripping the griddle.

Converting Between Fuels

Conversion of a unit between natural gas and propane requires replacement of the orifice, adjustment to the air ring position, and adjustment to the low setting (setting "1") of the Temperature Control. This procedure must be performed by an authorized and certified gas equipment installer.

WARNING

Turn temperature control to off ("0") position, close individual gas shutoff valve, and allow unit to cool before performing any cleaning, adjustments, or maintenance.

FIRE OR EXPLOSION HAZARD: This unit must be serviced by qualified personnel only. Service by unqualified personnel may lead to explosion or burn.

1. If the unit already has been installed, turn the Temperature Control fully clockwise to setting "0", and close the gas shut-off valve. WARNING! Always close gas shut-off valve when unit is not in use.
2. If the unit already has been installed, remove the restraining device and disconnect unit from the gas supply line.
3. Turn over unit and set it on a piece of cardboard or something similar to prevent damage to the griddle surface.
4. Remove the base of the unit.
5. For round frame units:
   a. Unscrew and remove the three feet along with the restraining ring.
   b. Remove the screw on the gas line clamp.
   c. While holding the gas line, carefully slide the base out from underneath the gas line and off the unit.
6. For rectangular frame units:
   a. Remove the screws the secure the base plate to the frame.
   b. Remove the screw on the gas line clamp.
   c. Carefully pass the gas line through the rectangular cutout while sliding the base off of the unit.

Restraining Ring Foot Washer Clamp Screw Base Gas Line Gas Line Clamp

Removing the Base (KCMG-1RND shown)

1. Loosen the ring nut, and slide the air ring back toward the center of the unit to open the air intake as wide as possible.
2. Using a 10 mm wrench, remove the installed orifice and its washer.

• The propane orifice size is 160 μm.

• The natural gas orifice size is 250 μm.

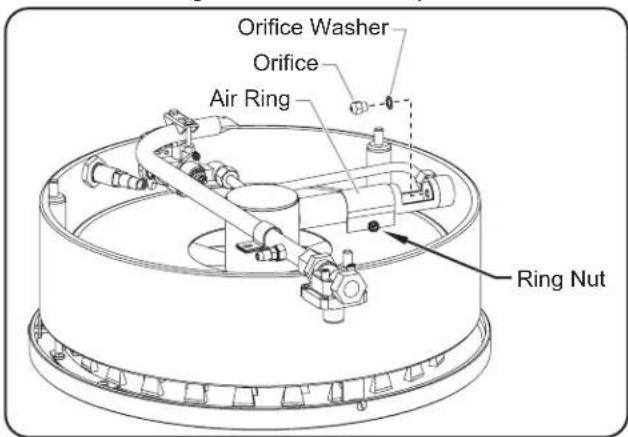

Orifice Washer Orifice Air Ring Ring Nut

Replacing the Orifice (KCMG-1RND shown)

1. Install the new orifice and its washer that were included in the conversion pack.

- Place the removed orifice and washer into the conversion pack for potential future use.

1. Position the air ring so that it creates an air gap of 1/2" (12 mm), measured from the front edge of the ring to the base of the orifice. Then, tighten the ring nut to secure it in position.

Air Ring Ring Nut 1/2" (12 mm) Air Gap

Setting the Air Gap (KCMG-1RND shown)

1. Reinstall the base of the unit.

2. For round frame units:
   a. While holding the gas line, carefully slide the base underneath the gas line and onto the unit.
   b. Reinstall the screw through the gas line clamp.
   c. Reinstall the restraining ring and three feet.

- For rectangular frame units:

a. Carefully pass the gas line through the rectangular cutout while sliding the base onto the unit.

b. Position the base on the frame and reinstall the screws.

c. Reinstall the screw through the gas line clamp.

1. Turn the unit over to its upright position, and connect the unit to the gas supply line. Refer to the INSTALLATION section for information.
2. Perform the "Adjusting the Low Setting" procedure in this section.

Adjusting the Low Setting

Adjustment to the low setting (setting "1") is necessary when converting a unit from one type of fuel to another. Proper adjustment to this setting is necessary to ensure that the burner flame does not go out when moving the Temperature Control rapidly between the highest and lowest setting. The low setting adjustment screw is located behind the Temperature Control knob.

1. Perform the "Lighting a Burner" procedure in this section.
2. Push in and turn the Temperature Control counterclockwise to the maximum setting of "10".

3. Leave the unit at this setting for 2–3 minutes.

4. Turn the Temperature Control clockwise to the lowest setting of "1".

5. Remove the Temperature Control knob by pulling straight out.

6. Using a small flat-bla screwdriver, make the appropriate changes to the adjustment screw setting:

de Knob

- Turning the adjustment screw counterclockwise increases the flame height. Turning the adjustment screw clockwise decreases the flame height.

- For proper adjustment on the lowest setting, the flame should be approximately a half a pin head above each burner hole.

Adjustment Screw

- For propane units: turn the adjustment screw fully clockwise.

- For natural gas units: while watching the burner flame beneath the griddle, turn the adjustment screw in 3/4-turn increments in the appropriate direction to reach the proper setting.

1. Replace the Temperature Control knob.

Safety Thermocouple

To ensure safe operation of the gas crepe maker, the end of the safety thermocouple must be positioned in the flame 1-1/16" (27 mm) above the mounting bracket.

Ignition Spark Plug

For proper ignition of the burner, make sure the ignition spark plug is positioned 1/8" (3 mm) above the safety thermocouple.

Spark Plug Mounting Bracket 1/8" (3 mm) 1-1/16" (27 mm) Safety Thermocouple

View of Burner

WARNING

This unit must be serviced by qualified personnel only. Service by unqualified personnel may lead to explosion or burn.

WARNING

Turn temperature control to off ("0") position, close gas shut-off valve, and allow unit to cool before performing any cleaning, adjustments, or maintenance.

Symptom Probable Cause Corrective Action
Unit turned “On”, but no heat.	Safety thermostat shut down unit after flame went out.	Refer to the OPERATION section of this manual:Perform “Shutdown” procedure.Wait five minutes for gas buildup to clear.Perform “Lighting a Burner” procedure.If unit still does not heat, perform “Shutdown” procedure and contact Authorized Service Agent or Hatco for assistance.
	Temperature Control, burner system, pressure regulator, or safety thermostat defective.	Contact Authorized Service Agent or Hatco for assistance.
Unit not hot enough.	Temperature Control setting too low.	Turn Temperature Control counterclockwise to increase the temperature setting.
	Temperature Control not calibrated properly.	Contact Authorized Service Agent or Hatco for assistance.
Unit too hot.	Temperature Control setting too high.	Turn Temperature Control clockwise to decrease the temperature setting.
	Temperature Control not calibrated properly.	Contact Authorized Service Agent or Hatco for assistance.
Unit not working at all.	Unit not turned on.	Review the “Lighting a Burner” and “Operating the Unit” procedures in the OPERATION section of this manual.
	Gas shutoff valve in closed position.	Open the gas shutoff valve, and perform the the “Lighting a Burner” and “Operating the Unit” procedures in the OPERATION section of this manual.
	Temperature Control, burner system, pressure regulator, or safety thermostat defective.	Contact Authorized Service Agent or Hatco for assistance.

Troubleshooting Questions?

If you continue to have problems resolving an issue, please contact the nearest Authorized Hatco Service Agency or Hatco for assistance. To locate the nearest Service Agency, log onto the Hatco website at www.hatcocorp.com, select the Support pull-down menu, and click on "Find A Service Agent"; or contact the Hatco Parts and Service Team at:

Telephone: [phone] or 414-671-6350

e-mail: [e-mail]

OPTIONS AND ACCESSORIES

General

The following accessories are availbale for Crepe Makers.

FLATSPREADER.....Flat spreader

RNDSPREADER.....Round, steel spreader

13.75SPATULA....13-3/4" (350 mm) metal spatula with plastic handle

CLEANPAD ....Cleaning pad with replaceable cleaning wipes

15PADREFILL......Cleaning wipes refill, 15 wipes

ABRSTONE ......Abrasive cleaning stone

1. PRODUCT WARRANTY

Hatco warrants the products that it manufactures (the "Products") to be free from defects in materials and workmanship, under normal use and service, for a period of one (1) year from the date of purchase when installed and maintained in accordance with Hatco's written instructions or 18 months from the date of shipment from Hatco. Buyer must establish the Product's purchase date by registering the Product with Hatco or by other means satisfactory to Hatco in its sole discretion.

Hatco warrants the following Product components to be free from defects in materials and workmanship from the date of purchase (subject to the foregoing conditions) for the period(s) of time and on the conditions listed below:

a) One (1) Year Parts and Labor PLUS One (1) Additional Year Parts-Only Warranty:

Conveyor Toaster Elements (metal sheathed)

Drawer Warmer Elements (metal sheathed)

Drawer Warmer Drawer Rollers and Slides

Strip Heater Elements (metal sheathed)

Display Warmer Elements (metal sheathed air heating)

Holding Cabinet Elements (metal sheathed air heating)

Heated Well Elements — HW and HWB Series (metal sheathed)

b) Two (2) Year Parts and Labor Warranty:

Induction Ranges

Induction Warmers

c) One (1) Year Parts and Labor PLUS Four (4) Years Parts-Only Warranty:

3CS and FR Tanks

d) One (1) Year Parts and Labor PLUS Nine (9) Years Parts-Only Warranty on:

Electric Booster Heater Tanks

Gas Booster Heater Tanks

e) Ninety (90) Day Parts-Only Warranty:

Replacement Parts

THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTY, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR PATENT OR OTHER INTELLECTUAL PROPERTY RIGHT INFRINGEMENT. Without limiting the generality of the foregoing, SUCH WARRANTIES DO NOT COVER: Coated incandescent light bulbs, fluorescent lights, heat lamp bulbs, coated halogen light bulbs, halogen heat lamp bulbs, xenon light bulbs, LED light tubes, glass components, and fuses; Product failure in booster tank, fin tube heat exchanger, or other water heating equipment caused by liming, sediment buildup, chemical attack, or freezing; or Product misuse, tampering or misapplication, improper installation, or application of improper voltage.

2. LIMITATION OF REMEDIES AND DAMAGES

Hatco's liability and Buyer's exclusive remedy hereunder will be limited solely, at Hatco's option, to repair or replacement using new or refurbished parts or Product by Hatco or a Hatco-authorized service agency (other than where Buyer is located outside of the United States, Canada, United Kingdom, or Australia, in which case Hatco's liability and Buyer's exclusive remedy hereunder will be limited solely to replacement of part under warranty) with respect to any claim made within the applicable warranty period referred to above. Hatco reserves the right to accept or reject any such claim in whole or in part. In the context of this Limited Warranty, "refurbished" means a part or Product that has been returned to its original specifications by Hatco or a Hatco-authorized service agency. Hatco will not accept the return of any Product without prior written approval from Hatco, and all such approved returns shall be made at Buyer's sole expense. HATCO WILL NOT BE LIABLE, UNDER ANY CIRCUMSTANCES, FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING BUT NOT LIMITED TO LABOR COSTS OR LOST PROFITS RESULTING FROM THE USE OF OR INABILITY TO USE THE PRODUCTS OR FROM THE PRODUCTS BEING INCORPORATED IN OR BECOMING A COMPONENT OF ANY OTHER PRODUCT OR GOODS.

Introduction......16

Thermostar Faster Bouton

1. GARANTIE DU PRODUIT

Byassee Equipment Co. Phoenix 602-252-0402

CALIFORNIA

Industrial Electric Commercial Parts & Service, Inc. Huntington Beach 714-379-7100

Chapman Appl. Service San Diego 619-298-7106

P & D Appliance Commercial Parts & Service, Inc. S. San Francisco 650-635-1900

COLORADO

Hawkins Commercial Appliance Englewood 303-781-5548

FLORIDA

Whaley Foodservice Repair Jacksonville 904-725-7800

Whaley Foodservice Repair Orlando 407-757-0851

B.G.S.I./Heritage Pompano Beach 954-971-0456

Comm. Appliance Service Tampa 813-663-0313

GEORGIA

Heritage Service Group Norcross 866-388-9837

HAWAII

Burney's Comm. Service, Inc. Honolulu 808-848-1466

Food Equip Parts & Service Honolulu 808-847-4871

ILLINOIS

Parts Town Addison 708-865-7278

Eichenauer Elec. Service Decatur 217-429-4229

Midwest Elec. Appl. Service Elmhurst 630-279-8000

Cone's Repair Service Moline 309-797-5323

IOWA

Goodwin Tucker Group Des Moines 515-262-9308

KENTUCKY

Tech 24 Lexington 859-254-8854

Tech 24 Louisville 502-451-5411

LOUISIANA

Chandlers Parts & Service Baton Rouge 225-272-6620

MARYLAND

Electric Motor Service Baltimore 410-467-8080

MASSACHUSETTS

Ace Service Co., Inc. Needham 781-449-4220

MICHIGAN

Bildons Appliance Service Detroit 248-478-3320

Commercial Kitchen Service Bay City 989-893-4561

Midwest Food Equip. Service Grandville 616-261-2000

MISSOURI

General Parts Kansas City 816-421-5400

Commercial Kitchen Services St. Louis 314-890-0700

Kaemmerlen Parts & Service St. Louis 314-535-2222

NEBRASKA

Anderson Electric Omaha 402-341-1414

NEVADA

Burney's Commercial Las Vegas 702-736-0006

Hi. Tech Commercial Service N. Las Vegas 702-649-4616

NEW JERSEY

Jay Hill Repair Fairfield 973-575-9145

Service Plus Flanders 973-691-6300

NEW YORK

Alpro Service Co. Maspeth 718-386-2515

Duffy's - AIS Buffalo 716-884-7425

3Wire Plattsburgh 800-634-5005

Duffy's - AIS Sauquoit 800-836-1014

J.B. Brady, Inc. Syracuse 315-422-9271

NORTH CAROLINA

Authorized Appliance Charlotte 704-377-4501

OHIO

Akron/Canton Comm. Svc. Inc. Akron 330-753-6634

Tech 24 Cincinnati 513-772-6600

Commercial Parts and Service Columbus 614-221-0057

Electrical Appl. Repair Service Brooklyn Heights 216-459-8700

E. A. Wichman Co. Toledo 419-385-9121

OKLAHOMA

Hagar Rest. Service, Inc. Oklahoma City 405-235-2184

OREGON

General Parts Group Portland 503-624-0890

PENNSYLVANIA

Elmer Schultz Services Philadelphia 215-627-5401

FAST Comm. Appl. Service Philadelphia 215-288-4800

AIS Commercial Parts and Service Pittsburgh 412-809-0244

K & D Service Co. Harrisburg 717-236-9039

Electric Repair Co. Reading 610-376-5444

RHODE ISLAND

Marshall Electric Co. Providence 401-331-1163

SOUTH CAROLINA

Whaley Foodservice Repair Lexington 803-996-9900

TENNESSEE

Camp Electric Memphis 901-527-7543

TEXAS

Armstrong Repair Service Houston 713-666-7100

Cooking Equipment Specialist Mesquite 972-686-6666

Commercial Kitchen Repair Co. San Antonio 210-735-2811

UTAH

La Monica's Rest. Equip. Service Murray 801-263-3221

VIRGINIA

Daubers Norfolk 757-855-4097

Daubers Springfield 703-866-3600

WASHINGTON

3Wire Seattle 800-207-3146

WISCONSIN

A.S.C., Inc. Madison 608-246-3160

A.S.C., Inc. Milwaukee 414-543-6460

CANADA

ALBERTA

Key Food Equipment Service Edmonton 780-438-1690

BRITISH COLUMBIA

Key Food Equipment Service Vancouver 604-433-4484

Key Food Equipment Service Victoria 250-920-4888

MANITOBA

Air Rite, Inc. Winnipeg 204-895-2300

NEW BRUNSWICK

EMR Services, Ltd. Moncton 506-855-4228

ONTARIO

R.G. Henderson Ltd. Toronto 416-422-5580

Choquette - CKS, Inc. Ottawa 613-739-8458

QUÉBEC

Choquette - CKS, Inc. Montreal 514-722-2000

Choquette - CKS, Inc. Québec City 418-681-3944

UNITED KINGDOM

Marren Group Northants [phone]

HATCO CORPORATION

P.O. Box 340500

Milwaukee, WI 53234-0500 U.S.A.

800-558-0607 414-671-6350

[e-mail]

www.hatcocorp.com

Register your unit online!

See IMPORTANT OWNER INFORMATION

section for details.
