USER MANUAL Sombrano S+ Glatz

Line drawing of a simple desk umbrella with adjustable arm and base (no text or symbols)

EN Installation and operating instructions 22

Line drawing of a folding umbrella with supporting fixtures and a 2x and 5x ratio indicators (no text or symbols)

1) Schirm auspacken

Lieferumfang:

Diagram showing a mechanical device with a red arrow indicating rotation or change, possibly illustrating a motion or assembly process.

2) Schirm ablegen

Diagram of a cylindrical container with particles inside, showing liquid level and downward arrow (no text or symbols)

Line drawing of a folding umbrella with supporting fixtures and a 2x and 5x ratio indicators (no text or symbols)

1

Déballer le parasol

Diagram showing a rotating drill bit with a red arrow indicating rotation direction, likely illustrating a mechanical or electrical process.

2

Diagram of a cylindrical container with particles inside, showing liquid level and downward arrow (no text or symbols)

3

Table of Contents Welcome

Welcome 23

Optional accessories 23

Technical data 23

Safety information 24

Installation and start-up 26

Use 28

Maintenance and care 30

Disassembly 30

Warranty 31

Disposal 31

Intended use

The product serves as a device for the protection of the human body from solar radiation. The product may only be used in private households, in the catering and hotel sector or in a comparable environment. The product may only be used in accordance with these installation and operating instructions. Any use other than the uses described in these installation and operating instructions shall be considered improper use. We reserve the right to make modifications due to technical advances. In these instructions the SOMBRANO S+ may also be referred to as «the product» or «parasol».

Warning words used

!DANGEROUS Immediately dangerous situation which can result in death or severe injuries.

!CAUTION Potentially dangerous situation which can result in minor or moderate injuries.

!NOTICE A situation that can lead to property damage.

23

Congratulations on the purchase of your new SOMBRANO S ^+ . You have purchased a high quality parasol. These instructions form part of this product. It contains important safety, usage and disposal information for users of the product. Please familiarise yourself with all the information listed before using the product. The product may only be used as described herein and for the use scenarios stated. If you continue to use it and care for it properly, your SOMBRANO S ^+ parasol will serve you well for many years to come.

Optional accessories

A high quality range of accessories is included with your parasol: It includes, among other things, the following products, which go perfectly with your parasol:

• Base
• Mounting plate
• Ground Socket
• Wall console
• OSYRIION Spot

Consult your GLATZ dealer about this.

Technical data

Size [cm]	Base area [ m^2 ]	Closing height [cm]	Passage height [cm]	Overall height [cm] closed / open
ø 350	9.6	90	205	285 / 285
ø 400	12.6	85	210	300 / 295
300 x 300	9	55	215	285 / 285
350 x 350	12.2	40	215	300 / 295
400 x 300	12	35	210	300 / 295

Details when using the M4 ground socket

Safety information

READ ALL THE SAFETY INFORMATION CAREFULLY AND MAKE SURE THAT YOU UNDERSTAND THEM.

• Follow all the instructions to avoid accidents, fire, explosions, electric shock or other hazards that could cause property damage and / or severe or fatal injuries.
• Ensure that each person using the product has read and observes these warnings and instructions.
• Keep these installation and operating instructions for the future. It must be passed on to subsequent users of the product.
• The manufacturer is not liable for material damages or injuries caused by incorrect use or the failure to observe the safety instructions. The warranty becomes invalid in such cases.
• The protective effect against hazardous UV radiation varies depending on the environment. Additional measures to protect your skin are possibly also necessary.
  • Children must not play with the product.
• !DANGER Always keep children away from packaging material - this constitutes a choking hazard. Children underestimate risks. This product is not a toy.
• Children aged 8 years or over and persons with reduced physical, sensory or mental capabilities, lack of experience or knowledge may only use the appliance if they are supervised by a person who is responsible for their safety or if they have been shown how to use the appliance safely and they have understood the risks inherent in its use. Cleaning and maintenance tasks may not be carried out by children without supervision.
• Do not use the device if you are suffering from a lack of concentration /attention or under the influence of drugs, alcohol or medication.
• The product must be placed in a base or a ground sleeve that is firmly anchored.
• Do not allow the product to fall or knock against anything.
• Check the span of the parasol before opening / closing it.
• Make sure there are no persons / objects in the movement area when opening / closing / tilting it. Otherwise, injuries / damage may occur.
• !DANGER Close the parasol when the wind picks up, in stormy weather conditions and / or when snow is falling.
• Observe the specifications concerning the maximum per-

missible wind speed for a fixed ground anchorage (ground sleeve inserted in concrete). The permissible wind speed is reduced if a different anchorage method is used.

• Unattended parasols may not remain opened. Always secure closed parasols with a binding belt.
• Only use original accessories / spare parts.
• Product and technical modifications are not permitted.
• The parasol must be monitored during opening and closing.
• The crank can be left in the crank holder when the parasol is open and closed. Store the removed crank in a place that is easily accessible at all times.
• Check parasol and accessories regularly to be sure that no undue wear and tear or damage has occurred. If defects are found, have them repaired before further use.
• Do not use any solvents or abrasive cleaning agents.
• Dismantled parasols should only be stored lying down.
• Improper use / storage can damage the fabric.
• When using a fixed floor anchorage, the installation must be performed by specially trained persons in accordance with the separate installation instructions.
• Do no ignite a naked flame in the proximity of, or under, the parasol.
• Do not place any objects on the parasol or attach them to the parasol.

Installation and start-up

Technical line drawing of a folding umbrella with supporting components and a 2x, 5x, and cross-sectional views (no text or symbols)

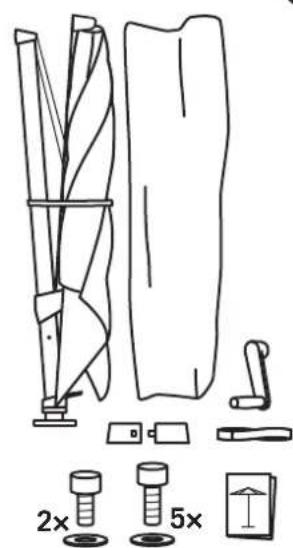

Unpacking the parasol

Scope of delivery:

• Parasol
• Crank
• Turnable base
• Tie strap (only with fabric quality 4 / 5)
• Protective cover
• 5 fixation screws M10 (ground fastenings)
• 5 washers
• 2 fixation screws M8 (fixation for turnable base)
• 2 washers
• 2 Allen keys
• Covering for turnable base
• Instructions for use

! Dispose of packaging material properly and keep away from children. Do not make use of defective material. In the event of any damage, inform the transport service provider immediately.

Diagram showing a rotating drill bit being cut with a red arrow indicating rotation (no text or symbols)

Placing the parasol down

Carefully place the parasol on a clean, horizontal surface. The parasol is very heavy. Work in a pair and hold the parasol tightly.

Prepare the floor fastening

Place the floor fastening in accordance with the separate instructions.

Diagram of a cylindrical container with particles inside, showing liquid level and downward arrow (no text or symbols)

Size [cm] | kg| | km/h (Bft.)	minimum weight	maximum wind speed*
ø 350 120 45 (6)
ø 400 180 35 (5)
300 x 300 120 45 (6)
350 x 350 180 35 (5)
400 x 300 180 35 (5)

* maximum wind speed when it is securely anchored in the ground.

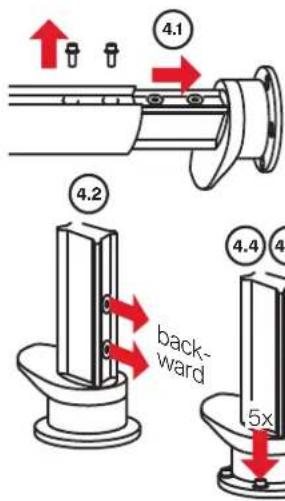

4.1 ④.2 backward 4.4 5x

Pre-assembling the turnable base

1. Remove the turnable base from the mast
2. Place the turnable base on the ground fastenings. The side with the two threaded holes must face the rear (away from the parasol roof)
3. Align hole pattern / position
4. Place the 5 washers
5. Pre-assemble the turnable base with 5 fixation screws
   ! The side with the two thread holes must face backwards (away from the parasol).

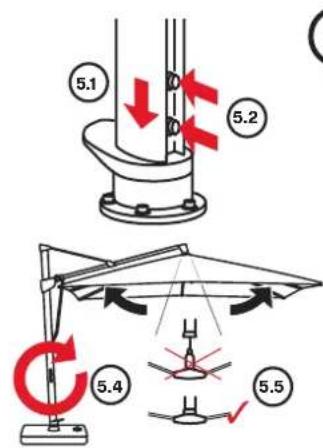

5.1 5.2 5.4 5.5

Pre-assemble parasol

1. Place parasol on turnable base
2. Screw the parasol firmly to the turntable base using 2 washers and 2 fixation screws (20 Nm)
3. Tie strap / loosen the closing strap, loosen the ribs and pull them slightly outwards
4. Mount the crank into the crank holder and open the parasol with the crank
5. Ensure that the inner parts engage with each other

! The parasol is very heavy. Work in a pair and hold the parasol tightly.

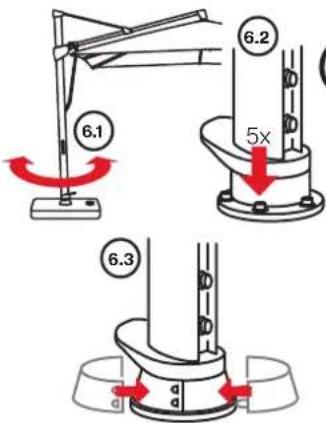

6.1 6.2 5x 6.3

Fixing the parasol in place

1. Final alignment of the parasol position
2. Tighten the 5 fixation screws (56 Nm)
3. Slide on the covering of the turn-table base on both sides, snap into place
4. Close the parasol

Use

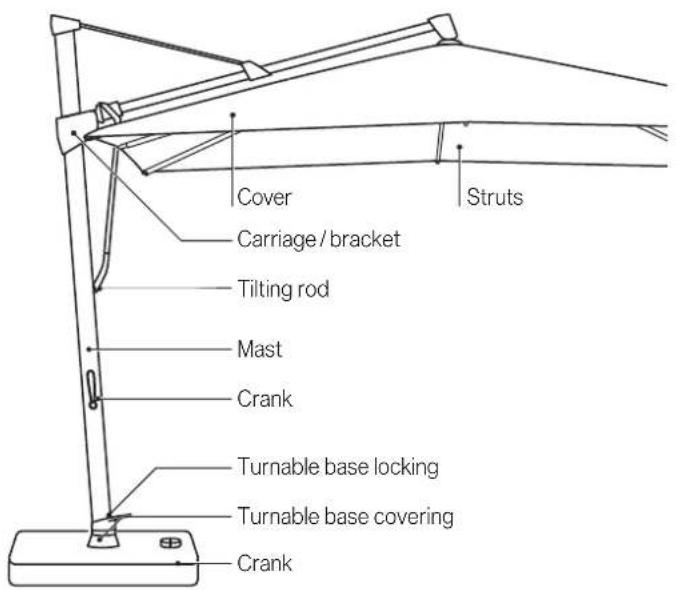

Cover Struts Carriage / bracket Tilting rod Mast Crank Turnable base locking Turnable base covering Crank

1

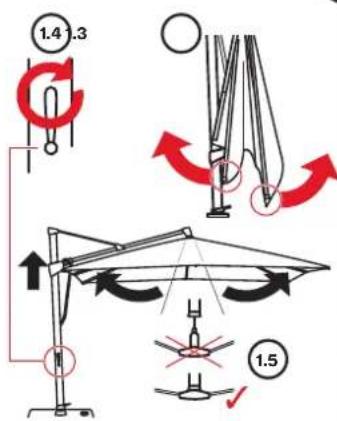

Opening the parasol

1. Remove any protective cover
2. Release binding belt / ribbon
3. Loosen the ribs and pull them slightly outwards
4. Mount the crank into the crank holder and open the parasol with the crank
5. Make sure that the inner parts are engaging

When opening/closing, do not rest your hand under/above the carriage. The parasol will be automatically aligned horizontally. For safe operation, the inner parts must be completely engaged.

1.4 1.3 1.5

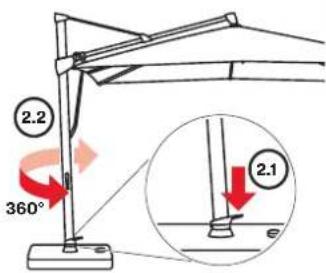

2.2 360° 2.1

2

Turning the parasol

1. Push down the locking mechanism of the turnable base
2. Turn the parasol on the mast to the desired position
3. Release the locking mechanism of the turnable base
4. Ensure that the parasol is fully locked in place
   ! Make sure that the parasol does not touch anything when twisting.

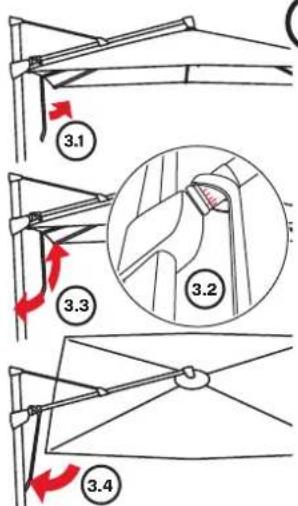

3.1 3.3 3.2 3.4

3

Adjusting the inclination

1. Pull the tilting rod out of the mast groove until the support arm is uncoupled
2. Select the desired inclination in the range of the scale, engage the tilting rod there
3. Turn the tilting rod back down towards the mast. The parasol roof tilts accordingly
4. Insert the tilting rod into the mast groove

Inclination only permissible within the scale. After adjusting the inclination, make sure that the tilting rod is securely engaged in the mast groove again.

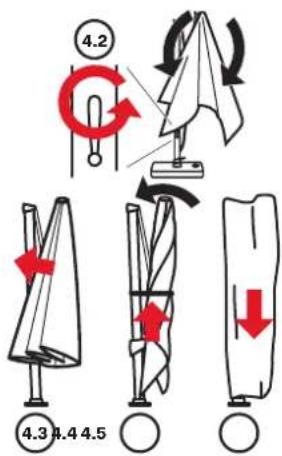

4.2 4.3 4.4 4.5

4

Close parasol

1. Parasol canopy in an upright position
2. Turn the crank until the parasol is closed
3. Pull out / wrap fabric segments
4. Apply binding belt/ribbon
5. Apply protective cover if necessary

! Only wrap / pack completely dry parasols.

Handling and maintenance

• Allow the parasol to dry when open to prevent the formation of mould and discolouration.
• A protective sleeve protects the parasol and will extend its service life.
• Only pull the protective sleeve over the dry parasol when it is dry.
• Do not clean the protective sleeve in the washing machine. Do not use chemicals.
• Recommendation: remove the crank before fitting the protective sleeve.
• Clean the parasol cover when needed with lukewarm water, fine detergents and a sponge.
• Do not use any bleach or sharp objects, to avoid damage to the cover.
• Check the tightness of all screws from time to time and tighten them if necessary.
• If the parasol is located in a highly exposed position, increased wear and tear must be expected. In such cases we recommend more intensive care and maintenance.
• In most cases, defective parasols can be repaired by your GLATZ partner. Only use original replacement parts FROM GLATZ.

Disassembly

Dismantle the parasol if it is not going to be used for a long time.

DANGER! DANGER OF TIPPING DANGER OF INJURY IF THE PARASOL TOPPLES OVER

1. Close and tie the parasol properly.
2. Dismantle the parasol in reverse mounting direction.
3. Store the parasol in lying position together with all accessories in a dry place.

Warranty

Please contact your GLATZ partner before returning the product. The warranty on the parasol lasts for 24 months from the date of purchase. The warranty expires in the following cases:

• External application of excessive force
- Inappropriate operation or maintenance of the parasol
• Damage arising from force majeure

The wind guarantee for an open parasol is limited. The maximum permissible wind speeds always require a fixed anchorage in the ground. If there are several parasols, a minimum distance of 20 cm must be maintained between any two of them. Likewise, a minimum distance of 20 cm must be maintained between the parasol and walls.

Disposal

This symbol on the product, accessories or packaging indicates that the product must not be treated as unsorted domestic waste but must be disposed of separately. Dispose of the product at a designated recycling collection point.

The packaging is made of environmentally friendly materials that can be disposed of at your local recycling facilities. By disposing of the product correctly, you will help to avoid possible environmental and health hazards. The product is made of metal and synthetic parts. End-of-life disposal must be carried out in accordance with regional environmental and waste regulations.

32

Indice

Benvenuti 33

Technical line drawing of a folding umbrella with supporting components and a 2x and 5x ratio indicators (no text or symbols present)

1) Disimballare l'ombrellone

In dotazione:

Diagram of a drill bit being adjusted to a rack, showing blade motion (no text or symbols)

2) Deporre l'ombrellone

6.1 6.2 5x

Technical line drawing of a folding umbrella with supporting components and a 2x and 5x ratio indicators (no text or symbols present)

Diagram of a drill bit being adjusted to a drill bit, showing motion direction (no text or symbols)

Diagram of a cylindrical container with particles inside, showing liquid level and a red arrow pointing downward (no text or symbols)

Technical line drawing of a folding umbrella with supporting components and a 2x and 5x ratio indicators (no text or symbols present)

Parasol uitpakken

Inhoud pakket:

Diagram of a mechanical tool with a rotating shaft and base, showing a red arrow indicating rotation direction (no text or symbols)

Parasol plaatsen

Diagram of a cylindrical container with particles inside, showing liquid level and downward arrow (no text or symbols)

Grootte minimum gewicht [cm] [kg] [km/h (Bft.)]

maximum windkracht*

∅ 350 120 45 (6)

∅ 400 180 35 (5)

300×300 120 45 (6)

350×350 180 35 (5)

400×300 180 35 (5)

Line drawing of a simple desk umbrella with adjustable arm and base (no text or symbols)
