USER MANUAL Automix 1801 Eibenstock

Green hexagonal logo with stylized letter 'E' (no text or symbols)

Original Instructions....12 - 20

Black industrial mixing press with a precision tool and circular base (no visible text or symbols)

Automix 1801

Wichtige Hinweise

Close-up of a mechanical device with arrows indicating force or movement, no visible text or symbols

Close-up of a mechanical component with a metallic bracket and a circular connector, showing a downward arrow (no text or symbols visible)

Mechanical assembly diagram showing a pipe fitting with a directional arrow (no text or symbols)

Close-up of a metallic mechanical component with two circular holes, no visible text or symbols

Close-up of a mechanical component with bolts and coiled tubing, mounted on a grid-patterned surface (no visible text or symbols)

Close-up of a mechanical component with a metallic fitting and a cylindrical part, no visible text or symbols

Close-up of a mechanical component with a white arrow pointing to a specific part (no visible text or symbols)

Close-up of a mechanical component with a curved arrow indicating rotation or adjustment (no visible text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Nur für EU-Länder

Handwritten signature or scribble on white background, possibly a signature or artistic mark

Lothar Lässig

General Manager

28.02.2017

Handwritten signature or scribble on white background

Frank Markert

Head of Engineering

Important Safety Instructions

Important instructions and warning notices are allegorized on the machine by means of symbols:

Three black-and-white warning symbols: a person reading, a warning triangle with an exclamation mark, and a person wearing glasses.

Before you start working, read the operating instructions of the machine.

Work concentrated and carefully. Keep your workplace clean and avoid dangerous situations.

In order to protect the user, take precautions.

During work you should wear ear protectors, goggles, protective gloves and sturdy work clothes!

Three circular icons showing a person wearing headphones, a person wearing sunglasses, and a hand waving (no text or symbols)

Wear ear protectors

Wear goggles

Wear protective gloves

While working with the Automix important:

During mixing process do not reach with your hand through the protective grid or put any object through. Physical hazard!

Technical Data

Automix 1801

Nominal voltage 230 V ~ 110 V ~
Power drain 1500 W 1400 W
Rated current 7,0 A 13,3 A
Order No. 07614 07615 / 07616

Frequency: 50 - 60 Hz

Rated speed 50 rpm

Batches up to: 50 kg

Stirrer holder: M 20, female thread

Protection class: II

Degree of protection: IP 20

Weight: approx. 26.5 kg

Interference suppression: acc. to: EN 55014 and EN 61000

Supply

Stirrer with stand, bucket, stirrer basket, protective shield and operation manual in cardboard box.

Intended Use

The Automix 1801 tool is intended be used to prepare and mix ready-mixed plaster, mortar and concrete as well as gypsum, lime and other building materials of medium to high viscosity and a maximum quantity of 50 kg.

General Instructions

The tool may be used only together with the stand supplied along with it. The tool's working spindle is equipped with a M20 female thread.

Thread and front surfaces must be kept clean.

When assemble the stirring rod put the ring supplied along with the tool between spindle and stirring rod to simplify the removal of the stirring rod.

The stirrer basket should be detached using a SW 27 open-end wrench.

Safety Instructions

Safe use of the tool is only possible if the user had studied the instruction manual and safety instructions completely and is strictly following the instructions contained therein.

Additionally, the general safety instructions of the leaflet supplied with the tool must be observed. Prior to the first use, the user should absolve a practical training.

If the mains cable gets damaged or cut during the use, do not touch it, but instantly pull the plug out of the socket. Never use the tool with damaged mains cable.

The tool must neither be wet nor used in humid environment.

• Prior to every use, check the tool and its cable and plug.
• Have damages only repaired by specialists. Insert the plug into the socket only when the tool switch is off.
• Ensure a safe state of the machine.
• Use the unit only in the open air and with a residual-current circuit breaker of max. 30 mA.
  ■ Never allow unattended work of the tool.
• Unplug the tool and make sure that the switch is off if the tool is not under supervision, e.g. during preparation and take-down works, at power failures, for insertion or mounting accessories.
• Unplug the tool if is stops for any reason. So you avoid sudden starts in unattended condition.
• Do not use the tool it its shell, switch, cable or plug are damaged.
• Electrical tools have to be inspected by a specialist in regular intervals.
• Do not touch rotating parts.
• Persons under 16 years are not supposed to use the tool.
• On using the tool, wear ear protectors and protective goggles.

For further safety instructions, see the enclosure.

Tool Assembly

Take the protective grid, stand with bucket, protective shield, draw bar, stirrer basket and accessories plastic bag out of the cardboard box.

Mechanical device with directional arrows indicating movement or force (no text or symbols visible)

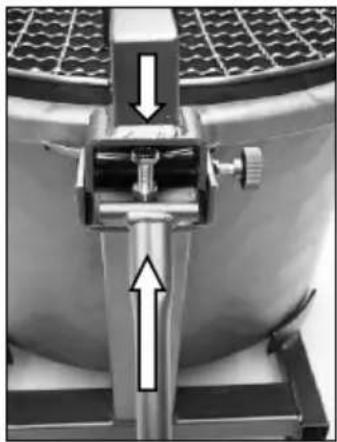

Fix the protective grid on the bucket and place the draw bar.

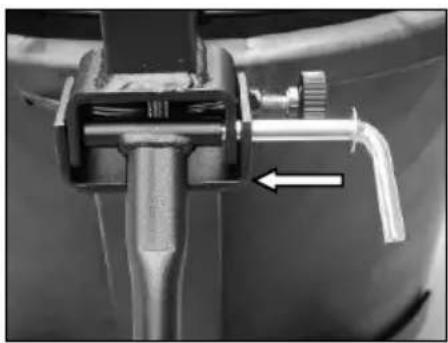

Fix the three components by means of the fixing bolt.

Close-up of a mechanical clamp or connector with a directional arrow indicating movement (no text or symbols visible)

Close-up of a mechanical component with a metallic bracket and a white arrow pointing to a detail (no visible text or symbols)

Secure the bolt by means of the split pin.

Fix the protector by means of the 6 Philips screws M5 x 10 and washers.

Close-up of a metallic mechanical component with two circular buttons and a curved top (no visible text or symbols)

Close-up of a mechanical device with attached tubing and bolts, mounted on a grid-patterned surface (no visible text or symbols)

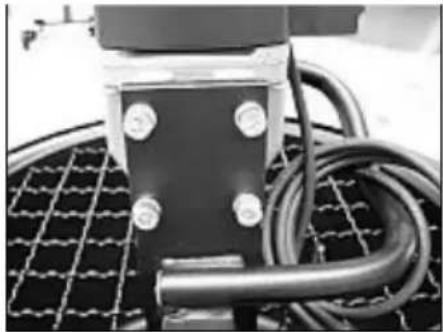

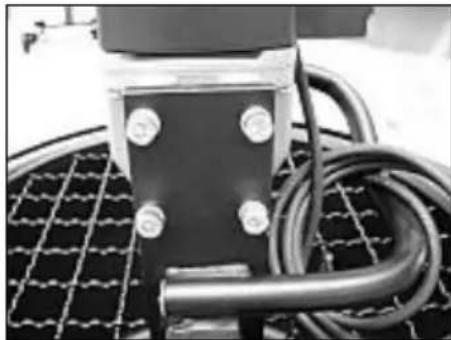

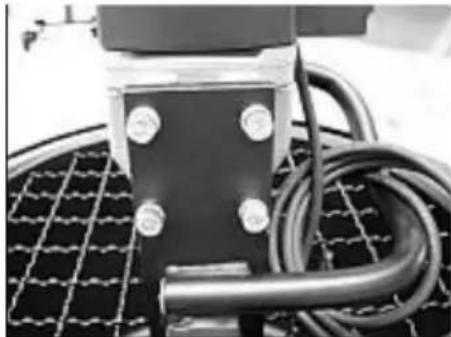

Fix the tool tightly to the stand by means of the 4 Allen screws M8 x 20 and the appropriate locking rings.

Put down the tool arm and insert the stirrer basket.

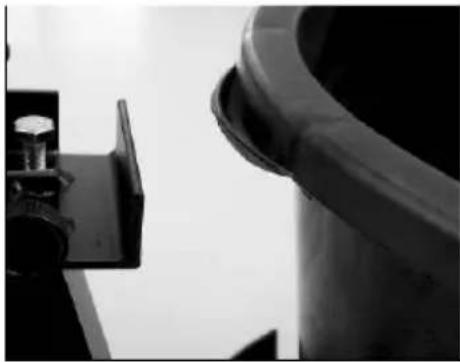

Place the bucket into the lower frame in such a way that one of its four handles snaps into the holder provided for that. So you avoid unintended turning of the bucket during the mixing process.

Close-up of a mechanical component with a cylindrical shaft and adjustment bracket (no visible text or symbols)

Readjustment of the machine holder

The Automix 1801 is preset at the factory to the optimal position of the stirring rods in the bucket.

This position can be readjusted as follows:

Close-up of a mechanical component with a white arrow pointing to a specific part (no visible text or symbols)

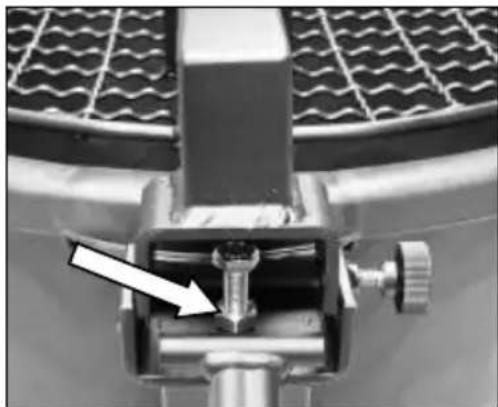

Loosen the hexagon nut with a jaw wrench size 17. Adjust the hexagon nut so that the stirring rod runs as far as possible parallel to the border of the bucket, but does not contact this. Hold the screw in this position by means of the jaw wrench and retighten the nut. Check the correct position.

Electrical Connection

Prior to putting the tool into operation, check the mains voltage for conformity with the requirements of the tool's nameplate.

Voltage variations between + 6 % and - 10 % are permissible.

The Automix 1801 tool was designed according to protection class II. Use only extension cords with a sufficient cable cross section (min. 2.5 mm ^4 ). Too small a cross section may result in loss of power and overheating of tool and cable.

Tool Protection

Inadequate use may result in damages.

Therefore, it is strictly required to observe the following instructions:

Use only stirring baskets recommended by the manufacturer.

Do not stress the tool to such a extend that it stops by itself.

In order to protect user and motor, the Automix is equipped with a mechanical overload protection.

In case of sudden blocking of the stirring rod, the mixing spindle is mechanically disengaged from the motor by means of a clutch.

In order to maintain the efficiency, the clutch should slide 2 seconds max. through. In case of considerable wear, it has to be replaced by an authorised service workshop.

Switching on and off

The tool may be started only with put-up and locked tool arm. After having the tool switched off, the locking may be opened and the tool arm put down only after the stirrer basket has stopped.

Use

Close-up of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols visible)

Insert the motor head with the stirrer basket into the bucket and lock it by turning the knurled screw in the direction of the arrow.

For insert the stirrer basket into the bucket, please see that the stirrer is positioned across the tool arm.

Prepare the mix as follows:

Always start the tool without load.

Depending on the material to be processed, proceed as follows:

Floor and Wall Tile Adhesives

Carefully read the instructions on the material bag.

To prepare the desired quantity of adhesive, fill the required quantity of water into the bucket.

Switch the tool on. Add the content of the first bag (25 kg) with a feed of approx. 10 kg/min through the protective grid into the bucket.

Continue to do so in an uninterrupted and regular way with the second bag (25 kg).

So you can avoid clumping of the mix.

If required, allow the adhesive to stand for 5 to 10 min, and then mix again for some minutes.

Cement

The stirrer is well suited to mix ready-mixed mortar, plaster and the like.

Automix is not designed to mix concrete or mortar with medium-size gravel and admixtures.

To prepare ready-mixed mortar or plaster, process as described in section 'Floor and Wall Tile Adhesives' above.

Since mortar is heavily hygroscopic, in view of excessive mix hardening it is necessary to carefully observe the quantities of adhesive, cement or additives for the desired mix.

Epoxy Resins

To process epoxy resins, it is necessary to check the viscosity and the specific weight of the mix to be prepared in order to avoid overload of the Automix tool.

Fill the quantities of resin, hardener and powder as advised by the producer into the bucket.

Carefully mix the components in order to avoid formation of bubbles or clumps

Paints

Fill the paint into the bucket and add the quantity of water or admixtures required for the solution.

IMPORTANT!

The use of chemicals or solvents may impair the properties of the bucket.

Before using the Automix tool, check the products to be mixed for compliance with the tool manufacturer's requirements.

Removal of the Bucket

Switch the tool off and wait until the stirrer basket has stopped.

Open the locking of the tool arm.

Move the tool arm out of the bucket.

Lift the bucket out of the holder of the stand.

Care and Maintenance

Repairs may be executed only by appropriately qualified and experienced personnel. After every repair the machine has to be inspected by an electric specialist. Due to its design, the machine needs a minimum of care and maintenance. However, the following points always have to be observed:

■ Always keep the power tool and the ventilation slots clean.
- During work, please pay attention that no particles get inside the machine.
- In case of failure, a repair has to be carried out by an authorised service workshop.

Environmental Protection

Raw material recycling instead of waste disposal

To avoid damages on transportation, the power tool has to be delivered in a sturdy packing. The packing as well as the tool and its accessories are made of recyclable materials which makes it possible to remove environmental friendly und differentiated because of available collection facilities.

Only for EU countries

Simple line drawing of a trash bin with no text or symbols

Do not dispose of electric tools together with household waste material!

In observance of the European Directive 2012/19/EC on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

Noise Emission / Vibration

The indication of noise emission is measured according to DIN 45 635, part 21. The level of acoustic pressure on the work place could exceed 85 dB (A); in this case protection measures must be taken.

Wear ear protectors!

The typical hand-arm vibration is below 2.5 m/s ^4 .

Measured values determined according to EN 60 745.

The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not

actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Warranty

According to our general terms of delivery for business dealings, suppliers have to provide to companies a warranty period of 12 months for redhibitory defects (to be documented by invoice or delivery note).

Damages due to natural wear, overstressing or improper handling are excluded from this warranty.

Damages due to material defects or production faults shall be eliminated free of charge by either repair or replacement.

Complaints will be accepted only if the tool is returned in non-dismantled condition to the manufacturer or an authorized Eibenstock service centre.

CE Declaration of Conformity

We declare under our sole responsibility that the product described under “Technical Data” is in conformity with the following standards or standardization documents:

EN 61 029-1

according to the provisions of the directives 2011/65/EU, 2014/30/EU, 2006/42/EG

Technical file (2006/42/EC) at:

Handwritten signature or scribble on white background, possibly a signature or artistic mark

Lothar Lässig

General Manager

Handwritten signature or scribble on a line, possibly a signature or artistic mark

Frank Markert

Head of Engineering

28.02.2017

FRANÇAIS

Voltage: 230 V ~
Puissance: 1500 W
Ampérage: 7,0 A

Mechanical device with directional arrows indicating motion or force (no text or symbols visible)

Close-up of a mechanical clamp or connector with a directional arrow indicating movement (no text or symbols visible)

Close-up of a mechanical component with a metallic bracket and a pull rod, no visible text or symbols

Close-up of a metallic mechanical component with two circular buttons (no visible text or symbols)

Close-up of a mechanical component with bolts and coiled tubing, mounted on a grid-patterned surface (no visible text or symbols)

Close-up of a mechanical component with a cylindrical shaft and a small inset saw (no visible text or symbols)

Réajustement de la support machine

Close-up of a mechanical component with a metallic bracket and threaded shaft, showing a white arrow pointing to a specific part (no text or symbols visible)

Close-up of a mechanical component with a curved arrow indicating rotation or adjustment (no visible text or symbols)

Simple line drawing of a trash bin with no text or symbols

Handwritten signature or scribble on white background, possibly a signature or artistic mark

Lothar Lässig

General Manager

28.02.2017

Handwritten signature or scribble on a wavy line, possibly from a document or form

Frank Markert

Head of Engineering

NEDERLANDS

Close-up of a mechanical device with directional arrows indicating movement or force (no text or symbols visible)

Close-up of a mechanical clamp or connector with a directional arrow indicating movement (no text or symbols visible)

Close-up of a mechanical component with a metallic bracket and a pull rod, no visible text or symbols

Zet de bout vast d.m.v. de splitpin.

Bevestig de bescherming d.m.v. de 6 Philips schroeven M5 x 10 en sluitringen.

Close-up of a metallic mechanical component with two circular buttons (no visible text or symbols)

Close-up of a mechanical component with bolts and coiled tubing, mounted on a grid-patterned surface (no visible text or symbols)

Close-up of a mechanical component with a cylindrical shaft and flange, no visible text or symbols

Close-up of a mechanical device with a metallic component and a white arrow pointing to a specific part (no visible text or symbols)

Close-up of a mechanical component with a curved arrow indicating rotation or motion (no visible text or symbols)

Simple line drawing of a trash bin with no text or symbols

Handwritten signature or scribble on a line, possibly from a document or form

Frank Markert

Head of Engineering

28.02.2017

DANSK

Batches up to: 50 kg

Gevind til stav: M 20, omvendt gevind

Close-up of a mechanical device with arrows indicating upward movement or force direction (no text or symbols visible)

Close-up of a mechanical pipe fitting with a directional arrow indicating movement (no text or symbols)

Close-up of a mechanical component with a metallic bracket and a pull rod, showing no visible text or symbols.

Close-up of a metallic mechanical component with two screws, no visible text or symbols

Close-up of a mechanical device with attached tubing and bolts, mounted on a grid-patterned surface (no visible text or symbols)

Close-up of a mechanical component with a cylindrical shaft and adjustment bracket (no visible text or symbols)

Close-up of a mechanical component with a white arrow pointing to a specific part, no visible text or symbols.

Close-up of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols visible)

While working with the Automix important:

During mixing process do not reach with your hand through the protective grid or put any object through. Physical hazard!

Pleje og pasning

Symbol of a trash bin with no text or labels

Kun for EU lande

Handwritten signature or scribble on white background, possibly a signature or artistic mark

Lothar Lässig

General Manager

28.02.2017

Handwritten signature or scribble on white background

Frank Markert

Head of Engineering

Close-up of a mechanical device with directional arrows indicating movement or force (no text or symbols visible)

Close-up of a mechanical clamp or connector with a directional arrow indicating movement (no text or symbols visible)

Close-up of a mechanical component with a metallic bracket and a white arrow pointing to a detail (no visible text or symbols)

Close-up of a metallic mechanical component with two circular buttons and a curved top (no visible text or symbols)

Close-up of a mechanical device with metal components and coiled tubing on a grid-patterned surface (no visible text or symbols)

Close-up of a mechanical component with a metallic bracket and cylindrical shaft (no visible text or symbols)

Close-up of a mechanical component with a white arrow pointing to a specific part (no visible text or symbols)

Close-up of a mechanical lever mechanism with a curved arrow indicating rotation (no text or symbols visible)

Simple line drawing of a trash bin with no text or symbols

Handwritten signature or scribble on white background, possibly a signature or artistic mark

Lothar Lässig

General Manager

28.02.2017

Handwritten signature or scribble on a wavy line, possibly from a document or form

Frank Markert

Head of Engineering
