USER MANUAL TBOX-QUAD4 IBIZA SOUND

Black box-mounted laser unit with four circular light sources and a remote control (no visible text or symbols)

MANUAL

The triangle containing a lightning symbol is used to indicate whenever your health is at risk (due to electrocution, for example).

An exclamation mark in a triangle indicates particular risks in handling or operating the appliance.

CE The unit complies with CE standards

For indoor use only

Protection class I. Requires an earth connection

Minimum distance between the appliance and other objects

Don't stare into the light beam

CAUTION DO NOT OPEN THE HOUSING SHOCK HAZARD

IMPORTANT SAFETY INSTRUCTIONS AND DANGER WARNINGS

• Please read these instructions carefully, they include important information about the installation, usage and maintenance of this product.
• Please keep this User Guide for future reference. If you sell the unit to another user, be sure that he also receives this instruction booklet.
  • Always make sure that you are connecting to the proper voltage, and that the line voltage you are connecting to is not higher than that stated on the decal or rear panel of the fixture.
  • This product is intended for indoor use only!
  It is essential that the device is earthed. A qualified person must carry out the electric connection.
• To prevent risk of fire or shock, do not expose fixture to rain or moisture. Make sure there are no flammable materials close to the unit while operating.
• The unit must be installed in a location with adequate ventilation, at least 20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are blocked.
  • Always disconnect from power source before servicing or replacing fuse and be sure to replace with same fuse size and type.
• Secure fixture to fastening device using a safety chain. Never carry the fixture solely by its head. Use its carrying handles.
  • Maximum ambient temperature (Ta) is 104^ F ( 40^ C). Do not operate the fixture at temperatures higher than this.
• In the event of a serious operating problem, stop using the unit immediately. Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center. Always use the same type of spare parts.
• Don't connect the device to a dimmer pack.
  • Make sure the power cord is never crimped or damaged.
• Never disconnect the power cord by pulling or tugging on the cord.
• Avoid direct eye exposure to the light source while it is on.
  • The product is for decorative purposes only and not suitable as a household room illumination.
• The light source of this luminaire is not replaceable; when the light source reaches the end of its life, the entire luminaire must be replaced.
• DISCONNECT DEVICE: Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

INSTALLATION

Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and able to support a weight of 10 times of the unit's weight. Also always use a safety cable that can hold 12 times the weight of the unit when installing the fixture.

The equipment must be fixed by professionals at a place where is out of the reach of people and where nobody can pass by or under it.

FUSE REPLACEMENT

• With a flat head screwdriver wedge the fuse holder out of its housing.
• Remove the damaged fuse from its holder and replace with exactly the same type of fuse.
• Insert the fuse holder back in its place and reconnect power.
• The fuse is located inside this compartment. Remove using a flat head screwdriver.

FIXTURE LINKING

You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all fixtures on a serial data link determines the number of fixtures that the data link can support.

Important: Fixtures on a serial/data link must be daisy chained in one single line. Maximum recommended serial data link distance: 100 meters. Maximum recommended number of fixtures on a serial data link: 32 fixtures

CABLE CONNECTORS

Cabling must have a male XLR connector on one end and a female XLR connector on the other end.

DMX CONNECTOR CONFIGURATION

Termination reduces signal errors. To avoid signal transmission problems and interference, it is always advisable to connect a DMX signal terminator.

INPUT COMMON DMX+ DMX- OUTPUT

Resistance 120 ohm 1/4w between pin 2 (DMX-) and pin 3 (DMX+) of the last fixture.

CAUTION

Do not allow contact between the common and the fixture's chassis ground. Grounding the common can cause a ground loop, and your fixture may perform erratically. Test cables with an ohm meter to check correct polarity and to make sure the pins are not grounded or shorted to the shield or each other.

HOW TO CONTROL THE UNIT

Access control panel functions using the four panel buttons located directly underneath the LCD Display.

Button Function

MENU Used to access the menu or to return to a previous menu option

UP Scrolls through menu options in ascending order

DOWN Scrolls through menu options in descending order

ENTER Used to select and store the current menu or option within a menu

8.8.8.8. MENU UP DOWN ENTER

When a menu function is selected, the display will show immediately the first available option for the selected menu function. To select a menu item, press .

Master mode: any unit cans work for master fixture,

Slave mode: must be setting DMX address value for Slave.

DMX code setting: d1\~d512

MANUAL SETTING MODE ON LED DISPLAY

Mode Display Description
DMX mode Addr	8CH	d001-d512
	4CH
	4-1CH

3CH
Static colors Stat S 01-18 Static colors
Auto Auto Au 1-2 Auto program
Sound Soun So 1-2 Sound program
Speed SPEE SP 1-9 Speed
Mic Sensitivity SEnS SE 1-9 MIC sensitivity
Edit color Colo r000-255 Red (0-100%)
		g000-255	Green (0-100%)
		b000-255	Blue (0-100%)
		A000-255	Amber (0-100%)
Dimming	dIMM	dl1- dl 9	Master dimming
Silent scene	SILE	on/oFF	Silent scene by Sound program
Slave	SLAV	Slave	Slave
Infrared	InFr	on/oFF	Enable or disenable IR remote

IR REMOTE CONTROLLER

Please operate the remote control within a distance of 6m and 30° between the remote and the appliance. Aim the remote at the sensor. Remove all obstacles between the remote and the sensor.

The remote control might not work properly if the sensor is exposed to strong sunshine.

If the remote control doesn't work properly, please check the batteries.

BLACK OUT MODE

ON/OFF. Press BLACK OUT to return the last modes.

AUTO MODE

1. Press on the IRC.
2. Press <+> or <-> to choose between the different AUTO programs.

SOUND MODE

1. Press on the IRC.
2. Press <+> or <-> to choose between the different SOUND programs.

STROBE MODE

1. Press on the IRC.
2. Press <+> or <-> to adjust the strobe rate.
3. Press again to turn off the strobe.

SPEED MODE

1. Press on the IRC.
2. Press <+> or <-> to adjust the auto/sound program speed.

SENSITIVITY MODE

1. Press on the IRC.
2. Press <+> or <-> to adjust the microphone sensitivity value on the light.

DMX/% MODE: To enable DMX or disallow DMX on the product

MANUAL MODE

1. Press on the IRC.
2. Press , , , to choose your color.
3. Press <+> or <-> to choose static colors.

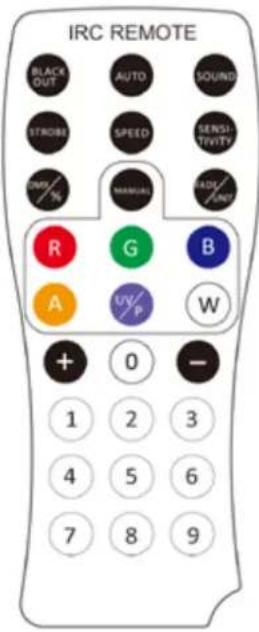

IRC REMOTE BLACK OUT AUTO SOUND STROBO SPEED SENSI TIVITY ON/ % MANUAL R G B A UV/P W + 0 - 1 2 3 4 5 6 7 8 9

FADE MODE

1. Press on the IRC.
2. Press < FADE > again to turn off the FADE.

NUMBER 1-9: Press digit <1> to <9> to change different brightness on the light.

INSTALLING THE BATTERIES IN THE REMOTE CONTROL

• Place the remote face down on a flat surface.
• Push the compartment cover into the direction of the arrow.
• Slide the battery compartment open.
• Remove the old battery and install the new one (CR2032) with the plus (+) symbol facing up.
  • Gently slide the battery compartment closed. It locks automatically.

RECOMMENDATIONS FOR BATTERIES

This symbol indicates that used batteries should not be disposed of with household waste but deposed correctly in accordance with your local regulations..

Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

When the internal batteries are not to be used, remove them to avoid damage caused by battery leakage or corrosion.

ATTENTION: Danger of explosion if battery is incorrectly placed. Only replace by the same or equivalent type.

WARNING : Do not swallow the battery. Danger of chemical burns. Keep new and old batteries out of the reach of children.

If the battery compartment doesn't close properly, stop using the product and keep it out of the reach of children.

If you are in doubt whether the batteries have been swallowed or introduced into any other part of the body, contact immediately a doctor.

FIXTURE CLEANING

The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit's optics.

• Clean with soft cloth using normal glass cleaning fluid.
  • Always dry the parts carefully.
• Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.

SPECIFICATIONS

Supply Voltage: 100-240V\~50/60Hz
Power: 18W
Consumption....15W
Light source: 4x 4W LED RGBA 4-in-1
Beam angle....25°
Flash-rate 0-20Hz
Fuse: 1A
Operating modes ...... DMX, Auto-run, Sound Control, Master-slave + remote control
Dimensions: 144 x 144 x 121mm
Weight: 1.3kg

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed.
