USER MANUAL ROLLING-EYE IBIZA SOUND

ibiza LIGHT

MINI WASH MOVING HEAD

Ref.

ROLLING-EYE

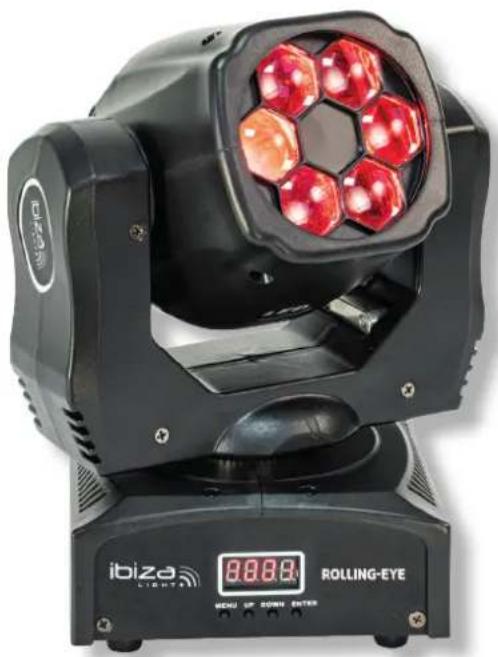

Black ROLLING EYE robot with red LED light and hexagonal headlight (no visible text or symbols on device body)

MANUAL

MINI WASH MOVING HEAD 6 X 12W RGBW

INSTRUCTION MANUAL

CONTENTS OF THE CARTON:

• 1 x Moving head
• 1 x omega bracket
• 1x Mains lead
• 1x User Manual

UNPACKING INSTRUCTIONS

Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present and have been received in good condition. Notify the freight company immediately and retain packing material for inspection if any parts appear to be damaged from shipping or the carton itself shows signs of mishandling. Keep the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing.

EXPLANATION OF SYMBOLS

The triangle containing a lightning symbol is used to indicate whenever your health is at risk (due to electrocution, for example).
An exclamation mark in a triangle indicates particular risks in handling or operating the appliance.
CE The unit complies with CE standards
For indoor use only
Protection class I. Requires an earth connection
Minimum distance between the appliance and other objects
Don't stare into the light beam

CAUTION DO NOT OPEN THE HOUSING SHOCK HAZARD

IMPORTANT SAFETY INSTRUCTIONS AND DANGER WARNINGS

• Please read these instructions carefully, they include important information about the installation, usage and maintenance of this product.
• Please keep this User Guide for future reference. If you sell the unit to another user, be sure that he also receives this instruction booklet.
  • Always make sure that you are connecting to the proper voltage, and that the line voltage you are connecting to is not higher than that stated on the decal or rear panel of the fixture.
  • This product is intended for indoor use only!
  It is essential that the device is earthed. A qualified person must carry out the electric connection.
  • To prevent risk of fire or shock, do not expose fixture to rain or moisture. Make sure there are no flammable materials close to the unit while operating.
• The unit must be installed in a location with adequate ventilation, at least 1.2m from adjacent surfaces. Be sure that no ventilation slots are blocked.
  • Always disconnect from power source before servicing or replacing fuse and be sure to replace with same fuse size and type.
• Secure fixture to fastening device using a safety chain. Never carry the fixture solely by its head. Use its carrying handles.
  • Maximum ambient temperature (Ta) is 35^ C. Do not operate the fixture at temperatures higher than this.
  • In the event of a serious operating problem, stop using the unit immediately. Never try to repair the unit by

yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center. Always use the same type of spare parts.

• Don't connect the device to a dimmer pack.
  • Make sure the power cord is never crimped or damaged.
• Never disconnect the power cord by pulling or tugging on the cord.
• Avoid direct eye exposure to the light source while it is on.

- The product is for decorative purposes only and not suitable as a household room illumination.

- The light source of this luminaire is not replaceable. When it reaches the end of its life time, the whole unit must be discarded.

- DISCONNECT DEVICE: Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

INSTALLATION

The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and able to support a weight of 10 times of the unit's weight. Also always use a safety cable that can hold 12 times the weight of the unit when installing the fixture.

The equipment must be fixed by professionals at a place where is out of the reach of people and where nobody can pass by or under it.

ORIENTATION

Mount the fixture only in horizontal position, with the head upwards or downwards, and adequate room for ventilation.

RIGGING

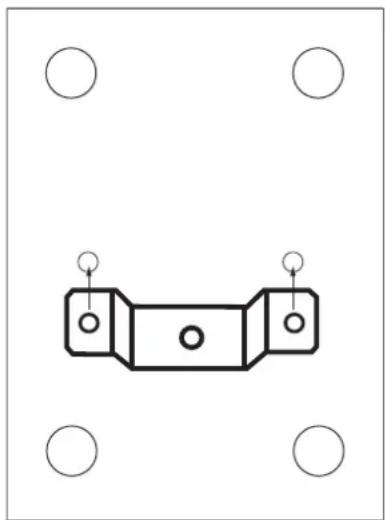

The LED moving head provides a unique mounting bracket assembly that integrates the bottom of the base, the included ‘omega bracket’ and the safety cable rigging point in one unit (see the illustration on the right). When mounting this fixture on a truss, be sure to use an appropriate clamp with the included omega bracket using a M10 screw fitted through the center hole of the ‘omega bracket’.

FUSE REPLACEMENT

• With a flat head screwdriver wedge the fuse holder out of its housing.
• Remove the damaged fuse from its holder and replace with exactly the same type of fuse.
• Insert the fuse holder back in its place and reconnect power.
• The fuse is located inside this compartment. Remove using a flat head screwdriver.

Pure electrical circuit lines without any symbols

FIXTURE LINKING

You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all fixtures on a serial data link determines the number of fixtures that the data link can support.

Important: Fixtures on a serial/data link must be daisy chained in one single line. Maximum recommended serial data link distance: 100 meters. Maximum recommended number of fixtures on a serial data link: 32 fixtures

CABLE CONNECTORS

Cabling must have a male XLR connector on one end and a female XLR connector on the other end.

DMX CONNECTOR CONFIGURATION

Termination reduces signal errors. To avoid signal transmission problems and interference, it is always advisable to connect a DMX signal terminator.

INPUT COMMON DMX+ DMX- OUTPUT

Resistance 120 ohm 1/4w between pin 2 (DMX-) and pin 3 (DMX+) of the last fixture.

CAUTION

Do not allow contact between the common and the fixture's chassis ground. Grounding the common can cause a ground loop, and your fixture may perform erratically. Test cables with an ohm meter to check correct polarity and to make sure the pins are not grounded or shorted to the shield or each other.

SETTING UP A DMX SERIAL DATA LINK

1. Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3 pin connector of the controller.
2. Connect the end of the cable coming from the controller which will have a (female) 3 pin connector to the input connector of the next fixture consisting of a (male) 3 pin connector.
3. Then, proceed to connect from the output as stated above to the input of the following fixture and so on.

MASTER/SLAVE FIXTURE LINKING

1. Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3 pin connector of the first fixture.
2. Connect the end of the cable coming from the first fixture which will have a (female) 3 pin connector to the input connector of the next fixture consisting of a (male) 3 pin connector. Then, proceed to connect from the output as stated above to the input of the following fixture and so on

Often, the set up for Master-Slave and Stand-alone operation requires that the first fixture in the chain be initialized for this purpose via either settings in the control panel or DIP-switches. Secondarily, the fixtures that follow may also require a slave setting. Please consult the "Operating Instructions" section in this manual for complete instructions for this type of setup and configuration.

OPERATING INSTRUCTIONS

NAVIGATION THROUGH THE CONTROL PANEL

Access control panel functions using the four panel buttons located directly underneath the LCD Display..

Button Function

MENU Used to access the menu or to return to a previous menu option

UP Scrolls through menu options in ascending order

DOWN Scrolls through menu options in descending order

ENTER Used to select and store the current menu or option within a menu

MENU
UP
DOWN
ENTER

When a menu function is selected, the display will show immediately the first available option for the selected menu function. To select a menu item, press .

MENU MAP

Press the button repeatedly until you reach the desired menu function. Use the and buttons to navigate the menu options. Press the button to select the menu function currently displayed or to enable a menu option. To return to the previous option or menu without changing the value, press the button. After a few seconds, the LED Display will back during operation until another button is pressed.

OPTION INSTRUCTION

A001-A512 DMX Address Setting

A1 1-A1 9 Auto Running Mode

S1 1-S1 9 Sound Control Mode, 1-9 is the sound sensitivity level

12 CHANNEL DEFINITION TABLE

12CH Function DMX Value Description
1	Pan	0-255	0-540° move
2	Tilt	0-255	0-180° move
3	P/T Speed	0-255	P/T Speed from fast to slow
4 Lens Wheel Rotation		0-127 0-360° rotate
		128-191 Forward endless rotation from slow to fast
		192-255 Reverse endless rotation from slow to fast
5 Dimmer	0-255 Linear dimmer from dark to bright
6 Strobe		0-9 No Function
		10-255 Strobe from slow to fast
7 Red	0-255 Red dimmer from dark to bright
8 Green	0-255 Green dimmer from dark to bright
9 Blue	0-255 Blue dimmer from dark to bright
10 White	0-255 White dimmer from dark to bright
11 Macro Function		0-50 CH1-CH1 Valid
		51-150 Random Auto Running
		150-255 Sound Control
12 Reset		0-250 None
		251-255 Reset after 3s

FIXTURE CLEANING

The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit's optics.

• Clean with soft cloth using normal glass cleaning fluid.
  • Always dry the parts carefully.
• Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.

SPECIFICATIONS

Power supply....100-240V\~50/60Hz

Consumption....120W

Fuse 2A

Light source 6 x 12W 4-in-1 CREE led's

Color temperature....White 7000°K

Brightness....3200 Lux full color @ 1m/2494 Lux full color @ 3m

Beam angle....2°

Protection....IP20

DMX channels 12

Movements....Pan: 540° ; Tilt: 180° (16 bit)

Strobe 20 flashes/sec.

Dimmer 0-100%

Dimensions 20.5 x 15 x 27cm

Weight....2.58kg

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed.
