USER MANUAL DCM-03 MSW

DRAIN CLEANING MACHINE

DE	Produktname:	Rohreinigungsgerät
EN	Product name:	Drain Cleaning Machine
PL	Nazwa produktu:	Maszyna do czyszczenia rur
CZ	Název výrobku	Čistička odpadů
FR	Nom du produit:	Déboucheur de canalisation
IT	Nome del prodotto:	Macchina sturatubi
ES	Nombre del producto:	Aparato para limpiar tuberías
HU	Termék neve	Duguláselhárító gép
DA	Produktnavn	Rørrenser
DE	Modell:	MSW-DCM-03
EN	Product model:
PL	Model produktu:
CZ	Model výrobku	MSW-DCM-05
FR	Modèle:
IT	Modello:	MSW-DCM-06
ES	Modelo:
HU	Modell
DA	Model
DE	Hersteller	expondo Polska sp. z o.o. sp. k.
EN	Manufacturer
PL	Producent
CZ	Výrobce
FR	Fabricant
IT	Produttore
ES	Fabricante
HU	Termelő
DA	Producent
DE	Anschrift des Herstellers	ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU
EN	Manufacturer Address
PL	Adres producenta
CZ	Adresa výrobce
FR	Adresse du fabricant
IT	Indirizzo del produttore
ES	Dirección del fabricante
HU	A gyártó címe
DA	Producentens adresse

Red portable electric fan device with black frame and three labeled connectors (no visible text or symbols)

MSW-DCM-05:

Red industrial water heater with black frame and three labeled parts (1, 2, 3), no visible text or symbols on the device itself.

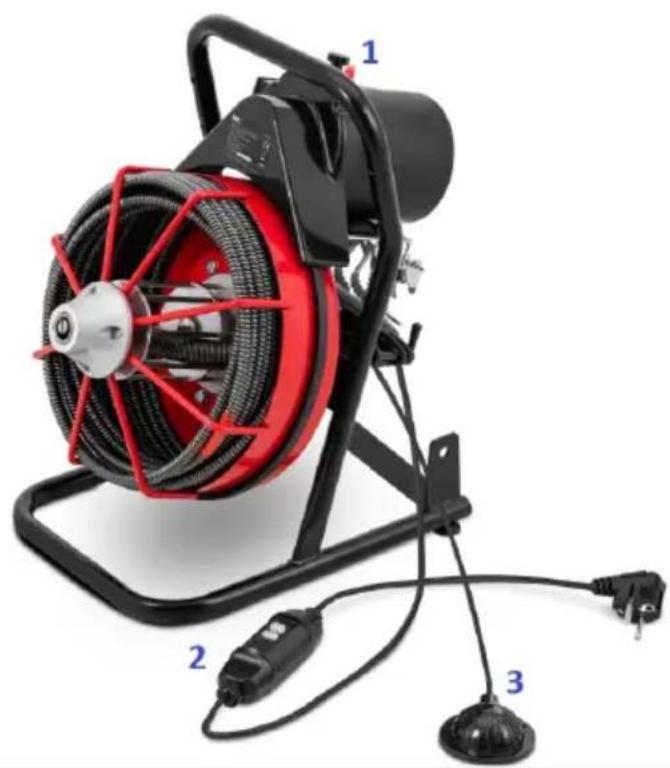

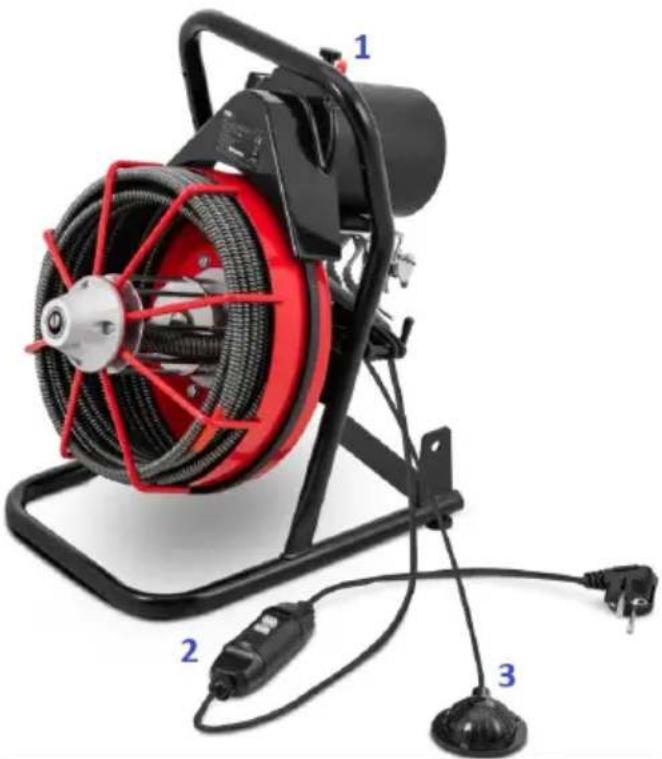

MSW-DCM-06:

Exterior view of a red and black electric fan with attached power cord and three labeled parts (1, 2, 3), no visible text or symbols on the device itself.

1 - Bedienknopf:

OFF FOR REV

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Drain cleaning machine
Model	MSW-DCM-03	MSW-DCM-05	MSW-DCM-06
Length x Width x Height [mm]	410 x 420 x 550	490 x 410 x 910	430 x 340 x 550
Voltage [V] / Frequency [Hz]	230V~/50Hz
Power [W]	390
Rotations/min.	400
Designed for pipes with a diameter of [mm]	32-100
Spiral diameter [mm]	12.7
Spiral length [m]	15
Device weight [kg]	31.4	35.6	29.6

1. General Description

This manual is intended to assist you for safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

CAREFULLY READ AND UNDERSTAND THIS MANUAL BEFORE STARTING THE WORK.

To ensure long and reliable operation of the device, make sure to operate and maintain it properly in accordance with the guidelines in this instruction manual. The technical data and specifications in this manual are up-to-date. The manufacturer reserves the right to make changes in order to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such

a way so that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

	The product complies with applicable safety standards.
	Read the manual before use.
	Recyclable product.
	CAUTION! or WARNING! or REMEMBER! describing a given situation (general warning sign).
	Wear protective goggles.
	Wear protective gloves.
	Wear protective head gear.
	Wear protective footwear.
	CAUTION! Risk of electric shock!
	CAUTION! Danger of crushing your hand!!

CAUTION! The figures in this manual are illustrative only and may vary in some details from the actual appearance of the product.

2. Safety of use

CAUTION!

Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or death.

The term "device" or "product" in the warnings and in the description of the instructions refers to

Drain cleaning machines.

2.1. Electrical safety

a) The plug of this device must fit into the outlet. Do not modify the plug in any way. Original plugs and matching outlets reduce the risk of electric shock.
b) Do not touch the device with wet or damp hands.
c) Do not use the cord in an unintended manner. Never use it to carry the device or to pull the plug out of the socket. Keep the cord away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cords increase the risk of electric shock.
d) When operating the product outdoors, use an extension cord designed for outdoor use. Using an extension cord designed for outdoor use reduces the risk of electric shock.
e) If you cannot avoid using the product in a wet environment, use a residual current device (RCD) to connect the product to electrical mains. Using an RCD reduces the risk of electric shock.
f) Do not use the appliance if the power cord is damaged or shows signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service department.
g) To avoid electric shock, do not immerse the cable, plug, or the appliance itself in water or other liquid. Do not use the appliance on wet surfaces.

2.2. Safety in the workplace

a) Keep the work area tidy and well lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing and use common sense when using the unit.
b) Do not use the unit in an explosive area, for example in the presence of flammable liquids, gases or dust.
c) If in doubt as to whether the product is working properly or found to be damaged, contact the manufacturer's technical service.
d) Repairs to the device may only be carried out by the manufacturer's service. Do not attempt to repair the product on your own!
e) In case of open flames or fire, use only dry powder or snow (CO2) fire extinguishers to extinguish the live equipment.
f) No children or unauthorized persons are allowed in the work area. (Inattention may result in loss of control of the unit.)
g) Use the unit in a well-ventilated area.
h) Check the condition of the safety stickers regularly. Replace them if they are illegible.

i) Keep these instructions for use for future reference. If the product is to be handed over to a third party, hand it over with this user manual.

j) Keep packaging components and small installation parts out of the reach of children.

k) Keep the device away from children and animals.

Remember! Keep children and other bystanders safe while operating the appliance.

2.3. Personal safety

a) Do not operate this device if you are tired, ill or under the influence of alcohol, drugs or medication that could impair your ability to operate the device.
b) The device is not intended to be used by persons (including children) with reduced mental, sensory or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the device.
c) The unit may be operated by persons who are physically fit, capable of operating it and appropriately trained, and who have read this instruction manual and have been trained in occupational safety and health.
d) Use caution and common sense when operating this unit. A moment's inattention during operation may result in serious personal injury.
e) Use personal protective equipment as required when operating the unit as specified in Section 1 of the explanation of symbols.

The use of appropriate, approved personal protective equipment reduces the risk of injury.

f) To prevent accidental start-up, make sure the switch is in the off position before connecting to a power source.
g) Do not wear loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts. Loose clothing, jewelry, or long hair can be caught in moving parts.
h) The product is not a toy. Children should be watched to ensure that they do not play with the product.
i) Do not place your hands or any objects inside the running device!

2.4. Safe use of the device

a) Do not overload the device. Use tools that are suitable for the application. A correctly selected product will do a better and safer job for which it was designed.
b) Unplug the unit before making adjustments, changing accessories, or putting it away. This precaution reduces the risk of accidental start-up.

c) Keep unused product out of the reach of children and anyone unfamiliar with the device or this manual. Products are dangerous when used by inexperienced users.

d) Keep the product in good working order. Check before each use for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the device). If damaged, have the device repaired before use.

e) Keep the product out of the reach of children.

f) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.

g) To ensure the designed operational integrity of the device, do not remove factory-installed covers or loosen screws.

h) When transporting or moving the device from storage to the place of use, observe the health and safety rules for manual handling applicable in the country where the device is used.

i) Avoid situations in which the device stops under heavy loads during operation. This can cause overheating of the drive elements and consequent damage to the equipment.

i) Do not leave the device switched on unattended.

k) Clean the device regularly to prevent permanent dirt build-up.

I) The product is not a toy. Cleaning and maintenance must not be performed by children without adult supervision.

m) Do not tamper with the device to alter its performance or design.

n) Keep the unit away from sources of fire and heat.

CAUTION! Although the product has been designed to be safe, with adequate safeguards, and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the unit. Caution and common sense are advised when using the product.

3. Instructions for use

The unit is intended for unblocking clogged pipes and drains only. It can be used in closed rooms and outdoors only in favorable weather conditions - it is forbidden to use the machine in conditions of high air humidity, as well as during rain/snowfall.

The product is intended for home use only!

The user is responsible for any damage resulting from misuse.

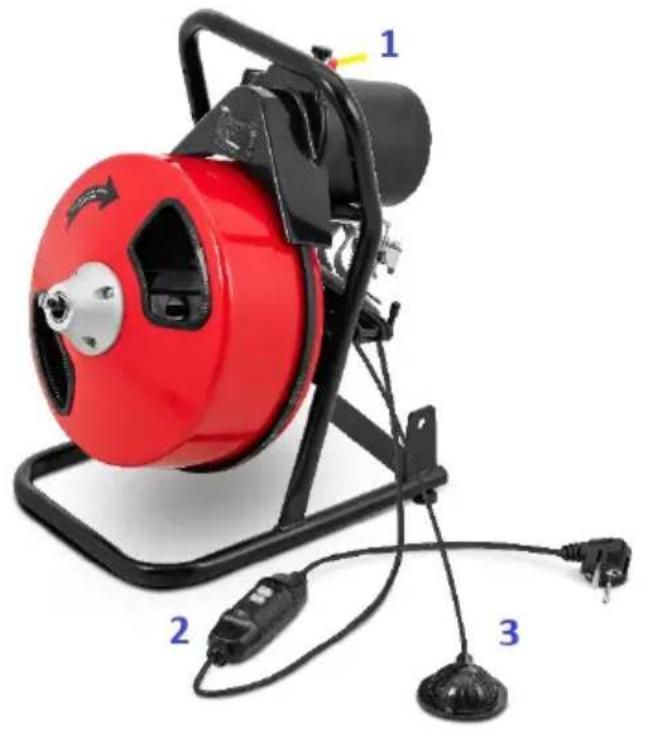

3.1. Product overview

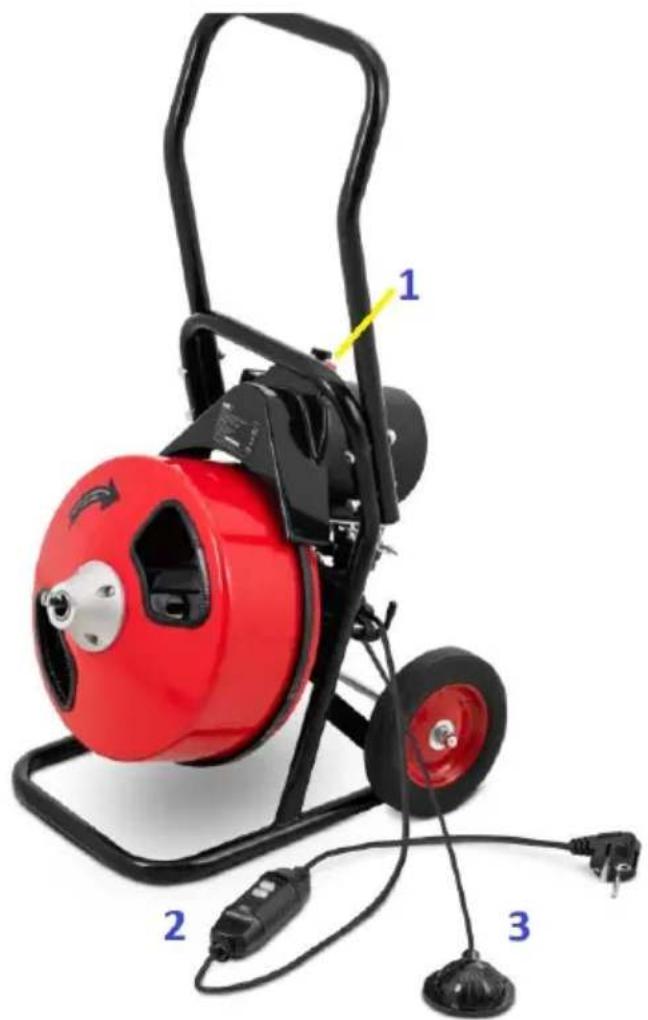

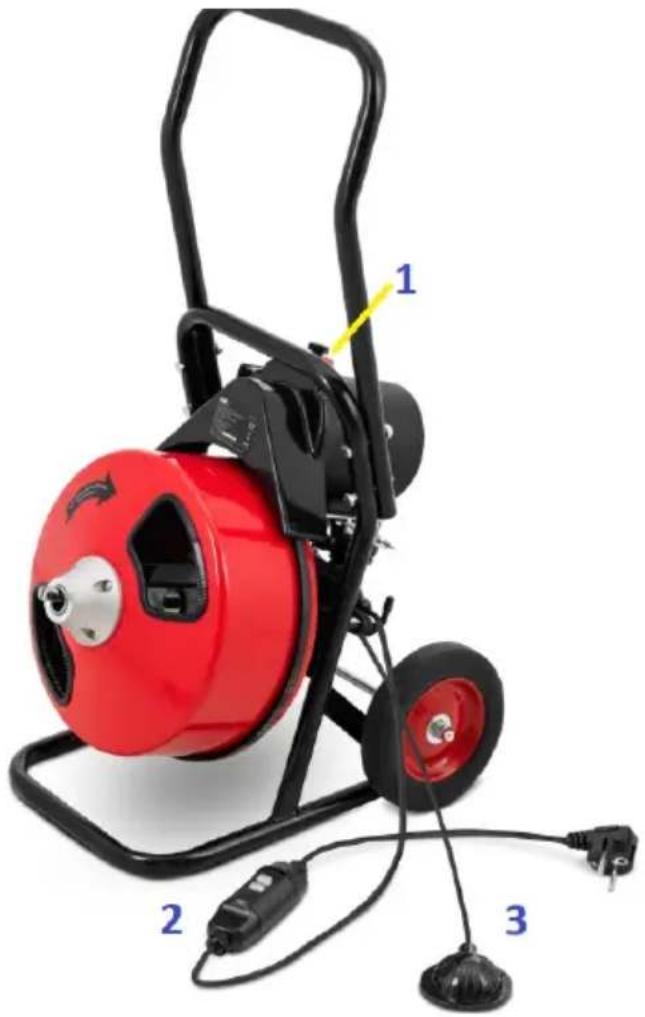

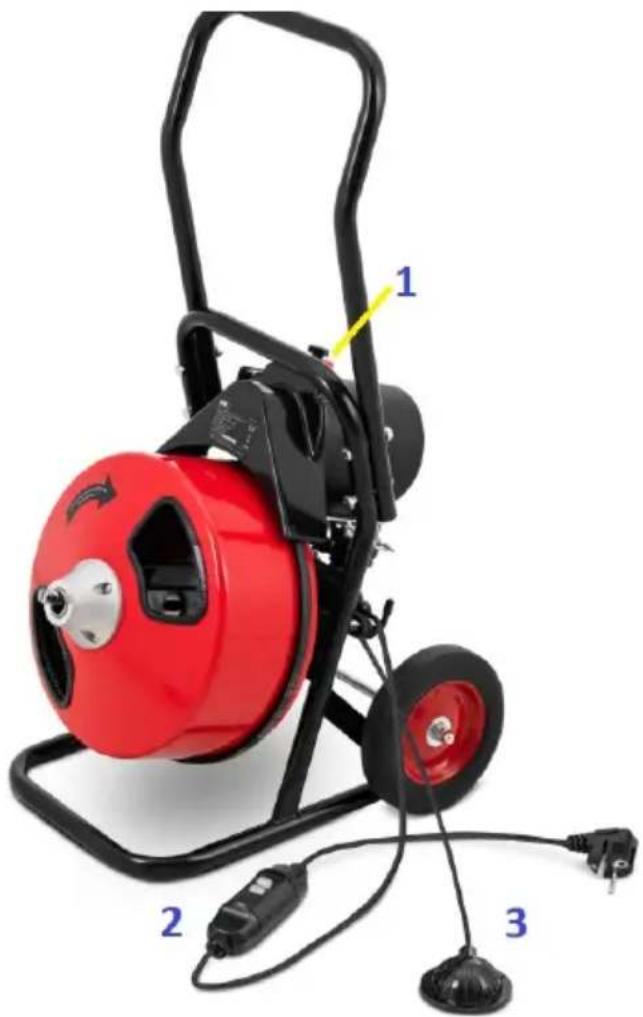

MSW-DCM-03:

Red portable electric fan device with black frame and three labeled connectors (no visible text or symbols)

MSW-DCM-05:

Red industrial water heater with black frame and three labeled components (no text or symbols visible)

MSW-DCM-06:

Exterior view of a red and black electric fan with attached power cord and three labeled parts (1, 2, 3), no visible text or symbols on the device itself.

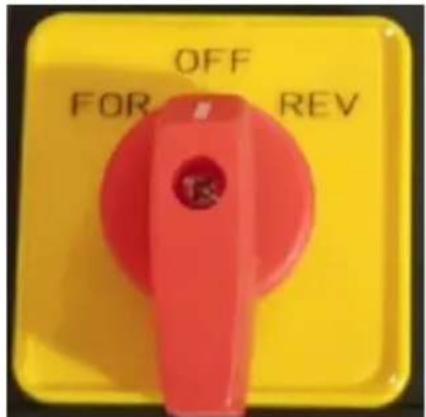

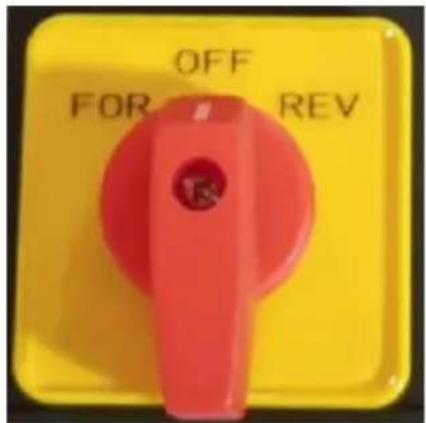

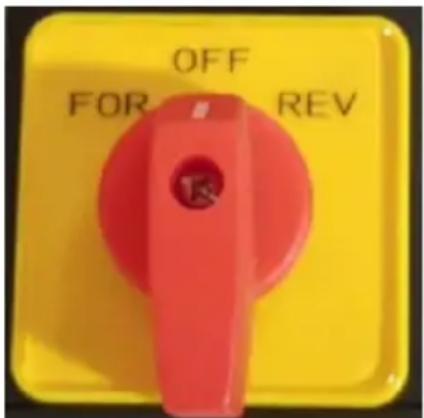

1 - Control knob:

OFF FOR REV

It is used to turn the device on/off and control the rotation direction of the spiral.

OFF: stop

FOR: "forward" rotation direction

REV: "reverse" rotation direction

CAUTION! Before connecting the machine to the power supply, check that the control knob is in the OFF position.

2 - Residual current device

3 - Foot switch

3.2. Preparation for operation

POSITIONING OF THE UNIT

The ambient temperature must not exceed 40^ and ambient humidity should not exceed 85% . Place the unit in a way that ensures good air circulation. Maintain a minimum clearance of 10 ~cm from any wall of the unit. Keep the unit away from any

hot surfaces. Always operate the unit on a level, stable, clean, fireproof and dry surface and out of the reach of children and persons of impaired mental, sensory and intellectual functions. Place the unit in such a way that the mains plug can be reached at any time. Ensure that the power supply to the unit corresponds to that specified on the identification plate!

3.3. Working with the unit

• Place the unit at a distance of approximately 0.6 m from the drain. If this is not possible, guide the spiral through the metal guide tube.
• Set the foot switch so that it is easily accessible. The machine is designed to be operated by one person. Make sure that you can quickly remove your foot from the switch in an emergency.

• Make sure the control knob is in the OFF position.

- Select the appropriate cutting tool.

- Remove the spiral from the drum/cage and insert it into the drain as far as it will go.

- Set the control knob to the FOR position.

- Keeping both hands (in leather gloves) on the spiral, press down the foot switch to start the machine.

- Insert the spiral into the drain with even pressure and adjust the feed rate to the encountered resistance. Do not press on the spiral with excessive force - the spiral may become damaged.

- Do not leave too much slack in the spiral as this will cause excessive oscillation. If the spiral begins to bend or twist too much, release pressure on the foot switch and turn the drum in the opposite direction to reduce cable twist. Push the excess spiral back into the drum and continue working.

- If there are problems with tight turns, try shifting the machine into reverse while applying constant pressure to the spiral. Do not run the engine in reverse for more than a few seconds as this may cause the spiral to become tangled or bent.

- When the spiral reaches the blocked area, allow it to slowly advance into the blocked area. This slow forward movement will reduce pressure on the cable while performing a more thorough cleaning. The back and forth activity often works best.

Tip: It is often helpful to use a small stream of water flowing in the line during and after machine operation to flush out clippings.

- Make sure that the cutting tool is not blocked during operation. This can cause the spiral to bend and break. When the spiral begins to twist in your hands, stop the machine and pull the spiral back. This will free the cutting tool from the obstruction. Then let the spiral move slowly forward until it stops.

• After the pipe is unblocked, the spiral should be withdrawn. Make sure the control knob is in the forward position. This is important to prevent the spiral from getting tangled in the drum or in the rope.
• Do not use reverse gear to pull the cable out of the drain. Running the machine in reverse may cause the cable to become tangled in the drum.
• When the cutting tool is close to the drain hole, remove your foot from the foot switch to stop the drum from turning. Never withdraw the cutting tool from the drain while the cable is rotating. The spiral can twist and cause serious injury.

3.4. Cleaning and maintenance

a) Pull the mains plug and let the unit cool down completely before cleaning, adjusting or replacing accessories and when the unit is not in use.
b) Pull out the mains plug before each cleaning and when the unit is not in use.
c) Use only non-corrosive cleaning agents for cleaning the surfaces.
d) After each cleaning, all parts should be thoroughly dried before the device is reused.
e) Store the unit in a dry and cool place protected from moisture and direct sunlight.
f) Do not spray the unit with a stream of water or immerse it in water.
g) Perform regular inspections of the unit, checking technical fitness and any damages.
h) Use a soft cloth for cleaning.
i) Do not clean the unit with acidic substances, medical agents, thinners, fuel, oils or other chemicals. It may cause damage to the device.

DISPOSAL OF USED UNITS.

At the end of its useful life, this product should not be disposed of with normal household waste but should be taken to a collection point for the recycling of electrical and electronic equipment. This is indicated by the symbol on the product, operating instructions or packaging. The materials used in this appliance are recyclable according to their marking. By reuse, recycling or applying other forms of use of waste machines, you make a significant contribution to the protection of our environment.

Your local administration will provide you with information about the appropriate disposal point for used appliances.

Red portable electric fan with black frame and three labeled connectors (no visible text or symbols)

MSW-DCM-05:

Red industrial water heater with black frame and three labeled parts (1, 2, 3), no visible text or symbols on the device itself.

MSW-DCM-06:

Red and black industrial fan with coiled cable and labeled parts (1, 2, 3), no visible text or symbols on the device itself.

OFF FOR REV

Red portable electric fan with black frame and three labeled connectors (no text or symbols visible)

MSW-DCM-05:

Red industrial water heater with black frame and three labeled parts (1, 2, 3), no visible text or symbols on the device itself.

MSW-DCM-06:

Red and black industrial fan device with attached wiring and three labeled parts (1, 2, 3), no visible text or symbols on the device itself.

OFF FOR REV

Red portable electric fan with black frame and three labeled connectors (no text or symbols visible)

MSW-DCM-05 :

Red industrial water heater with black frame and three labeled components (no text or symbols visible)

MSW-DCM-06 :

Exterior view of a red and black portable electric fan with attached power cord and terminal socket (no text or symbols visible)

OFF FOR REV

Red portable electric fan device with black frame and three labeled connectors (no visible text or symbols)

MSW-DCM-05:

Red industrial water heater with black frame and three labeled parts (1, 2, 3), no visible text or symbols on the device itself.

MSW-DCM-06:

Red and black industrial fan device with attached wiring and three labeled parts (1, 2, 3), no visible text or symbols on the device itself.

OFF FOR REV

Red portable electric fan with black frame and three labeled connectors (no text or symbols visible)

MSW-DCM-05:

Red industrial water heater with black frame and three labeled parts (1, 2, 3), no visible text or symbols on the device itself.

MSW-DCM-06:

Red and black industrial fan device with attached wiring and three labeled parts (1, 2, 3), no visible text or symbols on the device itself.

1 - Perilla de control:

OFF FOR REV

Red portable electric fan with black frame and three labeled connectors (no text or symbols visible)

MSW-DCM-05:

Red industrial water heater with black frame and three labeled components (no text or symbols visible)

MSW-DCM-06:

Exterior view of a red and black portable electric fan with attached power cord and terminal socket (no text or symbols visible)

1 - Vezérlőgomb:

OFF FOR REV

Red portable electric fan with black frame and three labeled connectors (no text or symbols visible)

MSW-DCM-05:

Red industrial water heater with black frame and three labeled components (no text or symbols visible)

MSW-DCM-06:

Red and black electric fan device with attached wiring and three labeled parts (1, 2, 3), no visible text or symbols on the device itself.

1 - Kontrolknap:

OFF FOR REV

APPARATETS PLACERING

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
