CERAMIC FAN HEATER

Introduction

Congratulations on the purchase of your new CERAMIC FAN HEATER, hereafter referred to only as "the product".

You have chosen a high-quality product. The user manual forms an integral part of this product. It contains important information on safety, operation and disposal. Prior to operation of the product, familiarise yourself with the product and all operation and safety notes. For this purpose, carefully read the following operation instructions and safety notes.

Only use the product as described and for the applications stated. Keep this manual in a safe place. If you hand the product on to third parties, all documentation must be passed on as well.

Intended use

The product can be used for short-term heating of rooms. The product can also be used as a fan with the heating function turned off.
The product is not suitable for use in rooms where special conditions exist, such as a corrosive or potentially explosive atmosphere (dust, vapour or gas).
- Do not use the product outdoors.
■ Any other use or modification of the product shall be deemed to be improper and entails a considerable risk of accidents.
The product is designed for household use; it is not suitable for commercial use.
The manufacturer accepts no liability for damages caused by improper use.

- Scope of delivery

After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packaging materials before use.

1 Ceramic fan heater
1 Short manual

Parts list

Before reading, unfold the pages containing the illustrations and familiarise yourself with all functions of the product.

(Fig. A)

1	Control light
2	Handle
3	Air outlet
4	Anti-slip feet
5	Tip-over protection
6	Air inlet
7	Mains cord with mains plug
8	Temperature controller
9	Heating level switch

• Technical data

Input voltage: 220-240 V~,50 Hz
Nominal power consumption: 1200 W
Low heating level: 700 W
High heating level: 1200 W
Fan operation: No heating power
Protection class: II/	☐

General safety instructions

BEFORE USING THE PRODUCT, FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, ALSO INCLUDE ALL THE DOCUMENTS!

In the case of damage resulting from non-compliance with these operating instructions the warranty claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

Children and persons with limitations

⚠ WARNING! DANGER OF DEATH AND ACCIDENTS FOR TODDLERS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation.

Children frequently underestimate the dangers. Always keep children away from the packaging material.

⚠️ CAUTION! This product is not a toy for children! Children are not aware of the dangers associated with handling electrical products.

Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the product provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the product or perform user maintenance.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

■ Children shall not play with the product.

- Cleaning and user maintenance shall not be made by children without supervision.

⚠️ DANGER! Risk of electric shock! Never attempt to repair the product yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.

⚠ WARNING! Risk of electric shock! Do not immerse the product's electrical components in water or other liquids. Never hold the product under running water.

⚠️ CAUTION! Risk of electric shock! Do not use if there are visible signs of damage to the product. Disconnect it from the power supply and contact your retailer in the event of damage.

⚠ WARNING! Risk of injury! Turn off the product and disconnect it from the power supply before cleaning and when the product is not in use.

⚠ WARNING! Improper use may result in personal injury. Use the product only as described in the user manual. Never attempt to alter the product in any way.

The product must not be located immediately below a socket-outlet.

• Do not use this product in the immediate surroundings of a bath, a shower or a swimming pool.
  ■ Use this product on an even, horizontal and stable surface.
  ■ Use the product in dry indoor rooms only.

Fire/burn hazard and heat

⚠️ CAUTION! Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

WARNING! In order to avoid overheating, do not cover the product.

⚠ WARNING! Do not use this product in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

⚠️ DANGER! To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m from the air outlet.

⚠️ DANGER! Fire hazard!

Do not cover the product's air vents. Make sure the product has sufficient ventilation. Do not place the product in a cabinet.

Do not operate the product near flammable materials such as curtains, furniture or other flammable materials.
- Keep the product at least 100 cm away from other objects (curtains, walls, etc.).
- Regularly remove dust and filth with a soft, dry cloth.
Before use, always check the air inlet and outlet for debris and dust. An unclean air inlet or outlet prevents air from flowing through. This may result in the product overheating.
Remove from the product's heating area all firm, liquid and gaseous materials that might ignite.
- Never insert any fingers or foreign objects into the product's openings.
■ NEVER touch the heating elements with your hands.
If you notice any smoke or unusual noises, immediately disconnect the product from the power supply. Have the product checked by a specialist before continued use.

In the event of a fire, first pull the plug from the power outlet or disconnect the product from the power supply before taking appropriate fire-fighting measures.
■ Never leave the product unattended while it is in use.

⚠️ DANGER! Fire hazard!

This product is not intended to be operated by means of an external timer or separate remote-control system. The product may be switched on, for example even when it is covered.

• Do not move the product while it is in operation or cooling down.
• Do not use the product anymore if it has been dropped.
• Do not operate the product close to or below curtains, wall cupboards or other inflammable materials.
  Place the product on a level, stable and heat resistant floor.
  Do not place any open fire sources, such as candles, on the product.
  ■ Never block the air outlet 3 or the air inlet 6.
• Do not use an extension cord.

Electrical safety

⚠ WARNING! Risk of electric shock! Use the product only with an RCD-protected socket-outlet.

The product may not remain unattended as long as it is connected to the power supply.
■ Make sure that the nominal voltage on the rating plate complies with the supply voltage.
The product has increased energy consumption. Do not connect any other devices (e.g. heaters, air conditioners, etc.) to the same circuit.
■ Shield the product, power cord and plug from dust, direct sunlight and dripping and splashing water.
- Protect the product from heat. Do not place the product in direct proximity to open flames or heat sources such as heaters, ovens or stoves.
- Protect the power cord from damage. Do not allow it to hang over sharp corners; do not crush or bend it. Keep the power cord away from any hot surfaces and open flames. Make sure that no one may accidentally pull on it or trip over it.

■ Regularly check power plug and power cord for damages.
- Do not operate the product if the power cord or power plug are damaged, if the product does not work or is damaged in any way.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Do not operate the product with wet hands or while standing on a wet floor. Do not touch the power plug with wet hands. Do not use the product in very humid environments.
■ Always turn off the product before disconnecting it from the power supply.
- Do not unplug the product by pulling on the power cord. Do not wrap the power cord around the product.
■ Make sure that the details on the rating label are in conformity with your mains voltage. Only connect the product to alternating current with an earthing contact as otherwise a protection against electric shock is not provided.

In the event of malfunctions, remove the mains plug from the mains socket.

Cleaning and storage

■ Disconnect the product from the wall outlet during periods of disuse and before cleaning.

Instructions on cleaning the product: see "Cleaning".

■ Store the product in a cool, dry place protected from sunlight and out of the reach of children.

- First set-up of the product

● Unpacking the product and basic cleaning

1. Take the product out of the packaging and remove all packaging materials and plastic wrappings.

2. Check to make sure that all listed parts are included (see "Scope of delivery").

3. Check whether the product and all parts are in good condition, if any damage or defect is detected, do not use the product, but follow the procedure described in chapter "Warranty".

4. Before first use, clean all parts of the product as described in the chapter "Cleaning".

Setting up the product

① INFO: The anti-slip feet 4 guarantee a secure stand of the product.

☐ Place the product on an even, horizontal and stable surface.

□ Maintain the following clearances around the product:

-30 cm to the left, right, top, and rear -100 cm to the front

Operation

i INFO: The product may give off some vapours or odours during first use. These are production or transport residue that will quickly subside. There may also be quiet noises such as clicking or crackling. These will also quickly subside once the plastic parts have finally adjusted to the operating conditions.

- Switching the product on

i INFO:

☐ Make sure that the supply voltage of the mains outlet meets the requirements described in the "Technical data" chapter.

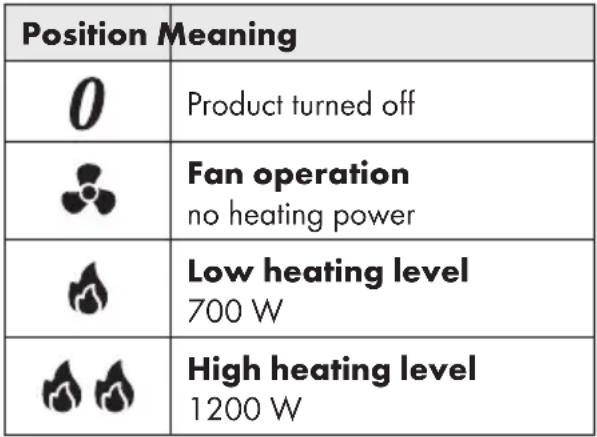

☐ If the heating level switch 9 is set to ♣, or position, the control light 1 is switched on.

☐ If the heating level switch 9 is set to 0 position, the control light 1 is switched off.

1. Set the temperature controller 8 to 9 and the heating level switch 9 to 0

2. Connect the mains plug 7 to an RCD-protected mains outlet.

3. Switching on: Turn the heating level switch 9 clockwise to select the desired position. The adjustable positions are shown in the table below:

i INFO: Set the temperature range to position (high) in fan operation mode (♣)

Setting the temperature

① INFO: The integrated thermostat automatically turns the heating function on and off to keep the temperature at a constant level.

1. Turn the temperature controller 8 clockwise until it stops to regulate the temperature at high or low heating level. The following table shows the adjustable temperature ranges:

Position Temperature range
	Low
	Low to medium
	Medium to high
	High

1. As soon as the desired temperature has been reached, turn the temperature controller 8 counter-clockwise until you hear a clicking sound.

- Switching the product off

① INFO: If you have used the product at high or low heating power, let the product run in fan mode for about 30 seconds. This will prevent heat build-up in the housing.

1. Set the temperature controller 8 to and the heating level switch 9 to 0

2. Disconnect the mains plug 7 from the mains outlet.

Overheating protection

⚠️ DANGER! There is usually a reason for overheating! It can indicate a risk of fire!

i INFO:

☐ The product is equipped with overheating protection. If the product overheats, the heating element turn off automatically. However, the fan continues to run so that rapid cooling is achieved. The product turns on again automatically once it has cooled down properly.

☐ The tip-over protection 5 switches the product off automatically as soon as the product tips over.

1. Check whether the product is giving off sufficient heat:

-Is the product covered or is it too close to a wall or other obstruction?

-Is the grid blocked in the front or at the back?

1. Rectify the problem if possible, or contact the service hotline (see "Service").

● Troubleshooting

Problem Cause Solution
The product cannot be turned on.	The mains plug 7 is not connected.	Connect the mains plug 7 to a mains outlet.
	The mains outlet does not deliver any voltage.	Check the house fuses.
	The tip-over protection 5 has been activated.	Let the product completely cool down.Place the product on an even, horizontal and stable surface.
The product does not heat up.	The heating level switch 9 is not turned on.	Set the heating level switch 9 to the desired operation mode.
	The temperature controller 8 is set to the lowest position.	Set the temperature controller 8 to the highest position.

- Cleaning

⚠️ DANGER! Risk of electric shock!

Before cleaning: Always disconnect the mains plug 7 from the mains outlet before cleaning the product.

⚠ WARNING! Never immerse the product in water or other liquids. Never hold the product under running water.

☐ Wipe down the product with a slightly damp cloth. If necessary, use a little cleaning detergent.
☐ Do not let any water or other liquids enter the product interior.
☐ Do not use any abrasive, aggressive cleaners or hard brushes to clean the product.
☐ Let all parts dry completely after cleaning.
☐ Use a vacuum cleaner to clean the safety guards of the air inlet 6 and the air outlet 3 when they have become dirty.

Storage

☐ Before storage: Let the product completely cool down.
☐ When not in use, store the product in its original packaging.
☐ Store the product in a dry, secure location away from children.

Transport

⚠ WARNING! Do not move the product while it is in operation or cooling down.

☐ Bring the handle 2 in position before carrying the product (Fig. A).
□ Carry the product by the provided handle 2 only.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.

Product:

FR + +

The product and packaging materials are recyclable and are subject to extended producer responsibility.

Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, rechargeable batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

● Warranty claim procedure

To ensure quick processing of your claim, observe the following instructions:

Make sure to have the original sales receipt and the item number (IAN 425863_2301) available as proof of purchase.

You can find the item number on the rating plate, an engraving on the product, on the front page of the user manual (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, contact the service department listed below either by telephone or by e-mail.

Once the product has been recorded as defective you can return it free of charge to the service address that will be provided to you. Ensure to enclose the proof of purchase (sales receipt) and a short, written description outlining the details of the defect and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

E-Mail: [e-mail]

Information requirements for electric local space heaters
Model identifier(s): Ceramic fan heater, SKHL 1200 B1, HG10190
Item Symbol Value Unit Item Unit
Heat output Type of heat input
Nominal heat output P	nom	1.2 kW		Manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	P_min	0.7 kW		Manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	P_max,c	1.2 kW		Electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				Fan assisted heat output No
At nominal heat output el	max	1.2 kW		Type of heat output/room temperature control
At minimum heat output el	min	0.7 kW		Single stage heat output and no room temperature control	No
In standby mode el	SB	0.0000 kW		Two or more manual stages, no room temperature control	No
				With mechanic thermostat room temperature control	Yes
				With electronic room temperature control	No
				Electronic room temperature control plus day timer	No
				Electronic room temperature control plus week timer	No

Information requirements for electric local space heaters
Model identifier(s): Ceramic fan heater, SKHL 1200 B1, HG10190
Item Symbol Value Unit Item	Unit
					Other control options
					Room temperature control, with presence detection	No
					Room temperature control, with open window detection	No
					With distance control option No
					With adaptive start control No
					With working time limitation Yes
					With black bulb sensor No
Contact details	OWIM GmbH & Co. KGStiftsbergstraße 174167 NeckarsulmGERMANY

Logos and icons for recycling, recycling, packaging, and open book, with a recycling symbol
