USER MANUAL The Dose Control Pro BCG600 SAGE

Exterior view of a modern coffee maker with a handle and control knob (no visible text or symbols)

ENUSER GUIDE

DEHANDBUCH

FRGUIDE UTILISATEUR

NLHANDLEIDING

ITMANUALE UTENTE

ESGUÍA DEL USUARIO

PTMANUAL DO UTILIZADOR

PLINSTRUKCJA OBSŁUGI

Sage®

CONTENTS

2 Sage® Recommends Safety First

5 Getting To Know Your New Appliance

6 Operating Your New Appliance

10 Care, Cleaning & Storage

11 Troubleshooting

12 Guarantee

SAGE®

RECOMMENDS SAFETY FIRST

At Sage® we are very safety conscious. We design and manufacture appliances with your safety foremost in mind. In addition, we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions.

IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS BEFORE USE AND SAVE FOR FUTURE REFERENCE

- A downloadable version of this document is also available at sageappliances.com

- Before using the first time ensure your electricity supply is the same as shown on the label on the underside of the appliance.

- Remove and safely discard any packaging materials before first use.

• To eliminate a choking hazard for young children, safely discard the protective cover fitted to the power plug.

- This appliance is for household use only. Do not use the appliance for anything other than its intended use. Do not use in moving vehicles or boats. Do not use outdoors. Misuse may cause injury.

- Fully unwind the power cord before operating.

- Position the appliance on a stable, heat resistant, level, dry surface away from the edge and do not operate on or near a heat source such as a hot plate, oven or gas hob.

- Do not let the power cord hang over the edge of a bench or table, touch hot surfaces or become knotted.

- Do not leave the appliance unattended when in use.

• Always ensure the appliance is turned OFF, unplugged at the power outlet and has been

WE RECOMMEND SAFETY FIRST

allowed to cool before cleaning, attempting to move or storing.

• Always turn the appliance to the OFF position, switch off at the power outlet and unplug at the power outlet when the appliance is not in use.
• Do not use the appliance if the power cord, plug, or appliance becomes damaged in any way. If damaged and maintenance other than cleaning is required please contact Sage Customer Service or go to sageappliances.com
• Any maintenance other than cleaning should be performed by an authorised Sage® service centre.
  • Children should not play with the appliance.
• Cleaning of the appliance should not be carried out by children unless they are 8 years or older and supervised.
• The appliance and its cord should be kept out of reach of children aged 8 years and younger.
• The installation of a residual current safety switch is recommended to provide additional safety when using all electrical appliances. Safety switches with a rated operating current not more

than 30mA are recommended. Consult an electrician for professional advice.

• Do not use attachments other than those provided with the appliance.
• Do not attempt to operate the appliance by any method other than those described in this booklet.
• Do not move the appliance whilst in operation.
• Do not touch hot surfaces. Allow the appliance to cool down before moving or cleaning any parts.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or a lack of experience and knowledge, only if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Do not operate the grinder without the hopper lid in position. Keep fingers, hands, hair, clothing and utensils away from the hopper during operation.

The symbol shown indicates that this appliance should not be disposed of in normal household waste.

It should be taken to a local authority waste collection centre designated for this purpose or to a dealer providing this service. For more information, please contact your local council office.

To protect against electric shock, do not immerse the power plug, cord or appliance in water or any liquid.

FOR HOUSEHOLD USE ONLY SAVE THESE INSTRUCTIONS

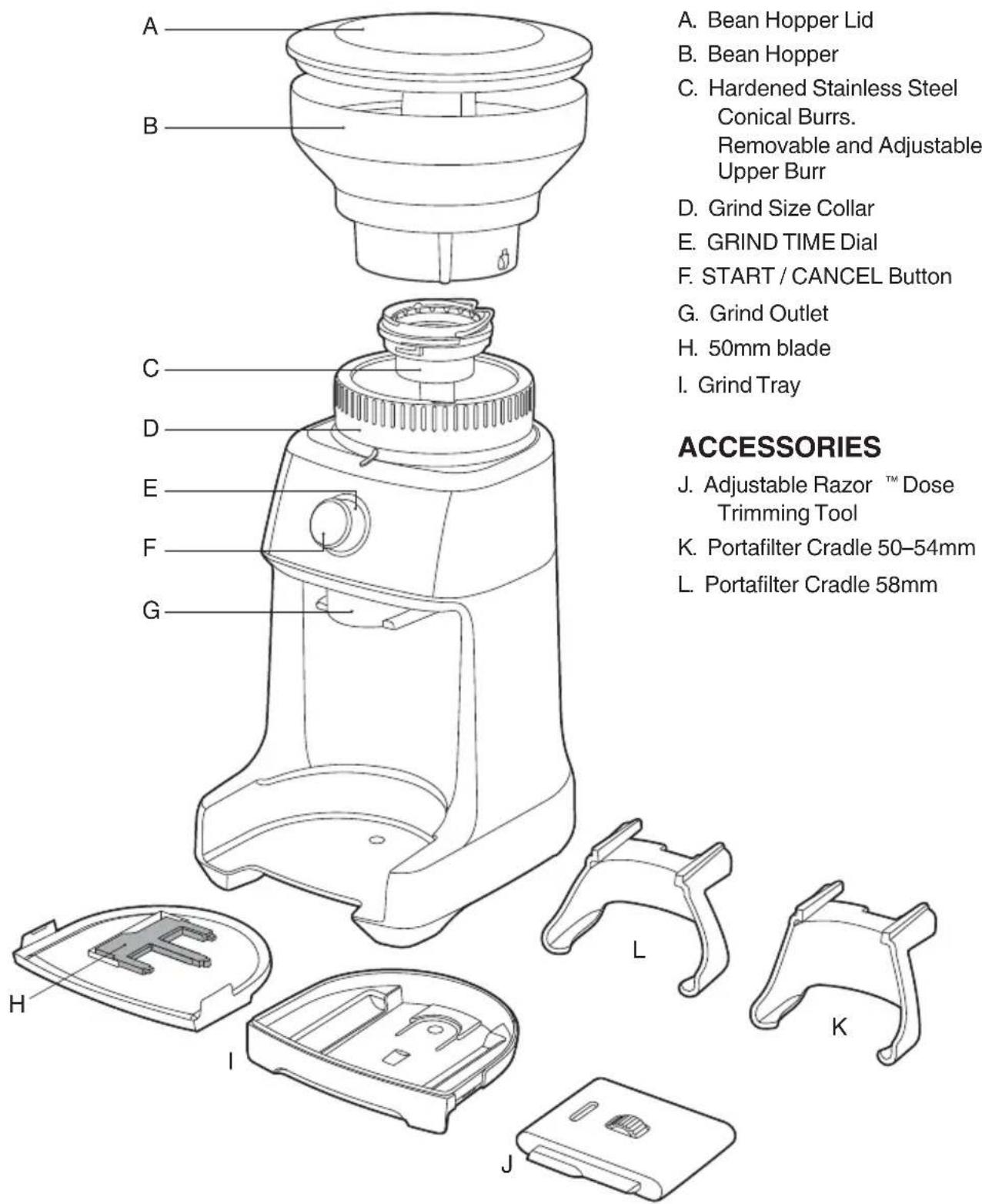

GETTING TO KNOW YOUR NEW APPLIANCE

A. Bean Hopper Lid B. Bean Hopper C. Hardened Stainless Steel Conical Burrs. Removable and Adjustable Upper Burr D. Grind Size Collar E. GRIND TIME Dial F. START / CANCEL Button G. Grind Outlet H. 50mm blade I. Grind Tray ACCESSORIES J. Adjustable Razor™ Dose Trimming Tool K. Portafilter Cradle 50–54mm L. Portafilter Cradle 58mm

OPERATING YOUR NEW APPLIANCE

BEFORE FIRST USE

Remove and safely discard all promotional labels and packing materials attached to your Sage® appliance. Wash hopper, and cradles in warm soapy water and dry thoroughly. Wipe exterior of grinder with a soft damp cloth and dry thoroughly. Place grinder on flat level surface and plug power cord into 220-240V outlet and switch Power 'ON'.

ASSEMBLING YOUR SAGE CONTROL DOSE™ PRO

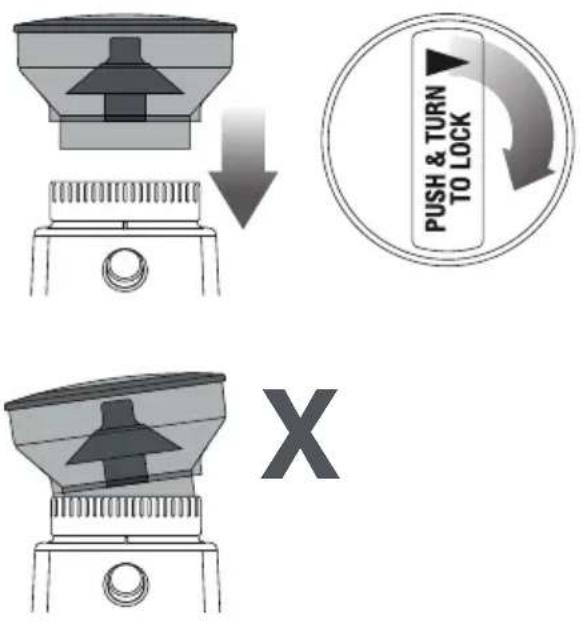

Bean Hopper

Align tabs on the base of the bean hopper and insert hopper into position. Holding the hopper, press down firmly and turn the bean hopper dial 45° to lock into position.

A "click" sound will be heard when the hopper is properly locked in place.

Ensure the hopper and the Grind Size Collar is aligned properly.

Fill with fresh coffee beans and secure lid on top of bean hopper.

NOTE

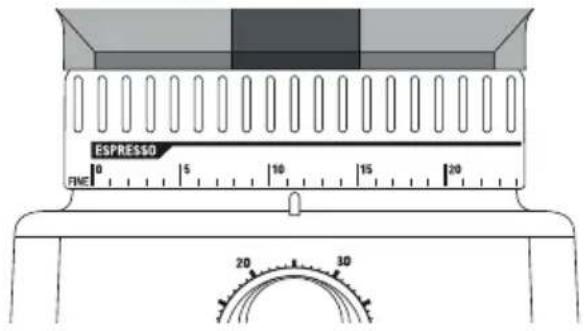

If the bean hopper has not been locked into position, the GRIND TIME dial will not be illuminated.

GRINDING FOR ESPRESSO COFFEE

NOTE

This machine is designed only for whole roasted coffee beans. Avoid grinding unroasted green and under-roasted coffee beans. These are dense and not brittle enough to run through a burr grinder. This will damage or break burr grinders and even pose a safety risk.

Use single wall filter baskets when grinding fresh coffee beans. Use the finer 1–25 settings in the ESPRESSO range.

ESPRESSO FINE 0 5 10 15 20 20 30

Step 1:

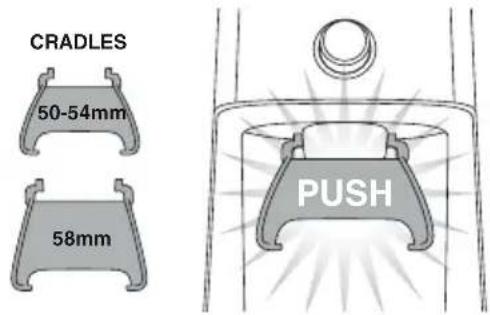

Insert the appropriate portafilter cradle size. Insert your portafilter into the cradle.

CRADLES 50-54mm 58mm PUSH

OPERATING YOUR NEW APPLIANCE

Step 2:

Selecting Grind Amount

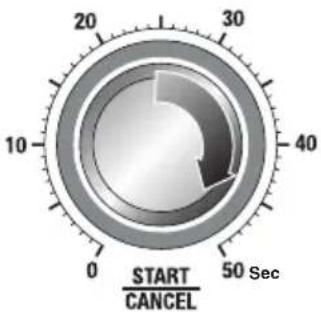

Select the desired amount of ground coffee required by turning the GRIND TIME dial.

GRIND TIME

20 30 10 40 0 50 Sec START CANCEL

Step 3:

Tamping the Ground Coffee

After dosing the portafilter with freshly ground coffee, tamp down with between 15-20kg of pressure.

Step 4:

Trimming the Dose

The adjustable Razor™ Dose Trimming Tool allows you to trim the puck to the right level for a consistent extraction.

Select the correct width blade of the Razor ^™ to match the diameter of your filter basket. The Razor ^™ has three blades of varying widths: 58mm, 54mm and 50mm. The 58mm and 54mm are already fitted within the Razor ^™ body. The 50mm is separate.

If you require the 50mm blade, turn the adjustment dial past #1 until the 54mm blade is fully extended and able to be pulled from the body.

54mm Sage

50mm ADDITIONAL BLADE

If you require the 50mm blade, turn the Adjustable Dial past #1 until the 54mm blade is fully extended and able to be pulled from the body.

1 2 3 4 1 2 3 4 54mm Sage

NOTE

The Adjustable Dial may feel tight as you continue to wind it towards the end of its travel.

Insert the 50mm blade into the body. Wind the Adjustable Dial until the blade is retracted past #4. Press the 50mm and 58mm blades at the same time, towards the centre of the body until a "click" sound can be heard.

50mm Sage

Adjust the Razor ^™ to the setting in the table below for your Sage ^® espresso machine. This is a starting point for your dose height.

Sage®Espresso Machine	Portafilter Size	Dose Height
Model name starting with “SES9”	58mm 2

OPERATING YOUR NEW APPLIANCE

Step 5:

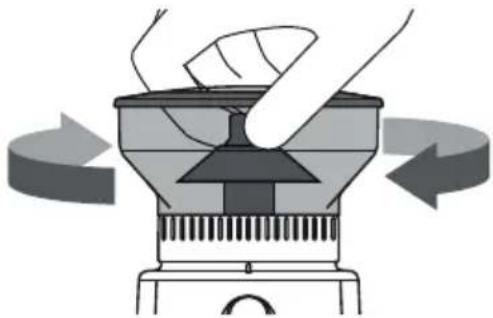

Select Your Grind Size

For espresso, we recommend starting with grind size setting 15 and rotating the Hopper (to adjust the Grind Size Collar) either coarser or finer.

Illustration of hands using a funnel-shaped tool to process a mechanical or electrical component, with no visible text or symbols.

NOTE

If the Grind Size Collar is tight, run the grinder by pressing the START / CANCEL button while turning the Hopper. This will release coffee grounds caught between the burrs.

GRINDING INTO A GRINDS CONTAINER OR COFFEE FILTER

Step 1:

Remove cradle by sliding out from under the grind outlet.

PULL

Place your container or coffee filter directly under grind outlet.

Simple line drawing of a container with a side dish, no text or symbols present

Step 2:

Select the required amount of ground coffee by rotating the GRIND TIME dial.

Step 3:

Select Your Grind Size

Rotate the Hopper to adjust the Grind Size Collar until it reaches the required brewing method range.

FEATURES OF YOUR SAGE DOSE CONTROL™ PRO

Pause Function

You can pause the grinder during operation, allowing you to collapse or settle the coffee in the Portafilter.

• Press the START / CANCEL button to start the grinding operation.
• During grinding, press the START / CANCEL button to pause the grinding operation for up to 10 seconds.

The START / CANCEL button will slowly flash while paused.

- Press START / CANCEL again within this time to resume grinding the remaining dose. Or press and hold the START / CANCEL button for 1 second to cancel.

Manual

Grinding manually allows you to have complete control over how much coffee is dispensed.

• Press and hold the START / CANCEL button to grind for as long as you require.
• Release START / CANCEL button to stop grinding.

OPERATING YOUR NEW APPLIANCE

COFFEE CHART*

Brewing Method	Espresso Percolator Drip		French Press or Plunger
Grind Size Fine	Medium Medium Coarse Coarse
Grind Setting 1-25 26-34 35-45 46-55
Amount (Shot / Cup)	6 secs per shot10 secs per 2 shots	3 secs per cup 3 secs per cup 2 secs	per cup

*This coffee chart should be used as starting point to adjust your grind time and / or size, as both may vary when using different coffee bean types, age and degree of roast.

ADJUSTING CONICAL BURRS

Some types of coffee may require a wider grind range to achieve an ideal extraction or brew.

A feature of your Dose Control™ Pro is the ability to extend this range with an adjustable upper burr.

1 PUSH & TURN TO LOCK

Un lock hopper

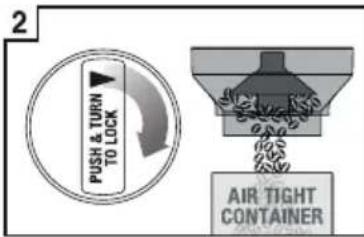

2 PUSH & TURN TO LOCK AIR TIGHT CONTAINER

Hold hopper over container & turn dial to release beans into container

3

Align hopper into position

4

Run grinder until empty

Diagram of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

Remove hopper

6 ALIGN LOCK

Remove upper burr

7 ▲ TIME COMPACT

Remove wire handle from both sides of the burr

8 FINE COARS 5 6 7

Default setting is 6

9 FINE COARSE

Move adjustable top burr, 1 number, coarser or finer

10 FINE COARSE

Align the number with the handle opening

11 FINE COMPRET

Insert wire handle from both sides of the burr

12 ALIGN LOCK

Push upper burr firmly into position

13 ALIGN LOCK

Lock upper burr

Diagram of a mechanical device with a downward arrow indicating process (no text or symbols)

Align hopper into position

15 PUSH & TURN TO LOCK

Press down firmly & rotate to lock into position

16

Check your extraction

CARE, CLEANING & STORAGE

CARE, CLEANING & STORAGE

1. Empty beans from the hopper and grind out any excess beans (see below).
2. Unplug power cord from power outlet before cleaning.
3. Wash the hopper lid and bean hopper in warm soapy water, rinse and dry thoroughly.
4. Wipe and polish exterior of appliance with a soft damp cloth.

NOTE

Do not use alkaline or abrasive cleaning agents, steel wool scouring pads, as these can damage the surface.

NOTE

Please do not clean any grinder parts or accessories in the dishwasher.

CLEANING CONICAL BURRS

Regular cleaning helps the burrs achieve consistent grinding results which is especially important when grinding for espresso coffee.

1 PUSH & TURN TO LOCK

Un lock hopper

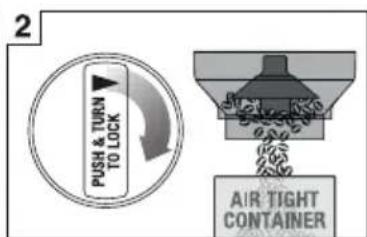

2 PUSH & TURN TO LOCK AIR TIGHT CONTAINER

Hold hopper over container & turn dial to release beans into container

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols)

Align hopper into position

Illustration of a hand pouring liquid from a container into a bottle (no text or symbols)

Run grinder until empty

Mechanical component diagram showing a press or lever mechanism with an upward arrow (no text or symbols)

Remove hopper

6 ALIGN LOCK

Remove upper burr

Illustration of a brush applying material to a circular object, no text or symbols present

Clean upper burr with a brush

8 ALIGN CX

Clean lower burr with cleaning brush

Diagram of a mechanical device with a central shaft and directional arrow, no text or symbols present

Clean grind outlet with brush

10 ALIGN LOCK

Push upper burr firmly into position

11 ALIGN LOCK

Lock upper burr

12

Align hopper into position

13 PUSH & TURN TO LOCK

Lock hopper

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE WHAT TO DO
Grinder does not start after pressing START/CANCEL button	• Grinder not plugged in.• Bean hopper not attached correctly.• Grinder has overheated.• GRIND TIME dial is on 0 seconds.	• Plug power cord into power outlet.• Lock bean hopper into position. Refer to the Bean Hopper section on page 6.• Leave for 20 minutes to cool down before using again.• Rotate the GRIND TIME dial to increase grind time.
Motor starts but no ground coffee coming from grind outlet	• No coffee beans in bean hopper.• Grinder / bean hopper is blocked.	• Fill bean hopper with fresh coffee beans.• Remove bean hopper. Inspect bean hopper and burrs for blockage. Refer to the Cleaning Conical Burrs section on page 10.
Can't adjust the Grind Size Collar	• Grind Size Collar too tight.• Coffee beans and grinds caught in the burrs.• Hopper not installed correctly.	• Rotate the Bean Hopper to turn the Grind Size Collar to adjust grind settings.• Run the grinder by pressing the START/CANCEL button while turning the Hopper.• Unlock the hopper and install as per instruction. Refer to the Bean Hopper section on page 6.
Unable to lock bean hopper into position	• Coffee beans obstructing bean hopper locking device.	• Remove bean hopper. Clear coffee beans from top of burrs. Re-lock the hopper into position & try again.
Not enough/to much coffee grind	• Grind amount requires adjustment.	• Use GRIND TIME dial to fine tune the amount more or less.
Portafilter overfills		• It is normal for the correct amount of coffee to appear overfilled in your portafilter. Untamped coffee has approximately three times the volume of tamped coffee.
Emergency stop?		• Press the START/CANCEL button to pause operation.• Unplug power cord from power outlet.

GUARANTEE

2 YEAR LIMITED GUARANTEE

Sage Appliances guarantees this product for domestic use in specified territories for 2 years from the date of purchase against defects caused by faulty workmanship and materials. During this guarantee period Sage Appliances will repair, replace, or refund any defective product (at the sole discretion of Sage Appliances).

All legal warranty rights under applicable national legislation will be respected and will not be impaired by our guarantee. For full terms and conditions on the guarantee, as well as instructions on how to make a claim, please visit www.sageappliances.com.

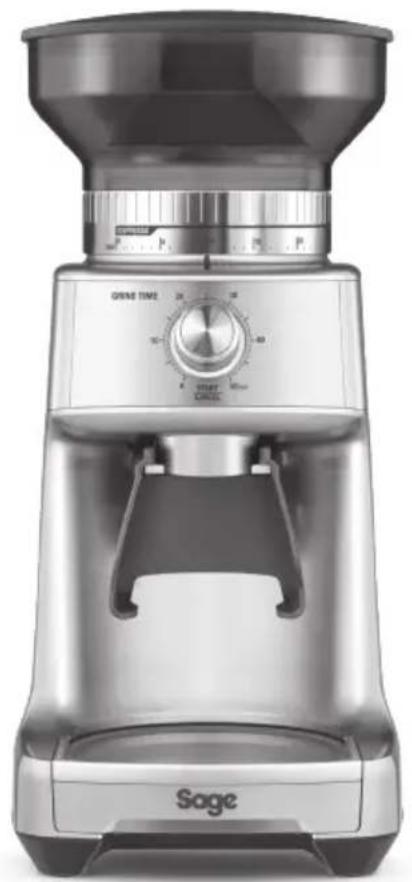

the Dose Control™ Pro

Exterior view of a modern coffee maker with a handle and control knob (no visible text or symbols on the device itself)

DEHANDBUCH

Sage®

BRATCHES 50-54mm 58mm CRUSSEN

Schritt 2:

50mm Sage

VON BEIDEN SEITEN DRUCK ANWENDEN Sage 'KLICK'

Illustration of hands operating a conical tool with rotating arrows indicating rotation (no text or symbols)

HINWEIS

Simple line drawing of a container with a lid and side pan, no text or symbols present

Schritt 2:

Diagram of a mechanical device with a downward arrow indicating process (no text or symbols)

Diagram of a mechanical device with an upward arrow, no text or symbols present

7 FINE COARATE

8 FINE COARS 5 6 7

9 FINE COARSE

10 FINE COARSE

11 FINE COARSE

Diagram of a mechanical device with a downward arrow indicating process (no text or symbols)

Illustration of a hand pouring liquid into a glass with dark liquid, no text or symbols present

Extraktion prüfen

Diagram of a brush applying material to a circular object, no text or symbols present

Diagram of a mechanical component with a central shaft and directional arrows, no text or symbols present.

Exterior view of a modern coffee maker with a handle and control knob (no visible text or symbols on the device itself)

FRGUIDE UTILISATEUR

Sage®

TABLE DES MATIÈRES

Illustration of hands using a funnel-shaped tool to interact with a rotating base, showing rotational motion (no text or symbols)

REMARQUE

Simple line drawing of a container with two inverted compartments and a handle (no text or symbols)

Étape 2 :

Illustration of a hand pouring liquid into a container with a circular component (no text or symbols)

Diagram of a mechanical device with an upward arrow, no text or symbols present

Retirer la trémie

6 ALIGN LOCK

8 FINE COARS 5 6 7

9 FINE COARSE

10 FINE COARSE

11 FINE COARSE

Illustration of a hand pouring liquid into a glass with liquid in the middle (no text or symbols)

Illustration of a hand pouring liquid into a container with a handle (no text or symbols)

Diagram of a mechanical device with an upward arrow, no text or symbols present

Retirer la trémie

6 ALIGN LOCK

Illustration of a brush applying material to a circular object (no text or symbols)

Exterior view of a modern coffee maker with a handle and control knob (no visible text or symbols)

NLHANDLEIDING

Sage®

INHOUD

CRADLES 50-54mm 58mm DUWEN

Stap 2:

54mm Sage

Illustration of hands operating a conical device with rotating arrows indicating rotation (no text or symbols)

OPMERKING

Simple line drawing of a container with two inverted panes and a handle (no text or symbols)

Stap 2:

Diagram of a mechanical press or press device with a downward arrow indicating force or direction (no text or symbols present)

Mechanical component diagram showing a press or conveyor system with an upward arrow and base (no text or symbols)

8 FINE COARS 5 6 7

Standaardin- stelling is 6

9 PINE COARSE

10 FINE COARSE

Exterior view of a modern coffee maker with a handle and control knob (no visible text or symbols on the device itself)

ITMANUALE UTENTE

Sage®

54mm Sage 50mm LAMA AGGIUNTIVA

Illustration of hands using a lathe machine to move a circular arrow (no text or symbols)

NOTA

Simple line drawing of a container with two inverted pans, no text or symbols present

Passaggio 2:

Illustration of a hand pressing down on a mechanical component with liquid (no text or symbols)

Diagram of a mechanical device with an upward arrow, no visible text or symbols

6 Valley Lock

7 FINE COARSE

8 FINE COARS 5 6 7

9 FINE COARSE

10 FINE COARSE

11 FINE COARSE

Illustration of a hand pouring liquid into a glass with a dark liquid in the middle (no text or symbols)

Exterior view of a modern coffee maker with a handle and control knob (no visible text or symbols)

ES

GUÍA RÁPIDA

Sage®

CRADLES 50-54mm 58mm EMPUJAR

Paso 2:

Illustration of hands using a lathe machine to move a circular arrow (no text or symbols)

NOTA

Simple line drawing of a container with two inverted pans, no text or symbols present

Paso 2:

Diagram of a mechanical device with a downward arrow indicating process (no text or symbols)

Diagram of a hand pouring liquid into a container with a circular object on top (no text or symbols)

Diagram of a mechanical device with an upward arrow, no text or symbols present

7 FINE COARSE

8 FINE COARS 5 6 7

10 FINE COARSE

11 FINE COARSE

Diagram of a mechanical device with a downward arrow indicating process (no text or symbols)

Illustration of a hand pouring liquid into a glass with dark liquid (no text or symbols)

CUIDADO, LIMPIEZA Y ALMACENAMIENTO

CUIDADO, LIMPIEZA Y ALMACENAMIENTO

Illustration of a hand pouring liquid into a container with a handle (no text or symbols)

Diagram of a mechanical device with an upward arrow and labeled number 5 (no text or symbols on the device itself)

Illustration of a brush applying material to a circular object with layered structure (no text or symbols)

Diagram of a mechanical component with a central shaft and circular head, showing directional arrows (no text or symbols)

Exterior view of a modern coffee maker with a handle and control knob (no visible text or symbols)

PTMANUAL DO UTILIZADOR

Sage®

ÍNDICE

2 A Sage ^® recomenda a segurança como máxima prioridade

MOER PARA CAFÉ ESPRESSO

NOTA

54mm Sage

50mm ADDITIONAL BLADE

Illustration of hands using a funnel-shaped tool to move a circular arrow around a pan (no text or symbols)

NOTA

Simple line drawing of a container with a lid and side pan, no text or symbols present

Passo 2:

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand pouring liquid into a container with a handle (no text or symbols)

Diagram of a mechanical device with an upward arrow, no visible text or symbols

8 FINE COARS 5 6 7

A predefinição é 6

9 FINE COARSE

10 FINE COARSE

11 FINE COARSE

Illustration of a hand pouring liquid into a glass with dark liquid (no text or symbols)

Illustration of a hand pouring liquid into a container with a lid (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force (no text or symbols)

Illustration of a brush applying material to a circular object (no text or symbols)

Diagram of a mechanical component with a central shaft and circular head, showing upward and downward arrows (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating process (no text or symbols)

Exterior view of a modern coffee grill with no visible text or symbols on the device itself.

PLINSTRUKCJA OBSŁUGI

Sage®

Diagram of a mechanical device with a conical top and base, labeled 'X' (no text or symbols on the device itself)

Illustration of hands using a lathepan to press or rotate a dish, showing a circular motion arrow (no text or symbols)

UWAGA

Simple line drawing of a container with two inverted panes and a lid, no text or symbols present

2. krok:

Diagram of a mechanical device with a downward arrow indicating process (no text or symbols)

Diagram of a mechanical device with an upward arrow, no text or symbols present

7 ▲ FINE COARIST

8 FINE COARS 5 6 7

9 FINE COARSE

10 FINE COARSE

Illustration of a hand pouring liquid into a glass with a dark liquid in the foreground (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating process (no text or symbols)

Illustration of a hand pressing down on a mechanical device with liquid (no text or symbols)

Diagram of a mechanical device with an upward arrow, no text or symbols present

Diagram of a brush applying material into a layered circular structure (no text or symbols)

Diagram of a mechanical device with a central component and directional arrow (no text or symbols)

BRG Appliances Limited

86–90 Paul Street, London, EC2A 4NE, United Kingdom

Freephone (UK Landline): 0808 178 1650

Mobile Calls (National Rate): 0333 0142 970

DEU

Sage Appliances France SAS

www.sageappliances.com

Registered in England & Wales No. 8223512

Registered in Germany No. HRB 81309 (AG Düsseldorf)

Registered in France No. 879 449 866 RCS

EN Due to continued product improvement, the products illustrated or photographed in this document may vary slightly from the actual product.
