HG11277-BS - Steam mop SILVERCREST - Free user manual and instructions

USER MANUAL HG11277-BS SILVERCREST

GB/IE User manual Page 16

Technical diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

A

5 6 7 9 11 ↓ 13

Intended use.... Page 18

Scope of delivery.... Page 18

Parts list Page 18

Technical data Page 18

General safety instructions.... Page 18

First use ...... Page 21

Assembly Page 22

Unfolding/folding the handle Page 22

Attaching the steam foot Page 22

Using as a handheld steamer ...... Page 22

Operation...... Page 23

Filling the water tank ...... Page 23

Turning on/off Page 23

Adjusting the steam power.... Page 23

Pump safety shutdown Page 23

Cleaning and maintenance Page 23

Storage Page 24

Disposal Page 24

Warranty Page 25

Warranty claim procedure.... Page 25

Service....Page 25

List of pictograms usedThe following warnings are used in this user manual and on the packaging:
	DANGER! This symbol in combination with the signal word “Danger” marks a high-risk hazard that if not prevented could result in death or serious injury.	~	Alternating current/voltage
		Hz	Hertz (supply frequency)
		W	Watts
	WARNING! This symbol in combination with the signal word “Warning” marks a medium-risk hazard that if not prevented could result in death or serious injury.	IPX4	Protected against splashing water from all directions
	CAUTION! This symbol in combination with the signal word “Caution” marks a low-risk hazard that if not prevented could result in minor or moderate injury.		NOTE: This symbol in combination with “Note” provides additional useful information.
			Danger - risk of electric shock!
	Warning - danger of scalding!		Washable at 60 °C
	Non-chlorine bleach allowed Do not tumble dry clean
	Do not iron Do not dry clean
	Normal process		CE mark indicates conformity with relevant EU directives applicable for this product.
[CAV2]	Safety informationInstructions for use

STEAM MOP &

HANDHELD STEAM CLEANER

● Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is designed for cleaning indoor surfaces. Do not use it for any other purpose.

This product is only intended for private household use, not for commercial purposes.

The manufacturer accepts no liability for damages caused by improper use.

- Scope of delivery

After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packing materials before use.

1x Steam mop & handheld steam cleaner
1x Steam foot
1x Funnel
1x Filling cup
1x Fiber cover
2x Fiber cloth
1x Carpet glider
1x Large round brush
1x Small round brush
1x Oblong brush
1x Angle nozzle
1x Scraper
1x Upholstery attachment
1x Squeegee attachment
1x Extension nozzle
1x Extension hose

Parts list

1 Handle
2 Extension hose
3 Funnel
4 Filling cup
5 Angle nozzle
6 Scraper
7 Oblong brush
8 Fiber cover
9 Large round brush
10 Upholstery attachment
11 Small round brush
12 Squeegee attachment
13 Extension nozzle
14 Fiber cloth
15 Carpet glider
16 Steam foot
17 Release lever (of the handle 1, extension hose 2 and handheld unit 22)
18 Water tank/water tank cover
19 Light indicator
20 Hanging hook (for power cable)
21 Power knob/steam level regulator
22 Handheld unit
23 Power cord with power plug
24 Eject button (handheld unit)
25 Folding button

- Technical data

Input voltage: 220-240 V \~, 50-60 Hz

Power consumption: 1500 W

Power consumption

(off mode): 0.1 W

Water tank capacity: 350 ml

Protection class: I

Ingress protection class: IPX4 (splash proof)

General safety instructions

BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN

PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!

In the case of damage resulting from non-compliance with these operating instructions the warranty claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

Children and persons with disabilities

⚠ WARNING! RISK OF LOSS OF LIFE OR ACCIDENT TO INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Always keep children away from the packaging material.

This product can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance

in a safe way and understand the hazards involved.

■ Children shall not play with the product.
- Cleaning and user maintenance shall not be made by children without supervision.
- Keep the product and its cord out of reach of children when it is energized or cooling down.

Intended use

⚠ WARNING! Misuse may lead to injury. Use this product solely in accordance with these instructions. Do not attempt to modify the product in any way.

■ Use the product only on floors that have been well sealed and treated and are impervious to water.

- With any steam power setting: on marble, stone, tile flooring - With lowest steam power setting and with damp fiber cloth 14: on laminate, parquet or hardwood flooring

- Never use the product -on untreated or permeable floors, -on wax polished furniture or floors, -on carpets with wool content, -on the frozen windows,

-on leather, synthetic fabrics, velvet or other delicate, -on steam sensitive materials.

- Be careful when using the product on glass under cold environment, as the glass may break.

■ Use on waxed or some unwaxed floors may result in diminished glossiness.

It can only be used on glass panes that are at least room temperature. Not use on exterior panes/windows in sub-zero temperatures.

■ Before use: We recommended to perform a material test on an isolated area of the working surface.

Electrical safety

⚠️ DANGER! Risk of electric shock! Never attempt to repair the product yourself.

In case of malfunction, repairs are to be conducted by qualified personnel only.

⚠ WARNING! Risk of electric shock! Do not immerse the product's electrical components in water or other liquids. Never hold the product under running water.

⚠ WARNING! Risk of electric shock! Never use a damaged

product. Disconnect the product from the power supply and contact your retailer if it is damaged.

⚠ WARNING! Risk of injury! The product has to be unplugged after use and before cleaning or maintaining the product.

- Connect the product only to an earthed wall socket. - Always make sure that the power plug is correctly inserted into the wall socket.

The product is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.

Before connecting the product to the power supply, check that the voltage and current rating corresponds with the power supply details shown on the product's rating label.

- Regularly check the power plug and the supply cord for damages. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

■ Protect the power cord against damages. Do not let it hang over sharp edges, do not squeeze or

bend it. Keep the power cord away from hot surfaces and open flames and ensure that nobody can pull on or trip over it unintentionally.

The product must not be left unattended while it is connected to the supply mains.

The liquid or steam must not be directed towards equipment containing electrical components, such as the interior of ovens.

■ The filling aperture must not be open during use.

Burn hazards

⚠️ DANGER! Risk of burns!

Do not touch hot surfaces and beware of escaping steam. Hold the product by its handle only.

■ Steam is very hot. Never put your hands in front of the steam jet.

Operation

■ Only use the product in dry indoor rooms.

■ The plug must be removed from the wall socket before the water tank is filled with water.

The use of extension cords is not recommended. If the use of an extension cord is necessary, it must be designed for a current flow of at least 10 A. Lay cords

in such a way that they may not be tripped over or otherwise damaged.

- Do not operate the product with wet hands or while standing on a wet floor. Do not touch the power plug with wet hands.

- Stop using the product if the ant-kink protection on the power cord is damaged!

Cleaning and storage

■ Always turn off the product before disconnecting it from the power supply.

- Do not pull the power plug out of the wall socket by the power cord. Do not wrap the power cord around the product.

■ Protect the product, its power cord and power plug against dust, direct sunlight, dripping and splashing water.

■ Store the product in a cool, dry place, protected from moisture and out of the reach of children.

■ Protect the product against heat. Do not place the product close to open flames or heat sources such as stoves or heating appliances.

- First use

■ Remove all packaging materials. Check if all parts are complete.

Assembly

● Unfolding/folding the handle

Handle

Unfolding Unfold the handle until it clicks in place.

Folding

Press the folding button 25. Then, fold the handle downwards.

- Attaching the steam foot

Align the locking hole of the steam f16 with the release lever 17.
■ Push in the steam f16 until it locks in place.

NOTE:

The angle of the steam f16 can be adjusted:

Steam foot

Release steam foot

Gently step on the steam foot. Pull the main body backwards.

Lock steam foot

Pull the main body forward until the steam foot locks in place.

Do not force the steam f16 onto the main unit. Always use both hands while connecting the parts.

Fiber cloth installation (for cleaning floors)

Place the fiber c ^14 on the steam foot 16. Align the fiber cloth with the steam foot.

Carpet glider installation (for cleaning carpets)

Attach the fiber cl 14. Place the carpet glider 15 onto the steam foot 16 until it locks in place.

● Using as a handheld steamer

Press the eject but 24. Pull out the handheld unit 22.

Extension hose installation

The extension hose 2 is useful for hard-to-reach areas.

Installing the extension h2: Align the locking hole with the release lever 17 of the handheld unit 22.

■ Push in the extension h2 until it locks in place.

Extension nozzle installation

Align the locking hole of the extension nozzle 13 with the release lever 17 of the handheld unit 22/extension hose 2.
- Push in the extension noz13 until it locks in place.
- Choose the desired accessory:

Accessories for:

Suggested place

Extension nozzle

of use

Angle nozzle

Hard-to-reach areas

Scraper

Removing residues from hobs

Oblong brush

Grout lines

Large round brush

Hobs, showers, refrigerators, etc.

Small round brush

Hobs

NOTE: The small round brush 11 is made of copper alloy. Be careful during use not to leave scratches on the cleaning surface.

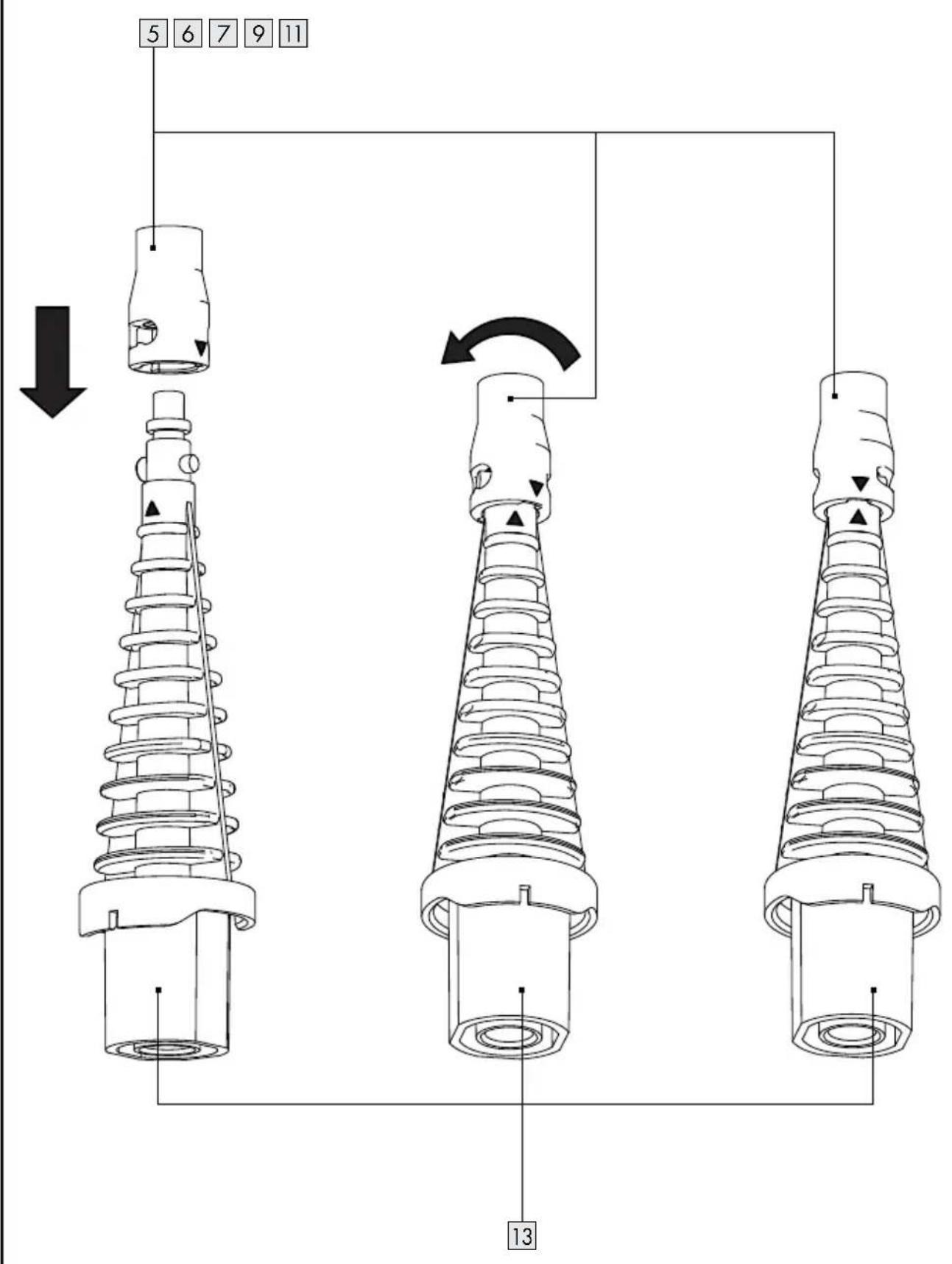

Put the extension nozzle into the selected accessory 5, 6, 7, 9 11: Place the smaller protrusion on the extension nozzle into the arrow on the accessory. Hold the extension nozzle firmly. Turn the accessory anti-clockwise until the arrows on extension nozzle and accessory are aligned (fig. A).

Upholstery attachment installation

Align the locking hole of the upholstery attachment 10 with the release lever 17 of the handheld unit 22/extension hose 2.
- Push in the upholstery attachm10 until it locks in place.
Place the fiber co8 / squeegee attachment 12 onto the upholstery attachment 10.

- Choose the desired accessory:

Accessories for:
Upholstery attachment	Suggested place of use
Fiber cover	8 Sofas, tablecloths, garments
Squeegee attachment	12 Shower screens, mirrors, glass

Operation

● Filling the water tank

⚠️DANGER! Risk of electric shock! Always disconnect the power plug 23 from the wall socket before filling the water tank 18.

⚠️CAUTION! Fill the water t18 with tap water or distilled water without any additives. If your tap water is hard, use distilled water. Where the water is moderately hard, mix distilled water and tap water (ratio of 1:1).

i NOTES:

• Checking the water hardness: Use a test strip or ask the water supplier.
  Do not exceed the water tail 18 maximum capacity of 350 ml.
  Open the water tank co18:
  Use the filling 4 and the funnel 3 to fill the water tank 18.
  ■ Close the water to 18.

Turning on/off

■ Connect the power p23 with a suitable wall socket.

Power knob 21 On/off

Turn in clockwise direction Turn the product on. The light indicator 19 turns green.

Turn in counter-clockwise direction to "0" position. Turn the product off. The light indicator 19 goes off.

i NOTES:

The product needs around 30 seconds to preheat. After preheating, the pump starts operating and with audible sound. The steam runs continuously until the water tank 18 is empty.
- When the product is powered on, it should not be pointed towards equipments containing electrical components (such as the interior of ovens).
■ The product has to be unplugged
- after use,
- before cleaning, and
- before maintaining

the product.

- Adjusting the steam power

Power knob 21 Steam power

Turn in clockwise direction Increase steam power

Turn in counter-clockwise direction Decrease steam power

- Pump safety shutdown

When the water t[18] is empty, the pump keeps operating for about 1 minute. Then, it shuts down.
The light indicates changes from continuous green to flashing red colour.
Turn off the product. Refill the water to proceed with the operation.

● Cleaning and maintenance

Cleaning the main unit

⚠️DANGER! Risk of electric shock!

Disconnect the power plug 23 from the wall socket before cleaning the product.

WARNING! Do not immerse the product's electrical components in water or other liquids. Never hold the product under running water.

• Wipe down the product with a slightly damp cloth.
• Do not let any water or other liquids enter the product interior.
• Do not use any abrasive, aggressive cleaners or hard brushes to clean the product.
  ■ After cleaning: Let all parts dry completely.

Cleaning the accessories

• Clean the accessories in warm, soapy water.
  ■ After cleaning: Let all accessories dry completely

Cleaning the fiber cloths and fiber cover

The fiber cloths 14 and the fiber cover 8 can be cleaned in a washing machine.

Fiber cloths 14:

• Clean the fiber cld ^14 up to 60 °C, normal process.
  Remark: only none-chlorine bleach when needed, do not tumble dry, do not iron, can be dry cleaned.

Fiber cover 8:

• Clean the fiber co _8 up to 60 °C, normal process.
  Remark: only none-chlorine bleach when needed, do not tumble dry, do not iron, do not dry cleaned.

Removing limescale

If the steam power reduces drastically, it may be needed to remove the limescale from the product/accessories:
- Switch off the product. Fill the water to 18 with a mixture of tap water and vinegar (ratio of 2:1).
- Install the accessory you wish to remove the limescale from (if any).
- Secure the position of the product to ensure that the steam is aimed away from the surrounding objects and surfaces.
■ Turn on the product. Operate the product until all the mixture is used up.

Storage

• Store the product in the original packaging when it is not in use.
  ■ Store the product at a dry location out of the reach of children.
  ■ Store the product with an emptied water t ^18 only.
  Evenly roll up the power c23 on the hanging hooks 20.

● Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibreboard/80-98: composite materials.

Product:

The product incl. accessories, manual and packaging materials are recyclable and are subject to extended producer responsibility.

Dispose them separately, following the illustrated Infotri (sorting information), for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your wornout product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, rechargeable batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

● Warranty claim procedure

To ensure quick processing of your claim, observe the following instructions:

Make sure to have the original sales receipt and the item number (IAN 452772_2310) available as proof of purchase.

You can find the item number on the rating plate, an engraving on the product, on the front page of the instruction manual (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, contact the service department listed below either by telephone or by e-mail.

Once the product has been recorded as defective you can return it free of charge to the service address that will be provided to you. Ensure to enclose the proof of purchase (sales receipt) and a short, written description outlining the details of the defect and when it occurred.

Service

GB Service Great Britain

Tel.:[phone]

E-Mail:[e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail:[e-mail]

CE IPX4

⚠ WAARSCHUWING! Verwondingsgevaar!

F∅R PRODUKTET BRUGES

F∅RSTE GANG SKAL DU

VÆRE FORTROLIG MED

ALLE SIKKERHEDS- OG

BETJENINGSANVISNINGER!

HVIS PRODUKTET OVERLADES

TIL TREDJEMAND, SKAL ALLE DOKUMENTER MEDF∅LGE!

Copertura in fibra 8:
