USER MANUAL DWF394QWE DE DIETRICH

Technical diagram of a device casing with numbered components for identification

Diagram showing a washing machine with directional arrows and a mechanical component, labeled with number 1.

Line drawing of a washing machine with a circular vent and handle, marked with diagonally intersecting lines (no text or symbols)

Diagram showing two electrical plug connections with a socket, indicating charging or discharging process.

1 2 3/4" 10 mm 3 4

Diagram showing a pipe fitting with a cable and a close-up of the internal structure (no text or symbols)

Technical line drawing of a washing machine with an inset close-up showing internal components (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

Technical line drawing of a mechanical assembly with two circular inset views (no text or symbols)

Technical line drawing of a mechanical assembly with two circular inset views showing internal components (no text or symbols)

Technical line drawing of a mechanical component with two circular inset views (no text or symbols)

Illustration of two washing machines with a pipe connecting them (no text or symbols)

Illustration showing two steps of a hairpin installation: one with a plug, the other with a hand holding a screwdriver (no text or symbols present)

1. 2.

The image contains a grid of rectangular blocks, each containing a single letter '□' and a vertical line. There are no text or mathematical content to extract. The OCR result "□" is a hallucination and does not correspond to any other character in the image. Therefore, the correct OCR output must reflect the absence of any textual content.

[No text detected]

The image contains a grid of rectangular blocks, each containing a series of rectangular symbols (e.g., squares, circles, rectangles) arranged in two rows. The top row contains the square placeholders and the bottom row contains the corresponding square placeholders. There is no text or mathematical content to extract. Therefore, the correct OCR output is an empty string.

[No text detected]

The image contains a grid of rectangular blocks, each containing a square and a horizontal line. There is no text or mathematical content to extract. Therefore, the correct OCR output is an empty string.

Illustration showing a wall-mounted electrical plug and a hand holding a screwdriver (no text or symbols present)

Technical diagram showing mechanical assembly steps with labeled components and a hand holding a pipe fitting tool.

Technical diagram showing six steps of mechanical assembly or disassembly, labeled 1 to 6 with corresponding illustrations.

Technical diagram showing a washing machine operation with labeled steps to open the door and lock.

Diagram showing hands holding a device with a magnified inset of a device component (no text or symbols)

Technical diagrams of two mechanical components: a rectangular frame with internal cutouts and a cylindrical housing with internal structure (no text or symbols)

1. Corps

Symbol of a trash bin crossed with no visible text or labels

Technical diagram of a device casing with numbered components and labeled parts

2.1 Vzhled

Diagram showing a washing machine with a circular component and a mechanical assembly with rotating parts, labeled with arrows and numbered 1.

Line drawing of a washing machine with no text or symbols

Diagram showing two electrical plug connections with a socket, indicating charging or discharging process.

1 2 3/4" 10 mm 3 4

Diagram showing a cable being inserted into a pump, with an inset illustrating the internal structure (no text or symbols present)

Technical line drawing of a washing machine with an inset close-up showing internal components (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

Technical line drawing of a mechanical assembly with a circular inset view showing a bracket detail (no text or symbols)

Technical line drawing of a mechanical assembly with cross-sectional view (no text or symbols)

Technical line drawing of a mechanical component with circular cross-section and side view (no text or symbols)

15' Rapid 60' Rapid Jeans Mixed Sport Hand wash Spin/Drain Cotton Eco 40-60 Intensive 20°C Colours Wool Rinse Hygiene

Illustration of two washing machines side by side, one with a handle inserting into the other (no text or symbols present)

Illustration showing two steps of a hairpin installation: one with a plug, the other with a hand holding a sponge (no text or symbols present)

10:00 90°C 1400 60°C 1200 40°C 1000 30°C 800 20°C 400 Options Rapid (Dec.) (Dec.)

Illustration showing a wall-mounted electrical plug connected to a hose, with a hand adjusting the bulb (no text or symbols present)

Technical illustration showing a mechanical component being inserted into a pipe fitting, with no visible text or symbols.

Technical diagram showing six steps of mechanical assembly or disassembly, labeled 1 to 6 with corresponding illustrations.

Technical diagram showing three steps of washing machine operation: opening, adjusting dial, and closing.

Diagram showing hands holding a device with balls, and an inset close-up of a ball on a tray (no text or symbols)

Technical diagrams of two mechanical components: a 3D panel with internal channels and a cylindrical housing (no text or symbols)

1. Tělo

1.2 Under programmer ....6

Technical diagram of a device casing with numbered components and labeled parts

Diagram showing a washing machine with labeled parts and a close-up of its base assembly with curved arrows indicating motion.

Line drawing of a washing machine with no text or symbols

Diagram showing two electrical plug connections with a socket, indicating charging or discharging process.

1 2 3/4" 10 mm 3 4

Diagram showing a pipe fitting with a cable inserted into a sink, and a close-up of the internal structure with directional arrows (no text or symbols)

Technical line drawing of a washing machine with an inset close-up showing internal components (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

1. Beholder til vaskemiddels pulver
2. Skyllemiddels beholder (Automatisk dosering)
3. Flydende vaskemiddel beholder (Automatisk dosering)

4.2 Sektioner

Vaskemiddels pulver rum

Technical line drawing of a mechanical assembly with a circular inset view showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with two circular inset views showing internal components (no text or symbols)

Technical line drawing of a mechanical component with cross-sectional view (no text or symbols)

15° Rapid 60° Rapid Jeans Mixed Sport Hand wash Spin/Drain Cotton Eco 40-60 Intensive 20°C Colours Wool Rinse Hygiene

Illustration of two washing machines with one showing a handle and the other holding a fan (no text or symbols present)

Illustration showing two steps of a plug installation: one with a cable and the other with a hand holding a screwdriver (no text or symbols present)

Illustration showing a wall-mounted power plug and a hand using a tool to clean or adjust the installation (no text or symbols present)

Technical diagram showing a mechanical component being adjusted for installation, with an arrow indicating the process.

Six-step diagram illustrating mechanical assembly steps with labeled components and directional arrows

Technical diagram showing three-step appliance installation steps with Chinese annotations, including a zoomed-in view of the final component.

Diagram of a device with hands holding three soccer balls, showing internal components and a magnified inset (no text or symbols)

Technical diagrams of two mechanical components: a 3D panel assembly and a cylindrical housing (no text or symbols)

1. Vaskemaskinen

QR code image containing encoded data, no visible human-readable text

3.Installation....12

Diagram showing a washing machine with directional arrows and a mechanical component, labeled with number 1.

Line drawing of a washing machine with a circular vent and handle, marked with diagonally intersecting lines (no text or symbols)

Diagram showing two electrical plug connections with a socket, indicating charging or discharging process.

Diagram showing a pipe fitting attached to a sink, with an inset illustrating the structural change of a curved pipe (no text or symbols present)

Technical line drawing of a washing machine with an inset close-up showing internal components (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

Technical line drawing of a mechanical assembly with two circular inset views (no text or symbols)

Technical line drawing of a mechanical assembly with two circular inset views showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with two circular views showing internal components (no text or symbols)

90°C 1400 60°C 1200 40°C 1000 30°C 800 20°C 400 OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON

HINWEIS: Wenn die

1st Rapid 60' Rapid Jeans Mixed Sport Hand wash Spin/Drain Cotton Eco 40-60 Intensive 20°C Colours Wool Rinse Hygiene

Illustration of two washing machines side by side, one with a handle opening the other (no text or symbols)

Illustration showing two steps of installation: one with a plug and cable, the other with a hand holding a screwdriver (no text or symbols present)

Illustration showing a wall-mounted electrical plug and a hand holding a screwdriver (no text or symbols present)

Technical diagram showing mechanical assembly steps with labeled components and a hand holding a tool

Six-step diagram illustrating mechanical assembly steps with labeled components and directional arrows

Technical line drawing of a mechanical assembly with two parts inserted, showing internal components and a magnified inset (no text or symbols)

Technical drawings of two mechanical components: a 3D panel assembly and a cylindrical housing (no text or symbols)

1. Gehäuse

QR code image containing encoded data, no visible human-readable text

Technical diagram of a device casing with numbered components and internal wiring annotations

2.1 Γενική εμφάνιση

Diagram showing a washing machine with directional arrows and a mechanical component, labeled with number 1.

Line drawing of a washing machine with circular vent and side buttons (no text or symbols)

Diagram showing two electrical plug connections with a socket, indicating installation or disassembly process.

Diagram showing a cable inserted into a sink with an inset close-up of the arch structure (no text or symbols)

Technical line drawing of a washing machine with a magnified inset showing internal components (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

Technical line drawing of a mechanical assembly with a circular inset view showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with two circular inset views showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with two circular inset views showing internal components (no text or symbols)

15° Rapid 60° Rapid Jeans Mixed Sport Hand wash Spin/Drain Cotton Eco 40-60 Intensive 20°C Colours Wool Rinse Hygiene

Line drawing of a front-loading washing machine (no text or symbols)

Illustration of a washing machine with a curved pipe inserted, showing internal components (no text or symbols)

Illustration showing two different installation methods: one using a plug, the other handling a bulb (no text or symbols present)

Illustration showing a wall socket connected to a plug and a hand holding a hose (no text or symbols present)

Technical illustration showing a mechanical assembly with a valve and tool, alongside a close-up of hands holding a pipe fitting (no text or symbols present)

Six-step diagram illustrating mechanical assembly steps with labeled components and directional arrows

Technical diagrams of two mechanical components: a 3D panel with internal channels and a cylindrical housing (no text or symbols)

1. Κορμός

Discovering a De Dietrich product means experiencing the range of unique emotions.

The attraction is immediate, from the moment you set eyes on the product. The sheer quality of the design shines through, thanks to the timeless style and outstanding finishes hich make each component an elegant and refined masterpiece in its on right, each one in perfect harmony ith the others. Next, comes the irresistible urge to touch it.

De Dietrich design makes extensive use of robust and prestigious materials, here the accent is place firmly upon authenticity. By combining state-of-the-art technology with top quality materials, De Dietrich produces beautifully crafted products to help you get the most from the culinary arts, a passion shared by all lovers of cooking and fine food. We hope that you enjoy using this new appliance.

Thank you for choosing a De Dietrich product.

www.dedietrich-electromenager.com

De Dietrich

QR code image containing encoded data, no visible human-readable text

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation and maintenance of your appliance.

Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Type Meaning
	WARNING Serious injury or death risk
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIRE Warning; Risk of fire / flammable materials
	CAUTION Injury or property damage risk
	IMPORTANT / NOTE Operating the system correctly

CONTENTS

EN

1.SAFETY INSTRUCTIONS .... 1

1.1 General Safety Warnings ....2
1.2 During Use 6
1.3 Packaging and Environment....8
1.4 Savings Information......8

2.TECHNICAL SPECIFICATIONS....9

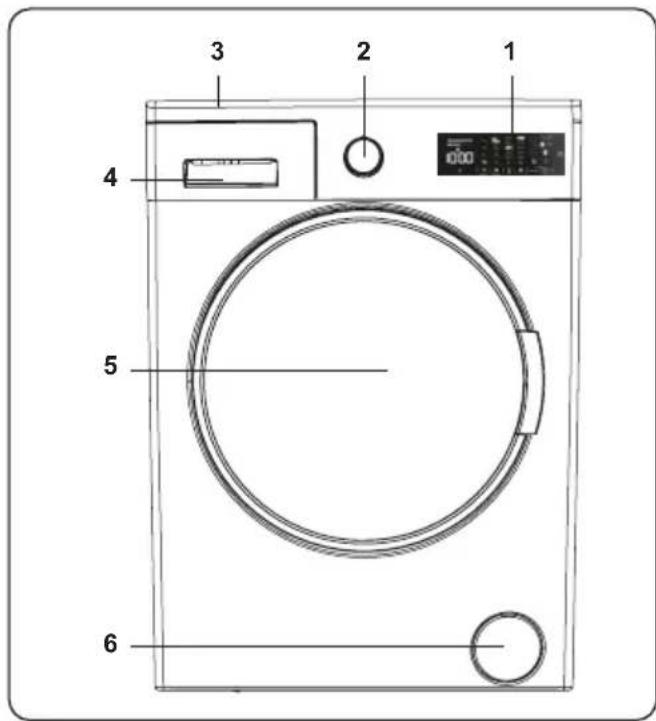

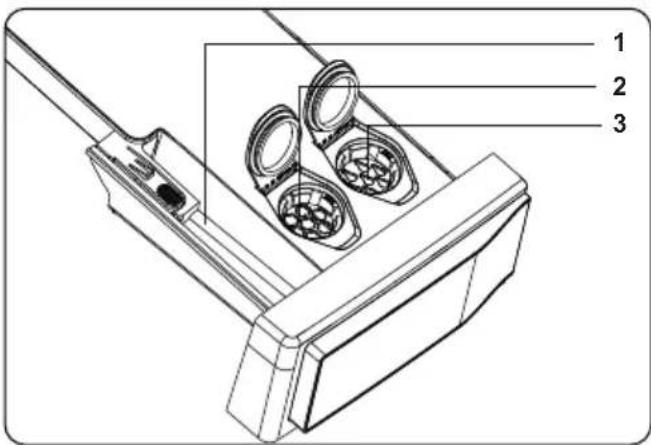

2.1 General Appearance....9
2.2 Technical Specifications ......9

3.INSTALLATION....10

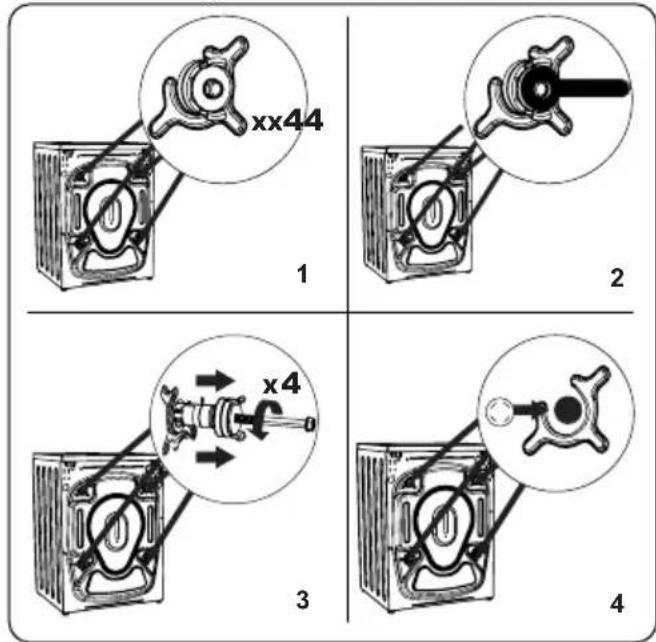

3.1 Removing the Transit Bolts....10

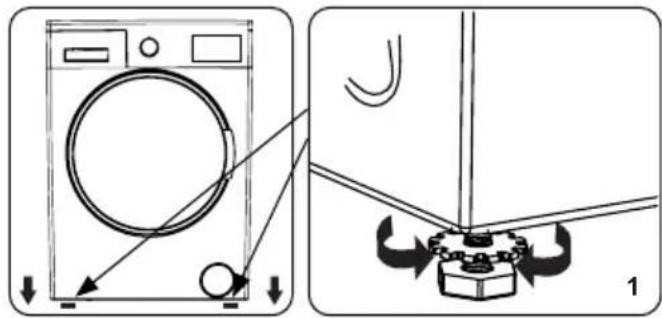

3.2 Adjusting the Feet / Adjusting Adjustable Stays....10

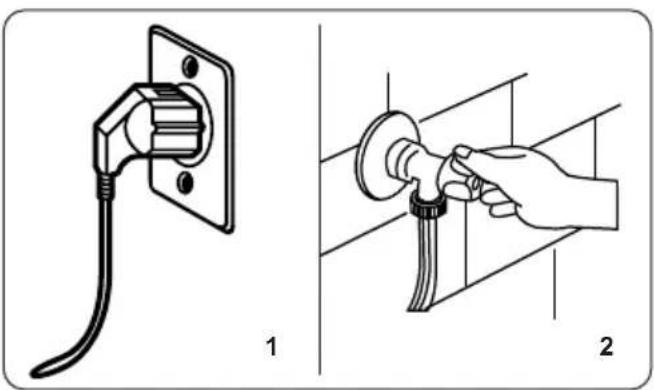

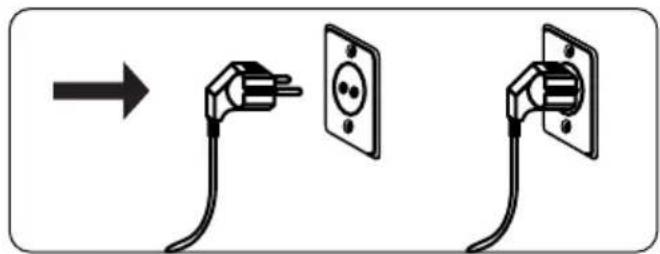

3.3 Electrical Connection....10

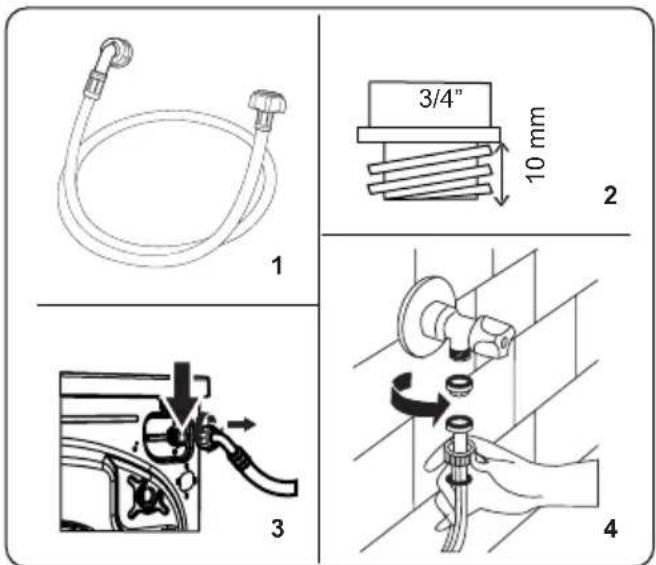

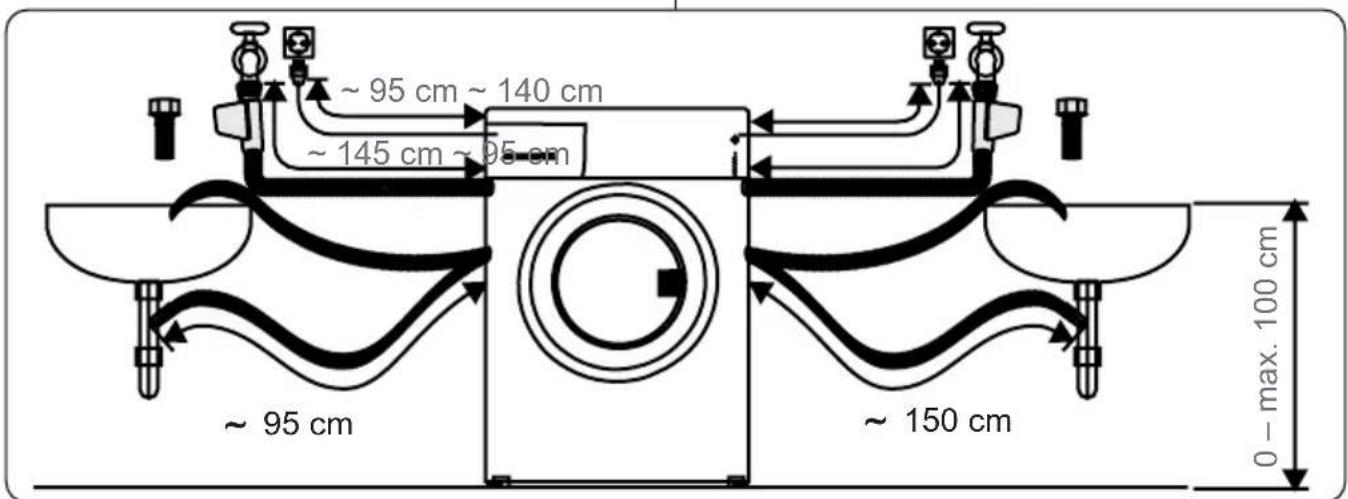

3.4 Water Inlet Hose Connection....11
3.5 Water Discharge Connection....12

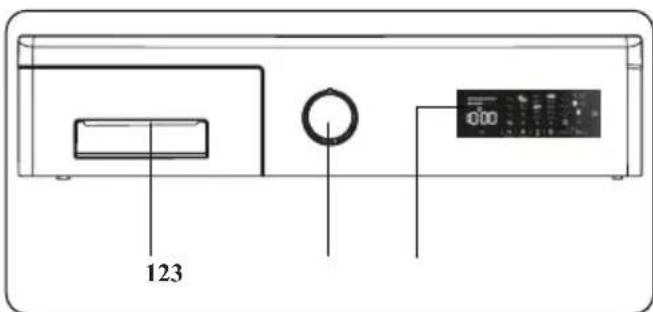

4.CONTROL PANEL OVERVIEW....12

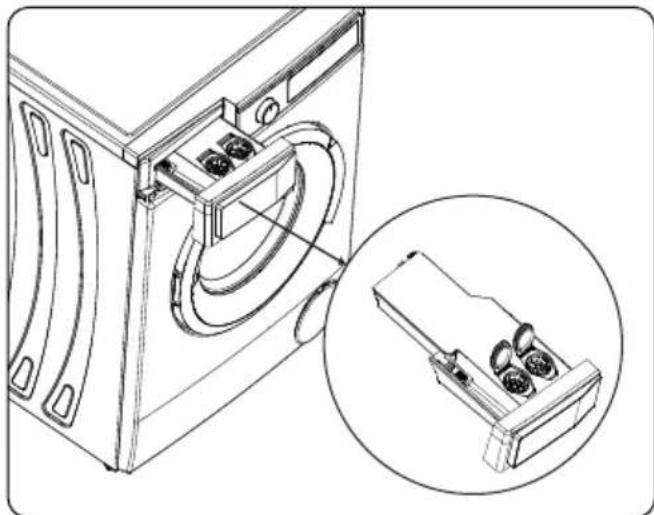

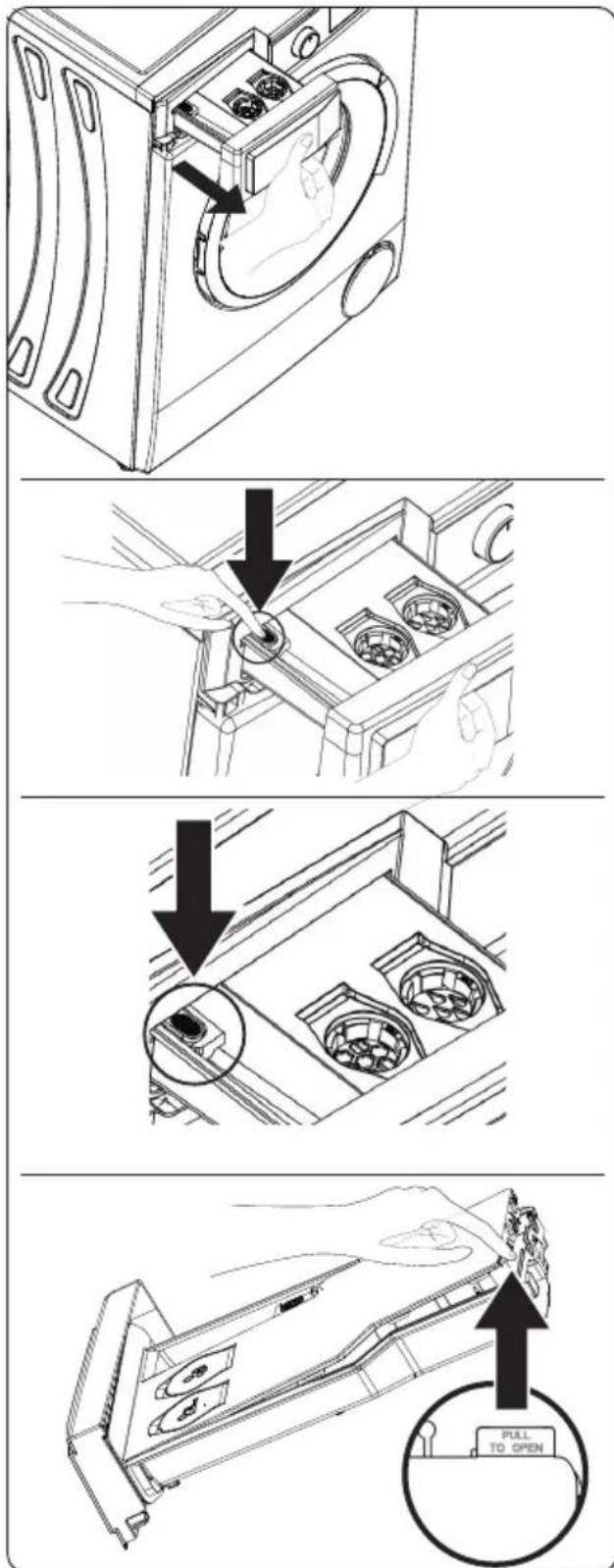

4.1 Detergent Drawer 12

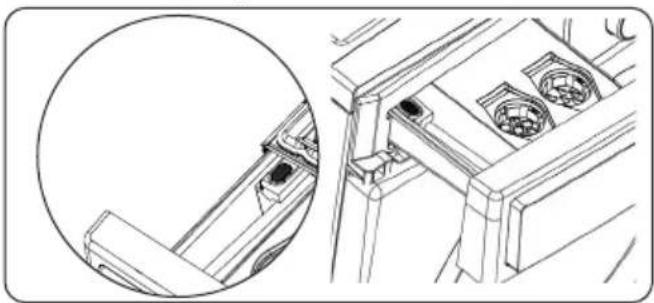

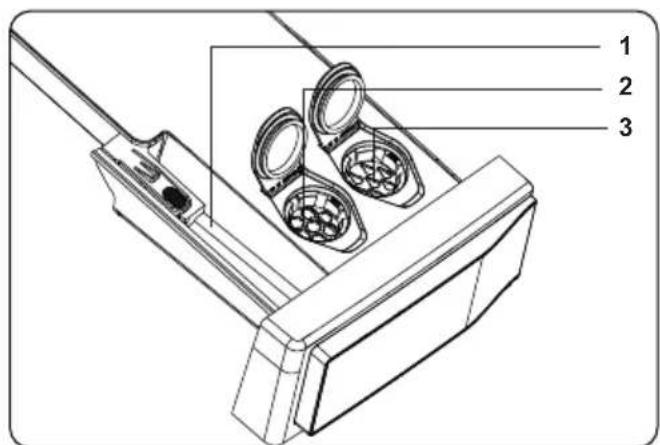

4.2 Sections 12
4.3 Warnings for the Automatic Detergent Dosing System 14

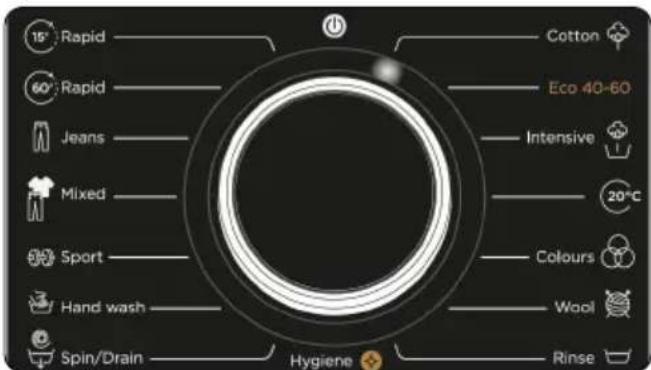

4.4 Program Dial....15
4.5 Electronic Display....15

5.USING YOUR WASHING MACHINE....16

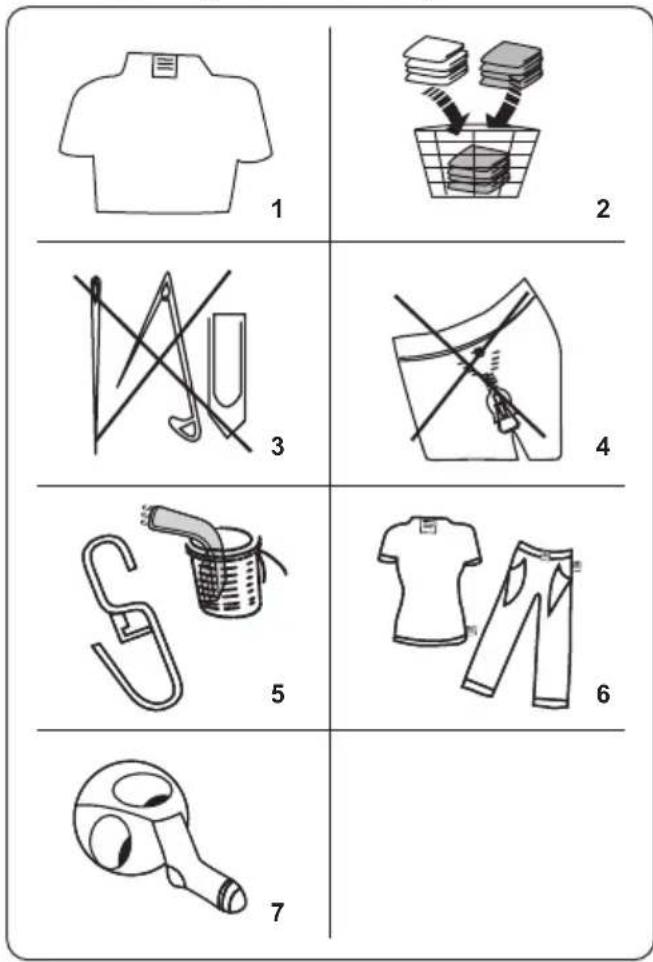

5.1 Preparing Your Laundry....16
5.2 Putting Laundry in the Machine 16
5.3 Operating Your Machine....17
5.4 Selecting a Programme....17
5.5 Half-Load Detection System....17

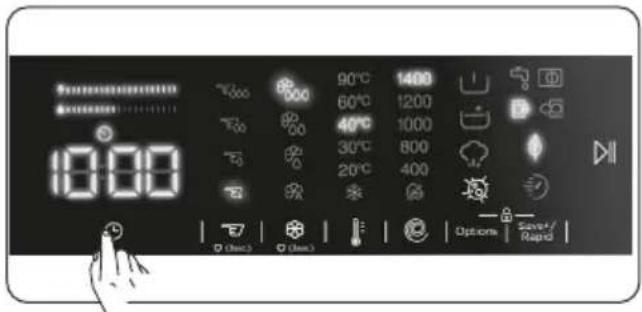

5.6 Auxiliary Functions ...... 17

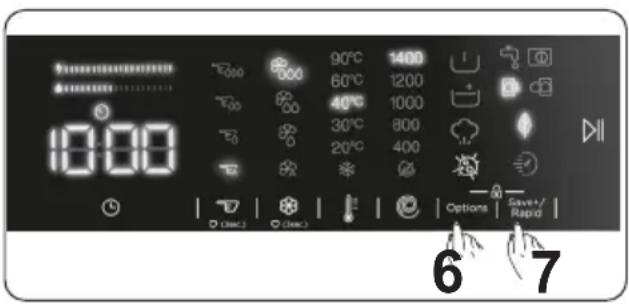

5.7 Child Lock 21
5.8 If you want to pause/cancel a running program or add laundry: 22

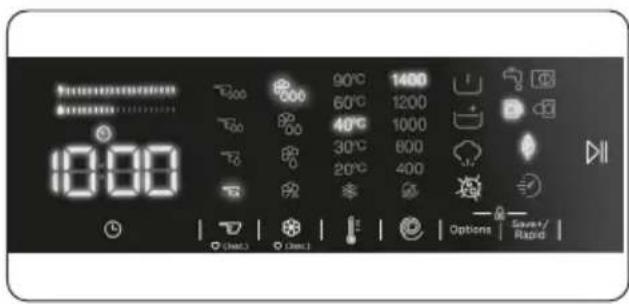

5.9 Program End 22

6.PROGRAMME TABLE....23

6.1 Important Informations....26

7.CLEANING AND MAINTENANCE ....27

7.1 Warning 27

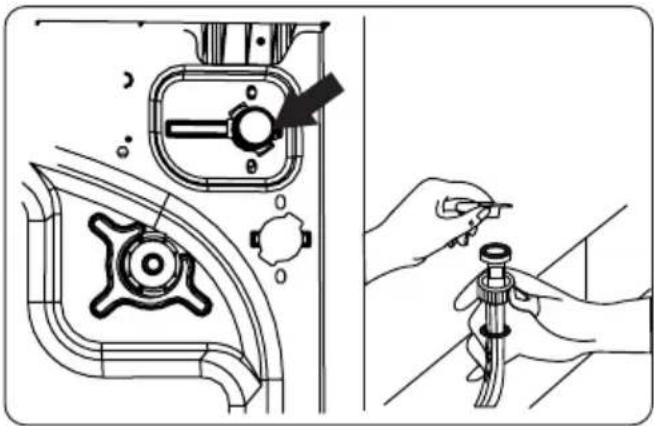

7.2 Water Inlet Filters 27

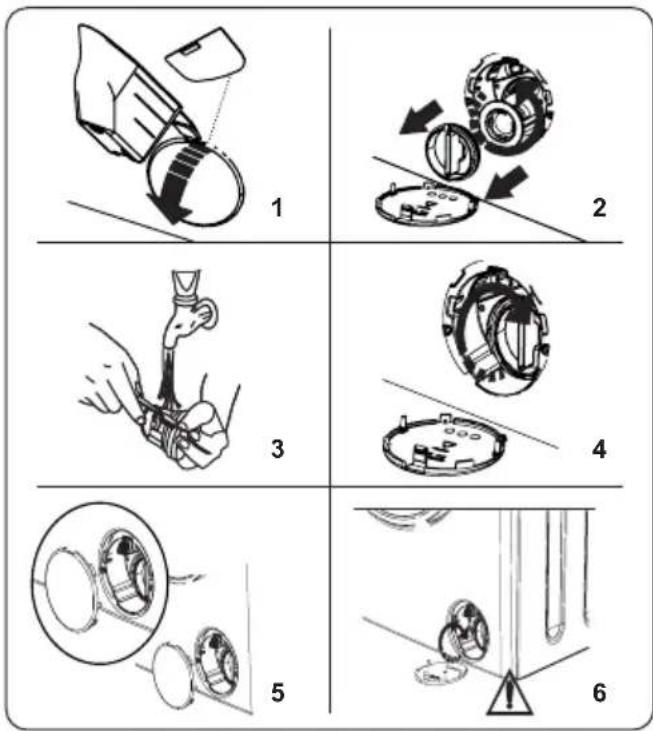

7.3 Pump Filter 28

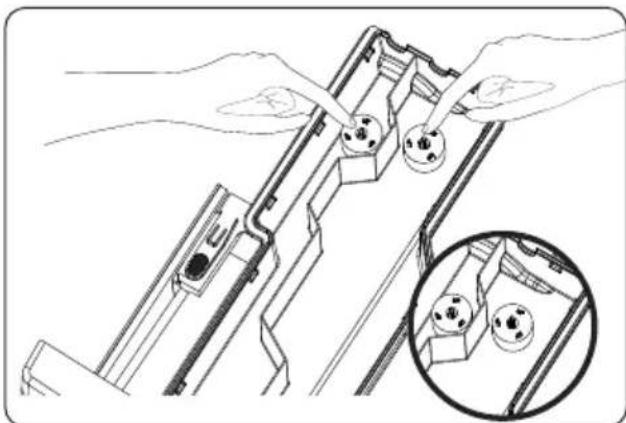

7.4 Detergent Drawer 29

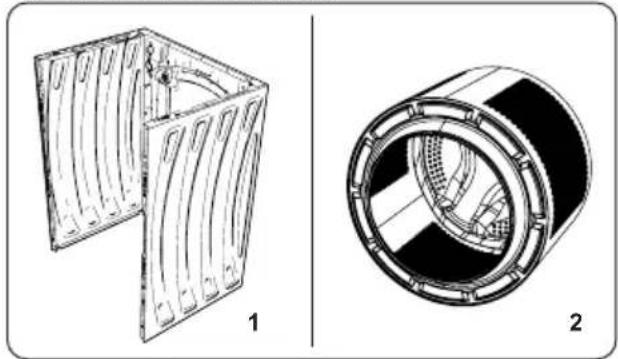

8.BODY / DRUM ....30

9.TROUBLESHOOTING....31

10.AUTOMATIC FAULT WARNINGS AND WHAT TO DO ....32

11.DIVERS 33

1. SAFETY INSTRUCTIONS

Operating voltage / frequency	(220-240) V~/50Hz
Total current (A) 10
Water pressure (Mpa) Maximum	1 Mpa / Minimum 0. 1Mpa
Total power (W)	2200
Maximum washing capacity (dry laundry) (kg)	9

• Do not install your machine on a carpet or such grounds that would prevent the ventilation of its base.
• The appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children of less than 3 years should be kept away unless continuously supervised.
• Call the nearest authorized service centre for a replacement if the power cord malfunctions.
• Use only the new water inlet hose coming with your machine when making water inlet connections to your machine. Never use old, used or damaged water inlet hoses.
• Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.

Read this user manual carefully.

Your machine is for domestic use only.

Using it for commercial purposes will cause your warranty to be cancelled.

1.1 General Safety Warnings

• The necessary ambient temperature for operation of your Washing Machine is 15-25 °C.
• Where the temperature is below 0 °C, hoses may split or the electronic card may not operate correctly.
• Please ensure that garments loaded into your Washing Machine are free from foreign objects such as nails, needles, lighters and coins.
• It is recommended that for your first wash, you select the 90° Cotton programme without laundry and half fill compartment II of the detergent drawer with a suitable detergent.

• Residues may form with detergents that are exposed to the air for a long time. Only add detergent to the detergent dispenser at the beginning of each wash (Autodose function deactivated).

• Unplug your Washing Machine and switch off the water supply if the Washing Machine is left unused for a long time. We also recommend that you leave the door open to prevent build up of humidity inside the Washing Machine.

• Some water may be left in your Washing Machine as a result of quality checks during production. This will not affect the operation of your Washing Machine.
• The packaging of the machine could be hazardous to children. Do not allow children to play with the packaging or small parts from the Washing Machine.
• Keep the packaging materials in a place where children cannot reach them, or dispose of them appropriately.
• Use pre-wash programs only for very dirty laundry.

⚠️Never open the detergent drawer while the machine is running.

- In the event of a breakdown, unplug the machine from the mains supply and turn the water supply off. Do not attempt to carry out any repairs. Always contact an authorised service agent.

- Do not exceed the maximum load for the washing programme you have chosen.

⚠️Never force the door open when your Washing Machine is running.

• Washing laundry containing flour may damage your machine.
• Please follow the manufacturers' instructions regarding the use of fabric conditioner or any

similar products that you intend to use in your Washing Machine.

- Make sure that the door of your Washing Machine is not restricted and can be opened fully.

Install your machine in a location that can be fully ventilated and preferably has constant air circulation.

Door emergency opening function

When the machine is running, any power cut or when the program is not yet complete, the door will remain locked.

To open the door;

1. Please turn off the machine. Take off the power plug from the mains socket.
2. To drain the waste water, follow the instructions given in cleaning the pump filter section.

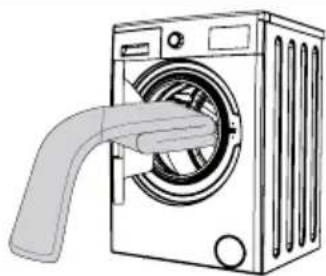

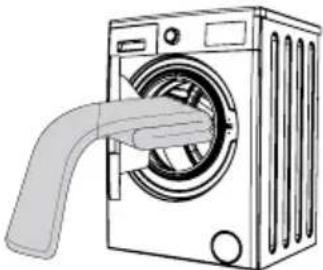

3. Pull the down the emergency opening mechanism with the help of a tool and open the door at the same time.
4. Doors, move the emergency opening handle to the open position after being closed again, if the door remains locked.

Read these warnings. Follow the advice given to protect yourself and others from risks and fatal injuries.

RISK OF BURNS

⚠️Do not touch the drain hose or any discharged water while your Washing Machine is running. The high temperatures involved pose a burn risk.

RISK OF DEATH FROM ELECTRICAL

CURRENT

- Do not connect your Washing Machine to the mains electricity supply using an extension le

- Do not insert a damaged plug into a socket.

- Never remove the plug from the socket by pulling the cord. Always hold the plug.

- Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.

- Do not touch your Washing Machine if your hands or feet are wet.

- A damaged power cord/plug can cause fire or give you an electric shock. When damaged it must be replaced, this should only be done by qualified personnel.

Risk of flooding

- Check the speed of water flow before placing the drain hose in a sink.

• Take necessary measures to prevent the hose from slipping.

• Water flow may dislodge the hose if it is not properly secured. Make sure the plug in your sink does not block the plug hole.

Danger of Fire

- Do not store inflammable liquids near your machine.

- The sulphur content of paint removers may cause corrosion. Never use paint removing materials in your machine.

- Never use products that contain solvents in your machine.

- Please ensure that garments loaded into your Washing Machine are free from foreign objects such as nails, needles, lighters and coins.

Risk of fire and explosion

⚠️Risk of falling and injury

• Do not climb on your Washing Machine.
• Make sure hoses and cables do not cause a trip hazard.
• Do not turn your Washing Machine upside down or on its side.
• Do not lift your Washing Machine using the door or detergent drawer.

⚠️The machine must be carried by at least 2 people.

! Child safety

• Do not leave children unattended near the machine. Children might lock themselves in the machine resulting in risk of death.
• Do not allow children to touch the glass door during operation. The surface becomes extremely hot and may cause damage to skin.
• Keep packaging material away from children.
• Poisoning and irritation may occur if detergent and cleaning materials are consumed or come into contact with the skin and eyes. Keep cleaning materials out of the reach of children.

1.2 During Use

• Keep pets away from your machine.
• Please check the packaging of your machine

before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.

- Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.

- This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.

- Only use your machine for laundry that is labelled as suitable for washing by the manufacturer.

- Before operating the washing machine, remove the 4 transit bolts and rubber spacers from the rear of the machine. If the bolts are not removed they may cause heavy vibration, noise and malfunction of the machine and cause the guarantee to be void.

- Your warranty does not cover damage caused by external factors such as fire, flooding and other sources of damage.

- Please do not throw away this user manual; keep it for future reference and pass it onto the next owner.

Replacement of drive belt, only by authorized service.

Only original spare belt must use.

1.3 Packaging and Environment

Removal of packaging materials

Packaging materials protect your machine from any damage that might occur during transportation. The packaging materials are environmentally friendly as they are recyclable. Use of recycled material reduces raw material consumption and decreases waste production.

1.4 Savings Information

Some important information to get the most efficient use out of your machine:

- Do not exceed the maximum load for the washing programme you have chosen. This will allow your machine to run in energy saving mode.

- Do not use the pre-wash feature for lightly soiled laundry. This will help you save on the amount of electricity and water consumed.

1. TECHNICAL SPECIFICATIONS


1 2 3 4 5 6

Technical diagram of a device casing with numbered components and internal wiring annotations

2.1 General Appearance

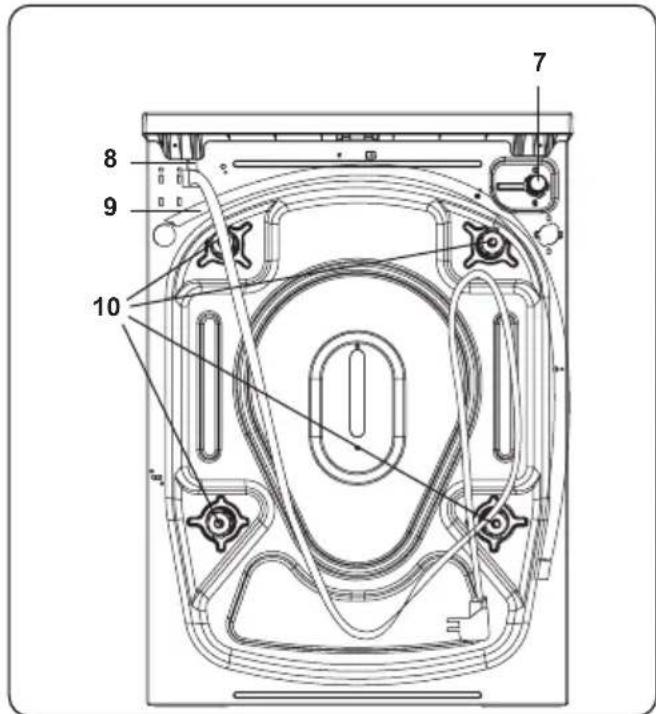

1. Electronic Display
2. Programme Dial
3. Upper Tray
4. Detergent Drawer
5. Drum
6. Pump Filter Cover
7. Water Inlet Valve
8. Power Cable
9. Discharging Hose
10. Transit Bolts

2.2 Technical Specifications

Operating voltage / frequency (V/Hz)	(220-240)V~/50Hz
Total current (A)	10
Water pressure (Mpa)	Maximum: 1 MpaMinimum: 0.1 Mpa
Total power (W)	2200
Maximum dry laundry capacity (kg)	9
Spinning revolution (rev / min)	1400
Programme number	15
Dimensions (mm)
Height	845
Width	597
Depth	582

3. INSTALLATION

3.1 Removing the Transit Bolts

1. Before operating the washing machine, remove the 4 transit bolts and rubber spacers from the rear of the machine. If the bolts are not removed, they may cause heavy vibration, noise and malfunction of the machine and void the warranty.
2. Loosen the transit bolts by turning them anticlockwise with an appropriate spanner.
3. Remove the transit bolts with a straight pull.
4. Fit the plastic blanking caps supplied in the accessories bag into the gaps left by the removal of the transit bolts. The transit bolts should be stored for future use.

NOTE: Remove the transit bolts before using the machine for the first time. Faults occurring due to the machine being operated with transit bolts fitted are out of the scope of the warranty.

3.2 Adjusting the Feet / Adjusting Adjustable Stays

Diagram showing a washing machine with labeled parts and directional arrows, including a mechanical component assembly.

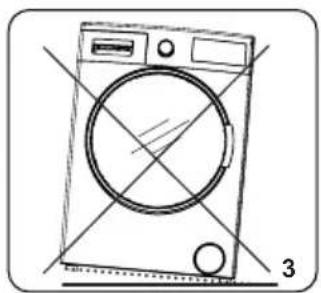

1. Do not install your machine on a surface (such as carpet) that would prevent ventilation at the base.
   • To ensure silent and vibration-free operation of your machine, install it on a firm surface.
2. You can level your machine using the adjustable feet.
3. Loosen the plastic locking nut.

x4 2

Line drawing of a washing machine with a circular vent and handle, shown without any text or symbols

1. To increase the height of the machine, turn the feet clockwise. To decrease the height of the machine, turn the feet anticlockwise.

- Once the machine is level, tighten the locking nuts by turning them clockwise.

1. Never insert cardboard, wood or other similar materials under the machine to level it.

- When cleaning the ground on which the machine is located, take care not to disturb the level of the machine.

3.3 Electrical Connection

Diagram showing a plug being inserted into an electrical socket, with an arrow indicating the process.

- Your Washing Machine requires a 220-240V, 50 mains supply.

• The mains cord of your washing machine is equipped with an earthed plug. This plug should always be inserted to an earthed socket of 10 amps.
• If you do not have a suitable socket and fuse conforming with this, please ensure the work is carried out by a qualified electrician.
  • We do not take responsibility for damage that occurs due to the use of ungrounded equipment.

NOTE:

Operating your machine with low voltage will cause the life cycle of your machine to be reduced and its performance to be restricted.

3.4 Water Inlet Hose Connection

1 2 3/4" 10 mm 3 4

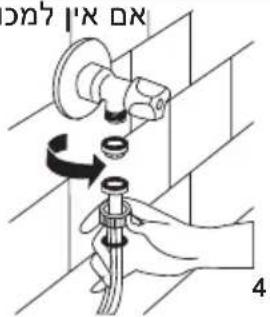

1. Connect your washing machine to the cold water supply as shown in the diagram above.

2. Hand tighten the connections. If in any doubt, consult a qualified plumber.

3. Water flow with pressure of 0.1-1 Mpa will allow your machine to operate at optimum efficiency (pressure of 0.1 Mpa means that more than 8 litres of water per minute will flow through a fully opened tap).

4. Once you have made all of the connections, carefully turn the water supply on and check for leaks.

5. Ensure that the new water inlet hoses are not trapped, kinked, twisted, folded or crushed.

NOTE:

Your Washing Machine must only be connected to your water supply using the supplied new fill hose. Old hoses must not be reused.

~ 95 cm ~ 140 cm ~ 145 cm ~ 95 cm ~ 95 cm ~ 150 cm 0 - max. 100 cm

3.5 Water Discharge Connection

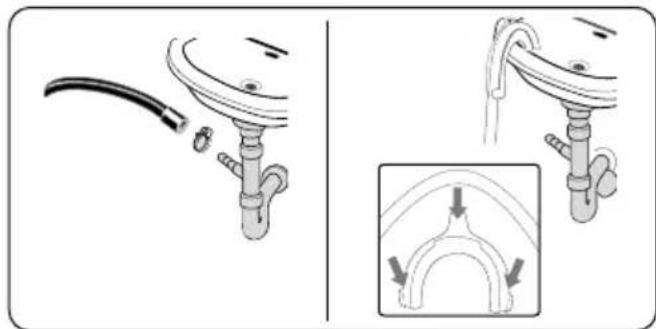

Diagram showing a mechanical component with a cable and a close-up of its internal structure (no text or symbols)

• Connect the water drain hose to a standpipe or to the outlet elbow of a household sink, using additional equipment.
• Never attempt to extend the water drain hose.
• Do not put the water drain hose from your machine into a container, bucket or bathtub.
  • Make sure that the water drain hose is not bent, buckled, crushed or extended.
• The water drain hose must be installed at a maximum height of 100 cm from the ground.

4. CONTROL PANEL OVERVIEW

123

1. Detergent Drawer
2. Programme Dial
3. Electronic Display

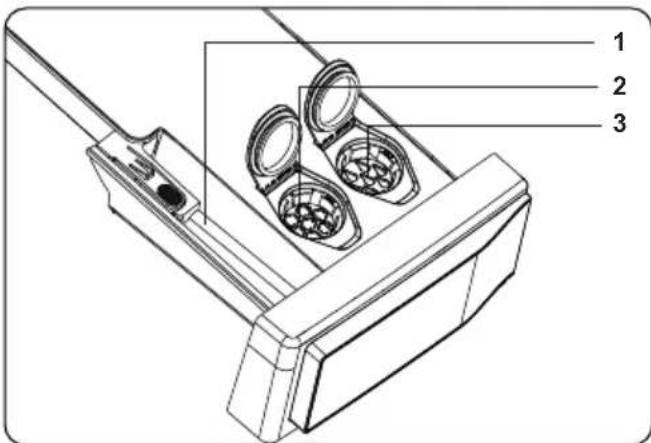

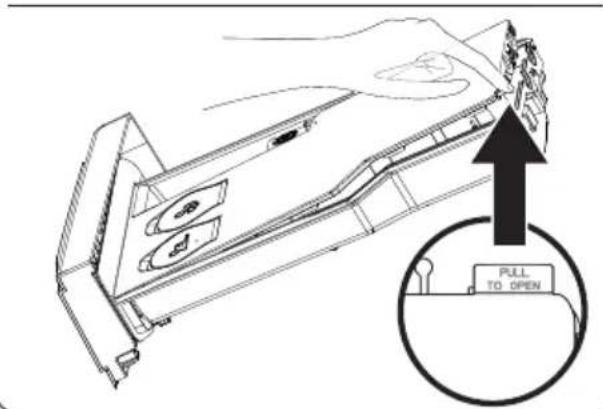

4.1 Detergent Drawer

Technical line drawing of a washing machine with an inset close-up showing internal components (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

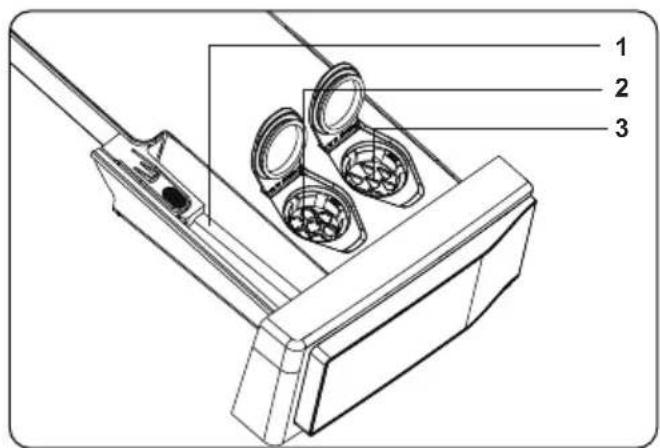

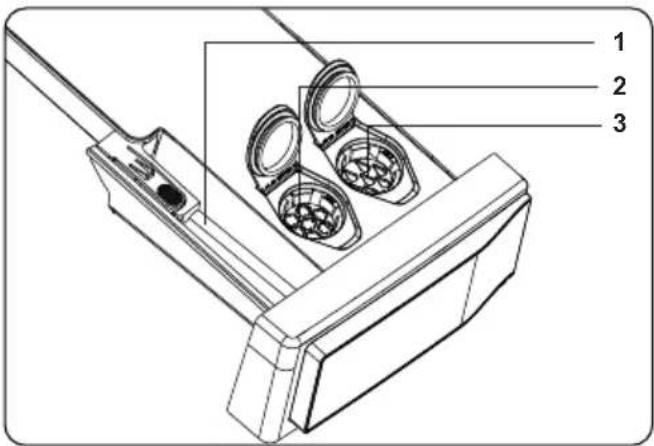

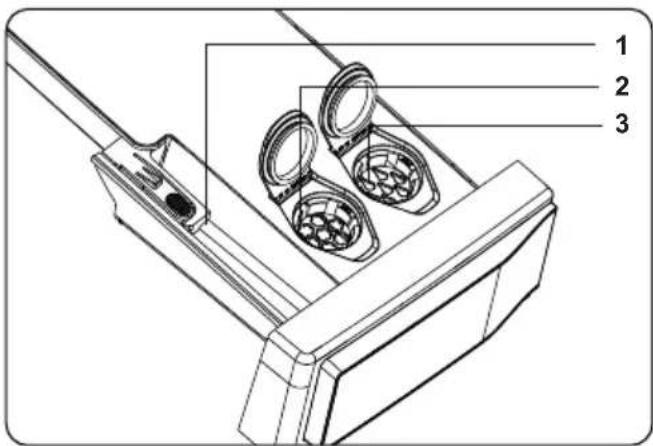

1. Powder Detergent Container
2. Softener (Auto Dosing) Container
3. Liquid Detergent (Auto Dosing) Container

4.2 Sections

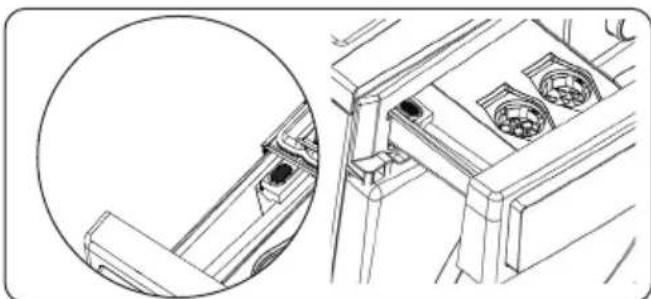

Powder detergent compartment:

Technical line drawing of a mechanical assembly with a circular inset view showing internal components (no text or symbols)

If you want to use powder detergent for the washing cycle, please deactivate the auto dosing function and use the powder detergent compartment.

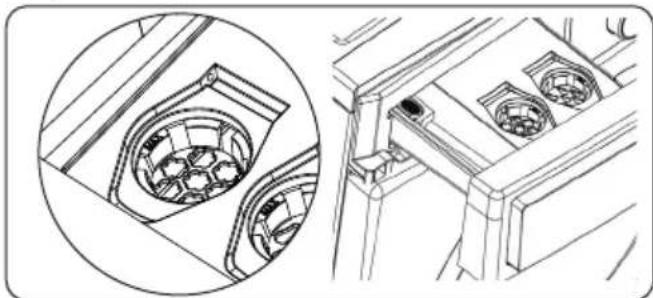

Fabric softener, fabric starch, detergent dispenser:

Technical line drawing of a mechanical assembly with two circular inset views showing internal components (no text or symbols)

Only substances such as fabric softener can be used on this dispenser (follow the amount and type as recommended by the manufacturer). Fabric softener used for laundry can remain on this dispenser sometimes. This is because the fabric softener is not a fluid substance. It is recommended that you use liquid fabric softeners having less viscosity or use the softener after diluting.

If you do not wish to use the softener compartment:

You should deactivate the softener selection.

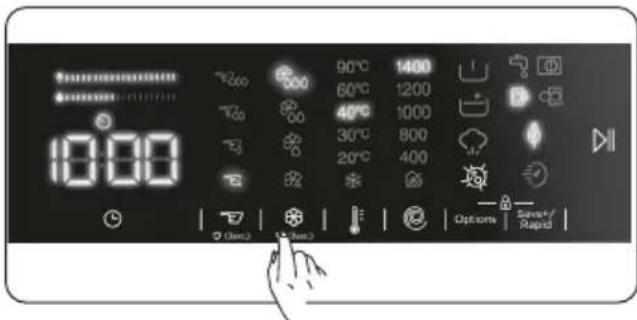

- If you press the softener dosage key once, the softener (auto dosing) function will be disabled.

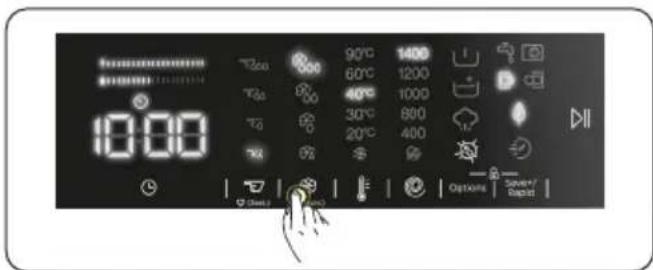

NOTE: The softener dosage

function is enabled when you switch on the machine

10:00 90°C 1400 60°C 1200 40°C 1000 30°C 800 20°C 400 Options Saver/ Reset

If you want to use the softener function,

- If you press the softener dosage key for the second time, the third level softener (auto dosing) LED turns on, indicating that the softener (auto dosing) function is enabled.

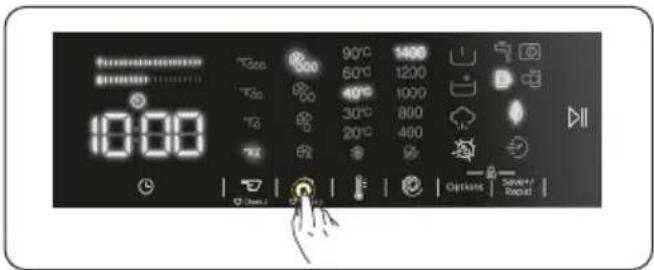

Softener level indicators:

• high level
• medium level
• low level
• Auto dosing

• After enabling the softener dosage (auto dosing) function, each press on the softener dosage key will allow you to select level , level 3, level 2, level 1 and auto dosing.

10:00 90°C 1400 60°C 1200 40°C 1000 30°C 800 20°C 400 Options Saver/ Rapid

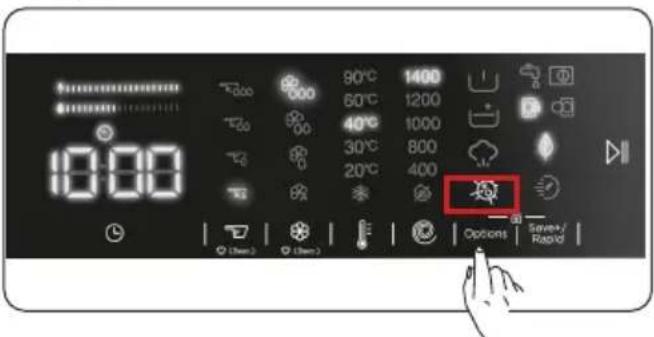

NOTE: Level selection forener should be made before theram starts; you cannot select a softenerl after the program has started.

NOTE: To record the desiredener level, press and hold the softenerction button for 3 seconds afteracting the softener level. The selectedener level will be valid for subsequents.

WARNING: When the ener level is low, the softener LED will t and your machine will give a warning.

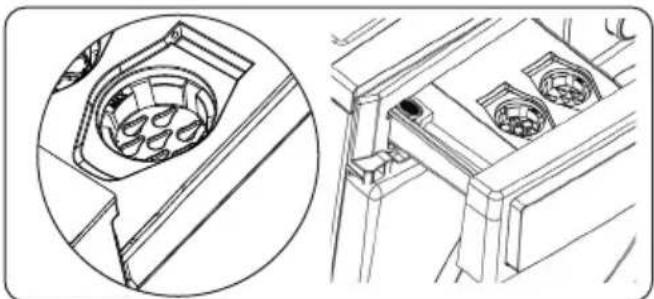

Liquid detergent (auto dosing) compartment:

Technical line drawing of a mechanical component with two circular inset views showing internal components (no text or symbols)

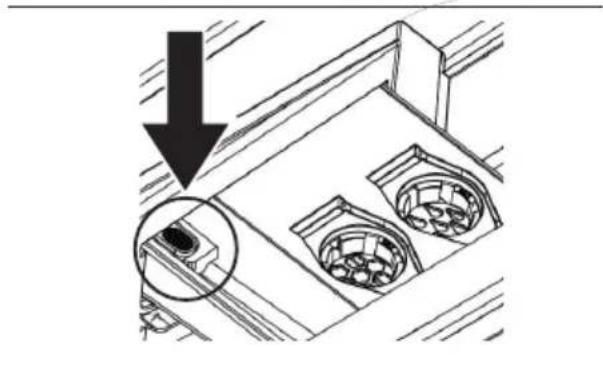

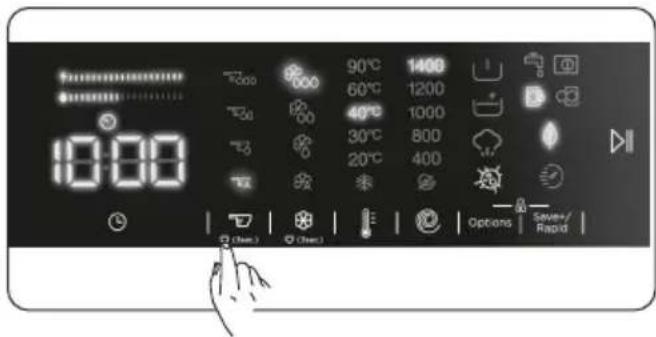

Use of liquid detergent (auto dosing) is activated on your machine by default. Only liquid detergent can be used in this compartment.

If you want to use the powder detergent compartment:

You should deactivate the liquid detergent (auto dosing) function.

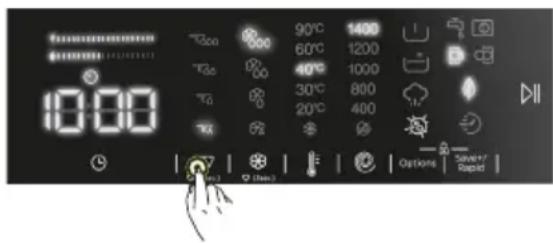

- If you press the detergent dosage key once, the liquid detergent (auto dosing) function will be disabled.

NOTE: The auto dosing

function is enabled when you switch on the machine.

10:00 90°C 1400 60°C 1200 40°C 1000 30°C 800 20°C 400 OK Options | Save/7 Rapid |

NOTE: When the liquid

detergent (auto dosing) function is disabled, you need to use powder detergent for washing cycles. To do this, you should put detergent in the powder detergent compartment.

If you want to use liquid detergent (auto dosing) for the washing cycle,

- If you press the detergent dosage key for the second time, the third level detergent (auto dosing) LED turns on, indicating that the detergent (auto dosing) function is enabled.

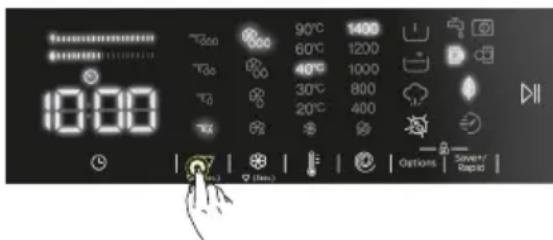

Liquid Detergent level indicators

• high level
• medium level
• low level
• Auto dosing
• After enabling the liquid detergent (auto dosing) function, each press on the detergent dosage key will allow you to select level , level 3, level 2, level 1 and auto dosing.

10:00 90°C 1400 60°C 1200 40°C 1000 30°C 800 20°C 400 6% Options Save/+ Rapid

NOTE: Liquid detergent (auto ng) level should be selected according to the soiling level of the laundry.

NOTE: The liquid detergent (auto ng) selection should be made before program starts; you cannot select this tion after the program has started.

NOTE: To record the desired urgent level, press and hold the urgent selection button for 3 seconds selecting the detergent level. The acted detergent level will be valid for sequent uses.

WARNING: When the urgent level is low, the LED under the urgent dosage key will blink and your time will give a warning.

4.3 Warnings for the Automatic Detergent Dosing System

Information regarding detergent

1. Do not mix detergents from different brands.
2. Do not mix detergent and softener.
3. When changing detergent, make sure you clean the reservoirs of the detergent drawer.
4. Do not use any detergent that has a layer on it or that has started to solidify.
5. Do not use bleach or products containing solvents.
6. When using concentrated detergent, dilute it with some water to prevent the drawer reservoirs from blocking.

When the product is running:

1. Do not leave the reservoir lids open to prevent the detergent inside from drying.
2. After adding the detergent or when the product is running, make sure that the drawer is properly closed. Otherwise, the product may not be able to use the detergent properly.

WARNING:

The drawer

should not be open while the product is running.

Detergent drawer:

1. When you remove the drawer, make sure that it is empty. Otherwise, you may pour the detergent in it.
2. When the detergent drawer is full:
3. Do not pull the machine.
4. Do not move the machine.
5. Do not lean or tilt the machine.

WARNING:

Before doing

these processes, make sure you remove the detergent drawer from the machine.

WARNING:

If you added

detergent but the machine still does not detect it, there may be dried detergent inside the reservoir, preventing the detergent dosing mechanism from functioning properly. Clean the drawer.

4.4 Program Dial

15° Rapid 60° Rapid Jeans Mixed Sport Hand wash Spin/Drain Cotton Eco 40-60 Intensive 20°C Colours Wool Hygiene Rinse

• To select the desired programme, turn the programme dial either clockwise or anti-clockwise until the marker on the programme dial points to the chosen programme.
  • Make sure that the programme dial is set exactly to the programme you want.

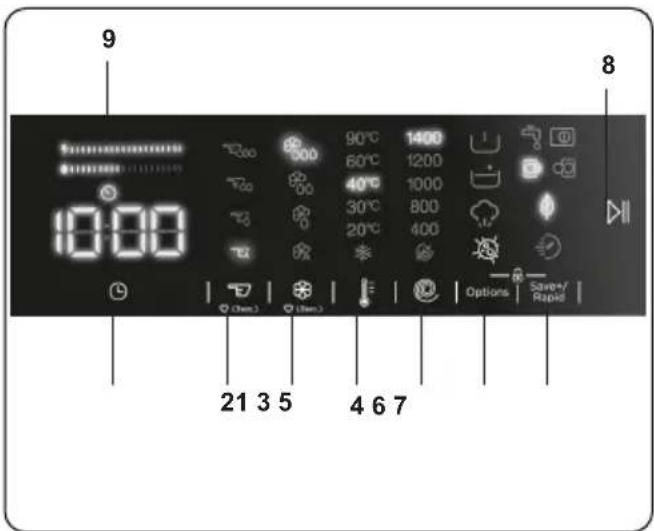

4.5 Electronic Display

9 10:00 21 3 5 4 6 7 8

1. Delayed start auxiliary function
2. Detergent Dosage Selection
3. Softener Dosage Selection

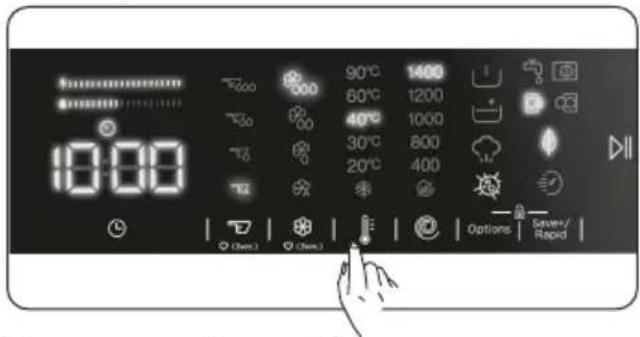

4. Selecting the washing water temperature
5. Spin speed selection
6. Options
7. Save+ / Speed (Eco washing, Quick Wash auxiliary function)
8. Start Pause Button
9. Energy/Water Efficiency Bar

5. USING YOUR WASHING MACHINE

5.1 Preparing Your Laundry

1 2 3 4 5 6 7

1. Follow the instructions given in the care labels on the clothing.
2. Separate your laundry according to type (cotton, synthetic, sensitive, wool etc.), washing temperature (cold, 30°, 40°, 60°, 90°) and the degree of dirtiness (slightly stained, stained, highly stained).
3. Never wash coloured and white laundry together.
4. Dark textiles may contain excess dye and should be washed separately several times.
5. Ensure that there are no metallic materials on your laundry or in the pockets; if so, remove them.

CAUTION: Any malfunctions which occur due to foreign materials damaging your machine are not covered by the warranty.

1. Close zips and fasten any hooks and eyes.

2. Remove the metallic or plastic hooks of curtains or place them in a washing net or bag.

3. Reverse textiles such as pants, knitwear, t-shirts and sweat shirts.
4. Wash socks, handkerchiefs and other small items in a washing net.

Can bebleached	Do not bleach	Normal washing
Maximum ironing temperature 150°C	Maximum ironing temperature 200°C	Do not iron
Can be dry cleaned	No dry cleaning	Dry flat
Drip dry	Hang to dry	Do not tumble dry
' A Dry cleaning in gas oil, pure alcohol and R113 is allowed	Perchloroethylene R11, R13, Petroleum	Perchlorinetyhlene R11, R113, Gas oil

5.2 Putting Laundry in the Machine

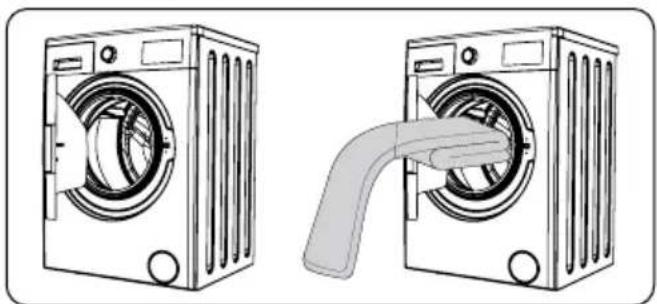

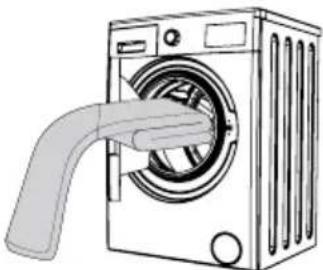

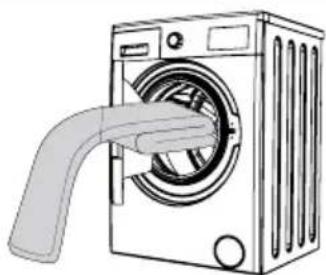

Illustration of two washing machines side by side, one with a handle and the other with a handle (no text or symbols)

• Open the door of your machine.
• Spread your laundry evenly in the machine.

NOTE:

NOTE: Take care not to exceed the maximum load of the drum as this will give poor wash results and cause creasing.

Refer to the washing programme tables for information on load capacities.

The following table shows approximate weights of typical laundry items:

LAUNDRY TYPE WEIGHT (gr)
Towel 200
Linen 500
Bathrobe 1200
Quilt cover 700
Pillow slip 200
Underwear 100
Tablecloth 250

• Load each item of laundry separately.
• Check that no items of laundry are trapped between the rubber seal and the door.

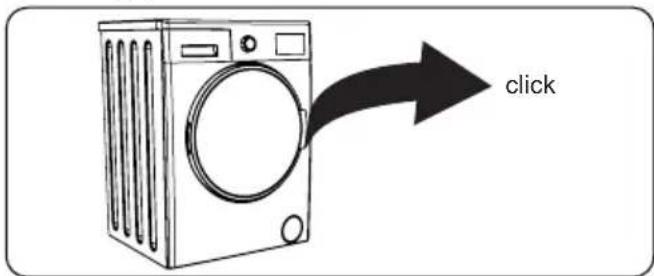

  • Gently push the door until it clicks shut.

click

• Make sure the door is fully closed, otherwise the programme will not start.

5.3 Operating Your Machine

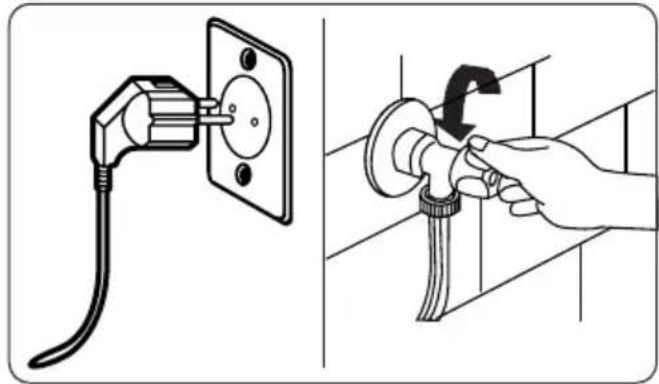

Illustration of a plug socket and a hand holding a screwdriver, both without any text or symbols

1. Plug your machine in to the mains supply.
2. Turn on the water supply.

- Open the machine door.

• Evenly spread your laundry in the machine.

• Gently push the door until it clicks shut.

5.4 Selecting a Programme

Use the programme tables to select the most appropriate programme for your laundry.

5.5 Half-Load Detection System

Your machine features a half-load detection system.

If you put less than half the maximum load of laundry into your machine it will automatically set the half-load function, regardless of the programme you selected.

This means that the selected programme will take less time to complete and will use less water and energy.

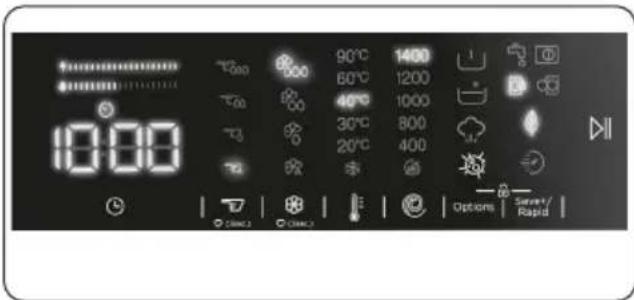

5.6 Auxiliary Functions

10:00 90°C 1400 80°C 1200 40°C 1000 30°C 800 20°C 400 Options | Save/ Rapid |

Before starting the program,

you can select auxiliary functions if you wish so.

• Press the key of the auxiliary function you want to select.
• If the symbol of the auxiliary function is continuously on in the electronic display, the selected auxiliary function will be enabled.
• If the symbol of the auxiliary function is flashing in the electronic display, the selected auxiliary function will not be enabled.

Reason for not enabling the function:

• That auxiliary function might not be available for the selected washing program.
• The machine might have passed the step where that auxiliary function could be applied.
  • The auxiliary function might be incompatible with another auxiliary function you have previously selected.

1. Delayed start auxiliary function

10:00 90°C 1400 60°C 1200 40°C 1000 30°C 800 20°C 400 Options Save+/Rapid

You can use this auxiliary function to delay the start time of the washing cycle for 1 to 23 hours.

To use the delay function:

• Press the delay key once.
• “1h” will be displayed. will turn on in the electronic display.
• Press the delay key until you reach the time after which you want the machine to start the washing cycle.
• If you have skipped the delay time you would like to set, you can keep pressing the delay key until you reach that time again.
• To use the time delay function, you need to press the Start/Pause key to start the machine.

NOTE:

After selecting the delay function, you can select other functions without touching the "Start/Pause" key, and then you can touch the "Start/Pause" key to enable time delay.

To cancel the delay function:

• If you did not press the Start/Pause key, keep touching the delay key until the electronic display shows the duration of the program you have selected. Once you see the program time on the electronic display, this means that the delay has been cancelled.
• If you have pressed the Start/Pause key to start the machine, you just need to touch the delay key once. 📋vill go off on the electronic display, press "Start/Pause" key to start the washing cycle.

2. Detergent Dosage Selection\*

10:00 90°C 1400 60°C 1200 40°C 1000 30°C 800 20°C 400 Options Save+/ Radio

This auxiliary function allows you to enable or disable auto dosage and to adjust the amount of liquid detergent according to the soiling level of the laundry you put in your washing machine.

3. Softener Dosage Selection\*

10:00 90°C 1400 60°C 1200 40°C 1000 30°C 800 20°C 400 Options Save+/Rapid

This auxiliary function allows you to enable or disable auto dosage and adjust softener levels.

*For use of this auxiliary function, please see the descriptions under Section.

4. Selecting the washing water temperature

90°C 1400 60°C 1200 40°C 1000 30°C 800 20°C 400 Options Save+/Reprd 18:00 (7min) (7min)

You can use the washing water temperature setting key to set the temperature of the washing water for your laundry.

• When you select a new program, the selected program's maximum temperature will be displayed on the washing water temperature display.
• You can press the washing water temperature setting key to decrease the washing water temperature gradually between the maximum water temperature of the selected program and cold water wash (✗).
• If you have skipped the washing water temperature you wanted to set, keep pressing the washing water temperature key to find the desired temperature again.

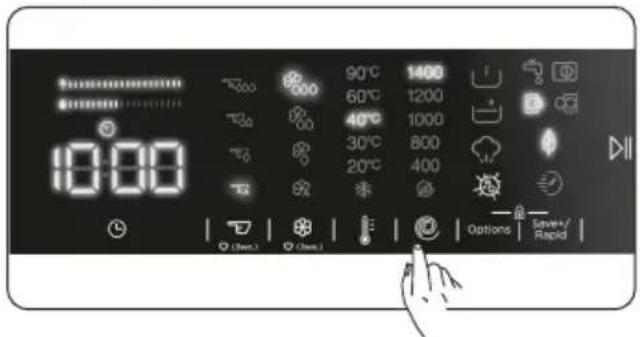

5. Spin speed selection

10:00 90°C 1400 60°C 1200 40°C 1000 30°C 800 20°C 400 Options Save+/Repld

You can use the speed setting key to set the spin speed for your laundry. When you select a new program, the selected program's maximum spin speed will be displayed on the spin speed display.

You can press the spin speed setting key to decrease the spin speed gradually between the selected program's maximum spin speed and the spin cancelled (option.

If you have skipped the spin speed you wanted to set, you can keep pressing the spin speed key to find the desired speed again.

6. Auxiliary functions

90°C 1400 60°C 1200 40°C 1000 30°C 800 20°C 400 10:00 Options Save+/ Rapid

You can use auxiliary functions to make the best washing selection for your laundry. To do this, you can touch the options key on the display panel to enable the following:

A) Prewash auxiliary function
B) Extra rinse auxiliary function
C) Steam Assist auxiliary function
D) Anti-allergy auxiliary function.

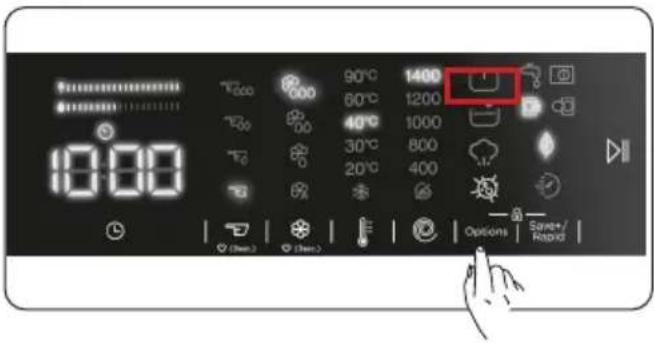

A) Brewash auxiliary function

10:00 90°C 1400 80°C 1200 40°C 1000 30°C 800 20°C 400 Options Save+/Rapid

You can use this auxiliary function to perform pre-wash before the main wash cycle for your highly soiled laundry. To enable the prewash auxiliary function, press the options key until the prewash symbol turns on. If the prewash LED is constantly on in the electronic display, it means that the auxiliary function is selected.

NOTE: When you want to select the prewash auxiliary function, if ⏻ does not appear on the display, this means that this feature is not available in the selected washing program.

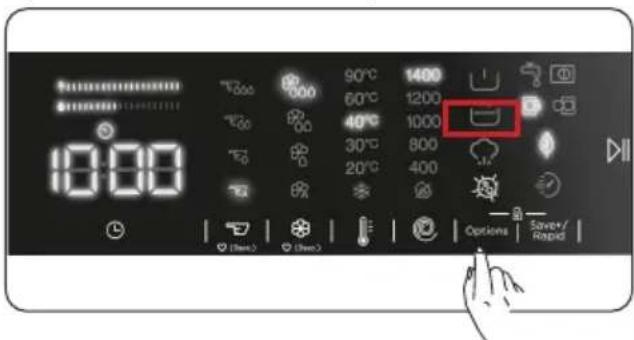

B) Extra rinse auxiliary function

18:00 90°C 1400 60°C 1200 40°C 1000 30°C 800 20°C 400 Options Save+/Rapid

You can use this auxiliary function for extra rinsing on your laundry. To enable the extra rinse function, keep pressing the options key until the extra rinse symbol ☐ turns on. If the extra rinse LED is constantly on in the electronic display, it means that the auxiliary function is selected.

NOTE:

select the extra rinse auxiliary function, if ☐ does not appear on the display, this means that this feature is not available in the selected washing program.

C) Steam Assist auxiliary function

10:00 90°C 1400 60°C 1200 40°C 1000 30°C 800 20°C 400 Options Save/ Rapid

Owing to the steam system ironing has become quick and as easy. The steam used dream washing penetrates and loosens the fibres, eliminates creases and leaves our clothes soft and delicate.

Note: When you want to select the steam system auxiliary function, if ⚙ does not appear on the display, this means that this feature is not available in the selected washing program.

D) Anti-allergy auxiliary function.

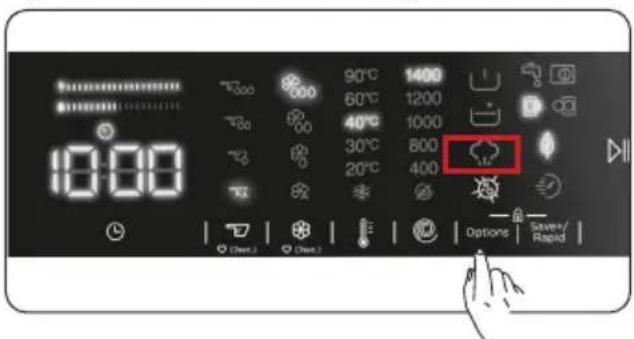

10:00 90°C 1400 60°C 1200 40°C 1000 30°C 800 20°C 400 Options Save+/Rapid

You can use this auxiliary function to add another rinse cycle for your laundry. Your machine will use hot water in all rinsing steps. (It is recommended for sensitive skin clothing, baby clothes and underclothes). To enable the anti-allergy auxiliary function, keep pressing the options key until the anti-allergy function symbol ☐urns on. If the anti-allergy LED ☐is constantly on in the electronic display, it means that the auxiliary function is selected.

NOTE:

When you want to select the anti-allergy auxiliary function, if does not appear on the display, this means that this feature is not available in the selected washing program.

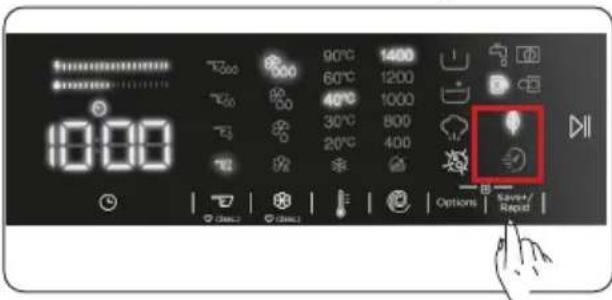

1. Eco/Quick Wash auxiliary function


90°C 1400 60°C 1200 40°C 1000 30°C 800 20°C 400 Options Save/Repeat 10:00

Eco washing auxiliary function:

If you select this auxiliary function, your machine will slightly extend the duration of the washing program. However, it will use less energy and water for the washing cycle. To enable this function, you can touch the Save+ / Speed selection key on the display panel to turn on the LED light of the symbol

Quick Wash auxiliary function:

If you select this auxiliary function, your machine will shorten the duration of the

washing program. (It is recommended to load the machine with half or less than half of the capacity of the selected washing program.) To enable this function, you can touch the Save+ / Speed selection key on the display panel to turn on the LED light of the symbol

NOTE: If you load the machine

with half or less than half of the laundry capacity of the selected washing program, the machine will detect it thanks to the half load detection system, and this way, it will wash your laundry with less energy and less water in a shorter time. When your machine detects half load, LED light of the symbol will automatically turn on in the display panel.

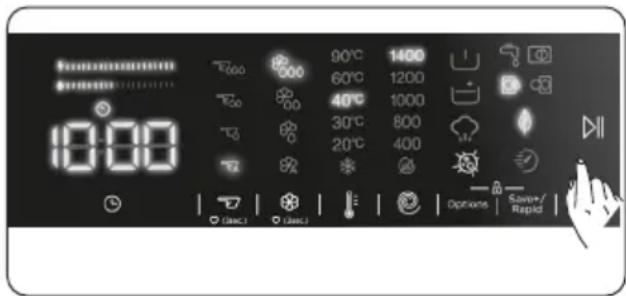

• Energy/Water Efficiency Bar:

“↑”is an efficiency indicator comprising 2 bars. The energy/water efficiency bar shows the amount of energy and water consumption. The bigger the bar is, the more energy or water consumption you will have. The energy/water efficiency bar might extend or shorten depending on the selected program’s duration, temperature setting, spin speed and other auxiliary functions.

Start/Pause button

10:00 90°C 1400 60°C 1200 40°C 1000 30°C 800 20°C 400 Options | Save+/Rapid |

By pressing on the Start/Pause button, you may start the programme you have selected or suspend a running programme. If you switch your machine to the standby mode, the Start/Pause led on the electronic display will blink.

5.7 Child Lock

The Child Lock function allows you to lock the buttons so that the wash cycle you have chosen cannot be changed unintentionally.

To activate child lock, press and hold button 6 and 7 simultaneously for at least 3 seconds. "CL" will flash on the electronic display for 2 seconds when the child lock is activated.

10:00 90°C 1400 60°C 1200 40°C 1000 30°C 800 20°C 400 Options Save+/- Rapid 6 7

If any button is pressed or selected programme is changed by the programme dial while the child lock is active, the "CL" symbol will flash on the electronic display for 2 seconds.

If the child lock function is active and a programme is running, when the programme dial is turned to the ⏻ position programme is selected the previously selected programme continues from where it was left.

To deactivate the child lock, press and hold button 6 and 7 simultaneously for at least 3 seconds until the “CL” symbol on the electronic display disappears.

Note: Door remains unlocked in case when child lock is active and electricity is cut off

5.8 If you want to pause/cancel a running program or add laundry:

• Symbol key allows you to pause or restart the selected program. When you want to add laundry, you can use this function.
• Touch symbol button for this. If is displayed on the screen, you can open the loading door and add laundry.
• If is displayed on the screen, the step where you can add laundry has passed.
• If you want to cancel a running program, turn the program knob ① to position. Your machine will stop washing process and the program will be cancelled. To drain the water in the machine, turn the program knob to any program position. Your machine will drain the water and cancel the program. You can select a new program and start the machine.

5.9 Program End

10:00 90°C 1400 60°C 1200 40°C 1000 30°C 800 20°C 400 Options Speed/Rapid

Your machine will automatically stop when the selected program ends.

• "End" will appear on the electronic display.
• You can open the door and take out the laundry. After taking out the laundry, leave the door open so that the inside of the machine can dry.
• Turn the program knob to position.
• Unplug the machine.

• Turn off the water tap.

• PROGRAMME TABLE

Programme	Washing temperature (°C)	Maximum dry laundry amount (kg)	(****) Detergent compartment	(****) Programme duration (Min.)	Laundry type / Descriptions
COTTON *60 - 90	9,0 2 145				Very dirty, cotton and flax textiles. (Underwear, linen, tablecloth, towel (maximum 4,5 kg), bedclothes, etc.)
ECO 40-60 *40 - 60	9,0 2 228				Dirty cotton and flax textiles. (Underwear, linen, tablecloth, towel (maximum 4,5 kg), bedclothes, etc.)
INTENSIVE	*60 - 40 - 30 - “- -C”	9,0 1&2	164		Dirty cotton and flax textiles. (Underwear, linen, tablecloth, towel (maximum 4,5 kg), bedclothes, etc.)
20°C *20- “- -C”	4,5 2 59				Less dirty, cotton and linen textiles. (Underwear, bedsheet, tablecloth, towel (max.2,5 kg) bedcloth, etc.)
COLOURS	*40 - 30 - “- -C”	9,0 2	130		Less dirty, cotton and linen textiles. (Underwear, bedsheet, tablecloth, towel (max. 4,5 kg) bedcloth, etc.)
WOOL *30 - “- -C”	2,5 2 48				Woollen laundries with machine wash labels.
RINSE *“- -C”	9,0 - 30				Provides an additional rinse to any type of laundry after the washing cycle.
HYGIENE	*60 - 40 - 30 - “- -C”	4,0 2	212		This programme washes your clothes thoroughly and removes bacteria from them.
SPIN/DRAIN *“- -C”	9,0 - 17				You can use this program for any type of laundry if you want an additional spin step after the washing cycle./ You can use the drain program to drain the water accumulated inside the machine (adding or removing laundry). To enable the drain program, turn the program knob to the spin/drain program. After you select “spin cancelled” using the auxiliary function key, the program will start to run.
HAND WASH	*30 - “- -C” 2,5	2 90			Laundry recommended for hand wash or sensitive laundry.
SPORT	* 40 - 30 - “- -C”	3,5 2	170		Very dirty or synthetic-mixed textiles. (Nylon socks, shirts, blouses, synthetic-including trousers etc.)
MIXED	*40 - 30 - “- -C”	3,5	2 100		Dirty cotton, synthetics, colour and flax textiles can be washed together.
JEANS	*30 - “- -C” 3,5	2 96			Black and dark items made of cotton, mixed fibre or jeans. Wash inside out., Jeans often contains excess dye and may run during the first few washes. Wash light and dark coloured items separately
RAPID 60'	*60 - 40 - 30 - “- -C”	4,0 2	60		Dirty, cotton, coloured and linen textiles washed at 60°C in 60 minutes.
RAPID 15 '	*30 - “- -C” 2,0	2 15			In a short time of 15 minutes, Lightly soiled, cotton, colored and linen textiles your can wash.

NOTE: PROGRAMME DURATION MAY CHANGE ACCORDING TO THE DUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTEDITIONAL FUNCTIONS.

(*) Washing water temperature of the programme is the factory default.
(**) If your machine has the rapid wash auxiliary function, you can enable the quick wash option on the display panel and load the machine with 2 kg or less laundry to wash it in 30 minutes.
(***) Due to the short washing time of this programme, we recommend that less detergent is used. The programme may last longer than 15 minutes if your machine detects an uneven load. You can open the door of your machine 2 minutes after the completion of a washing operation. (The 2 minute period is not included in the programme duration).
(****) If the liquid detergent (automatic dosing) feature is disabled, you must charge the detergent reservoir with detergent.
(****) The program duration differs according to the amount of laundry and the determined algorithm.

The Eco 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40^ C or 60^ C, together in the same cycle, and that this programme is used to assess the compliance with the EU ecodesign legislation.

The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

• Loading the household washing machine up to the capacity indicated by the manufacturer for the respective programmes will contribute to energy and water savings.
• Program duration, energy consumption and water consumption values may vary according to wash load weight and type, selected extra functions, tap water and ambient temperature.
• It's recommended to use liquid detergent for the washing programmes at low temperature.
• The amount of detergent to be used may vary depending on the amount of laundry and the level of dirtiness of the laundry. Please follow the detergent manufacturers' recommendations for the amount of the detergent to be used.
• The noise and remaining moisture content are influenced by the spinning speed. The higher spinning speed in the spinning phase, the higher noise and the lower remaining moisture content.
• You can access the product database where the model information is stored by reading the QR code on the energy label.

Programme Name	Rated Capacity kg	Energy Consumption kWh/cycle			Programme Duration Hours:Minutes			Water Consumption Litres/Cycle			max. Temperature °C			Remaining Moisture Content % 1400 Rpm
		Rated Capacity	1/2 Load	1/4 Load	Rated Capacity	1/2 Load	1/4 Load	Rated Capacity	1/2 Load	1/4 Load	Rated Capacity	1/2 Load	1/4 Load	Rated Capacity	1/2 Load	1/4 Load
Cotton 90	9 2	35			03:13			71 8	1 53%
Cotton 60	9 0	8			02:25			47 5	7 53%
Eco 40-60	9	0,91	0,39	0,20	03:48	02:54	02:54	56	44	41	41	28	23	53%	53%	53%
Sport	3,5 0	91 02:50	72 45	53%
Fast 60	4	1,11			01:00			35 5	8 53%
Cotton 20	4,5 0	,13			00:59			38 2	20 53%

6.1 Important Informations

- Use detergents, softeners and other additives suitable for automatic washing machines only. Excessive foam has occurred and automatic foam absorption system has been activated due to too much detergent usage.

- We recommend that periodic cleaning for washing machine every 2 months. For periodic cleaning please use Drum Clean programme. If your machine do not have Drum Clean programme, use Cottons-90 programme. When required, use limescale removers manufactured specifically for washing machines only.

- Never force the door open when your Washing Machine is running. You can open the door of your machine 2 minutes after the completion of a washing operation. *

- Never force the door open when your Washing Machine is running.

- The installation and repairing procedures should always carried out by the Authorised Service Agent in order to avoid possible risks. The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons.

7. CLEANING AND MAINTENANCE

7.1 Warning

Illustration showing a plug inserted into a wall socket and a hand using a tool to adjust the cable (no text or symbols present)

Turn your mains power supply off and remove the plug from the socket before carrying out maintenance and cleaning of your machine.

Turn off the water supply before starting maintenance and cleaning of your machine.

⚠️CAUTION: Do not use solvents, abrasive cleaners, glass cleaners or all-purpose cleaning agents to clean your Washing Machine. They may damage the plastic surfaces and other components with the chemicals they contain.

7.2 Water Inlet Filters

Water inlet filters prevent dirt and foreign materials from entering your machine. We recommend that these filters are cleaned when your machine is unable to receive sufficient water, although your water supply is on and the tap is open. We recommend that you clean your water inlet filters every 2 months.

Technical diagram showing mechanical assembly steps with labeled components and a hand holding a pipe fitting tool.

• Unscrew the water inlet hose(s) from the Washing Machine.
• To remove the water inlet filter from the water inlet valve, use a pair of long-nosed pliers to gently pull on the plastic bar in the filter.
• A second water inlet filter is located in the tap end of the water inlet hose. To remove the second water inlet filter, use a pair of long-nosed pliers to gently pull on the plastic bar in the filter.
• Clean the filter thoroughly with a soft brush and wash with soapy water and rinse thoroughly. Re-insert the filter by gently pushing it back into place.

CAUTION: The filters at the water inlet valve may become clogged due to water quality or lack of required maintenance and may break down. This may cause a water leak. Any such breakdowns are out of the scope of the warranty.

7.3 Pump Filter

Technical diagram showing six steps of mechanical assembly or disassembly, labeled 1 to 6 with corresponding illustrations.

The pump filter system in your Washing Machine prolongs the life of the pump by preventing lint from entering your machine. We recommend that you clean the pump filter every 2 months.

The pump filter is located behind the cover on the front-lower right corner.

To clean the pump filter:

1. You may use a flat screwdriver or similar objects to open the pump cover.
2. Gently press backwards. The cover will open.
3. Before opening the filter cover, place a container under the filter cover to collect any water left in the machine.
4. Loosen the filter by turning anticlockwise and remove by pulling. Wait for the water to drain.

NOTE:

Depending on the

amount of water inside the machine, you may have to empty the water collection container a few times.

1. Remove any foreign materials from the filter with a soft brush.
2. After cleaning, re-fit the filter by inserting it and turning clockwise.
3. When closing the pump cover, ensure that the mountings inside the cover meet the holes on the front panel side.
4. Close the filter cover.

WARNING: The water in the pump may be hot, wait until it has cooled down before carrying out any cleaning or maintenance.

7.4 Detergent Drawer

Your detergents may form deposition on the detergent drawer and drawer detergent slot. Remove the detergent drawer periodically to clean the formed deposition. It is recommended to be cleaned once in 2 months.

To remove the detergent drawer from the place:

- Pull the detergent drawer as much as

possible.

• Keep on pulling the detergent drawer as much as possible by pressing the area shown in the pictures in the drawer and displace the detergent drawer.
• Remove the lid found on the liquid detergent container and softener container by lifting the part shown in the picture.
• Wash it with plenty of water and with the help of a brush.
• Collect the deposition in the detergent drawer slot without letting them fall into your machine.
• Re-fit the detergent drawer after drying it with a towel or dry cloth.

Do not wash the detergent drawer in dishwasher.

Diagram showing hands holding a device with a magnified inset of a device component (no text or symbols)

CAUTION: The part marked 'UP' should be placed in the chamber with the part facing upwards.

8. BODY / DRUM

Technical drawings of two mechanical components: a 3D panel with internal channels and a cylindrical housing (no text or symbols)

1. Body

Use a mild, non-abrasive cleaning agent, or soap and water, to clean the external casing. Wipe dry with a soft cloth.

2. Drum

Do not leave metallic objects such as needles, paper clips, coins etc. in your machine. These objects lead to the formation of rust stains in the drum. To clean such rust stains, use a non-chlorine cleaning agent and follow the instructions of manufacturer of the cleaning agent. Never use wire wool or similar hard objects for cleaning rust stains.

3. Preventing scale build-up

If you live in an area with hard water, we recommend using a washing machine descaling product. Regularly check for any scale build-up in the drum. If necessary, run an empty washing cycle with a descaling product. Refer to the instructions provided by on the product packaging.

9. TROUBLESHOOTING

Repair of your machine should be carried out by an authorised service company. If your machine requires repair or if you cannot solve an issue with the information provided below, then you should:

• Unplug your machine from the mains power supply.
• Turn off the water supply.

FAULT POSSIBLE CAUSE TROUBLESHOOTING
Your machine does not start.	Machine not plugged in. Plug	machine in.
	Fuses are faulty. Replace	the fuses.
	No mains power supply. Check mains power.
	Start/Pause button not pressed.	Press the Start/Pause button.
	Programme dial 'stop' position.	Turn the programme dial to the desired position.
	The machine door is not completely closed.	Close the machine door.
Your machine does not intake water.	Water tap is turned off. Turn tap on.
	Water inlet hose may be twisted.	Check water inlet hose and untwist.
	Water inlet hose clogged. Clean water inlet hose filters. (*)
	Inlet filter clogged. Clean the inlet filters. (*)
	The machine door is not completely closed.	Close the machine door.
Your machine does not discharge water.	Drain hose clogged or twisted.	Check the drain hose, then either clean or untwist.
	Pump filter clogged. Clean the pump filter. (*)
	Laundry is too tightly packed together in the drum.	Spread your laundry in the machine evenly.
Your machine vibrates.	The feet have not been adjusted.	Adjust the feet. (**)
	Transit bolts fitted for transportation have not been removed.	Remove the transit bolts from the machine. (**)
	Small load in the drum.	This will not prevent operation of your machine.
	Your machine is overloaded with laundry or laundry is unevenly spread.	Do not overload the drum. Spread laundry evenly in the drum.
	Your machine rests on a hard surface.	Do not set up your Washing Machine on a hard surface.
Excessive foam is formed in the detergent drawer.	Excessive amount of detergent used.	Press the Start/Pause button. To stop the foam, dilute one tablespoon of softener into 1/2 litre of water and pour into the detergent drawer. Press the Start/Pause button after 5-10 mins.
	Wrong detergent used.	Only use detergents produced for automatic Washing Machines.
Unsatisfactory washing result.	Your washing is too dirty for the programme selected.	Use the information in the programme tables to select the most appropriate programme.
	Amount of detergent used insufficient.	Use the amount of detergent as instructed on the packaging.
	There is too much laundry in your machine.	Check that the maximum capacity for the selected programme has not been exceeded.
Unsatisfactory washing result.	Hard water.	Increase the amount of detergent following the manufacturer's instructions.
	Your laundry is too tightly packed together in the drum.	Check that your laundry is spread out.
As soon as the machine is loaded with water, water discharges.	The end of water drain hose is too low for the machine.	Check that the drain hose is at a suitable height. (**) .
No water appears in the drum during washing.	No fault. Water is in the unseen part of the drum.	......
Laundry has detergent residue.	Non-dissolving particles of some detergents may appear on your laundry as white spots.	Perform an extra rinse, or clean your laundry with a brush after it dries.
Grey spots appear on the laundry.	There is untreated oil, cream or ointment on your laundry.	Use the amount of detergent as instructed on the packaging in the next wash.
The spin cycle does not take place or takes place later than expected.	No fault. The Unbalanced load control system has been activated.	The Unbalanced load control system will try to spread your laundry. The spinning cycle will begin once your laundry is spread. Load the drum evenly for the next wash.

(*) See the chapter regarding maintenance and cleaning of your machine.
(**) See the chapter regarding installation of your machine.

10. AUTOMATIC FAULT WARNINGS AND WHAT TO DO

Your Washing Machine is equipped with a built-in fault detection system, indicated by a combination of flashing wash operation lights. The most common failure codes are shown below.

TROUBLE CODE	POSSIBLE FAULT WHAT TO DO
	The door of your machine is not shut properly.	Shut the door properly until you hear a click. If your machine persists to indicate fault, turn off your machine, unplug it and contact the nearest authorised service agent immediately.
	The water pressure or the water level inside the machine may be low.	Check the tap is fully turned on. Mains water may be cut-off. If the problem still continues, your machine will stop after a while automatically. Unplug the machine, turn off your tap and contact the nearest authorised service agent.
	The pump is faulty or pump filter is clogged or electrical connection of the pump is faulty.	Clean the pump filter. If the problem persists, contact the nearest authorised service agent. (*)
E04	Your machine has excessive amount of water.	Your machine will discharge water by itself. Once the water has drained, turn off your machine and unplug it. Turn off the tap and contact the nearest authorised service agent.

(*) See the chapter regarding maintenance and cleaning of your machine.

11. DIVERS

Performing your own repairs

Some repairs may be carried out by the user in certain cases. The sav.groupebrandt.com website offers you the option of ordering certain spare parts as well as bringing you access to technical data and safety instructions to guide you through troubleshooting. In line with the stipulations of Article L441-5 of the French Consumer Code (Code de la Consommation), the manufacturer cannot be held liable for any damage that occurs while performing your own repairs insomuch as this damage is linked to improper procedures by the user or any failure by the latter to follow the instructions for repairing the product.

Availability of spare parts

The minimum length of time for making available spare parts listed in European Regulation 2019-2 023 -EU and accessible, especially to the appliance user, is 10 years under the terms set out in the above regulation.

General information on regulation EU 2019-2023

• When using the test programmes, wash the specified load using the maximum spin speed.
• The actual parameters will depend on how the appliance is used and may differ from the preset parameters.
• This domestic washing machine is equipped with a system for managing energy consumption. The time spent in the mode left to run is less than one minute.
• The most effective programs from a power and water consumption point of view are generally those that run at low temperature for a longer duration.
• Loading the domestic washing machine to the maximum capacity stated by the manufacturer for each programme contributes to saving power and water.
• The noise and remaining moisture content are influenced by the spin speed: the higher the spin speed during the spin phase, the higher the noise level and the lower the remaining moisture content of the laundry.
• To access the data on your model, stored in the product database in line with regulation (EU) 2019/2014 and data relating to energy labelling, please connect to the dedicated website at https://eprel.ec.europa.eu/

Find the reference of your appliance on the website by entering the service reference shown on the ID plate on your appliance. Another way to access this information is to flash the QR code found on the energy label on your product.

AFTER-SALES SERVICE

Any repairs to your appliance must be made by a qualified professional accredited to work on the brand. When calling, please provide the full references of your appliance (commercial reference, service reference, serial number), so that we can handle your call more efficiently. This information can be found on the data plate.

CE Declaration of conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Disposal of your old machine

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this

product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

	10.2	10.3	10.4	10.5	10.6	10.7	10.8	10.9	11.0	11.1	11.2	11.3	11.4	11.5	11.6	11.7	11.8	11.9	12.0

www.dedietrich-electromenager.com

C€

52430896

GUÍA DEL USUARIO

LA VADORA

ES

ESTIMADA CLIENTA, ESTIMADO CLIENTE

Technical diagram of a device casing with numbered components for identification

2.1 Aspecto general

Diagram showing a washing machine with labeled parts and directional arrows, including a mechanical component assembly.

Line drawing of a washing machine with a circular vent and control panel (no text or symbols)

Diagram showing a plug being inserted into a socket, with an arrow indicating the process.

1 2 3/4" 10 mm 3 4

Diagram showing a pipe installation and its cross-sectional view of a mechanical component (no text or symbols present)

Technical line drawing of a washing machine with an inset close-up showing internal components (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

Technical line drawing of a mechanical assembly with a circular inset view showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with two views: top shows internal components, bottom shows exterior view (no text or symbols)

Technical line drawing of a mechanical component with two circular inset views showing internal components (no text or symbols)

15° Rapid 60° Rapid Jeans Mixed Sport Hand wash Spin/Drain Cotton Eco 40-60 Intensive 20°C Colours Wool Hygiene Rinse

Simple line drawing of a short-sleeve shirt with a collar (no text or symbols)

Pure technical line drawing of drafting tools without any text or symbols

Simple line drawing of a paperclip and a basket with a handle, no text or symbols present.

Line drawing of a T-shirt and jeans (no text or symbols)

Illustration of two washing machines side by side, one with a handle and the other with a handle (no text or symbols)

Illustration showing two steps of a hairpin installation: one with a plug, the other with a hand holding a screwdriver (no text or symbols present)

Illustration showing a wall-mounted electrical plug and a hand holding a hose, both without any text or symbols.

Technical diagram showing a valve mechanism and a hand holding a pipe fitting, with Chinese annotations.

Technical line drawing of a mechanical assembly with hands and an inset showing two circular components (no text or symbols)

! PRECAUCIÓN: La

Technical diagrams of two mechanical components: a rectangular frame with internal channels and a cylindrical housing (no text or symbols)

1. Cuerpo

web: https://eprel.ec.europa.eu/

Three-step diagram illustrating electrical connections: plug, fuse, and plug with a power plug, showing wiring and grounding.

ovat märät.

Technical diagram of a device casing with numbered components and labeled parts

2.1 Yleiskuva

Diagram showing a washing machine with directional arrows and a mechanical component, labeled with number 1.

Line drawing of a washing machine with no text or symbols

Diagram showing two electrical plug connections with a socket, indicating charging or discharging process.

1 2 3/4" 10 mm 3 4

Diagram showing a pipe fitting with a cable and a close-up of the internal structure (no text or symbols)

Technical line drawing of a washing machine with a magnified inset showing internal components (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

Technical line drawing of a mechanical assembly with a circular inset view showing a bracket detail (no text or symbols)

Technical line drawing of a mechanical assembly with two circular inset views showing internal components (no text or symbols)

Technical line drawing of a mechanical component with two circular inset views (no text or symbols)

15° Rapid 60° Rapid Jeans Mixed Sport Hand wash Spin/Drain Cotton Eco 40-60 Intensive 20°C Colours Wool Rinse Hygiene

Illustration of two washing machines side by side, one with a handle opening the other (no text or symbols)

Illustration of two different electrical installation methods: one with a plug, the other with a hand holding a screwdriver (no text or symbols present)

Illustration showing a wall-mounted power plug and a hand using a tool to clean or adjust the installation (no text or symbols present)

Technical illustration showing a mechanical assembly with a valve and tool, alongside a close-up of hands adjusting a pipe fitting (no text or symbols present)

- Irrota vedenottoletku tai -letkut pesukoneesta.

Six-step diagram illustrating mechanical assembly steps with labeled components and directional arrows

Technical line drawing of a mechanical assembly with hands and an inset showing two circular components (no text or symbols)

Technical diagrams of two mechanical components: a rectangular frame with internal cutouts and a cylindrical housing with internal structure (no text or symbols)

1. Runko

QR code image containing encoded data, no visible human-readable text

De Dietrich

Diagram illustrating electrical circuitry with three switches and a hand holding a tool, showing wiring connections and grounding.

Technical diagram of a device casing with numbered components and labeled parts

Diagram showing a washing machine with directional arrows and a mechanical component, labeled with number 1.

Line drawing of a washing machine with circular vent and side buttons (no text or symbols)

Diagram showing two electrical plug connections with a socket, indicating charging or discharging process.

1 2 3/4" 10 mm 3 4

Diagram showing a pipe fitting with a cable and a close-up of the internal structure (no text or symbols)

Technical line drawing of a washing machine with an inset close-up showing internal components (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

Technical line drawing of a mechanical assembly with a circular inset view showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with two circular inset views showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with two circular views showing internal components (no text or symbols)

Line drawing of a front-loading washing machine (no text or symbols)

Line drawing of a washing machine with a handle inserting into the air gap (no text or symbols)

Two-step diagram showing a cable installation and hand tool application on a wall (no text or symbols)

Illustration showing a wall-mounted electrical plug and a hand holding a hose, both without any text or symbols.

Technical illustration showing a mechanical component being adjusted for installation, with no visible text or symbols.

Six-step diagram illustrating mechanical assembly steps with labeled components and directional arrows

Technical diagram showing a washing machine operation with labeled steps to open the door and lock.

Technical line drawing of a mechanical assembly with hands and an inset showing two circular components (no text or symbols)

Technical diagrams of two mechanical components: a 3D panel assembly and a cylindrical housing (no text or symbols)

1. VEILIGHEIDSWAARSCHUWINGEN....1

9.PROBLEEMOPLOSSING....33

10. AUTOMATISCHE FOUTMELDINGEN EN WAT TE DOEN ....34

11.Anderen 34

1. VEILIGHEIDSWAARSCHUWINGEN

Technical diagram of a device casing with numbered components and internal structure annotations

Technical diagram of a device casing with numbered components and internal wiring annotations

Diagram showing a washing machine with labeled parts and a close-up of its mechanical assembly with arrows indicating motion.

Line drawing of a washing machine with circular vent and side buttons, no text or symbols present

Diagram showing two electrical plug connections with a socket, indicating charging or discharging process.

1 2 3/4" 10 mm 3 4

Diagram showing a pipe fitting with a cable inserted into a sink, and a close-up of the internal structure with directional arrows (no text or symbols)

Technical line drawing of a washing machine with an inset close-up showing internal components (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

Technical line drawing of a mechanical assembly with two circular inset views (no text or symbols)

Technical line drawing of a mechanical assembly with two circular inset views showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with two views: top shows a circular component, bottom shows a plan view of a cabinet or fixture (no text or symbols)

15° Rapid 80° Rapid Jeans Mixed Sport Hand wash Spin/Drain Cotton Eco 40-60 Intensive 20°C Colours Wool Rinse Hygiene

Line drawing of a washing machine with front panel and side vent (no text or symbols)

Line drawing of a washing machine with a handle inserting into the air (no text or symbols)

Illustration showing two steps of a hairpin installation: one with a plug, the other with a hand holding a screwdriver (no text or symbols present)

10:00 90°C 1400 60°C 1200 40°C 1000 30°C 800 20°C 400 Options | Safety/Rapid | (Dec.) (Dec.)

Illustration showing a hand using a power tool to clean or adjust the wall-mounted electrical outlet (no text or symbols present)

Technical illustration showing a mechanical component being inserted into a pipe fitting, with no visible text or symbols.

Six-step diagram illustrating mechanical assembly steps with labeled components and directional arrows

Technical line drawing of a mechanical assembly with hands and an inset showing a close-up of a component (no text or symbols)

Technical diagrams of two mechanical components: a rectangular frame with internal cutouts and a cylindrical housing with internal structure (no text or symbols)

1. Behuizing

9. PROBLEEMOPLOSSING

5.7 Barnesikring....22

7.RENGJ∅RING OG VEDLIKEHOLD....28

7.1 Advarsel 28

7.2 Vanninntaksfiltre 28

7.3 Pumpefilter 29

Technical diagram of a device casing with numbered components and labeled parts

2.1 Generelt utseende

1. Elektronisk display
2. Programvelger
3. Topplate
4. Vaskemiddelskuff
5. Trommel
6. Pumpefilterdeksel
7. Inntaksvannventil
8. Strømkabel
9. Avløpsslange
10. Overgangsbolter

Diagram showing a washing machine with labeled parts and a mechanical assembly with arrows indicating motion or force.

Line drawing of a washing machine with no text or symbols

Diagram showing two electrical plug connections with a socket, indicating charging or discharging process.

• Vaskemaskinen din krever en 220-240V,

50 strømtilførsel.

• Vaskemaskinens strømkabel har et støpsel beregnet på en jordet stikkontakt. Dette støpselet skal alltid settes inn i en jordet 10 A stikkontakt.
• Hvis du ikke har en passende stikkontakt og sikring i samsvar med dette, må du forsikre deg om at arbeidet utføres av en kvalifisert elektriker.
• Vi tar ikke ansvar for skader som oppstår på grunn av bruk av ujordet utstyr.

MERK:

1 2 3/4" 10 mm 3 4

Diagram showing a mechanical component with a cable and a close-up of its internal structure (no text or symbols)

Technical line drawing of a washing machine with an inset close-up showing internal components (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

1. Beholder for vaskepulver
2. Beholder for mykner (automatisk dosering)
3. Beholder for flytende vaskemiddel (automatisk dosering)

4.2 Deler

Beholder for vaskepulver

Technical line drawing of a mechanical assembly with a circular inset view showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with two views: top shows internal components, bottom shows exterior view (no text or symbols)

Technical line drawing of a mechanical assembly with two circular views showing internal components (no text or symbols)

Bruk av flytende vaskemiddel (automatisk dosering) vil som standard aktiveres på maskinen. Bruk kun flytende vaskemiddel i denne beholderen.

15° Rapid 60° Rapid Jeans Mixed Sport Hand wash Spin/Drain Cotton Eco 40-60 Intensive 20°C Colours Wool Rinse Hygiene

Illustration of two washing machines side by side, one with a handle and the other with a handle (no text or symbols)

• Åpne døren på maskinen.
• Fordel tøyet jevnt i vaskemaskinen.

Illustration showing two steps of a hairpin installation: one with a plug, the other with a hand holding a screwdriver (no text or symbols present)

Illustration showing a wall-mounted electrical plug and a hand using a power tool to adjust the installation (no text or symbols present)

Technical illustration showing a mechanical component being adjusted for installation, with no visible text or symbols.

Technical diagram showing six different mechanical assembly steps with labeled components and directional arrows indicating motion.

Diagram of hands holding a device with a magnified inset showing two soccer balls inside a container (no text or symbols)

Technical diagrams of two mechanical components: a 3D panel assembly and a cylindrical housing with internal structure (no text or symbols)

1. Hoveddel

	10.0	10.0
	10.0	10.0
	10.0	10.0
	10.0	10.0
	10.0	10.0
	10.0	10.0
	10.0	10.0
	10.0	10.0
	10.0	12.5
	10.0	12.5
	10.0	12.5
	10.0	12.5
	10.0	12.5
	10.0	12.5
	10.0	12.5
	10.0	12.5
	10.0, 12.5, 13.5, 14.5, 15.5, 16.5, 17.5, 18.5, 19.5, 20.5, 21.5, 22.5, 23.5, 24.5, 25.5, 26.5, 27.5, 28.5, 29.5, 30.5, 31.5, 32.5, 33.5, 34.5, 35.5, 36.5, 37.5, 38.5, 39.5, 40.5, 41.5, 42.5, 43.5, 44.5, 45.5, 46.5, 47.5, 48.5, 49.5, 50.5, 51.5, 52.5, 53.5, 54.5, 55.5, 56.5, 57.5, 58.5, 59.5, 60.5, 61.5, 62.5, 63.5, 64.5, 65.5, 66.5, 67.5, 68.5, 69.5, 70.5, 71.5, 72.5, 73.5, 74.5, 75.5, 76.5, 77.5, 78.5, 79.5, 80.5, 81.5, 82.5, 83.5, 84.5, 85.5, 86.5, 87.5, 88.5, 89.5, 90.5, 91.5, 92.5, 93.5, 94.5, 95.5, 96.5, 97.5, 98.5, 99.5, 100
	10.0	10.0
	10.0	10.0
	10.0	10.0
	10.0	12.5
	10.0	12.5
	10.0	12.5
	10.0	12.5
	10.0	12.5
	10.0	12.5
	10.0	12.5
	10.0	12.5
	10.0, 12.5, 13.5, 14.5, 15.5, 16.5, 17.5, 18.5, 19.5, 20.5, 21.5, 22.5, 23.5, 24.5, 25.5, 26.5, 27.5, 28.5, 29.5, 30.5, 31.5, 32.5, 33.5, 34.5, 35.5, 36.5, 37.5, 38.5, 39.5, 40.5, 41.5, 42.5, 43.5, 44.5, 45.5, 46.5, 47.5, 48.5, 49.5, 50.5, 51.5, 52.5, 53.5, 54.5, 55.5, 56.5, 57.5, 58.5, 59.5, 60.5, 61.5, 62.5, 63.5, 64.5, 65.5, 66.5, 67.5, 68.5, 69.5, 70.5, 71.5, 72.5, 73.5, 74.5, 75.5, 76.5, 77.5, 78.5, 79.5, 80.5, 81.5, 82.5, 83.5, 84.5, 85.5, 86.5, 87.5, 88.5, 89.5, 90.5, 91.5, 92.5, 93.5, 94.5, 95.5, 96.5, 97.5, 98.5, 99.5, 100
	10.0	10.0
	10.0	10.0
	10.0	10.0
	10.0	12.5
	10.0	12.5
	10.0	12.5
	10.0	12.5
	10.0	12.5
	10.0	12.5
	10.0	12.5
	10.0	12.5
	10.0, 12.5, 13.5, 14.5, 15.5, 16.5, 17.5, 18.5, 19.5, 20.5, 21.5, 22.5, 23.5, 24.5, 25.5, 26.5, 27.5, 28.5, 29.5, 30.5, 31.5, 32.5, 33.5, 34.5, 35.5, 36.5, 37.5, 38.5, 39.5, 40.5, 41.5, 42.5, 43.5, 44.5, 45.5, 46.5, 47.5, 48.5, 49.5, 50.5, 51.5, 52.5, 53.5, 54.5, 55.5, 56.5, 57.5, 58.5, 59.5, 60.5, 61.5, 62.5, 63.5, 64.5, 65.5, 66.5, 67.5, 68.5, 69.5, 70.5, 71.5, 72.5, 73.5, 74.5, 75.5, 76.5, 77.5, 78.5, 79.5, 80.5, 81.5, 82.5, 83.5, 84.5, 85.5, 86.5, 87.5, 88.5, 89.5, 90.5, 91.5, 92.5, 93.5, 94.5, 95.5, 96.5, 97.5, 98.5, 99.5, 100

www.dedietrich-electromenager.com

C€

52444050

PRALKA

PL NSTRUKCJA OBSŁUGI

PL

SZANOWNI KLIENCI,

Technical diagram of a device casing with numbered components and internal wiring annotations

2.1 Wygląd ogólny

Diagram showing a washing machine with labeled parts and a mechanical assembly with arrows indicating motion or force.

Line drawing of a washing machine with circular vent and side buttons (no text or symbols)

Diagram showing two electrical plug connections with a socket, indicating installation or disassembly process.

1 2 3/4" 10 mm 3 4

Diagram showing a pipe fitting with a cable and a close-up of the internal structure (no text or symbols)

Technical line drawing of a washing machine with an inset close-up showing internal components (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

Technical line drawing of a mechanical assembly with a circular inset view showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with two views: top shows internal components, bottom shows exterior view (no text or symbols)

Technical line drawing of a mechanical component with two circular inset views showing internal components (no text or symbols)

15° Rapid 60° Rapid Jeans Mixed Sport Hand wash Spin/Drain Cotton Eco 40-60 Intensive 20°C Colours Wool Rinse Hygiene

Illustration of two washing machines side by side, one with a handle and the other with a handle (no text or symbols)

Two-step diagram showing a plug installation and hand tool application on a wall (no text or symbols)

Illustration showing a wall-mounted power plug and a hand using a tool to clean the installation (no text or symbols present)

Technical diagram showing mechanical assembly steps with labeled components and a hand holding a tool

Technical diagram showing six different mechanical assembly steps with labeled components and directional arrows indicating motion.

Diagram of hands holding a device with a magnified inset showing two soccer balls inside a container (no text or symbols)

Technical drawings of two mechanical components: a 3D panel with internal channels and a cylindrical housing (no text or symbols)

1. Korpus

Please turn off the machine. Take off the power plug from the mains socket.

Diagram showing four different electrical safety rules for plugging, including socket, fuse, plug, and plug-in plug.

Technical diagram of a device casing with numbered components and internal structure annotations

2.1 Aparência Geral

3.2 Ajustar os Pés / Ajustar as Bases de Ajuste

Diagram showing a washing machine with directional arrows and a mechanical component, labeled with number 1.

Line drawing of a washing machine with a circular vent and control panel (no text or symbols)

Diagram showing two electrical plug connections with a socket, indicating installation or disassembly process.

1 2 3/4" 10 mm 3 4

Diagram showing a pipe fitting with a cable and a close-up of the internal structure (no text or symbols)

Technical line drawing of a washing machine with an inset close-up showing internal components (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

Technical line drawing of a mechanical assembly with two circular inset views (no text or symbols)

Technical line drawing of a mechanical assembly with two circular inset views showing internal components (no text or symbols)

Technical line drawing of a mechanical component with two circular inset views showing internal components (no text or symbols)

15° Rapid 60° Rapid Jeans Mixed Sport Hand wash Spin/Drain Cotton Eco 40-60 Intensive 20°C Colours Wool Rinse Hygiene

Illustration of two washing machines with a pipe connecting them (no text or symbols)

Illustration showing two steps of a hairpin installation: one with a plug, the other with a hand holding a screwdriver (no text or symbols present)

Illustration showing a wall-mounted electrical plug and a hand holding a hose, both without any text or symbols.

Technical illustration showing a mechanical component being inserted into a pipe fitting, with no visible text or symbols.

Technical diagram showing six different mechanical assembly steps with numbered labels 1 to 6.

Technical diagram showing a washing machine operation with labeled steps to open the door and lock.

Technical line drawing of a mechanical component with two circular holes and a magnified inset showing internal components (no text or symbols)

Technical diagrams of two mechanical components: a rectangular frame and a cylindrical housing, both without any text or symbols.

1. Corpo

QR code image containing encoded data, no visible human-readable text

Technical diagram of a device casing with numbered components for identification

2.1 Общий вид

Diagram showing a washing machine and its mechanical assembly with labeled parts and directional arrows

Line drawing of a washing machine with a circular vent and handle, marked with diagonally intersecting lines (no text or symbols)

Diagram showing a plug being inserted into an electrical socket, with an arrow indicating the process.

Diagram showing a cable inserted into a sink with an inset close-up of the structure (no text or symbols)

Technical line drawing of a washing machine with an inset close-up showing internal components (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

Technical line drawing of a mechanical assembly with a circular inset detail (no text or symbols)

Technical line drawing of a mechanical assembly with circular inset detail (no text or symbols)

Technical line drawing of a mechanical component with two circular inset views (no text or symbols)

15° Rapid 60° Rapid Jeans Mixed Sport Hand wash Spin/Drain Cotton Eco 40-60 Intensive 20°C Colours Wool Rinse Hygiene

Line drawing of a washing machine with front panel and side door (no text or symbols)

Line drawing of a washing machine with a handle inserting into the air gap (no text or symbols)

Two-step diagram showing a plug installation and hand cleaning a wall fixture (no text or symbols)

Illustration showing a wall-mounted power plug and a hand using a tool to clean or adjust the installation (no text or symbols present)

Technical diagram showing a mechanical component being adjusted for installation, with an arrow indicating the process.

Technical diagram showing six steps of mechanical assembly or disassembly, labeled 1 to 6 with corresponding illustrations.

Technical diagram showing a washing machine operation with labeled steps to open the door and lock.

Technical line drawing of a mechanical assembly with hands and an inset showing two circular components (no text or symbols)

Technical drawings of two mechanical components: a 3D panel assembly and a cylindrical housing (no text or symbols)

1. Корпус

QR code image containing encoded data, no visible human-readable text

Technical diagram of a device casing with numbered components for identification

Diagram showing a washing machine and its mechanical assembly with labeled parts and directional arrows

Line drawing of a washing machine with no text or symbols

Diagram showing two electrical plug connections with a socket, indicating installation or disassembly process.

1 2 3/4" 10 mm 3 4

Diagram showing a mechanical component with a cable and a close-up of its internal structure (no text or symbols)

Technical line drawing of a washing machine with an inset close-up showing internal components (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

Technical line drawing of a mechanical assembly with a circular inset view showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with circular inset detail (no text or symbols)

Technical line drawing of a mechanical component with two circular inset views showing internal components (no text or symbols)

VAROVANIE: Zásuvka by

15° Rapid 60° Rapid Jeans Mixed Sport Hand wash Spin/Drain Cotton Eco 40-60 Intensive 20°C Colours Wool Rinse Hygiene

Illustration of two washing machines with a pipe insertion, showing mechanical components (no text or symbols)

Illustration showing two steps of installation: one with a plug and cable, the other with a hand holding a screwdriver (no text or symbols present)

Illustration showing a wall-mounted electrical plug and a hand holding a bulb (no text or symbols present)

Technical illustration showing a mechanical component being adjusted for installation, with no visible text or symbols.

Six-step diagram illustrating mechanical assembly steps with labeled components and directional arrows

Diagram of a mechanical device with hands holding a spring and balls, showing internal components (no text or symbols)

Technical diagrams of two mechanical components: a rectangular frame with internal channels and a cylindrical housing (no text or symbols)

1. Teleso

QR code image containing encoded data, no visible human-readable text

Technical diagram of a device casing with numbered components and labeled parts

Diagram showing a washing machine with labeled parts and directional arrows, including a mechanical component labeled '1'.

Line drawing of a washing machine with no text or symbols

Diagram showing a plug being inserted into an electrical socket, with an arrow indicating the process.

1 2 3/4" 10 mm 3 4

Diagram showing a pipe fitting with a cable and a close-up of the internal structure (no text or symbols)

Technical line drawing of a washing machine with an inset close-up showing internal components (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

Technical line drawing of a mechanical assembly with a circular inset view showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with two views: top shows internal components, bottom shows exterior view (no text or symbols)

Technical line drawing of a mechanical component with two circular inset views (no text or symbols)

15° Rapid 60° Rapid Jeans Mixed Sport Hand wash Spin/Drain Cotton Eco 40-60 Intensive 20°C Colours Wool Rinse Hygiene

Illustration of two washing machines side by side, one with a handle and the other with a handle (no text or symbols)

Illustration showing two steps of installation: one with a plug and cable, the other with a hand holding a screwdriver (no text or symbols present)

10:00 90°C 1400 60°C 1200 40°C 1000 30°C 800 20°C 400 Options | Select/Reperf | (Dec.) (Dec.)

90°C 1400 60°C 1200 40°C 1000 30°C 800 20°C 400 10:00 OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK ON (sec) ON (sec) Options | Save+/ Rapid |

Illustration showing a wall-mounted power plug and a hand using a tool to clean or adjust the installation (no text or symbols present)

Technical illustration showing a mechanical assembly with a valve and tool, alongside a close-up of hands adjusting a pipe fitting (no text or symbols present)

Technical diagram showing six steps of mechanical assembly or disassembly, labeled 1 to 6 with corresponding illustrations.

Diagram of a mechanical device with hands holding a spring and a magnified inset showing two soccer balls (no text or symbols)

Technical drawings of two mechanical components: a rectangular frame with internal channels and a cylindrical housing (no text or symbols)

1. Kropp

QR code image containing encoded data, no visible human-readable text

Technical diagram of a device casing with numbered components and internal structure annotations

Diagram showing a washing machine with directional arrows and a mechanical component, labeled with number 1.

Line drawing of a washing machine with a circular dial and handle, shown without any text or symbols

Diagram showing two electrical plug connections with a socket, indicating charging or discharging process.

Diagram showing a pipe connection to a sink with an inset view of the same pipe (no text or symbols present)

Technical line drawing of a washing machine with an inset close-up showing internal components (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

Technical line drawing of a mechanical assembly with a circular inset view showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with two circular inset views showing internal components (no text or symbols)

Technical line drawing of a mechanical component with two circular inset views showing internal components (no text or symbols)

15° Rapid 60° Rapid Jeans Mixed Sport Hand wash Spin/Drain Cotton Eco 40-60 Intensive 20°C Colours Wool Rinse Hygiene

Simple line drawing of a short T-shirt with a collar (no text or symbols)

Pure mechanical diagram showing intersecting rods and a U-shaped component (no text or symbols)

Simple line drawing of a U-shaped object and a basket with a handle, no text or symbols present.

Line drawing of two clothing items: a T-shirt and a pair of jeans (no text or symbols)

Simple line drawing of a mechanical component with no text or symbols

Illustration of two washing machines side by side, one with a handle and the other with a handle (no text or symbols)

Illustration showing two steps of a hairpin installation: one with a plug, the other with a hand holding a screwdriver (no text or symbols present)

Illustration showing a plug inserted into a wall socket and a hand holding a hose, both without any text or symbols.

Technical diagram showing mechanical assembly steps with labeled components and a hand tool for installation

Technical diagram showing a washing machine operation with labeled steps to open the door and lock.

Technical line drawing of a mechanical component with hands and an inset showing two circular components (no text or symbols)

Technical diagrams of two mechanical components: a rectangular frame with internal channels and a cylindrical housing (no text or symbols)

1. Корпус

https://eprel.ec.europa.eu/

Technical diagram of a device casing with numbered components and labeled parts

Technical diagram of a device casing with numbered components and internal wiring annotations

Diagram showing a washing machine with labeled parts and a mechanical assembly with arrows indicating motion or assembly.

Line drawing of a front-loading washing machine with no text or symbols

Diagram showing a plug being inserted into an electrical socket, with an arrow indicating the process.

1 2 3/4" 10 mm 3 4

Diagram showing a pipe fitting with a cable and a close-up of the internal structure (no text or symbols)

Technical line drawing of a washing machine with an inset close-up showing internal components (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

Technical line drawing of a mechanical assembly with two circular inset views (no text or symbols)

Technical line drawing of a mechanical assembly with two circular inset views showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with two circular views showing internal components (no text or symbols)

15° Rapid 60° Rapid Jeans Mixed Sport Hand wash Spin/Drain Cotton Eco 40-60 Intensive 20°C Colours Wool Rinse Hygiene

Illustration of two washing machines side by side, one with a handle and the other with a handle (no text or symbols)

Illustration of two different installation methods: one using a plug, the other handling a hose (no text or symbols present)

10:00 90°C 1400 60°C 1200 40°C 1000 30°C 800 20°C 400 Options | Save/+ Rapid | (Dec.) (Dec.)

Illustration showing a wall-mounted power plug and a hand using a tool to clean or adjust the installation (no text or symbols present)

Technical illustration showing a mechanical component being adjusted for installation, with no visible text or symbols.

Technical diagram showing six steps of mechanical assembly or cleaning process, labeled 1 to 6 with corresponding illustrations.

Technical line drawing of a mechanical component with hands and an inset showing two circular components (no text or symbols)

Technical diagrams of two mechanical components: a rectangular frame with internal channels and a cylindrical housing (no text or symbols)

1. Ház

	10.0	10.0
	10.0	10.0
	10.0	10.0
	10.0	10.0
	10.0	10.0
	10.0	10.0
	10.0	10.0
	10.0	10.0
	10.0	12.5
	10.0	12.5
	10.0	12.5
	10.0	12.5
	10.0	12.5
	10.0	12.5
	10.0	12.5
	10.0	12.5
	10.0, 12.5, 13.5, 14.5, 15.5, 16.5, 17.5, 18.5, 19.5, 20.5, 21.5, 22.5, 23.5, 24.5, 25.5, 26.5, 27.5, 28.5, 29.5, 30.5, 31.5, 32.5, 33.5, 34.5, 35.5, 36.5, 37.5, 38.5, 39.5, 40.5, 41.5, 42.5, 43.5, 44.5, 45.5, 46.5, 47.5, 48.5, 49.5, 50.5, 51.5, 52.5, 53.5, 54.5, 55.5, 56.5, 57.5, 58.5, 59.5, 60.5, 61.5, 62.5, 63.5, 64.5, 65.5, 66.5, 67.5, 68.5, 69.5, 70.5, 71.5, 72.5, 73.5, 74.5, 75.5, 76.5, 77.5, 78.5, 79.5, 80.5, 81.5, 82.5, 83.5, 84.5, 85.5, 86.5, 87.5, 88.5, 89.5, 90.5, 91.5, 92.5, 93.5, 94.5, 95.5, 96.5, 97.5, 98.5, 99.5, 100

www.dedietrich-electromenager.com

C€

52444045

תְקָרִי בְּרִי

QR code image containing encoded data, no visible human-readable text

HE

אַלְרָה

1.

2.

1. 1.2

2. 1.3

7.

1. 2

2. 2.1

3. 2.2

4. 3

5. 3.1

9.

1. 3.3

2. 3.4

10.

1. 70.4

2. 4.1

3. 4.2

4. 4.3

5. 4.4

6. 4.5

14.

Diagram illustrating three different electrical safety behaviors: plug-in socket, fuse, and plug-in plug with plug, with hand holding plug.

• בְּבָּ

-שְׁרָה

• .D125

• 7

• κελίπ

•.תְבָר

• IX NS

Technical diagram of a device casing with numbered components for identification

2.1

Line drawing of a washing machine with no text or symbols

Diagram showing two electrical plug connections with a socket, indicating charging or discharging process.

xx44 1 2 3 x4 4

Diagram showing a washing machine with directional arrows and a mechanical component, labeled with number 1.

1. (n'u

•

Diagram showing a mechanical or fluid system with labeled components and directional arrows, likely illustrating a valve or pump mechanism.

DN7 IN DN 4

3.5

3.4 כְרָה

Diagram showing a pipe fitting with a cable and a close-up of the internal structure (no text or symbols)

Technical line drawing of a mechanical assembly with a circular inset view showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with two circular inset views showing internal components (no text or symbols)

Technical line drawing of a washing machine with an inset close-up showing internal components (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

Technical line drawing of a mechanical component with two circular inset views (no text or symbols)

15° Rapid 60° Rapid Jeans Mixed Sport Hand wash Spin/Drain Cotton Eco 40-60 Intensive 20°C Colours Wool Rinse Hygiene

Illustration of two washing machines with a pipe connecting them (no text or symbols)

.תְרָה בַעִי אַבְק

Line drawing of a washing machine with a large arrow pointing right (no text or symbols)

תִיְרָה

.בַרְשָׁה בַרְשָׁה

• כְרָה

5.3

Illustration of two different installation methods: one using a plug, the other handling a bulb (no text or symbols present)

תפְרָה בַלְאָה

1.70

1. .D'n

•. •.תְקּוֹת:

2. \*הכלהה

1. niv

18:00 90°C 1400 60°C 1200 40°C 1000 30°C 800 20°C 400 Options Save+/ Rapid

10:00 90°C 1400 60°C 1200 40°C 1000 30°C 600 20°C 400 Options | Save/ Rapid | (Dec.) (Dec.)

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

Technical illustration showing a mechanical assembly with a valve and a hand holding a pipe fitting (no text or symbols present)

.תְּלָרִי

Illustration showing a plug inserted into a wall socket and a hand using a tool to adjust the plug (no text or symbols present)

Diagram showing six steps of mechanical assembly or disassembly, labeled 1 to 6 with corresponding illustrations.

Diagram of a mechanical device with hands holding a component, showing internal components and a magnified inset (no text or symbols)

Line drawing of a hand using a tool to adjust or install a component on a machine (no text or symbols visible)

Technical diagram showing a mechanical assembly with a magnified inset of a component (no text or symbols)

PULL TO OPEN

Technical drawings of two mechanical components: a 3D panel assembly and a cylindrical housing (no text or symbols)

1.

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

10. מַרְשָׁ

/https://eprel.ec.europa.eu
