MC-220 - Camera Mestic - Free user manual and instructions

Product Type	Rear view camera with 7-inch monitor
Camera Resolution	1920 x 1080 pixels (Full HD)
Monitor Resolution	1024 x 600 pixels
Screen Size	7 inches (17.8 cm)
Camera Viewing Angle	106° horizontal, 55° vertical, 120° diagonal
Lens	2.8 mm
Infrared LEDs	18 LEDs (night vision)
TV System	NTSC / PAL (switchable)
Video Inputs	2 channels (CVBS / AHD)
Power Supply	12 - 24 V DC
Monitor Consumption	Less than 3.5 W
Operating Temperature	-20 °C to +70 °C
Storage Temperature	-30 °C to +80 °C (camera)
Mirror Function	Yes (adjustable)
Parking Guidelines	Yes (adjustable horizontally and vertically)
Remote Control	Yes (included)
Menu Languages	English, German, French, Italian, Spanish, Dutch
Monitor Dimensions (approx.)	200 x 130 x 30 mm
Total Weight (approx.)	Approximately 500 g (with cables)
Cleaning	Soft damp cloth, mild household detergent
Safety	Do not open, high voltage, do not use while driving

Frequently Asked Questions - MC-220 Mestic

How to install the rear view camera?

Connect the black wire to ground, the red wire to 12-24V power (ACC), the green wire to the reverse light for automatic activation. Mount the camera at the rear of the vehicle and connect it to the monitor via the provided video cable.

Why is the screen black?

Check the power adapter connection and ensure the power switch is in the ON position. Make sure the video cable is properly plugged in. Try switching between cameras using the CAM button.

How to adjust the parking guidelines?

Press MENU, navigate to the Parking option, then enable the lines (ON). Use the + and - buttons to move horizontally and vertically. Confirm with MENU and exit with MODE.

Can I connect two cameras?

Yes, the monitor supports two video inputs. Connect the cameras to the Cam 1 and Cam 2 inputs. You can switch between them with the CAM button or enable auto scan.

How to use the remote control?

Point the remote at the monitor's infrared sensor. Use the buttons: Video select to change camera, +/- to adjust volume/brightness, Menu to access settings, Power to turn on/off.

The image is reversed, what should I do?

Press MENU, go to the Rotation option, then select the correct orientation. You can also use the remote control to adjust the orientation.

The camera does not work at night?

Check that the infrared LEDs (18 LEDs) turn on in the dark. If the image remains black, ensure the camera is receiving power and the cable is in good condition.

How to clean the monitor screen?

Disconnect all cables before cleaning. Use a soft damp cloth with a mild household detergent. Never use solvents such as thinner or benzene.

What is the required power supply voltage?

The monitor operates on 12-24 V DC. The camera uses the same range. Ensure correct polarity: red wire for positive, black for ground.

What to do if the display is blurry?

Check that the camera lens is clean. Adjust the brightness and contrast via the menu (button MENU). If the problem persists, check the cable connections.

USER MANUAL MC-220 Mestic

Precautions, Storage and keeping

1. Do not expose the monitor to excessive heat or cold. The storage temperature of this product is -30 +75^ and the operating temperature is -20 +60^ . The humidity is Rh 90% .
2. Do not puncture, scratch or use abrasive cleaning materials on this unit.
3. Do not place cables where they can be pinched or stepped on.
4. Allow at least 2" clearance between the monitor and walls, cabinets or other objects to allow adequate air circulation around the unit.
5. The monitor is not waterproof.

Precautions, Operating Precautions

1. The unit can be powered by a 12 or 24 volt automotive battery or vehicle electrical system.
2. Ensure that all cables are connected correctly, observing the correct polarity. Incorrect connections may damage the monitor. Disconnect power cables when not in use.

Warning!

High voltage is present within the monitor. The opening of the case should be by professionals. Do not watch the video while driving unless you are monitoring the rear view camera display.

Special notice!

Occasionally, the LCD screen may show some bright or dark spots. This is a very common phenomenon in active matrix display technology and doesn't necessarily indicate a defect or malfunction. Never attempt to repair this unit yourself. In the event of a problem, immediately turn off the monitor and contact our company or an authorized dealer. The monitor is a complex piece of equipment. Any disassembly or modification may cause damage and void the warranty.

Maintenance

1. Disconnect all cables from the monitor before cleaning.
2. Use a mild household detergent and wipe the unit with a damp, soft cloth. Never use strong solvents such as thinner or benzene as they may damage the finish of the unit.

This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

This symbol is intended to alert the user to the need to dispose of electrical and electronic equipment.

CAUTION

Please note that any changes or modifications not expressly approved in this manual may invalidate your warranty and require costly repairs.

Declaration of conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause under sired operation.

Product Features

1. Language selection: English / Deutsch / Français / Italiano / Espanol / Nederlands.
2. Equipped with remote control.
3. Supports automatic video signal detection.
4. Supports simultaneous video input from two cameras.
5. Supports image mirroring function.
6. Support trigger function, the camera is controlled by a trigger line, and automatically switches when triggered.
7. Supports automatic start and switch to corresponding camera image when triggered in standby mode.
8. Working power supply range 12-24V, power short circuit protection function.

Technical Specifications

Monitor

7" TFT LCD colour monitor.

Resolution: 1024(RGB)X600

System: N / P

Brightness: 550cd / m^2

Active area: 154.21(H)X85.92(V) mm

Video: CVBS / AHD

Video Channel : 2 Channel

Reverse Function : 1 Channel

Guide function : 2 channel Auto switching

Power supply: 12/24V DC/<3.5W

Operating temperature: -20^ to +70^ .

Storage temperature: -25^ to +70^ .

CAMERA

TV system: NTSC/PAL

Effective pixels: 1920(H)*1080(V)

Sync. System: Internal

IR LED Qty: 18PCS

Scanning system: Interlace

Lens: 2.8mm

Lens angle: H:106° V:55° D:120°

Operating temperature: -20°C- 70°C, RH 95% MAX

Storage temperature : -30°C- 80°C, RH 95% MAX

Special Notice!

All specifications may change without notification.

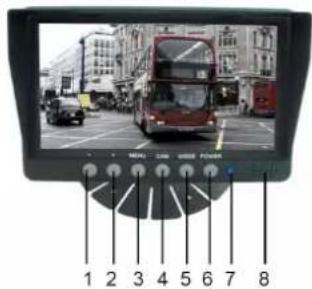

Key/Control descriptions

1. Decrease button - Adjusts volume, brightness, contrast, language, rotation, etc.
2. Increase button - Adjusts volume, brightness, contrast, language, rotation, etc.
3. MENU - Access brightness, contrast, language, rotation, etc.
4. CAM - Switches between all cameras connected to the monitor.
5. MODE - Select brightness mode.
6. POWER - Turns the monitor on and off.
7. Power indicator.
8. Speaker.

Menu options Image settings

1. Press the MENU button to enter the menu, you will see the icon selected in green by default.
2. Press MENU button again to confirm to enter picture setting as shown on the left.
3. Press + to select Camera 1 or Camera 2, then press MENU button to confirm.
4. Press + again to enter the submenu below, it will turn green.
5. Press MENU button to confirm, then press - or + to adjust the value. After the value is well adjusted, press MENU button again to confirm the adjustment.
6. Then press + button to enter Brightness or other submenus to adjust the value. Repeat from step 4 to step 5. When all the settings are done, press MODE to exit to return to the main menu.
7. 6th option is for setting the mirror/non-mirror image.

Parking line settings

1. Press MENU button to enter menu, then press + button to move to Parking Line menu, press MENU button to confirm and enter Parking Line setting menu as shown on the left.
2. Press + or - key to select Camera 1 or Camera 2, press MENU key to confirm. Press + to move to M(meters) or ft(feet), press MENU to confirm.
3. Press + or - to select ON, then press MENU button to set as ON/OFF. Press + or - to select, then press MENU to confirm. Then press + or - to move the parking line horizontally. Press the MENU button to confirm the setting.
4. Press + to move to, then press MENU button to confirm to select. Then press + or - to move the parking line vertically. Press the MENU button to confirm the setting.
5. Press + to move to, then press MENU key to confirm to select. Then press + or - to move the parking line horizontally. Press the MENU button to confirm the setting.
6. Press + to move to, then press MENU key to confirm to select. Then press + or - to move the number you want to adjust. Press MENU to confirm the selection, then press + or - to increase or decrease.
7. When your setting is complete, press MODE to exit and return to the main menu. If the parking line is set to ON, please also connect the trigger wire to the positive + of the rear light power. When you put the car in reverse, the monitor will show the parking line. At this moment all buttons will not work. After reversing the buttons will work.

Language settings

Press the MENU button to enter the menu Language, then press the + button to move to the menu, then press the MENU button to confirm and enter the submenu. Press + or - to select the language you prefer, then press MENU to confirm. Press MODE to exit.

Backlight settings

Press the MENU button to enter the menu Backlight, then press the ^+ button to move to the menu, then press the MENU button to confirm and enter the submenu. Press ^+ or - to select the language you prefer, then press MENU to confirm. Press MODE to exit.

System settings

1. Press the MENU button to enter the menu, then press the + button to move to the menu, then press the MENU button again to confirm.
2. Press + to move to, then press MENU to confirm to set the trigger delay time. Then press + or - to select or to set the time for camera 1 or camera 2. then press MENU to confirm, press + or - to increase or to increase or decrease the number. When the setting is complete, press MODE to exit.
3. Press + to move to and press MENU to confirm. button to confirm to set the automatic scanning/cycling between camera 1 and camera 2. Then press + or - to select the or to set the time for camera 1 or camera 2, then press MENU to confirm, press + or - to increase or decrease the number. When the setting is complete, press MODE to exit. If you want to start the automatic scanning/cycling, please leave all the menus and press the MENU button for about 5 seconds, it will start automatically scanning between 2 cameras. between 2 cameras. Press MODE to cancel.
4. Press + to move to . Then press MENU to rotate the image. When the setting is complete, press MODE to exit.
5. Press + to move to reset all.

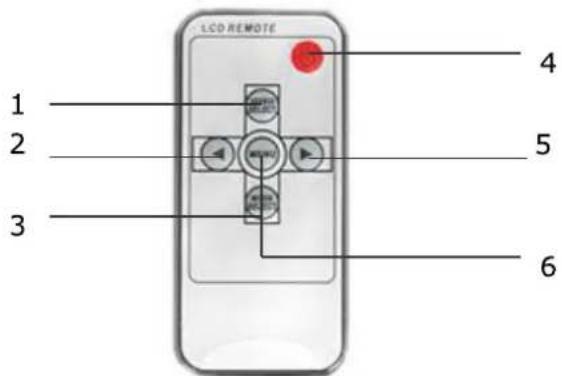

Remote Control Operation

1. Video Select - Switches between all cameras connected to the monitor.
2. Down key - Adjusts volume, brightness, contrast, language, rotation, etc.
3. Mode select - Select brightness mode
4. Power On/Off
5. Increase button - Adjusts volume, brightness, contrast, language, rotation, etc.
6. Menu - Access brightness, contrast, language, rotation, etc.

Replacing the remote control batteries

Notice!

1. To operate, point the remote control towards the infrared window on the monitor.

2. Never disassemble the remote control, drop it or get it wet.

3. Press the control buttons firmly. Allow 2 seconds for the picture to change.

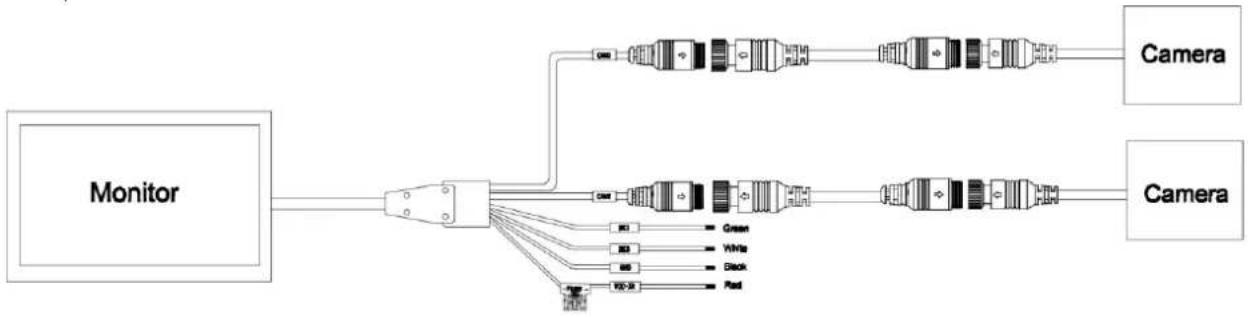

Basic operation

Black: Ground

Red: ACC (car key power) DC 12~24V

Green: Trigger Cam 1 - Reverse light power positive DC12~24V.

White: Trigger Cam 2 - Reversing light power positive DC12~24V.

Troubleshooting

The symptoms described below do not necessarily indicate a fault within the display. Please check the following points before requesting service.

Symptom	Possible causes/solution
No picture. No sound	Incorrect connection of the car adapter. Use of an unauthorized power supply. The power switch is in the OFF position.
No picture	Check that the locking cable is correctly connected.
No sound	Check that the lock cable is connected correctly or that the volume is set too low.
Dark picture	Check that the brightness and contrast are set correctly; check that the ambient temperature is not too low.
No color	Adjust the color settings.
Upside down or sideways Inverted image	Use the remote control/MENU-ROTATION button to set the correct orientation.
No reverse function (i.e. image)	Check for loose wires (black/red/green).

DEUTSCH

Specifications techniques

Moniteur

IR LED Antal: 18 STK.

Scanningsystem:Interlace

Linse: 2,8 mm

Linsevinkel: H:106°V:55°D:120°

Driftstemperatur: -20°C - 70°C, RH 95% MAX

Opbevaringstemperatur: -30°C - 80°C, RH 95% MAX

Sarlig meddeelse!

Alle specifikationer kan aendres.uden varsel.
