Product type	Cycle computer
Brand	Sigma
Model	BC 12.12 / BC 12.12 STS
Power supply	CR2032 button cell
Battery life (computer)	Approx. 1.5 years (BC 12.12), 1 year (BC 12.12 STS) for 1 h use per day
Battery life (STS transmitter)	Approx. 1 year
Display	3-line LCD (speed, function, value)
Main functions	Current speed, distance, time, average speed, max speed, temperature, fuel (liters saved), partial counters (TS), service interval, clock
Special features	Travel mode, current/average speed comparison, battery low indicator, memory chip, PC compatible with Sigma Data Center software
PC compatibility	Yes, via Sigma Data Center software and docking station (optional)
Speed sensor	Wired (BC 12.12) or wireless STS (transmitter and receiver)
Maximum distance	9,999.9 km / mi
Maximum time	999 h 59 min 59 s
Maximum speed	199.8 km/h / mph
Temperature range	-10 °C to 70 °C
Adjustable wheel circumference	500 to 3,999 mm
Warranty	According to legal provisions, return to dealer
Maintenance and cleaning	Simple battery replacement, clean with a soft cloth, avoid excessive moisture
Safety	Respect magnet/sensor distance (max 5 mm wired, 12 mm STS)

Frequently Asked Questions - BC 12.12 SIGMA

How to install the BC 12.12 computer?

Install the bracket on the handlebar or stem using the provided ties. Attach the magnet to a spoke of the front wheel and the sensor to the fork, keeping a maximum distance of 5 mm (wired) or 12 mm (STS). Then, clip the computer into its bracket.

How to turn on the computer for the first time?

Upon delivery, the computer is in deep sleep. Press and hold the MODE 1 and SET buttons for 5 seconds to activate it.

How to set the wheel circumference?

Measure your wheel diameter and multiply by π (3.14) to get the circumference. You can also use the 'Wheel Size Chart' or the formula in the manual. Set the value between 500 and 3999 mm in the setup menu.

What to do if no speed is displayed?

Check that the computer is properly clipped into its bracket. Check the distance between the magnet and the sensor (max 5 mm for wired, 12 mm for STS). Make sure the magnet is well aligned with the sensor.

How to change the computer battery?

Open the compartment on the back of the computer and replace the CR2032 battery respecting polarity. Only the time will need to be set again; other settings are retained thanks to the memory chip.

What is the 'Fuel' function?

The Fuel function calculates the liters of fuel saved by using the bike instead of the car, based on the average consumption you set (l/100 km). This allows you to visualize your savings.

How to synchronize the wireless STS model?

Place the computer on its bracket. The speed zeros flash. Start riding or turn the front wheel until the display stops flashing. If synchronization is lost, press MODE 1 for more than 3 seconds for manual resynchronization ('Synchro. RESET' is displayed).

How to delete current values (reset)?

Press the RESET button to clear current values such as partial distance or time. Total values (total distance, total time) are not affected.

How to use the partial counters (TS)?

The partial counters (distance and time) start and stop manually. Use them to evaluate a trip segment or interval training. These values do not affect the overall totals.

What to do if 'Too many signals' is displayed?

Move away from other cyclists (transmitters) and press any button to restart synchronization. If the problem persists while riding, press and hold MODE 1 for manual resynchronization.

USER MANUAL BC 12.12 SIGMA

VIDEO TUTORIAL:

INSTALLATION VIDEO:

BC 12.12 / BC 12.12 STS

12

FUNCTIONS

DE DEUTSCH

Inhaltsverzeichnis

1. Kennenlernen des BC 12.12 / BC 12.12 STS 02

Simple geometric diagram with a square and rounded corners, no text or symbols present.

SET-Taste zum

www.sigma-data-center.com

Line drawing of a person riding a bicycle with no text or symbols

Simple line drawing of a bicycle with a red circular arrow indicating rotation (no text or symbols)

1. Introduction to the BC 12.12 / BC 12.12 STS 12

1.1 Initial use 12
1.2 Navigation principle 13
1.3 Set-up 14

2. Functions/Properties 14

2.1 General 14
2.2 Special functions 15
2.3 STS features 16

3. Settings / Deletion 18

3.1 Settings 18
3.2 Determining the wheel size 18
3.3 Deleting the functions 18

4. Important Notes / Troubleshooting 19

4.1 Technical data 19

5. Warranty Conditions 21

You can find the CE declaration under: www.sigmasport.com

1. Introduction to the BC 12.12 / BC 12.12 STS

1.1 Initial use

The bike computer comes in "deep sleep mode".

To exit this mode, press and hold the MODE 1 and SET buttons for five seconds.

On waking up, the bike computer will be in active mode.

To access the settings, press the SET button.

1.2 Navigation principle

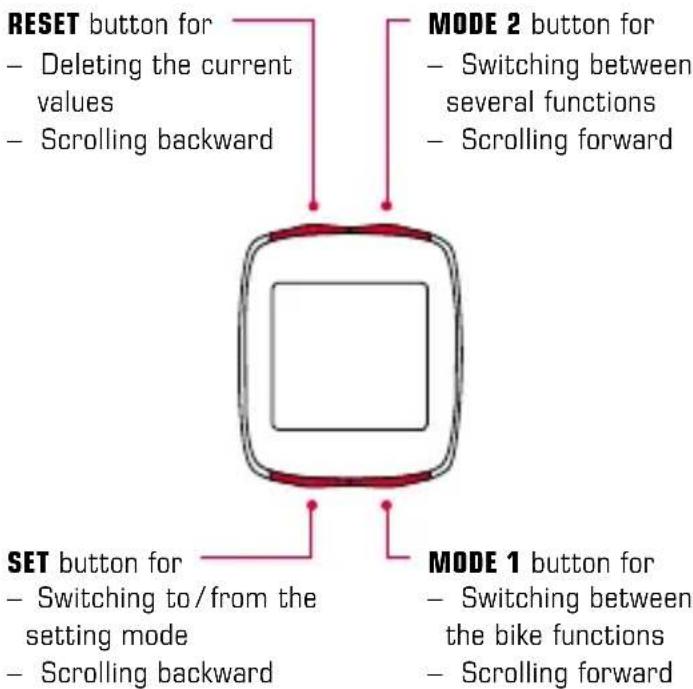

1.2.1 Button functions 1.2.2 Assigning the functions

Simple diagram with a square and two vertical lines, no text or symbols present

You can access the following functions by pressing the

MODE 2 button: fuel (liters)/time/TS distance/ TS time/temperature/ total distance/total time/ total fuel (liters)

You can access the following functions by pressing the

MODE 1 button: trip distance/trip time/ ∅ speed/max. speed

1.2 Navigation principle

1.2.3 Display layout

Top field:

Speed

Middle field:

Description of the functions

Bottom field:

Current value

1.3 Set-up

Please see the leaflet provided for the set-up diagrams!

2. Functions / Properties

2.1 General

- Current/average speed comparison →

If you are traveling at approximately your average speed, nothing is displayed. If you are traveling quicker than your average speed,

(▲) is displayed; if you are traveling slower ( ) is displayed. This information is displayed in almost all functions, except the basic settings.

- Service interval The service interval informs you when you have cycled a specified number of kilometers and a bike inspection is due. This service interval can only be enabled/disabled and pre-configured by your specialist retailer. The device comes with the service interval disabled.

2. Functions / Properties

• Battery status → The battery status of the computer head unit is displayed shortly before the battery runs out. " ☐ low / computer" appears on the display. After changing the battery, only the time needs to be re-set.
• Memory chip → Thanks to an inbuilt memory chip, all total values and settings are permanently stored in the bike computer. This means that you do not need to reconfigure any settings (except for the time) after changing the battery.
• PC compatibility → The bike computer is PC-compatible. After purchasing the SIGMA DATA CENTER software and docking station, you can simply and effortlessly log your total and current values on your PC. You can also configure your bike computer's settings on the PC.

www.sigma-data-center.com

2.2 Special functions

• Fuel saving The BC 12.12/BC 12.12 STS calculates the fuel saving you have made on your bike on the basis of your automobile's average fuel consumption. You therefore quickly and easily discover the savings that you have clocked up on your bike. The bike computer calculates how many liters of fuel you have saved.
• Hiding total values during the trip If the BC 12.12 / BC 12.12 STS receives speed signals, all the total functions (distance, time, and fuel consumption) are hidden on the display. If no speed values are received, the functions are once again displayed.

2. Functions / Properties

- Trip Section Counter (TS) This is a separate distance / time counter that is manually started and stopped. The trip section counter makes it possible to evaluate a trip section or interval training session without influencing the total values for the trip.

2.3 STS features

- Synchronization → Attach the BC 12.12 STS to the bracket – zeros flash for the speed. There are two ways of synchronizing the speed:

• 1. → Start cycling – the receiver usually synchronizes with the transmitter after 3-4 wheel rotations.
• 1. → Spin the front wheel until the speed values stop flashing.

Removing the BC 12.12 STS from the bracket severs the connection.

Line drawing of a person riding a bicycle with no text or symbols

Simple line drawing of a bicycle with a red circular arrow indicating rotation (no text or symbols)

2. Functions / Properties

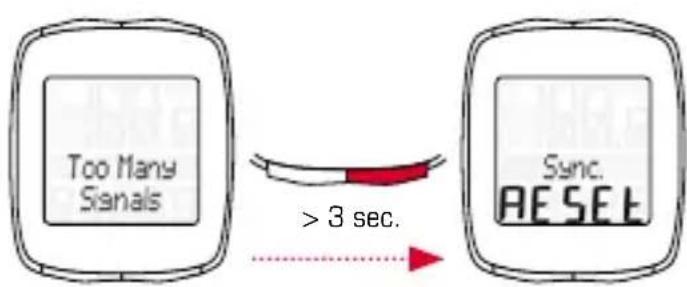

- Message "Too Many Signals" → Increase your distance from other cyclists (transmitters) and press any button. Synchronization re-starts. (If the transmission connection is lost during your trip and no longer functions, press and hold the MODE 1 button for more than three seconds to start manual synchronization. "Sync. RESET" flashes on the display)

- Transport mode → When transported on a bike rack or in the car (if clicked into the bracket), the BC 12.12 STS switches to "transport mode" via an integrated movement sensor. "Transport" appears on the display. Press any button to exit this mode.

3. Settings / Deletion

3.1 Settings

The following settings can be configured: language / unit/wheel size/time/fuel/100 km/total distance/ total time / total fuel (liters) / contrast. Clear diagrams of how to set each of these functions can be found in the enclosed leaflet.

3.2 Determining the wheel size

To measure your speed precisely, the wheel size must be set on the basis of your tire size. To do this, you can:

A - Calculate the wheel size using the formula provided in the wheel size chart.
B - Determine the value from the drawings in the wheel size chart.
C – Take the value that corresponds to your tire size from the wheel size chart.

3.3 Deleting the functions

Please see the diagrams for how to delete the functions.

Please note that the trip section (TS) counter, stopwatch, and countdown timer are not deleted with the current trip values.

4. Important Notes / Troubleshooting

4.1 Technical data

4.1.1 Battery indicator / replacement

Please see the enclosed diagrams for how to insert or remove the battery. After changing the battery in the computer head unit, only the time needs to be re-set.

BC 12.12 Type CR 2032 /

computer head unit: 1.5-year service life*

BC 12.12 STS Type CR 2032 /

computer head unit: 1-year service life*

Speed transmitter: Type CR 2032 /

1-year service life*

* when used for one hour per day

4.1.2 Troubleshooting

No speed:

• Is the computer correctly fastened into the bracket?
• Check the distance between the magnet and the sensor (max. 5mm) (with STS, max. 12 mm).
• Is the magnet correctly positioned?

Incorrect speed:

• Are two magnets attached to the bike?
• Is the wheel size correctly set?

Further troubleshooting solutions can be found in our FAQs at www.sigmasport.com

4. Important Notes/Troubleshooting

4.1.3 Min. / max. / factory settings

Standard	Min.	Max.	Unit
Current speed 0.0 0 199.8 km/h mph
Trip Dist 0.00 0.00 9,999.9 km/mi
Ride Time 0:00:00 0:00:00 999:59:59 h:mm:ss hhh:mm:ss
Avg Speed 0.00 0.00 199.8 km/h mph
Max. Speed 0.00 0.00 199.8 km/h mph
Fuel (liters) 0.00 0.00 9,999.9 Liters/gallons
Clock	00:00	00:00	23:59	hh:mm
TS Distance	0.00 0.00 9,999.9 km/mi
TS Time	0:00:00 0:00:00 999:59:59 h:mm:ss hhh:mm:ss
Temperature	0.0	-10/14	70/158	°C/°F
Tot Distance	0 0 999,99	km/mi
Total Time 0:00 0:00 19,999	h:mm hh.hhh
Total fuel (Ltr)	0.0 0.0 9,999.9 Liters/gallons
Wheelsize	2,155	500	3,999	mm

5. Warranty Conditions

We are liable to our contracting partners for defects in line with legal provisions. In the event of a warranty claim, please contact the retailer from whom you purchased your bike computer. You can also send your bike computer, together with your receipt and all accessories, to the address below. Please ensure you pay sufficient postage.

Warranty claims can be made in the event of material and workmanship errors. The warranty does not cover batteries, wear and tear parts, or wear caused by commercial use or accidents. Warranty claims shall only be valid if the SIGMA product has not been opened without authorization and the purchase receipt is provided.

SIGMA-ELEKTRO GmbH hereby declares that the wireless bike computers comply with the fundamental requirements and other relevant regulations of Directive 1999/5/EC.

SIGMA-ELEKTRO GmbH

Dr.-Julius-Leber-Strasse 15

In the event of justified warranty claims, you will receive a replacement device. You will only be entitled to the model available at the time of replacement.

The manufacturer retains the right to make technical modifications.

Batteries must not be disposed of in household waste (European Battery Law)! Please take the batteries to an official collection point for disposal.

Electronic devices must not be disposed of in household waste.

Please take the device to an official waste collection point.

LI=Lithium
