USER MANUAL MGCP-1200 Mestic

2 x 2.2 kW 30 mbar Piezo Propane butane 5.7 kg

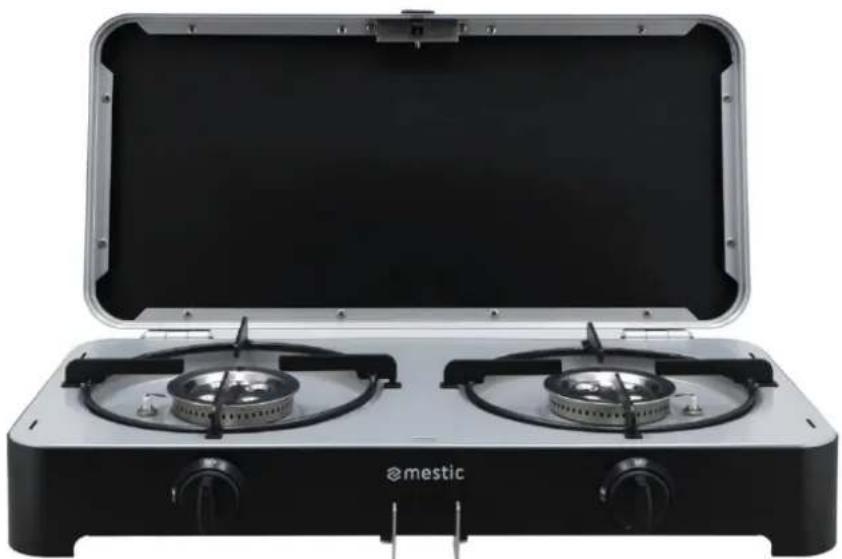

Exterior view of a two-wheeled gas stove with open lid (no text or symbols visible)

Relax... it's mestic

COOKER PREMIUM

MGCP-1200

NEDERLANDS

Belangrijk

Exploded view diagram of a gas stove with numbered parts labeled 1 through 7

1. Pansteun
2. Vergrendelknop
3. Deksel
4. Windscherm
5. Brander
6. Bedieningsknop
7. Handvat ontsteking

Technische details

Appliance categories		I3B/P(30)	I3+(28-30/37)		I3B/P(37)	I3B/P(50)
Type of gas		G30	G30	G31	G30	G30
Gas pressure		28-30 mbar	28-30 mbar	37 mbar	37 mbar	50 mbar
Country of use		BE, BG, CY, CZ, DK, EE, FI, FR, GB, GR, HR, HU, IT, LT, LU, LV, MT, NL, NO, RO, SE, SI, SK, TR	BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, SI, SK, TR		PL	AT, CH, CZ, DE, SK
Nominal heat input	Left burner	2.2 kW	Total heat input		4.4 kW
	Right burner	2.2 kW
Nominal gas consumption	Left burner	160 g/h	Total gas consumption		320 g/h
	Right burner	160 g/h
Jet diameter	Left burner	0.73	0.73		0.69	0.64
	Right burner	0.73	0.73		0.69	0.64

INSTRUCTIES VOOR INSTALLATIE

HOSE CLAMP

Gimeg Netherlands B.V.

Atoomweg 99

3542 AA Utrecht

The Netherlands

www.mestic.nl

Made in China

PIN: 2806DP0349

Appliance categories		GB/P(30)	I3+(28-30/37)		GB/P(37)	DB/P(50)
Type of gas		G30	G30	G31	G30	G30
Gas pressure		28-30 mbar	28-30 mbar	37 mbar	37 mbar	50 mbar
Country of use		BE, BG, CY, CZ, DK, EE, FI, FR, GB, GR, HR, HU, IT, LT, LU, IV, MT, NL, NO, RO, SE, SI, SK, TR	BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, IT, LU, LV, PT, SI, SK, TR		PL	AT, CH, CZ, DE, SK
Nominal heat input	Left burner	2.2 kW	Total heat input		4.4 kW
	Right burner	2.2 kW
Nominal gas consumption	Left burner	160 g/h	Total gas consumption		320 g/h
	Right burner	160 g/h
Jet diameter	Left burner	0.73	0.73		0.69	0.64
	Right burner	0.73	0.73		0.69	0.64

WARNING

1. Read these instructions before using the device.
2. For outdoor use only.
3. Warning: accessible parts can be very hot. Keep young children away.
4. Never move the appliance during operation. Wait about 7 minutes after the flame is extinguished before moving the unit.
5. Check the gas type before connecting the camping stove, incorrect gas connections cause serious danger.
6. This appliance shall be installed in accordance with the regulations in force and used in a well ventilated space.

PROBLEEMOPLOSSING

It is important that you read these instructions carefully and understand the operation & safety features of this appliance. Familiarize yourself with the appliance before connecting it to its gas container. Keep these instructions for future reference.

General

These instructions are only valid if the country symbol appears on the appliance. If the symbol does not appear on the appliance, it is necessary to refer the technical instructions which will provide the necessary instructions concerning modification of the appliance to the conditions of use of country. This appliance complies to EN 30-1 and EN 30-2-1.

Modification of the appliance and its method of installation are essential in order to use the appliance safely and correctly in all the additional countries. If this appliance is used in these countries, please pay attention to the following warnings.

Warning:

• Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible.
  • The adjustment conditions for this appliance are stated on the label (or data plate).
• This appliance is not connected to a combustion products evacuation device. It shall be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation.
• ACCESSIBLE PARTS MAY BE VERY HOT. KEEP YOUNG CHILDREN AWAY.
• Do not use the appliance if it has damaged or worn seals.
• Do not use an appliance that is leaking, damaged or which does not operate properly.
• Handle the appliance with care, do not drop it.
  • Always operate the appliance on a firm level surface.
  • The device is suitable for pans and pots from 140 mm to 250 mm in diameter.
• Do not use a cooking vessel on the stove that overlaps its edges.
• Wind shields must be installed when using the appliance outdoors.
• Do not modify this appliance, any modification may be dangerous. Do not use it for anything for which it has not been designed.
• Do not move the appliance during use.
• Never leave the appliance unattended when lit.
• During use, parts of the appliance will become hot (particularly the burner). Avoid touching hot parts with bare hands. The use of gloves is recommended.
• Ensure your pot stands/cooking surfaces are correctly placed when using your appliance.
• This appliance is for cooking purposes only. It shall not be used for other purposes, for example room heating.

Please read the instruction manual carefully before using and keep it for future reference and maintenance. This manual contains important message, includes safe operation and special notes, structure diagram, main technical data, installation instruction, operation steps and adjustment ways, clean and maintenance, and troubleshooting.

CAUTION:

1. This appliance shall be installed in accordance with the regulation in force. Read the instruction before installing or using this appliance.
2. Do not touch the burner cap, pan support and surface plate, etc., when using or just flameout to avoid scald.
3. Shut off gas supply, open windows and doors to keep ventilation when gas leakage or strange smell be found, must not use any electric appliance or operate any electric switch to avoid accident.
4. If accidental flameout happened when using, shut off gas supply to avoid leakage.
5. Adults should be presented when using (like kitchen)
6. For the sake of safe operation, avoid leakage caused by aging, the hose should be changed per year.
7. Shut off gas supply after using.
8. The use of this appliance results in the production of heat and moisture in the room in which it is installed.
9. Ensure that the kitchen is well ventilated; keep natural ventilation device (mechanical extractor hood) on,
10. Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation where present.

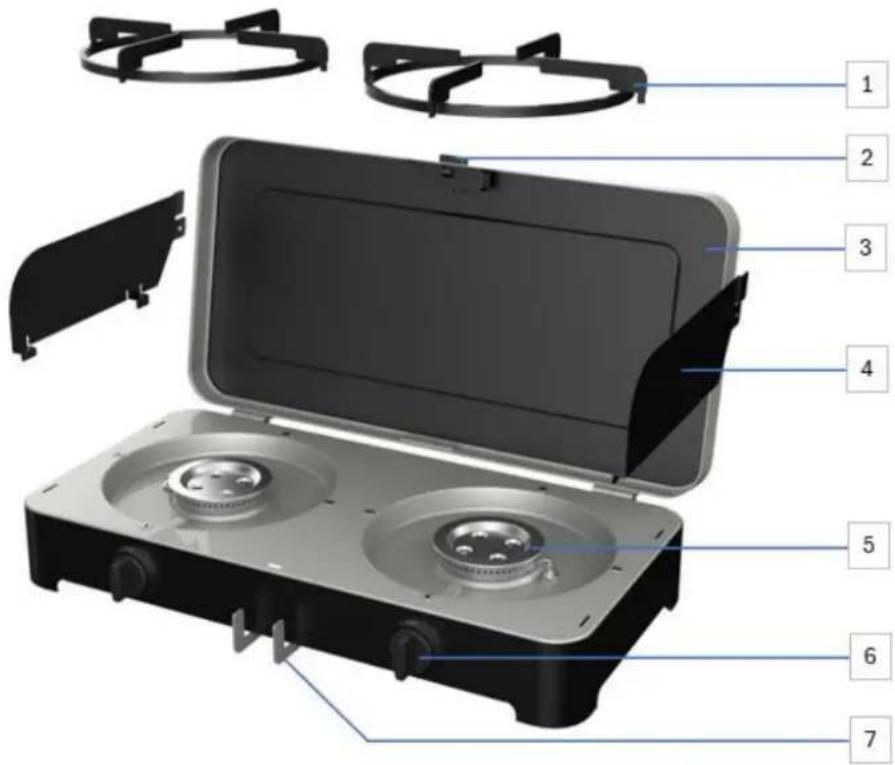

Main parts

Labeled diagram of a portable stove with seven interior components, showing open and closed casing views.

1. Pan support
2. Latch button
3. Lid
4. Wind shield
5. Burner
6. Control knob
7. Ignition handle

Technical details

Appliance categories		I3B/P(30)	I3+(28-30/37)		I3B/P(37)	I3B/P(50)
Type of gas		G30	G30	G31	G30	G30
Gas pressure		28-30 mbar	28-30 mbar	37 mbar	37 mbar	50 mbar
Country of use		BE, BG, CY, CZ, DK, EE, FI, FR, GB, GR, HR, HU, IT, LT, LU, LV, MT, NL, NO, RO, SE, SI, SK, TR	BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, SI, SK, TR		PL	AT, CH, CZ, DE, SK
Nominal heat input	Left burner	2.2 kW	Total heat input		4.4 kW
	Right burner	2.2 kW
Nominal gas consumption	Left burner	160 g/h	Total gas consumption		320 g/h
	Right burner	160 g/h
Jet diameter	Left burner	0.73	0.73		0.69	0.64
	Right burner	0.73	0.73		0.69	0.64

INSTRUCTIONS FOR INSTALLATION

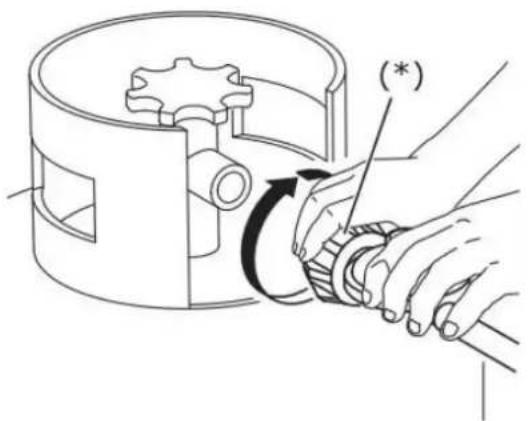

Connecting the gas supply

• Before connecting the appliance to a gas supply, ensure that the rubber seal on the regulator is in position and in good condition.
• Before connecting the hose and regulator to the appliance, check that the appliance control knob is in the OFF “.” position.
  • Fit an approved hose and regulator to the appliance.
• Use a flexible hose and ensure that all pipework is of correct rating for both size and temperature.
• The flexible hose shall be fitted in such a way that it cannot come into contact with a movable part (eg drawer) and does not pass through any space susceptible of becoming congested.
• Ensure that the appliance is restrained or secured so that the flexible hose cannot be strained.
  • The hose assembly must be as short as practicable and comply with relevant standards requirements.
  • The hose must not be kinked, subjected to abrasion or permanently deformed.
• The hose must not be near or in contact with any hot surfaces.
• Ensure that the gas supply (gas cylinder/gas cartridge) is fitted in a well-ventilated location away from any source of ignition, such as naked flames and away from other people.
• Make sure that the gas cylinder is kept upright at all times, connect to the cylinder by screwing on hand tight until fully engaged.
• Ensure that a complete gas seal has been made (check for the smell of gas around the connection joint). Do not check for leaks with a naked flame. Use warm soapy water only, applied to the joints and connections of the appliance. Any leakage will show up as bubbles around the leakage area.
  • If you cannot rectify the gas leak do not use the appliance. If you are in doubt, contact your nearest dealer.

(*)

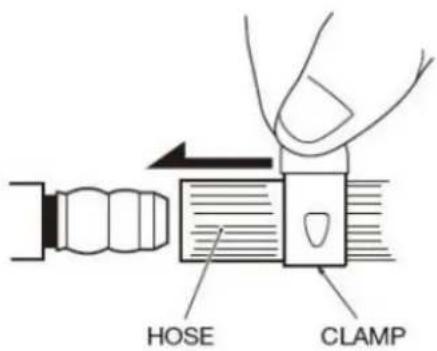

HOSE CLAMP

- This appliance must be kept away from flammable materials during use. Minimum safe distances are: Above the appliance 120cm. At the rear and sides 60cm

Operating the appliance

When operating this appliance, please take care to ensure that all parts are in good working order and that you have checked for any gas leaks before lighting the appliance with every use.

For additional safety, this appliance is fitted with a 'Flame Failure Device' (FFD), ensuring that the gas supply to the burner shuts off immediately should the flame inadvertently go out. In the event that this happens, be sure to turn close off the gas supply by closing the gas cylinder valve.

Lighting the appliance

It is recommended to remove any cooking surfaces when trying to light the appliance. This way it will be easy to see the burner when it is lit.

- To light up the appliance using the piezo igniter, push in and turn the control knob 90° in an anti-clockwise direction, then pinch the ignition handles inward to ignite the gas.

If the gas does not ignite on the first spark, turn the control knob back to its OFF “·” position. Try again, by pushing and turning the control knob anti-clockwise and pinch in the ignition handles to ignite the gas.

• If after 15 seconds the burner has not lit, stop operating the device and wait at least 1 minute, allowing accumulated gas to escape, before attempting a further ignition of the burner.
• Repeat the above process if necessary until the flame ignites. The flame should normally light up within the first one to two seconds.
• In the event of the burner flames being accidentally extinguished, turn the control knob to the OFF “·” position and do not attempt to re-ignite the burner for at least 1 minute.

Adjusting the appliance

• Once the appliance is lit, the flame intensity may be adjusted by turning the control knob anti-clockwise to reduce the flame or clockwise to increase the flame.
• When cooking food with a high fat content, flaring may occur if the selected heat setting is too high. Should this happen, turn the heat down until the flaring ceases.
• Do not move the appliance when in use. It is unsafe practice to move the appliance whilst lit and may cause flaring.
• After use, first close the control valve on the gas cylinder (where applicable). When the flame has extinguished, close the control valve on the appliance.

Storage

• Always allow the unit to cool down and be cleaned before storing.
• Turn off the gas supply to the appliance, disconnect and remove the gas supply from the appliance.
• Never store an appliance with the gas supply connected, this is an unsafe practice.
- Store the appliance and gas supply in a well-ventilated area away from combustible material. Storage of cylinders should preferably be outdoors and must NOT be in a basement.

Cleaning and maintaining the appliance

SHOULD BE CARRIED OUT EVERY 12 MONTH OF OPERATION

• Keep the cooker clean regularly by wiping with damp cloth
  • Before checking and maintaining cooker, make sure the main gas valve is turned off.
• Make sure the burner head is clean before using the cooker. Use a steel wire brush to clean the burner if it is heavily clogged. If the burner is heavily clogged, do not use the unit. Contact your authorized plumber or gas fitter to carry out cleaning and maintenance. Do not attempted to remove the burner units yourself.
• Check the gas pipes regularly for wear of leaks, if any wear or leaks are present, please contact an authorized plumber or gas filter for repair.
• Do not touch the burner, pan support, tray etc.... immediately after use or when in use. This could burner your hand.
• Clean the pan support and tray after each use. Always wipe off spills, do not leave spills to dry on the surface of the pan support, tray or burner.
• Inspect the electrodes carefully after you have removed the tray receptacle and if soiled, clean with a dry cloth. Do not put them in cold water immediately after use as thermal shocks could cause cracking.

mestic

Model: MGCP-1200 30mbar

Gimeg Netherlands B.V.

Atoornweg 99

3542 AA Utrecht

The Netherlands

www.mestic.nl

Made in China

PIN: 2806DP0349

Appliance categories		BB/P(30)	I3+(28-30/37)		BB/P(37)	BB/P(50)
Type of gas		G30	G30	G31	G30	G30
Gas pressure		28-30 mbar	28-30 mbar	37 mbar	37 mbar	50 mbar
Country of use		BE, BG, CY, CZ, DK, EE, FI, FR, GB, GR, HR, HU, IT, LT, LU, LV, MT, NL, NO, RO, SE, SI, SK, TR	BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, SI, SK, TR		PL	AT, CH, CZ, DE, SK
Nominal heat input	Left burner	2.2 kW	Total heat input		4.4 kW
	Right burner	2.2 kW
Nominal gas consumption	Left burner	160 g/h	Total gas consumption		320 g/h
	Right burner	160 g/h
Jet diameter	Left burner	0.73	0.73		0.69	0.64
	Right burner	0.73	0.73		0.69	0.64

WARNING

1. Read these instructions before using the device.
2. For outdoor use only.
3. Warning: accessible parts can be very hot.
   Keep young children away.
4. Never move the appliance during operation. Wait about 7 minutes after the flame is extinguished before moving the unit.
5. Check the gas type before connecting the camping stove, incorrect gas connections cause serious danger
6. This appliance shall be installed in accordance with the regulations in force and used in a well ventilated space.

TROUBLESHOOTING

Trouble phenomenal		Reasons	Solutions
Cannot ignite		The main gas valve not opened	Open the main gas valve
		Jet blocked	Dredge the jet
		The hose stave or bend	Change the hose or remove bend
		There is air in the hose when change cylinder	Repeat ignition foe several times
		The saucer was put in wrong position	Correct the saucer position
Abnormal flame	Red flame	Air humidity and smoke is too big	Normal phenomenal
	Yellow flame	Some feculence in the hole of burner cap	Clean the burner cap
		The gas in the cylinder is going out	Change the cylinder
	Backfire	Pressure is too low	Check whether is gas in the cylinder and the valve has been opened
		Something overflow the hole of burner cap or there is feculence	Clean the burner cap
		Time of burning is too long	Paused and use again after cooling
	Flameout	Gas pressure is too low	Check whether is gas in the cylinder and the valve has been opened or damaged
Noise of flameout is too big		The speed of flameout is too fast	Slow the speed down

DEUTSCH

Wichtig

Exploded view diagram of a gas stove with numbered parts for identification

Technical diagram showing a hand operating a mechanical device with a close-up of its clamping mechanism labeled HOSE and CLAMP.

Gimeg Netherlands B.V.

Atoomweg 99

3542 AA Utrecht

The Netherlands

www.mestic.nl

Made in China

PIN: 2806DP0349

Appliance categories		GB/P(30)	13+(28-30)/37		GB/P(37)	DB/P(50)
Type of gas		G30	G30	G31	G30	G30
Gas pressure		28-30 mbar	28-30 mbar	37 mbar	37 mbar	50 mbar
Country of use		BE, BG, CY, CZ, DK, EE, FI, FR, GB, GR, HR, HU, IT, LT, LU, LV, MT, NL, NO, RO, SE, SI, SK, TR	BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, SI, SK, TR		PL	AT, CH, CZ, DE, SK
Nominal heat input	Left burner	2.2 kW	Total heat input		4.4 kW
	Right burner	2.2 kW
Nominal gas consumption	Left burner	160 g/h	Total gas consumption		320 g/h
	Right burner	160 g/h
Jet diameter	Left burner	0.73	0.73		0.69	0.64
	Right burner	0.73	0.73		0.69	0.64

WARNING

1. Read these instructions before using the device.
2. For outdoor use only.
3. Warning: accessible parts can be very hot.
   Keep young children away.
4. Never move the appliance during operation. Wait about 7 minutes after the flame is extinguished before moving the unit.
5. Check the gas type before connecting the camping stove, incorrect gas connections cause serious danger.
6. This appliance shall be installed in accordance with the regulations in force and used in a well ventilated space.

FEHLERSUCHE

Exploded view diagram of a portable gas stove with numbered parts labeled 1 through 7

HOSE CLAMP

Gimeg Netherlands B.V.

Atoomweg 99

3542 AA Utrecht

The Netherlands

www.mestic.nl

Made in China

PIN: 2806DP0349

Appliance categories		GB/P(30)	I3+(28-30/37)		GB/P(37)	DB/P(50)
Type of gas		G30	G30	G31	G30	G30
Gas pressure		28-30 mbar	28-30 mbar	37 mbar	37 mbar	50 mbar
Country of use		BE, BG, CY, CZ, DK, EE, FI, FR, GB, GR, HR, HU, IT, LT, LU, IV, MT, NL, NO, RO, SE, SI, SK, TR	BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, IT, LU, LV, PT, SI, SK, TR		PL	AT, CH, CZ, DE, SK
Nominal heat input	Left burner	2.2 kW	Total heat input		4.4 kW
	Right burner	2.2 kW
Nominal gas consumption	Left burner	160 g/h	Total gas consumption		320 g/h
	Right burner	160 g/h
Jet diameter	Left burner	0.73	0.73		0.69	0.64
	Right burner	0.73	0.73		0.69	0.64

WARNING

1. Read these instructions before using the device.
2. For outdoor use only.
3. Warning: accessible parts can be very hot. Keep young children away.
4. Never move the appliance during operation. Wait about 7 minutes after the flame is extinguished before moving the unit.
5. Check the gas type before connecting the camping stove, incorrect gas connections cause serious danger.
6. This appliance shall be installed in accordance with the regulations in force and used in a well ventilated space.

DÉPANNAGE

Labeled diagram of a portable gas stove with seven interior components and open casing

Technical diagram showing a hand operating a mechanical device with labeled components including HOSE and CLAMP, alongside its schematic view.

Gimeg Netherlands B.V.

Atoomweg 99

3542 AA Utrecht

The Netherlands

www.mestic.nl

Made in China

PIN: 2806DP0349

Appliance categories		GB/P(30)	13+(28-30/37)		BB/P(37)	DB/P(50)
Type of gas		G30	G30	G31	G30	G30
Gas pressure		28-30 mbar	28-30 mbar	37 mbar	37 mbar	50 mbar
Country of use		BE, BG, CY, CZ, DK, EE, FI, FR, GB, GR, HR, HU, IT, LT, LU, LV, MT, NL, NO, RO, SE, SI, SK, TR	BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, SI, SK, TR		PL	AT, CH, CZ, DE, SK
Nominal heat input	Left burner	2.2 kW	Total heat input		4.4 kW
	Right burner	2.2 kW
Nominal gas consumption	Left burner	160 g/h	Total gas consumption		320 g/h
	Right burner	160 g/h
Jet diameter	Left burner	0.73	0.73		0.69	0.64
	Right burner	0.73	0.73		0.69	0.64

WARNING

1. Read these instructions before using the device.
2. For outdoor use only.
3. Warning: accessible parts can be very hot.
   Keep young children away.
4. Never move the appliance during operation. Wait about 7 minutes after the flame is extinguished before moving the unit.
5. Check the gas type before connecting the camping stove, incorrect gas connections cause serious danger.
6. This appliance shall be installed in accordance with the regulations in force and used in a well ventilated space.

Exploded view diagram of a gas stove with numbered parts labeled 1 through 7

Technical diagram showing a hand operating a valve with an asterisk indicating the (*) and a close-up of a clamp labeled HOSE and CLAMP.

Gimeg Netherlands B.V.

Atoomweg 99

3542 AA Utrecht

The Netherlands

www.mestic.nl

Made in China

PIN: 2806DP0349

Appliance categories		GB/P(30)	13+(28-30/37)		GB/P(37)	GB/P(50)
Type of gas		G30	G30	G31	G30	G30
Gas pressure		28-30 mbar	28-30 mbar	37 mbar	37 mbar	50 mbar
Country of use		BE, BG, CY, CZ, DK, EE, FI, FR, GB, GR, HR, HU, IT, LT, LU, LV, MT, NL, NO, RO, SE, SI, SK, TR	BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, SI, SK, TR		PL	AT, CH, CZ, DE, SK
Nominal heat input	Left burner	2.2 kW	Total heat input		4.4 kW
	Right burner	2.2 kW
Nominal gas consumption	Left burner	160 g/h	Total gas consumption		320 g/h
	Right burner	160 g/h
Jet diameter	Left burner	0.73	0.73		0.69	0.64
	Right burner	0.73	0.73		0.69	0.64

WARNING

1. Read these instructions before using the device.
2. For outdoor use only.
3. Warning: accessible parts can be very hot.
   Keep young children away.
4. Never move the appliance during operation. Wait about 7 minutes after the flame is extinguished before moving the unit.
5. Check the gas type before connecting the camping stove, incorrect gas connections cause serious danger;
6. This appliance shall be installed in accordance with the regulations in force and used in a well ventilated space.

Exploded view diagram of a portable stove with numbered parts for identification

HOSE CLAMP

Gimeg Netherlands B.V.

Atoomweg 99

3542 AA Utrecht

The Netherlands

www.mestic.nl

Made in China

PIN: 2806DP0349

Appliance categories		GB/P(30)	I3+(28-30/37)		GB/P(37)	DB/P(50)
Type of gas		G30	G30	G31	G30	G30
Gas pressure		28-30 mbar	28-30 mbar	37 mbar	37 mbar	50 mbar
Country of use		BE, BG, CY, CZ, DK, EE, FI, FR, GB, GR, HR, HU, IT, LT, LU, LV, MT, NL, NO, RO, SE, SI, SK, TR	BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, SI, SK, TR		PL	AT, CH, CZ, DE, SK
Nominal heat input	Left burner	2.2 kW	Total heat input		4.4 kW
	Right burner	2.2 kW
Nominal gas consumption	Left burner	160 g/h	Total gas consumption		320 g/h
	Right burner	160 g/h
Jet diameter	Left burner	0.73	0.73		0.69	0.64
	Right burner	0.73	0.73		0.69	0.64

WARNING

1. Read these instructions before using the device.

2. For outdoor use only.

3. Warning: accessible parts can be very hot.

Keep young children away.

1. Never move the appliance during operation.

Wait about 7 minutes after the flame is extinguished before moving the unit.

1. Check the gas type before connecting the camping

stove, incorrect gas connections cause serious danger.

1. This appliance shall be installed in accordance with the regulations in force and used in a well ventilated space.

FEJLFINDING

Labeled diagram of a portable gas stove with seven interior components and open casing

HOSE CLAMP

Gimeg Netherlands B.V.

Atoomweg 99

3542 AA Utrecht

The Netherlands

www.mestic.nl

Made in China

PIN: 2806DP0349

Appliance categories		GB/P(30)	G1+(28-30/37)		GB/P(37)	GB/P(50)
Type of gas		G30	G30	G31	G30	G30
Gas pressure		28-30 mbar	28-30 mbar	37 mbar	37 mbar	50 mbar
Country of use		BE, BG, CY, CZ, DK, EE, FI, FR, GB, GB, HR, HU, IT, LT, LU, IV, MT, NL, NO, RO, SE, SI, SK, TR	BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, IT, LU, LV, PT, SI, SK, TR		PL	AT, CH, CZ, DE, SK
Nominal heat input	Left burner	2.2 kW	Total heat input		4.4 kW
	Right burner	2.2 kW
Nominal gas consumption	Left burner	160 g/h	Total gas consumption		320 g/h
	Right burner	160 g/h
Jet diameter	Left burner	0.73	0.73		0.69	0.64
	Right burner	0.73	0.73		0.69	0.64

WARNING

1. Read these instructions before using the device.
2. For outdoor use only.
3. Warning: accessible parts can be very hot. Keep young children away.
4. Never move the appliance during operation. Wait about 7 minutes after the flame is extinguished before moving the unit.
5. Check the gas type before connecting the camping stove, incorrect gas connections cause serious danger
6. This appliance shall be installed in accordance with the regulations in force and used in a well ventilated space.

FELSÖKNING

Exploded view diagram of a gas stove with numbered parts for identification

Technical diagram showing a hand operating a mechanical component with an inset close-up of the clamping device labeled HOSE and CLAMP.

Gimeg Netherlands B.V.

Atomweg 99

3542 AA Utrecht

The Netherlands

www.mestic.nl

Made in China

PIN: 2806DP0349

Appliance categories		EB/P(30)	13+(28-30/37)		EB/P(37)	EB/P(50)
Type of gas		G30	G30	G31	G30	G30
Gas pressure		28-30 mbar	28-30 mbar	37 mbar	37 mbar	50 mbar
Country of use		BE, BG, CY, CZ, DK, EE, FL, FR, GB, GR, HR, HU, IT, LT, LU, LV, MT, NL, NO, RO, SE, SI, SK, TR	BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, IT, LU, LV, PT, SI, SK, TR		PL	AT, CH, CZ, DE, SK
Nominal heat input	Left burner	2.2 kW	Total heat input		4.4 kW
	Right burner	2.2 kW
Nominal gas consumption	Left burner	160 g/h	Total gas consumption		320 g/h
	Right burner	160 g/h
Jet diameter	Left burner	0.73	0.73		0.69	0.64
	Right burner	0.73	0.73		0.69	0.64

WARNING

1. Read these instructions before using the device.
2. For outdoor use only.
3. Warning: accessible parts can be very hot.
   Keep young children away.
4. Never move the appliance during operation. Wait about 7 minutes after the flame is extinguished before moving the unit.
5. Check the gas type before connecting the camping stove, incorrect gas connections cause serious danger
6. This appliance shall be installed in accordance with the regulations in force and used in a well ventilated space.

FEILS∅KING

Mestic is a brand of Gimeg Netherlands B.V.
