USER MANUAL MGC-150 Mestic

Exterior view of a black square electronic device with dual switches and a strap, labeled 'emestic' (no other text or symbols visible)

mestic® CE PIN 51DP5174
Product name		Portable Cooker MGC-150
Model No.		UP239K
Category		Direct Pressure
Type of gas		Butane
Cylinder Type		EN417 thread type
Total Heat Input (kW)		1.6
Gas consumption (g/h)		G30:116; G31:114
Injector	Mail grill	0.16 mm
Serial No.		YYMMXXXXX
Warning!Use outdoors only.Read the instructions before using the appliance.Warning: Accessible parts may be very hot. Keep away from young children.This appliance must be kept away from flammable materials during use.Do not move the appliance during use.
Importer: Gimeg Nederland B.V., Atoomweg 99, 3542 AA Utrecht, The Netherlands
Made in China

PORTABLE COOKER MGC-150

NEDERLANDS

Belangrijk

Technical diagram of a device with numbered parts for identification and assembly reference.

• Read these operating instructions before installation and use. Familiarize yourself with this device before connecting it to the gas cylinder.
• Keep these instructions for later use.

Warning: use outdoors only.

Gas connection

• The appliance burns propane (G30) and/or butane gas (G31) and is suitable for connection via a gas hose to a gas cartridge.
• Check all gas connections for leaks with gas leak spray or soapy water. Never use open flames.

Use

1. This appliance should only be used outdoors in well-ventilated areas.
2. Definition of a well-ventilated area is:

- Of this space, at least 25% of the wall surface must be open.

- The wall area is the sum of the area of all walls.

1. Place the gas stove on a flat and stable surface.
2. Never place this gas stove near open flames or flammable materials.
3. Check that all appliance valves are closed.
4. Check that the burner clips at the bottom of the burner are tight and secure and cannot be removed.
5. This appliance must be installed in accordance with applicable regulations.
6. Read the operating instructions before use or installation.
7. This appliance has no provision for flue exhaust. It must be installed and connected according to applicable regulations. Special attention must be paid to ventilation requirements.
8. Ensure that there are no objects within 70 cm of this appliance.
9. Ensure that there are no pets near the appliance.
10. Never leave this gas stove unattended when in use. Do not allow small children near this appliance.
11. Do not make any adjustments to the appliance. This could be dangerous.
12. Maximum diameter of pan: 20 cm
13. Maximum weight of pan incl. contents: 8 kg.

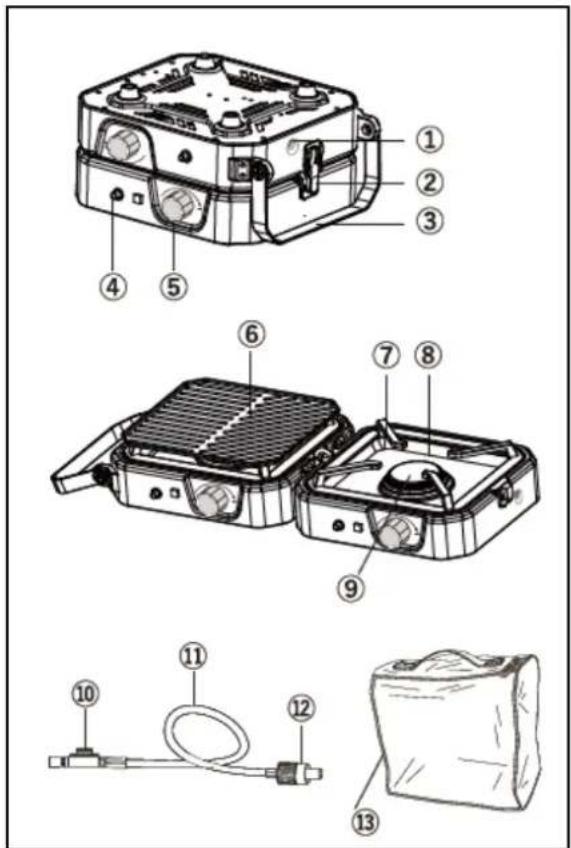

Spare parts

1. Gas inlet
2. Latch
3. Handle
4. Ignition button
5. Control knob
6. Griddle pan
7. Grate
8. Drip tray
9. Burner
10. Adaptor
11. Gas pipe
12. Connector
13. Carry bag

Technical diagram of a portable electronic device with numbered parts for identification and assembly reference.

Installation and use

1. Open the packaging and remove all packing materials.
2. Unlock the latch (2). Unfold the gas stove and place it on a flat surface.
3. Turn over the grate (7) and place it on the drip tray (8).
4. Turn both control knobs (5) clockwise to the end, making sure the valve is closed.
5. Install the adapter (10) to the valve and tighten securely.
6. Connect the connector (12) to the gas cartridge and tighten securely.

Before first use, remove all packing materials and do not use them as a cushion under the gas stove to prevent fire.

Place the gas stove on a flat and stable surface with no flammable objects underneath (such as paper or plastic bags). The gas bottle should be more than 30 cm away from the stove and the stove should be more than 70 cm away from flammable material. The gas bottle should be placed upright and not horizontally or upside down to prevent fire and personal injury.

When installing the grate, make sure that the four legs supporting the cookware are facing up and place the grate completely, flat and stable on the drip tray. Do not turn the grate over or place cookware on it.

DO NOT install the grate when the stove is burning to prevent burns.

DO NOT place the griddle upside down on the grid.

1. Turning on the burner

2. Slowly turn the control knob (5) counterclockwise and press the ignition button (4).

3. Manually light the burner by holding a BBQ lighter near the burner (9) and slowly turning the control knob (5) counterclockwise.

4. Use the control knob (5) to adjust the intensity of the flame to the desired level by turning the knob clockwise to decrease the flame and counterclockwise to increase the flame.

5. After use, turn both control knobs (5) clockwise until you can no longer turn them, then tighten the valve knob on the gas line to shut off the gas source, then unscrew and remove the gas bottle.

If a gas bottle needs to be replaced while cooking or if the gas stove needs to be moved, first turn both control knobs clockwise until you can no longer turn them, then tighten the valve knob on the gas line. Then tighten and replace the gas bottle.

If the burner goes out due to wind or spilled liquid, immediately turn the knob counterclockwise until you can no longer turn it and wipe up the spill before relighting.

If gas leaks (smell it before opening the control knob), immediately take the unit outside to a well-ventilated area free of combustion sources, locate the leak and stop it. If you want to check that the device is properly sealed, do the same outside. DO NOT try to locate the leak with a flame.

When using the gas stove, someone should be supervising. Close the gas stove and faucet when you leave.

DO NOT allow children to use or approach the gas stove unsupervised while it is heating.

If the product is not working properly, stop using it and contact a qualified professional for repair.

Cleaning

1. After use, wipe the exterior, drip pan, grate and griddle with a soft cloth.

2. For severe oil or stain buildup, use a soft cloth dipped in neutral detergent and water to clean the product, then wipe dry with a dry cloth.

Clean the product only after it has cooled completely.

Do not rinse it directly with water or submerge it in water.

To avoid damaging the coating, do not use a wire brush or other hard object to wipe the surface, drip tray or griddle.

Storage

1. After the gas stove is air-dried, unscrew the gas pipe, invert the two grids onto the two drip trays, fold the two stoves together and fasten the latch.
2. Put the gas stove in a storage bag and put the griddle and gas pipe separately in the inside pocket of the storage bag.

Trouble shooting

Gas leaks at the joint of gas	Gas leaks at the joint of the gas cylinder	Tighten the adapter of the gas pipe
	The sealing ring of the valve is damaged	Replace the sealing ring of the valve
Gas leaks at the joint of the camping stove	The gas pipe is not tightened	Tighten the gas pipe joint
	The sealing ring of the gas pipe joint is damaged	Contact your dealer to replace the gas pipe
Unable to ignite	The valve knob is not opened	Open the gas knob
	Insufficient gas supply	Replace a new gas cylinder
	Interference from strong wind	Move to a place with less wind
	Igniter is damaged	Contact your dealer for repair
Shutting off during use	Insufficient gas supply	Replace a new gas cylinder
	Insufficient firepower	Adjust the control knob to increase firepower
	Interference from strong wind	Move to a place with less wind
	Extinguished by spilled liquid	Clean up the liquid and reignite the burner

Proper disposal of this product.

This symbol means that this product must not be disposed of with the normal household waste (2012/19/EU). To prevent possible harm to the environment or human health from uncontrolled disposal, recycle responsibly to promote sustainable reuse of material resources. To return your used device, read the warranty terms of where the product was purchased. They can take the product back for environmentally safe recycling.

Declaration of Conformity

Hereby, Gimeg Nederland B.V., declares that the appliance MGC-150, complies with the basic requirements and other relevant regulations listed in the European Gas Appliance Directive (GAR) (EU 2016/426). A full declaration of conformity can be requested from the address listed on the back.

DEUTSCH

Wichtig

Technical diagram of a portable electronic device with numbered parts for identification and assembly reference.

Technical diagram of a portable electronic device with numbered parts for identification and assembly reference.

Technical diagram of a portable electronic device with numbered parts for identification and assembly reference.

Instalación y uso

Technical diagram of a portable electronic device with numbered parts for identification and assembly reference.

Technical diagram of a portable electronic device with numbered parts for identification and assembly reference.

Technical diagram of a portable electronic device with numbered parts for identification and assembly reference.

Technical diagram of a portable electronic device with numbered parts for identification and assembly reference.
