USER MANUAL HLR Lavor

T.S Total Stop 24V ① ② ⑤ ③ ④ MAX PRESSURE Hot in use for 20 mins. Water heating. Water circuit heating. Low fuel. 60 140 30 86 110 230 OFF C° F° MAX CONTROL PANEL ⑥A ⑥B ⑥C

IT In base al modello si possono verificare delle differenze nella fornitura. Depending on the model, there are differences in the scopes of delivery. FR Suivant le modèle, la fourniture peut varier. DE nach Modell gibt es Unterschiede im Lieferumfang. ES Según el modelos, hay diferencias en el contenido sumini- strado). NL Afhankelijk van het model zijn er verschillen in de leveringspakkette). PT Consoante o modelo, existem diferenças no volume de fornecimento). CS V závislosti na modelu se liší obsah dodávky. Zto παραδοτέο υλικό υπάρχουν διαφορές ανάλογα με το μοντέλο. FI Mallien varustetaso vaihtelee, katso ku- vaus laatikon kyljestä. A szállítási terjedelem modellenként eltérő (lásd a csomagoláson). Alt etter

FI VAKIOVARUSTEET HU ALAPFELSZERELTSÉG NO SERIETILBEH∅R PL WYPOSAŽENIE SERYJNE

RU БАЗОВАЯ КОМПЛЕКТАЦИЯ SLOBSEG DOBAVE SV UTRUSTNING STANDARDUTRUSTNING BG

ОБОРУДВАНЕ HR SERIJSKA OPREMA

Line drawing of a robotic vehicle on a ramp with directional arrows indicating motion (no text or symbols)

Close-up of a hand connecting a hose to a car, with a wrench and hose assembly visible (no text or symbols)

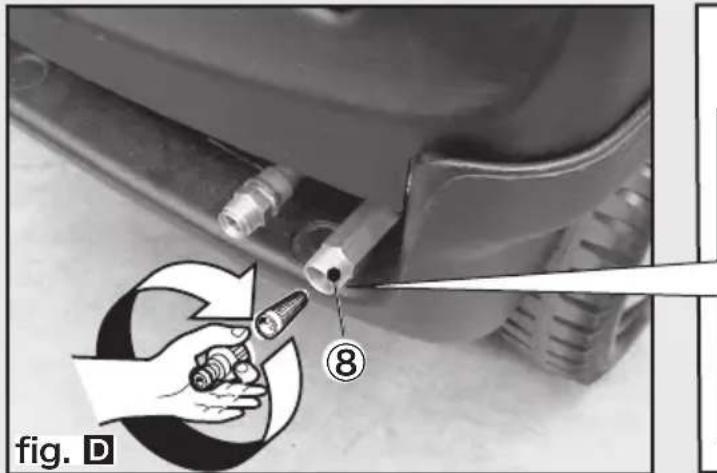

fig. D ⑧

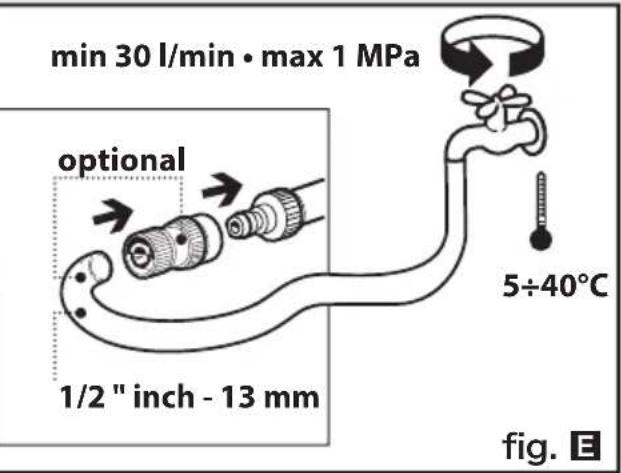

min 30 l/min • max 1 MPa optional 1/2" inch - 13 mm 5÷40°C fig. E

Illustration of a hand pouring liquid into a coiled cable with a wrench, labeled 'fig. F fig. G' (no text or symbols on diagram)

Diagram of a cable connector with two connectors and a connecting rod, showing internal structure (no text or symbols)

IT AVVIAMENTO STARTING UP DEMARRAGE INBETRIEBNAHME PUESTA EN MARCHA

Diagram showing a switch with an open lock icon and a directional arrow, no text or symbols present

3

Illustration of a handheld electric shaver with a plus button, no text or symbols present

4

Illustration of a hand gripping a tool with an arrow indicating motion (no text or symbols)

!

Illustration of a hand using a tool to cut a curved object with dashed lines indicating motion (no text or symbols)

fig. 1

getto spillo/ventaglio
EN spread pattern/pencil jet jet variable vario
Duese ES chorro regulable NL dunne straal/waaiervormige straal PT jato fim / jato grande
vějířová/přímá tryska EL πιδακας καρφιτσα/βενταλια
FI pistemäinen/viuhkamainen suihku HU tú/legyező alakú vízsugár. NO samlet stråle/ viftestråle PL trumień szpilka/ wachlarz RU точечная/ weeroобразная струя. SL i glasti/pahljačasti curek vode SV sluten/spridd BG Настройка на водната струя HR mlaznica-fini mlaz/raspršivač

IT alta/bassa pressione EN high/low pressure haute/ basse pression Hoch/ nieder-druck-lanze alta / baja presión hoge/lage druk alta/baixa pressao
CS VYSOKO tlaká/ NÍZKÉHO tlaká EL υψηλη/χαμηλη πιεση
FI korkea/matalapaine HV alacsony / magas nyomás.
NO ved høyt/lavt trykk PL strumień wachlarzowy
RU высокое/низкое давление
SL vysokotlaková/nízkotlaková prúdnica SV strále högt/lågt tryck BG Bvisoko naлягане/ Ниско налягане Препарат HR mlaznica-visoki/niski tlak

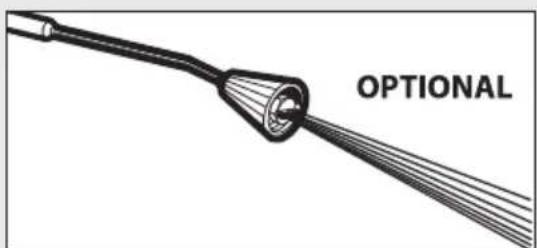

- pressure + pressure OPTIONAL

ES IT getto ventaglio Eispread pattern jet d'eau en eventail DE großen Wasserstrahl ES chorro grandes waaiervormige straal PT jato grande vějiřová tryska
EL piðakac βενταλια viuhkamainen suihku legyező alakú vízsugar. Isamlet stråle strumień wachlarzowy
RU weeroобразная струя spahljačasti curek vode solfjädersformad stråle za ветрилообразна струя mlaznica raspršivač

NL
SV
HR

OPTIONAL

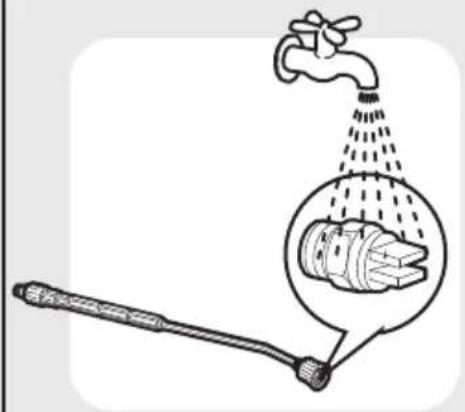

fig. L

Illustration of a faucet spraying water onto a fish-shaped container (no text or symbols)

Illustration of a pipe with a valve and coiled cable, no text or symbols present

Diagram showing a faucet spraying water onto a pipe with a valve being inserted (no text or symbols present)

Diesel

Line drawing of a portable air purifier connected to a cylindrical device (no text or symbols)

Illustration of a hand using a tool to adjust a mechanical component on a circular base (no text or symbols)

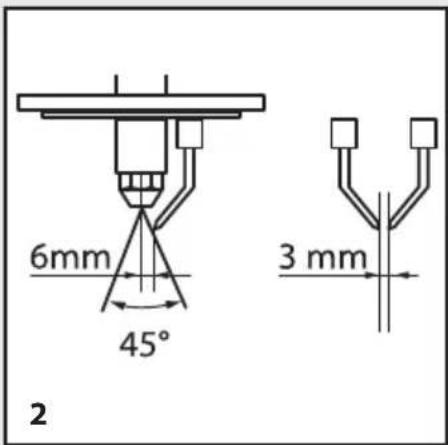

6mm 45° 3 mm 2

Technical line drawing of a mechanical assembly with two views: top shows a hand holding a rotating wheel, bottom shows a cylindrical component (no text or symbols)

Line drawing of a person using a tool on a circular mechanical component (no text or symbols)

Technical diagrams showing two methods of a pipe installation: top panel with pipe connection and bottom panel with tool handle pouring liquid into a container.

Illustration of a coiled spring being handled by hands, with a cylindrical container and tubing nearby (no text or symbols)

fig. M

OK A = 3B min. 120° min. 20 cm min. 7,9 inch A B

NO NO NON NEIN NO NEE

SCHEMA IDRICO •

WATER DIAGRAM •

SCHEMA HYDRAULIQUE •

WASSERUMLAUFSCHEMA

• ESQUEMA HÍDRICO

• WATERCHEMA •

ΣΧΕΔΙΟ ΥΔΡΕΥΣΗΣ •

ESQUEMA HIDRÁULICO •

VEDENKYTKENTÄKAAVIO •

TM = MOTOR THERMAL SWITCH

TR = IGNITION TRANSFORMER

IG = ELECTRIC-PLUMP SWITCH

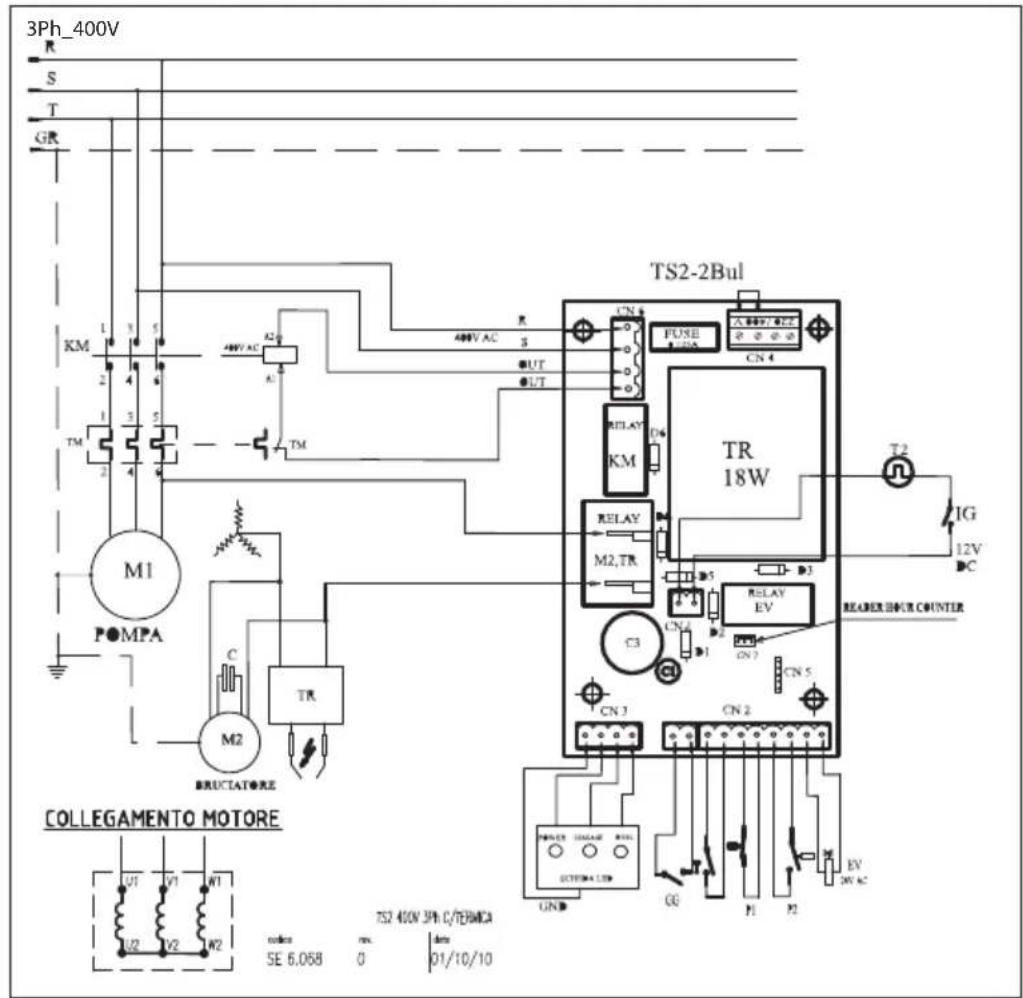

3Ph_400V R S T GR KM 1 2 3 4 5 6 7 8 9 TM M1 POMPA C TR BRUCTATORE TS2-2Bul FUSE CN 4 OUT UT TR 18W RELAY KM M2,TR C3 CN 3 CN 2 RELAY EV CN 5 T2 IG 12V C REARER HOUR COUNTER ON POWER 100kW 10kW Schematic 1.5kW GG P1 P2 EV 2kV AC COLLEGAMENTO MOTORE U1 U1 U1 U2 U2 U2 T2 12V C TS2 400V 3PH C/TERMCA SE 6.068 0 01/10/10

LEGENDA

KM = TELERUTTORE

T = TERMOSTATO

GG = GALLEGGIANTE GASOLIO

P1 = PRESSOSTATO TS

P2 = PRESSOSTATO

EV = ELETTROVALVOLA

TM = TERMICO MOTORE

TR = TRASFORMATORE ACCENSIONE

IG = INTERRUTTORE ELETTROPOMPA

T2 = TERMICA ESTERNA MOTORE

KM = CONTACTOR

T = THERMOSTAT

GG = DIESEL FLOATER

P1 = PRESSURE SWITCH TS

P2 = PRESSURE SWITCH

EV = ELECTRO-VALVE

TM = MOTOR THERMAL SWITCH

TR = IGNITION TRANSFORMER

IG = ELECTRIC-PUMP SWITCH

T2 = EXTERNAL MOTOR TERMAL SWITCH

INTRODUZIONE

> UTILIZZO PREVISTO

• The appliance is intended for PROFESSIONAL use.
• The appliance can be used for washing surfaces outdoors, whenever pressurised water is required to remove dirt.
• With special optional accessories, it can be used for foaming and sandingblasting, and for washing with a rotary brush for application to the gun.

> THECNICAL DATA

(see thecnical data plate)

SYMBOLS

WARNING: It is important to be careful of the following items.

IMPORTANT

LOCKED

OPEN

IF PRESENT

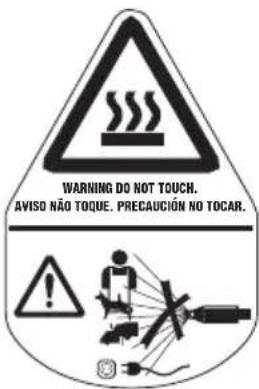

WARNING DO NOT TOUCH. AVISO NÃO TOQUE. PRECAUCIÓN NO TOCAR.

WARNING: do not touch. Risk of burns on account of hot surfaces!

WARNING: High pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, animal, live electrical equipment or the machine itself.

warning symbol : do not inhale

SAFETY PRECAUTIONS

> WARNINGS

⚠ 01WARNING: This appliance is for outdoor use only.

⚠ Warning: do not use combustion engine powered appliances indoors, unless adequate ventilation is assessed by national labour authorities.

⚠ WARNING: Ensure that any exhaust emissions are not a vicinity of air intakes

⚠ WARNING: In case of operation indoors, adequate ventilation and gas venting must be assured.

⚠ WARNING: Always disconnect the electricity and water supplies on completion of every job.

⚠ WARNING: Do not use the machine if a supply cord or important parts of the machine are damaged, e.g. safety devices, high pressure hoses, trigger gun.

⚠ WARNING: This appliance has been designed for use with the detergent provided or the detergent specified by the manufacturer, such as a neutral shampoo based on biodegradable anionic surface active detergents. The use of other detergents or chemicals may put the appliance's safety at risk.

⚠ a WARNING: Do not use the machine within range of persons unless they wear protective clothing.

b - Do not allow other people or animals within a range of 5m when operating the machine.
c - Always wear suitable protective clothing in order to protect yourself against ricocheting parts.
d - Do not touch the plug and the appliance with wet hands or when barefoot.
e - Wear safety goggles and non-slip rubber footwear.

⚠ WARNING: Do not direct the nozzle toward mechanical parts containing lubricant grease, as the grease will dissolve and spread over the surrounding ground. Vehicle tyres/tyre valves may only be cleaned from a minimum distance of 30 cm, otherwise the vehicle tyre/tyre valve could be damaged by the high-pressure jet. The first indication of this is a discoloration of the tyre. Damaged

vehicle tyres/tyre valves can be deadly dangerous.

⚠ WARNING: High pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, animal, live electrical equipment or the machine itself.
⚠ WARNING: High pressure hoses, fittings and couplings are important for the safety of the machine. Use only hoses, fittings and couplings recommended by the manufacturer. (it is extremely important to protect these components against damage by avoiding their improper use and protecting them against bending, knocks and scratches).
⚠ WARNING: Appliances not equipped with T.S. – Total Stop : must not be left in operation for more than 2 minutes with the gun released. The recycled water heats up considerably, seriously damaging the pump.
⚠ WARNING: Appliances equipped with T.S. – Total Stop : these appliances should not be left in standby for more than 5 minutes.
⚠ WARNING: Switch the appliance off completely (master switch on (0)OFF) whenever it is left unattended.
⚠ WARNING: Every machine is tested in its operating conditions, so it is normal for a few drops of water to be left inside it.
⚠ WARNING: Take care not damage the electric cable. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard
⚠ WARNING: Appliance with fluid under pressure. Keep a firm hold on the gun and be prepared to take the kickback pressure. Only use the high pressure nozzle provided with the appliance.
⚠ WARNING: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
⚠ WARNING: Children should be supervised to ensure that they do not play with the appliance.
⚠ WARNING: Never start the high-pressure cleaner without first completely unwinding

the high-pressure hose.

⚠ WARNING: When winding and unwinding the pipe take care not to cause the high-pressure cleaner to overturn.
⚠ WARNING: Before unwinding or winding the hose, switch the machine off and release the pressure in the hose itself (switching off).
⚠ WARNING: Risk of explosion — Do not spray flammable liquids.
⚠ WARNING: To ensure machine safety, use only original spare parts from the manufacturer or approved by the manufacturer.
⚠ WARNING: Do not direct the jet against yourself or others in order to clean clothes or foot-wear.
⚠ WARNING: High pressure cleaners shall not be used by children or untrained personnel.
⚠ WARNING: Water that has flown through backflow preventers is considered to be non-potable.
⚠ WARNING: the machine shall be disconnected from its power source, by removing the plug from the socket-outlet, during cleaning or maintenance and when replacing spare parts
⚠ WARNING: Improper extension cables can be dangerous. If an extension cord is used, it must be suitable for outdoor use, and the connection must be kept dry and clear of the ground. It is recommended that this be done using a cable reel that holds the plug at least 60 mm from the ground.
⚠ WARNING: If an extension cord is used, the plug and socket must be of watertight construction.
⚠ WARNING: During the use of high pressure cleaners, aerosols may form. Inhalation of aerosols can be dangerous to health.
⚠ WARNING: Depending on the application, shielded nozzles can be used for high pressure cleaning, which will drastically reduce the emission of hydrated aerosols. However, not all applications allow the use of such a device. If the armored nozzles are not applicable for aerosol protection, a respiratory mask of class FFP 2 or equivalent may be necessary, depending on the cleaning environment.
⚠ WARNING: It is absolutely forbidden to use the machine in potentially explosive environments or areas.
⚠ WARNING: During operation, do not place the machine in areas of poor aeration and

EN

much less cover it.

⚠ WARNING: Avoid using the machine in the rain and do not direct the jet at it.

⚠ WARNING: Do not use the unit on flammable surfaces.

⚠ WARNING:

• NEVER EVER TOUCH THE MACHINE WITH WET HANDS OR BARE FEET.
• NEVER PULL THE POWER SUPPLY CABLE OR MACHINE IN ORDER TO DISCONNECT THE PLUG FROM THE SOCKET.
• IF DURING FUNCTIONING THE POWER SUPPLY RUNS OUT, FOR SAFETY REASONS, TURN THE MACHINE OFF.

> SAFETY DEVICE

⚠ WARNING: the gun is fitted with a safety catch. Whenever use of the machine is interrupted it is important to operate the safety catch to prevent accidental activation of the jet.

• Safety features: gun equipped with safety locking device, appliance equipped with (Class I) overload cutout, pump equipped with by-pass valve or shutdown device.
• The safety button on the gun is not there to lock the lever during operation, but to prevent its accidental operation.

⚠ WARNING: The appliance is equipped with a motor protection device: in case of device intervention, wait some minutes or, in alternative, disconnect and re-connect the product to the electric system. In case this problem repeats again or if the product does not start again, take the product to the nearest After Sales Service Point

> STABILITY

⚠ WARNING: The machine must be always kept on horizontal bases, in a safe and stable way.

> WATER SUPPLY

Water supply collection

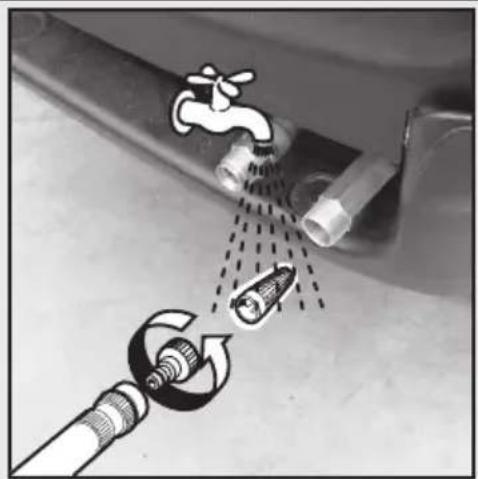

Water supply from the water main

• Connect a supply hose (not included) to the water inlet of the unit and to the water supply.
• Open the water supply.

WARNING: (symbol) machine not suitable connection to the potable water mains.

The cleaner can only be connected to the water mains if the water mains is separated by a backflow preventer. Make sure that the hose is at least ∅ 13mm-1/2 inch and that it is reinforced.

⚠ WARNING: Water that has flown through backflow preventers is considered to be nonpotable.

IMPORTANT: Only clean or filtered water should be used for intake. The delivery of the water intake tap should be equal to the double of the maximum pump range.

• Minimum delivery rate: 30 l/min.
• Maximum intake water temperature: 40^ C
• Max inlet water pressure: 1Mpa
  Place the cleaner as close to the water supply system as possible.

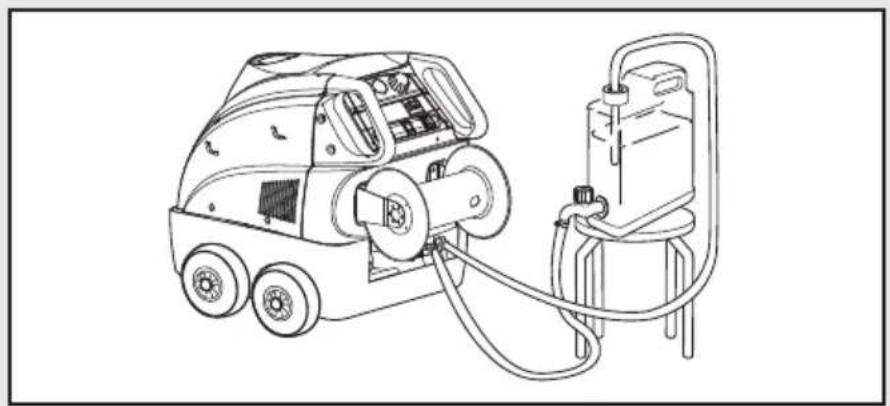

Water supply from an open container

• Unscrew the coupling part for the water inlet.
• Screw the suction hose with filter (not included) onto the water connection of the unit.
• Hang the filter in the container.
• Vent the unit before operation.
• Unscrew the high-pressure line at the high-pressure outlet of the unit.
• Switch on the unit and let it run until water free of bubbles emerges at the high-pressure outlet.
• Switch off the unit and screw on the high-pressure hose again.

Failure to comply with the above conditions causes serious mechanical damage to the pump and the loss of warranty cover.

> ELECTRICITY SUPPLY

• The appliance's electrical connection must comply with the IEC 60364-1 standard.
  A QUALIFIED ELECTRICIAN must carry out the following:
• If the power supply cable is not available and if the device is not to be connected in a fixed manner to the power supply, fit a plug in compliance with the standard of the country

in which the machine is installed;

IMPORTANT: Before connecting the appliance, make sure that the nameplate data are the same as those of the electrical mains and that the socket is protected by a differential security breaker with tripping sensitivity below 0.03 A - 30 ms.
- If the appliance's plug is not compatible with the socket, have the socket replaced with another of suitable type by professionally qualified staff.
- Never use the appliance in ambient temperatures below 0^ C if it is equipped with a PVC (H VV-F) cable.
⚠ WARNING: Improper extension cables can be dangerous. If an extension cord is used, it must be suitable for outdoor use, and the connection must be kept dry and clear of the ground. It is recommended that this be done using a cable reel that holds the plug at least 60 mm from the ground.
⚠ WARNING: If an extension cord is used, the plug and socket must be of watertight construction. Information for supply may also be obtained from the plug manufacturer.

230-240V 400-415V

3G 2,5 mm2 4G 2,5 mm2

max 20 m max 30 m

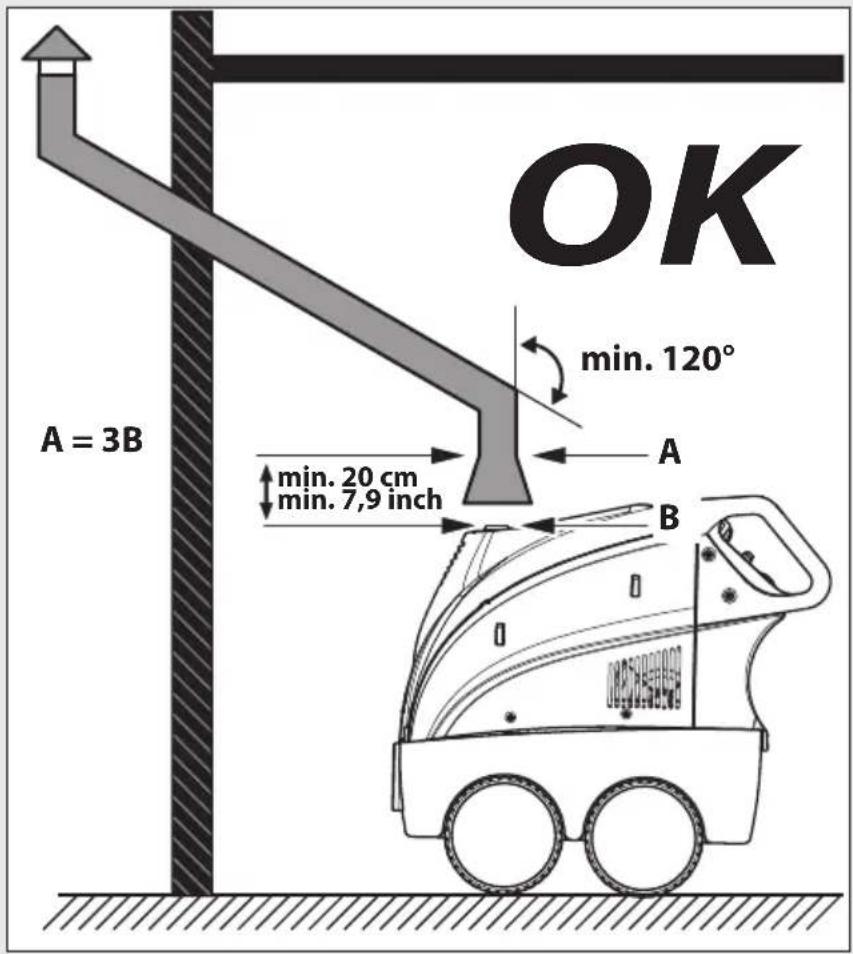

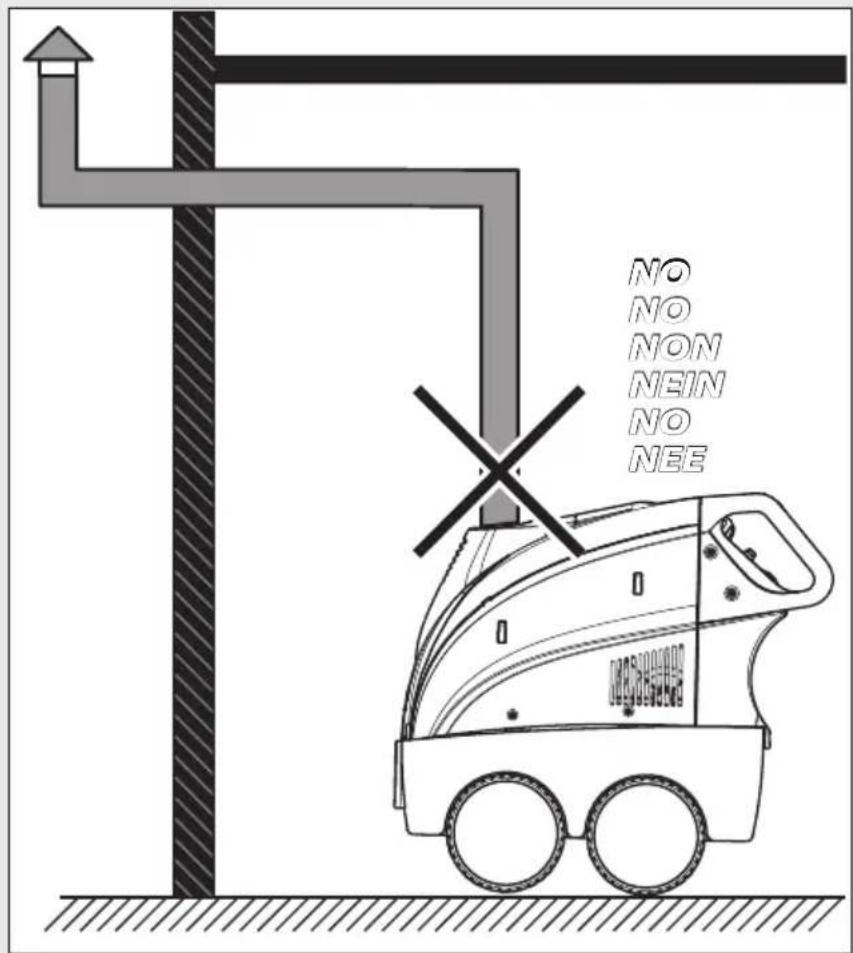

> POSITIONING OF THE CHIMNEY FOR INDOOR APPLICATION

(see fig. M)

⚠ WARNING: In case of operation indoors, adequate ventilation and gas venting must be assured.

Sometimes a chimney is necessary to remove the exhausts from the pressure cleaner.

This problem hasn't to be faced when the machine operates outdoor, but when it's installed indoor, the following recommendations must be followed:

• The chimney path must be always in ascent, straight vertical if possible, and preferably not exceeding a 5 m lenght.
• The exit of the chimney must be sheltered to avoid the dripping of rain and to allow the

exhaust flow.

- The chimney section A must be 3 times the outlet chimney of the machine B and at distance of at least 20 cm.

It must be underlined that the above recommendations are extremely important to prevent the condensate from back dripping into the machine. The exhausts contain sulphuric acid, condensating at a temperature of approximately 180°C. The condensation shall be avoid, but in any case the condensate from chimney shall not enter the machine.

The non observance of these recommendations may lead to the damage of the machine.

CHIMNEY SECTION: 3 times the area of chimney

Chimney pipe diameter = 150 mm

CHIMNEY SECTION FOR 2 BOILER: 6 times the area of chimney

Chimney pipe diameter = 225 mm

USAGE

> UNPACKING

(see fig. B)

Take out the upper and the lower hooks, which fix the cardboard box to the pallet, take the cardboard box off, put two wheels of the machine on ground and take the pallet off.

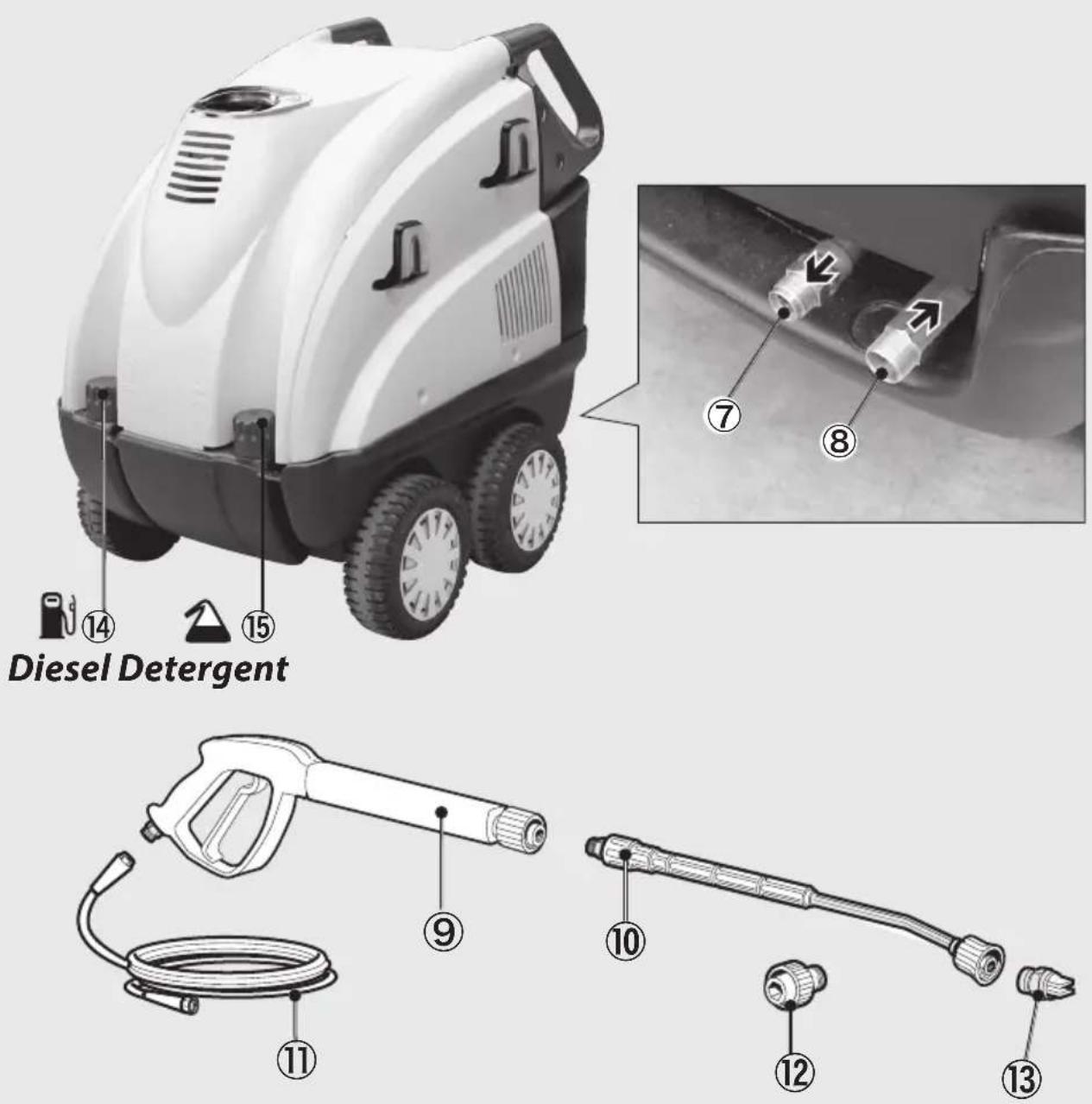

DESCRIPTION OF THE MACHINE

1	Electropump switch
2	Regulator burner
3	Detergent regulator
4	Pressure gauge
5	Burner switch
6	Pilot lights (OPTIONAL)
7	High pressure water outlet
8	Water inlet + filter
9	Gun
10	Lance
11	High pressure hose
12	Rubber hose fitting

EN

⑬ Nozzle

⑭ Diesel tank

⑮ Detergent tank

Pilot lights:

⑥ Pilot lights: DIESEL shortage (OPTIONAL)
⑥ A: Motor pump ON green pilot light
⑥ B: Leak pilot light

- flashes when the pistol lever is repeatedly operated in a short time or when a leak occurs in the high pressure circuit. Remove the leak, referring to an authorized service centre.

- remains ON when the machine is left in stand-by for over 20 minutes.

Switch on and off the motor pump switch.

⑥ C: Burner switch

- flashes when the gasoil tank is empty; the burner is stopped. Refuel.

- remains ON when the burner switches on.

> INSTALLATION AND START-UP

(fig. A)

FILLING UP WITH FUEL

Information on the type of diesel fuel to be used: Diesel for transport uses and without additives. Fill the tank with the fuel indicated on the technical data plate (Diesel)

Avoid that the tank is empty when the machine is running in order not to damage the fuel pump.

⚠ WARNING: Incorrect fuel shall not used as they as provide hazard.

FILLING UP WITH DETERGENT

the detergent tank with the suggested products, suitable for the kind of washing to be carried out.

⚠ WARNING : Make use only of liquid detergent, do not absolutely use acid or too much alkaline products. We suggest you to make use of our products, which have been studied for the use with washer machines.

> INSTALLATION

(fig. CDEFG)

• Check that the master switch is turned to "OFF" and that the water filter is fitted into the pump's inlet pipe.
• Screw the snap connection into place by hand, without the aid of tools.
• Connect the water supply hose to the snap

connection. The hose must have an inside diameter of at least 13 mm (1/2").

• Connect the high pressure hose to the pump's outlet pipe. Press the high pressure hose coupling fully down and then screw into place by hand without the aid of tools.

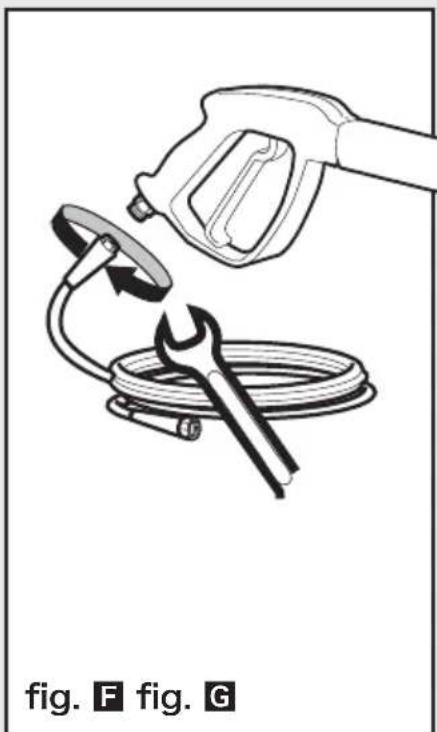

• Connect the high pressure hose to the gun.
• Turn the water tap fully on. The water temperature absolutely must be below 40^ C.

IMPORTANT: The washer machine has to operate with clean water in order to avoid any damages to the washer machine itself.

• Release the gun safety catch and keep the trigger pressed, allowing the water to flow until all the air has been expelled.

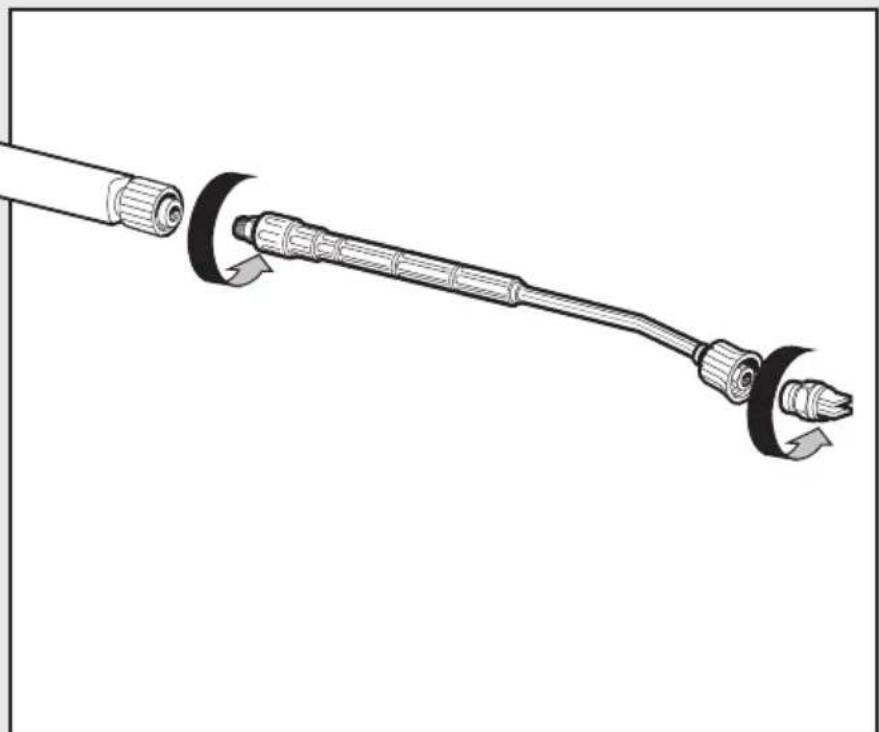

• Fit the lance into the gun.
• Fit the nozzle into the lanxce.
• Connect the plug to the power socket.

> 1ST START-UP

When starting up for the first time or after a long period out of use, connect the intake line only for a few minutes so that any dirt is vented from the delivery outlet

> START-UP

(fig. H)

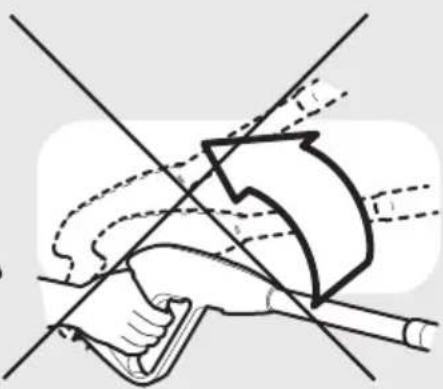

• Whenever using the high-pressure cleaner, users are urged to hold the gun in the correct position, with one hand on the grip and the other on the spray rod.
• To start the machine, press the gun trigger and at the same time turn the master switch to "ON"

> TO WASH WITH HOT WATER

(fig. A)

• turn the burner switch and select the desired temperature setting.
• To add detergent or disinfectant to the water jet, open the regulator to the setting for the quantity required as described in the "DETERGENT SUCTION" section.

⚠ WARNING: In case of operation indoors, adequate ventilation and gas venting must be assured.

THERMOSTAT SET ABOVE 100 °C: USE WARNINGS.

When working with temperatures exceeding 100^ , follow these steps:

• The working pressure must not exceed the limit of 32 bar.
• Through the knob on the bypass valve of the pump, you can adjust the pressure.
• Assemble steam nozzle 3.749.0183 (optional)

> DETERGENT SUCTION

at low pressure (if included)

(see fig. 1)

The adjusting head allow you to select water jet at low and high pressure. The pressure selection is carried out by rotating the adjusting head. To increase the pressure, rotate the adjusting head clockwise, to reduce the pressure rotate it anti-clockwise. The detergent suction is automatic when the adjusting head of the lance is rotate for low pressure operation (anti-clockwise).

> DETERGENT SUCTION

at hght pressure (if included)

(see fig. Ⅰ)

When you start the machine, the mixing of the detergent with the water is automatic at the water passage. The quantity of sucked detergent depends on the quantity set with the detergent adjusting knob.

⚠️ CAUTION: Make use only of liquid detergent, do not absolutely use acid or too much alkaline products.

We suggest you to make use of our products, which have been studied for the use with washer machines.

Total Stop 24V

(if fitted)

Machines equipped with delayed, low-voltage Total Stop:

When the machine is working, by releasing the gun lever, after approximately 15 seconds the motor stops automatically to prevent component wear during the pump by-pass phase (motor in stand-by). By pressing the gun lever the motor starts automatically.

⚠ WARNING: do not leave the stand-by mode active for more than 5 minutes.

At the end of the operation, set the switch to "OFF".

Activate hand spray gun until device is pressure less.

Total Stop 24V

(if fitted)

Machines equipped with delayed, low-voltage Total Stop with intelligent switch-off:

When the machine is working, by releasing the gun lever, after approximately 15 seconds the motor stops automatically to prevent component wear during the pump by-pass phase (motor in stand-by). By pressing the gun lever the motor starts automatically.

⚠ WARNING: do not leave the stand-by mode active for more than 5 minutes.

If the machine remains in stand-by mode for more than 20 minutes, it switches off automatically and completely: in fact, by pressing the gun lever the machine does NOT start working.

For this reason, if you need to start the machine it is necessary to set the switch to (0) "OFF" and then to (1) "ON".

At the end of the operation, set the switch to "OFF".

Activate hand spray gun until device is pressure less.

PRESSURE REGULATOR:

If the appliance is equipped with a pressure regulator:

• when the pressure is set to minimum the T.S. may not trigger. Therefore, do not allow the appliance to function in by-pass for more than 1 minute.
• do not act on the gun lever too frequently (this may cause a malfunction).

Turn off the appliance

⚠ WARNING :

Danger of scalding by hot water. After the operation with hot water or steam, the device must be operated with openend gun with cold water for at least two minutes.

• Set the appliance switch to "0/OFF".
• Shut off water supply.
• Open the hand spray gun.
• Turn on pump shortly (appr. 5 seconds) with device switch.
• Pull main plug out of socket with dry hands only.
• Remove water connection.

EN

• Activate hand spray gun until device is pressure less.
• Lock the trigger gun.

Storing the Appliance

• Lock in the steel pipe into the holder of the appliance hood.
• Roll up high pressure hose and electrical conduit and hang them into the respective holders.

Device with hose drum:

• Before rolling up, stretch out the high pressure hose.
• Turn the hand crank clockwise (Direction of the arrow).
  Note: Do not twist high pressure hose and electrical conduit.
• Store the appliance and the accessories in a dry safe place, out of the reach of children.
• Store the appliance and the accessories in a frost-safe room.
• This appliance must only be stored in interior rooms.

CARE AND MAINTENANCE

(vedi fig. L)

SCHEDULED MAINTENANCE PLAN Visit www.lavorservice.com website and download the scheduled maintenance plan.

IMPORTANT: Before doing any work in the cleaner, discharge the pressure and disconnect the electricity and water supplies.

Check the oil level periodically. The oil must be changed for the first time after 50 working hours, with subsequent changes every 500 hours. SAE 20/30, 15W-40, 20W-40 oil is recommended.

CHECKING THE WATER INTAKE FILTER

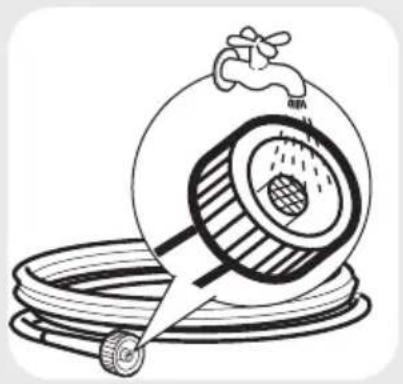

Inspect and clean the water intake filter on the intake union periodically. This is important to prevent fouling which may impair operation of the pump.

CLEANING THE FUEL FILTER

Check the fuel filter periodically and replace if it has deteriorated or is excessively dirty.

DESCALING

The descaling procedure must be carried out periodically with specific products. The interval depends on the hardness of the water. Pour one litre of product for every 15 litres of water into a drum containing at least 30 litres of water. Disconnect the gun from the high pressure line and place its free end in the drum, in order to form a closed circuit, and draw the solution into the machine for at least 10 minutes. The delivery end of the line should discharge into a canvas or mesh bag so that the scale removed is not returned to the circuit. Then restore the normal connection and rinse with plenty of cold water. This operation should be carried out by our after-sales service, since the descaling product may cause wear of components. Comply with the regulations in force when disposing of the descaling agent.

Liquid softener tank integrated (Optional - if included)

The descaling procedure must be carried out periodically with specific products. The interval depends on the hardness of the water. This operation should be carried out by our after-sales service, since the descaling product may cause wear of components. Comply with the regulations in force when disposing of the descaling agent.

- Fill the softener tank with our products (in all cases, with non corrosive products). The dispensing rate is set at a medium value; the After Sales Services will be able to adapt the setting to local conditions.

BOILER CLEANING

⚠ WARNING: For all maintenance of the boiler, of the high pressure pump and of the machine, it is necessary to address to qualified personnel or to an authorized assistance center.

The boiler cleaning must be periodically executed every 180 ÷ 200 hours of working proceeding as follows:

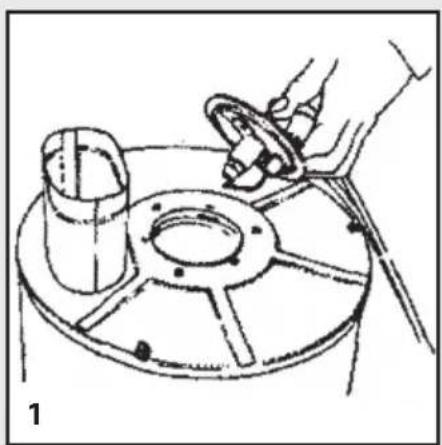

• Carefully remove the nozzle holder flange and the electrodes holder (boiler head).
• Clean with compressed air the nozzle filter and check the electrodes position.

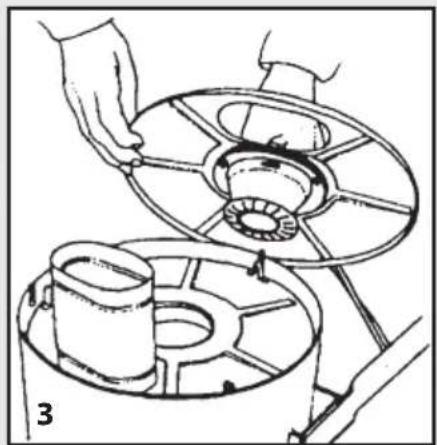

• Remove the boiler cap, clean the deflector.
• Manually take away the interior cap.

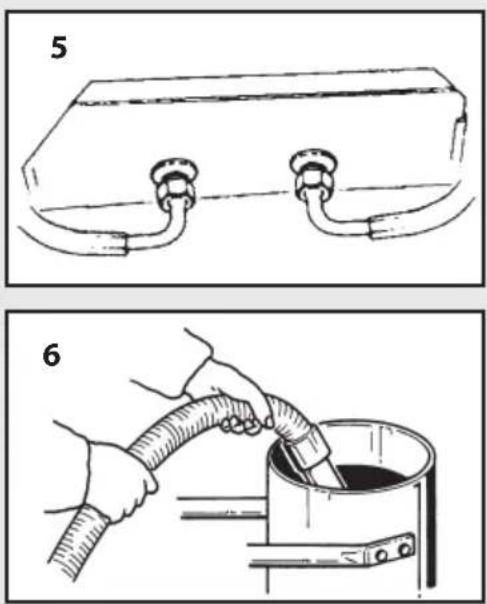

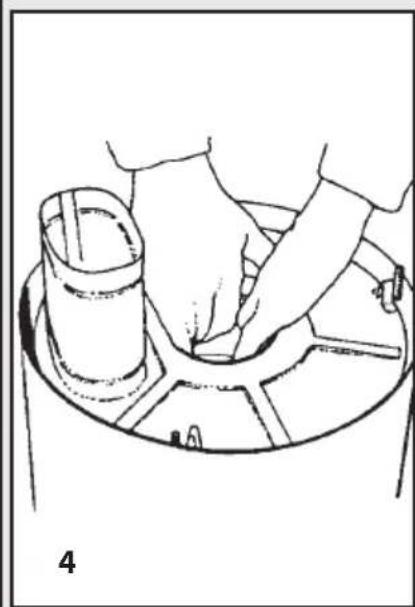

• Unscrewing the locking nuts and take the boiler coil out.

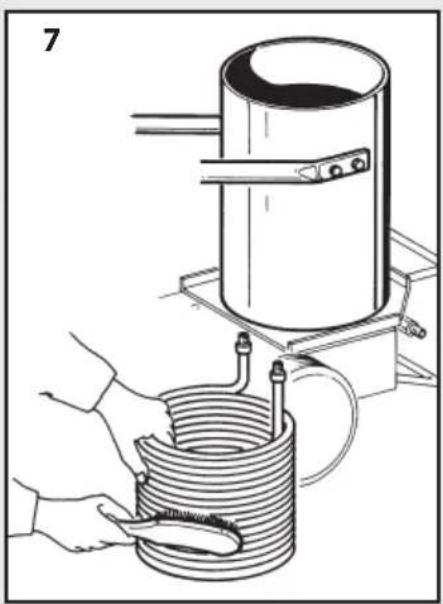

• Clean the coil by an iron brush.
• Suck the residuums from the boiler.
• Replace every parts doing the operations in the

inverse way.

⚠ WARNING: The general checking and combustion regulation must be periodically executed by specialized personnel as prescribed by the law.

ELECTRIC DIAGRAM

See illustrations, page 8-9.

WATER DIAGRAM

See illustrations, page 8.

> REPAIRS - SPARE PARTS

For any problems not mentioned in this manual, or if the machine breaks down, you are urged to contact an Authorized After-Sales Service for the relative repair or for any replacement of components with original spare parts. Use exclusively original replacement parts.

> WARRANTY CONDITIONS

All our machines are subjected to strict tests and are covered against manufacturing defects in accordance with applicable regulations (minimum 12 months). The warranty is effective from the date of purchase. If your high pressure washer or accessories are handed in for repair, a copy of the receipt must be enclosed.

Guarantee repairs are being made on the following conditions: - That defects are attributable to flaws or defects in materials or workmanship. - That the directions of this instruction manual have been thoroughly observed. - That repair has not been carried out or attempted by other than authorized service staff. - That only original accessories have been applied. - That the product has not been exposed to abuse such as knocks, bumps or frost. - That only water without any impurities has been used. - That the high pressure washer has not been used for rental nor used commercially in any other way.

The following are not included in the warranty: - Parts subject to normal wear. - The high-pressure tube and optional accessories. - Accidental damage, caused by transport, neglect or inadequate treatment, incorrect or improper use and installation failing to comply with the indications in the instruction manual. - The warranty shall not cover any cleaning operations to which the operative components may be subjected. Repairs under this guarantee include replacement of defective parts, exclusive of packing and postage/carriage. The warranty shall not cover replacement of the machine or extension of the guarantee resulting from a breakdown. The manufacturer declines all responsibility for damage to persons or property caused by bad installation or incorrect use of the machine.

WARNING! Failures, such as clogged nozzles, valves and mechanism blocked due to limestones, damaged pressure cleaner accessories (like kinked high pressure hose) and/or appliances normally working without any defects ARE NOT COVERED BY THE WARRANTY.

> DISPOSAL

As the owner of electrical or electronic equipment, the law (in accordance with the EU Directive 2012/19/EU n waste from electrical and electronic equipment and the national laws of the EU Member States that have implemented this Directive) prohibits you from disposing of this product or its electrical / electronic accessories as municipal solid waste and obliges you to make use of the appropriate waste collection facilities.

The product can be disposed of by returning it to the distributor when a new product is purchased. The new product must be equivalent to that being disposed of.

Disposing of the product in the environment can cause great harm to the environment itself and human health. The symbol in the figure indicates the urban waste containers and it is strictly prohibited to dispose of the equipment in these containers. Non-compliance with the regulations stipulated in the Directive 2012/19/EU and the decrees implemented in the various EU Member States is administratively punishable.

TROUBLESHOOTING

Before doing any work on the machine, disconnect the electricity and water supplies and discharge the pressure. Proceed systematically to identify Faults following the chart below; if you are still unable to eliminate the problem, call in the Authorized After-Sales Service.

Fault When the main switch is turned on the machine does not start
Cause	- Plug not properly connected.- Connection panel fuses are burnt out.
Repair	- Carefully check the plug and the electric cable.- Check them and replace them.
Fault The motor hums but does not start
Cause	- A phase is missing (in three phase models).- Lows voltage.- High pressure pump is blocked.
Repair	- Contact an authorised service centre.- Contact an authorised service centre.- Contact an authorised service centre.
Fault The motor stops suddenly or after a while
Cause	- The motor-protecting switch is on beCause of insufficient mains voltage.
Repair	- Check the value of the mains voltage.- Contact an authorised service centre.
Fault When the lance is turned on pressure values decrease and increase
Cause	- The nozzle is either clogged or deformed.- Either boiler coil or lance are clogged with limestone.
Repair	- Either clean it or replace it.- Descaling.
Fault To much vibrations at the delivery
Cause	- The pressure tank is run down.- The valve are worn out or dirty.
Repair	- Check the pressure in the tank.- Check and/or replace.
Fault	The pump does not reach the fixed pressures
Cause	- The pump sucks air.- The valves are worn out.- The setting valve area is worn out.- The nozzle is unsuitable or worn out.- The seals are worn out.
Repair	- Check the suction pipes.- Check and/or replace.- Contact an authorised service centre.- Contact an authorised service centre.
Fault Irregular pressure fluctuations

Cause	- The suction and/or delivery valves are worn out. - Presence of foreign matters in the valves, which generate bad functioning. - Air suction. - The seals are worn out.
Re-pair	- Check and/or replace. - Check and clean the replace. - Check the suction pipe. - Check and/or replace the seals.
Fault Pressure leakage
Cause	- The nozzle is worn out. - The suction and/or delivery valves are broken or down. - Presence of foreign matters in the valves, which generate the valves bad functioning. - The setting valve area is worn out. - The seals are worn out.
Repair	- Replace the nozzle. - Check and/or replace the valves. - Check and clean the valves. - Check and/or replace the setting valve area. - Replace the seals.
Fault Noisiness
Cause	- Air suction. - The suction and/or delivery valve springs are broken or down. - Foreign matters in the suction and delivery valves. - The bearings are worn out. - Extreme liquid temperature.
Repair	- Check the suction pipes. - Replace the valve springs. - Check and clean the suction and delivery valves. - Replace the bearings. - Reduce the liquid temperature.
Fault	Water is in the oil
Cause	- The O-ring casing is worn out. - High moisture in the air. - The seals are completely worn out.
Repair	- Check and/or replace the O-ring. - Replace the oil with double frequency in respect of the one suggested. - Replace the seals.
Fault	Filtrations of water from the drains between casing and head
Cause	- The seals are worn out. - The piston is worn out. - The O-ring of the piston cap is worn out.
Repair	- Replace the seals.- Replace the piston.- Replace the seal.
Fault	Filtrations of oil from the drains between head and casing
Cause	- O-ring seals of casing are worn out.
Repair	- Replace the seals.
Fault	Turning on the burner switch the boiler does not start
Cause	- No fuel.- Fuel filter is clogged.- Fuel pump is either blocked or burnt out.- Damaged thermostat.- Ignition spark insufficient or totally lacking.- The space among the electrodes is not correct.- Burn out fuse.
Repair	- Check the level in the tank and check whether the rigid suction pipe is clean.- Replace the line filter.- Replace it.- Replace it.- Contact an authorised service centre.- Check the positioning.- Replace it.
Fault	Water is not hot enough
Cause	- Poor boiler performance.- Boiler coil clogged with limestone.
Re-pair	- Clean burner nozzle filter.- Clean fuel filter.- Check diesel pump pressure.- Descaling.
Fault	Too much smoke from the chimney
Cause	- Combustion is not correct.- Impurities or water in the fuel.
Re-pair	- Clean fuel filter.- Clean the boiler.- Empty the tank and clean it carefully.- Clean fuel filter as well.
Fault	Insufficient detergent suction
Cause	- No detergent in the tank.- Incrusted injector.- Either coil or tube or lance are clogged.
Re-pair	- Fill the detergent tank.- Clean it.- Either cleaning or descaling.

INDICATIONS GÉNÉRALES

> UTILISATION PRÉVUES

> CONDITIONS DE GARANTIE

⑥ Controlelichtjes: lege tank Diesel (OPTIONAL)

NL

⑥ A: Groen controlelichtje aangaan schakelaar elektropomp
⑥ B: Controlelichtje controle lekken

www.lavorservice.com

STELL OG VEDLIKEHOLD

PLAN FOR PROGRAMMERT VEDLIKEHOLD Gå til nettsiden www.lavorservice.com og last ned planen for programmert vedlikehold.

(se fig. L)

(AK JE K DISPOZÍCII)

Total Stop 24V (AK JE K DISPOZÍCII)

www.lavorservice.com

Pegognaga (MN) – Italy

IT Dichiara sotto la propria responsabilità che la macchina: EN Declares under its responsibility that the machine: FR Atteste sous sa responsabilité que la machine: DE Erklärt unter der eigenen Verantwortung dass die Maschine: ES Declara bajo su propia responsabilidad que la máquina

NL Verklaart geheel onder eigen verantwoordelijkheid dat de machine: PT Declara sob própria responsabilidade que a maquina: PL Oświadcza na własną odpowiedzialność, że urządzenie: CS Na vlastní zodpovědnost prohlašuje, že přístroj: EL Δηλώνει υπεύθυνα ότι η μηχανή: FI Vakuuttaa omalla vastuullaan että kone: RU Объявляет под свою ответственность, что машина: SL Izjavlja pod lastno odgovornostjo, da je naprava HR Izjavljuje pod vlastitom odgovornošću da stroj: TR Kendi sorumluluğu altında aşağıdaki makinenin: Đекларираме на собствена отговорност че машина: HU saját felelősségére kijelenti, hogy az alábbi akban azonosított gép: NO forsikrer under eget ansvar at maskinen: SV Förklarar nedan sitt ansvar för att maskinen:

IT	PRODOTTO:	IDROPULITRICE AD ALTA PRESSIONE A CALDO	MODELLO- TIPO:
EN	PRODUCT:	HOT HIGH-PRESSURE WASHER MACHINE	MODEL- TYPE:
FR	PRODUIT:	NETTOYEUR HAUTE PRESSION A CHAUD	MODELE-TYPE:
DE	PRODUKT:	HEIßWASSER-HOCHDRUCKREINIGER	MODELL-TYP:
ES	PRODUCTO:	HIDROLIPIADORA DE ALTA PRESIÓN EN CALIENTE	MODELO - TIPO:	HRL
NL	PRODUCT:	HEET WATER HOGEDRUCK REINIGER	MODEL - TYPE:	LKX
PT	PRODUTO:	HIDROLIMPADORA DE ALTA PRESSÃO A QUENTE	MODELO - TIPO:	Sundek 5Y
PL	PRODUKT: MYJKA WYSOKOCIŚNIENIOWA MODEL-TYPU
CS	PRODUKT: VYSOKOTLAKÝ ČISTIČ S OHŘEVEM MODEL-TYP:
EL	προϊον:	MHX'ANHMA KAΘΑΡΙΣΜΟ'Y ME YΨΗΛΗ ΠΙΕΣΗ	MONTEŁOY-TYПОΣ:
FI	tuote:	HYDRAULINEN KORKEAPAINEPESURI	MALLI -TYYPPI:	P86.0411
RU	annapat:	ГИДРООЧИСТИТЕЛЬ ВЫСОКОГО ДАВЛЕНИЯ	МОДЕЛЬ-ТИП:
SL	proizvod:	VISOKOTLACNI VODNI CISTILEC NA VROCO VODO	MODEL-VRSTE:
HR	proizvod:	tOPLI VODENI PERAČ VISOKOG PRITISKA	MODEL-TIP:
TR	ürün:	YÜKSEK BASINÇLI SICAK SULU YIKAMA MAKINESI	MODEL-TÍPÍ:
BG	продукт:	ВОДОСТРУЙКА ЗА ИЗМИВАНЕ ПОД НАЛЯГАНЕ	Модел-Тип:
HU	termék:	MELEGVÍZES MAGASNYOMÁSÚ MOSÓ	MODELL- TÍPUS
NO	produkt:	HÕYTTRYKKSVASKER MED VARMT VANN	MODELL TYPE:
SV	produkt:	HOGTRYCKSTVÄTT MED VARMVATTEN	MODELL-TYP:

IT é conforme alle direttive CE/UE e loro successive modificazioni, ed alle norme EN: EN complies with directives EC/EU and subsequent modifications, and the standards EN: FR est conforme aux directives CE/UE et aux modifications successives ainsi qu'aux normes EN: DE entspricht folgenden EG/EU-Richtlinien einschließlich späteren Änderungen und EN-Normen: ES está en conformidad con las directivas CE/UE y sus sucesivas modificaciones y también con la norma EN: NL in overeenstemming is met de Richtlijnen EG/EU en latere wijzigingen daarop en de normen EN: PT está em conformidade com as directrizes CE/UE e as suas sucessivas modificações bem como com as normas EN e as suas sucessivas modificações. PL jest zgodny z dyrektywami CE/EU i ich późniejszymi zmianami, oraz z normami EN i ich późniejszymi zmianami. CS je v souladu se směrnicemi ES/UE a jejich následnými změnami, a normami EN: EL είναι σύμφωνο με τις οδηγίες EK/EE και τις μεταγενέστερες τροποποιήσεις τους καθώς και με τους κανονισμούς EN και τις μεταγενέστερες τροποποιήσεις τους. FI On yhdenmukainen EY/EU direktiivien ja niitä seuraavien standardimuutosten, ja niitä seuraavien muutosten kanssa. RU соответствует требованиям директив EC/EU и последующих модификаций, EN и стандартам, и последующих модификаций. SL SL V skladu z direktivami in njunimi kasnejšimi spremembami ter s standardi ES/EU, in z njihovimi kasnejšimi spremembami. HR je u skladu sa direktivama CE/EU, te njihovim naknadnim

modifikacijama te standardima EN, njihovim naknadnim modifikacijama. BG Отговаря на директиви EC/EU и последващи модификации и норми EN megfelel a CE/EU irányelveknek és azok későbbi módosításainak, valamint az EN szabványoknak és azok későbbi. NO er i overensstemmelse med EF/EU direktivene, og senere endringer, samt med standardene og senere endringer : SV Överensstämmer med EG/EU direktiven och dess följande modifieringar och standarderna och dess följande modifieringar.

EN 60335-1

EN 60335-2-79

EN 62233:2008

EN 50581

EN 55014-1:2006

+A1:2009+A2:2011

EN 55014-2:2015

EN 61000-3-2:2014.

EN 61000-3-3:2013.

2000/14/EC - 2005/88/EC IT L'apparecchiatura è definita al n°27 dell'allegato I. Procedura di valutazione della conformità secondo l'allegato V. EN The appliance is defined by no. 27 of the enclosure I. Conformity evaluation procedure in accordance with enclosure V. FR L'outillage est defini par nr. 27 du annexe I. Procédure d'évaluation de la conformité conformément l'annexe V. DE Das Gerät ist am Nr. 27 der Anlage I bestimmt. Konformitätswertungsverfahren gemäß der Anlage V. ES El producto es definido en el n° 27 anexo I. Procedimiento de evaluación de la conformidad de acuerdo con el anexo V. NL De apparatuur wordt gedefinieerd van de n°27 volgens aanhangsel I. Wegingsmethode van de conformiteit volgens aanhangsel V. PT O produto é definido pelo n° 27 anexo I. Procedimento de avaliação da conformidade de acordo com anexo V. PL Sprzęt określony jest w punkcie 27 załącznika I I. Procedura określania zgodności zawarta jest w załączniku V. CS Zařízení je definováno pod č. 27 přílohy I. Postupy posuzování shody dle přílohy V.2000/14/EC - 2005/88/EC EL H ouškeuń prošobióričetai otov apiv.27 tou suvnjumévou I. Diabikasia ažiolóynosć tnc piotótntac siúmuva με το suvnjumévo V. faite on määritely liitteen I kohdassa n°27. Vaatimustenmukaisuuden arviointimenettely liitteen V mukaan I. RU устройство не определено. 27 корпуса I. Процедура оценки соответствия в соответствии с приложением V. SL aparat je določen v št. 27 priloge I. Izjava o skladnosti je v skladu s prilogo V. HR aparat je određen u br. 27 priloga I. Izjava o skladnosti u skladu je s prilogom V. TR Cihaz ek I n°27'de tanimlanmıştır. Ek V'e göre uygunluk değerlendirmesi prosedürü. BG приспособление в съответствие с No27 от приложението.I.Cъответствие с процедури съгласно приложение V. HU A készülék az I. melléklet 27. sz. pontja szerint került meghatározásra. Az értékelési módszer megfelelösége az V. melléklet szerinti. NO (støyutslipp i miljøet fra utstyr til utendørs bruk): Utstyret er definert i nummer 27 i tillegg I. Anvendt metode for samsvarsvurdering i henhold til tillegg V. SV Apparaten beskrivs ingående i bilaga I, paragraf n. 27. Procedur för utvärdering av överensstämmelse enligt bilaga V.

IT Livello pressione acustica The A-weighted sound pressure level Lpa in db(A), emitted by the appliance FR Niveau de pression acoustique DSchalldruckpegel Nivel de ruido NL Geluidsdrukniveau PT o nivel de pressão sonora ponderado A LpA em dB (A), emitido pelo aparelho PL Poziom ciśnienia akustycznego Hladina akustického tlaku Στάθμη ηχητικής πίεσης FI Äänen paineen taso RU Уровень звукового давления Stopnja zvoćnega hrupa Razina akustičnog pritiska TR Ses basinç seviyesi TR Акустично налягане HU Hangnyomás szint NO Akustisk trykknivå SV Akustisk trycknivå.

LpA

73 dB(A)

K (uncertainty)

1,5 dB (A)

IT Livello di potenza sonora misurato EN Acoustic power measured FR Niveau du puissance sonore mesuré DE Abgemesstes Schalleistungsniveau ES Nivel de potencia acústica mesurado NL Geluidsdrukniveau LwÄ gemeten PT Nivel de potencia acústica mensurada Znierzony poziom mocy akustycznej CS Naměřená hladina akustického výkonu Metrņμένη στάθμη ηχητικής ισχύος FI Mitattu äänitehotaso Akuystическая измеренная мощность Izniejen nivo zvočne moči HR Izmjerena razina zvučne snage Ölçülen akustik güç seviyesi Измерено ниво на мощност на звука HU Mért hangteljesítmény szint Nydeffekt, målt Uppmätt ljudeffektnivå.

LwA

87,1 dB(A)

K (uncertainty)

1,5 dB (A)

IT Livello di potenza sonora garantito Acoustic power granted Niveau du puissance sonore garanti DE Garantiertes Schalleistungsniveau ES Nivel de potencia acústica garantido NL Geluidsdrukniveau LwA gegarandeerd PT Nivel de potencia acústica garantida Guarantowany poziom mocy akustycznej CS Garantovaná hladina akustického výkonu Ēryunμένη στάθμη ηχητικής ισχύος FI Taattu äänitehotaso RK-Akустическая мощность предоставлено SL Zagotovljen nivo zvočne moči HR Zajamčena razina zvučne snage Garanti edilen akustik güç seviyesi BG Гарантирано ниво на мощността на звука HU Garantált hangteljesítmény szint NO Lydeffekt, garantert SV Garanterad ljudeffektnivå.

LwA

89 dB(A)

IT Il fascicolo tecnico si trova presso EN Technical booklet at FR Dossier thecnique auprès de: DE Das technische Aktenbündel befindet sich bei Els manual técnico se encuentra en: NL Technisch dossier bij: Processo técnico em: Dokumentacja techniczna znajduje się w firmie CS Technická dokumentace v: EL texnikós φάκελος βρίσκεται στη στην οδό FI Tiedoston thecnique alkaen: RU Texнические брошюры на STEHNIČNI akti so pri podjetju HR Tehnički akti nalaze se pri poduzeću TR Teknik fasikül BG Texнически файл при: HU Az iratanyag megtalálható a következő címen: NO File thecnique fra: Technisch dossier bij:

Lavorwash S.p.A via J.F.Kennedy, 12 - 46020 Pegognaga (MN) – Italy

Pegognaga 2020/02/27

Giancarlo Lanfredi

(Legal Representative

Lavorwash S.p.A.)

La ditta costruttrice si riserva il diritto di modificare senza preavviso i dati indicati • The manufacturer reserves the right to modify the declared data without advance notification • La maison se réserve le droit de modifier sans préavis les données déclarées • Das Haus behält sich das Recht vor, die genannten Angaben ohne Vorankündigung zu ändern • La empresa se reserva el derecho de modificar sin preaviso los datos declarados • De fabrikant behoudt zich het recht voor om de verklaarde gegevens zonder voorafgaand bericht te wijzigen • Н катаσκευαστική εταιρεία επιφυλάσσει το δικαίωμα να τροποποιήσει χωρίς προειδοποίηση τα υ ποδεικνυόμενα δεδομένα • Valmistaja pidättää oikeuden muuttaa tietoja ilman erillistä ilmoitusta • Изготовитель имеет право вносить изменения в указанные данные без предупреждения. • A empresa fabricante reserva-se o direito de modificar os dados indicados sem aviso prévio. • Poduzeće proizvođač ostavlja sebi na pravo da unese izmjene navedenih podataka bez da prethodno obavijesti o tome • Podjetje proizvajalca si pridržuje pravico do spremembe navedenih podatkov brez vnaprejšnjega obvestila • Tillverkaren förbehåller sig rätten att utan föregående meddelande ändra de angivna uppgifterna • Produsenten forbeholder seg retten til å endre de angitte dataene uten forhåndsvarsel
